16×16mm RGB DMX Neon Strip | DMX512 LED Neon Flex

Product Detail

Home Products LED Neon Strips RGB/RGBW LED Neon Strips Square 16x16mm RGB DMX Neon Strip Building Holiday

Square 16x16mm RGB DMX Neon Strip Building Holiday

Feature / Warranty

Elevate building and holiday lighting with our square 16×16mm DMX neon strip. Featuring 16 million RGB colors and smooth transitions, it supports custom patterns and multi-light synchronization. The one-piece silicone extrusion provides IP65/IP66 protection against rain and corrosion, ideal for large-scale installations in parks, bridges, and exhibition venues.

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

16x16mm RGB DMX Neon Strip

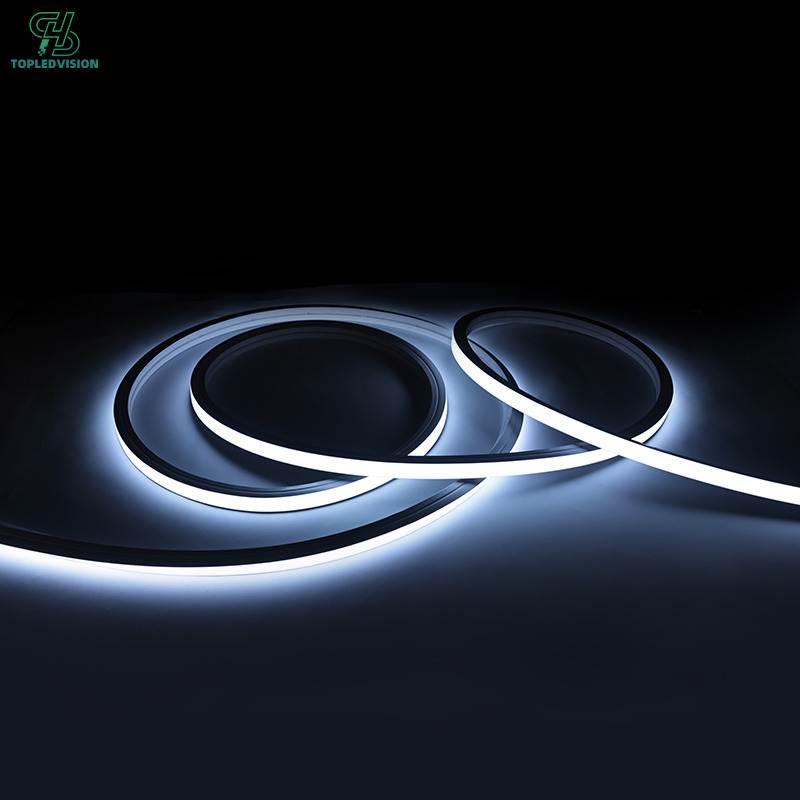

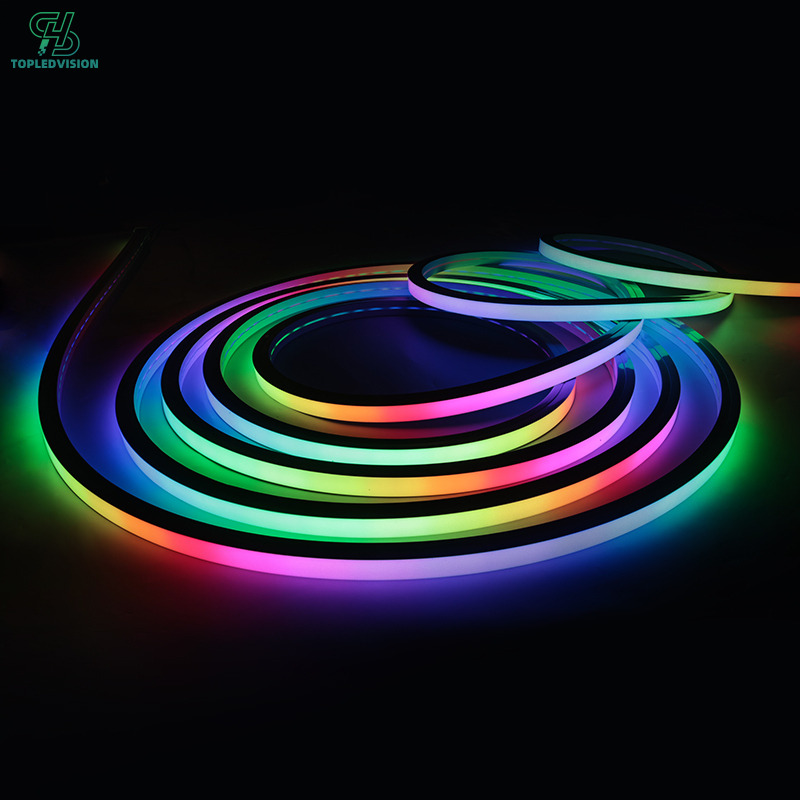

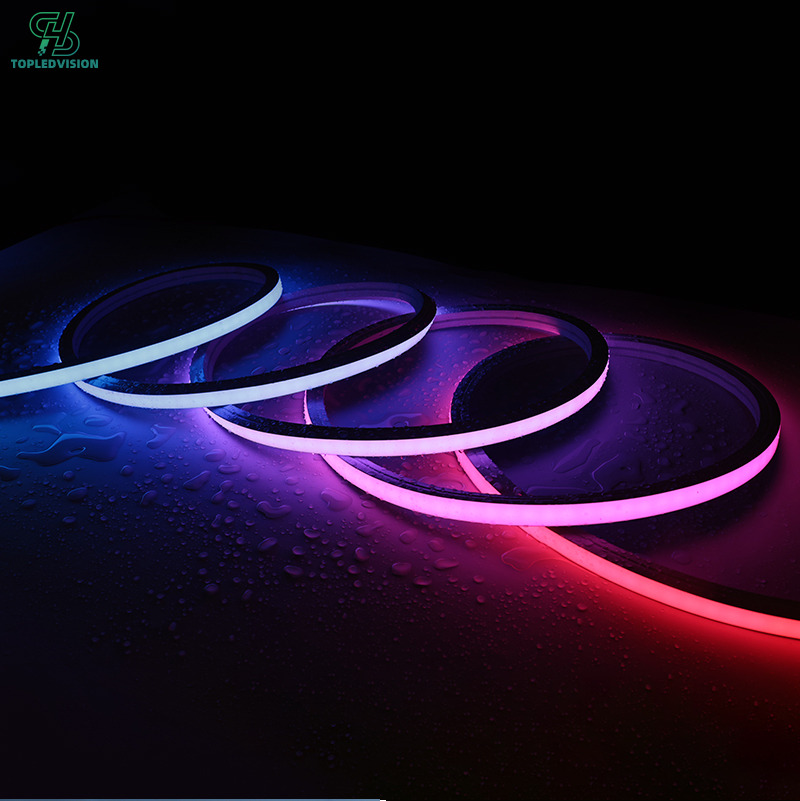

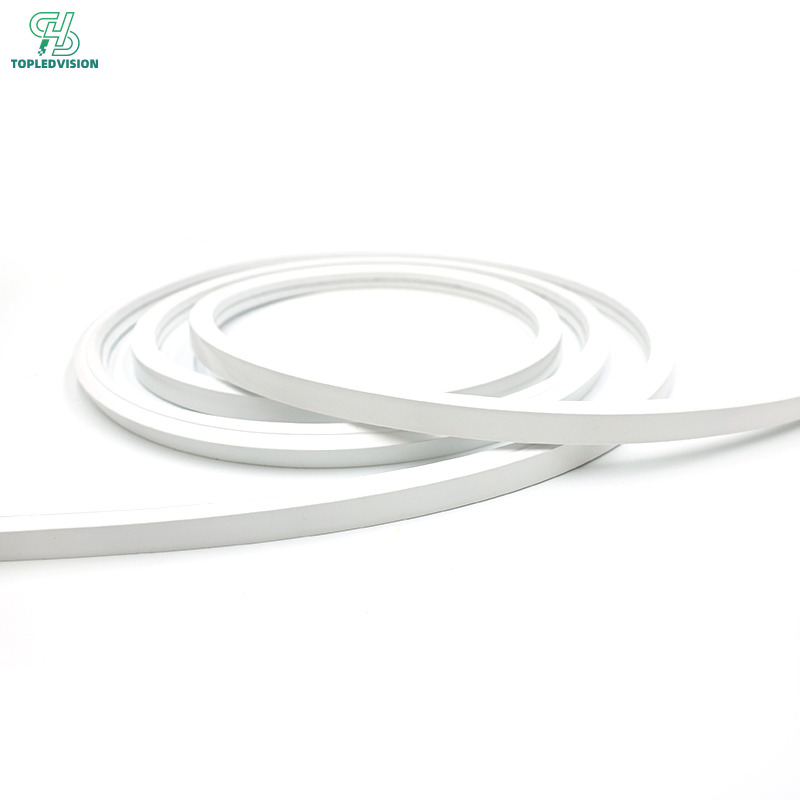

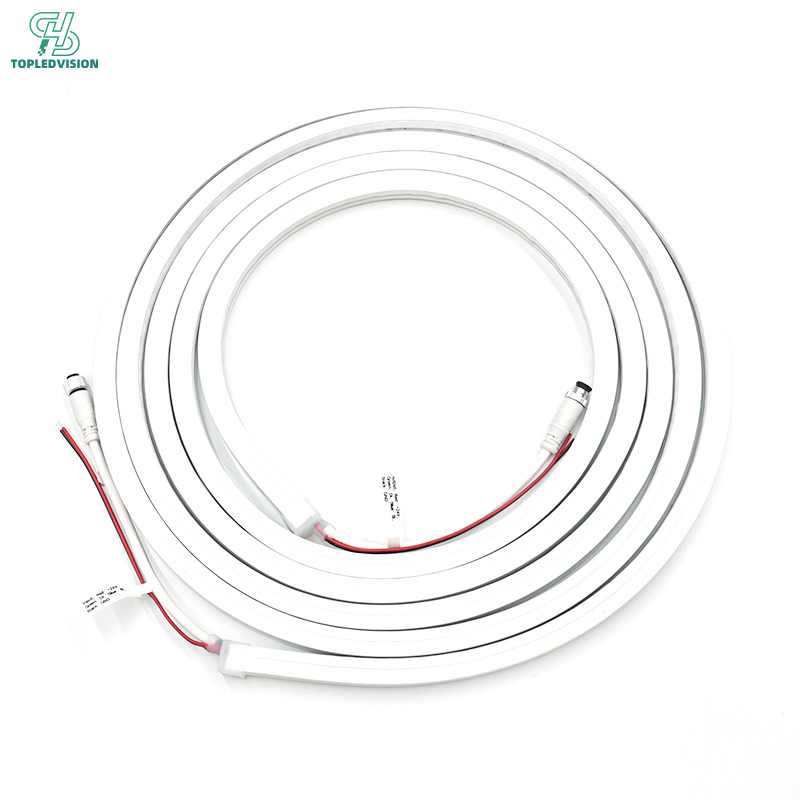

Our 16×16mm RGB DMX Neon Strip is a premium DMX512 RGB Neon Flex designed for commercial, architectural, and industrial lighting projects. Made with high-quality flexible LED strips and eco-friendly silicone, it provides bright, uniform RGB illumination, excellent color consistency, and reliable long-term performance.

Supporting mainstream IC protocols such as WS2811, WS2812B, and TM512, this RGB DMX Neon Flex enables dynamic pixel-by-pixel control for colorful lighting effects on buildings, bridges, signs, stages, and holiday installations. Available in 12V/24V DC, the 16×16mm RGB LED Neon Strip combines energy efficiency, low-voltage safety, flexible installation, and professional-grade performance.

Technical Specifications

lighting Effect	Dot free	lighting way	Top-lit
Colors	RGB	Support Dimmer	Yes
Dimension	W16*H16mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
Compatible IC	TM512、UCS512、 SM18512	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20Roll
Power	8/10/12 /14/16W/M

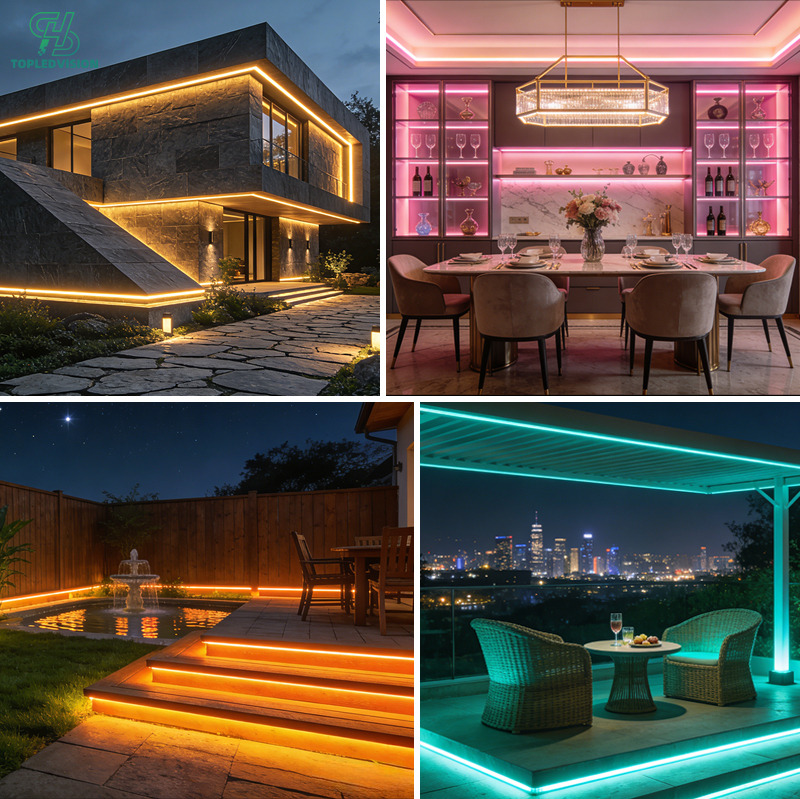

Ideal Applications for Commercial Projects

Our 16×16mm square neon strip is widely used in a variety of commercial and public lighting applications, including:

Building facade illumination and outline lighting
Bridge and infrastructure lighting
Park and landscape lighting
Exhibition and trade show displays
Wedding and event decorations
Holiday art installations and seasonal displays
Bar, KTV, and restaurant ambiance lighting
Indoor accent walls and commercial signage

Key Advantages of Our Square Neon Strip

Spot-Free Uniform RGB Illumination

Our 16×16mm RGB DMX Neon Strip uses high-density LEDs and an integrated silicone diffusion layer to deliver smooth, uniform RGB lighting with no visible LED dots, dark spots, or uneven areas. The soft, glare-free illumination maintains consistent color and brightness from near and far viewing distances. As a professional DMX512 RGB Neon Flex, it is ideal for building facades, architectural lighting, outdoor signage, bridges, stages, and large-scale holiday displays.

Square 16×16 Neon Strip DMX Building Holiday

Highly Flexible Free-Form Design

The 16×16mm RGB DMX Neon Strip supports both vertical and horizontal bending, making it easy to create letters, curves, corners, and irregular shapes. Its anti-breakage design helps prevent gasket damage during stretching and complex installations. Compatible with aluminum snap-on flexible clamps and mounting profiles, this RGB DMX Neon Flex maintains a straight, flat appearance without warping or bulging, ensuring clean and reliable installation for architectural and decorative lighting.

Pixel-Level Dynamic Lighting Control

The 16×16mm RGB DMX Neon Strip features RGB LEDs with independent IC control for precise pixel-level color control and smooth transitions across 16 million colors. Supporting DMX512 control, it delivers dynamic effects including chasing, flowing, breathing, strobe, gradient, running text, and custom patterns. Multi-light synchronization ensures smooth, responsive performance, making this RGB DMX Neon Flex ideal for architectural lighting, commercial spaces, stages, entertainment venues, and immersive installations.

Superior Outdoor Durability & Safety

The 16×16mm RGB DMX Neon Strip features a one-piece silicone enclosure with IP65/IP66 protection, providing reliable resistance to water, dust, and outdoor moisture. High-UV-resistant silicone helps prevent yellowing, aging, and salt-fog corrosion, while the -20°C to 65°C operating range supports stable performance in demanding environments. With V-0 flame-retardant construction, this DMX512 RGB Neon Flex delivers enhanced safety and durability for indoor, outdoor, architectural, commercial, and landscape lighting.

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Easy Installation & Reliable Support

We provide standardized, plug-and-play accessories that significantly reduce installation and commissioning time for large-scale projects. Our waterproof connectors meet IP67 protection standards, preventing electrical leakage and short circuits in outdoor environments. Specialized clips and profiles ensure secure, professional installation. For optimal performance, we recommend professional installation and provide detailed operating guides and troubleshooting support to all our customers.

FAQ

What IC protocols does this neon strip support?

Our 16×16mm square neon strip supports mainstream IC protocols including WS2811, WS2812B, and TM512, enabling full pixel-level control and dynamic lighting effects.

What is the maximum length for single-side power supply?

For constant voltage strips, we recommend powering from both sides when the length exceeds 7 meters. For constant current strips, dual-side powering is recommended when the length exceeds 15 meters to avoid voltage drop and brightness inconsistency.

Is this neon strip suitable for long-term outdoor use?

Yes, with an IP65/IP66 protection rating, high-UV-resistant silicone construction, and a wide operating temperature range of -20°C to 65°C, it is designed for long-term outdoor use in various weather conditions.

What is the warranty period for this product?

We offer a 3-year warranty on our 16×16mm square neon strip, covering manufacturing defects and ensuring reliable performance for your projects.

Get a Custom Quote Today

Whether you are working on a small commercial project or a large-scale building illumination installation, our 16×16mm square DMX RGB neon strip delivers exceptional quality and performance. We offer flexible customization options to meet your specific requirements, including different lengths, voltages, and IC configurations. The minimum order quantity is 50 meters. Contact us today to get a personalized quote and discuss how our lighting solutions can enhance your next project.
