SMD2835 CCT 192 LEDs/m Tunable White LED Strip Light

Feature / Warranty

Adjustable CCT Tunable White Lighting

Excellent Color Rendering Performance

Wide Application Compatibility

Customizable Lighting Solution

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

SDM2835 CCT 192LEDs/m Tunable White LED Strip Light

Light Strip Performance

The SDM2835 CCT LED Strip Light features high-quality SMD2835 LED chips with an ultra-high density of 192 LEDs per meter, delivering powerful brightness and excellent light consistency. With advanced dual-color temperature technology, it supports adjustable white lighting from warm white to cool white, allowing users to create different lighting atmospheres according to specific needs. The flexible PCB design ensures stable current transmission, reliable performance, and smooth operation with excellent color uniformity.

Lighting Effect

Designed for professional lighting applications, this high-density CCT LED strip provides smooth, uniform, and soft illumination with reduced light spots and dark areas. The adjustable color temperature function enables seamless switching between cozy warm white and refreshing cool white lighting, making it ideal for both functional and decorative lighting. High CRI options ensure accurate color rendering, enhancing the natural appearance of objects and interior spaces.

Energy Saving & Durability

Built with energy-efficient SMD2835 LED technology, the strip delivers high brightness while maintaining low power consumption. Premium LED components and optimized circuit design reduce heat generation, improve stability, and extend the service life. It offers excellent resistance to lumen depreciation, ensuring long-lasting brightness and reliable performance for continuous lighting applications.

Protection Rating

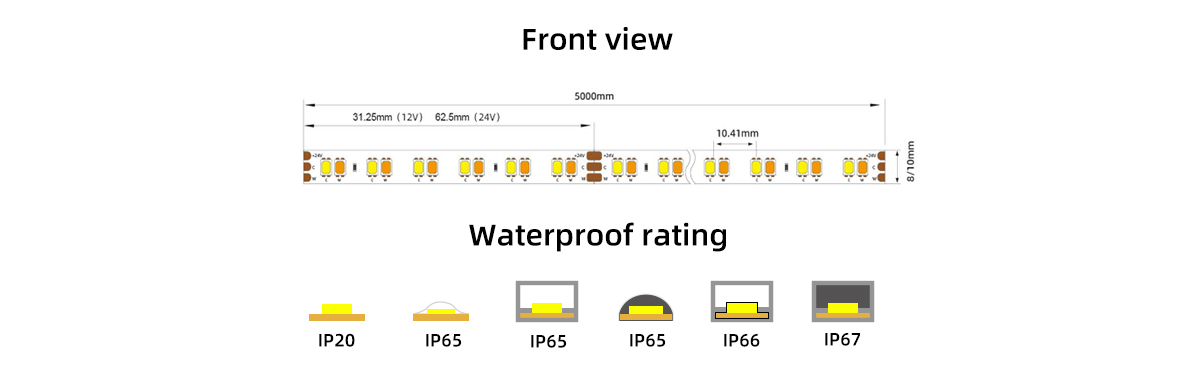

Available with different waterproof options including IP20, IP65, IP67, and IP68, the CCT LED strip can meet various indoor and outdoor lighting requirements. The protective silicone coating provides enhanced resistance against dust, moisture, and environmental factors, ensuring stable operation in different application conditions.

Easy Installation

The flexible LED strip design allows easy bending and cutting according to installation requirements. Equipped with strong adhesive backing, it supports quick and convenient installation on various surfaces. Compatible with CCT controllers, dimmers, and smart lighting systems, it provides flexible control solutions for customized lighting projects.

Applications

The SDM2835 CCT 192LEDs/m LED Strip Light is widely used for residential, commercial, and architectural lighting projects, including:

Cabinet lighting
Under-cabinet lighting
Cove lighting
Ceiling decoration lighting
Hotel and restaurant lighting
Retail display lighting
Office and commercial spaces
Interior architectural lighting
Smart home lighting systems

With its high-density LED arrangement, adjustable color temperature, energy efficiency, and flexible installation design, the SDM2835 CCT 192LEDs/m LED Strip Light provides a professional lighting solution for modern illumination projects requiring high quality, versatility, and long-term reliability.

Technical Parameters

LEDs	192Chips/m	Support Dimmer	Yes
Color Temperature	2700-6500K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE,FCC, LVD
Power	6/8/10/12/14W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 CCT LED Strip Lights: We recommend having 2835 CCT LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 CCT LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and-connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 metersand constant currentstrip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,... please use the netural type, do not use acid type or something with sulfur.
