S-Type Diffusion Lens 30 LED Strip Light (DIFFUSION LENS LED STRIP LIGHT)

Feature / Warranty

No dark areas

S-Type structural design

Stable and durable

Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

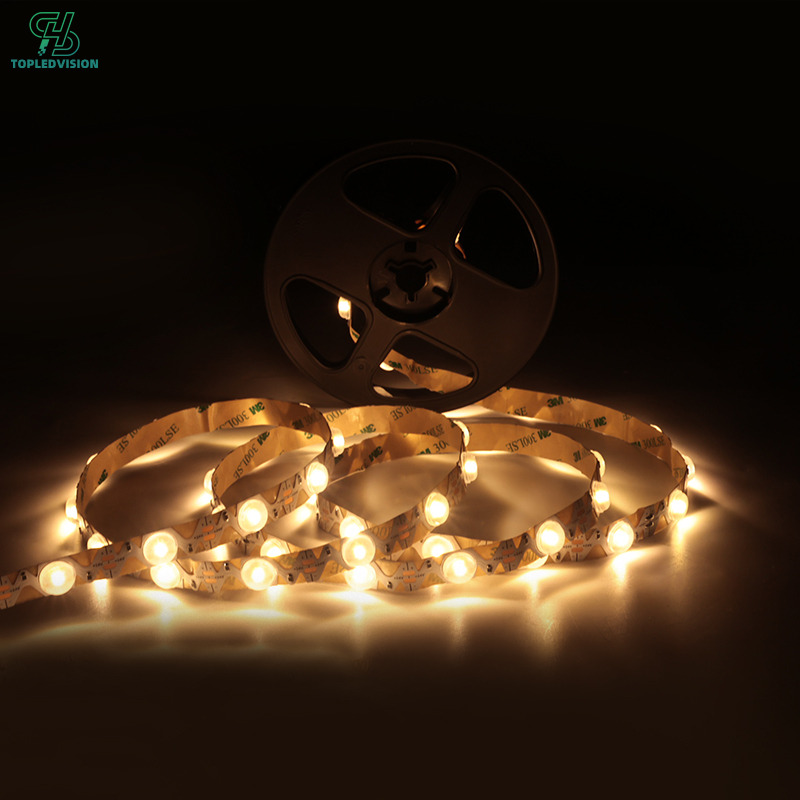

S-Type Diffusion Lens 30 LED Strip Light

LED Strip Performance

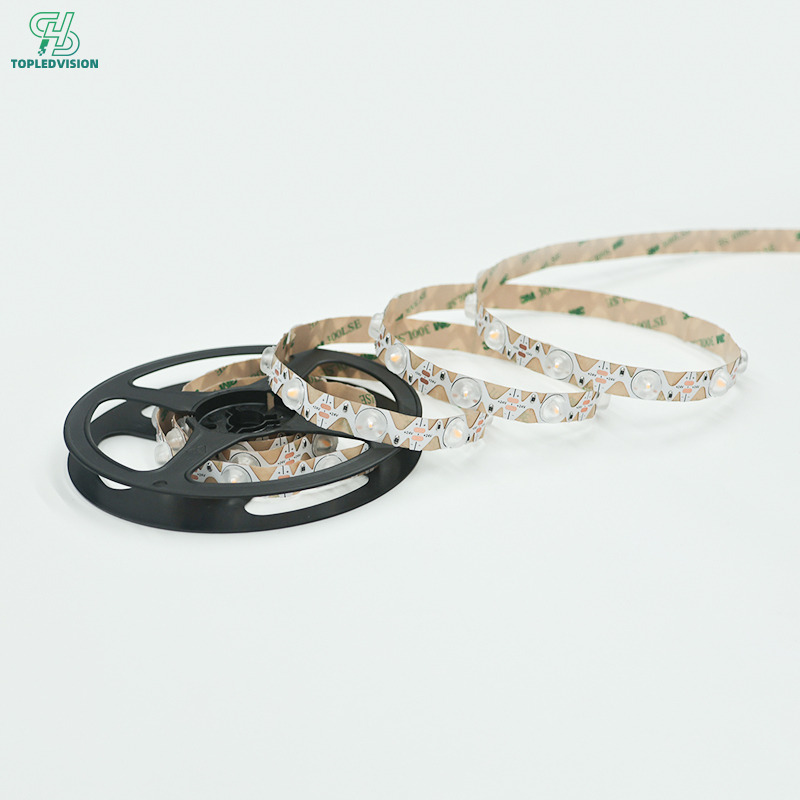

The S-Type Diffusion Lens LED Strip Light features an innovative S-shaped flexible PCB design that easily bends to fit curved surfaces and custom shapes. Equipped with 30 LEDs per meter and optical diffusion lenses, it delivers smooth, uniform illumination without dark spots or hotspots, ensuring consistent brightness for long-distance installations. The PC lens protects LED chips, improves heat dissipation, and reduces light decay for reliable, long-lasting performance.

Lighting Effects

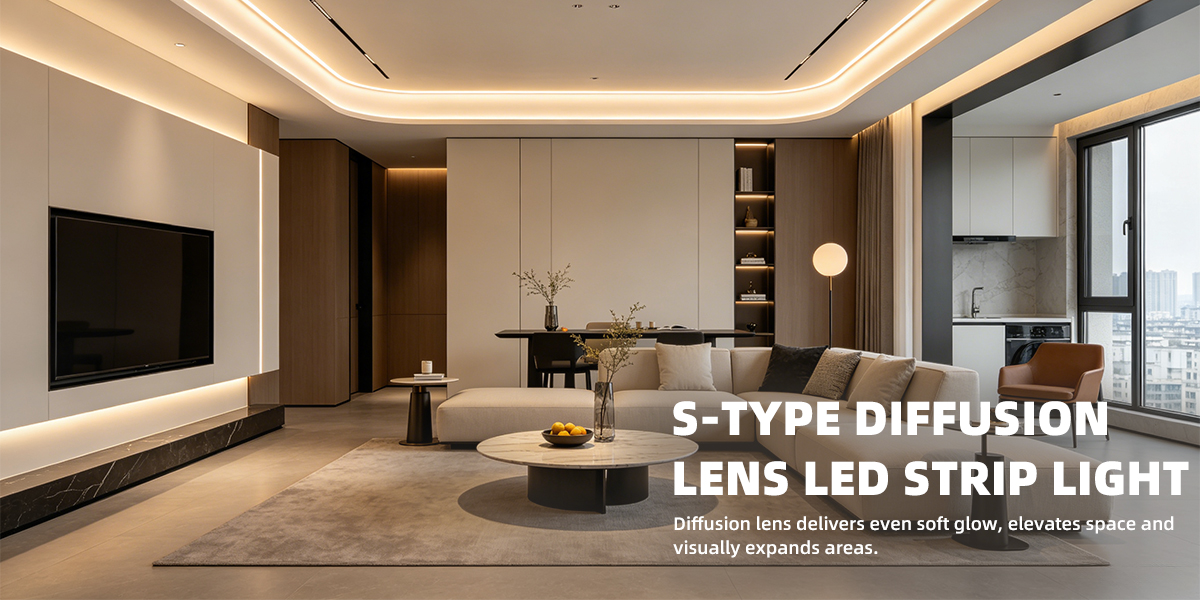

The S Shape LED Strip Light uses a 3D wave-pattern structure and diffuse reflection lens technology to create seamless, shadow-free lighting. The diffusion lens softens LED hotspots and fills gaps around corners, producing a continuous soft glow with excellent color consistency. High CRI and flicker-free options are available for realistic color rendering in premium lighting applications.

Energy Efficient & Durable

Designed for high efficiency and low optical loss, this flexible LED strip light provides bright, energy-saving illumination with stable performance. The S-shaped substrate improves heat dissipation, while the protective PC lens extends LED lifespan and maintains brightness during long-term operation, making it ideal for 24/7 commercial lighting.

Protection Rating

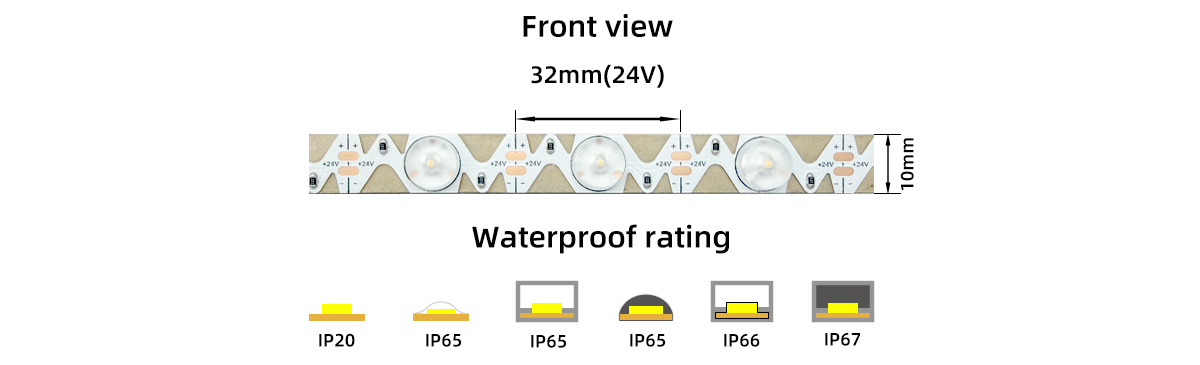

The standard IP20 S-Type Diffusion Lens LED Strip is designed for dry indoor applications, with a sealed PC lens protecting LEDs from dust and daily contaminants. The optional IP67 waterproof LED strip provides enhanced protection for humid environments and outdoor installations.

Easy Installation

The flexible S-shaped LED strip design allows direct installation on curved surfaces without frequent cutting or soldering. With strong adhesive backing, it can be quickly mounted into light channels, cabinets, display fixtures, and architectural structures.

Applications

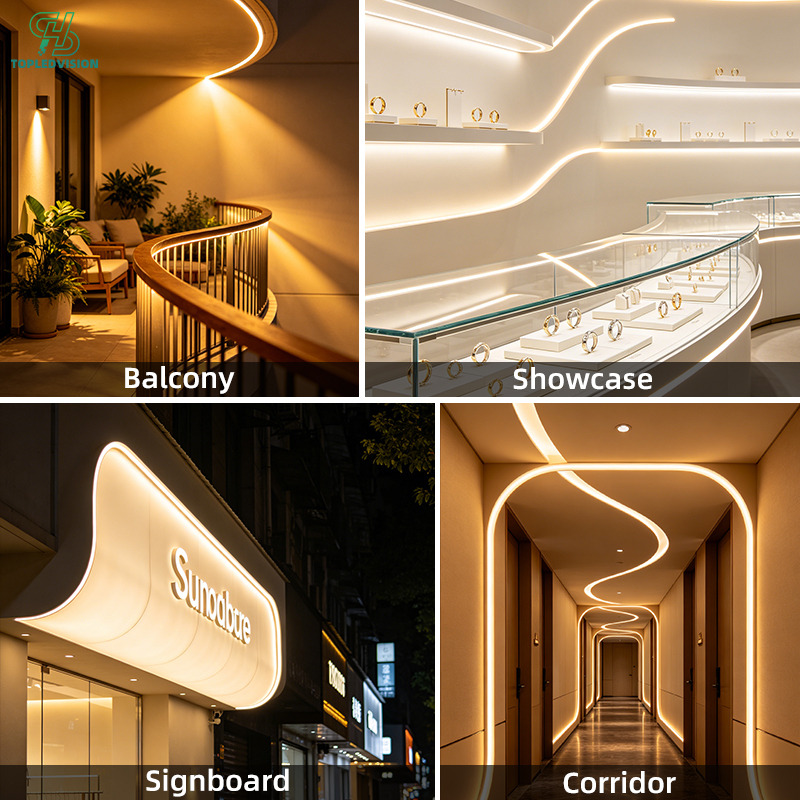

The S-Type Flexible LED Strip Light is ideal for curved accent walls, wardrobe and wine cabinet lighting, baseboards, shopping mall ceilings, storefront windows, clothing displays, exhibition halls, custom decorative lighting, and architectural light channels. It is the perfect solution for projects requiring uniform, flexible, and shadow-free LED lighting.

Technical Parameters

LEDs	30Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K RGB, RGBW	Lifespan	>50000h
CRI	80/90/95Ra	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using lens Strip Lights: We recommend having lens strip lights installed by a professional before use. Please read the following precautions to avoid damaging the lens strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

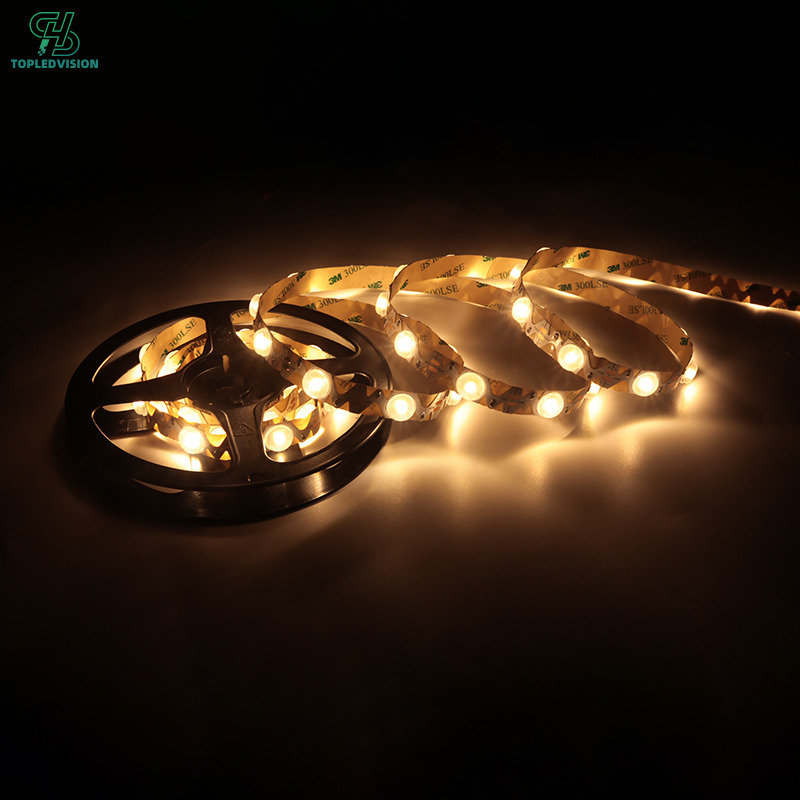

No Dark Areas

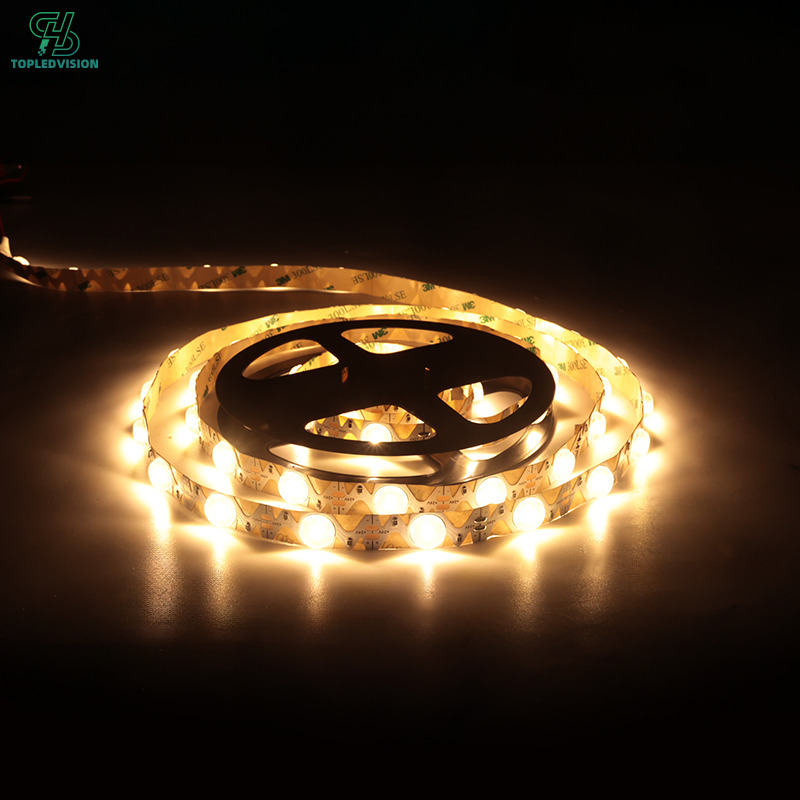

S-Type Diffusion Lens 30 LED Strip Light uses a curved wide-angle diffusion lens and S-shaped PCB design to eliminate dark spots and shadow lines, delivering smooth, uniform, and continuous illumination. With 30 LEDs per meter, this S Type Flexible LED Strip Light provides cost-effective, soft diffuse lighting with excellent light consistency. Its wide-angle cross-lighting technology ensures seamless brightness for curved surfaces, long-distance installations, and backlit applications. Ideal for architectural lighting, curved decoration, advertising light boxes, ceiling ambient lighting, and custom LED strip projects requiring shadow-free, high-quality illumination.

High Color Rendering

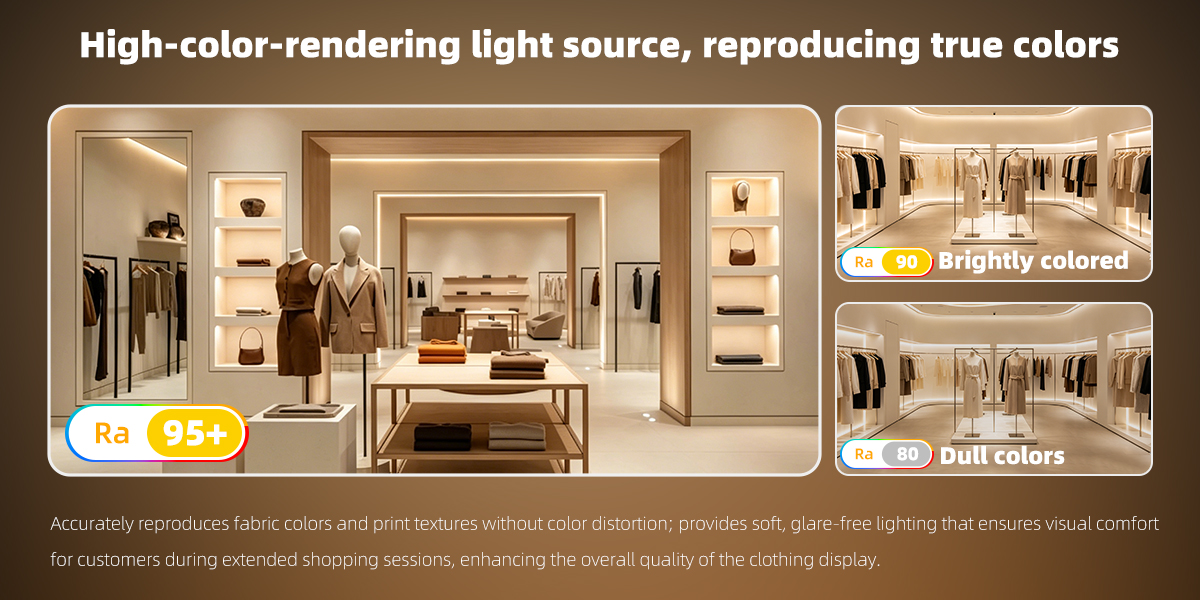

S-Type Diffusion Lens LED Strip Light features a high color rendering LED source with soft diffused illumination, accurately restoring the true colors and textures of fabrics, products, and decorative materials. With high CRI performance and flicker-free lighting, this S Type Flexible LED Strip delivers natural, eye-friendly illumination for long-term viewing. Ideal for retail displays, architectural lighting, light boxes, and premium interior lighting applications requiring realistic color reproduction.

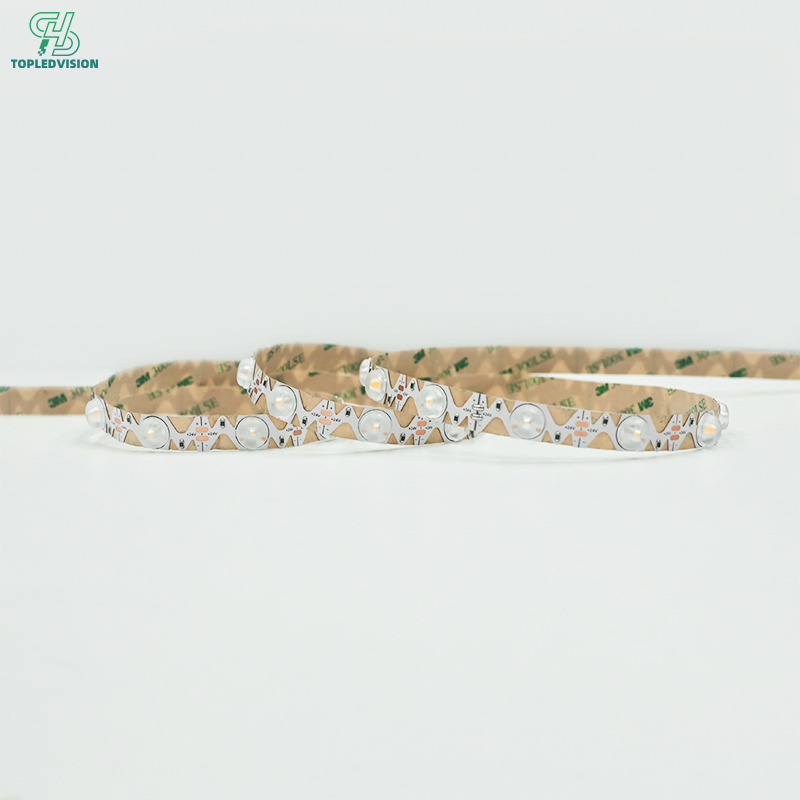

S-Type Structural Design

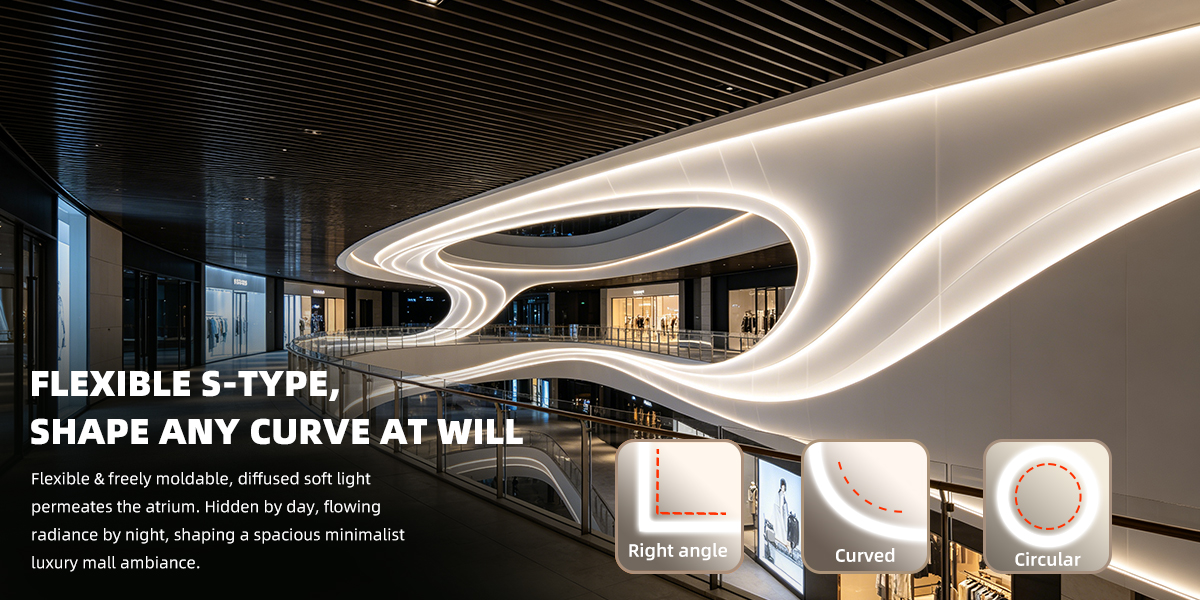

The innovative S-shaped PCB design expands the light-emitting area for 3D uniform illumination, eliminating dark gaps in curved corners. This S-Type Diffusion Lens LED Strip Light bends smoothly to fit various curved surfaces, combining flexible installation with seamless, shadow-free lighting. Ideal for curved architectural lighting, decorative lighting, signage, and custom LED strip applications.

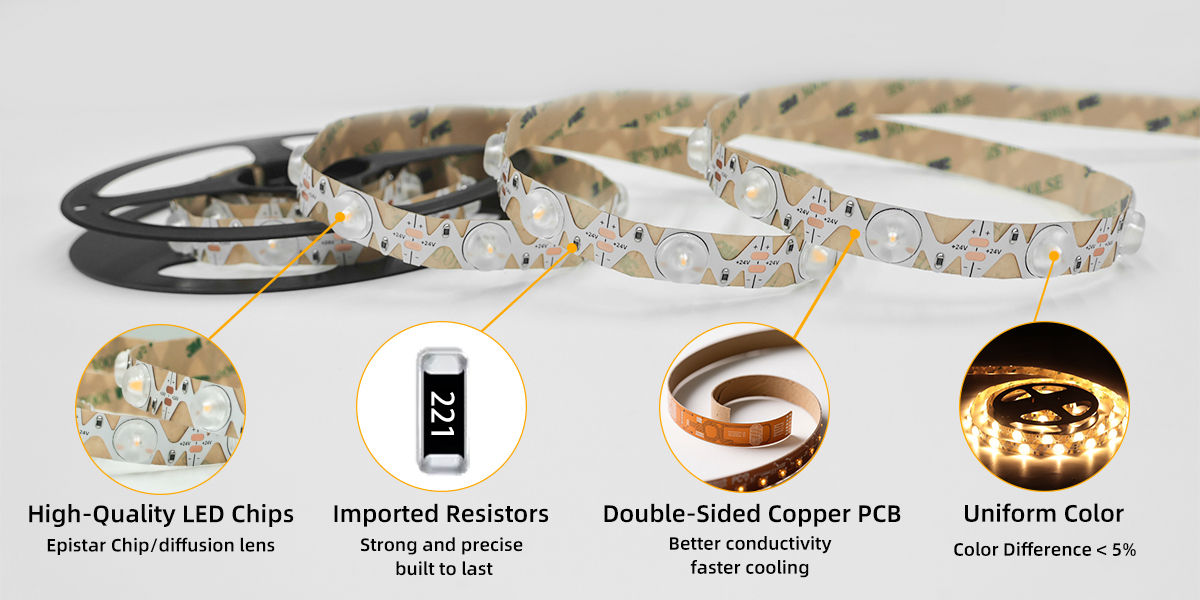

Stable & Durable Performance

The S-Type Diffusion Lens LED Strip Light features an S-shaped PCB design with enhanced heat dissipation and a fully enclosed PC diffusion lens to protect LED chips and reduce light decay. Optimized circuit design ensures stable voltage distribution, reliable performance, and long service life during continuous operation. Ideal for indoor architectural lighting, decorative lighting, signage, and commercial LED strip applications requiring durable, long-lasting illumination.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
