SMD2835 RGB LED Strip 240 LEDs/m | High Density Flexible RGB LED Light from China Manufacturer

Product Detail

Home Products RGB LED Strip Lights RGB LED Strip High Density SMD2835 RGB LED Strip 240 LEDs/m

High Density SMD2835 RGB LED Strip 240 LEDs/m

Feature / Warranty

Ultra High Density LED Design

Excellent Color Performance

Stable Performance & Long Lifespan

Customizable Solutions

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

SMD2835 RGB 240 LED Strip Product Description

High-Density Lighting Performance

The SMD2835 RGB LED Strip features 240 high-efficiency LEDs per meter, delivering exceptional brightness and smooth color output. Equipped with advanced SMD2835 LED chips, it provides stable performance, excellent color consistency, and a wide 120° beam angle for uniform illumination. The high-density LED arrangement effectively reduces dark areas and creates a seamless lighting effect, making it ideal for applications requiring premium visual quality.

Outstanding Lighting Effects

Designed for dynamic and decorative lighting applications, this RGB LED strip supports vibrant red, green, and blue color mixing, producing rich and customizable lighting effects. The high-density layout ensures smooth, continuous illumination with minimal light gaps, creating a professional dotless lighting appearance. It is suitable for ambient lighting, accent lighting, and creative RGB lighting designs.

Energy Efficient & Long-Lasting

Built with high-quality LED components and optimized circuit design, the SMD2835 RGB LED Strip delivers high brightness with low power consumption. The efficient heat dissipation structure helps reduce LED aging and lumen depreciation, ensuring stable operation and a long service life. With reliable performance and excellent energy efficiency, it helps lower maintenance costs while providing consistent lighting output.

Reliable Protection & Durability

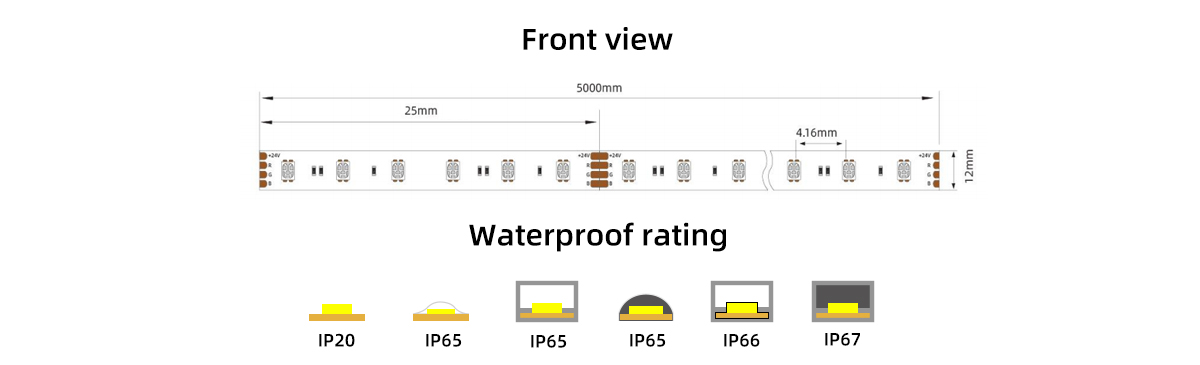

Available with multiple waterproof options, including IP20, IP65, IP67, and IP68, the LED strip can adapt to different indoor and outdoor environments. The protective coating design provides resistance against dust, moisture, and daily environmental impacts, ensuring reliable performance in various installation conditions.

Easy Installation & Flexible Design

Featuring a flexible PCB design, the RGB LED strip can be easily bent and installed around curves, corners, and irregular surfaces. The cuttable design allows customized lengths according to project requirements, while the strong adhesive backing enables quick and convenient installation without complicated tools.

Wide Range of Applications

The SMD2835 RGB 240 LED Strip is widely used for commercial lighting, architectural decoration, retail displays, hotels, restaurants, bars, home decoration, cabinet lighting, ceiling lighting, and creative entertainment spaces. Its high-density illumination and customizable RGB effects make it an excellent choice for both professional lighting projects and decorative applications.

Technical Parameters

LEDs	240Chips/m	Support Dimmer	Yes
Colors	RGB	Lifespan	>50000h
LED/Bright	2500-3100mcd/led	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/14 W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 RGB LED Strip Lights: We recommend having 2835 RGB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 RGB LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
