COB RGBW LED Strip Light | 896 LEDs/m High Density 24V RGBW COB LED Strip from China Manufacturer

COB RGBW 896 LED Strip Light

High-Density COB Technology

The COB RGBW 896 LED Strip Light features 896 LEDs/m high-density COB packaging for smooth, continuous and dotless illumination. The 140° wide beam angle provides uniform light with no dark spots or hotspots. RGBW technology delivers vibrant colors and clean, natural white light with CRI ≥90 for accurate color rendering.

Smooth & Uniform Lighting

This RGBW COB LED Strip provides seamless, soft and flicker-free illumination with smooth color transitions and stepless dimming. High-density LEDs ensure consistent brightness and color across the entire strip, making it ideal for ambient and architectural lighting.

Energy Efficient & Durable

Designed for 24V low-voltage systems, the strip offers low power consumption, low heat generation and stable performance. Premium LED chips, copper PCB and optimized heat dissipation help reduce light decay and provide a lifespan of up to 50,000 hours.

Flexible & Easy to Install

The flexible 24V RGBW COB LED Strip can be easily bent, cut and concealed around curves, cabinets, ceilings and narrow spaces. Strong adhesive backing enables quick and convenient installation.

IP20 / IP65 / IP67 Options

Available in IP20, IP65 and IP67 versions for different environments. IP20 is ideal for dry indoor spaces, IP65 for damp areas, and IP67 for outdoor and weather-exposed applications.

Wide Applications

Perfect for home lighting, cabinet lighting, commercial decoration, architectural lighting, retail displays, hotels, bars and ambient lighting projects.

Technical Parameters

LEDs	896Chips/m	Support Dimmer	Yes
Color Temperature	RGB+White (80/90/95Ra)	Lifespan	>50000h
LED/Bright	2500-3100mcd/led	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	14W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using RGBW LED Strip Lights: We recommend having RGBW LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGBW LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Even Lighting

With 896 LEDs/m high-density COB technology, this COB RGBW LED Strip Light delivers smooth, continuous and dotless illumination without visible LED points or dark spots. The 140° wide beam angle provides soft, even light distribution, while consistent brightness and color across the strip create seamless, refined and immersive linear lighting.

COB RGBW 896

RGBW Four-in-One

Featuring RGBW 4-in-1 LED chips, this RGBW COB LED Strip delivers vivid, saturated colors and pure white light in one flexible strip. Independent RGBW channels enable smooth color mixing and adjustable white lighting, creating seamless transitions without color bleeding. It combines color-changing ambient lighting and practical white illumination for versatile residential, commercial, and architectural applications.

COB RGBW 896 2

High Color Rendering

With CRI ≥90, this COB RGBW LED Strip Light delivers accurate, natural color reproduction with rich and vivid details. High color rendering minimizes color distortion and enhances the true appearance of furniture, products, displays, and architectural surfaces. The soft, comfortable light creates a refined visual atmosphere for residential, commercial, retail, and architectural lighting.

COB RGBW 896 3

Stable & Durable

Built with a high-quality flexible PCB, copper conductors and COB integrated packaging, this COB RGBW 896 LED Strip provides efficient heat dissipation and stable performance. Low heat generation helps reduce light decay, flicker and color shift during long-term operation. With excellent resistance to bending, oxidation and aging, the 24V RGBW COB LED Strip delivers reliable, consistent lighting for up to 50,000 hours.

COB RGBW 896 4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Product Detail

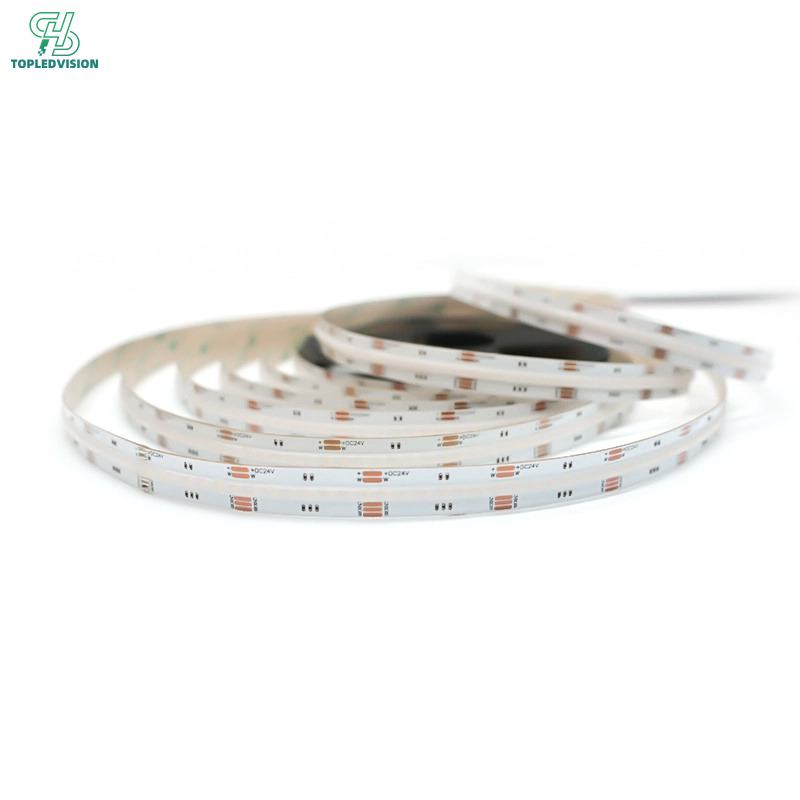

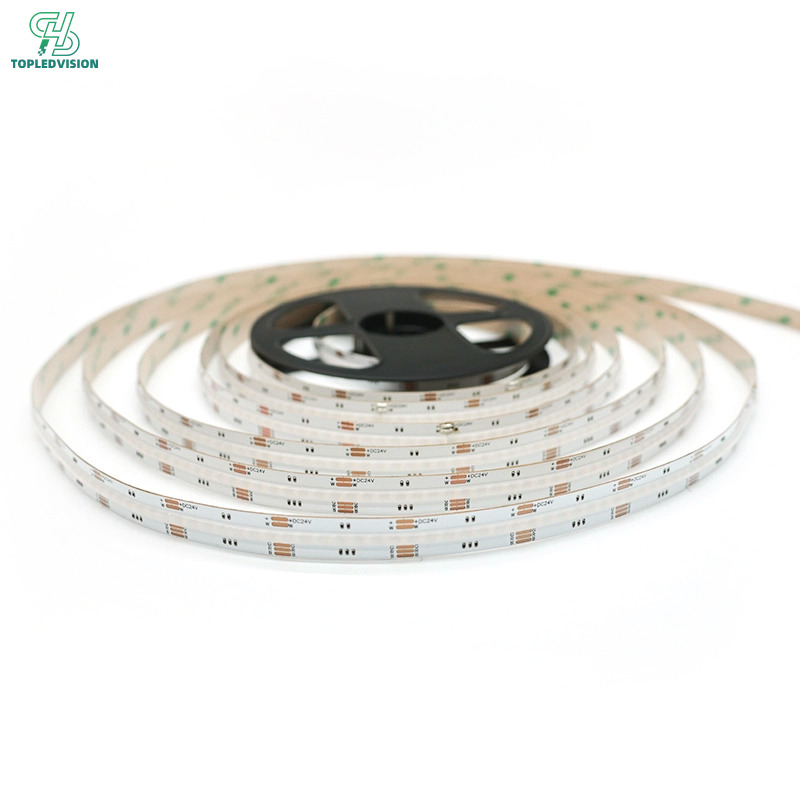

High Density COB RGBW 896 LED Strip Light 10mm-5m (COB RGBW STRIP SERIES )

COB RGBW 896 LED Strip Light

Even Lighting

RGBW Four-in-One

High Color Rendering

Stable & Durable
