High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
High Density 2835 RGB LED Strip Light 120 LEDs/m 5mm-5m (2835 RGB STRIP SERIES )
Feature / Warranty
DC
  • Exceptional color performance
  • No Dark Spots
  • Energy-saving and long-lasting
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

2835 RGB 120 LED Strip Light

Product Features

The 2835 RGB LED Strip Light 120 LEDs/m features premium SMD 2835 RGB LED chips with high-density arrangement, delivering smooth color mixing and vibrant lighting effects. Each LED integrates independent red, green, and blue chips to achieve accurate RGB color reproduction with up to 16 million colors. It supports multiple lighting effects including static colors, gradient transitions, breathing, flashing, and dynamic color changes.

Powered by safe DC12V/24V low voltage, this high density RGB LED strip offers high brightness, excellent color consistency, stable performance, long lifespan, and flexible customization options for various lighting projects.

Smooth & Uniform Lighting Effects

Designed with 120 LEDs per meter, the 2835 RGB LED Tape Light provides continuous and uniform illumination with no visible spots, dark areas, graininess, or harsh glare. The optimized RGB light mixing technology creates soft, natural colors and seamless gradients, making it ideal for decorative and ambient lighting applications.

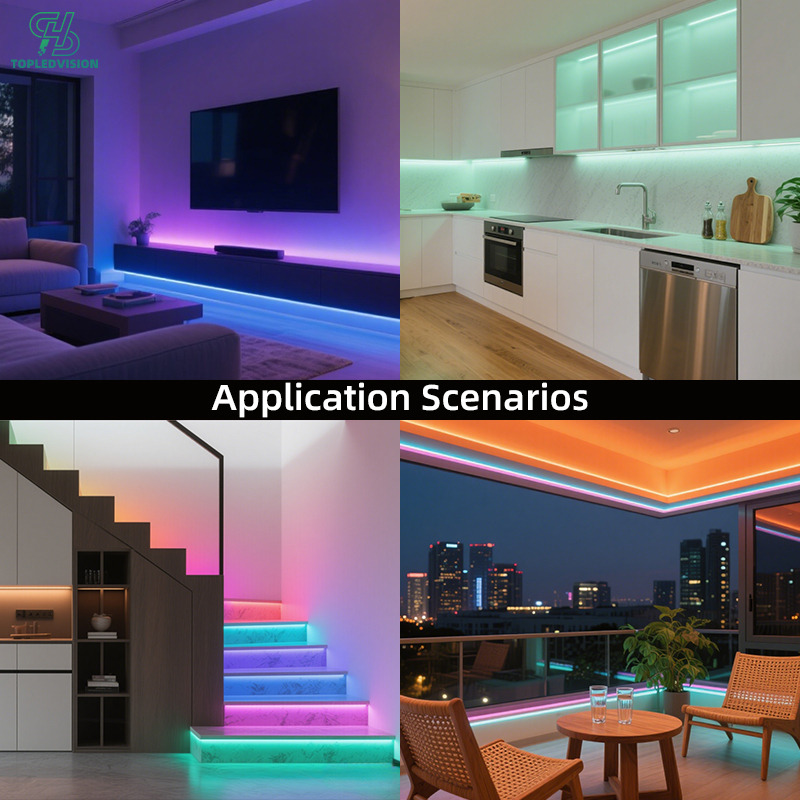

Suitable for:

  • Sofa backdrop ambient lighting

  • TV wall decoration

  • Cabinet lighting

  • Baseboard lighting

  • Billboard and signage illumination

  • Backlighting for illuminated letters

Energy-Efficient & Long-Lasting Performance

Built with high-quality 2835 RGB LEDs, gold-plated/copper LED brackets, and a double-layer copper PCB, this RGB LED Strip Light delivers excellent conductivity and heat dissipation. With low power consumption, minimal light decay, and up to 50,000 hours lifespan, it maintains stable brightness and consistent colors for long-term use.

Waterproof RGB LED Strip Options

Available with multiple waterproof ratings to meet different installation environments:

  • IP20 RGB LED Strip Light – Ideal for dry indoor applications such as cabinets, shelves, accent walls, and furniture lighting.

  • IP65 RGB LED Strip Light – Dustproof and splash-resistant, suitable for kitchens, balconies, bathrooms, and humid areas.

  • IP67 Outdoor RGB LED Strip Light – Designed for outdoor applications including gardens, canopies, poolside areas, and landscape decoration.

This flexible waterproof RGB LED strip provides reliable lighting performance for both residential and commercial projects.

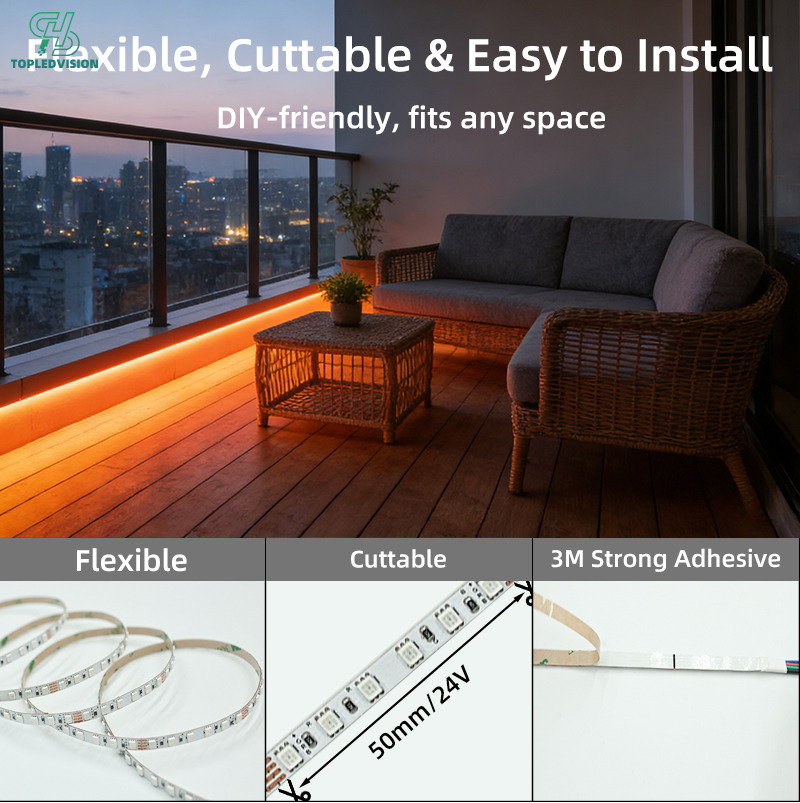

Easy Installation & Flexible Design

The 2835 RGB LED Tape Light features a strong 3M adhesive backing for quick peel-and-stick installation without drilling. The flexible PCB design allows easy bending around corners, curves, and uneven surfaces, making it suitable for cabinets, shelves, channels, and customized lighting layouts.

Wide Applications of 2835 RGB LED Strip Light

The 2835 RGB 120 LED Strip Light is widely used for:

  • TV background lighting

  • Sofa wall ambient lighting

  • Gaming room decoration

  • Hotel room lighting

  • Hallway accent lighting

  • KTV and bar atmosphere lighting

  • Garden and courtyard decoration

  • Railing and landscape lighting

  • Commercial display lighting

Technical Parameters

LEDs

120Chips/m

Support

Dimmer

Yes

Color

Temperature

RGB

Lifespan

>50000h

LED/Bright

2500-3100mcd/led

Working

Temperature

-20-65℃

Input Voltage

12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

4/6/8/10/12W/M

Packing

5/10/20/50/100m/Roll

2835 RGB 120D裁剪.jpg
  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using RGB LED Strip Lights: We recommend having RGB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGB LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Exceptional Color Performance

The 2835 RGB LED Strip Light features high-density SMD 2835 RGB LEDs with a close-pitch arrangement, enabling smooth RGB color mixing and excellent color consistency. With 16 million adjustable colors, it delivers vibrant, highly saturated hues, seamless gradients, and uniform illumination without dark spots, graininess, or color distortion. The soft, non-glare light creates premium ambient effects for home decoration, cabinet lighting, accent walls, retail stores, hotels, KTVs, exhibition halls, and commercial spaces.

Designed as a high density RGB LED strip, it provides smooth color transitions, rich lighting effects, and reliable performance for decorative and auxiliary lighting applications.

2835-RGB-120D详情页_05

No Dark Spots & Seamless Illumination

The 2835 RGB LED Strip Light features a high-density 120 LEDs/m SMD 2835 RGB LED arrangement with a compact pitch design and advanced light-diffusing structure. It delivers smooth, uniform illumination with no dark spots, no visible dots, and no color unevenness. The optimized RGB mixing technology creates natural color blending, seamless gradients, and soft, eye-friendly lighting effects.

Ideal as a high density RGB LED strip, it provides premium ambient lighting solutions for home decoration, cabinet lighting, ceiling lighting, retail displays, hotels, KTVs, and commercial spaces.

2835-RGB-120D详情页_11

Energy-Efficient & Long-Lasting Performance

The 2835 RGB LED Strip Light adopts a low-power SMD 2835 RGB LED design with high thermal conductivity, ensuring efficient heat dissipation, stable operation, and reduced light decay. With a lifespan of up to 50,000 hours, it maintains consistent brightness, color accuracy, and reliable performance over extended use. Designed as a durable high density RGB LED strip, it is ideal for long-term indoor and outdoor lighting applications.

2835-RGB-120D详情页_17

Waterproof & Versatile Design

The 2835 RGB LED Strip Light supports optional IP20, IP65, and IP67 waterproof protection to meet different application requirements. IP20 is ideal for indoor projects, offering excellent flexibility and easy installation. IP65 provides dust and splash resistance for humid environments, while IP67 waterproof RGB LED Strip Light offers reliable outdoor protection against rain, moisture, and weather conditions.

With durable construction and strong environmental adaptability, this high density RGB LED strip is suitable for home decoration, commercial lighting, outdoor landscape lighting, hotels, retail stores, and architectural projects.


2835-RGB-120D详情页_23


Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
