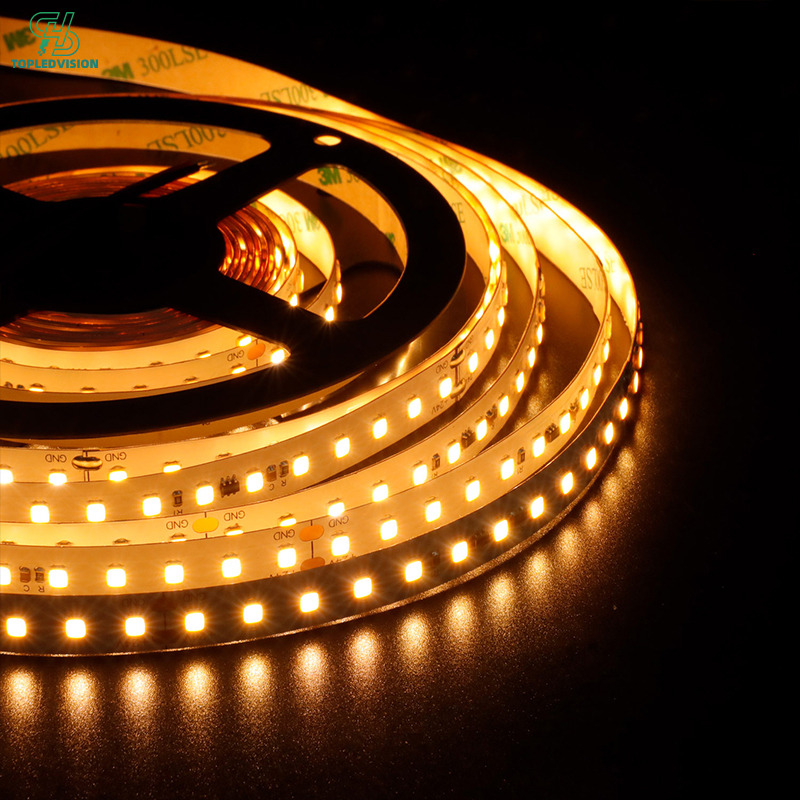

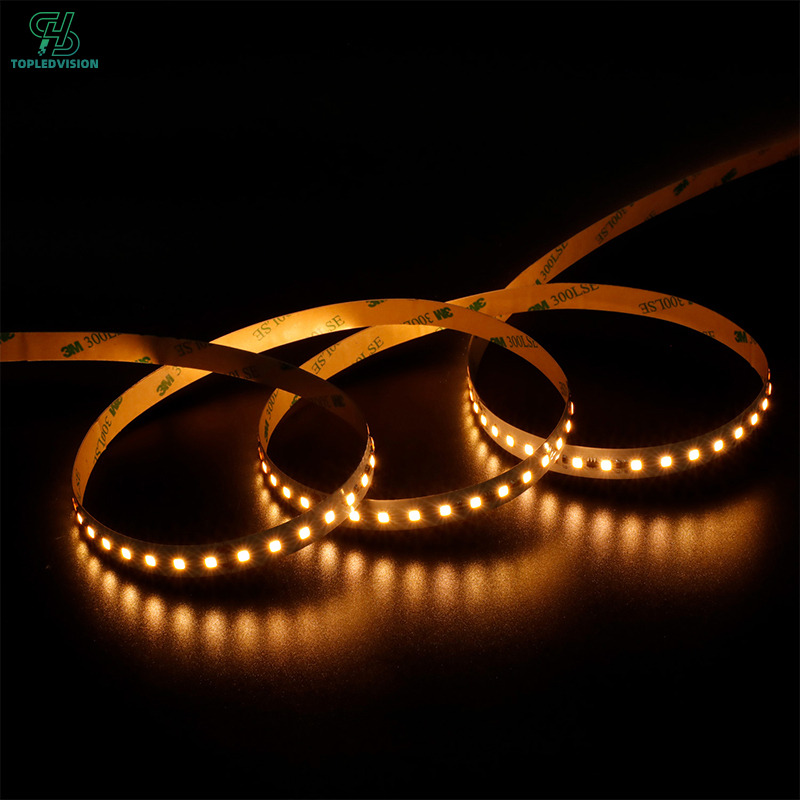

2835 Constant Current 24V 120LED/m LED Strip Light

Stable Performance, Uniform Illumination & Reliable Long-Term Lighting

The 2835 Constant Current 24V 120LED/m LED Strip Light is designed for professional linear lighting applications that require stable brightness, excellent uniformity, energy efficiency, and reliable performance. Featuring high-density SMD 2835 LEDs and constant current technology, it delivers smooth and consistent illumination while helping minimize brightness variations along the strip.

Stable & Reliable Performance

Advanced constant current technology helps regulate current flow and maintain stable light output, reducing brightness loss caused by voltage drop. With 120 LEDs per meter, the strip provides consistent illumination and is suitable for continuous and long-distance linear lighting projects.

Smooth & Uniform Illumination

The high-density 120LED/m configuration creates a closely spaced light source for smooth, continuous illumination with reduced dark areas and visible light spots. It is ideal for applications where a clean and professional lighting effect is required, including cove lighting, cabinet lighting, display lighting, and architectural projects.

Energy Efficient & Durable

High-quality SMD 2835 LED chips provide efficient light output while helping reduce energy consumption. Optimized circuit design and thermal management support stable operation, low lumen depreciation, and a long service life, making the strip suitable for extended daily use.

Flexible Protection Options

Different protection configurations can be selected according to project requirements, including IP20, IP65, IP67, and other customized options. Waterproof and protective versions are suitable for environments requiring additional resistance to moisture, dust, and outdoor conditions. Please select the appropriate protection level based on the actual installation environment.

Easy & Flexible Installation

The flexible PCB design allows the LED strip to bend around curves and fit different installation spaces. It can be cut at designated cutting points and customized to the required length, making installation, replacement, and maintenance simple and convenient.

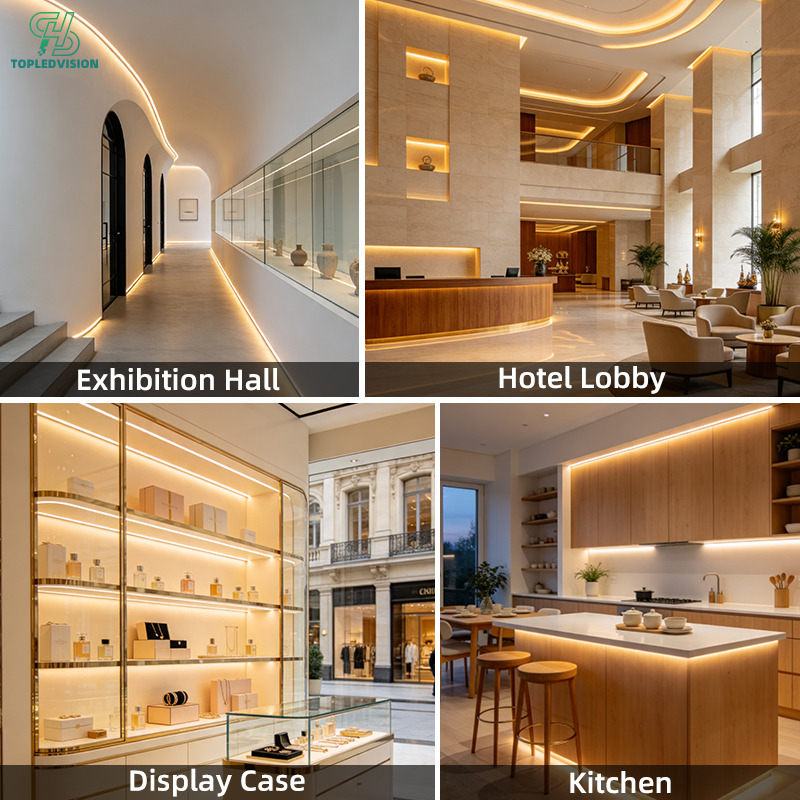

Wide Range of Applications

The 2835 Constant Current LED Strip Light is suitable for a wide variety of residential, commercial, and architectural lighting applications.

Ideal for:

Cove & ceiling lighting
Cabinet & furniture lighting
Retail & display lighting
Hotel & restaurant lighting
Office & commercial spaces
Architectural & decorative lighting
Residential ambient lighting
Signage and linear lighting projects

Technical Parameters

LEDs	120Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	6/8/10/12/14W/M	Packing	5/10/20/50Roll
Load length	15-25m

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

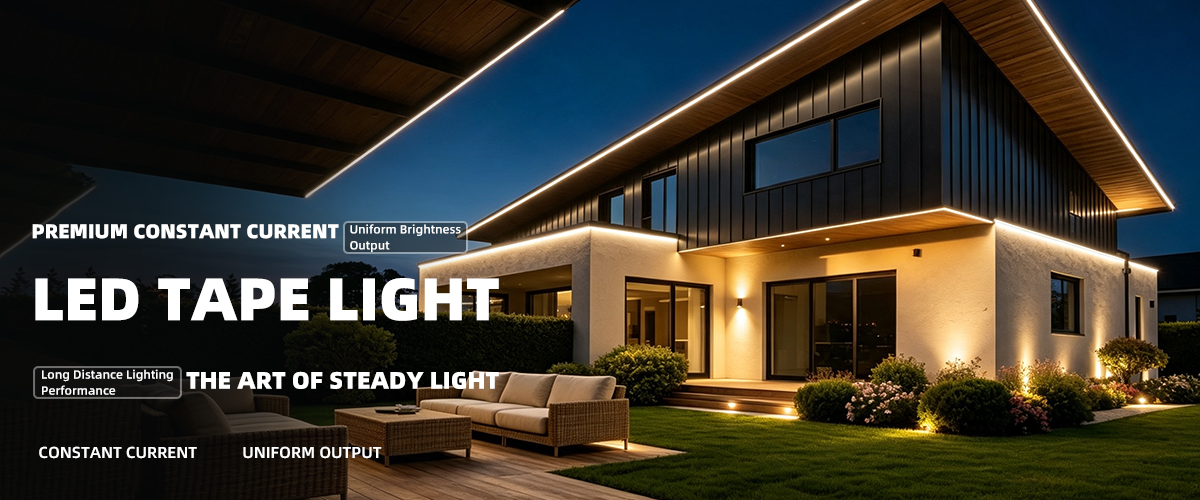

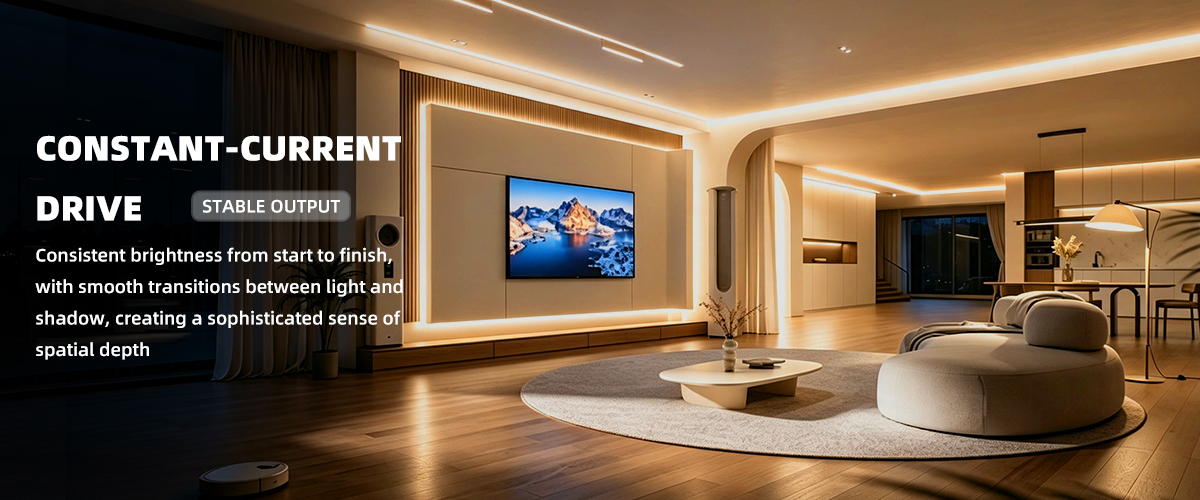

Constant Current Technology

Maintains stable brightness and minimizes voltage drop for consistent illumination even in long-distance installations.

High CRI · True Color Rendering

High-CRI SMD 2835 LEDs deliver accurate and natural color reproduction, helping objects appear closer to their true colors.

With CRI 90+, the light produces vivid, balanced, and lifelike colors while reducing dull or distorted tones. The soft, clear illumination enhances the visual quality and overall atmosphere of any space.

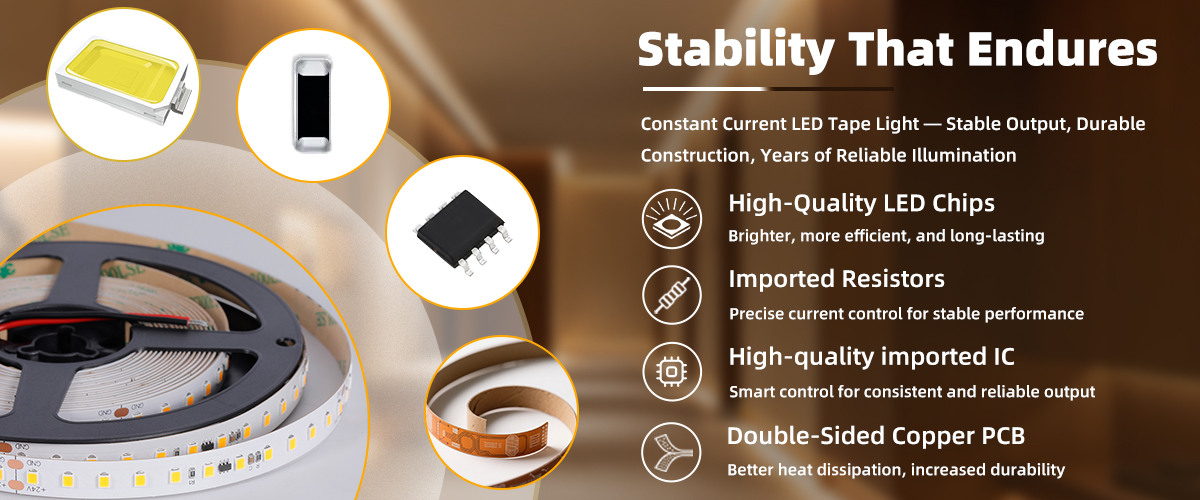

Reliable Long-Term Performance

Built with quality components for stable operation and reduced maintenance costs.

Multiple Protection Options · Precise Protection for Every Application

Available in IP20, IP65, and IP67 protection options, this LED strip can be tailored to different installation environments—from indoor residential cove lighting to outdoor architectural projects.

Choose the right protection level for residential, commercial, and professional applications, balancing reliable performance, environmental protection, and project cost.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Product Detail

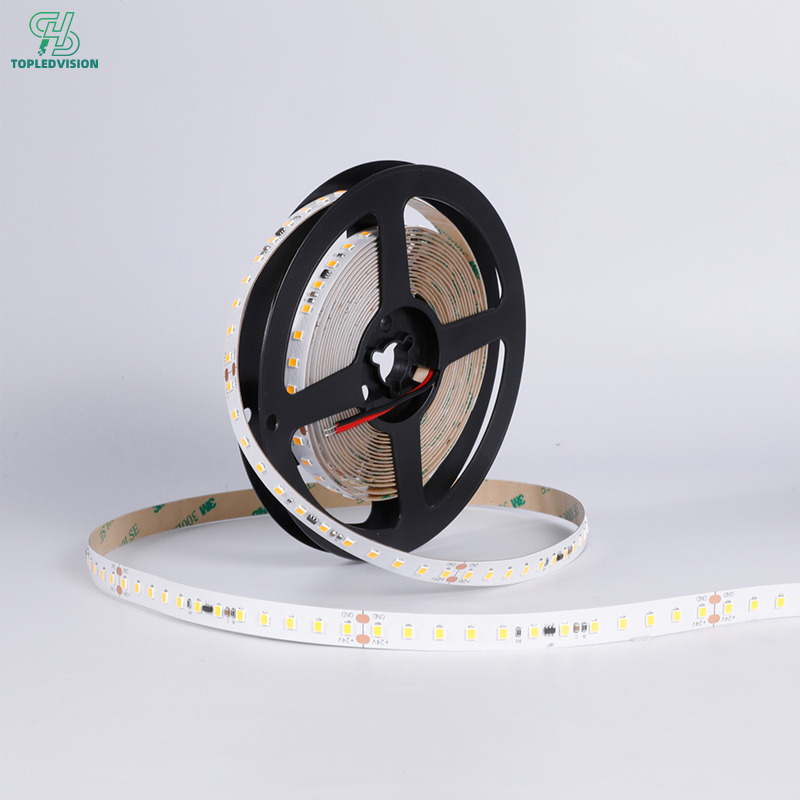

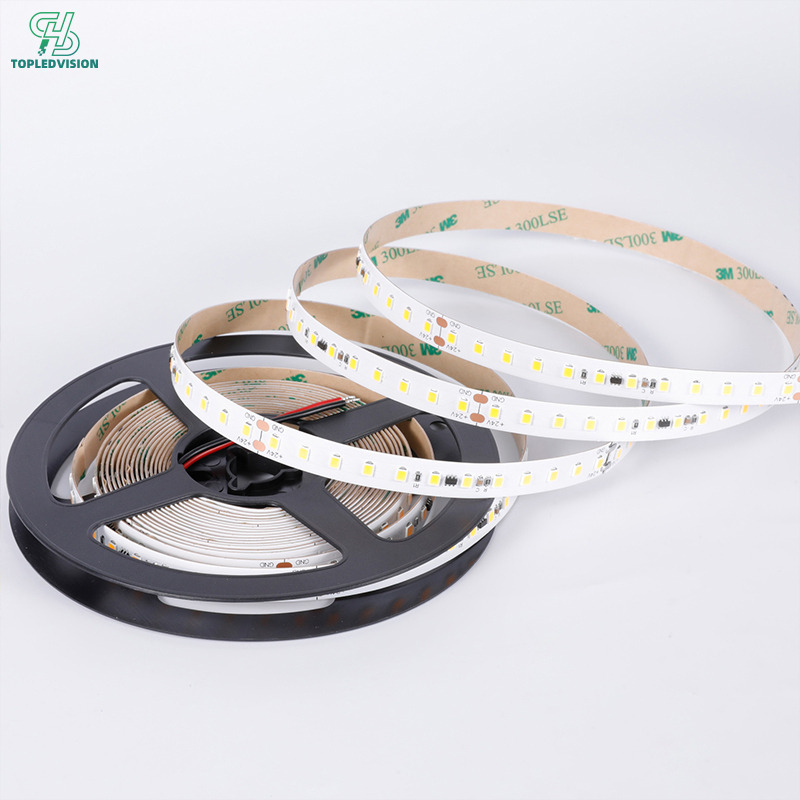

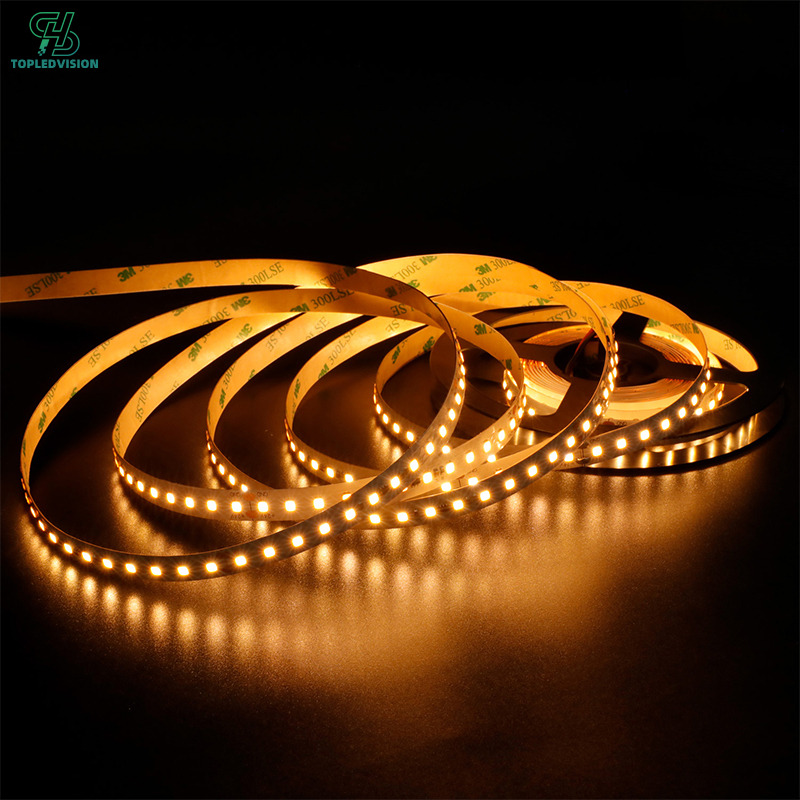

High Density 2835 Constant Current 24V 120LED/m LED Strip Light
