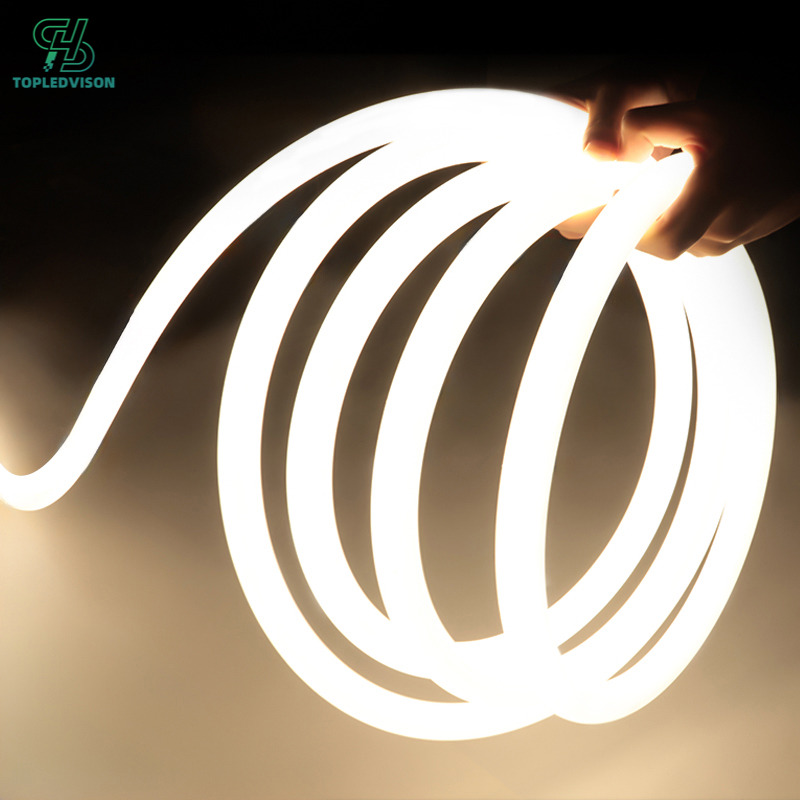

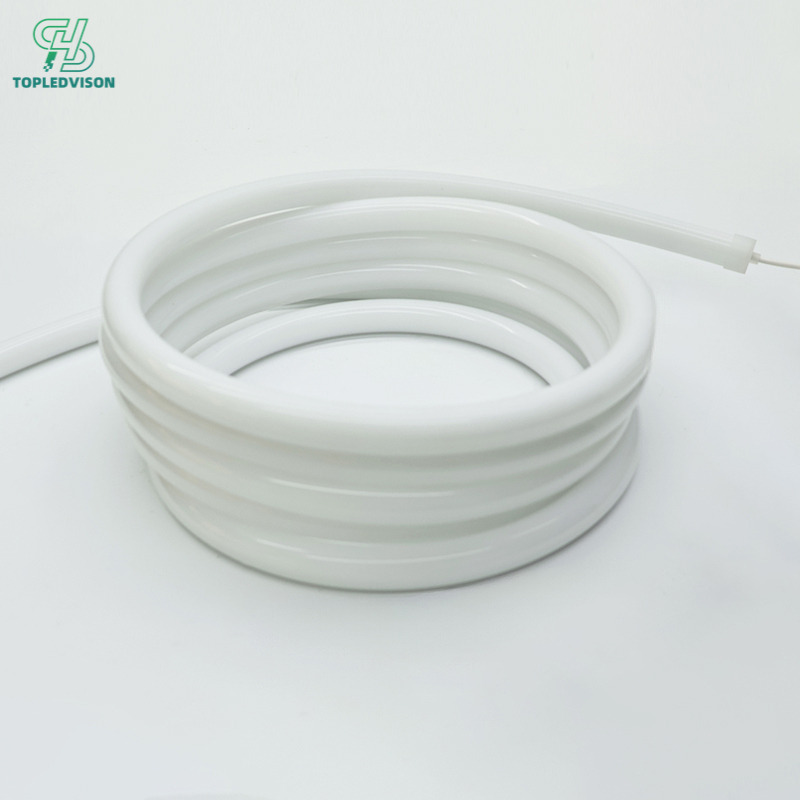

D30 360° Flexible Neon LED Strip 30×30mm-5m(NEON STRIP SERIES )

360 Full-Spectrum Illumination
Color Temperature Adjustment
Flexibility and Tailoring
Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

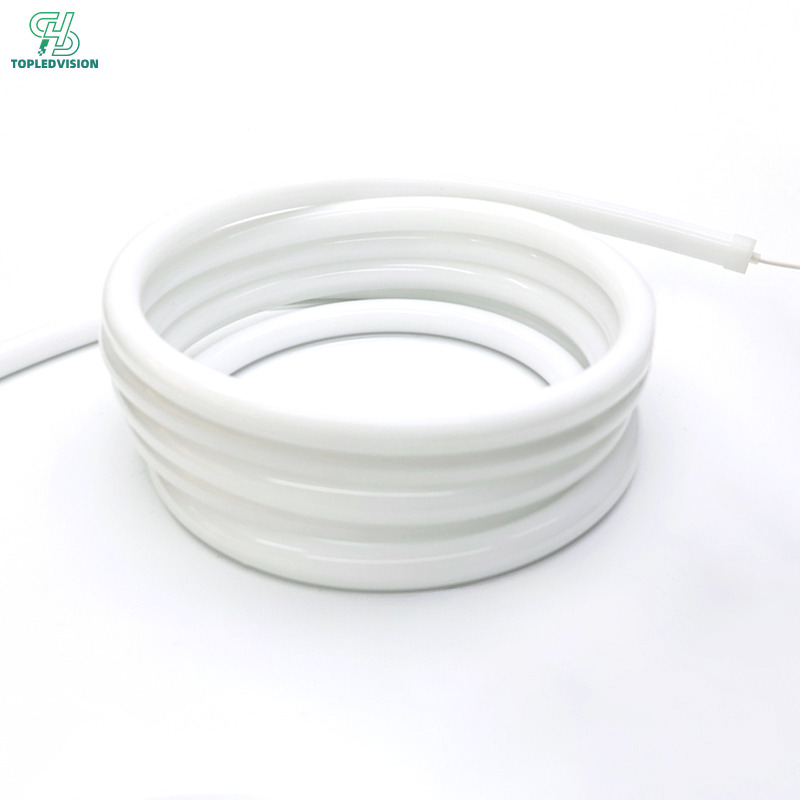

D30 360° Flexible LED Neon Strip

Neon Strip Specifications: Features high-quality flexible 2835 LED strips; DC 12V/24V low-voltage drive, high brightness, excellent color consistency, selectable color temperatures ranging from 1800K to 10000K, with RGB or RGBW options available; stable quality, Color Rendering Index (CRI) Ra ≥ 80/90/95, long service life, freely customizable length, and easy installation. 360° fully enclosed light-guiding structure design achieves ring-shaped, all-directional light emission with no directional limitations, no light spots, and no graininess. The light is soft, glare-free, and visually comfortable.

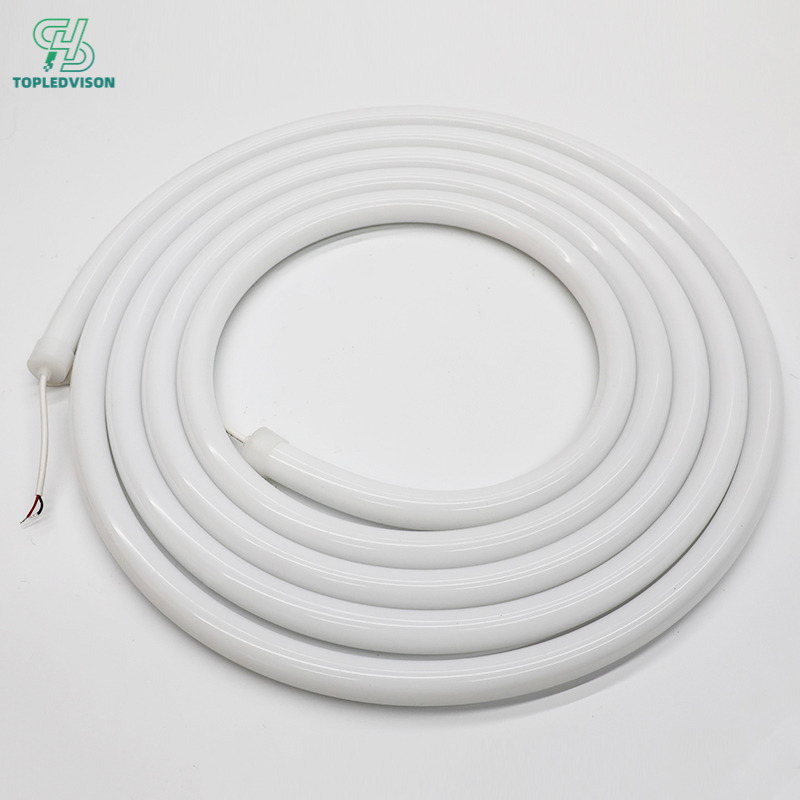

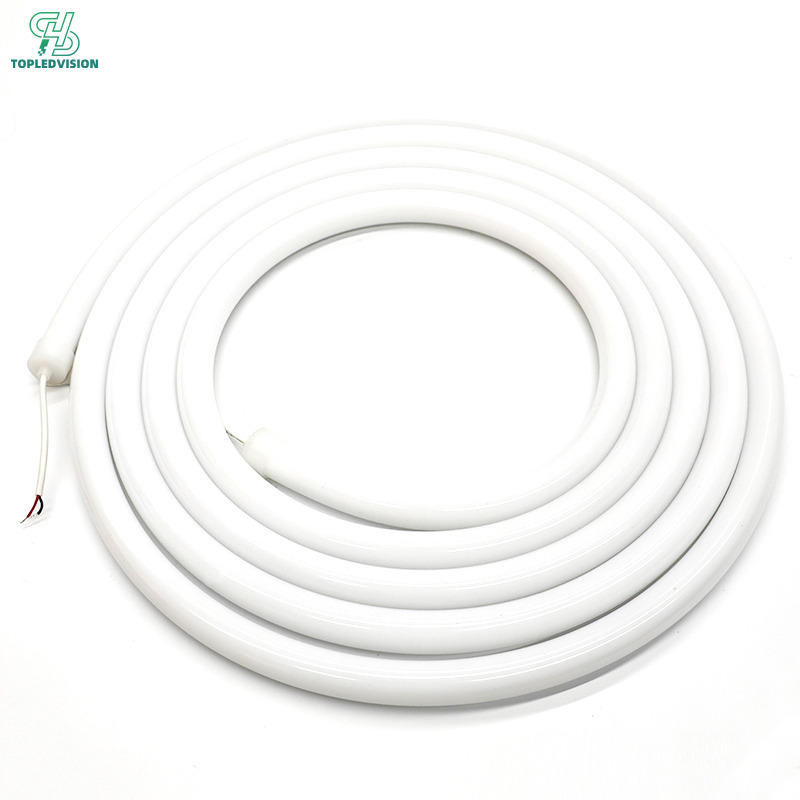

Neon Tube: The D30 360° neon tube is made of high-quality, eco-friendly silicone. Its features include high light transmittance, UV resistance, yellowing resistance, aging resistance, high and low temperature resistance, high flexibility, and UV protection. It also meets the V0 flame retardant rating, ensuring excellent fire resistance.

Lighting Effect: 360° all-around light transmission with no blind spots, dark areas, or light spots. Combined with diffuse reflection to soften the light, it eliminates glare and eye strain, providing a comfortable viewing experience at close range and creating a pleasant ambient atmosphere.

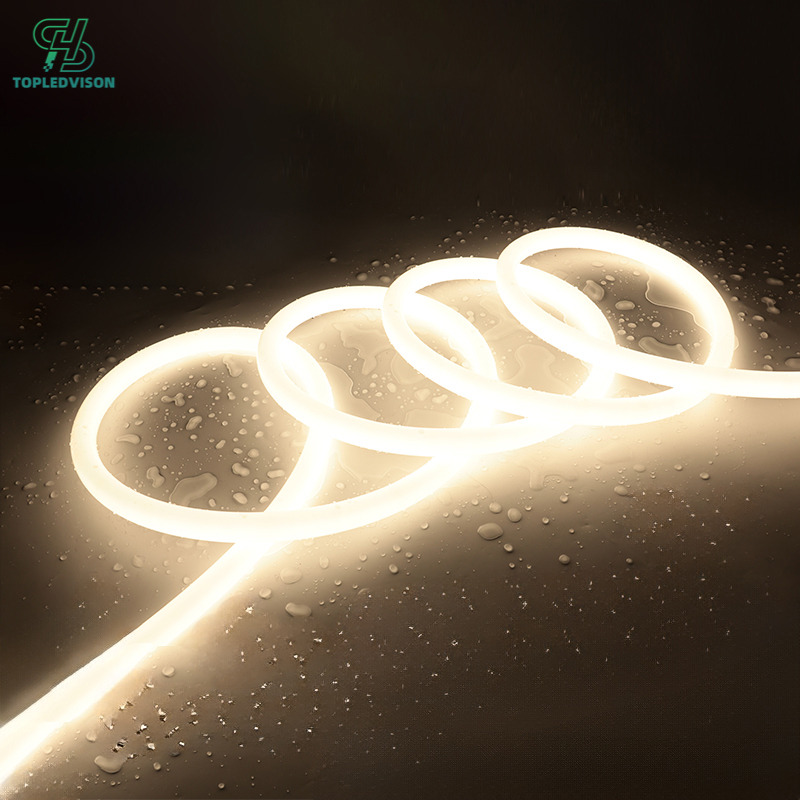

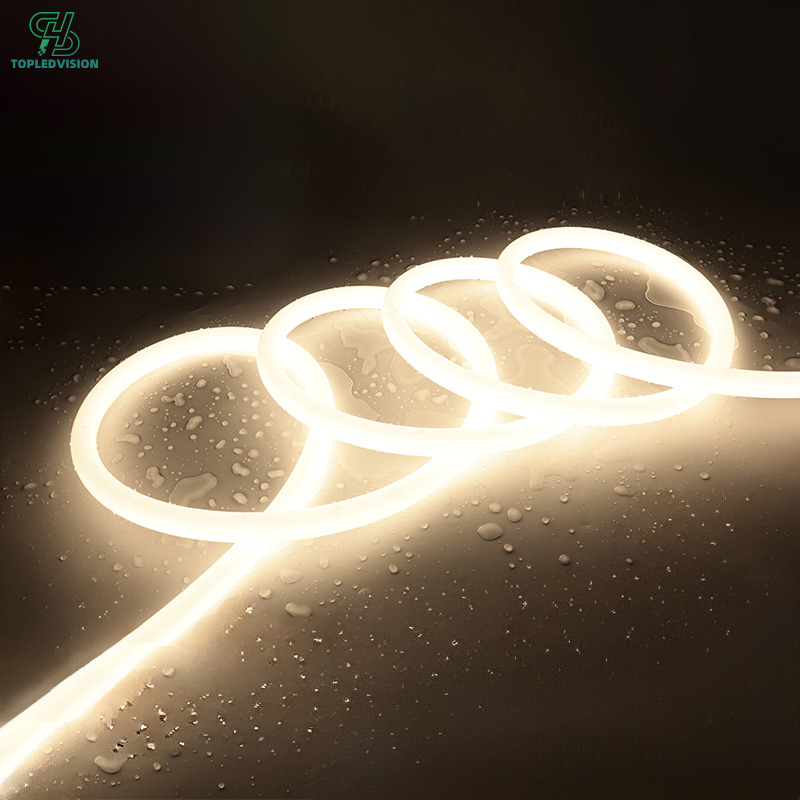

Protection Rating: IP65/IP66 waterproof and dustproof, with UV resistance and salt fog resistance, suitable for use in indoor and outdoor humid environments as well as open-air outdoor settings.

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; highly flexible; supports vertical and horizontal bending to adapt to curved and three-dimensional designs; connectors and end caps are fully sealed.

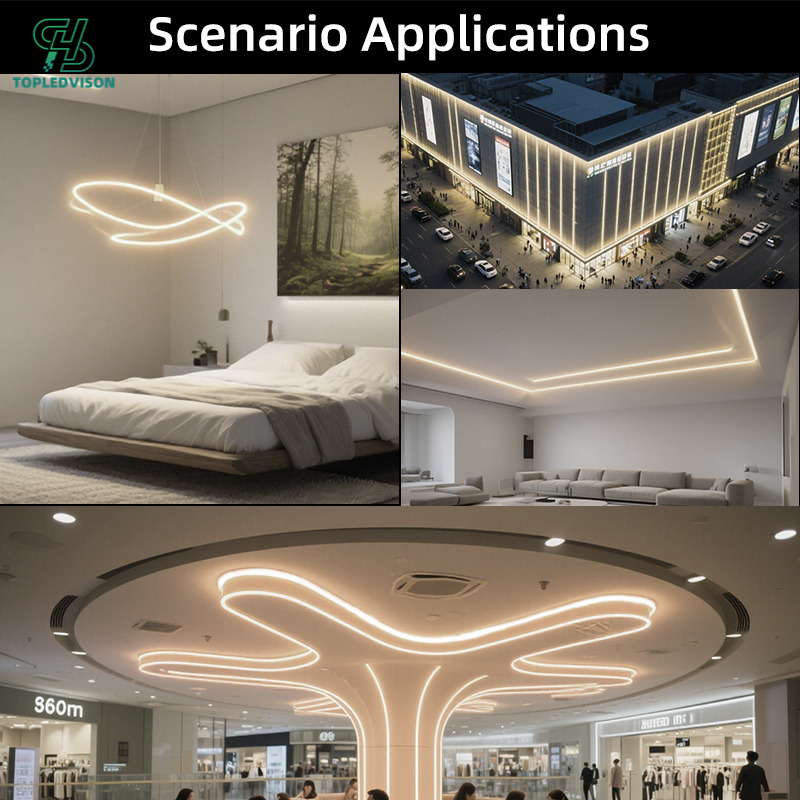

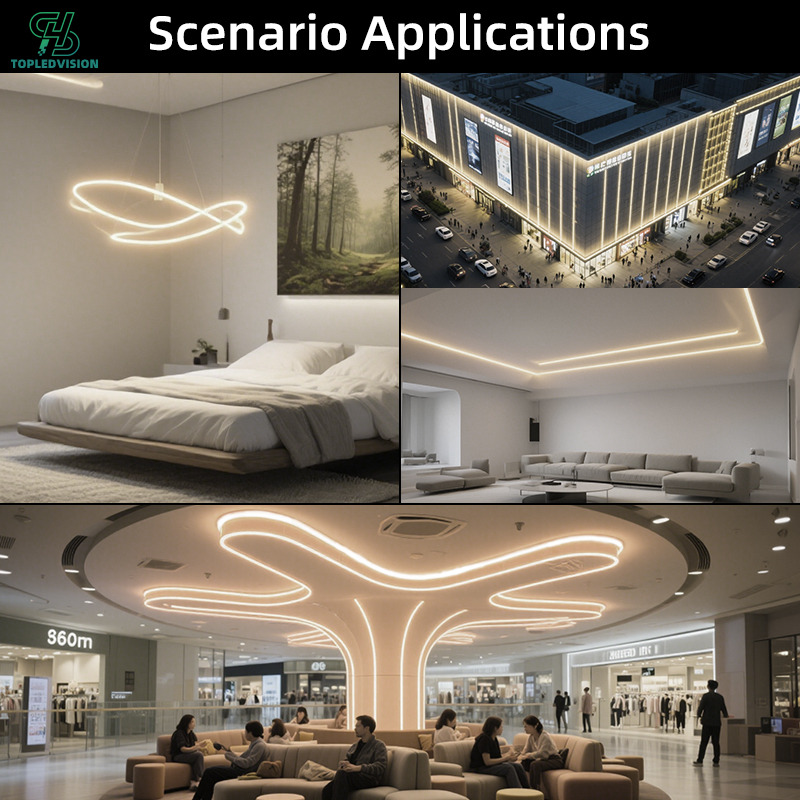

Applications of the D30 360° Neon Light: Store signage, bars and KTV venues, bridge lighting, garden walkways, and stairwells.

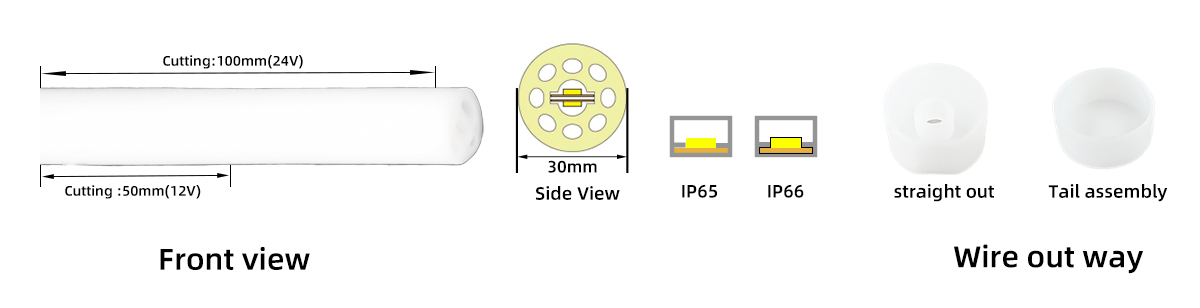

lighting Effect	Dot free	lighting way	360°
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes

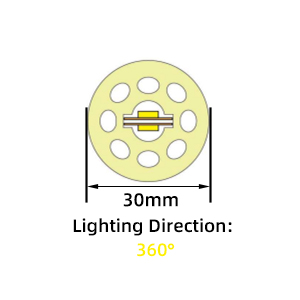

Dimension	W30*H30mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
Input Voltage	12/24/48/110/220V	Warranty	3Year
CRI	80/90/95Ra	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/Roll
Power	10/12 /14/16W/M

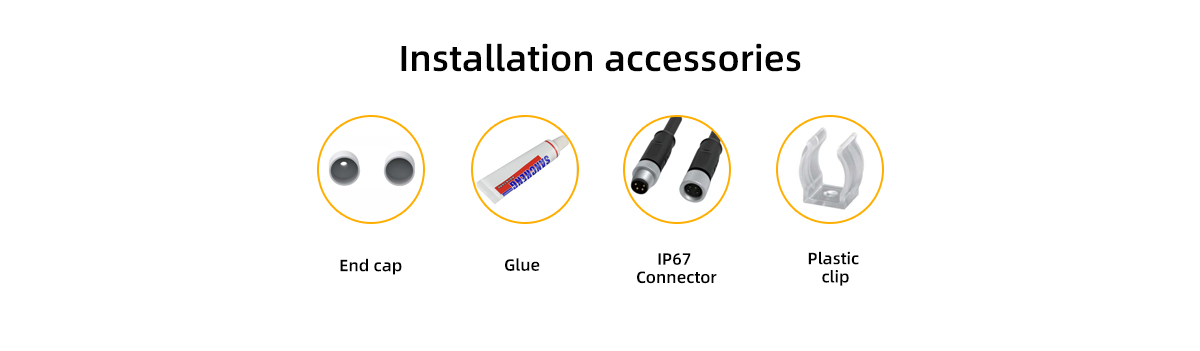

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

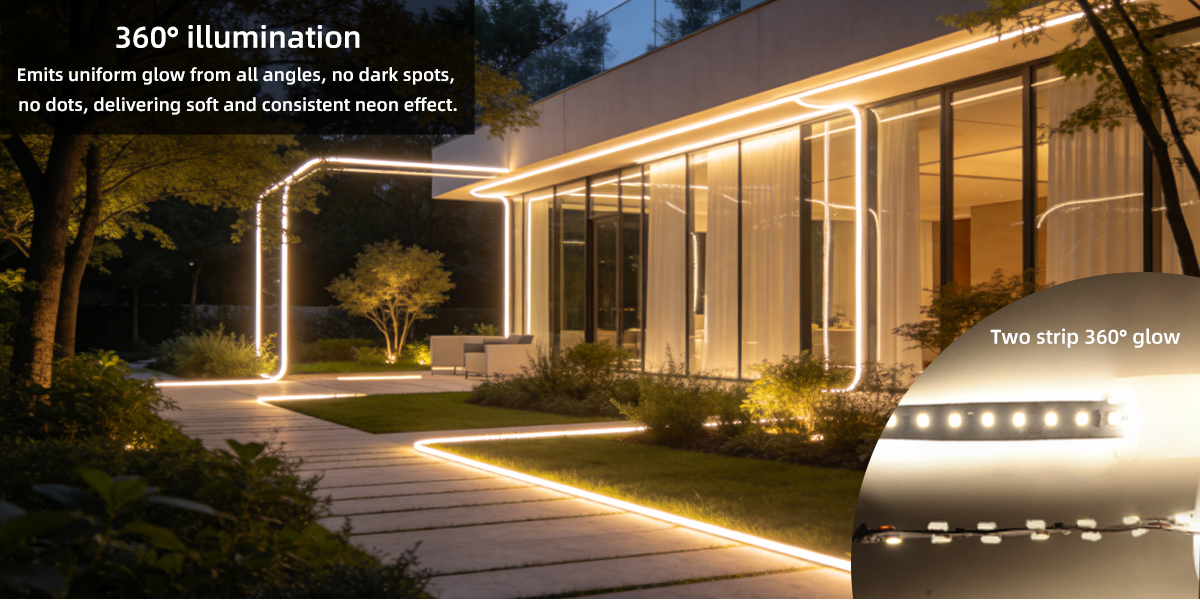

360° Full-Spectrum Illumination

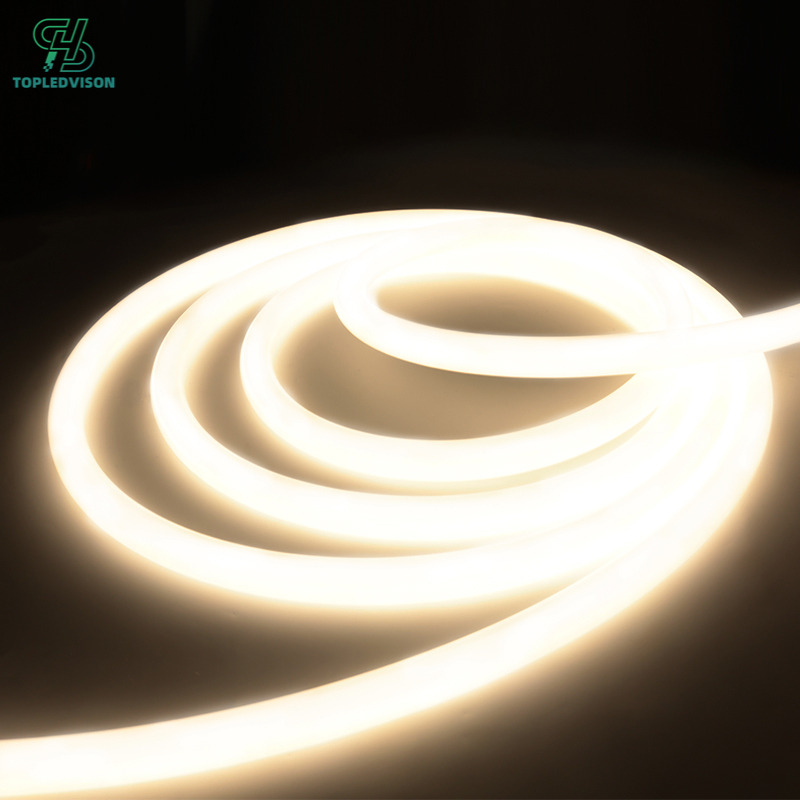

Featuring a circular cylindrical design, it delivers 360° uniform light distribution, with light radiating in all directions to eliminate any dark spots. Regardless of the viewing angle, the light strip presents a seamless, continuous lighting effect; The internal high-diffusion silicone, combined with a uniform light source layout, produces a grain-free, soft, and delicate light with visual comfort far surpassing that of ordinary light strips while rivaling the texture of traditional neon. Additionally, the seamless, continuous illumination creates a smooth, three-dimensional, and pure linear light effect. When used for contouring or design, it delivers a more sophisticated interplay of light and shadow with a stronger artistic flair.

360°霓虹详情页_05

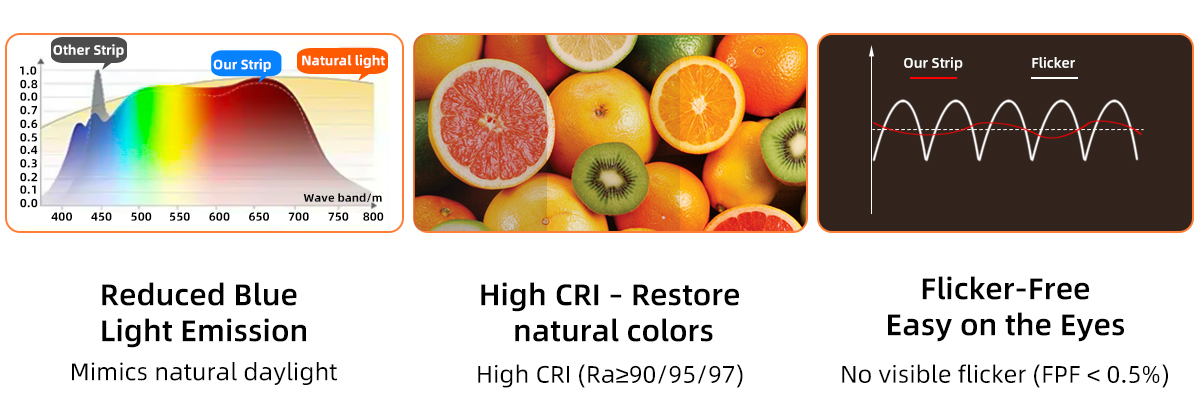

Color Temperature Adjustment

Equipped with advanced PWM dimming technology, the 360° neon light strip enables seamless and smooth transitions from 2700K warm white light to 6500K cool white light, without any flicker or abrupt changes during the adjustment process. The warm white light at 2700K emits a soft and warm glow, creating a cozy and inviting atmosphere that is perfect for indoor scenarios such as living rooms, bedrooms, and cafes, bringing a sense of warmth and comfort to the space. On the other hand, the 6500K cool white light presents a bright and clear illumination, which is ideal for commercial spaces like shops, exhibition halls, and office areas, enhancing the sense of clarity and professionalism.

360°霓虹详情页_11

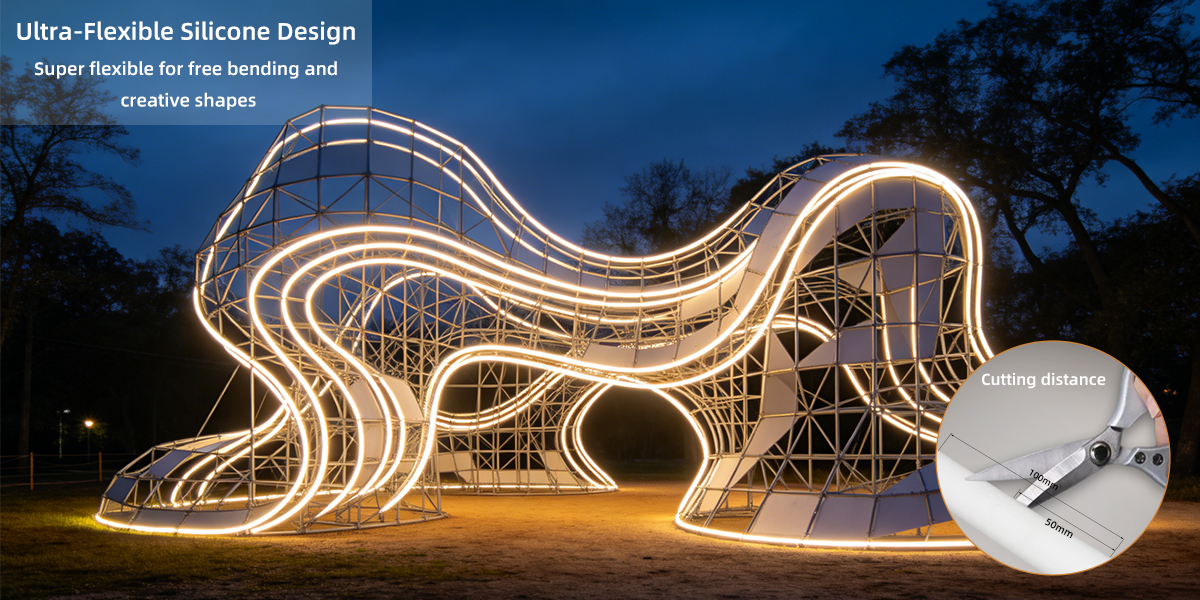

Flexibility and Tailoring

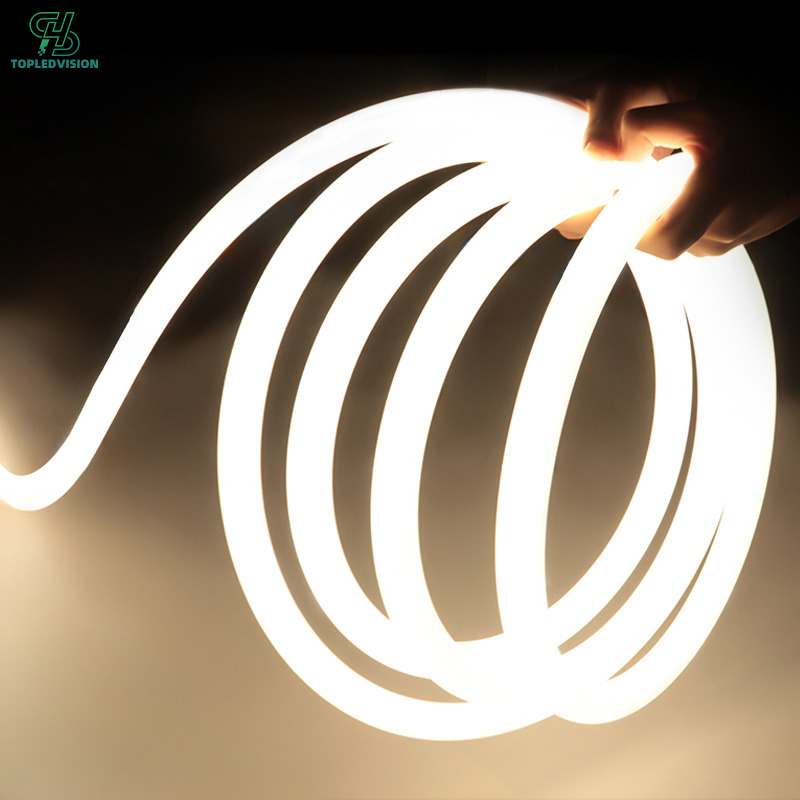

This 360° neon light strip is crafted from high-quality, durable silicone and a flexible core, offering exceptional flexibility. It can be easily bent into smooth curves, dynamic waves, or any custom shape without damaging the strip or compromising its lighting performance. This exceptional flexibility allows it to perfectly conform to complex surfaces such as curved walls, rounded corners, irregular decorative frames, and even curved furniture, seamlessly adapting to a wide range of intricate decorative settings.

360°霓虹详情页_17

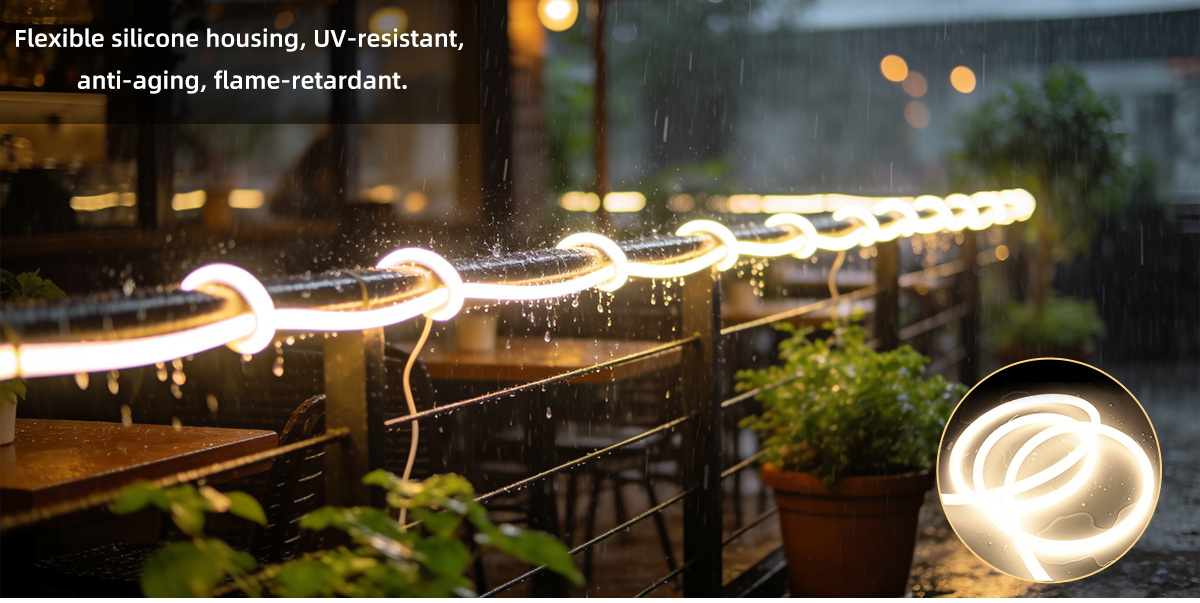

Durability and Protection

This 360° neon light strip features an excellent IP65/IP66 protection rating. Professionally designed for both indoor and outdoor use, it incorporates a range of practical protective features to ensure reliable operation under all conditions. With its reliable rain and dust resistance, the strip’s sealed, integrated design effectively prevents rain, dust, and other contaminants from entering the interior, thereby avoiding short circuits or damage caused by environmental factors.

360°霓虹详情页_23

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimentation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity,and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、 the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
