CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
CCT 608 COB LED Strip Light 10mm-5m (COB LED STRIPSERIES)
Feature / Warranty
图标
  •  Spot-Free Lighting
  •  Color Temperature Adjustment
  •  High Color Rendering Index
  •  Customizable
Min. Order: ≥50 meters
Price and order please inquiry
防水2
Quantity:
库存: 0
Inquire
Add to Basket

CCT COB 608 LED Strip

Product Features: Utilizes a high-density COB packaging process with 608 LED chips per meter. The light-emitting surface is continuous and seamless, with no visible LEDs, no dark spots, and no light spots. The beam angle (140°) and color temperature (2700–6500K) are freely adjustable, with minimal color deviation (<5). CRI: Standard models feature Ra > 80, while premium models can reach Ra > 90/95. High brightness, excellent color consistency, stable quality, long service life, freely customizable length, and easy installation.

Lighting Effect: Soft light with no noticeable LED graininess, no dark spots, no gaps, and no light spots; low color deviation (<5), no color shift over long-term use. Suitable for indoor and outdoor lighting: living room accent walls, wardrobes, home offices, bathroom mirrors, balconies, outdoor linear lights, garden fences, and other scenarios.

Energy-efficient and durable: COB integrated technology + high-quality chips + premium PCB = minimal light decay, durable and stable performance, excellent heat dissipation, low power consumption, and a lifespan of up to 50,000 hours. Maintains consistent brightness and color over the long term.

Waterproof ratings available: IP20 is suitable for dry environments such as living room accent walls, wardrobes, wine cabinets, and kitchen cabinets; IP65/IP66 is suitable for humid environments such as kitchens, balconies, and washbasins; IP67 is suitable for outdoor humid environments such as garden fences and poolside areas; covering all scenarios including home decoration, commercial spaces, and landscaping

Easy installation: Comes with 3M adhesive backing—simply peel and stick. The flexible PCB board can be bent to fit curved surfaces, corners, and irregular shapes, ensuring installation in every nook and cranny. It easily integrates into aluminum channels to achieve a “light visible, lamp invisible” effect.

Applications of the CCT COB 608 Light Strip: Living room accent walls, home offices, bedrooms, bathrooms, balconies, outdoor eaves, exterior accent lighting, and garden fences.

Technical Parameters

LEDs

608Chips/m

Support

Dimmer

Yes

Color

Temperature

2700-6500K

Lifespan

>50000h

CRI

80/90/95Ra

Working

Temperature

-20-65℃

Input Voltage

5/12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

22W/M

Packing

5/10/20/50Roll

CCT COB608D裁剪.jpg
  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

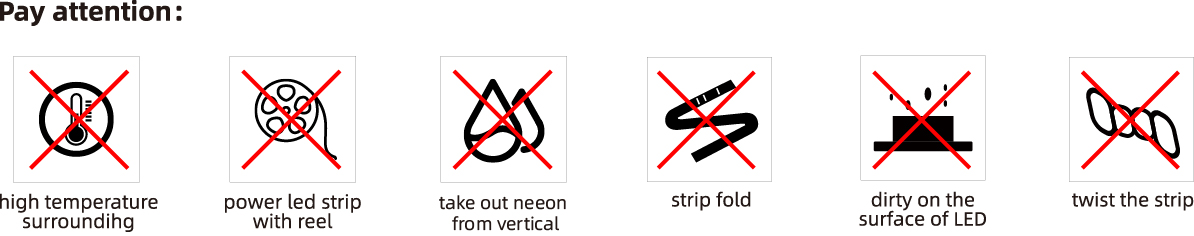

  • Important Information for Using COB LED Strip Lights: We recommend having COB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the COB LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Spot-Free Lighting

Featuring an ultra-high-density COB integrated package with 608 LED chips per meter, this design delivers a continuous, uniform surface light source. The light is free of graininess, spots, or dark areas, and is soft and delicate. Even when viewed up close or installed at an angle, the overall light output remains uniformly consistent, completely eliminating the grainy texture and light-dark stripes typical of traditional LED strips. The result is a high-end, soft linear lighting experience.



Color Temperature Adjustment

The CCT Dual Color Temperature COB 608 LED Strip supports stepless color temperature adjustment, allowing for a smooth transition between 2700K warm white and 6500K cool white. With a single button press, you can change the ambiance without replacing the lighting fixture, meeting the needs of various scenarios such as a cozy bedroom, a bright living room, a crisp kitchen, and a focused workspace.




High Color Rendering Index

Featuring a high-CRI lighting solution with a Color Rendering Index (CRI) of Ra ≥ 90—and up to Ra 95 or higher in premium models—this system faithfully reproduces the true colors of objects, making home decor, clothing, accessories, and skin tones appear more natural and vibrant. The light is soft and comfortable, free from harmful blue light and flicker, delivering both high-quality illumination and an eye-friendly experience.



Waterproof Construction

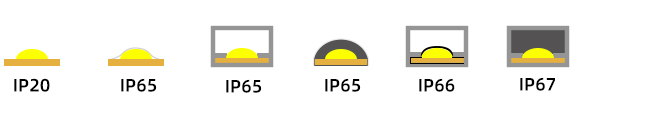

Multiple IP ratings available—IP20/IP65/IP67—covering indoor dry environments, humid kitchens/bathrooms, and harsh outdoor conditions without compromising uniform light quality.



Flexible Installation & Custom Cutting

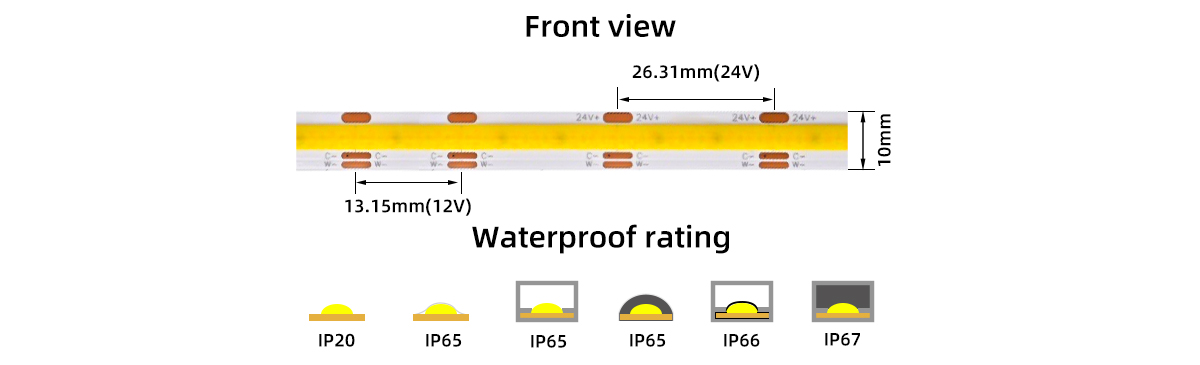

Featuring flexible PCB material that bends to fit curved surfaces, with built-in 3M adhesive backing. The 26.31mm pitch allows for custom cutting, making it ideal for cabinets, ceilings, display cases, and similar applications.




Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
