8×8 mm Flexible LED Neon Strip
Neon Strip Performance: Features: Made with high-quality flexible 2835 LED strips; featuring a compact 8x8mm design, it is slim and small, allowing for easy installation in confined spaces such as cabinet interiors, crevices, and narrow channels to achieve a concealed installation where the light is visible but the strip is hidden; supports 12V/24VDC low-voltage operation; Features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install. Color Rendering Index (CRI) Ra80/90/95; color temperature range from 1800K to 10000K, with both RGB and RGBW options available.
Neon Tubes: The 8×8mm flexible LED neon tubes are made of high-quality, eco-friendly silicone. Their features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame-retardant rating, ensuring exceptional fire safety.

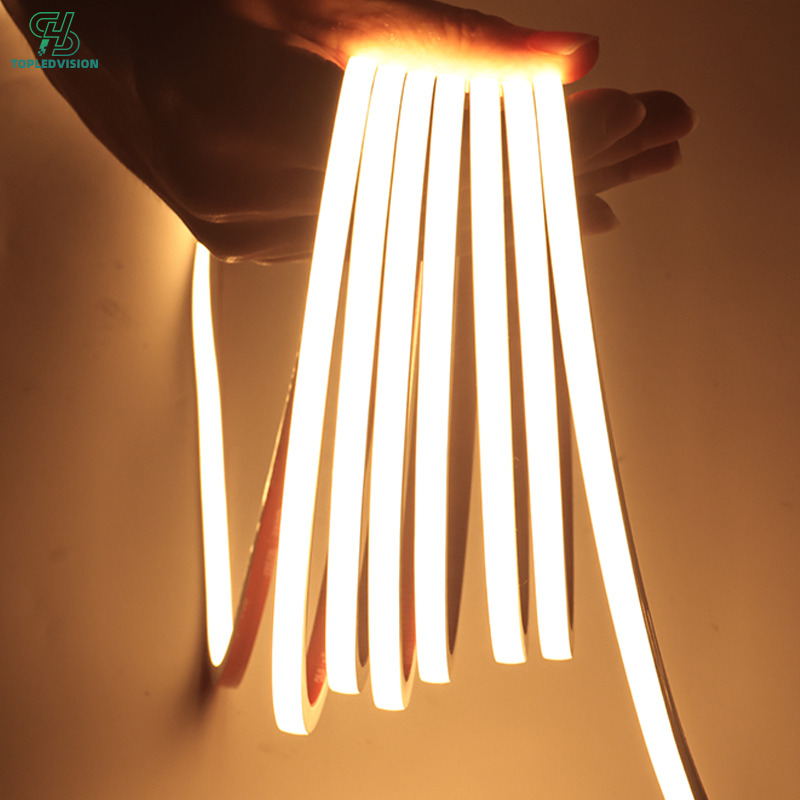

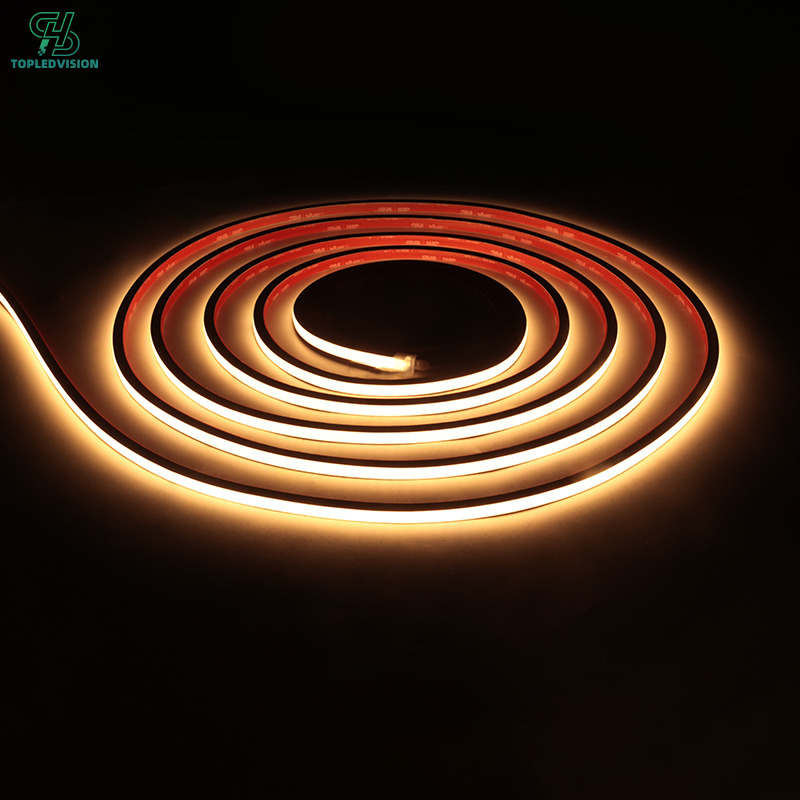

Lighting Effect: Featuring high-density 2835 LEDs paired with an optimized optical structure, the light-emitting surface is completely seamless. Even when viewed up close, there is no graininess or shadowing, delivering a texture comparable to traditional neon. Suitable for indoor and outdoor lighting applications such as baseboards, wardrobes, wine cabinets, logos, display case accents, bars, and patio borders.

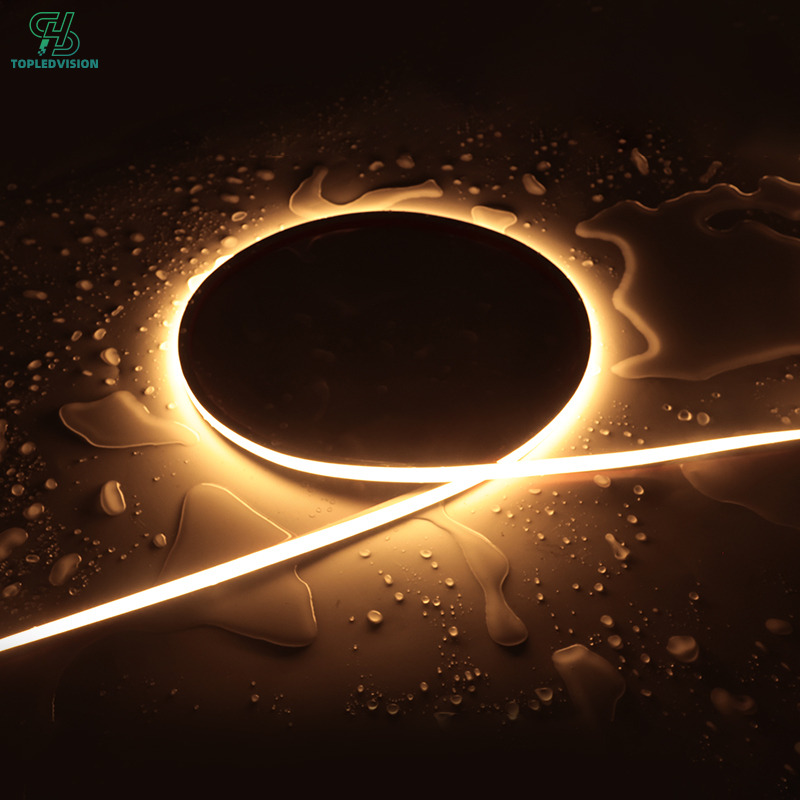

Protection Rating: IP65/IP66 fully sealed silicone construction. The silicone withstands temperature fluctuations from -20°C to 65°C, resists UV rays, and is waterproof, moisture-resistant, and crack-resistant; suitable for indoor and outdoor humid environments, including outdoor rain exposure and acid/alkali corrosion.

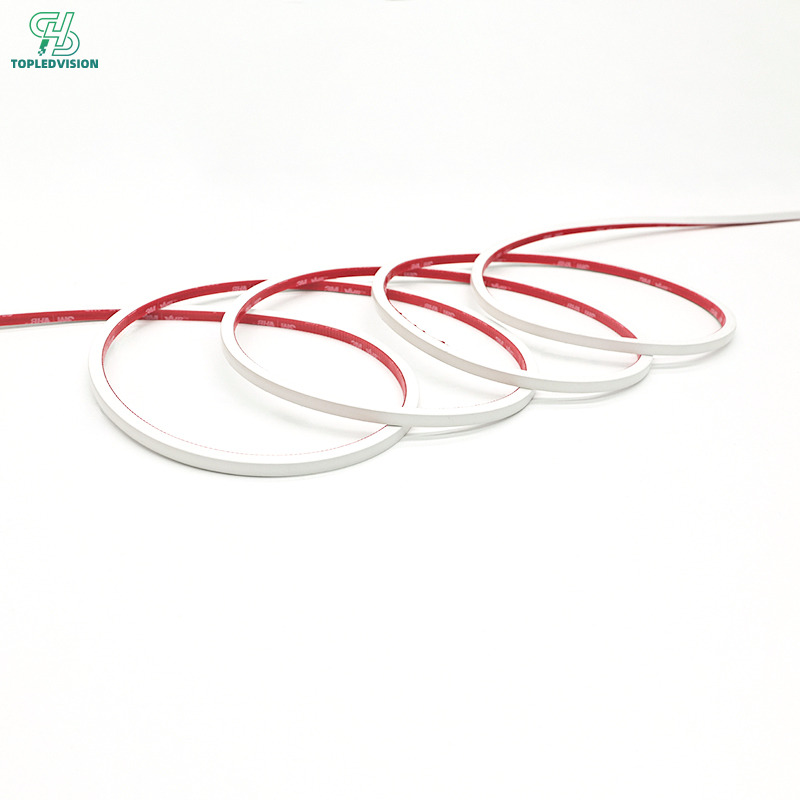

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles/adhesive backing; simple wiring; Flexible and bendable, it can be shaped into complex DIY designs such as arcs, corners, letters, and patterns without cracking or kinking; connectors and end caps are fully sealed.

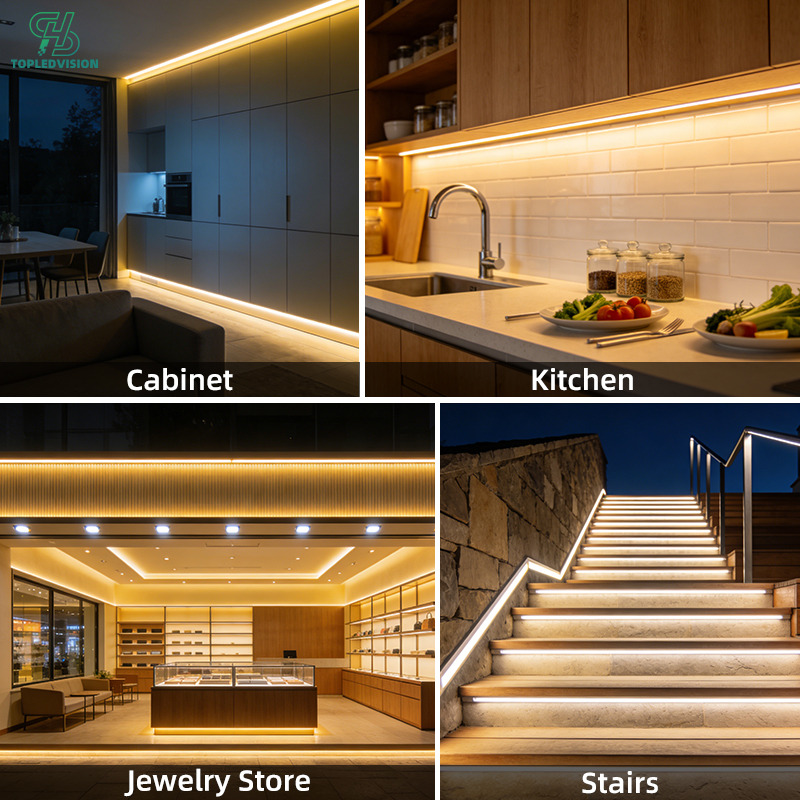

Applications of 8x8mm Flexible LED Neon Strip: Staircases, bathroom mirrors, bedside ambiance lighting, mini illuminated letters, edge-lit signage, boutique stores, storefront windows, building outlines, landscaping, and directional signage.
Technical Parameters
lighting Effect | Dot free | lighting way | Front-lit |
Color Temperature | 1800-10000K, RGB, RGBW | Support Dimmer | Yes |
Dimension | W8*H8mm | Lifespan | >50000h |
Lamp Body Material | Meteorological silica gel | Working Temperature | -20-65℃ |
CRI | 80/90/95Ra | Warranty | 3Year |
Input Voltage | 12/24/48 110/220V | Certification | Emc, RoHS, CE,FCC, LVD |
Luminous Efficiency | 70-80lm/w | Packing | 5/10/20/50Roll |
Power | 6/8/10/12W/M |
Standardized, plug-and-play accessories significantly reduce commissioning time.
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.
Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

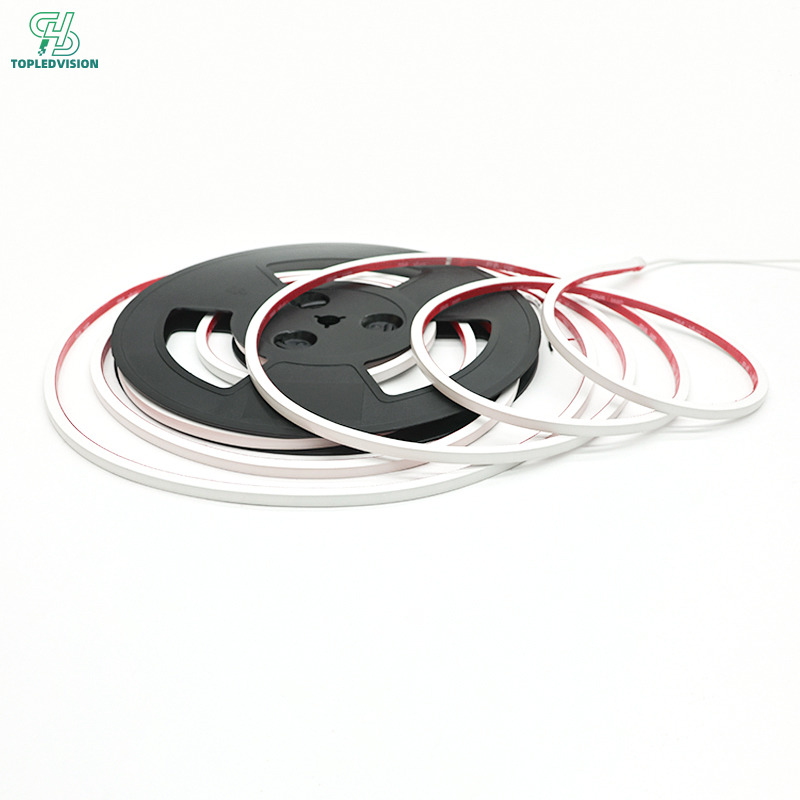

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
