5x13mm Silicone Tube Neon Flexible Strip Light

Product Detail

Home Products LED Neon Strips Flex Led Neon Strip 5x13mm Silicone Tube Neon Flexible Strip Light

Feature / Warranty

Slim 5×13mm Compact Design

Seamless Neon Glow & Uniform Illumination

High Flexibility & Easy Shaping

Cuttable & Customizable Solution

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

5×13mm Silicone Tube Neon Flexible Strip Light

Product Description

5×13mm Silicone Tube Neon Flexible Strip Light is a slim and versatile linear lighting solution designed for modern decorative and architectural applications. Featuring high-quality silicone extrusion technology, it delivers smooth, continuous illumination with excellent flexibility, durability, and weather resistance. The compact 5×13mm profile makes it ideal for projects requiring a narrow and elegant neon lighting effect.

1. Light Strip Performance

The 5×13mm Silicone Neon Flexible Strip Light adopts premium LED chips and high-transmittance silicone material to provide stable lighting performance and long-lasting reliability. The flexible silicone housing allows easy bending and shaping, supporting various installation designs while maintaining excellent light consistency. With high-quality components and optimized thermal management, it ensures stable operation and reduced light attenuation over time.

2. Lighting Effect

Designed with advanced silicone diffusion technology, this neon flexible strip produces a soft and uniform glow without visible LED dots, dark areas, or harsh glare. The seamless linear lighting effect creates a smooth neon appearance, enhancing visual comfort and delivering professional-grade illumination for decorative and commercial environments.

3. Energy Efficient & Durable

Powered by energy-saving LED technology, the strip provides high brightness with low power consumption, helping reduce operating costs while maintaining excellent lighting performance. The durable silicone material offers strong resistance against UV exposure, aging, and environmental impacts, ensuring a long service life for continuous indoor and outdoor applications.

4. Protection Rating

The silicone tube structure provides excellent waterproof and dust-resistant protection, with optional IP65/IP67 protection ratings available. It effectively withstands moisture, dust, rain, and outdoor weather conditions, making it suitable for demanding environments such as building exteriors, landscape lighting, and commercial installations.

5. Easy Installation

The compact 5×13mm design offers high flexibility and easy installation in narrow spaces, curves, corners, and custom-shaped structures. The strip can be cut according to project requirements and combined with mounting accessories for quick and secure installation, reducing installation time and improving project efficiency.

6. Application Scenarios

The 5×13mm Silicone Tube Neon Flexible Strip Light is widely used for:

Architectural facade lighting
Commercial and retail decoration
LED signage and advertising displays
Interior ceiling and cove lighting
Cabinet and furniture lighting
Hotel, restaurant, and bar decoration
Landscape and outdoor lighting projects
Custom neon lighting designs

With its slim profile, seamless neon glow, flexible installation, and reliable waterproof performance, the 5×13mm Silicone Tube Neon Flexible Strip Light is an ideal choice for modern linear lighting solutions, decorative illumination, and customized lighting projects.

Technical Parameters

lighting Effect	Dot free	lighting way	Top-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes

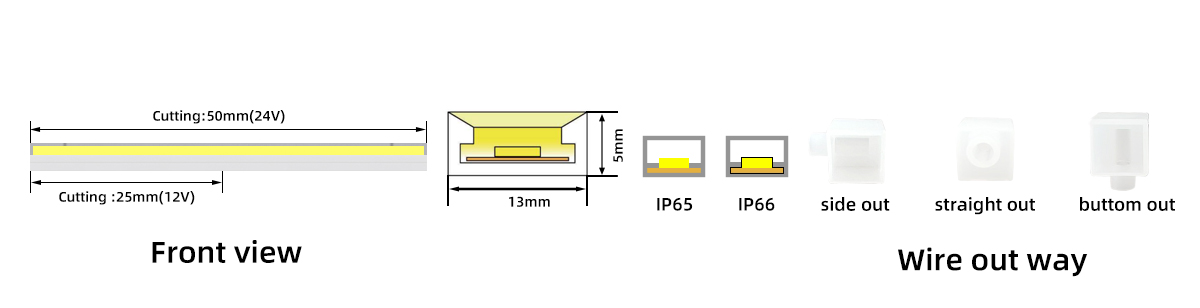

Dimension	W5*H13mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/ 48/110/220V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	6/8/10/12W/M

Standardized, plug-and-play accessories significantly reduce commissioning time.
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional people to do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative(-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section or few sections failure or color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white color turn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
