- Smooth SPI digital lighting effects
- RGB + pure white dual illumination
- Available in 5V / 12V / 24V versions
- IP65 waterproof SPI RGBW LED Strip option
- Excellent heat dissipation and low light decay
- OEM / ODM customization available

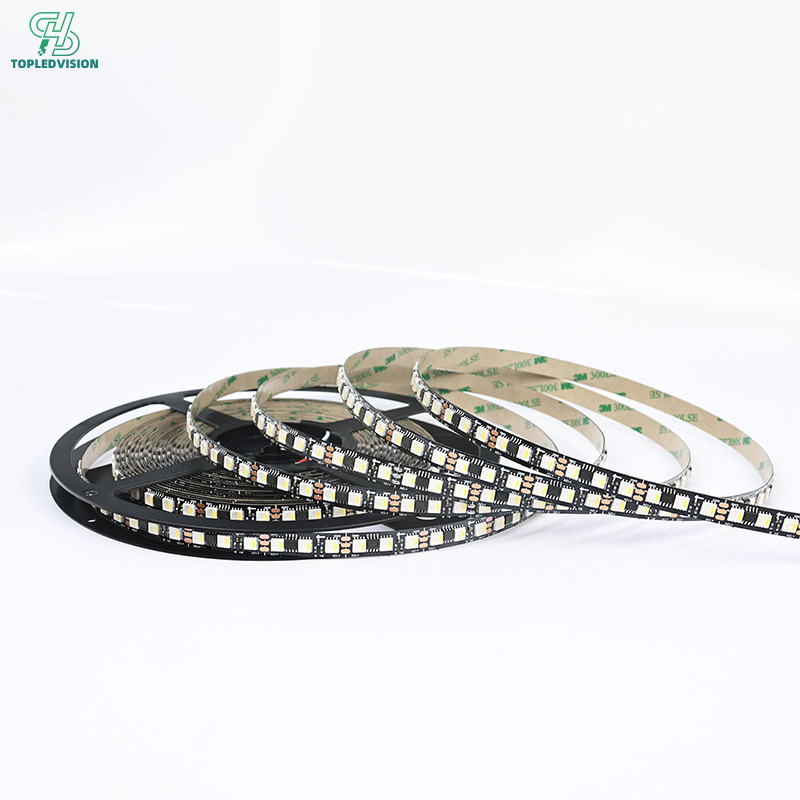

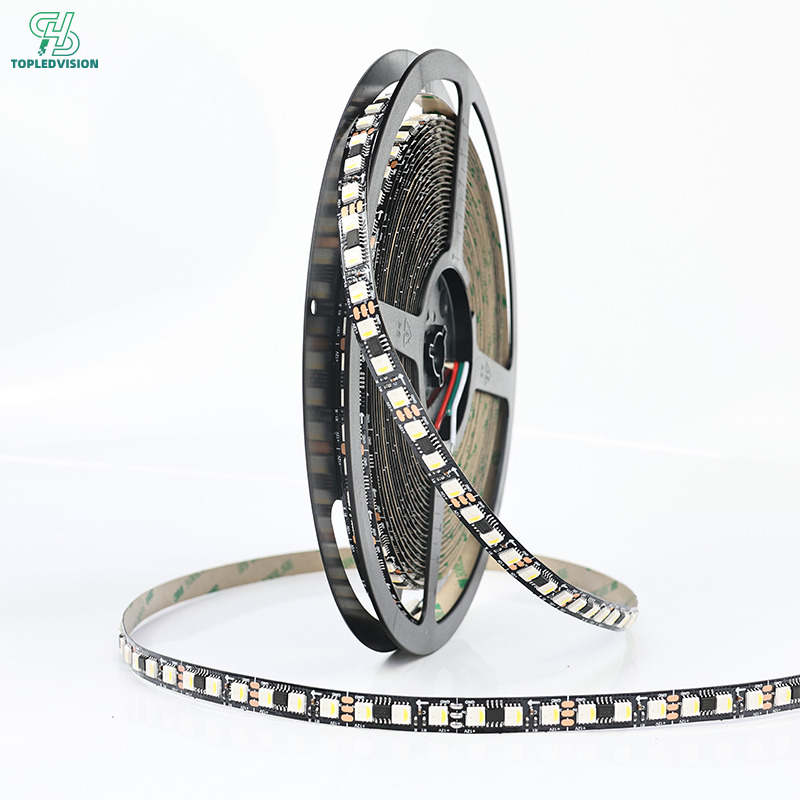

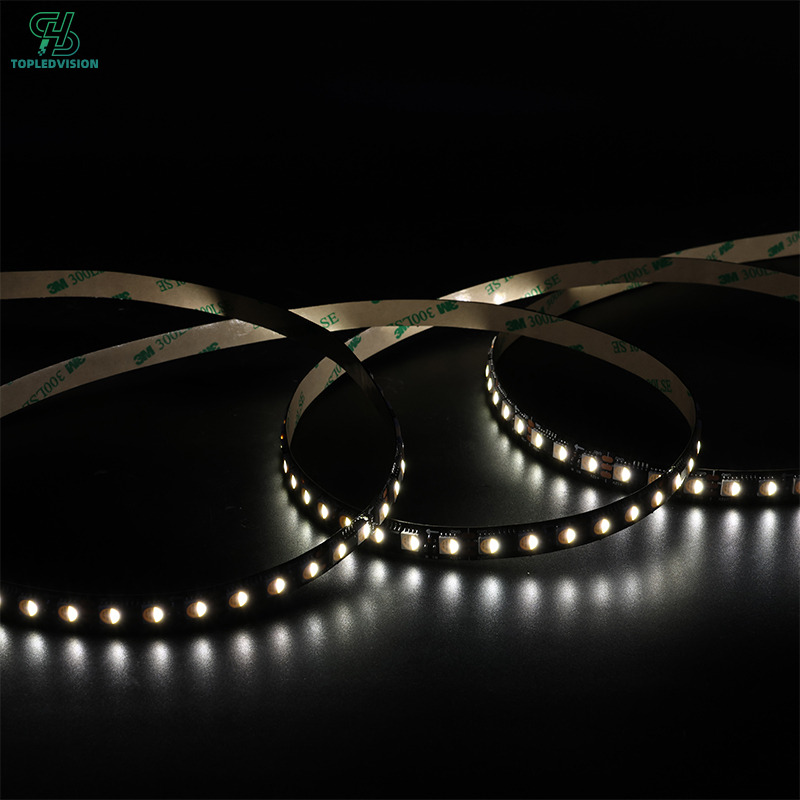

5050 SPI RGBW Addressable LED Strip Light – Individually Controlled Digital Pixel LED Strip

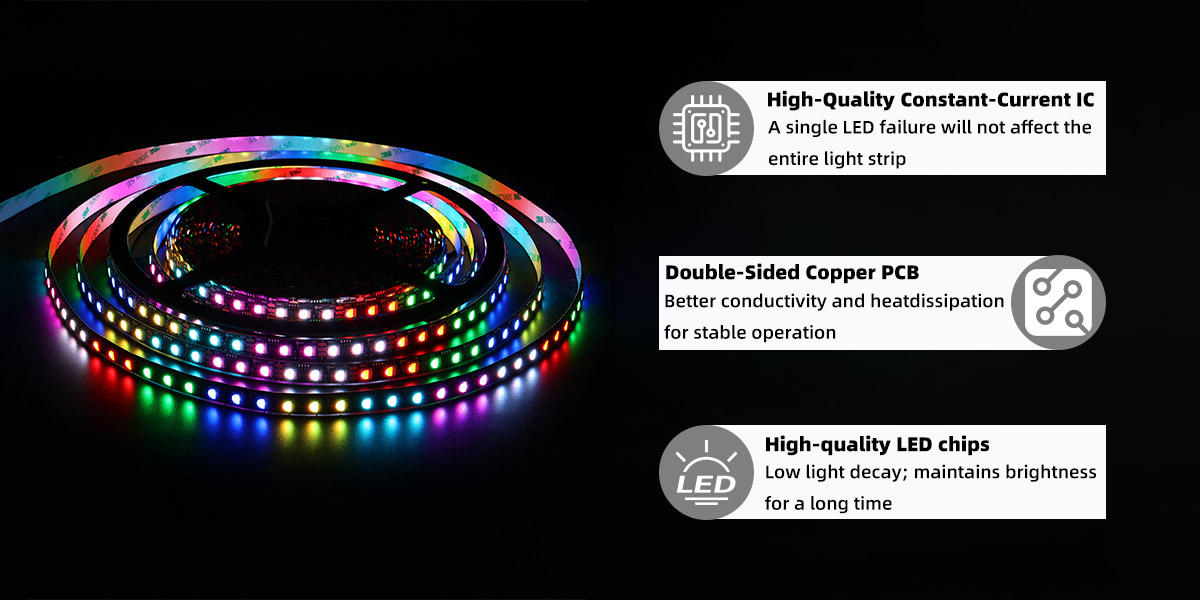

LED Strip Performance: The 5050 RGBW 96-LED color-changing light strip delivers outstanding performance, featuring high-density LEDs with a 120° wide-angle beam that provides uniform lighting without hotspots; the 4-in-1 LEDs combine millions of color variations with pure white light, offering smooth 256-level grayscale transitions. The pixel IC enables single-point color control and resume-from-break functionality, ensuring stable dynamic effects; the thickened copper foil 24V low-voltage long cable maintains consistent voltage without drop, offers excellent heat dissipation, low light decay, temperature resistance, and damage prevention. It is flexible and easy to cut, making it long-lasting and durable for both residential and commercial lighting applications.

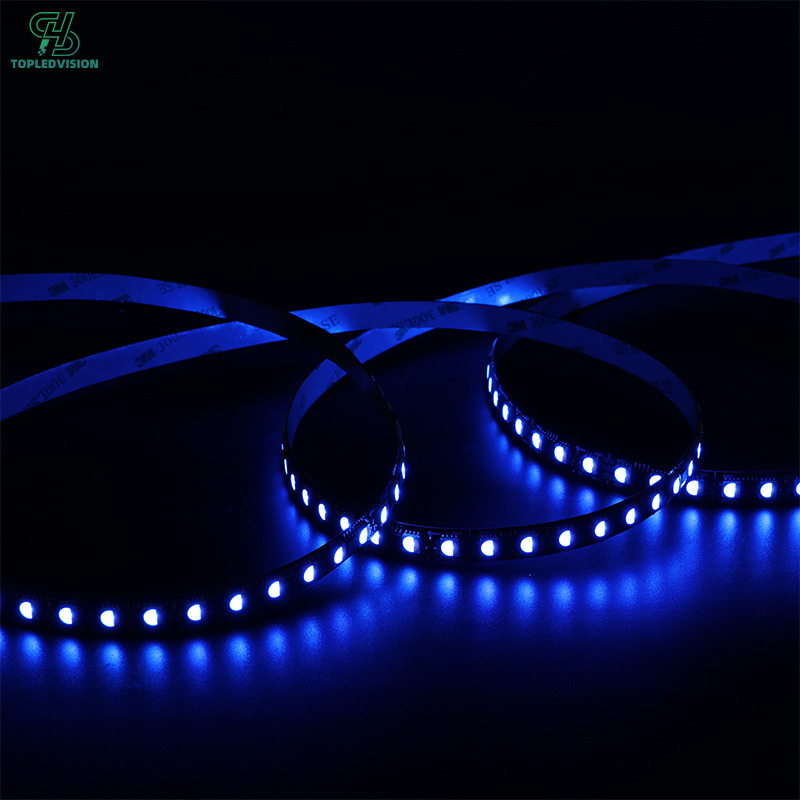

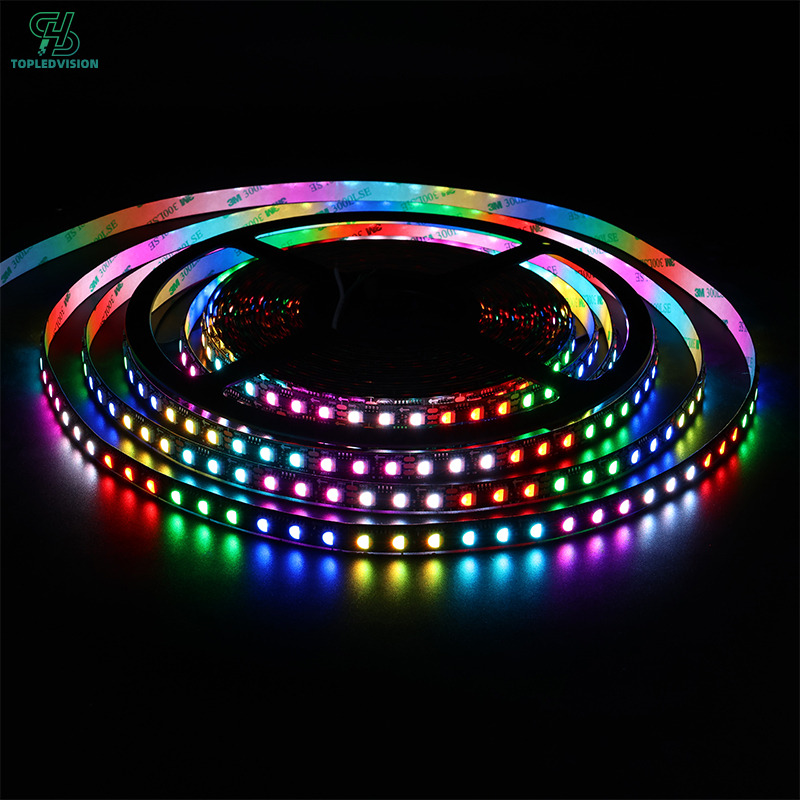

Lighting Effects: 120° wide-angle diffusion ensures uniform light output without hotspots; independent RGBW light sources produce dazzling color effects and pure white light; 256 levels of grayscale provide smooth transitions, ensuring consistent light color along long stretches of installation, and offering both static lighting and dynamic ambient effects.
Energy-efficient and durable: DC 24V low-voltage drive, low power consumption, and more energy-efficient for long-term use; excellent heat dissipation with minimal light decay, stable and reliable resume-on-break functionality, resistance to aging, and an ultra-long service life with minimal maintenance.

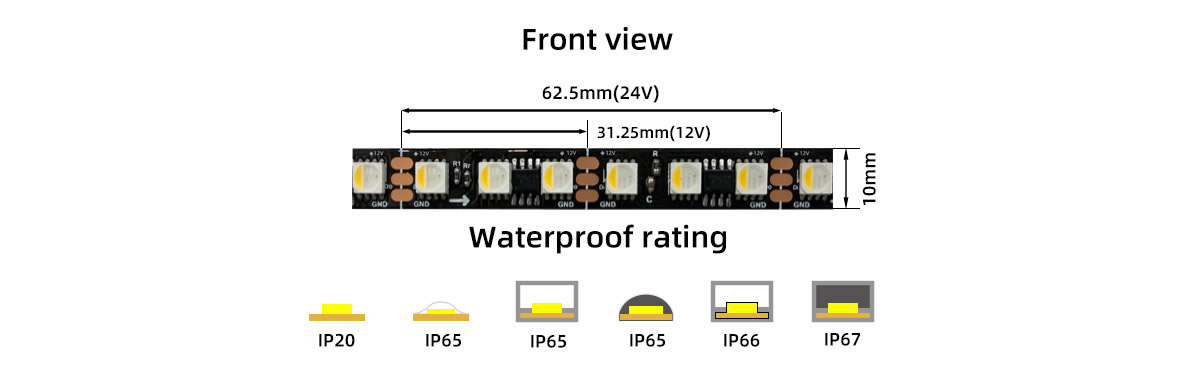

Protection Rating: Multiple protection ratings available: IP20 bare strip lights, with no outer casing, offer excellent heat dissipation and are suitable for dry indoor environments such as suspended ceilings, cabinet interiors, and exhibition halls; IP65 silicone-sheathed models, with an outer silicone layer that provides dust and splash protection, are suitable for slightly humid areas such as kitchens, display windows, and hallways; IP67 solid extruded silicone strip lights, fully enclosed and sealed to block moisture and dust, suitable for outdoor settings such as courtyards and eaves; compatible with a wide range of environments, including dry, humid, and outdoor conditions.
Easy to install: Comes with a strong adhesive backing for easy peel-and-stick application and can be cut to size as needed; the flexible panel can be bent to fit irregular shapes, making wiring simple. It features multiple installation options using aluminum channel clips, saving time and effort during installation.
Applications of the 5050 SPI RGBW 96D LED Strip: Suitable for a variety of ambient lighting scenarios, including home kitchen cabinets, gaming rooms and KTV venues, hotels and vacation rentals, outdoor patio lighting, trade shows, and RV interiors.
Technical Parameters
LEDs | 96Chips/m | Support Dimmer | Yes |
|---|---|---|---|
Color Temperature | RGBW | Lifespan | >50000h |
Drive IC | WS2811/1903/16703 | Working Temperature | -20-65℃ |
Input Voltage | 12/24V | Warranty | 3Year |
Luminous Efficiency | 90-110lm/w | Certification | Emc, RoHS, CE, FCC, LVD |
Power | 14W/M | Packing | 5/10/20/50/100m/Roll |
Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Important Information for Using SPI RGBW LED Strip Lights: We recommend having SPI RGBW LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the SPI RGBW LED strip lights due to improper operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
