5050 SPI RGB 96 LED Strip Light | Individually Addressable Pixel LED Strip

Feature / Warranty

SPI Digital Control

Individually Addressable Pixels

Custom Cutting

Multiple Protection Options

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

5050 SPI RGB 96 LED Strip Light – 1 LED 1 Cut

High-Performance 5050 SPI RGB

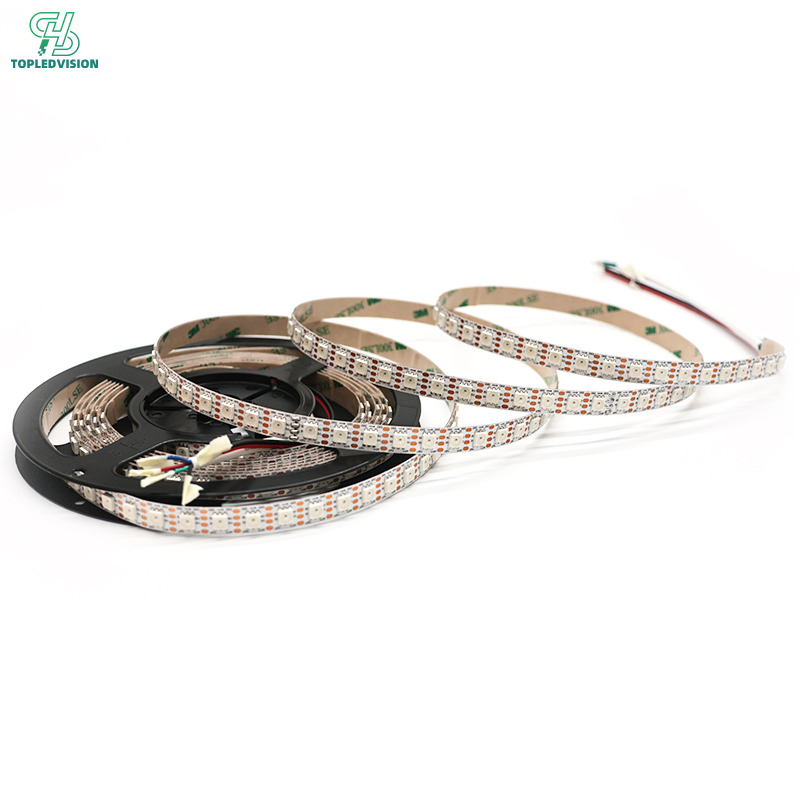

The 5050 SPI RGB 96 LED Strip Light combines high-density 5050 RGB LEDs with individually addressable SPI control. With 96 LEDs/m, each pixel can be controlled independently to create precise colors, dynamic patterns, flowing effects, and smooth animations. The flexible LED strip supports programmable lighting effects for both decorative and professional lighting projects.

Dynamic & Uniform Lighting Effects

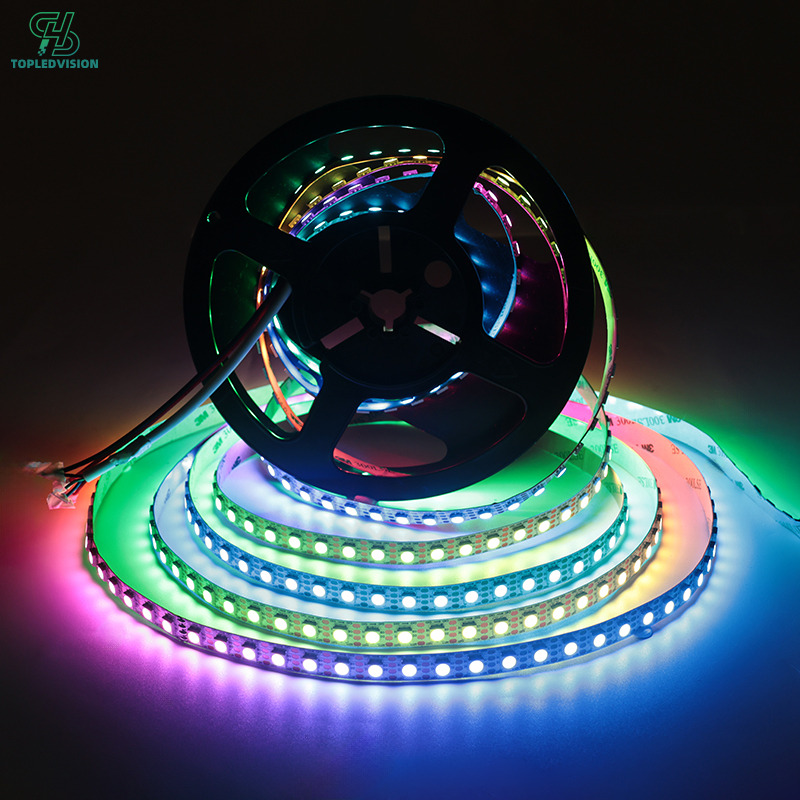

Designed for vibrant and dynamic illumination, this SPI RGB LED Strip Light delivers rich colors and smooth transitions across the entire strip. Individual pixel control enables chasing, scrolling, gradient, flashing, and other programmable effects, making it ideal for creative lighting designs and visual installations.

Energy-Efficient & Long-Lasting

The 5050 RGB LEDs provide efficient light output while maintaining stable performance during continuous operation. High-quality components and a reliable flexible PCB help improve heat dissipation and service life, making the strip suitable for long-term commercial and decorative lighting applications.

Flexible Protection Options

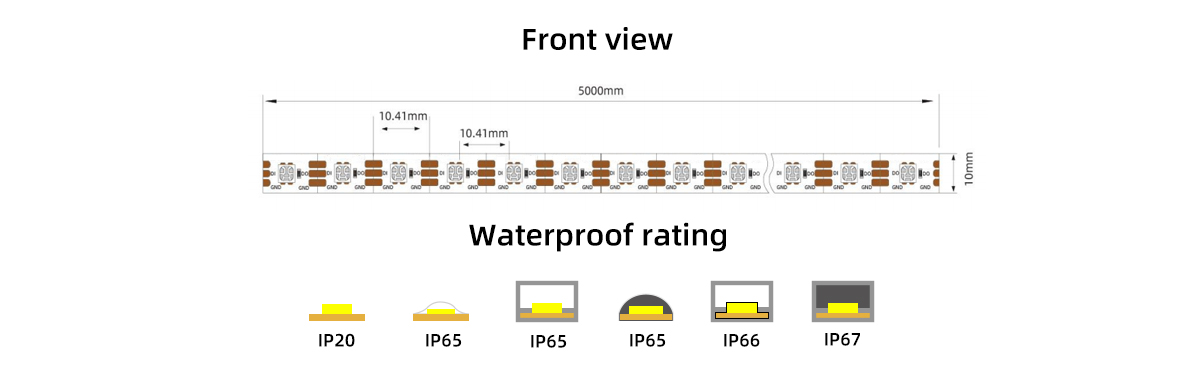

Available with different protection levels such as IP20, IP65, IP66, and IP67, the 96 LED SPI RGB Strip can be configured for different indoor and outdoor environments. Waterproof versions provide enhanced protection against moisture, dust, and water exposure for demanding installations.

Easy Installation & Customization

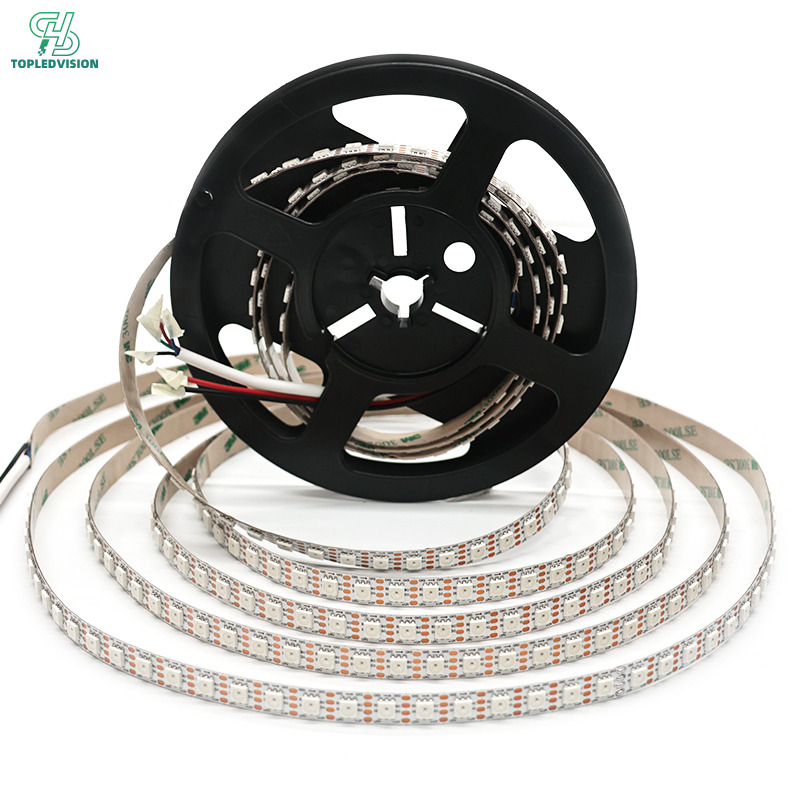

The flexible PCB allows the strip to bend around curves, corners, and irregular surfaces. It can be cut to the specified cutting pitch and installed with adhesive backing or aluminum profiles for a clean and professional finish. Custom options are available for voltage, LED density, IP rating, PCB width, connector, and strip length.

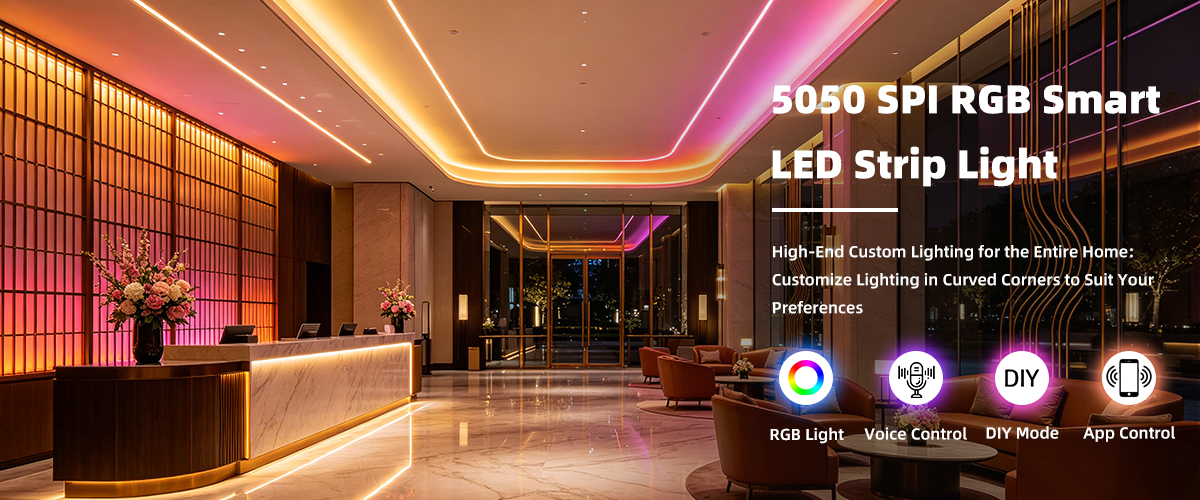

Versatile Application Scenarios

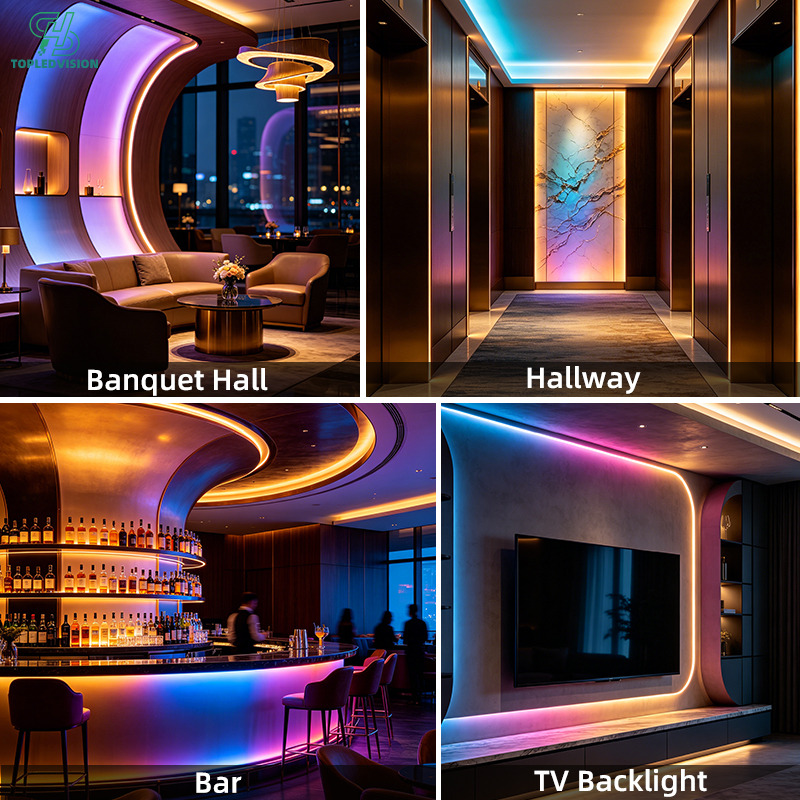

With individually addressable RGB pixels and programmable SPI control, this 5050 Addressable RGB LED Strip is suitable for a wide range of applications, including architectural lighting, retail displays, signage, stage and event lighting, entertainment venues, commercial spaces, gaming setups, decorative lighting, and custom LED installations.

Technical Parameters

LEDs	96Chips/m	Support Dimmer	Yes
Color Temperature	RGB	Lifespan	>50000h
Compatible IC	WS2812/SK6812 /SK5812	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Strip width	10mm	Certification	Emc, RoHS, CE, FCC, LVD
Power	17/20W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using SPI RGB LED Strip Lights: We recommend having SPI RGB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the SPI RGB LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

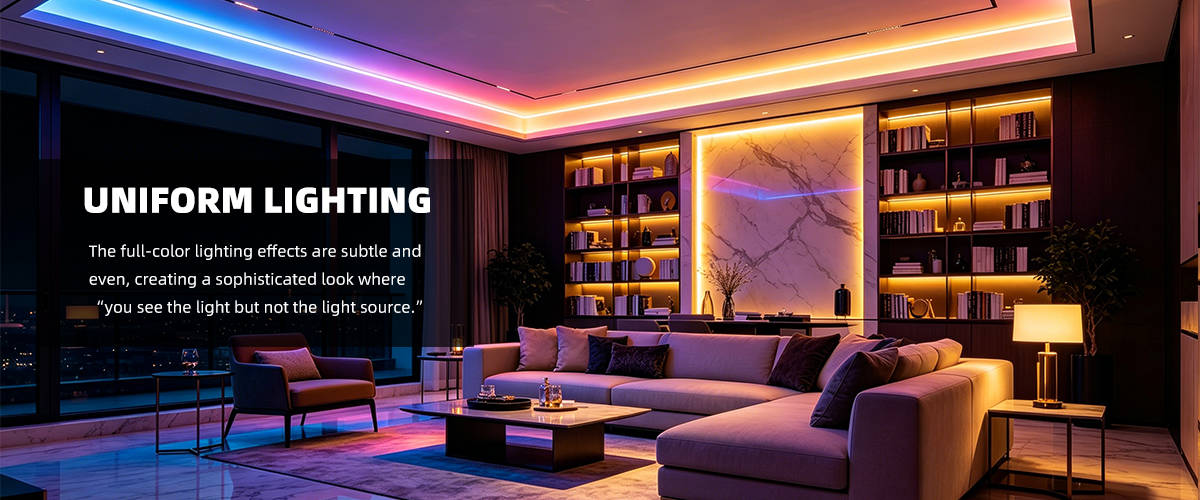

Uniform & Smooth Illumination

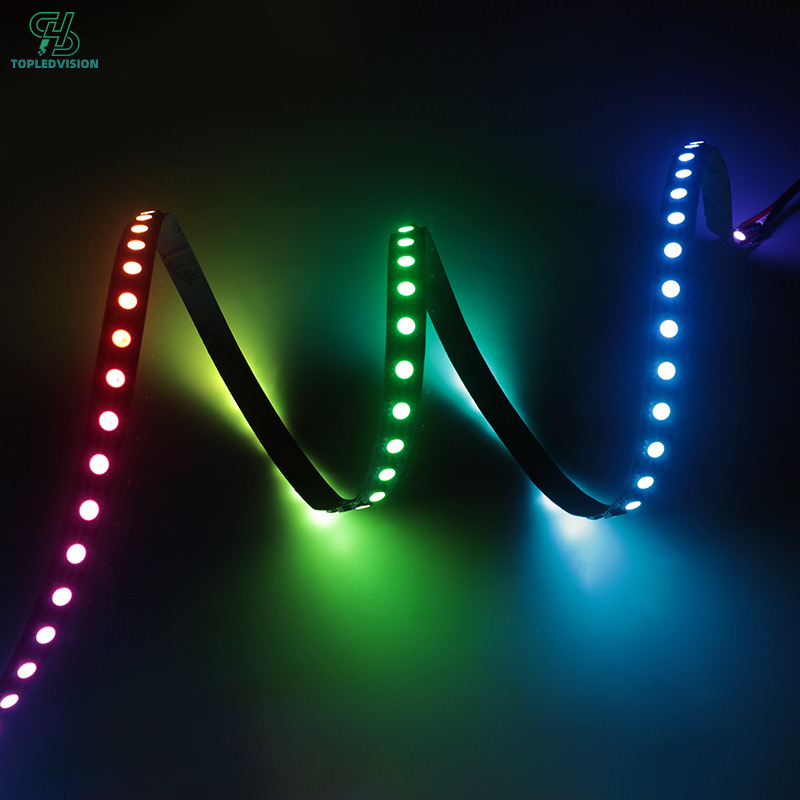

The 5050 SPI RGB 96 LED Strip Light uses a high-density 96 LEDs/m layout to provide smooth and consistent illumination across the entire strip. Individually addressable pixels deliver precise color transitions and synchronized lighting effects, minimizing uneven brightness and visible dark areas. The uniform light output creates a clean, continuous lighting effect for architectural, commercial, decorative, and entertainment applications.

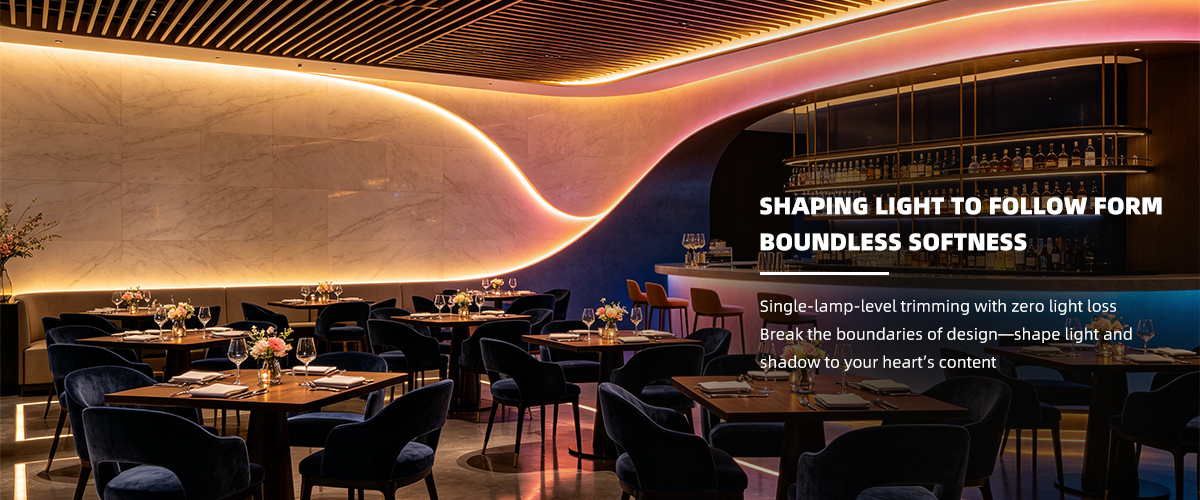

Flexible Design & Easy Installation

The 5050 SPI RGB 96 LED Strip Light features a flexible PCB that easily bends around curves, corners, and irregular surfaces, providing greater freedom for creative lighting designs. Its slim and adaptable construction supports easy installation in narrow spaces, recessed areas, display structures, and custom-shaped applications. The strip can be cut to the required length for precise installation, making it suitable for both simple layouts and complex lighting projects.

Smart & Individually Addressable Control

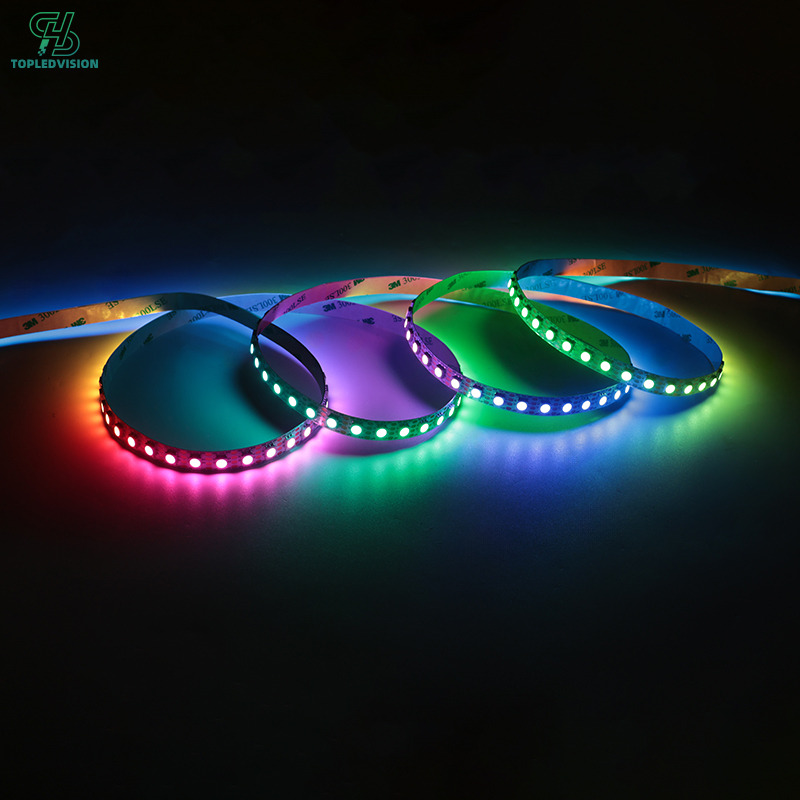

The 5050 SPI RGB 96 LED Strip Light features individually addressable pixel control, allowing each LED or pixel to be programmed independently for precise color and brightness adjustment. SPI digital control enables dynamic effects such as chasing, flowing, scrolling, gradients, and synchronized animations. Compatible with programmable LED controllers, it provides flexible control for creative lighting designs, smart installations, and interactive applications.

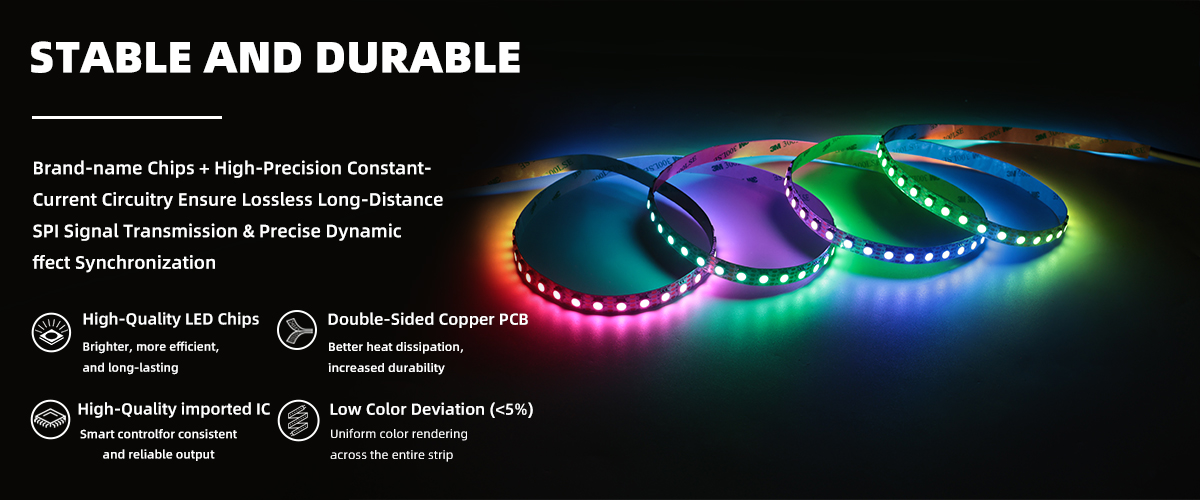

Stable Performance & Long Service Life

The 5050 SPI RGB 96 LED Strip Light is built with high-quality 5050 RGB LEDs, a reliable flexible PCB, and stable SPI components for consistent performance during long-term operation. Its robust construction provides excellent electrical stability, color consistency, and heat dissipation, helping reduce performance degradation over time. Designed for demanding commercial, architectural, and decorative lighting projects, it delivers reliable illumination and long-lasting performance.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
