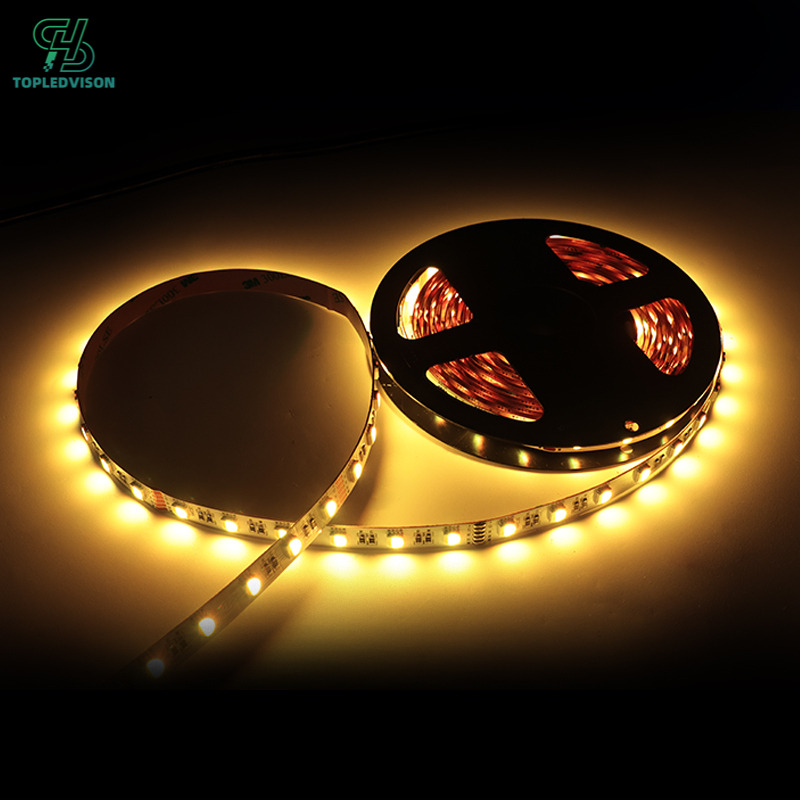

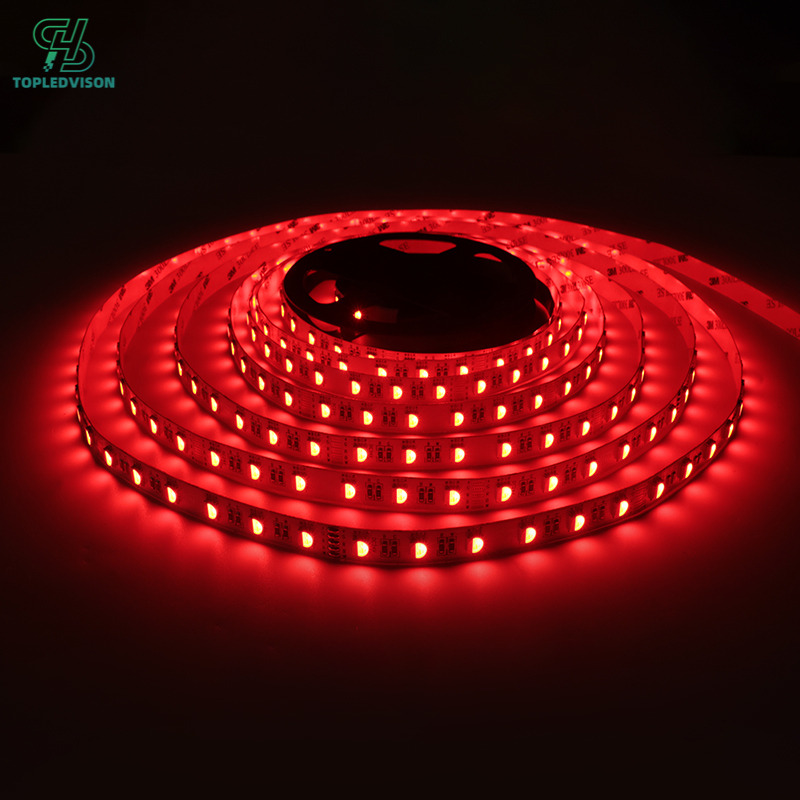

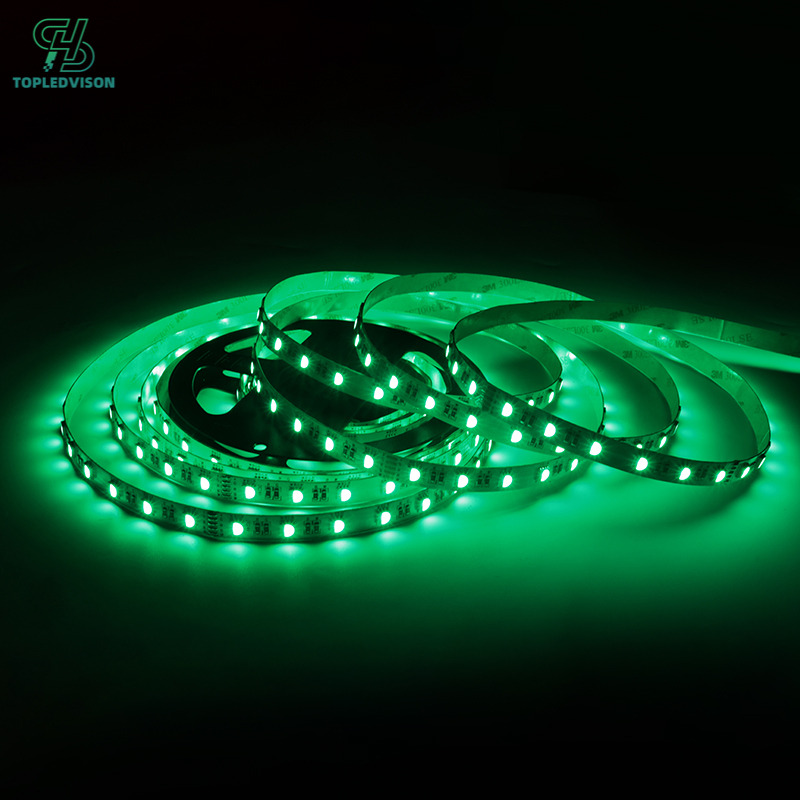

5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
5050 RGBW 60 LED Strip 10mm-5m (5050 RGBW STRIP SERIES )
Feature / Warranty
dc
  • True Color White Light
  • No light spots
  • Energy-saving and long-lasting
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

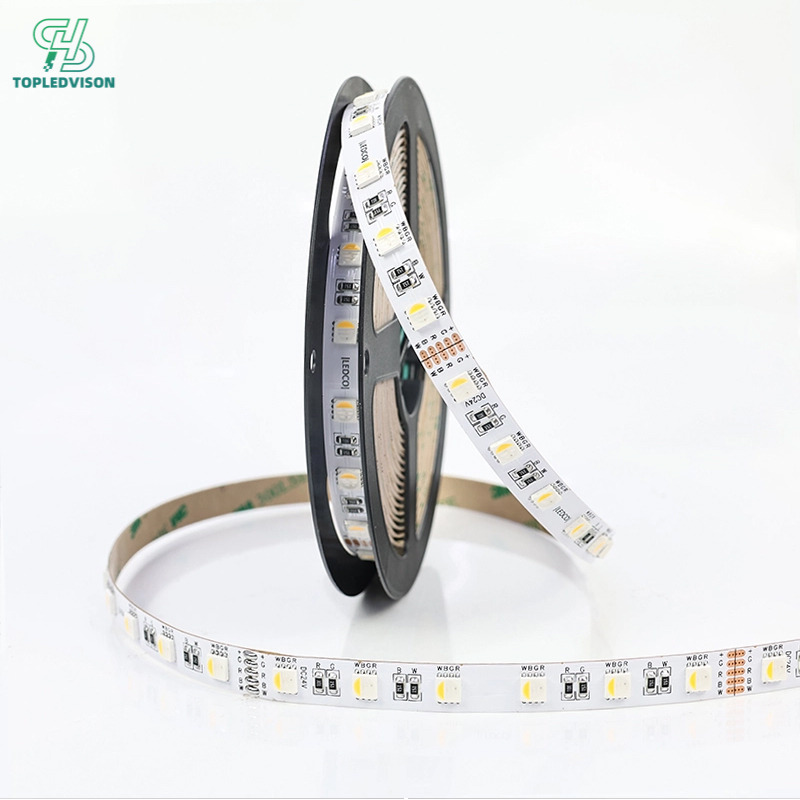

5050 RGBW 60-LED Strip Light

Product Features: Features high-quality 5050 LEDs; each LED contains four independent R/G/B/W chips. Color Mode: RGB mixing supports over 16 million colors with high saturation and natural transitions. White Light Mode: Warm White / Natural White / cool white; high CRI (Ra ≥ 80), close to natural light, suitable for main lighting or accent lighting, accurately reproducing true colors of objects. Supports static solid colors, gradients, breathing, strobing, and other dynamic effects. DC 12V/24V low-voltage operation, high brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install.

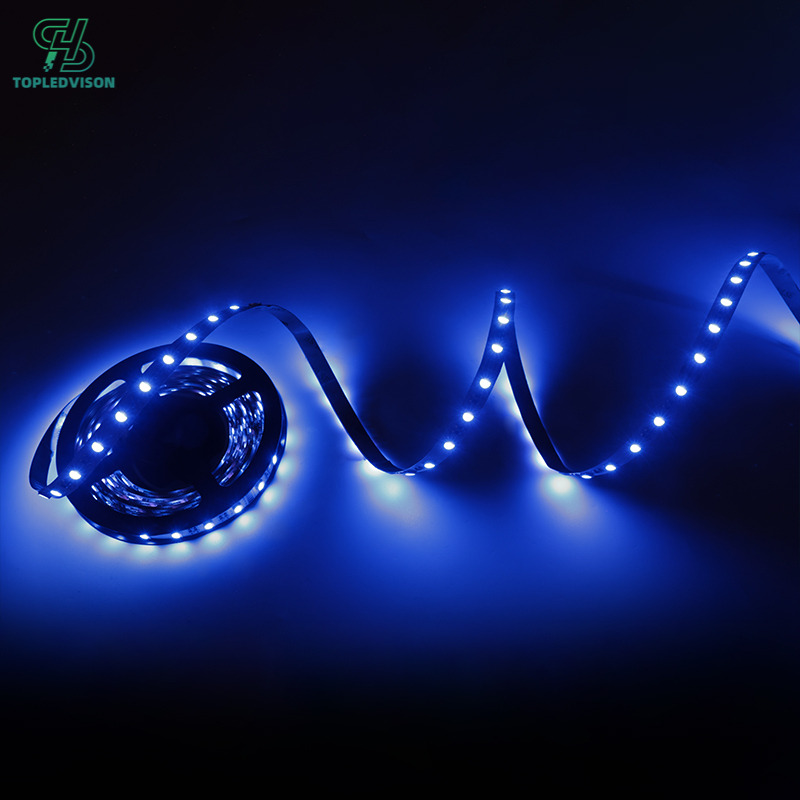

Lighting Effects: Soft light; no light spots or flicker; highly flexible, suitable for indoor and outdoor lighting applications such as TV background walls, entryway ambient lighting, cabinet under-cabinet lighting, gaming rooms, eaves light strips, and building facade lighting.

Energy-efficient and durable: High-quality LEDs + gold-plated wires / copper brackets + double-sided copper PCB for superior conductivity and heat dissipation. Service life up to 50,000 hours, minimal light decay, and consistent brightness and color over long-term use.

Protection rating: IP20 for dry indoor environments; IP65 for indoor and outdoor humid environments; IP66/IP67 for outdoor rain exposure and short-term submersion.

Easy Installation: Comes with 3M adhesive backing—no drilling required; simply peel and stick. The flexible PCB allows for bending and conforming to curved, angled, or uneven surfaces, making it suitable for tight spaces such as cabinet shelves and cable channels. The strip can be cut to length as needed without affecting the functionality of the remaining sections.

Applications of the 5050 RGBW 60D LED Strip: Kitchen cabinets, bedroom ambiance lighting, bedside lighting, clothing store windows, exhibit lighting, garden pathways, and gazebo decorations.

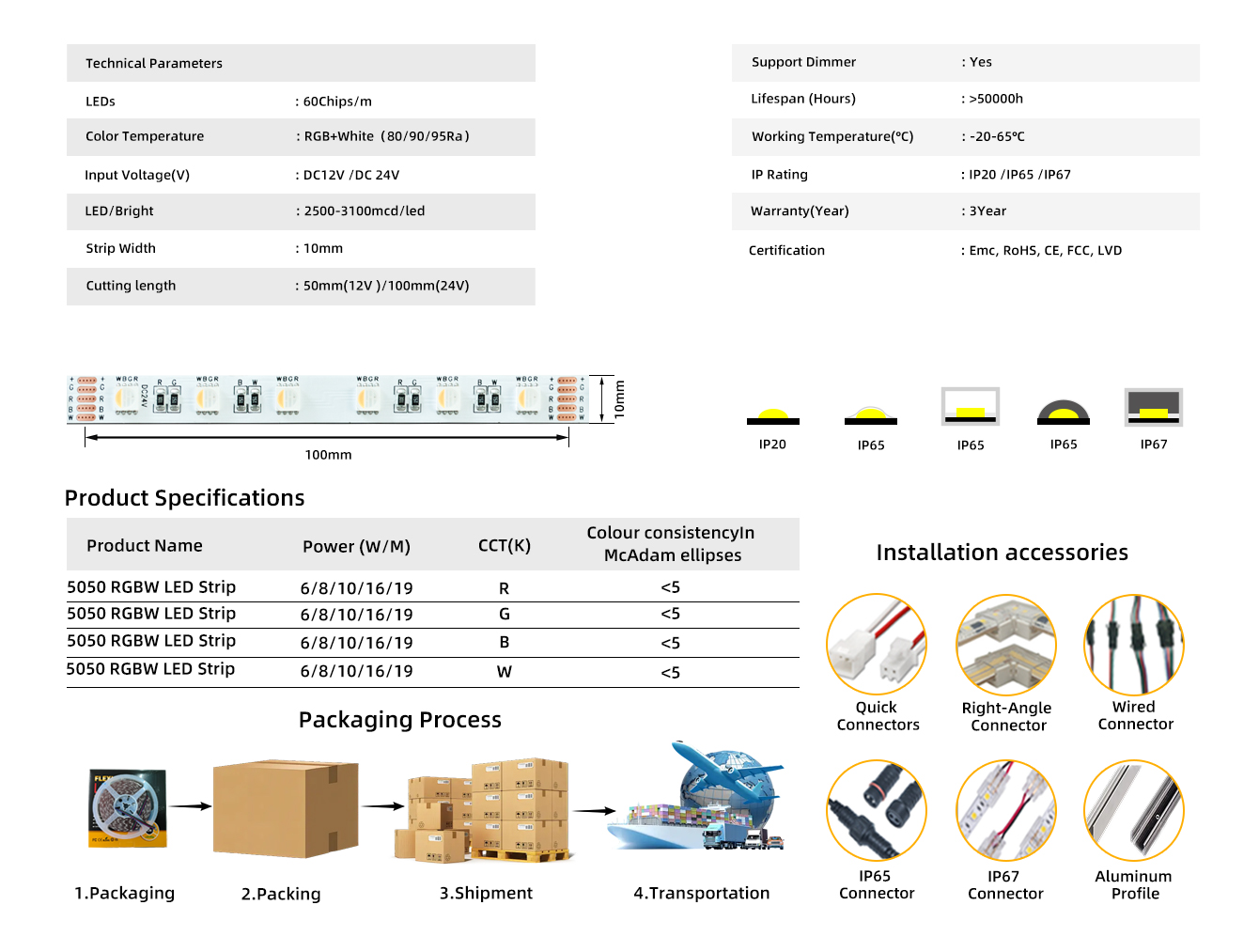

Technical Parameters

LEDs

60Chips/m

Support

Dimmer

Yes

Color

Temperature

RGB+White

(80/90/95Ra)

Lifespan

>50000h

LED/Bright

2500-3100mcd/led

Working

Temperature

-20-65℃

Input Voltage

12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

6/8/10/16W/M

Packing

5/10/20/50/100m/Roll

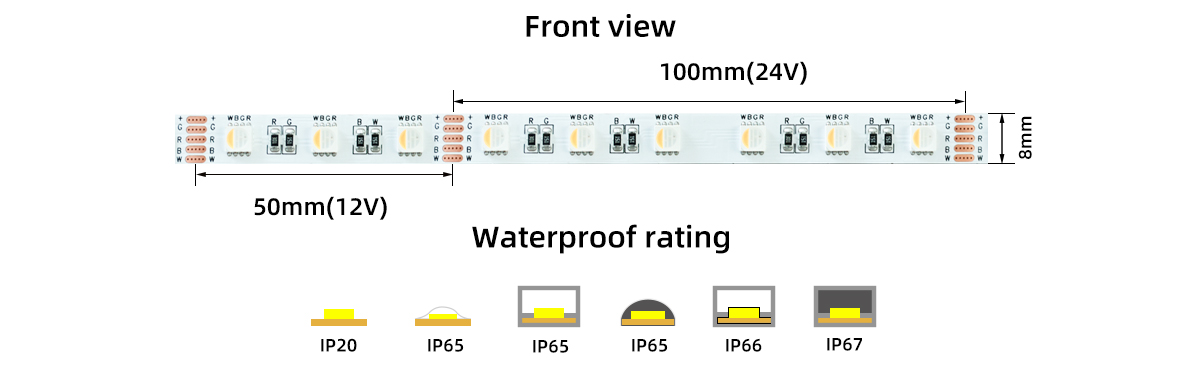

RGBW 60D 灯带裁剪.jpg
  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using RGBW LED Strip Lights: We recommend having RGBW LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGBW LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

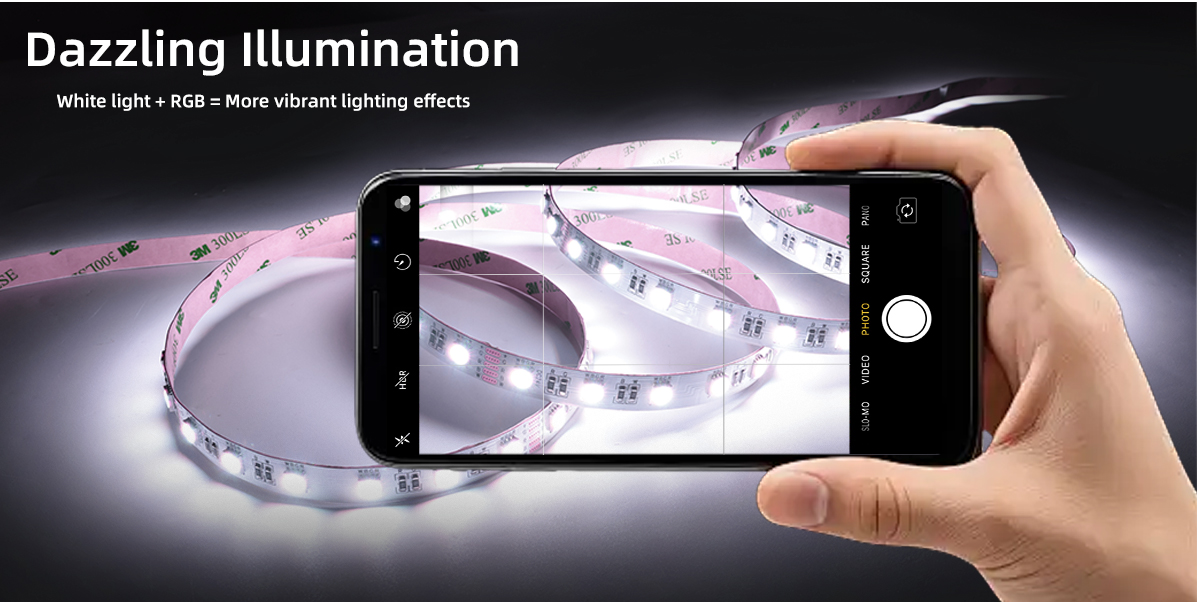

True Color White Light

Featuring a standalone white light chip design, this solution addresses the color shifts—such as a warm or cool cast—commonly associated with traditional RGB color mixing at the source. It completely eliminates color mixing errors, resulting in purer, more translucent white light that accurately reproduces the true colors of objects with a more natural and nuanced color rendering. At the same time, it enhances overall luminous flux and delivers superior brightness, meeting both aesthetic needs for ambient decoration and scene accents, as well as daily functional lighting requirements for reading, working, and kitchen and bathroom use, balancing beauty and practicality. White light and RGB color light support independent control and free adjustment. The two can be freely combined and layered, allowing for flexible variations in temperature, brightness, and color depth. This makes it easy to create composite lighting effects with a sense of depth, ambiance, and artistry, meeting personalized lighting needs across multiple scenarios such as residential, commercial, and entertainment spaces.


RGBW-60详情页_07

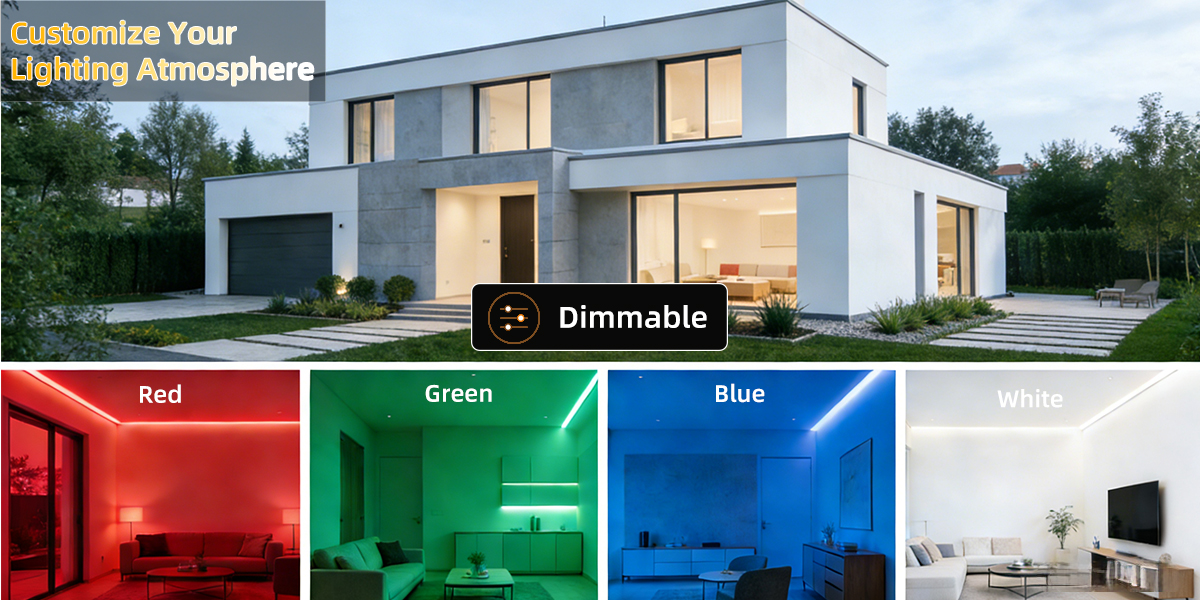

No light spots

The high-density LED chip layout effectively minimizes light discontinuities caused by gaps between chips, structurally ensuring uniform light output. Combined with high-quality 4-in-1 integrated LED chips and a professionally optimized color-mixing optical design, this allows red, green, blue, and white light sources to blend seamlessly, resulting in superior color consistency. Supported by a stable and reliable circuit driver and an efficient heat dissipation solution, the product maintains minimal light decay and stable color temperature even during prolonged operation. This ensures overall light output remains uniform, soft, and consistently stable, completely eliminating dark areas, dark spots, and flickering issues. It achieves delicate, smooth, and seamless color gradients and dynamic lighting transitions, delivering a uniform light quality comparable to high-end LED strips.


RGBW-60详情页_15


Energy-saving and long-lasting

Independent white light chips achieve energy efficiency optimization, delivering lower power consumption at equivalent brightness while reducing RGB chip load and heat generation. The light strip boasts a lifespan of up to 50,000 hours. Four-color mixing efficiency is significantly enhanced, with light output increased by approximately 30% compared to traditional RGB solutions.


RGBW-60详情页_23

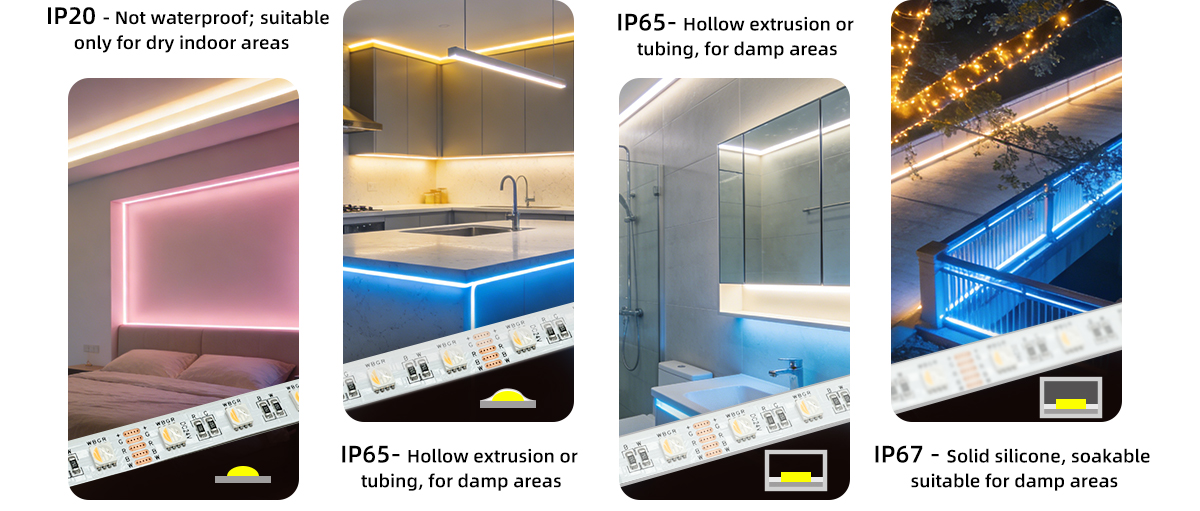

Waterproof Construction

Available in multiple professional protection ratings—IP20, IP65, and IP67—to flexibly adapt to different environments. The IP20 model is suitable for dry, clean indoor spaces such as bedrooms, living rooms, and home offices, meeting the needs of both decorative and functional lighting. The IP65 splash-proof model resists moisture and cooking fumes, making it ideal for humid areas like kitchens, bathrooms, and balconies; The IP67 high-protection model is waterproof and weather-resistant, capable of withstanding harsh and complex environments such as outdoor courtyards and landscape lighting. It provides comprehensive coverage from refined indoor lighting to demanding outdoor settings, ensuring stable performance and greater peace of mind.


RGBW-60详情页_31

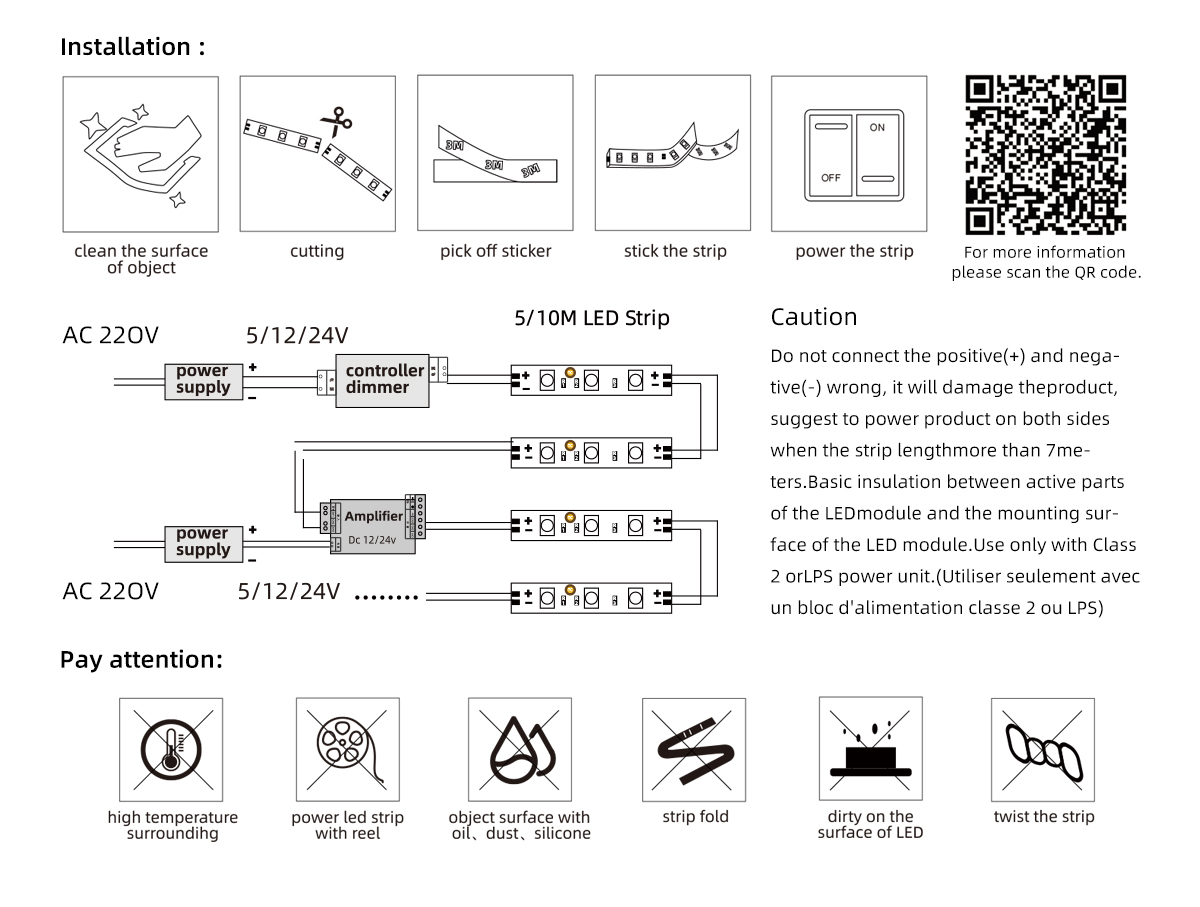

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
