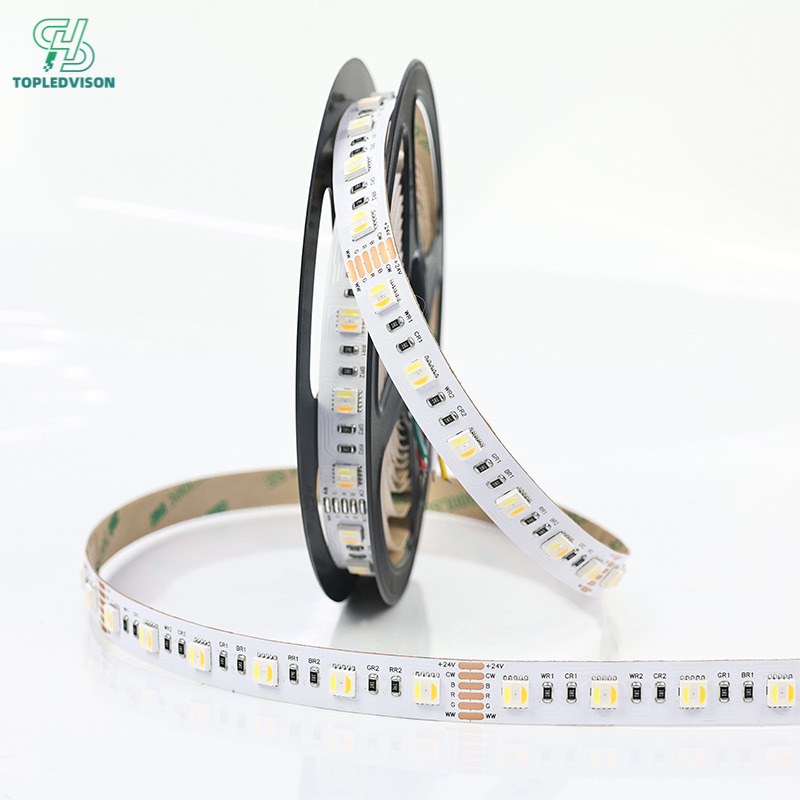

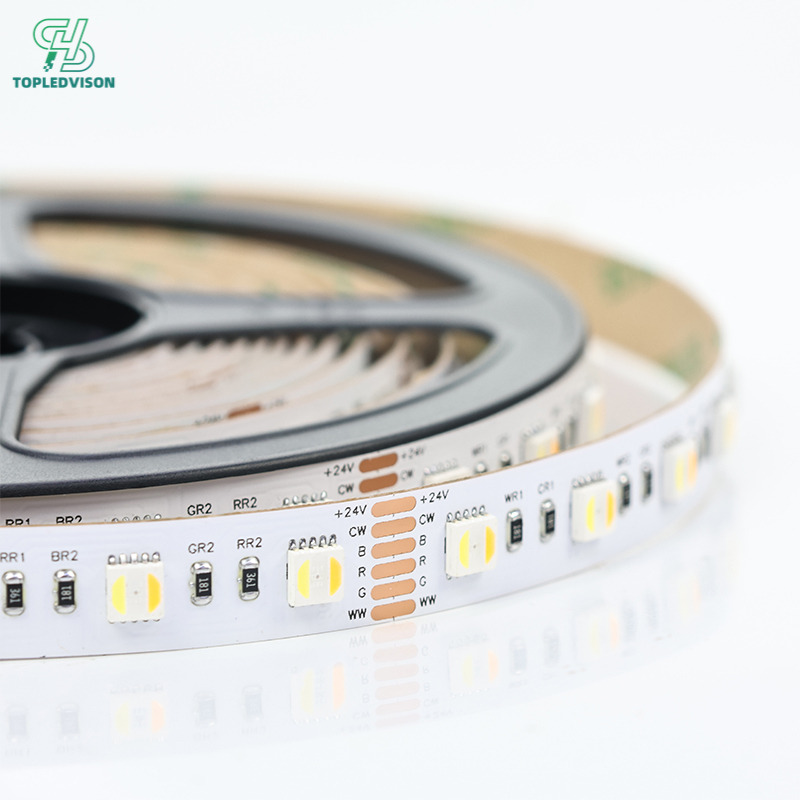

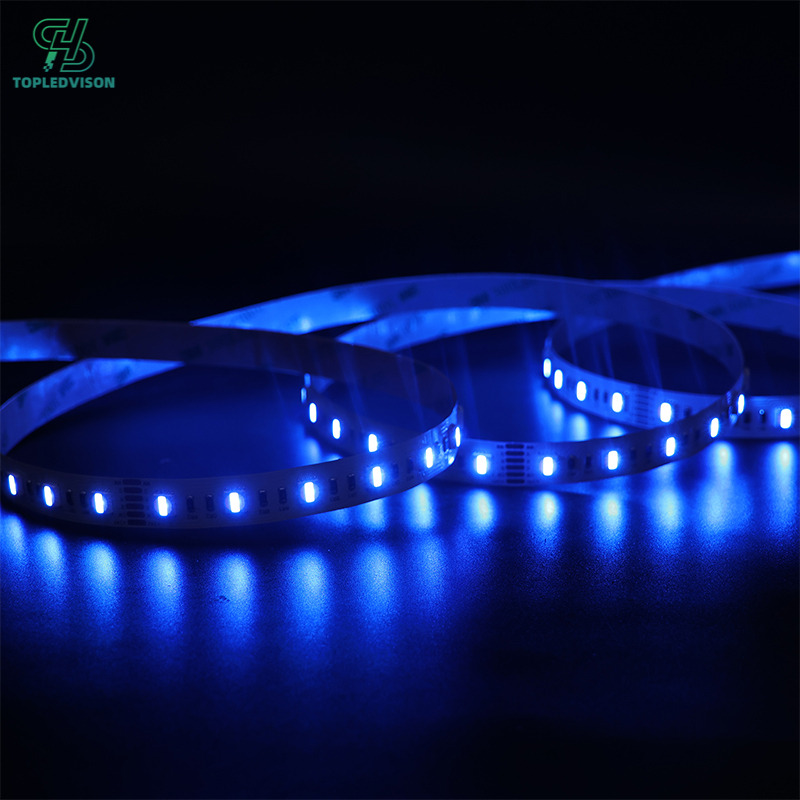

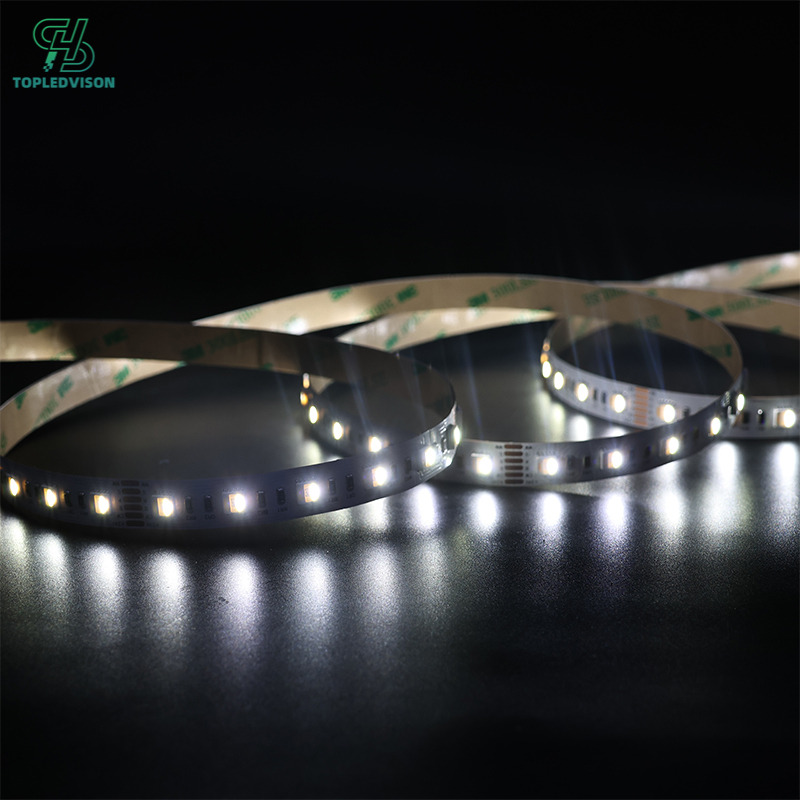

5050 RGBCW 60 LED Strip Light

Product Specifications

The 5050 RGBCW 60 LED Strip Light features a high-density 5050 LED design, delivering bright, uniform illumination with no dark spots. Combining RGB, cool white, and warm white LEDs, this RGB+CCT LED Strip Light provides full-color lighting and adjustable color temperature from 2700K to 6500K.

With a CRI ≥90, the RGBW LED Strip Light offers excellent color rendering, accurately reproducing natural colors for a more realistic lighting experience. The five-channel LED technology creates smooth color mixing, dynamic effects, and seamless transitions between RGB colors and white light.

Powered by low-voltage DC input, the strip provides safe and eye-friendly lighting. The flexible PCB design ensures efficient heat dissipation, stable brightness, and reliable long-term performance. Available with multiple waterproof options, it is suitable for both indoor and outdoor lighting applications.

Smooth & Adjustable Lighting Effects

The 5050 RGB+CCT LED Strip Light combines vibrant RGB colors with warm white and cool white illumination in one strip, delivering versatile lighting effects for different environments. The wide 120° beam angle ensures even light distribution, while advanced LED chips provide smooth brightness and consistent color output.

With adjustable white color temperature from 2700K-6500K, this RGBCW LED Strip Light supports both cozy warm lighting and clean cool white illumination. The seamless RGB-to-white transition creates rich layers of light and shadow, making it ideal for decorative and functional lighting.

Energy Efficient & Long Lifespan

Designed for durability, the 5050 RGBW LED Strip Light uses high-quality LED chips, gold-wire bonding technology, copper mounting frames, and a thickened FPC PCB to improve heat dissipation and reduce voltage drop.

The optimized circuit design ensures stable current flow, low power consumption, minimal lumen depreciation, and consistent brightness throughout its lifespan. This energy-efficient RGB+CCT LED Strip Light delivers reliable performance for long-term lighting projects.

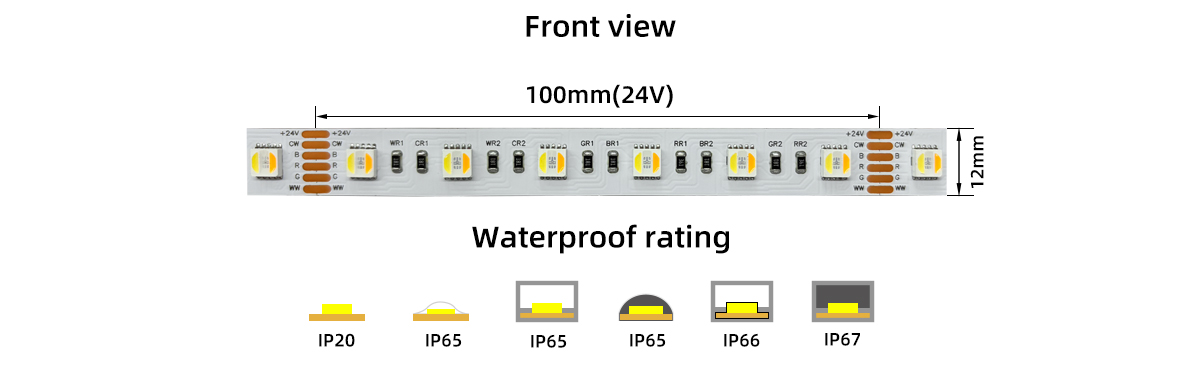

Multiple Waterproof Options

The 5050 RGBCW 60 LED Strip Light is available in different protection ratings to meet various application requirements:

IP20 LED Strip Light – Suitable for dry indoor environments such as cabinets, ceilings, and decorative lighting.
IP65 LED Strip Light – Suitable for humid indoor areas with protection against splashes, moisture, and dust.
IP67 LED Strip Light – Designed for outdoor and damp environments with enhanced protection against dust and water.

Easy Installation & Flexible Design

The flexible 5050 RGB+CCT LED Strip Light can be easily bent, shaped, and cut to fit different installation spaces. The strong self-adhesive backing provides quick and secure mounting without complicated tools.

Its flexible design makes it suitable for curved surfaces, corners, cabinets, ceilings, and customized lighting projects.

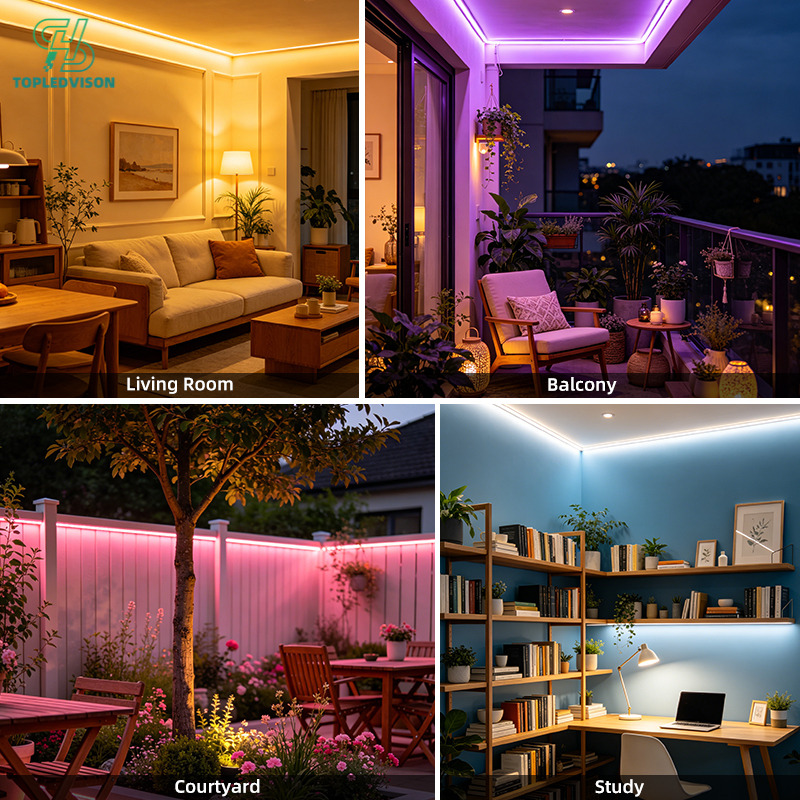

Wide Application Areas

The 5050 RGBCW 60 LED Strip Light is ideal for residential, commercial, and architectural lighting applications, including:

Home ambient lighting
Ceiling and cove lighting
Cabinet and under-cabinet lighting
Bedroom and living room decoration
Hotel and restaurant lighting
Retail display lighting
Storefront and showcase lighting
Building facade and outdoor landscape lighting

Technical Parameters

LEDs	60Chips/m	Support Dimmer	Yes
Color Temperature	RGB + White (80/90/95Ra)	Lifespan	>50000h
LED/Bright	RGB：2500-3100mcd/led W:10-12lm	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	6/8/10/12W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using RGBCW LED Strip Lights: We recommend having RGBCW LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGBCW LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

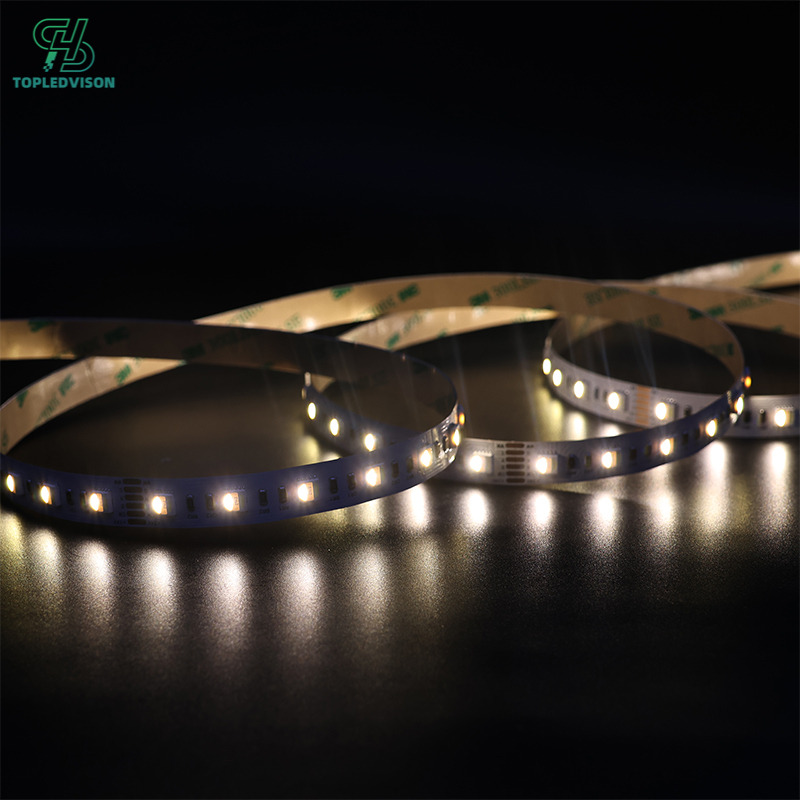

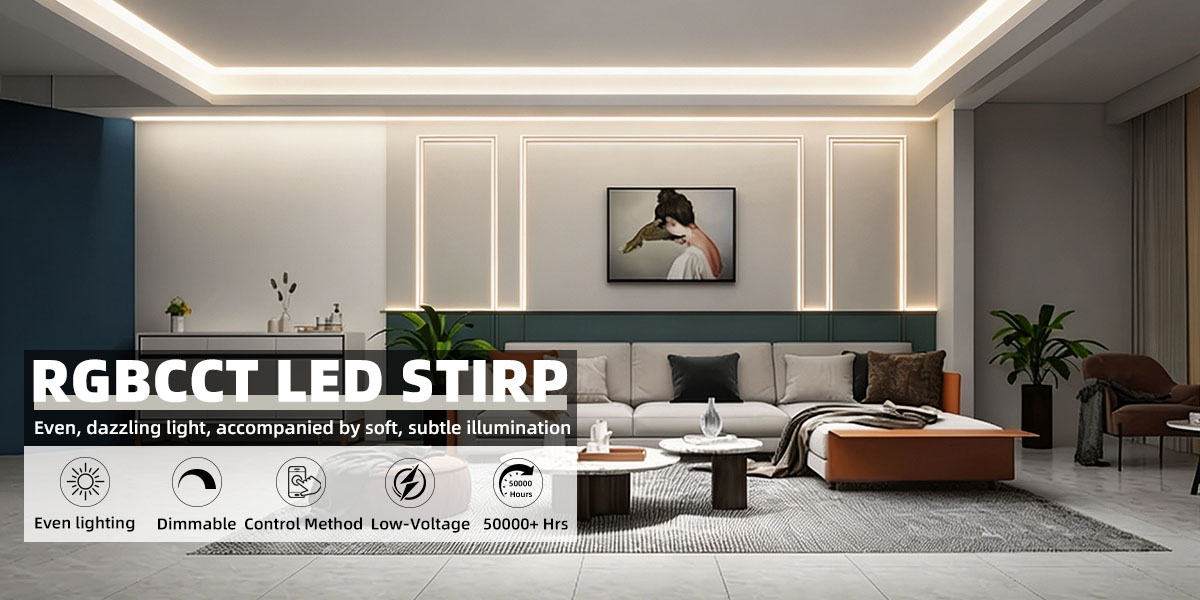

Uniform Brightness

The 5050 RGBCW 60 LED Strip Light features 60 high-quality 5050 LEDs per meter and a 120° wide beam angle for bright, even, and seamless illumination. The RGB+CCT LED Strip combines RGB colors with warm white and cool white lighting, eliminating dark spots and providing smooth color transitions. The upgraded copper PCB minimizes voltage loss, ensuring stable brightness and uniform light output throughout the RGBW LED Strip Light.

RGB+CCT Full Color & Tunable White

The 5050 RGB+CCT LED Strip Light combines RGB color LEDs with dedicated warm white and cool white chips, delivering millions of color effects and adjustable white lighting. This 5-in-1 RGBCW LED Strip Light supports vivid colors, tunable white temperatures, and smooth RGB-to-white transitions, providing bright, natural, and customizable lighting for any application.

High CRI & Natural Lighting

The 5050 RGB+CCT LED Strip Light is equipped with high color rendering LEDs (CRI ≥90) to provide realistic colors, balanced white light, and a natural lighting experience. The high CRI RGBW LED Strip Light ensures excellent color accuracy, reduces color deviation, and creates soft, refined illumination for home lighting, retail displays, and architectural applications.

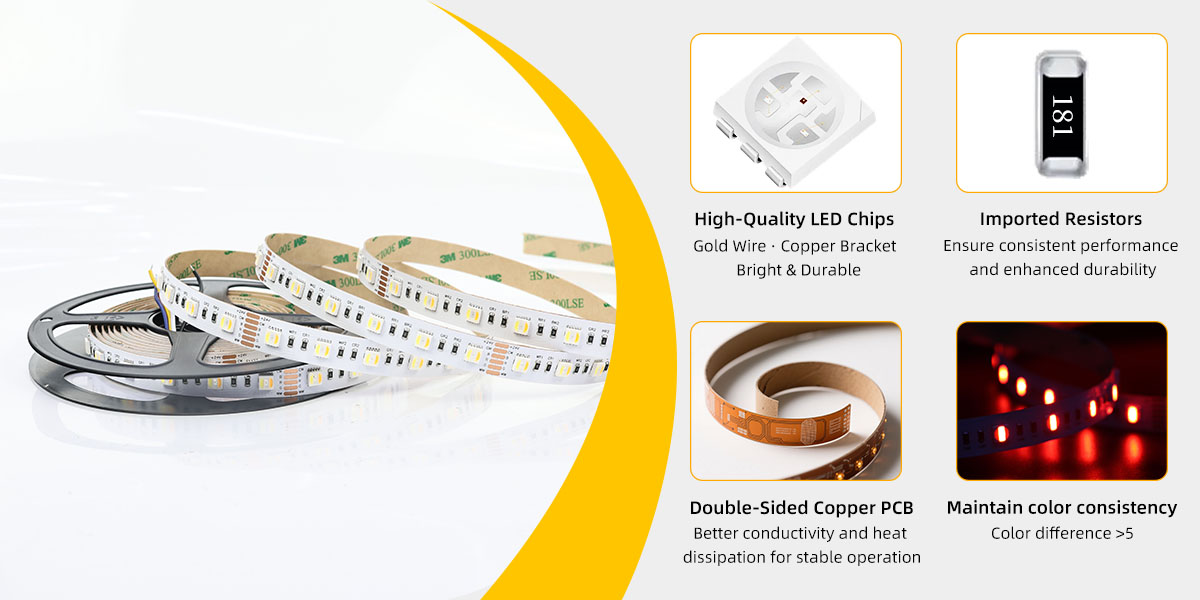

Long Lifespan & Reliable Performance

Built with a premium thick copper FPC board, the 5050 RGBW LED Strip Light delivers excellent conductivity, efficient thermal management, and stable light output. The advanced LED packaging technology reduces light degradation and color shifting, extending the service life beyond 50,000 hours. This durable RGB+CCT LED Strip Light ensures long-lasting, flicker-free illumination for various lighting projects.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
