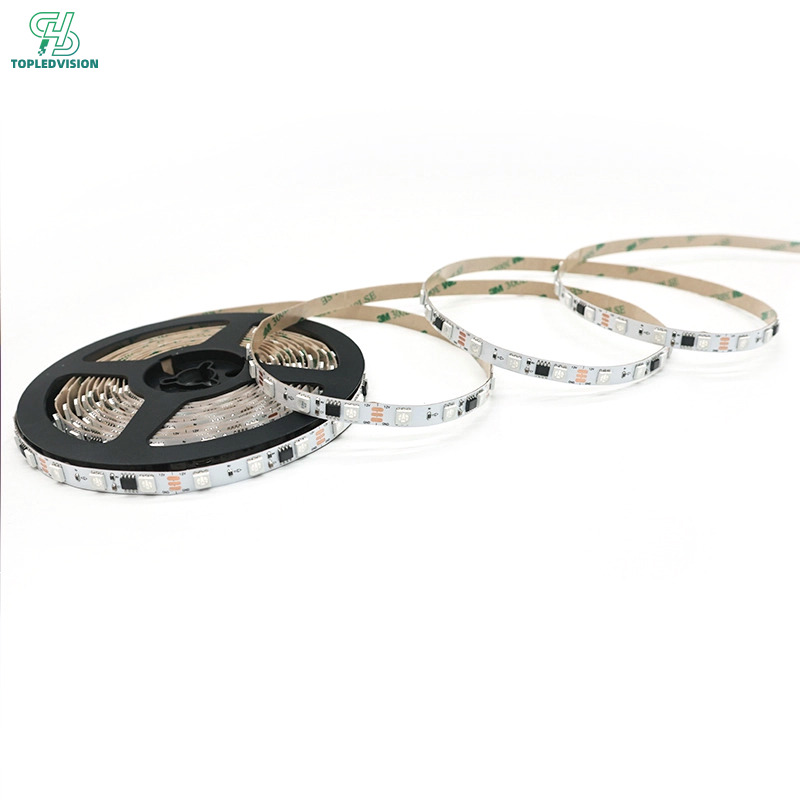

5050 RGB SPI LED Strip 60LED/m Addressable Pixel Light 8mm-5m (SPI DATA STRIP SERIES )

Feature / Warranty

Exceptional color performance
No light Spots
Energy-saving and long-lasting
Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

5050 RGB SPI 60LEDs/m Addressable LED Strip

The 5050 RGB SPI LED Strip 60LEDs/m features premium 5050 RGB LED chips with high brightness, excellent color consistency, and smooth color transitions. Each LED pixel supports 16 million colors with individually addressable control, delivering vibrant RGB lighting effects without color deviation, flickering, or hotspots.

Equipped with external IC control (WS2811, WS1903, WS16703, etc.), this programmable RGB LED strip supports single-pixel or group control, enabling dynamic effects such as chasing, flowing, breathing, fading, strobe, and music sync. The SPI signal transmission supports breakpoint resume function, ensuring stable operation even if one section is damaged.

Smooth Digital Pixel Lighting Performance

This 60LEDs/m addressable RGB LED strip provides soft, uniform illumination with a wide beam angle, creating comfortable lighting without glare or ghosting. The digital pixel LED strip is ideal for decorative and creative lighting projects requiring dynamic RGB effects and precise color control.

High Efficiency & Long Lifespan

Built with high-quality LED chips, gold-plated wire bonding, copper brackets, and a double-layer copper PCB, the 5050 RGB SPI LED strip light delivers excellent conductivity, heat dissipation, and long-term stability.

Voltage: DC 12V / 24V low voltage
LED Type: 5050 RGB SMD
Density: 60 LEDs per meter
Control Type: SPI Addressable IC Control
Lifespan: Up to 50,000 hours
Stable brightness with minimal light decay

Flexible Waterproof Options

Available in multiple protection ratings to meet different applications:

IP20 RGB SPI LED Strip: Suitable for dry indoor environments with excellent heat dissipation.
IP65/IP66 Addressable LED Strip: Ideal for kitchens, bathrooms, balconies, and humid areas with splash protection.
IP67 Waterproof Pixel LED Strip: Designed for outdoor signage, landscape lighting, and long-term outdoor installations.

Easy Installation & Flexible Design

The 5050 RGB programmable LED strip features strong 3M adhesive backing for quick installation without drilling. The flexible PCB design allows easy bending around corners, curves, and uneven surfaces. The LED strip can be cut into required lengths without affecting the remaining LEDs.

Wide Application

The 5050 RGB SPI LED Strip 60LED/m is widely used for:

TV backlight and entertainment lighting
Gaming room RGB decoration
Wardrobe and cabinet lighting
Wine cabinet accent lighting
Stair and ceiling lighting
DIY smart lighting projects
Landscape and garden lighting
Architectural and event decoration

Technical Parameters

LEDs	60Chips/m	Support Dimmer	Yes
Color Temperature	RGB	Lifespan	>50000h
Compatible IC	WS2811/1903/16703	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using RGB SPI LED Strip Lights: We recommend having RGB SPI LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGB SPI LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Exceptional RGB Color Performance

The 5050 RGB SPI LED Strip delivers vibrant full-color RGB lighting with smooth transitions, rich color gradients, and accurate color reproduction. Supporting smart lighting effects such as flowing, chasing, running, breathing, and gradient modes, this addressable RGB LED strip creates dynamic, immersive lighting atmospheres for any space.

With advanced SPI pixel control technology, each LED can be individually controlled to achieve precise digital effects. The digital pixel LED strip provides uniform, soft, and flicker-free illumination with no color breaks, hotspots, or glare, ensuring a smooth and comfortable visual experience for decorative, ambient, and architectural lighting applications.

RGB60幻彩-详情页_05

No Light Spots & Smooth Color Transition

The 5050 RGB SPI LED Strip delivers bright, uniform, and soft illumination with a seamless lighting effect, eliminating hotspots, graininess, and glare. Featuring 256-level grayscale processing and 24-bit true color technology, this addressable RGB LED strip produces up to 16 million colors with smooth gradients, accurate color transitions, and consistent brightness.

Powered by advanced SPI pixel control, the digital pixel LED strip ensures flicker-free operation, stable performance, and comfortable lighting for long-term use. With flexible RGB color adjustment and smart lighting control, it easily creates warm, relaxing atmospheres or bright task lighting for various applications.

RGB60幻彩-详情页_11

Energy-Efficient & Long-Lasting Performance

The 5050 RGB SPI LED Strip uses high-quality, high-brightness LED chips to deliver stable illumination, excellent color consistency, and low power consumption. Built with a flexible double-layer PCB, this addressable RGB LED strip can easily bend around curves, corners, and irregular surfaces for versatile installation.

Featuring strong 3M adhesive backing, the programmable RGB LED strip offers quick and secure mounting, while supporting cutting and seamless connection for customized lengths. Powered by safe low-voltage DC 12V/24V, the digital pixel LED strip provides efficient heat dissipation, reliable performance, and a long lifespan of up to 50,000 hours.

RGB60幻彩-详情页_17

Waterproof Construction

The 5050 RGB SPI LED Strip is available in multiple waterproof options to meet different environments. IP20 addressable RGB LED strip is ideal for dry indoor applications, while IP65/IP67 waterproof RGB SPI LED strip provides reliable protection for humid areas and outdoor installations.

Designed for durability and flexibility, this digital pixel LED strip is suitable for indoor cabinets, feature walls, stair lighting, outdoor signage, landscape lighting, building facades, and architectural decoration.

RGB60幻彩-详情页_23

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
