5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
5050 RGB DMX 60 Strip 10mm-5m (DMX PIXEL STRIP SERIES )
Feature / Warranty
RGB DMX图标
  • Exceptional color performance
  • No dark areas
  • Stable and durable
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

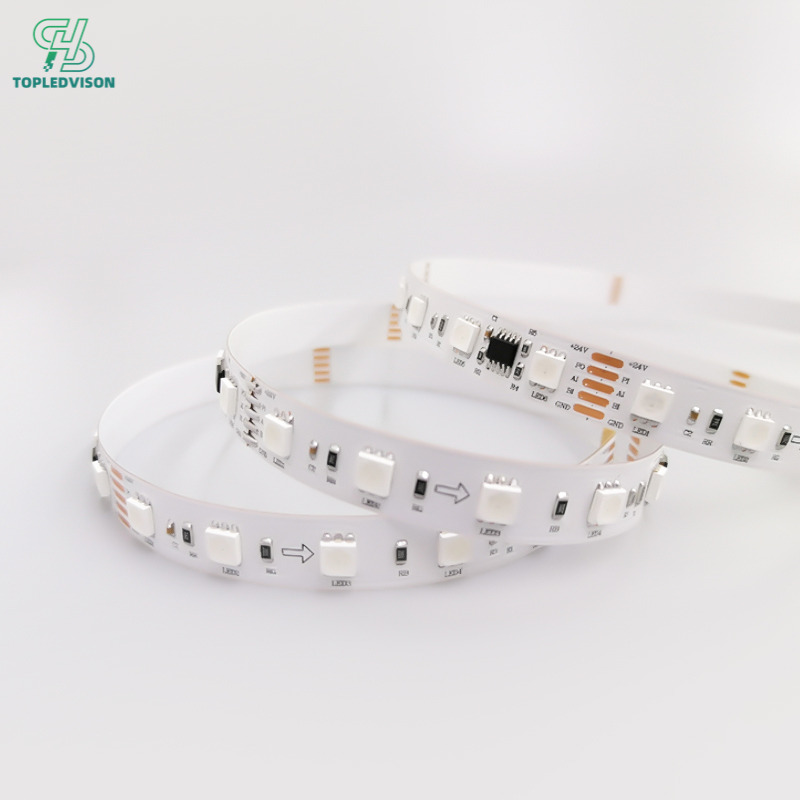

5050 RGB DMX 60 LED Strip Light

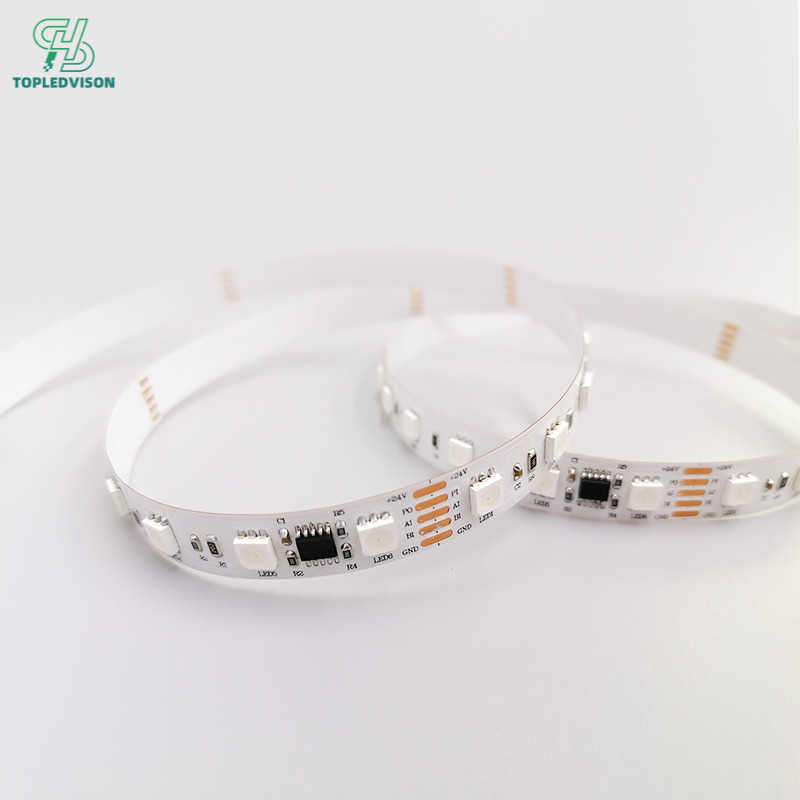

Product Features: Features high-quality 5050 LEDs; each LED incorporates a single integrated RGB chip, offering 16 million adjustable colors with clean, seamless blending. The light has a wide coverage angle and emits a soft, non-glare glow. Supports dynamic effects such as fade, flash, chase, flowing, running, and music synchronization. External IC (TM512/UCS512/SM18512, etc.), with individual control of each LED or group of LEDs via single-point addressing. Programmable with resume-on-break functionality. 24V DC low-voltage drive, high brightness, excellent color consistency, stable quality, long service life, freely cut to size, and easy to install.

Lighting Effects: Smooth and continuous light output with minimal visible breaks; full and soft linear illumination; pure colors and uniform blending; natural transitions between light and dark; glare-free and non-blinding. Suitable for indoor and outdoor lighting applications: living rooms, bedrooms, gaming rooms, signage, outline lighting, landscaping, architectural lighting, and event decorations.

Energy-Efficient and Durable: High-quality LEDs + gold-plated wires / copper brackets + double-sided copper PCBs ensure superior electrical conductivity and heat dissipation. Equipped with DMX512 IC signal transmission, it offers strong anti-interference capabilities, minimal light decay, and high stability. It maintains consistent brightness and color over the long term, with a lifespan of up to 50,000 hours.

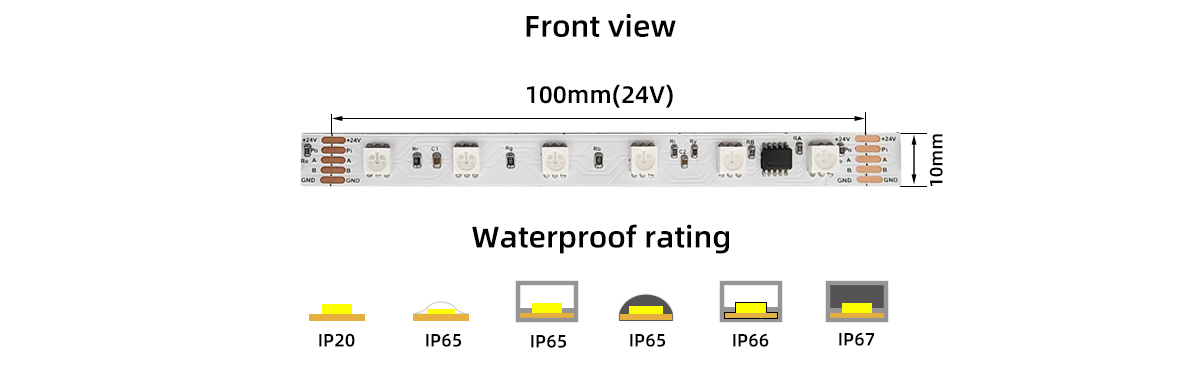

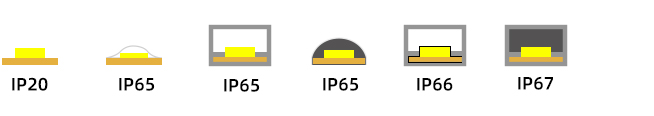

Protection Rating: Multiple protection ratings available to cover all indoor and outdoor applications; IP20 bare strips are suitable for dry indoor environments, offering good ventilation and heat dissipation; IP65 tubing provides splash, dust, and moisture resistance, ideal for storefronts and corridors; IP67 fully sealed and potted for water resistance, protecting against rain and immersion, with high humidity resistance and anti-aging properties. Suitable for harsh outdoor environments such as building facade lighting, bridge landscapes, and garden water features, offering dustproof, waterproof, moisture-resistant, and corrosion-resistant performance with year-round weather resistance and durability.

Easy Installation: Comes with 3M adhesive backing for no-drill, peel-and-stick installation; Flexible PCB board that can be bent to fit curved, right-angled, or irregular shapes; can be cut to length as needed; compatible with various aluminum profiles, recessed light channels, and surface-mounted installations.

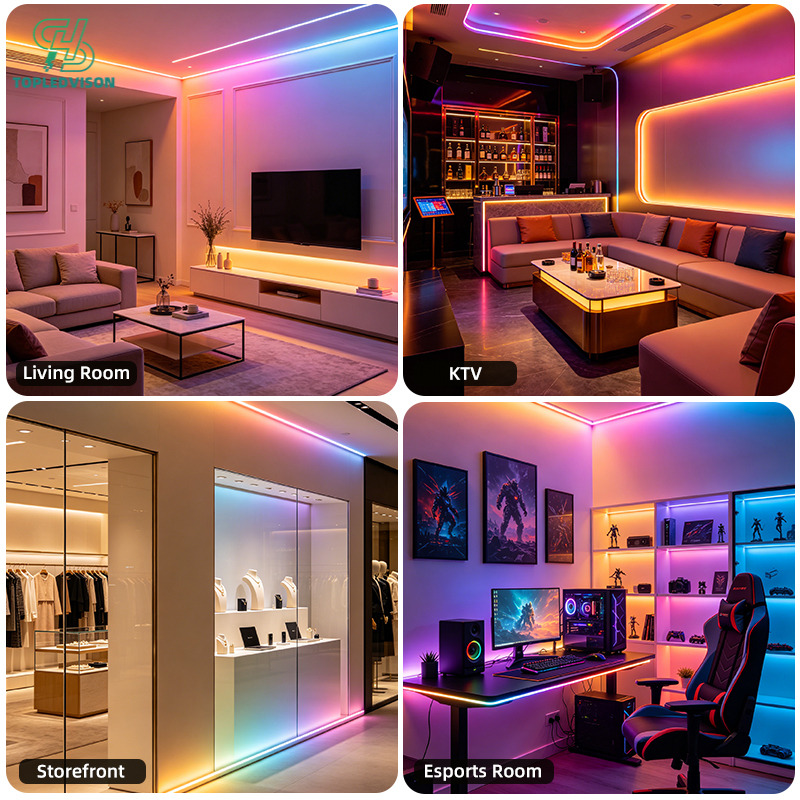

Applications of the 5050 RGB DMX 60 LED Strip: Living rooms, wine cabinets, KTVs, bars, hotels, shopping malls, building outlines, bridges, building facades, and landscapes.

Technical Parameters

LEDs

60Chips/m

Support

Dimmer

Yes

Color

Temperature

RGB

Lifespan

>50000h

Compatible IC

TM512、UCS512 SM18512

Working

Temperature

-20-65℃

Input Voltage

24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

14W/M

Packing

5/10/20/50/100m/Roll

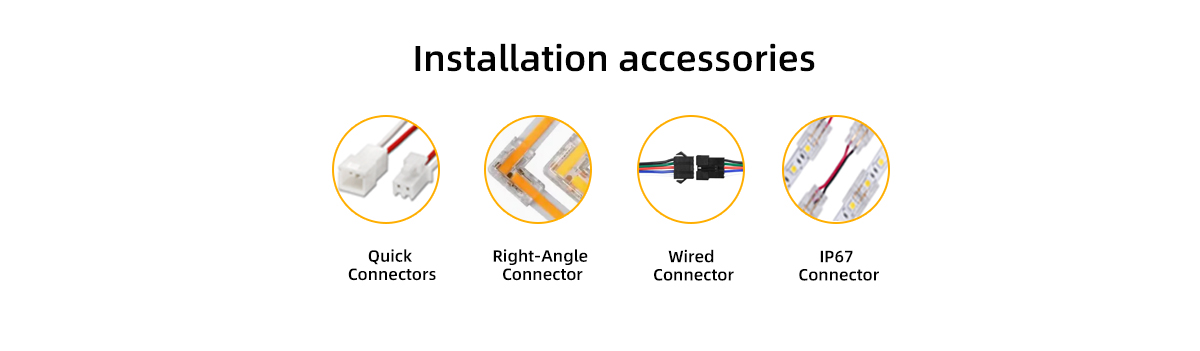

  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

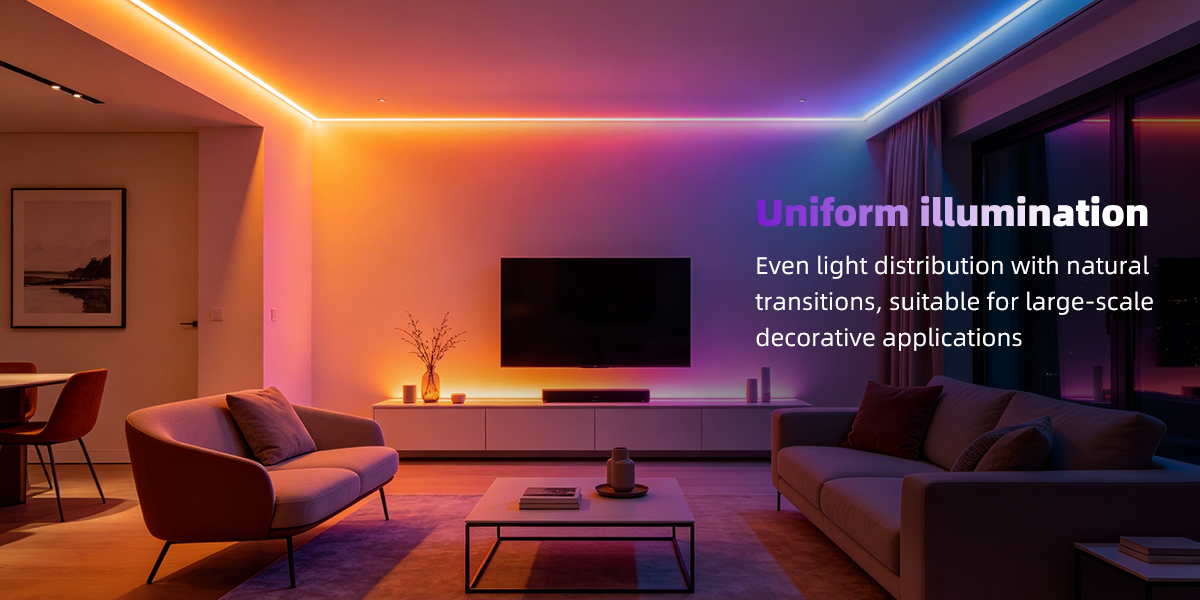

No dark areas

5050 RGB high-quality LED chips with a compact and well-designed layout produce a delicate and soft light distribution; the light output is seamless and smooth, with natural and gentle transitions between light and shadow. There are no sudden changes in brightness, ensuring consistent brightness and even light distribution across the entire strip. Suitable for recessed installation in light channels, embedded installation in aluminum profiles, and contour lighting applications, it delivers uniform illumination across the entire area, creating a clean and sophisticated visual appearance while eliminating issues with uneven brightness.产品优势1

Exceptional color reproduction

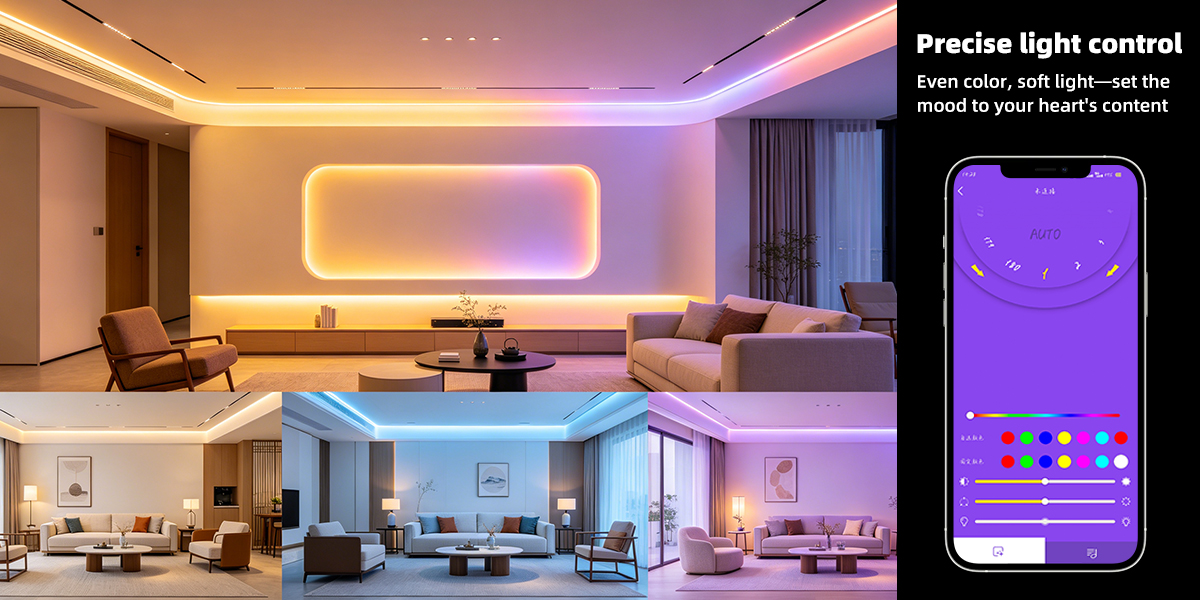

Equipped with high-quality 5050 RGB LEDs, it features a full-color display with 16.77 million colors, offering high color saturation and pure, transparent color rendering; the light mixing is uniform and delicate, with natural and smooth color transitions, free from color distortion or stray light; Compatible with the professional DMX512 lighting control protocol, it allows for precise adjustment of color and brightness for each group. You can effortlessly switch between light and dark tones, and dynamic color effects such as gradients, flowing lights, and spotlights deliver a rich sense of depth and dimension. Colors remain vibrant and fade-free even after prolonged use, ensuring a high-end, refined visual experience that effortlessly creates an immersive lighting atmosphere.

产品优势2

Stable and durable

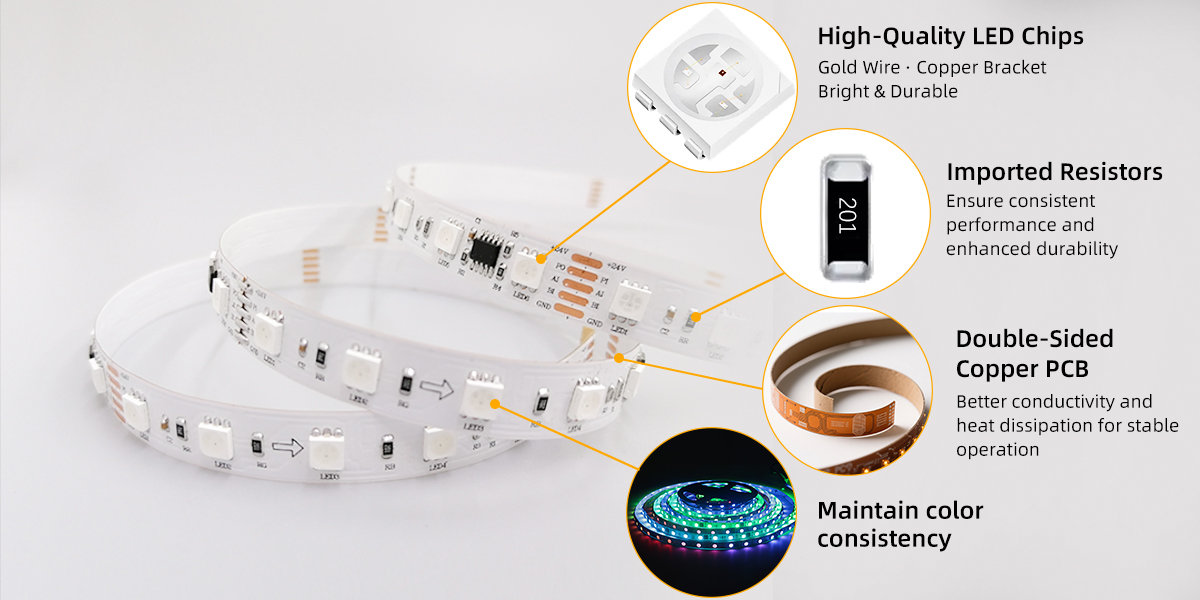

Features high-quality 5050 RGB LEDs with low light decay and long-lasting, consistent color reproduction that resists fading or yellowing over time. The thickened pure copper FPC flexible circuit board offers exceptional electrical conductivity and heat dissipation, preventing overheating and short circuits during prolonged operation. Equipped with DMX512 differential signal transmission for strong anti-interference capabilities, ensuring stable synchronization over long distances without flickering or loss of sync. The built-in constant-current voltage-regulated driver ensures no flickering or fluctuating brightness even during voltage fluctuations, making it suitable for complex environments with extreme temperatures. The light strip is highly flexible and resistant to bending, minimizing the risk of solder joint failure or breakage. With multiple levels of waterproof protection available, it is dustproof, moisture-resistant, and resistant to aging, offering a long service life and making it ideal for commercial projects and long-term indoor and outdoor lighting applications.

产品优势3

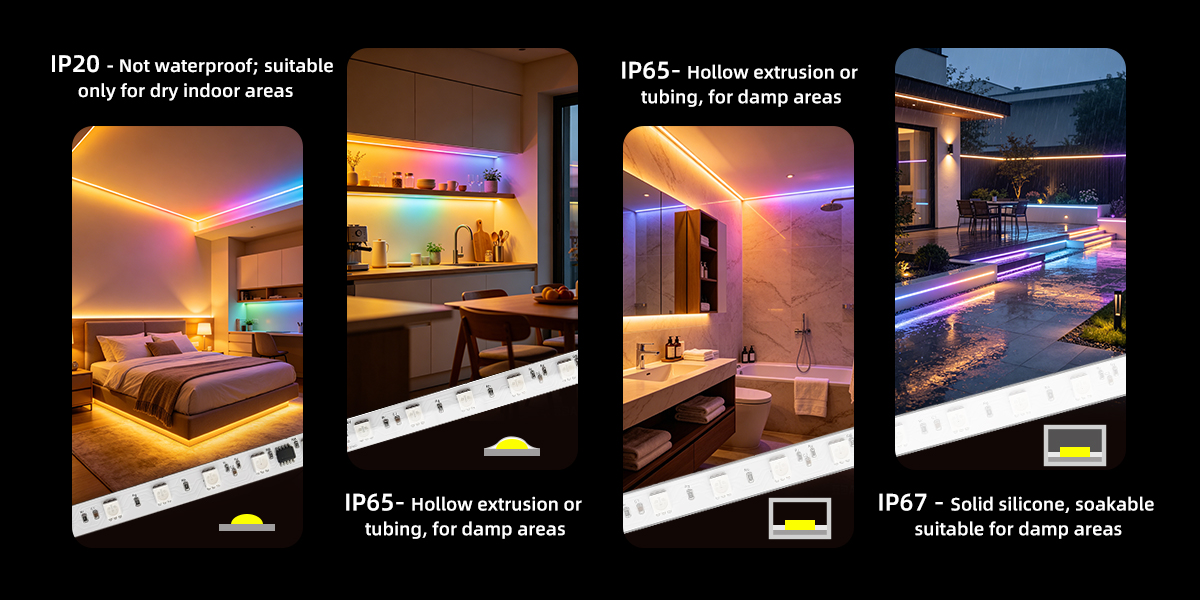

Protection Rating

This DMX512 5050 RGB 60-LED strip light features multiple levels of waterproof protection; the IP67 rating (fully potted and sealed) makes it suitable for various damp, rain-exposed, and outdoor environments. It is widely used for outdoor building facade lighting, bridge railings, riverfront landscapes, courtyards and gardens, villa exteriors, storefront signs, and other open-air environments exposed to rain; IP65 (silicone tubing) is also suitable for indoor damp areas such as bathrooms, kitchens, and basements, as well as high-humidity, splash-prone environments like poolside areas, water features, and boardwalk lighting strips. IP65 (surface potting): splash-proof and dust-proof, suitable for semi-outdoor settings, storefronts, and covered walkways. IP20 (bare board): No water resistance; intended for indoor dry environments only. These IP ratings fully meet application requirements.产品优势4




Caution:

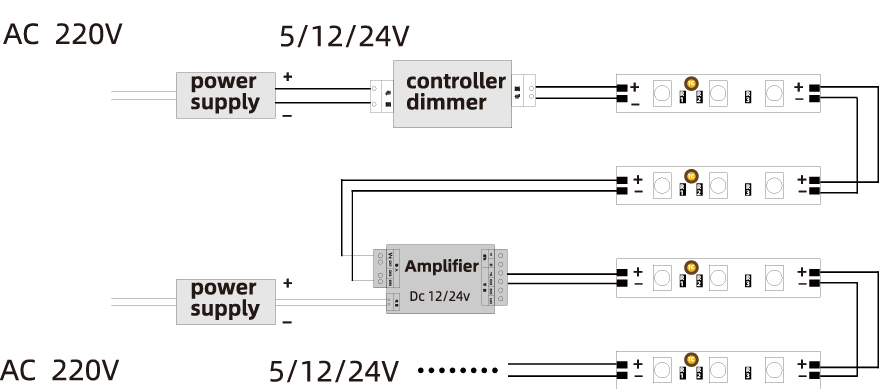

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative(-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)check the+and -connection right between power supply and led strip.

(2) check the power supply output volt is same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object all isolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)

one section or few sections failure or color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters

strip fall off from

the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white color turn blue color

1, the fluorescent glue of led are corroded by

something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
