5050 RGB DMX 60 LED Strip Light

Product Features

The 5050 RGB DMX 60 LED Strip Light uses high-quality 5050 RGB LEDs with integrated RGB chips, delivering up to 16.77 million colors with smooth color mixing and accurate color reproduction. With a wide beam angle and soft, glare-free illumination, this DMX512 RGB LED Strip supports multiple dynamic lighting effects, including fading, flashing, chasing, flowing, running, and music synchronization.

Equipped with external DMX512 IC control (TM512, UCS512, SM18512, etc.), each LED or LED group can be individually addressed for precise pixel control. The programmable design supports breakpoint resume functionality, ensuring stable signal transmission. Powered by DC24V low voltage, this addressable RGB LED Strip provides high brightness, excellent color consistency, long service life, and flexible cutting for easy installation.

Smooth Lighting Effects

The 5050 RGB DMX LED Strip delivers seamless linear lighting with minimal dark areas and uniform color blending. It creates smooth transitions between brightness levels with pure RGB colors and no visible hotspots. The soft, continuous illumination provides a premium visual experience without glare, making it ideal for architectural lighting, stage lighting, signage, landscape lighting, and decorative lighting projects.

Stable Performance & Long Lifespan

Built with high-quality 5050 RGB LEDs, gold-plated wires, copper brackets, and a double-sided copper PCB, this RGB DMX LED Strip Light offers excellent electrical conductivity and heat dissipation. The integrated DMX512 signal transmission system provides strong anti-interference performance, stable data communication, and reliable long-distance operation.

With low light decay, consistent brightness, and stable color output, the 5050 RGB DMX Strip Light delivers up to 50,000 hours lifespan, making it suitable for long-term commercial and professional lighting applications.

Multiple Protection Ratings

The DMX512 5050 RGB 60 LED Strip Light is available in different waterproof versions for various environments:

IP20 RGB LED Strip: Suitable for dry indoor applications with excellent ventilation and heat dissipation.
IP65 RGB LED Strip: Silicone tube protection provides splash-proof, dust-resistant, and moisture-resistant performance for storefronts, corridors, and semi-outdoor areas.
IP67 Waterproof RGB LED Strip: Fully sealed and silicone-potted design protects against rain, humidity, corrosion, and harsh outdoor conditions, ideal for building facades, bridges, gardens, and landscape lighting.

These protection options allow the 5050 RGB DMX LED Strip to meet different indoor and outdoor lighting requirements.

Easy Installation & Flexible Design

The 5050 RGB LED Strip Light features a flexible PCB design that can be bent around curves, corners, and irregular surfaces. With 3M adhesive backing, it supports quick peel-and-stick installation without drilling. The strip can be cut to required lengths and works perfectly with aluminum profiles, recessed channels, and surface-mounted installations.

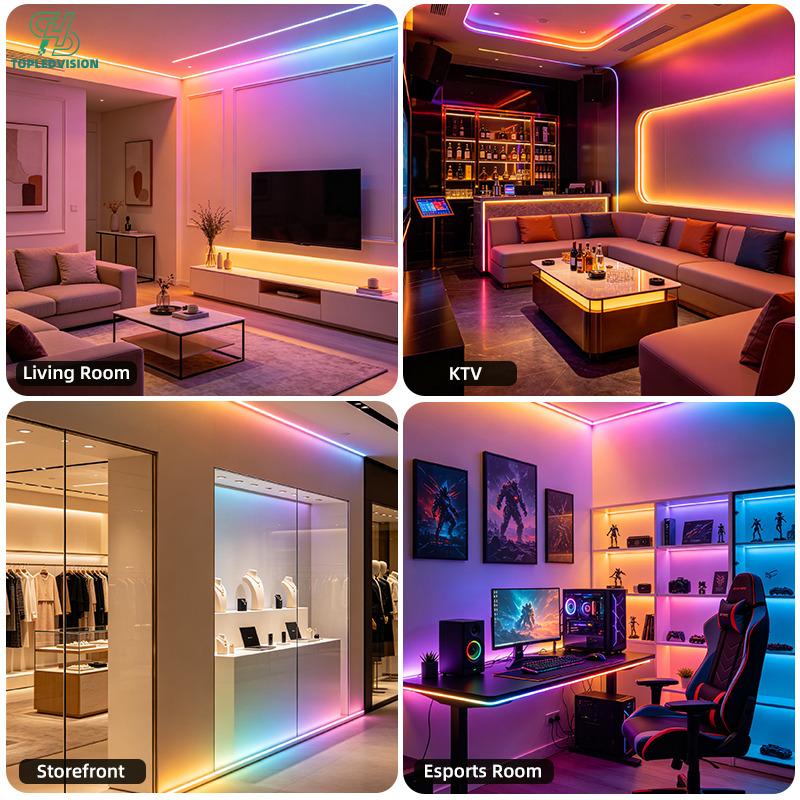

Applications of 5050 RGB DMX 60 LED Strip

The 5050 RGB DMX LED Strip Light is widely used for:

Home decorative lighting
Living rooms and bedrooms
Gaming rooms and entertainment spaces
KTVs, bars, and clubs
Hotels and shopping malls
Building facade lighting
Architectural outline lighting
Bridge and landscape lighting
Event and stage decoration

Technical Parameters

LEDs	60Chips/m	Support Dimmer	Yes
Color Temperature	RGB	Lifespan	>50000h
Compatible IC	TM512、UCS512 SM18512	Working Temperature	-20-65℃
Input Voltage	24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	14W/M	Packing	5/10/20/50/100m/Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 5050 DMX LED Strip Lights: We recommend having 5050 DMX LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 5050 DMX LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

No Dark Areas & Uniform RGB Lighting

The 5050 RGB DMX LED Strip uses high-quality 5050 RGB LED chips with an optimized layout to deliver seamless, uniform illumination. It provides smooth light transitions, consistent brightness, and no dark spots or uneven areas. Ideal for recessed lighting, aluminum profile installation, architectural lighting, and contour lighting projects, creating a clean and professional RGB lighting effect.

产品优势1

Exceptional Color Reproduction

The 5050 RGB DMX LED Strip features high-quality 5050 RGB LEDs with 16.77 million colors, delivering high saturation, pure color output, and smooth color transitions. Compatible with DMX512 lighting control, it enables precise adjustment of color and brightness, supporting dynamic effects such as gradients, flowing lights, and spotlight effects. With excellent color consistency and low light decay, this RGB LED Strip Light creates immersive and professional lighting effects for stage, architectural, and commercial applications.

产品优势2

Stable and Durable Performance

The 5050 RGB DMX LED Strip is built with high-quality 5050 RGB LEDs and a thickened pure copper FPC board, delivering excellent conductivity, heat dissipation, and long-term reliability. With low light decay, stable color output, and DMX512 differential signal transmission, it ensures accurate control, strong anti-interference performance, and flicker-free operation over long distances. The flexible design, constant-current drive, and multiple waterproof options provide enhanced durability for commercial lighting, stage lighting, architectural lighting, and indoor & outdoor RGB LED strip applications.

产品优势3

Protection Rating Options

The DMX512 5050 RGB 60 LED Strip Light is available with multiple waterproof protection options to meet different application needs. IP67 waterproof RGB LED Strip with full silicone encapsulation is ideal for outdoor environments, including building facade lighting, bridge outlines, landscape lighting, gardens, villas, and signage. IP65 silicone tube RGB LED Strip provides splash and moisture protection for bathrooms, kitchens, basements, poolside areas, and semi-outdoor applications. IP65 surface coating offers dust and splash resistance for covered outdoor spaces, while IP20 bare board versions are designed for dry indoor lighting projects. Choose the right 5050 RGB DMX LED Strip protection level for reliable indoor and outdoor lighting performance.

产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative(-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section or few sections failure or color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white color turn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
