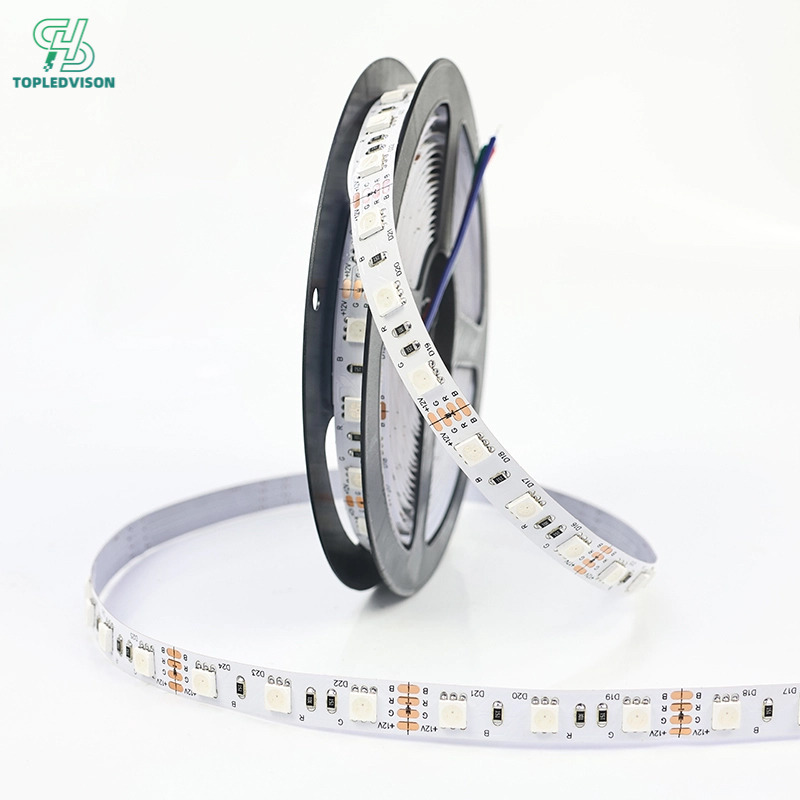

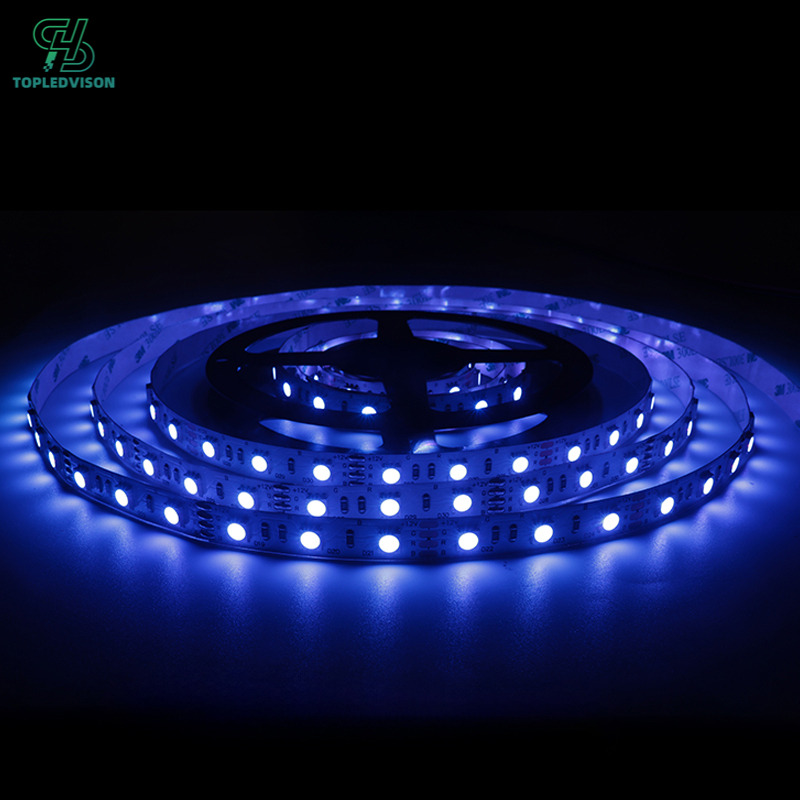

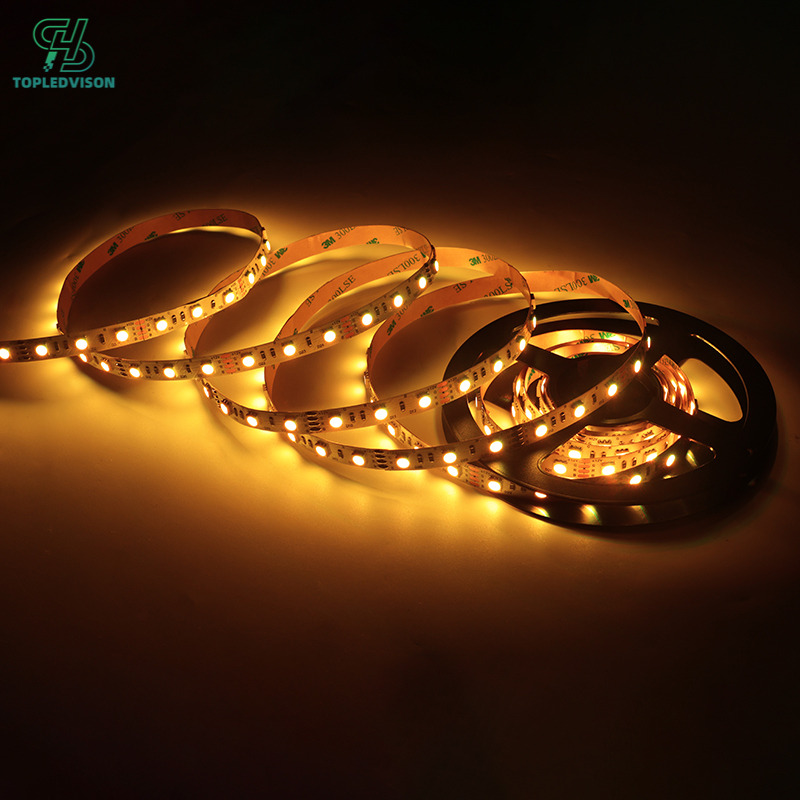

5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
5050 RGB 60 LED Strip 8mm-5m (5050 RGB STRIP SERIES )
Feature / Warranty
dc
  • Exceptional color performance
  • No dark areas
  • Energy-saving and long-lasting
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

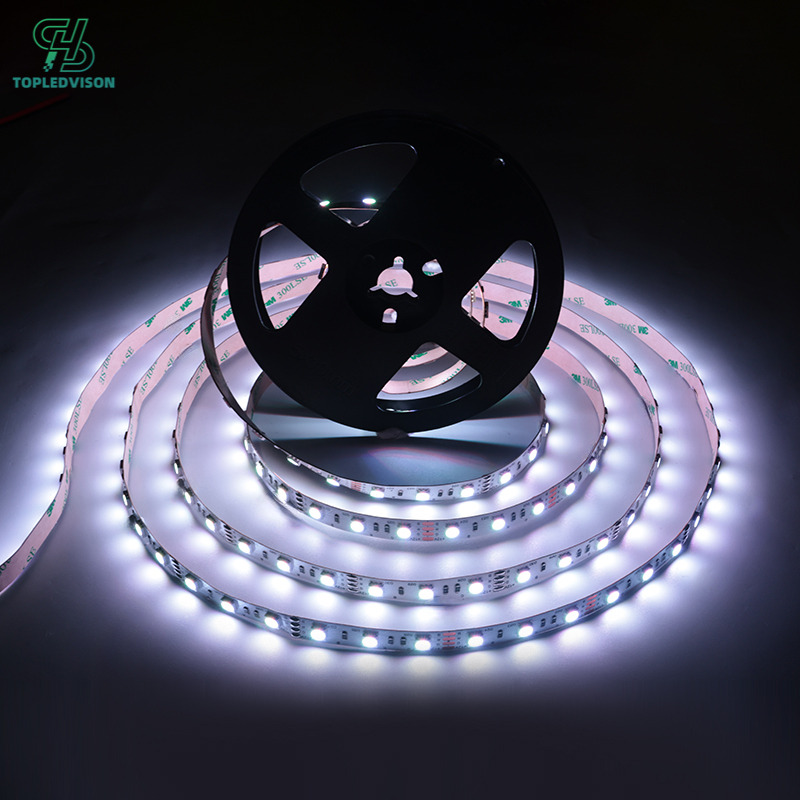

5050 RGB 60 LED Strip Light

Product Features: Features high-quality 5050 LEDs; each LED contains three independent chips (red, green, and blue), capable of displaying 16.77 million colors, and supports various dynamic effects such as static single-color, gradient, breathing, and color-changing modes. Powered by 12V/24V DC low voltage, it offers high brightness, excellent color uniformity, stable quality, and a long service life. It can be cut to any length and is easy to install.

Lighting Effects: Soft light; no hotspots or flickering; highly flexible, suitable for indoor and outdoor lighting: gaming rooms/offices: desk backlighting, computer case ambient lighting, gardens, balconies, exterior walls, etc.

Energy-efficient and durable: Double-sided copper printed circuit board (PCB) ensures superior conductivity and heat dissipation, with a lifespan of up to 5,0000 hours.

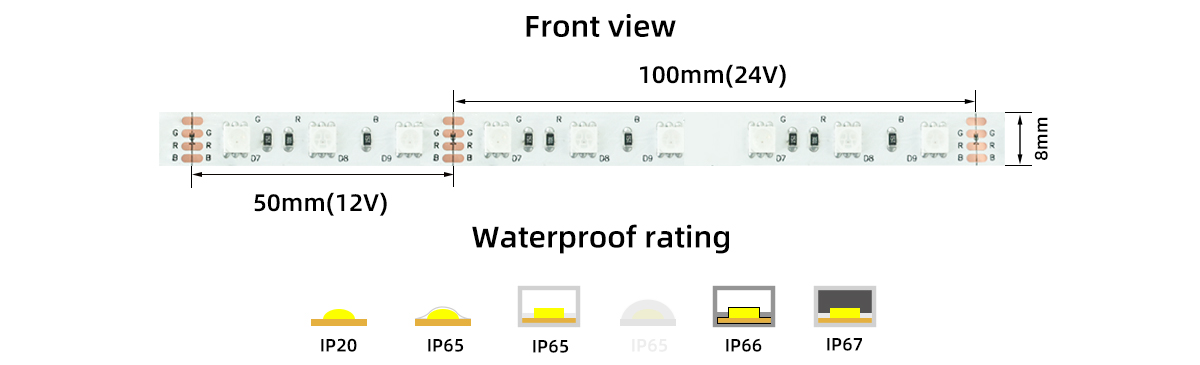

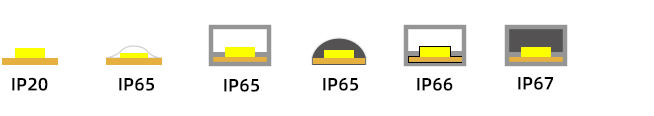

Protection rating: IP20 for dry indoor environments; IP65 for humid indoor and outdoor environments; IP66/IP67 for exposure to rain and brief immersion.

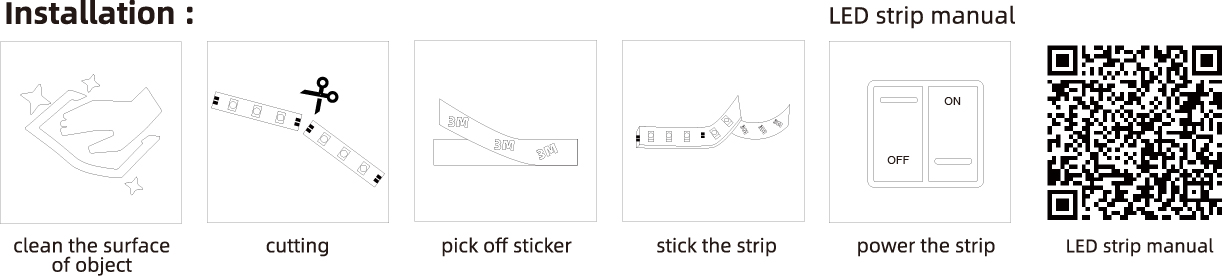

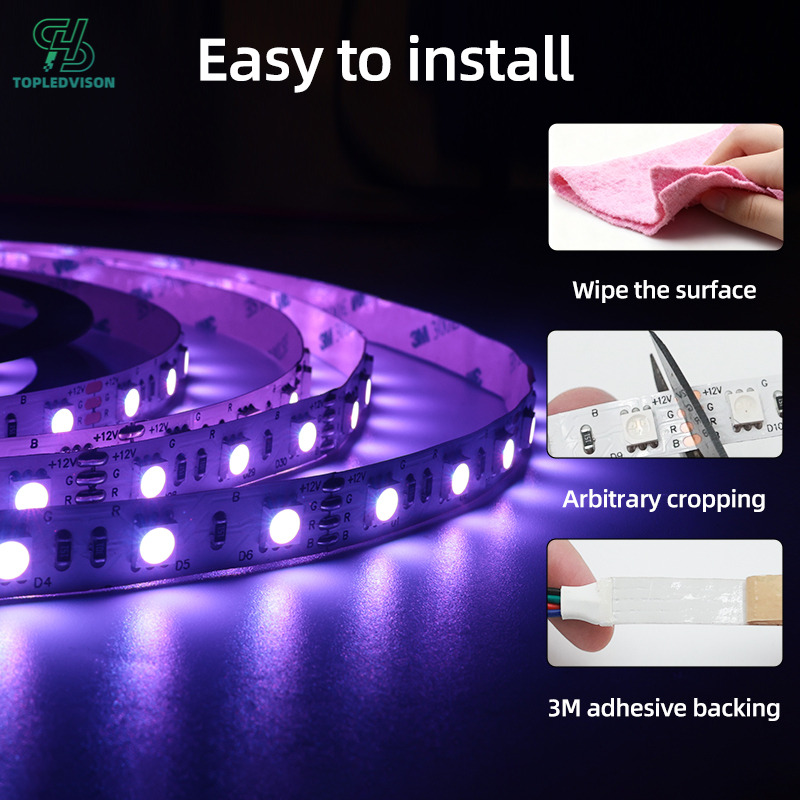

Easy Installation: Built-in 3M adhesive tape; no drilling required; peel and stick. Flexible circuit board can be bent to fit curved surfaces, corners, and irregular surfaces; also suitable for narrow spaces (such as cabinet shelves or cable channels).

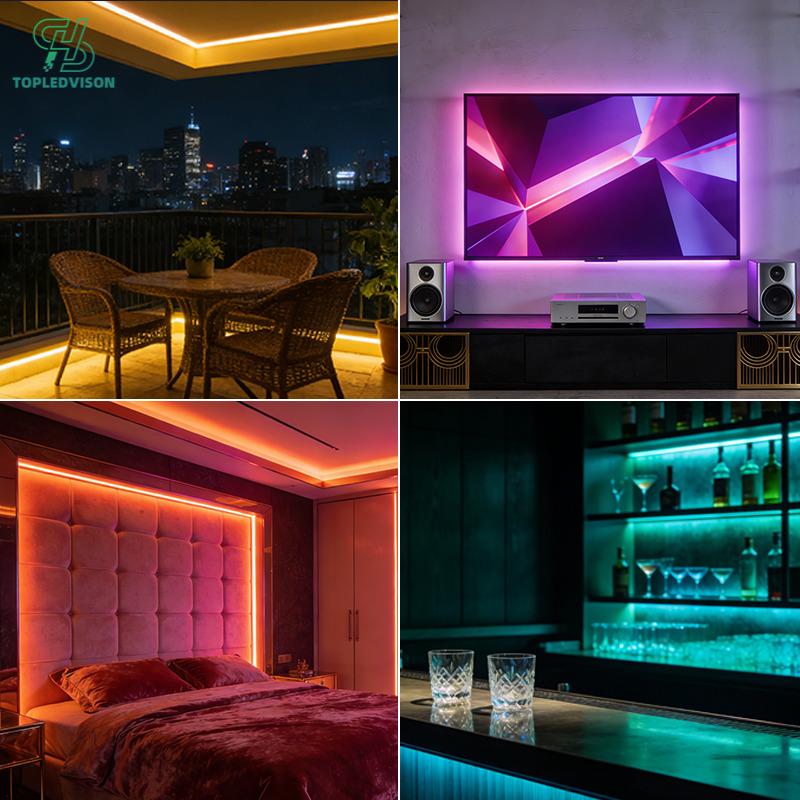

Application scenarios for the 5050 RGB 60 LED strip: decorative walls behind TVs, bedroom ambient lighting, wardrobes/wine cabinets, kitchen backlighting, balconies, in front of bathroom mirrors, store windows, hotel corridors, and living room decor.

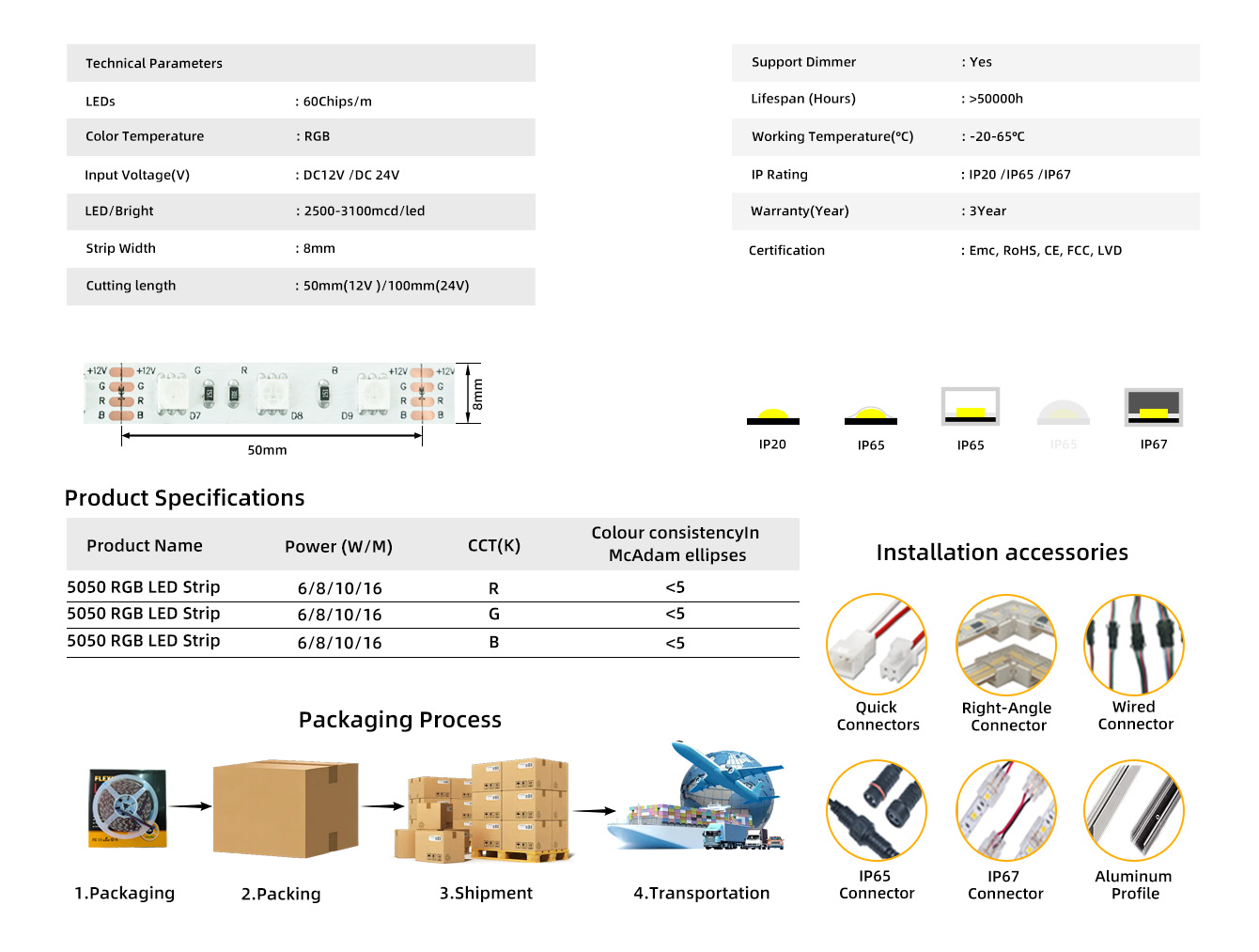

Technical Parameters

LEDs

60Chips/m

Support

Dimmer

Yes

Color

Temperature

RGB

Lifespan

>50000h

LED/Bright

2500-3100mcd/led

Working

Temperature

-20-65℃

Input Voltage

5/12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

6/8/10/16W/M

Packing

5/10/20/50/100m/Roll

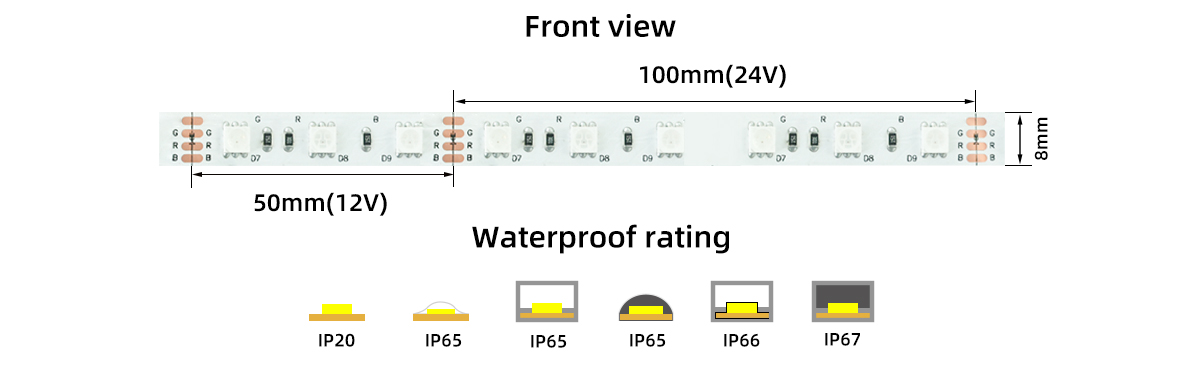

rgb 60裁剪.jpg

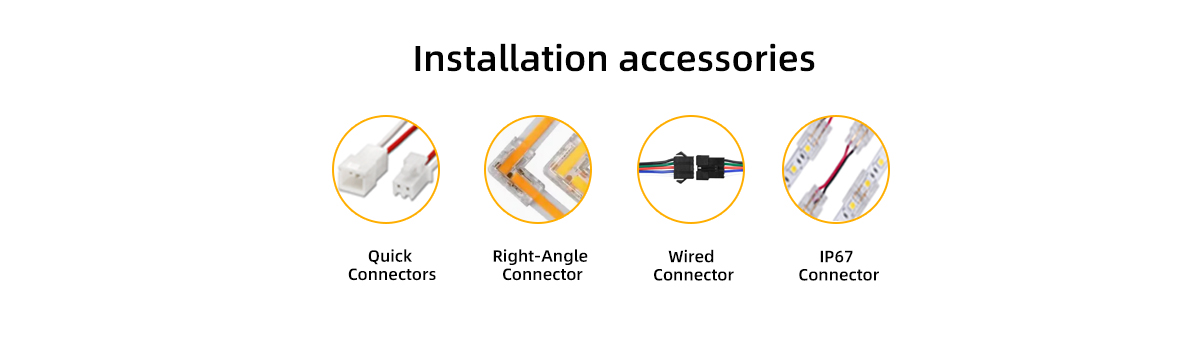

  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

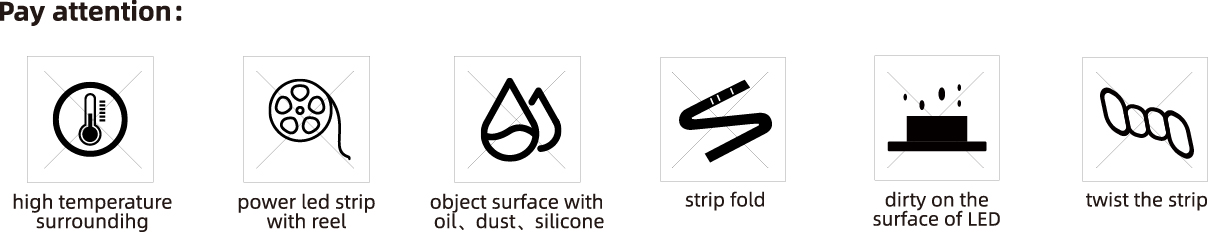

  • Important Information for Using RGB LED Strip Lights: We recommend having RGB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGB LED strip lights due to improper operation.

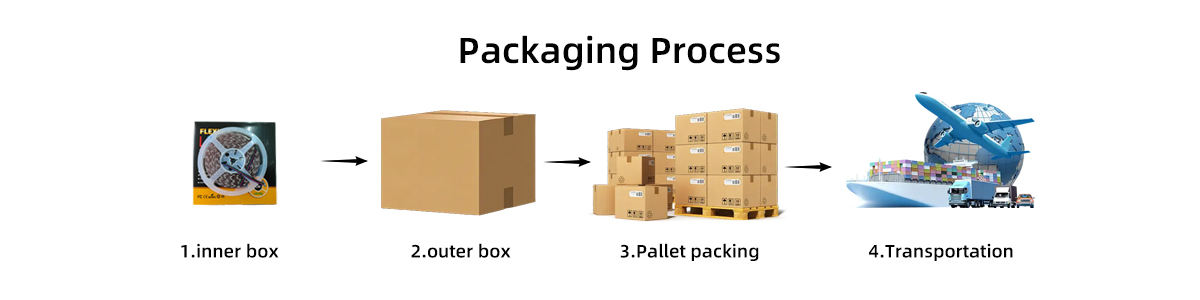

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

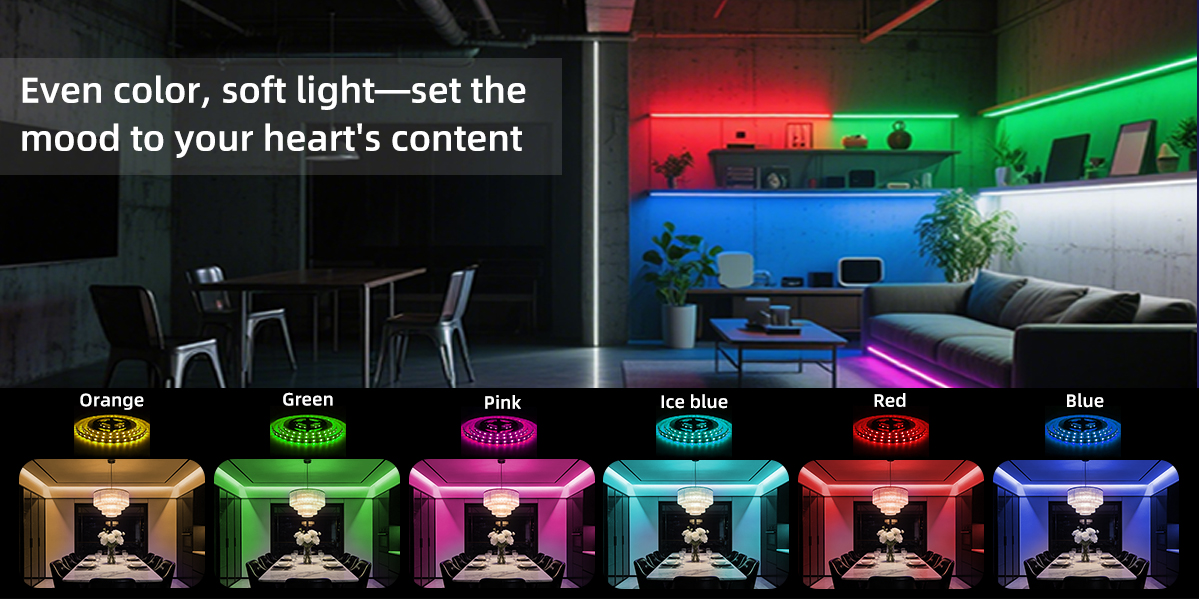

Exceptional color performance

Conçue à partir de puces LED RGB 5050 haute luminosité, elle est équipée d'un système de contrôle d'éclairage professionnel à puce indépendante qui assure un contrôle précis de la lumière et du rendu des couleurs. Cela garantit une fusion homogène des trois couleurs, des transitions naturelles et fluides, ainsi qu'une absence totale de taches lumineuses et de différences de teintes, pour des couleurs pures et éclatantes. La lumière émise est fine, douce et transparente, avec un éclairage homogène sans zones d'ombre ni angles morts, offrant un rendu visuel confortable et haut de gamme. Il intègre une large gamme de programmes d'éclairage et prend en charge divers effets lumineux dynamiques personnalisables, tels que les couleurs unies, les dégradés, les effets de respiration douce et les clignotements. Le changement de mode est fluide et la réponse est rapide. Vous pouvez changer d'ambiance à votre guise et créer facilement des scènes lumineuses variées : atmosphère chaleureuse et familiale, ambiance romantique, effet dynamique et tendance, ou encore style luxueux et raffiné. Que ce soit pour agrémenter la décoration d'un espace, créer une ambiance de fond ou mettre en valeur des compositions créatives, vous maîtriserez parfaitement le résultat.



RGB-60详情页_05

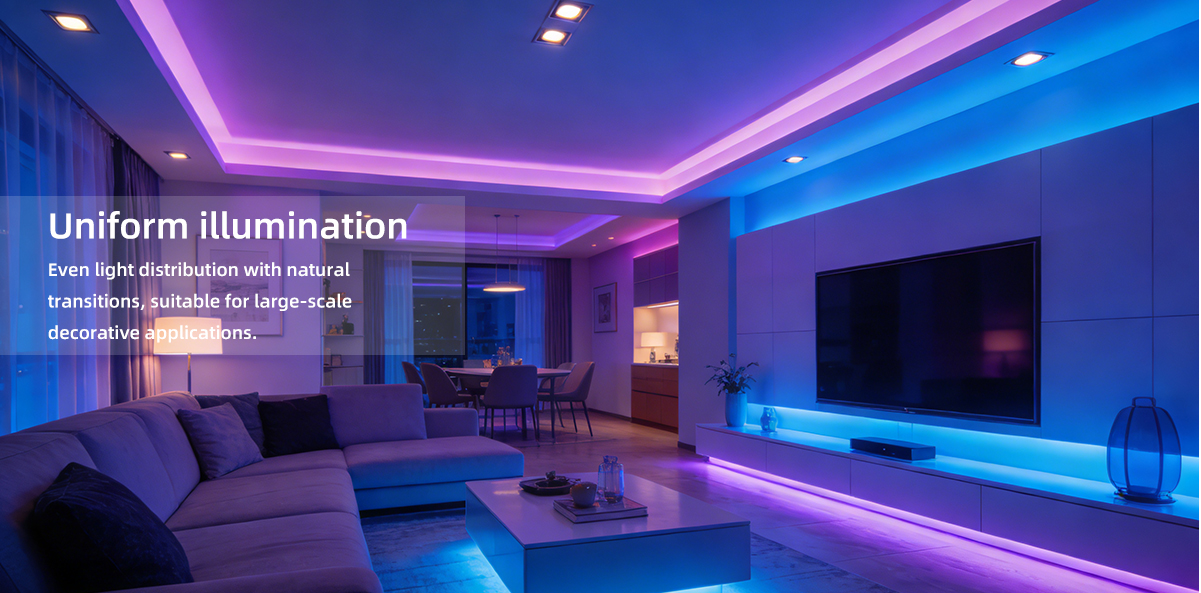

No dark areas

With compact LED spacing and seamless light output, this strip ensures no light spots or gaps, whether installed in a straight line, bent around corners, or extended by splicing; Paired with large 5050 LEDs, the light strip offers a wider illumination area and excellent soft, diffused lighting. The entire strip emits uniform, continuous light without a grainy appearance. Whether used for curved installations, recessed channels, or long-distance installations, it achieves seamless integration of light and shadow, maintaining full brightness throughout with no shadows or gaps.


RGB-60详情页_11

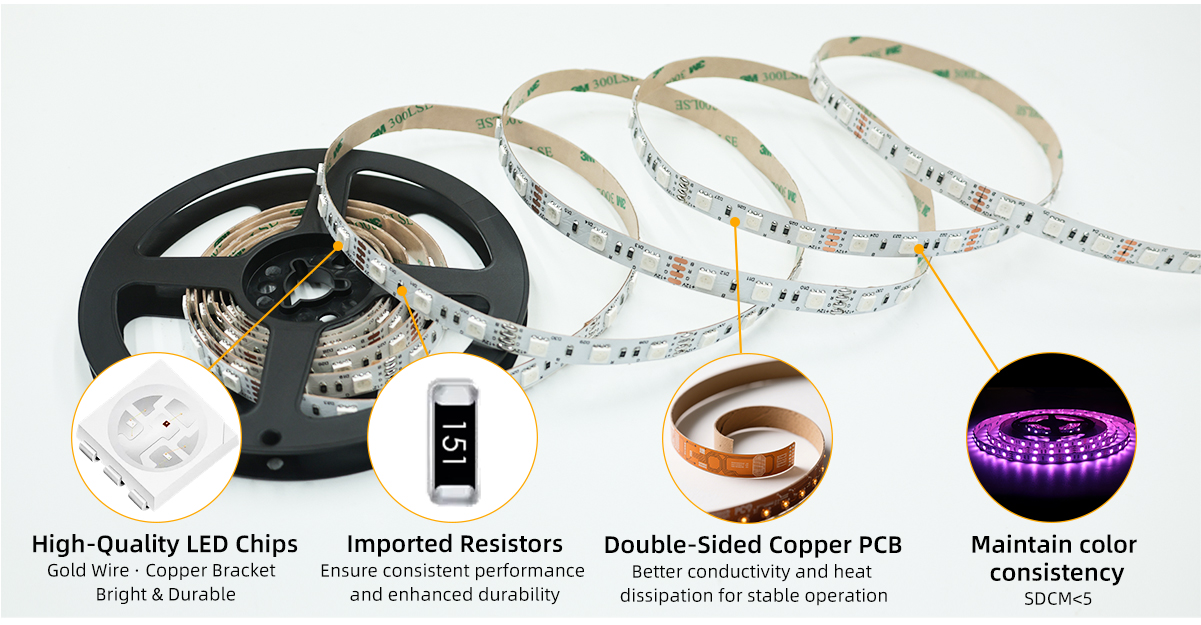

Energy-saving and long-lasting

High-quality 5050 LED chips paired with a robust heat dissipation structure ensure minimal light decay, stable performance, and high-temperature resistance, maintaining consistent brightness during daily use. The materials are corrosion-resistant and highly durable, making the lights resistant to damage even with frequent dimming and prolonged operation, resulting in an exceptionally long service life.


RGB-60详情页_17

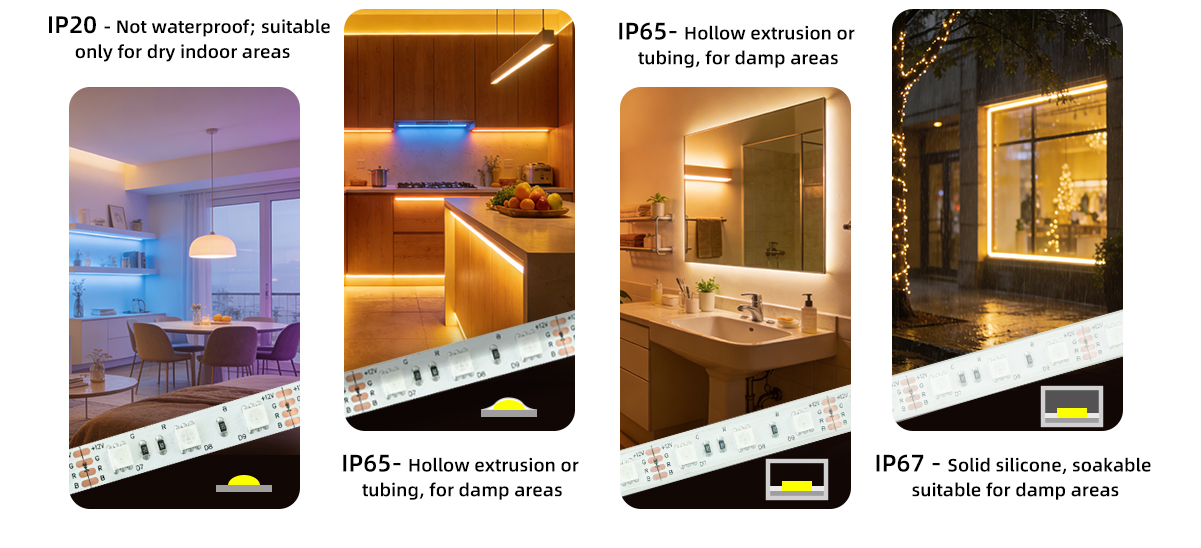

Waterproof Construction

Supports customizable multi-level waterproofing, allowing flexible selection for indoor and outdoor scenarios. Provides moisture resistance, splash protection, and anti-aging properties, adapting to both dry and humid environments indoors and outdoors. Ensures a more stable service life with unrestricted installation scenarios.


RGB-60详情页_23

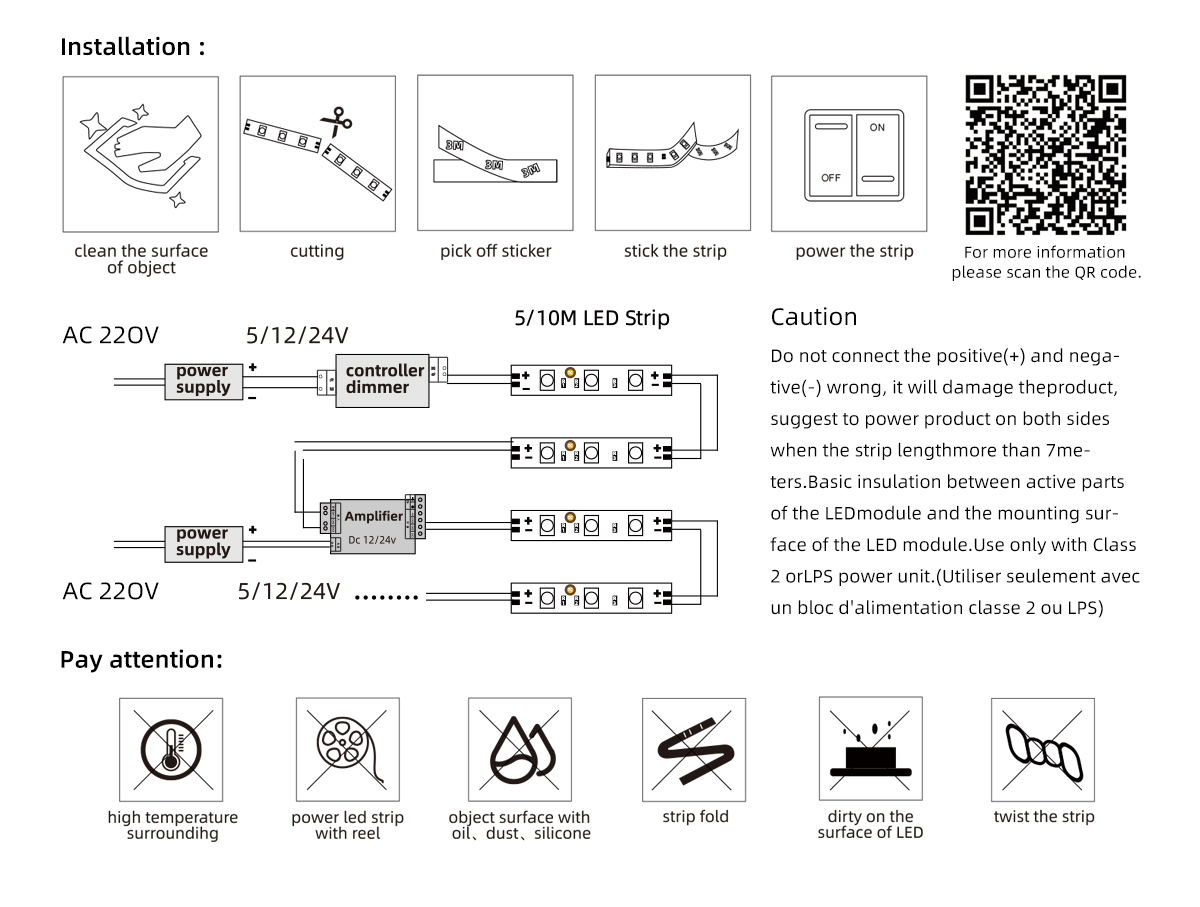

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from

the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
