48V 2835 Constant Current 240 LED Strip Light | Dual Row High Density LED Strip from China Manufacturer

Product Description

Stable & High-Performance Lighting

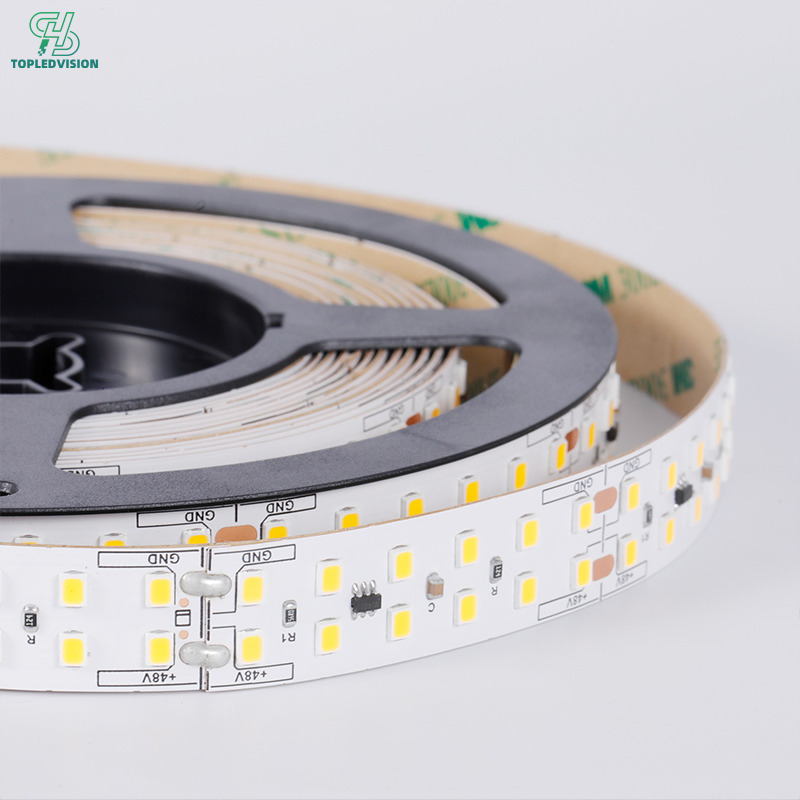

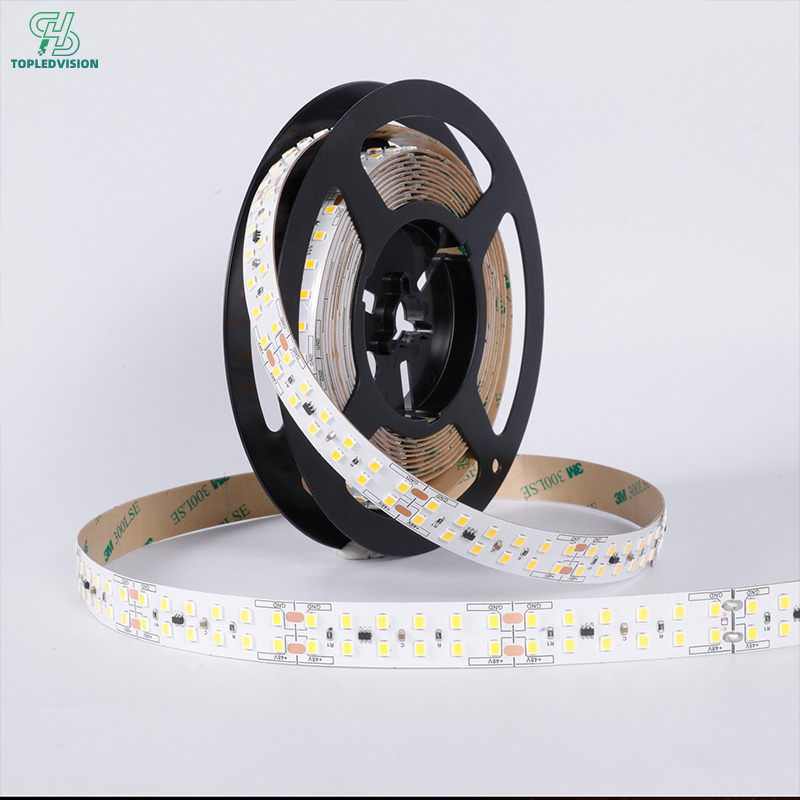

The 48V 2835 Constant Current 240 LED/m Double Row LED Strip Light features a high-density dual-row LED layout and constant-current technology for stable and reliable performance. The 48V design helps reduce voltage drop over longer runs, while the constant-current circuit maintains consistent current distribution and brightness across the strip.

Uniform & High-Quality Illumination

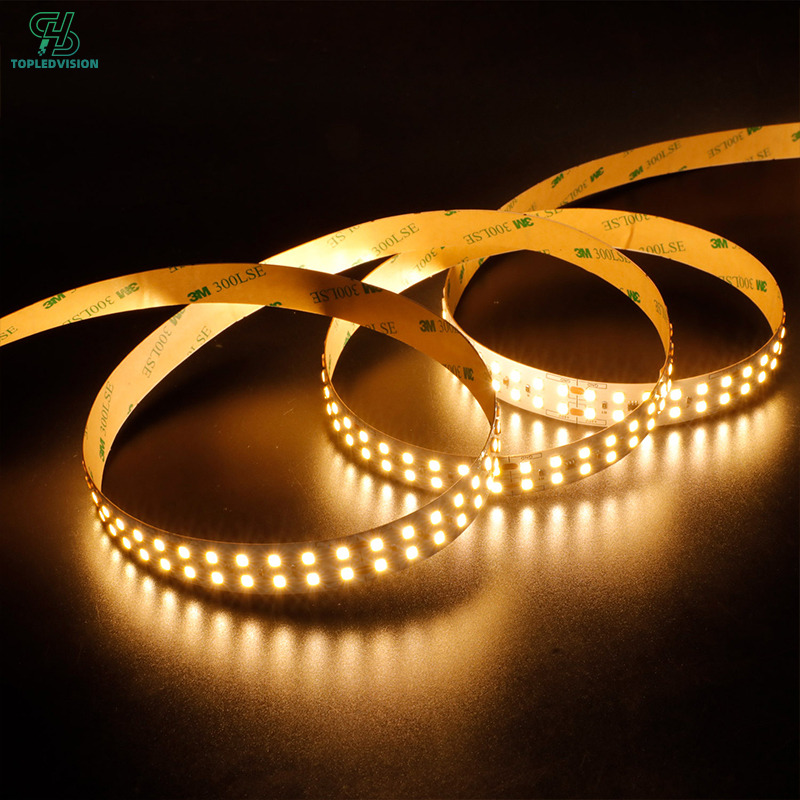

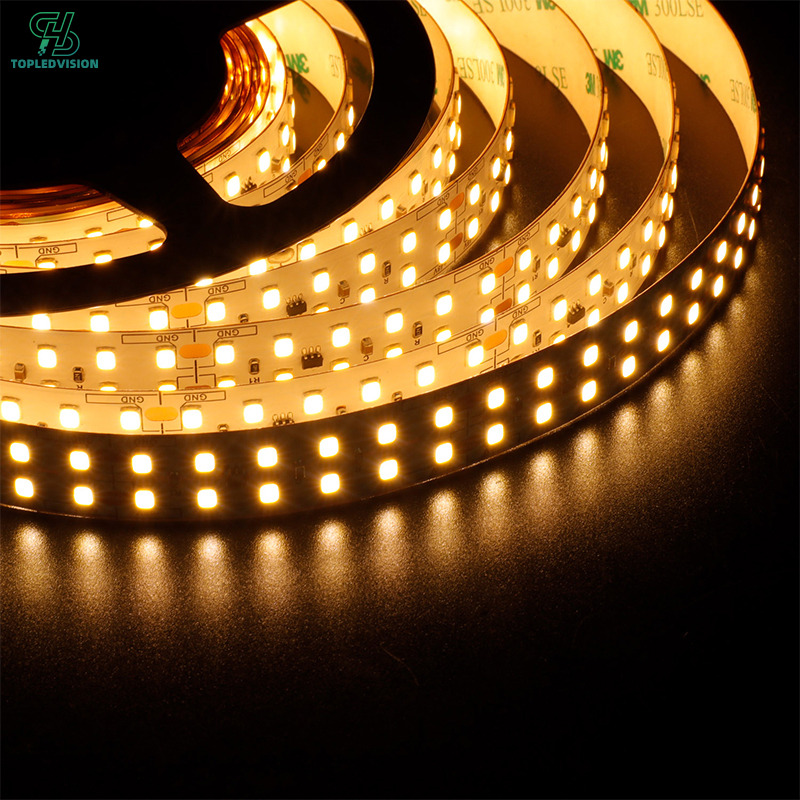

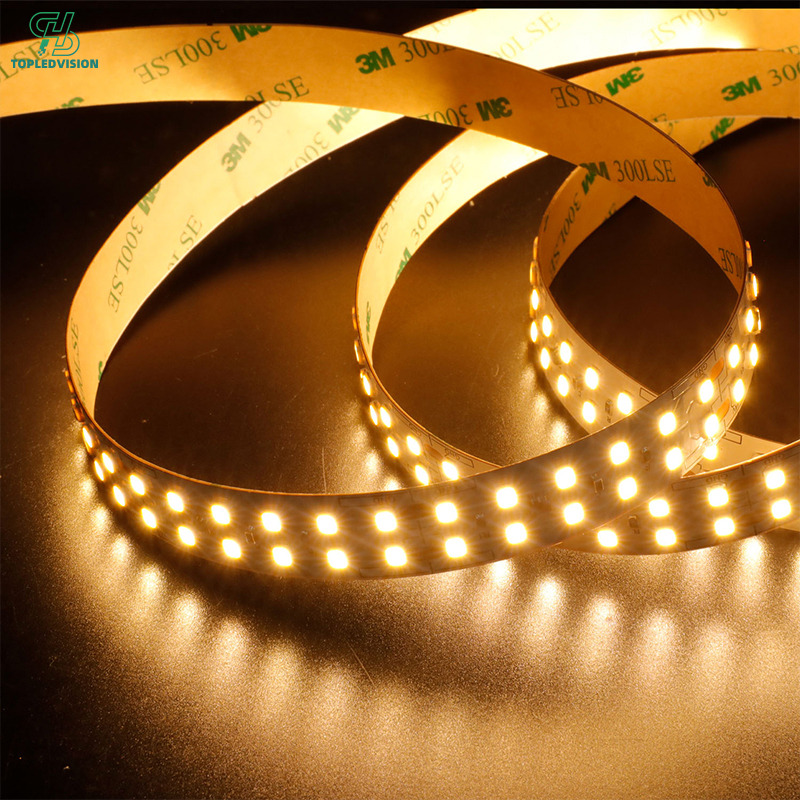

With 240 LEDs per meter, the double-row 2835 LED configuration provides dense and uniform light output with reduced dark spots. It is ideal for applications requiring continuous, smooth, and visually consistent linear illumination.

Energy Efficient & Durable

High-quality 2835 LED chips deliver efficient illumination with optimized power consumption. The robust circuit design and quality components provide excellent thermal stability, low lumen depreciation, and a long service life, helping reduce maintenance and replacement costs.

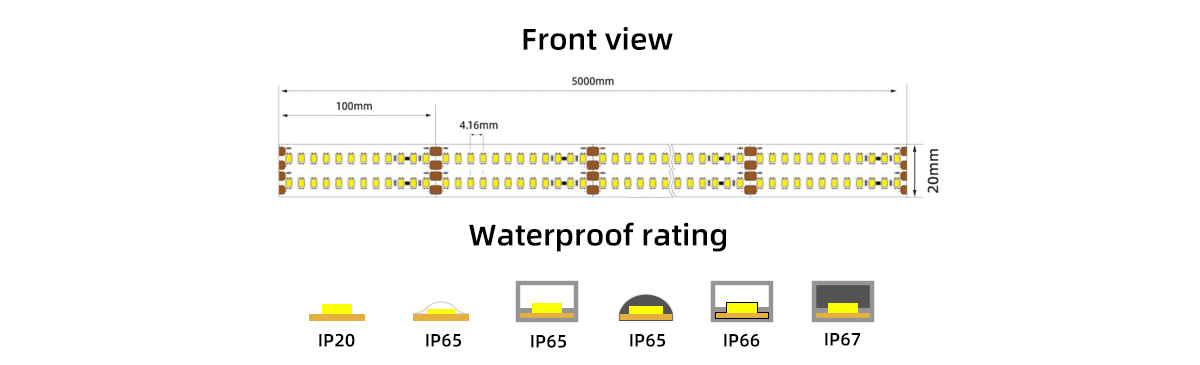

Flexible Protection Options

Available with different protective constructions to meet various installation requirements. Depending on the selected version, the LED strip can provide resistance against dust, moisture, water, and environmental exposure, making it suitable for both indoor and selected outdoor applications.

Easy & Flexible Installation

The flexible strip design allows easy cutting, bending, and installation along straight or curved surfaces. It can be combined with aluminum profiles, mounting clips, or adhesive backing for convenient installation in different lighting structures and custom linear lighting projects.

Versatile Applications

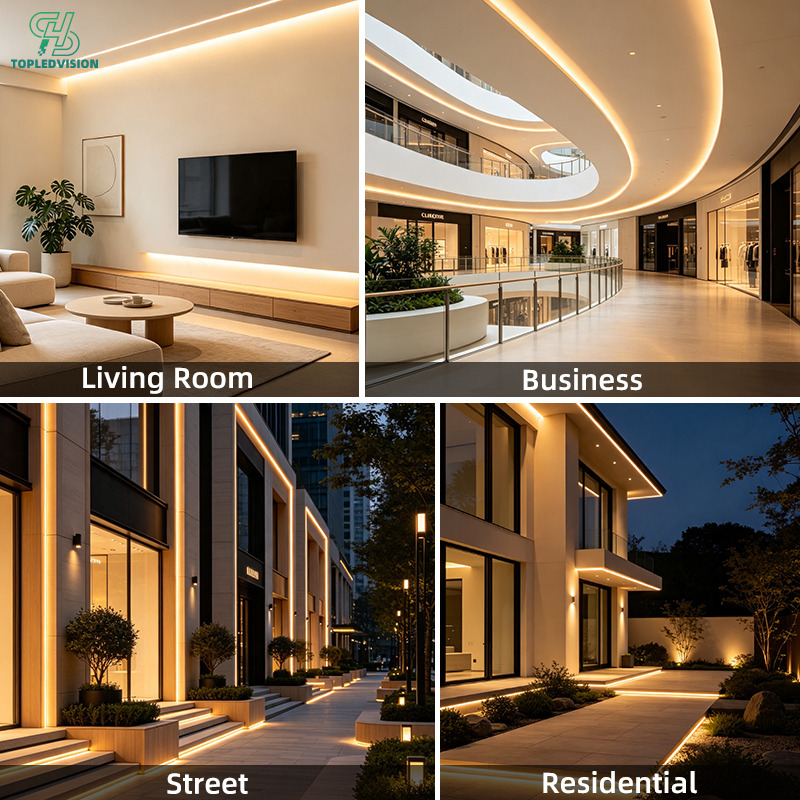

Designed for professional and architectural lighting, this 48V Constant Current LED Strip Light is suitable for commercial spaces, retail stores, hotels, restaurants, offices, residential interiors, cabinets, architectural features, display lighting, cove lighting, and linear lighting systems.

Technical Parameters

LEDs	240Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	48V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/14W/M	Packing	5/10/20/50Roll
Load length	15-25m

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Constant Current Technology

Featuring advanced constant-current driver technology, the 48V 2835 Double Row LED Strip Light maintains stable current output and consistent brightness along the strip. It effectively minimizes current fluctuations and brightness variation, ensuring reliable illumination and excellent performance for long-run lighting applications.

High Color Rendering

Equipped with high-quality 2835 LED chips, the strip delivers excellent color rendering, revealing natural, vivid, and true-to-life colors. It enhances visual clarity and creates a more authentic lighting experience for commercial, retail, and residential spaces.

Flexible Design & Easy Installation

Designed with a flexible PCB, the 48V 2835 Double Row LED Strip Light bends easily and adapts to different installation surfaces and architectural contours. Its flexible structure allows convenient cutting, mounting, and integration into aluminum profiles, making installation simple and versatile for various lighting projects.

Stable & Durable Performance

Built with high-quality 2835 LED chips and reliable electronic components, the 48V Constant Current LED Strip Light ensures stable operation and consistent light output. Its optimized circuit design enhances operational reliability, reduces performance degradation, and supports long-lasting illumination for demanding lighting applications.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Product Detail

48V 2835 Constant Current 240 LED/m Double Row LED Strip Light
