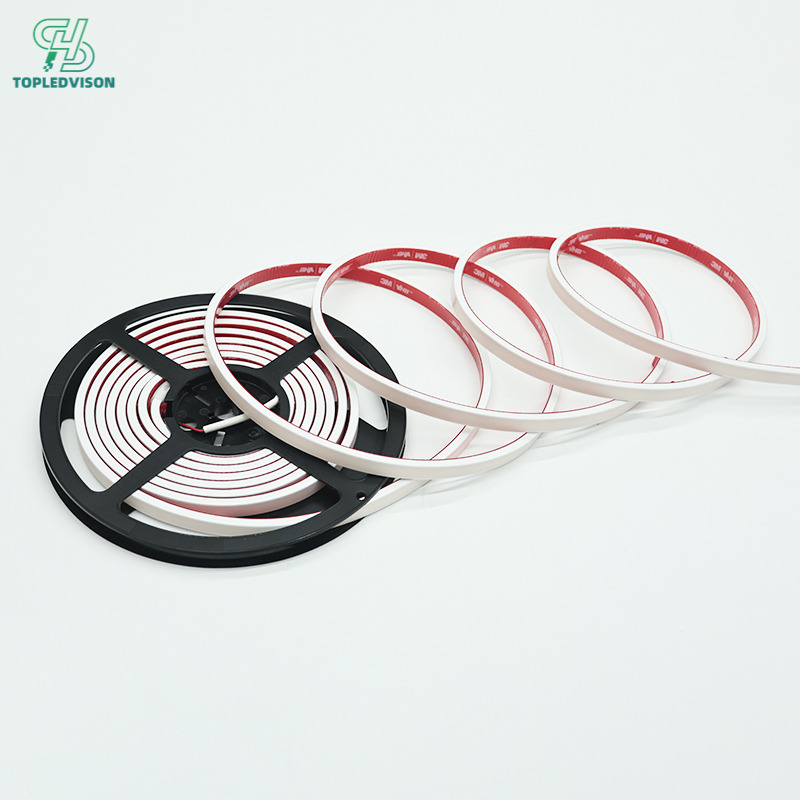

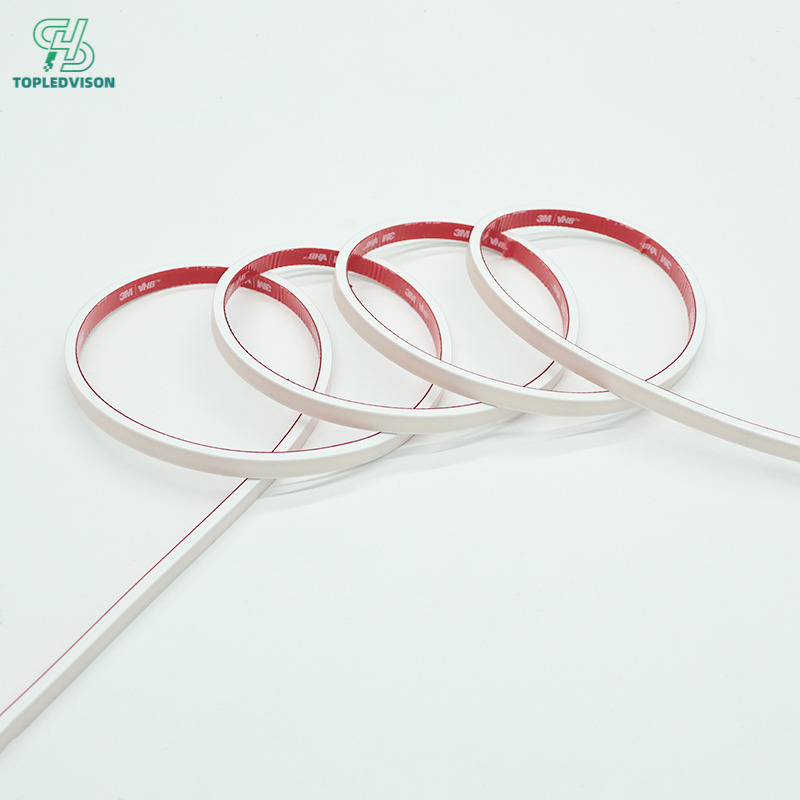

480 COB Solid extrusion LED Strip10x4mm-5m(COB STRIP SERIES)

Feature / Warranty

· No spots
· Flexible and durable

· Stability and Longevity

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

480 COB Solid Extrusion LED Strip

Strip Performance: Features high-quality flexible COB LED strips; 480 high-density COB chips per meter, combined with a one-piece solid silicone extrusion process, eliminate the grainy texture and dark spots typically associated with individual LEDs at the source. The light output is continuous and smooth, with uniform illumination across the entire strip, achieving truly seamless linear soft lighting. The visual effect is gentle and non-glare, with natural and superior color rendering; Color Rendering Index (CRI) Ra90/95; color temperature range from 1800K to 10000K, with both RGB and RGBW options available. Supports 12V/24VDC low-voltage operation; features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install.

Weather-resistant silicone: Features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame retardant rating, ensuring exceptional fire safety.

Lighting Performance: A monolithic, solid-extruded 480-COB strip light with high-density LED arrangement and seamless soft diffusion. It delivers uniform light output without dark spots, glare, or a grainy texture. The light is warm and translucent, with natural color rendering and a sophisticated ambiance. Suitable for indoor and outdoor lighting applications such as accent walls, baseboards, wardrobes, wine cabinets, display cases, bars, and patio railings.

Protection Rating: IP67, capable of withstanding brief submersion, moisture-proof, and dust-proof. The silicone material withstands temperature fluctuations from -20°C to 65°C, resists UV rays, and is waterproof and moisture-resistant, making it less prone to cracking. Suitable for use in humid indoor and outdoor environments, including outdoor exposure to rain and acid/alkali corrosion.

Easy Installation: Comes with 3M adhesive backing; simply peel and stick. No complex tools required for quick installation. Ideal for cabinets, display cases, staircases, and contour lighting.

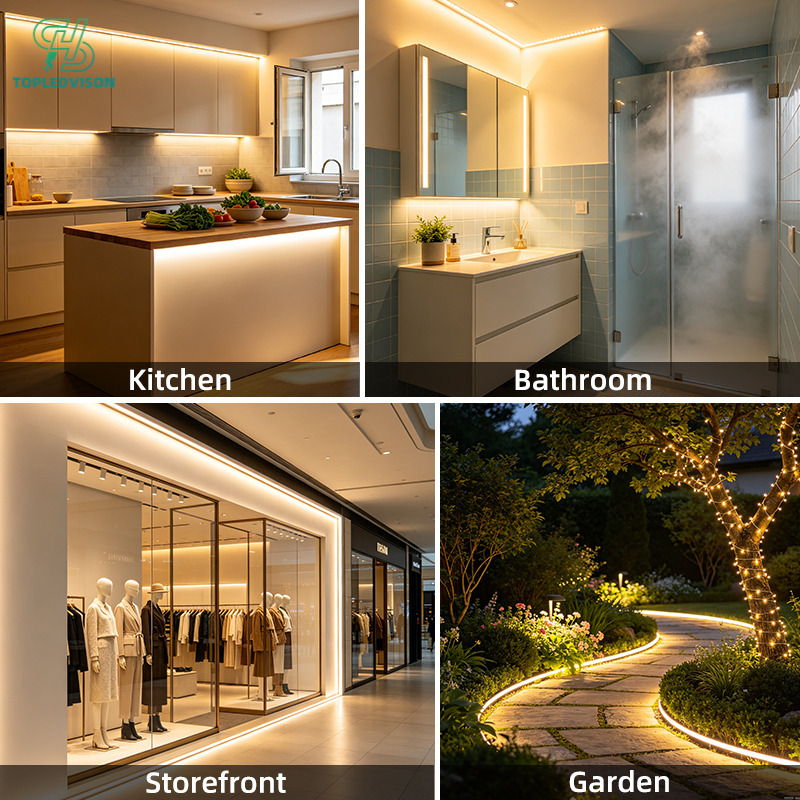

Applications of the 480 COB Solid Extrusion LED Strip: Outdoor landscaping, building contours, garden pathways, landscape lighting, cabinets and wardrobes, stair treads, shopping mall display cases, boutique stores, and advertising signage.

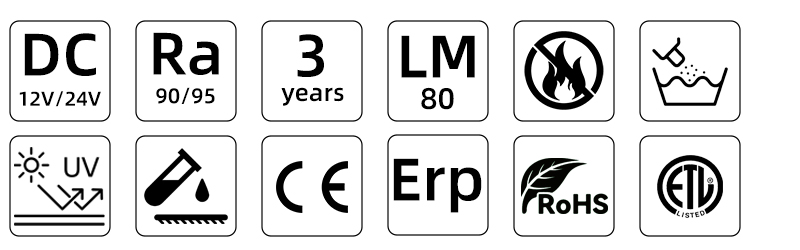

Technical Parameters

lighting Effect	Dot free	Power	7/9/10/12W/M
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W10*H4mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	90/95Ra	Warranty	3Year
Input Voltage	12/24V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	60-70lm/w	Packing	5/10/20/50Roll

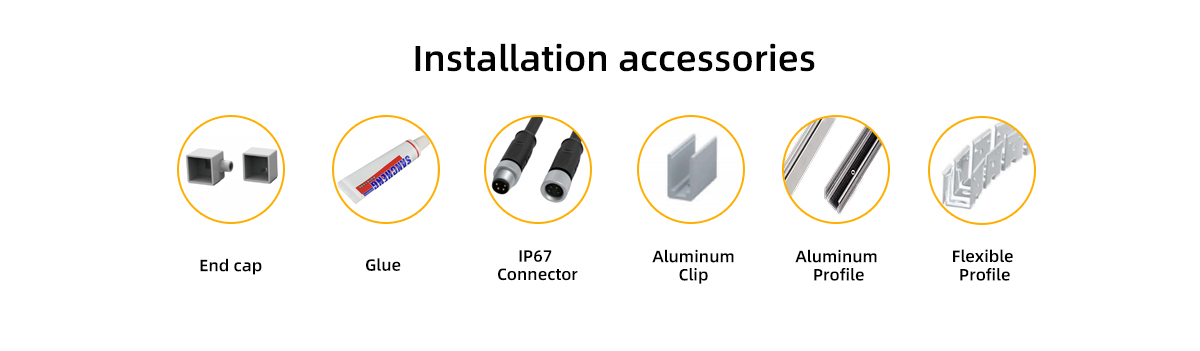

Standardized, plug-and-play accessories significantly reduce commissioning time.

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

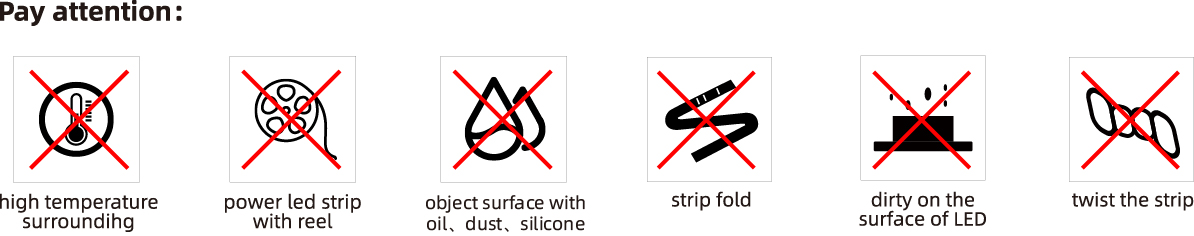

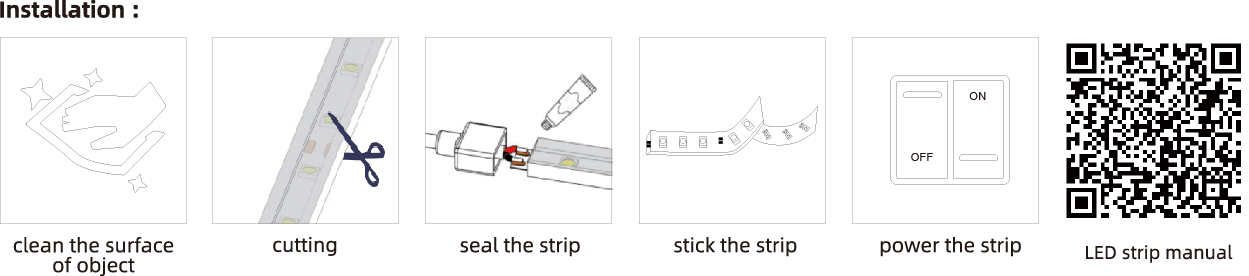

COB Strip Using Notice: we suggest the professional peopleto do the installation, before using COB product, please read below note to avoid the improper operation to cause the COB Strip damage.

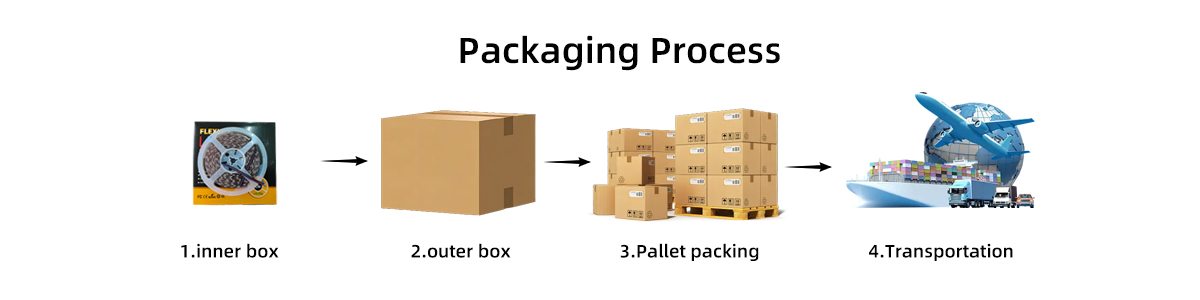

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

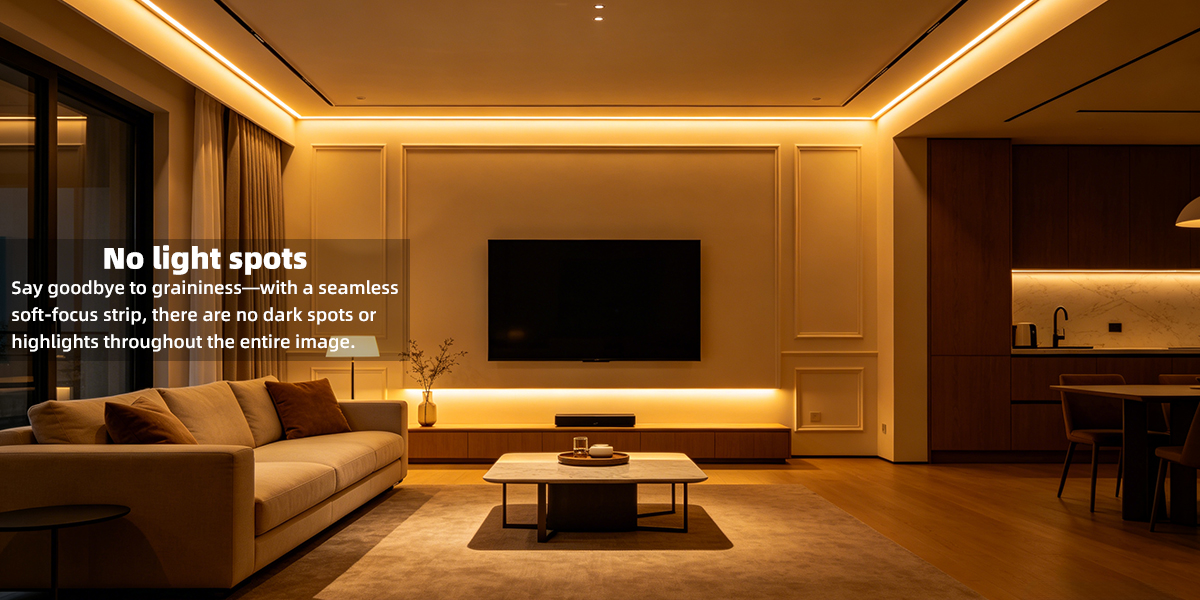

No spots

With 480 COB chips densely packed per meter, there are no visible grains, dark spots, or gaps, resulting in a continuous, uniform linear light source. Combined with the COB surface light source and an integrated solid diffuser structure, the light output is soft and non-glaring, completely eliminating light spots and unevenness. The visual experience is pure and flicker-free, with a delicate and uniform glow. The light strip offers excellent concealment, truly achieving the effect of “light visible, but the fixture hidden,” creating a refined, high-end atmosphere with clean light and shadow.

产品优势1

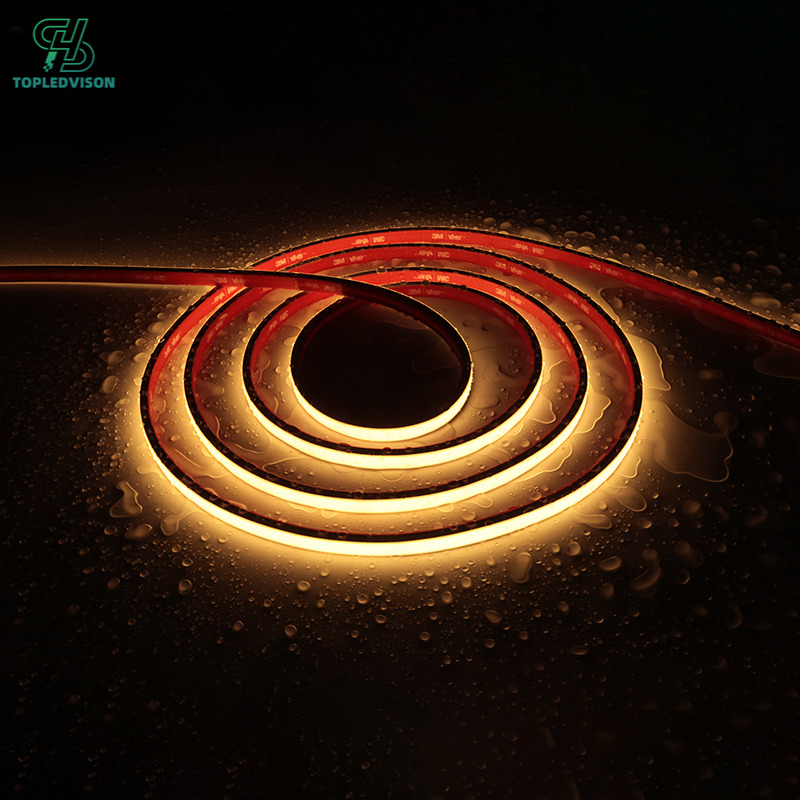

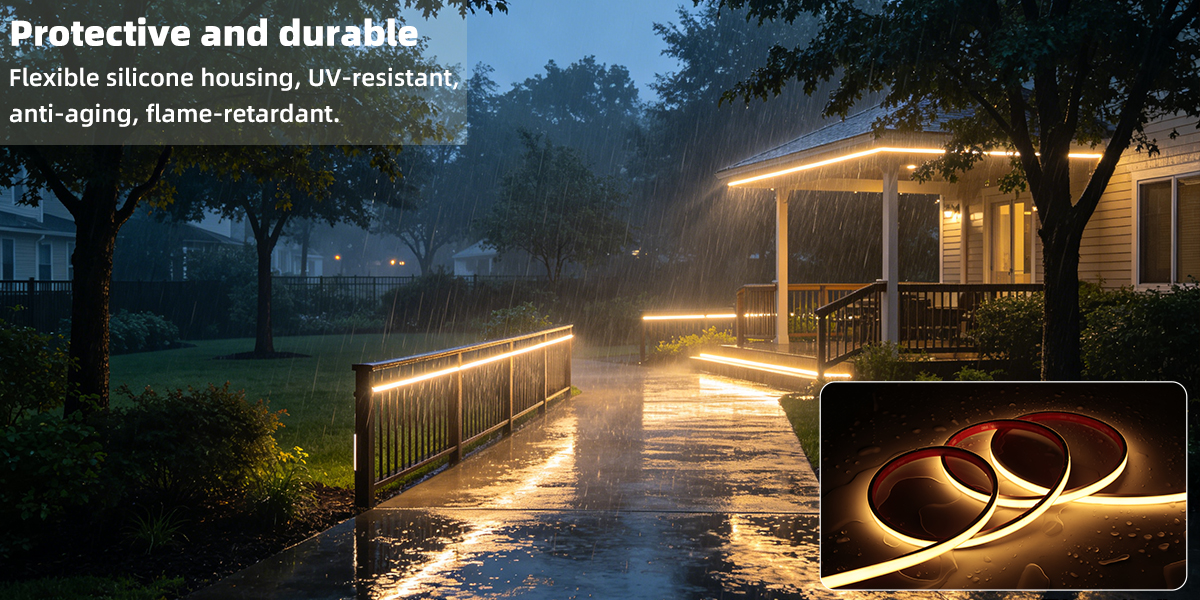

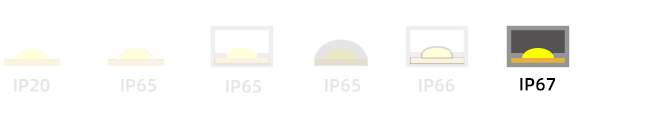

Protection rating

Made from environmentally friendly, optical-grade silicone using a one-piece solid extrusion process, it features no seams, bubbles, or delamination. The lamp body has a smooth texture and dense structure, with anti-aging and anti-yellowing performance far superior to that of ordinary PVC/PU light strips; It also features an IP67 protection rating, offering dustproof, waterproof, moisture-resistant, and corrosion-resistant properties, making it suitable for use in various settings such as bathrooms and outdoor environments. With an operating temperature range of -30°C to +60°C, it is UV-resistant, crack-resistant, and does not harden, ensuring outstanding weather resistance.

产品优势2

Stability and Longevity

Utilizing advanced flip-chip technology, combined with a double-sided, thickened copper-clad substrate and a highly efficient heat dissipation design, the light strip rapidly dissipates and evenly distributes heat during operation, preventing light decay and aging caused by localized heat buildup. Overall heat dissipation efficiency is significantly improved, effectively slowing down brightness decay. The light strip maintains stable illumination even after prolonged use, with no flickering or dimming, significantly extending its service life. It is more durable and long-lasting, offering higher reliability during long-term operation.

产品优势3

High color rendering

The 480COB light strip, featuring a monolithic extruded design, boasts a Color Rendering Index (CRI) of Ra≥90. Combined with advanced flip-chip technology and high-color-rendering optical design, it faithfully reproduces the true colors of objects without color shift or distortion. Whether it’s reproducing wall textures and the tactile quality of soft furnishings in home settings, or highlighting the true colors of products in commercial displays, these strips leverage their high color rendering capabilities to make colors appear more transparent and natural. Combined with uniform lighting free of dark spots, they further enhance the texture of spaces and objects, making them suitable for various scenarios with high color reproduction requirements.

产品优势4

Caution:

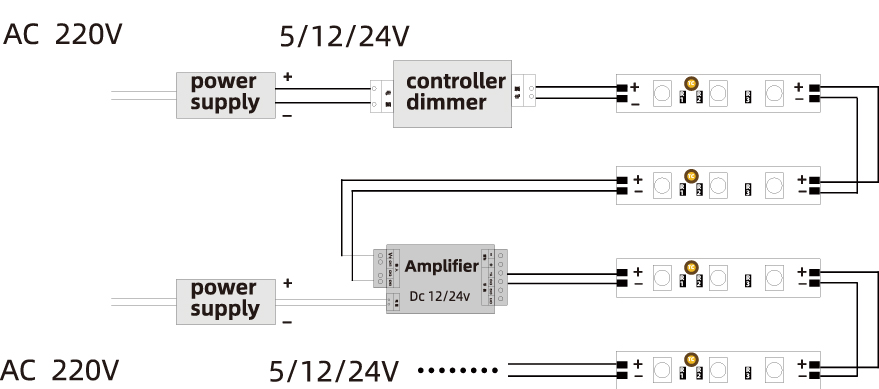

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 meters and constant current strip length>15 meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
