480 COB Solid Extrusion LED Strip Light 10x4mm-5m(COB STRIP SERIES)

Feature / Warranty

· No spots
· Flexible and durable

· Stability and Longevity

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

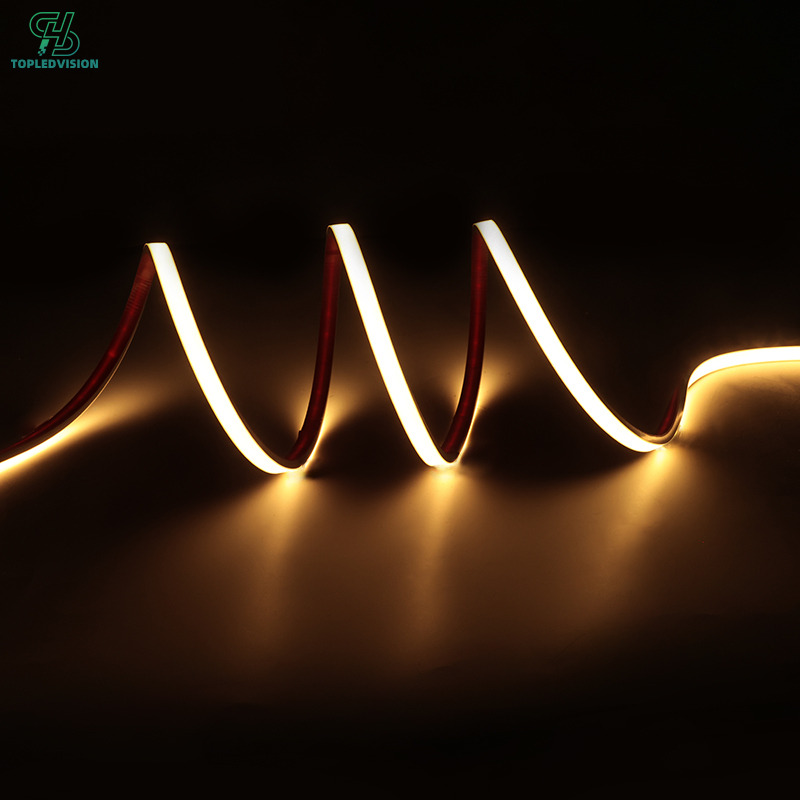

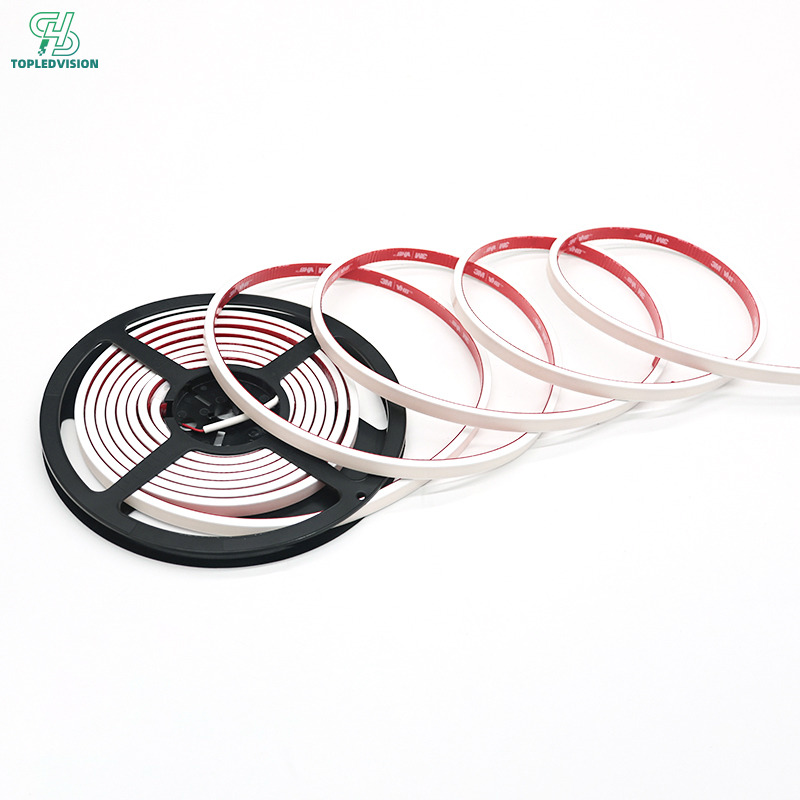

480 COB Solid Extrusion LED Strip Light

Product Performance

The 480 COB Solid Extrusion LED Strip Light features 480 high-density COB chips per meter combined with advanced solid silicone extrusion technology to create seamless, dotless linear illumination. The integrated COB design eliminates visible LED dots, dark spots, and uneven lighting, delivering a smooth, continuous, and glare-free light output.

With CRI90/95 high color rendering, adjustable color temperatures from 1800K to 10000K, and optional RGB/RGBW solutions, this high-density COB LED strip provides excellent color accuracy and versatile lighting effects. Available in 12V/24V DC low-voltage operation, it offers high brightness, stable performance, excellent color consistency, and long service life. Custom lengths and specifications are available for various lighting projects.

Premium Silicone Solid Extrusion Housing

The solid silicone extrusion structure provides excellent light transmission, flexibility, and durability. The weather-resistant silicone material features anti-yellowing, UV resistance, high luminous efficiency, and V0 flame retardant protection, ensuring reliable performance for both indoor and outdoor linear LED lighting applications.

Seamless Linear Lighting Performance

Designed for professional COB linear lighting, this 480 COB LED strip delivers uniform illumination with no dark areas, glare, or grainy effects. The soft and translucent light creates a refined visual atmosphere while enhancing the texture of architectural spaces, furniture, and decorative elements.

Ideal for:

Accent wall lighting
Cabinet and wardrobe lighting
Wine cabinet lighting
Display case lighting
Bar and hospitality lighting
Outdoor contour lighting

IP67 Waterproof Protection

With an IP67 waterproof rating, this waterproof COB LED strip light offers excellent protection against dust, moisture, and water exposure. The silicone housing withstands temperature ranges from -20°C to 65°C, providing strong resistance against UV radiation, cracking, humidity, and outdoor environmental conditions.

Suitable for:

Outdoor landscape lighting
Garden lighting
Building facade lighting
Patio and pathway lighting
Humid indoor environments

Easy Installation

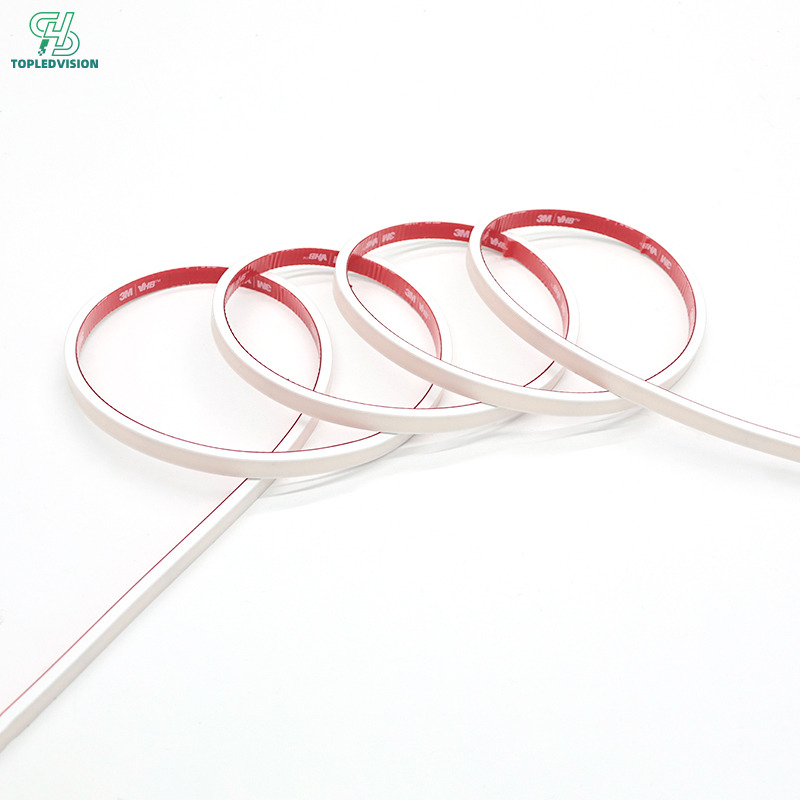

Equipped with 3M adhesive backing, the 480 COB LED strip light allows quick and easy installation without complex tools. The flexible design makes it suitable for cabinets, shelves, stairs, display areas, and architectural lighting projects.

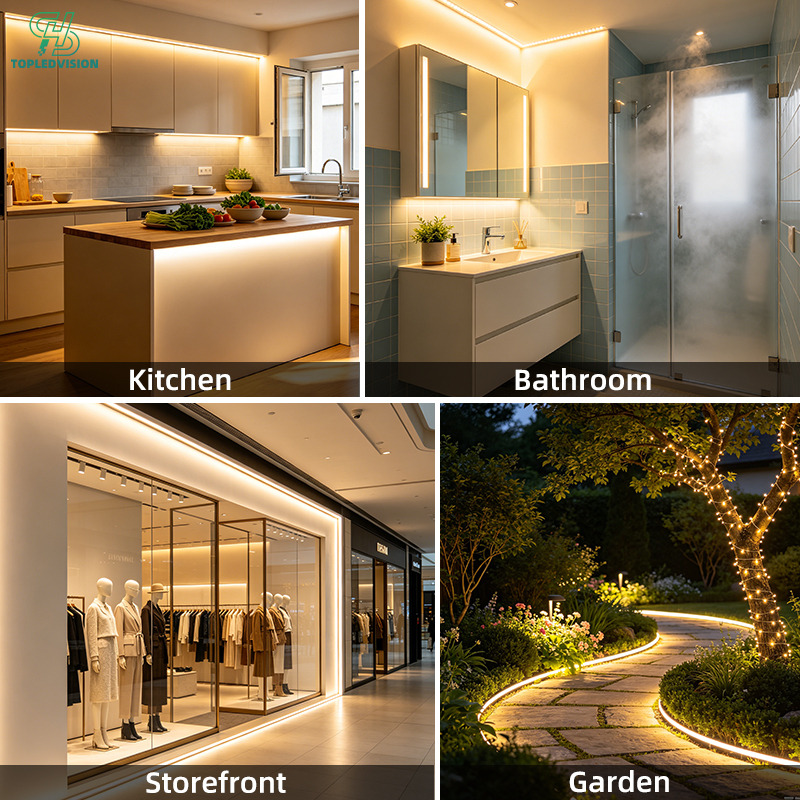

Applications of 480 COB Solid Extrusion LED Strip

The 480 COB Solid Extrusion LED Strip Light is widely used for:

Architectural LED lighting
Outdoor landscape lighting
Building contour lighting
Garden pathway lighting
Cabinet and wardrobe lighting
Stair tread lighting
Retail display lighting
Boutique store decoration
Advertising signage lighting
Commercial linear lighting projects

Technical Parameters

lighting Effect	Dot free	Power	7/9/10/12W/M
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W10*H4mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	90/95Ra	Warranty	3Year
Input Voltage	12/24V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	60-70lm/w	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time.

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

COB Strip Using Notice: we suggest the professional peopleto do the installation, before using COB product, please read below note to avoid the improper operation to cause the COB Strip damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

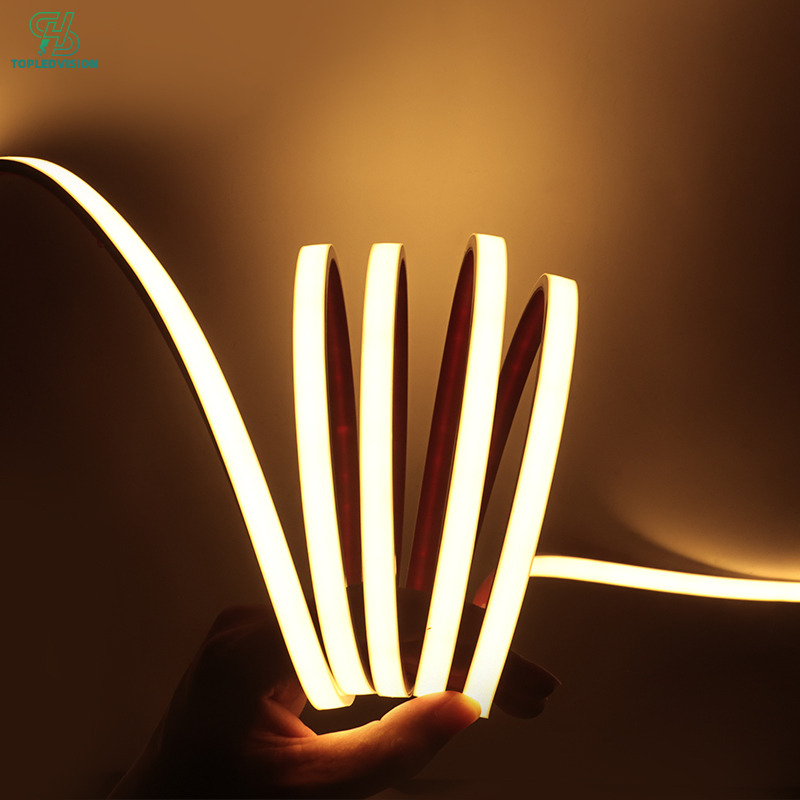

No Spots, Seamless COB Linear Lighting

Featuring 480 COB chips per meter, this 480 COB LED Strip Light delivers seamless, dotless illumination with no visible spots, dark areas, or light gaps. The high-density COB LED strip combined with a solid diffuser design creates a soft, uniform, and glare-free linear light source. Perfect for COB linear lighting, aluminum profile applications, and architectural lighting projects, it achieves a premium “light visible, fixture hidden” effect with smooth and elegant illumination.

产品优势1

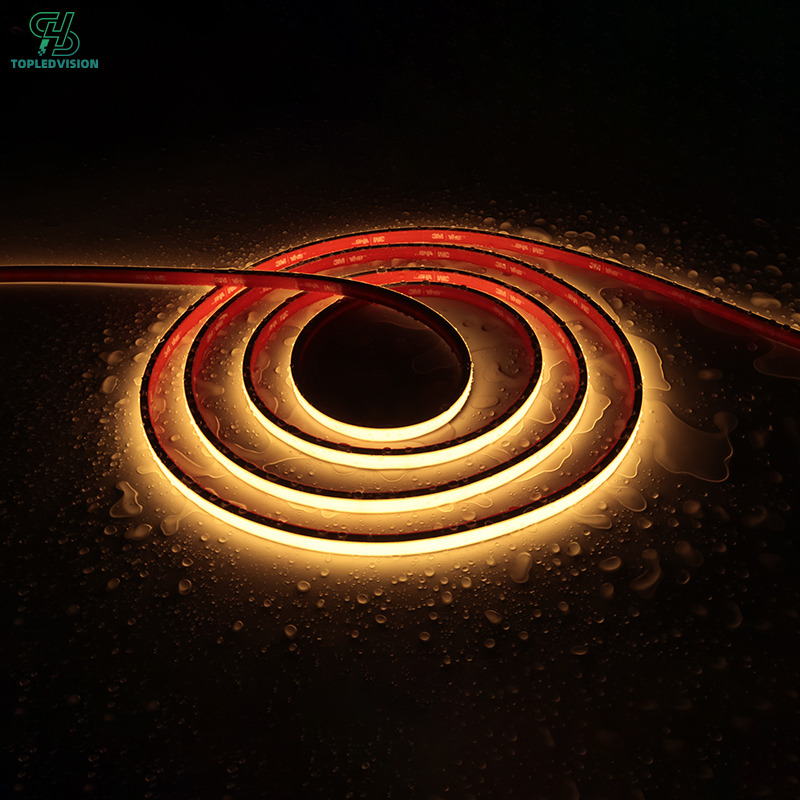

IP67 Waterproof Solid COB LED Strip Protection

Made with optical-grade silicone and solid extrusion technology, this IP67 COB LED Strip Light features a seamless, bubble-free, and durable construction. The premium silicone housing provides excellent anti-aging, anti-yellowing, UV resistance, and weather resistance, outperforming traditional PVC/PU LED strips. With dustproof, waterproof, moisture-resistant, and corrosion-resistant protection, it is ideal for outdoor lighting, bathroom lighting, architectural lighting, and commercial LED strip applications. Operating temperature: -30°C to +60°C, ensuring reliable performance in harsh environments.

产品优势2

Stable Performance & Long Lifespan

Featuring advanced flip-chip technology, a double-layer thick copper PCB, and an optimized heat dissipation design, this COB LED Strip Light ensures efficient thermal management and stable performance. The enhanced heat dissipation structure reduces heat buildup, minimizes light decay, and maintains consistent brightness without flicker or dimming. Designed for high-density COB LED strip applications, it delivers reliable, long-lasting illumination for linear lighting, architectural projects, and commercial LED lighting solutions.

产品优势3

High Color Rendering CRI≥90 COB LED Strip

The 480 COB LED Strip Light features a CRI≥90 high color rendering design, delivering accurate and natural color reproduction without color distortion. Combined with advanced flip-chip technology and solid extrusion packaging, this high-density COB LED strip provides smooth, uniform, and dotless illumination. Ideal for architectural lighting, retail displays, home interiors, and commercial lighting applications, it enhances the true colors and textures of spaces and objects with premium visual quality.

产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 meters and constant current strip length>15 meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
