480 COB LED Strip Light – High Density Cuttable Dotless Flexible LED Tape-5mm-5m (COB LED STRIP SERIES )

Feature / Warranty

No spots
High Color Rendering Index
Energy-efficient and durable
Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

COB480 LED Strip Light | High Density Cuttable COB LED Strip

Product Features

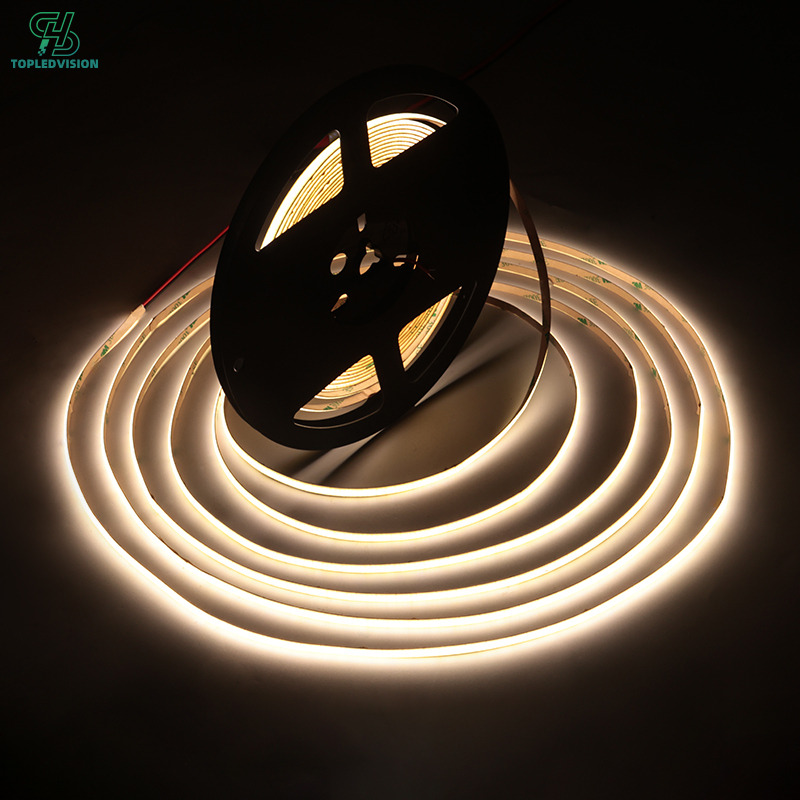

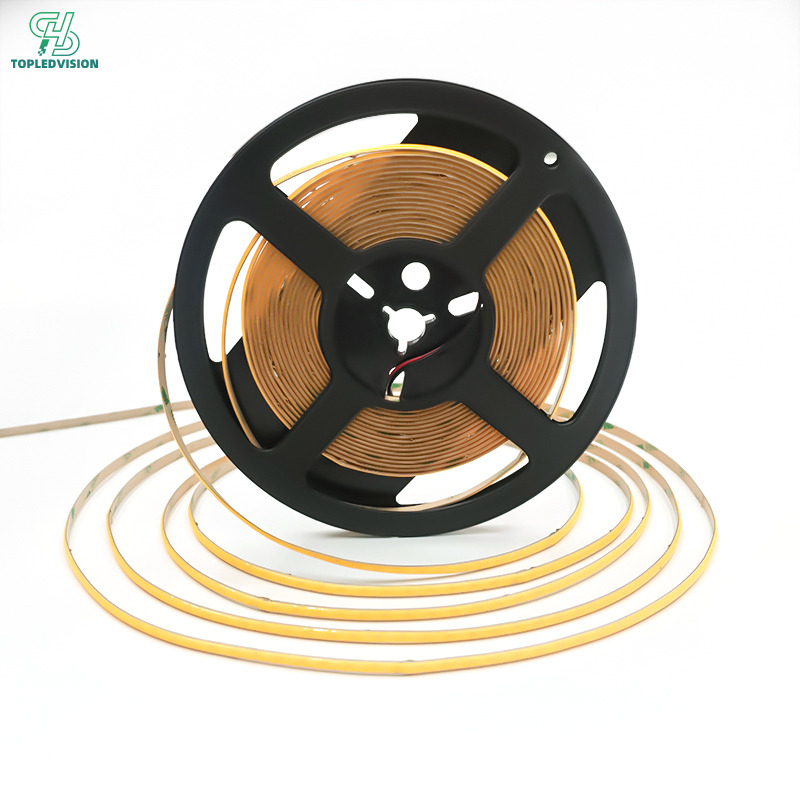

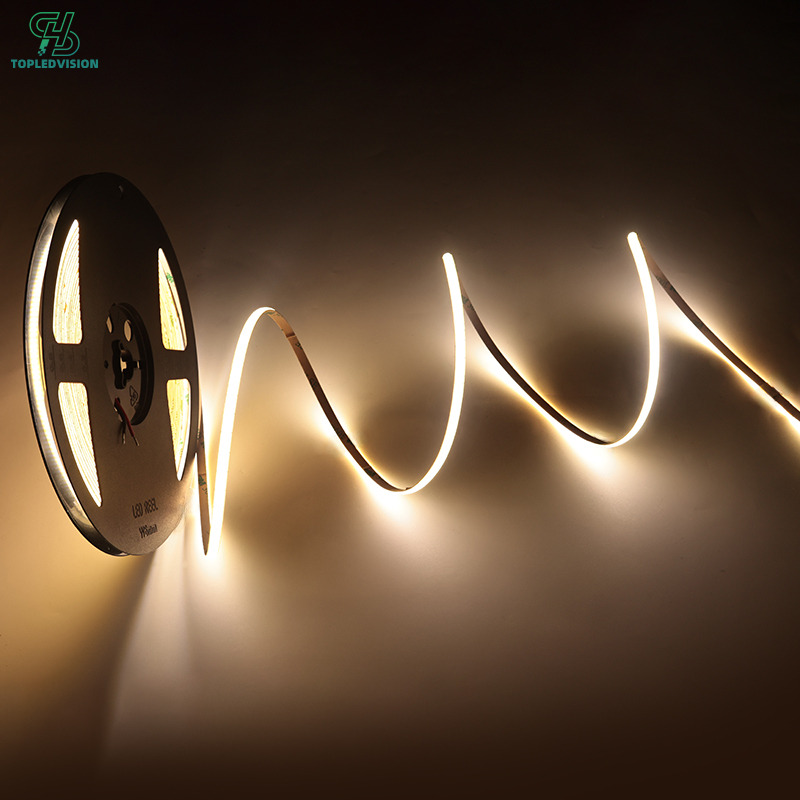

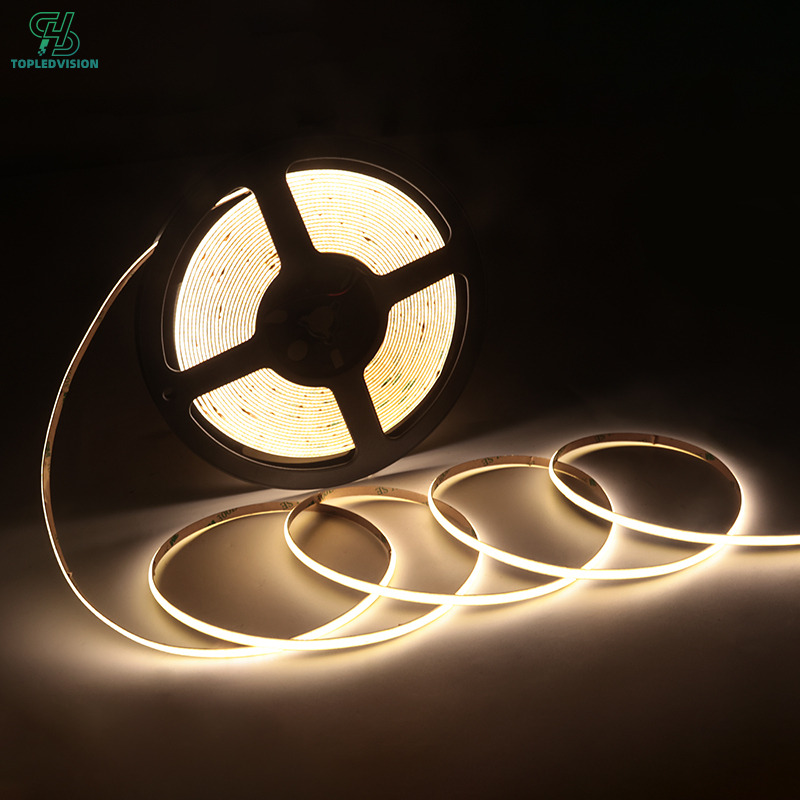

The COB480 LED Strip Light features an ultra-high-density 480 LEDs/m COB LED array, delivering seamless, uniform illumination without visible LED dots, dark spots, or uneven lighting. The innovative one-cut-per-light design allows precise cut-to-length installation, reducing waste and improving flexibility.

With an ultra-slim 5mm narrow profile, this flexible COB LED strip light fits perfectly into tight spaces, curved surfaces, cabinets, and linear lighting channels. Available with CRI ≥80/90/95, it provides excellent color accuracy, stable low-voltage operation, efficient heat dissipation, and long-lasting performance.

Seamless Lighting Performance

Advanced COB LED technology creates a smooth, dotless lighting effect with soft and glare-free illumination. The 480 COB LED Strip maintains consistent brightness and color across the entire strip, even around corners and curved installations, creating a premium “see the light, not the LED” visual experience.

Energy Efficient & Long Lifespan

Built with high-quality PCB and integrated silicone protection, the high density COB LED strip provides efficient heat management, low power consumption, reduced lumen depreciation, and stable brightness over long-term use. It ensures reliable performance with extended service life for residential and commercial lighting.

Multiple Waterproof Options

The COB480 LED Strip Light is available in IP20, IP65, and IP67 versions to meet different application needs.

IP20: Indoor dry environments
IP65: Protection against dust and daily moisture
IP67: Enhanced waterproof and dustproof protection for demanding environments

The waterproof COB LED strip light offers excellent resistance to moisture, oxidation, and aging, making it suitable for indoor and outdoor lighting applications.

Easy Cut & Easy Installation

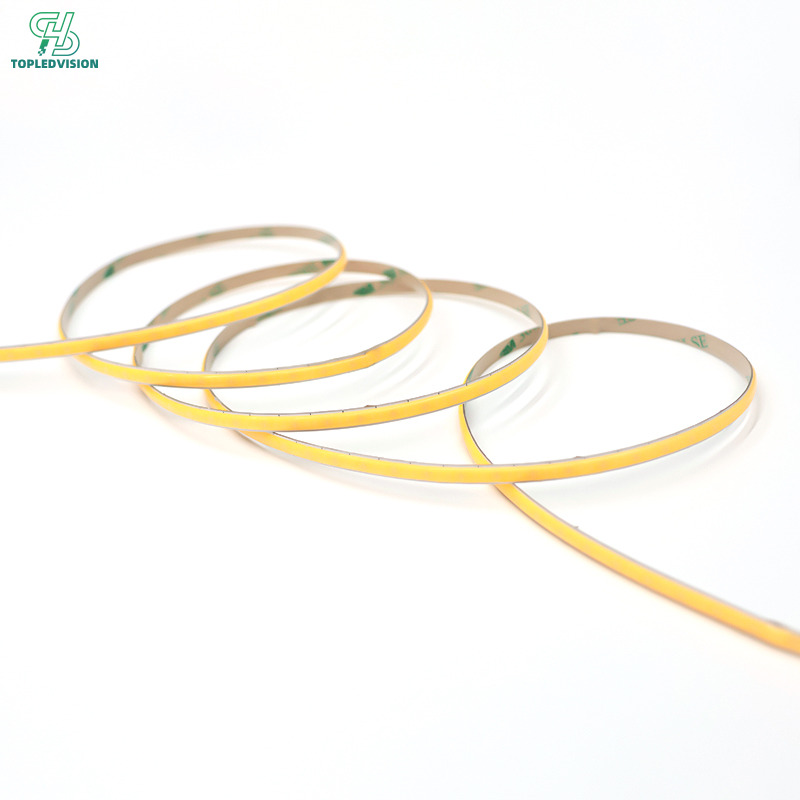

Designed with a 5mm ultra-thin flexible PCB, the cuttable COB LED strip can be easily bent, shaped, and cut to the required length. The strong adhesive backing enables quick installation without complicated tools, making it ideal for narrow spaces and customized lighting projects.

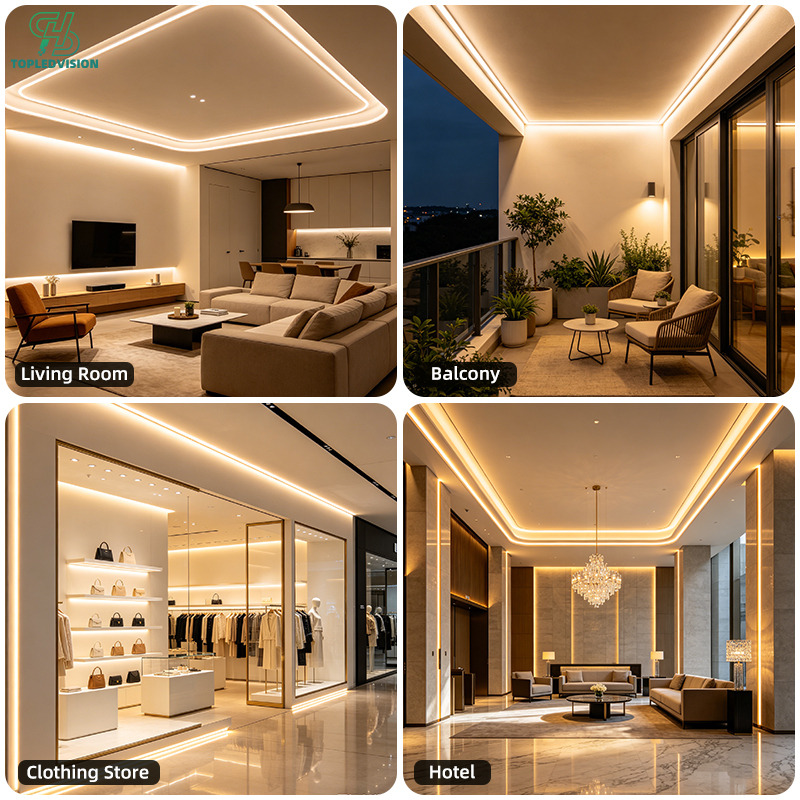

Applications

The 480 COB LED Strip Light is widely used for:

Wardrobe & cabinet lighting
Kitchen under cabinet lighting
Wine cabinet illumination
Hallway & stair lighting
TV background lighting
Hotel & retail lighting
Display case lighting
Architectural linear lighting

Technical Parameters

LEDs	480Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB，RGBW	Lifespan	>50000h
CRI	80/90/95Ra	Working Temperature	-20-65℃
Input Voltage	24V	Warranty	3Year
Luminous Efficiency	70-90lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	6/7/9/10W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using COB LED Strip Lights: We recommend having COB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the COB LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

No Spots & Seamless Lighting

The 480 COB LED Strip features a high-density 480 LEDs/m COB LED array with advanced dotless technology, eliminating visible LED dots, dark spots, and uneven lighting. The 140° wide beam delivers smooth, uniform, and glare-free illumination for a seamless linear lighting effect.

Ideal for walls, ceilings, cabinets, and curved surfaces, this flexible COB LED strip light creates a premium “see the light, not the LED” experience with clean and continuous illumination.

480COB灯带（5mm) 产品优势1

High Color Rendering & True-to-Life Colors

The 480 COB LED Strip features a high CRI ≥90 COB LED light source, delivering accurate color reproduction close to natural light. This high density COB LED strip minimizes color distortion and restores the true colors and textures of furniture, fabrics, artwork, and display items.

With soft, natural, and comfortable illumination, this flexible COB LED strip light enhances residential and commercial spaces with vivid details, premium visual quality, and an elegant lighting experience.

Energy-Efficient & Long-Lasting Performance

The 480 COB LED Strip uses advanced COB LED technology with a high-quality thick copper PCB for efficient heat dissipation and stable performance. The optimized thermal management reduces heat buildup, minimizes light decay, and prevents color shifting during long-term operation.

Designed for durability, this high density COB LED strip maintains consistent brightness, pure colors, and flicker-free illumination even under extended use. With excellent aging resistance and reliable performance, it provides a long service life for residential, commercial, and architectural lighting applications.

Multiple Protection Ratings & Reliable Durability

The 480 COB LED Strip features an integrated silicone extrusion design with excellent sealing and protection performance. Available in IP20, IP65, and IP67 versions, it meets different lighting requirements from indoor to outdoor applications.

The IP20 COB LED Strip is ideal for dry indoor installations, while the IP65 waterproof COB LED strip provides protection against moisture, dust, and daily splashes. The IP67 fully sealed COB LED strip offers enhanced protection against water, dust, grease, and oxidation, ensuring stable performance in demanding environments.

With strong weather resistance and anti-aging performance, this flexible COB LED strip light delivers long-lasting, reliable illumination for cabinets, kitchens, bathrooms, commercial spaces, architectural lighting, and outdoor applications.

480COB灯带（5mm) 产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)check the+and -connection right between power supply and led strip.

(2) check the power supply output volt is same with strip working volt.

whole strip with slight brightness

and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object all isolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)

one section or few sections

failure or color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white color turn blue color

1, the fluorescent glue of ledare corroded by

something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
