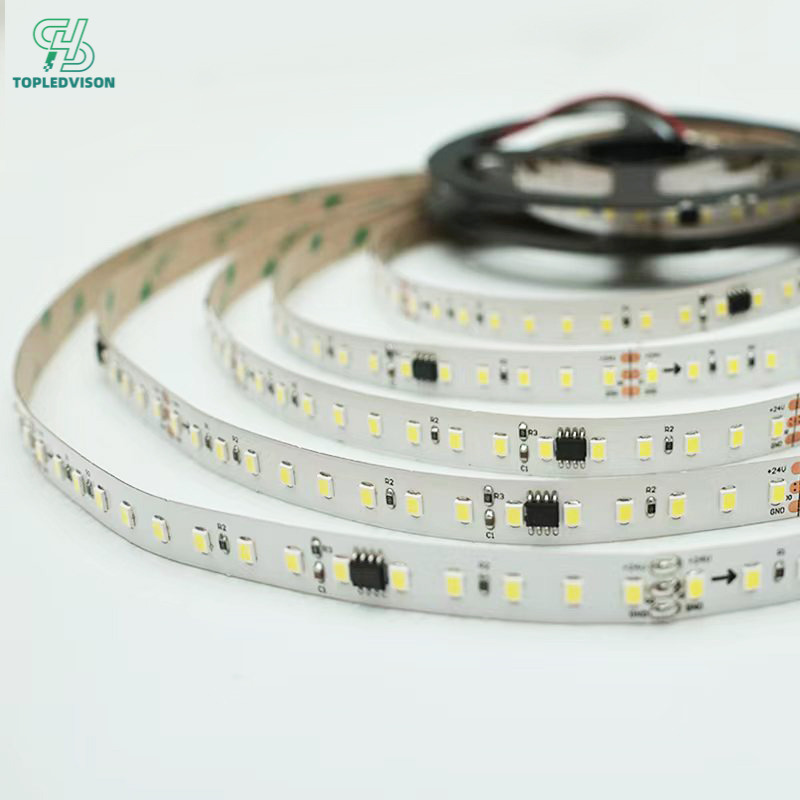

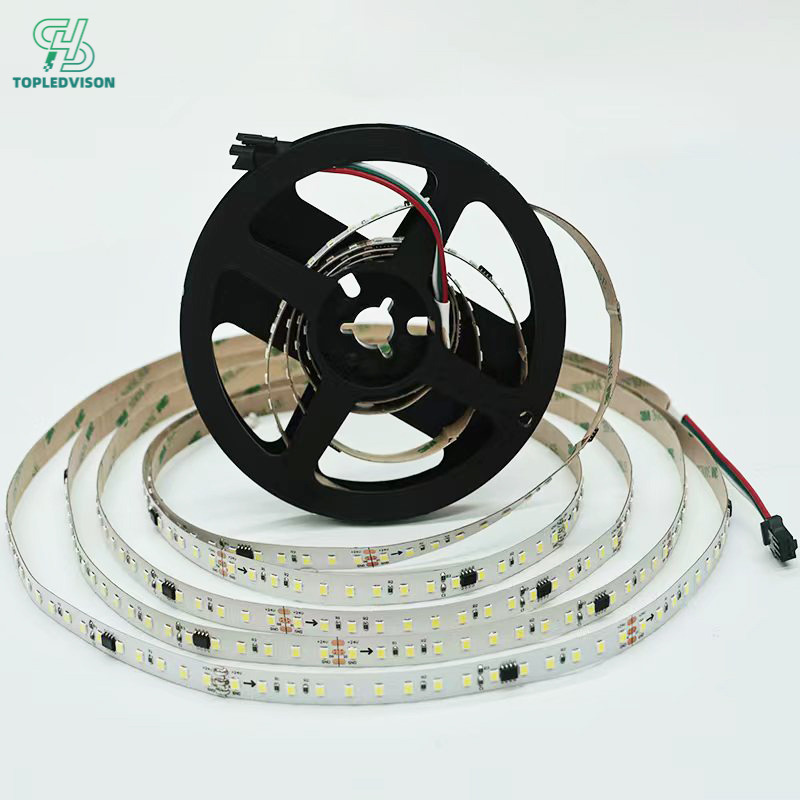

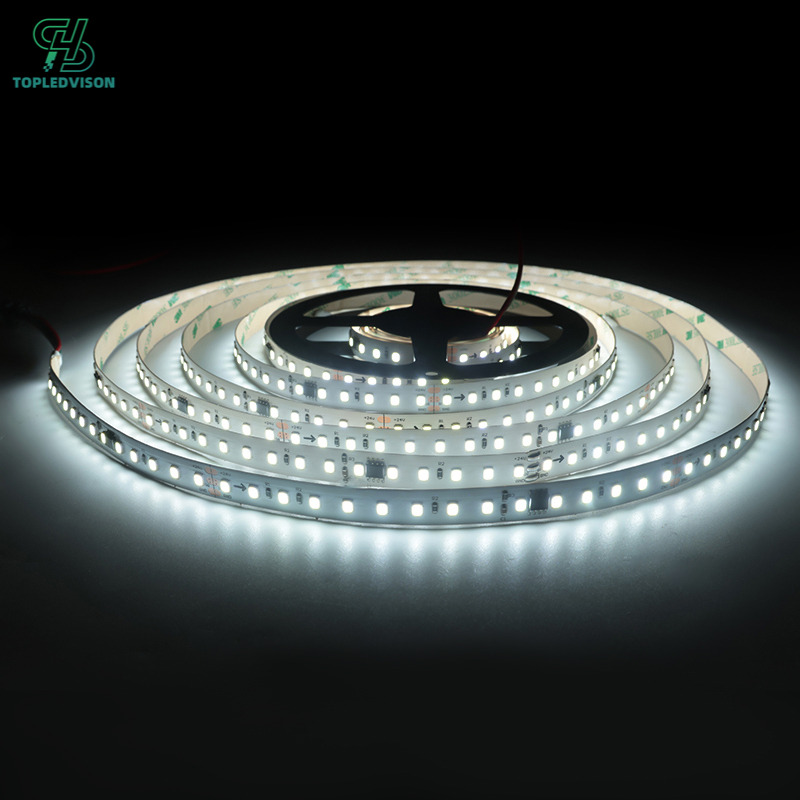

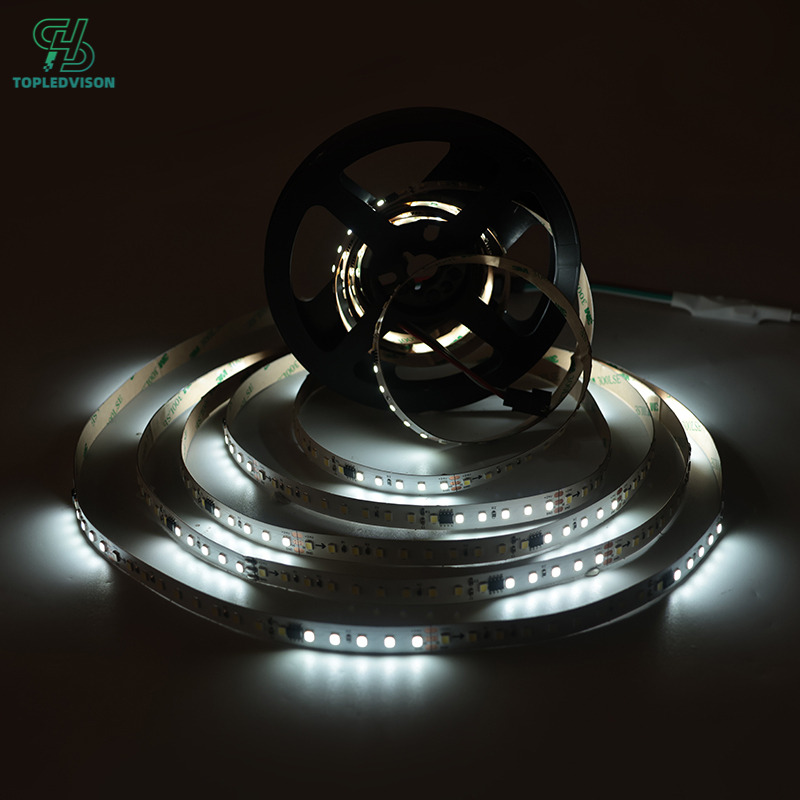

2835 White SPI 120 LED Stirp 10mm-5m(WHITE SPI LED STRIP SERIES )

Feature / Warranty

No dark areas
High color rendering
Flexible and easy to install

Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

2835 White Running 120 LED Strip

Product Features: Features high-quality 2835 LED chips, available in warm white, neutral white, or cool white (2700K–6500K), with a Color Rendering Index (CRI) of ≥80/90Ra, a 120° wide beam angle, independent white light control, and support for chase, flowing, and static effects. 12V/24V DC low-voltage drive, high brightness, excellent color consistency, stable quality, long service life, freely cut to length, and easy to install.

Lighting Performance: Uniform and soft light, high brightness, no dark spots; 120° wide beam angle and high Color Rendering Index (CRI) accurately reproduce the true colors of objects; suitable for both general lighting and ambient lighting; Low-voltage soft light that does not cause glare even during prolonged use, making it ideal for residential, commercial, and display applications.

Energy-efficient and durable: High-quality LED chips + gold-plated/copper mounting brackets + double-sided copper FPC circuit boards enhance the strip’s conductivity and heat dissipation. Low power consumption, service life of up to 50,000 hours, minimal light decay, and long-term stability in brightness and color temperature.

Available in multiple IP ratings: IP20 is suitable for dry indoor environments, such as wardrobes, cabinets, accent walls, and interior decor; IP65: Resistant to light moisture and splashes, suitable for bathroom mirrors, balconies, hallways, and humid retail spaces; IP67: Resistant to outdoor rain and prolonged moisture, suitable for outdoor signage, eave cove lighting, garden paths, poolside areas, and outdoor lighting.

Easy installation: Equipped with a 3M double-sided adhesive backing; no drilling required—simply peel off the backing and apply. The flexible PCB substrate can be bent to conform to curved, sloped, or uneven surfaces; it is also suitable for tight spaces (such as cabinet shelves and cable channels).

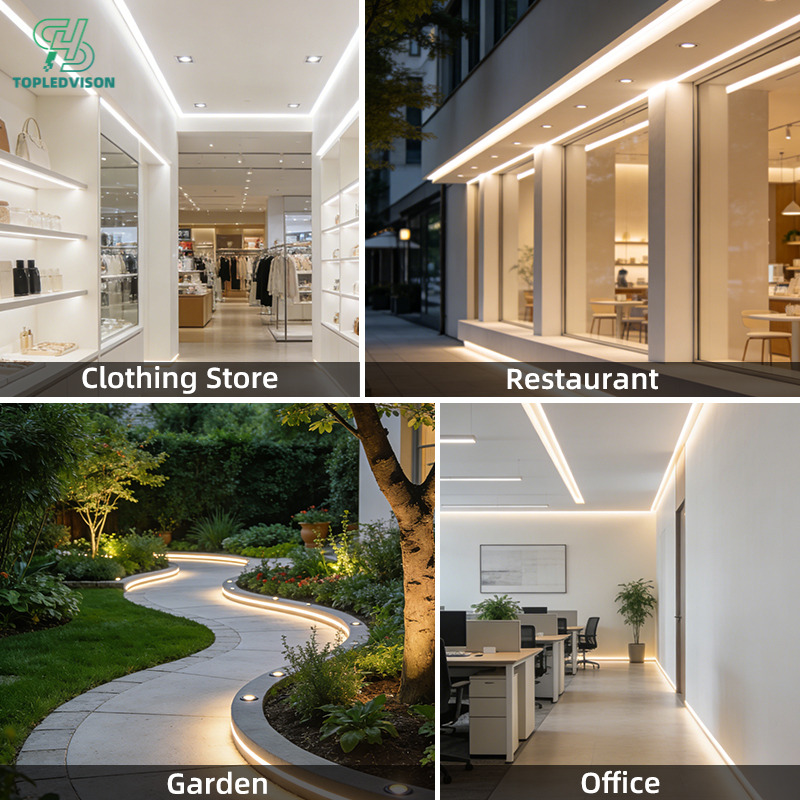

Application scenarios for the 2835 white running 120 LED strip: TV feature walls, sofa accent lighting, bars, KTV venues, movie theaters, and outdoor signage.

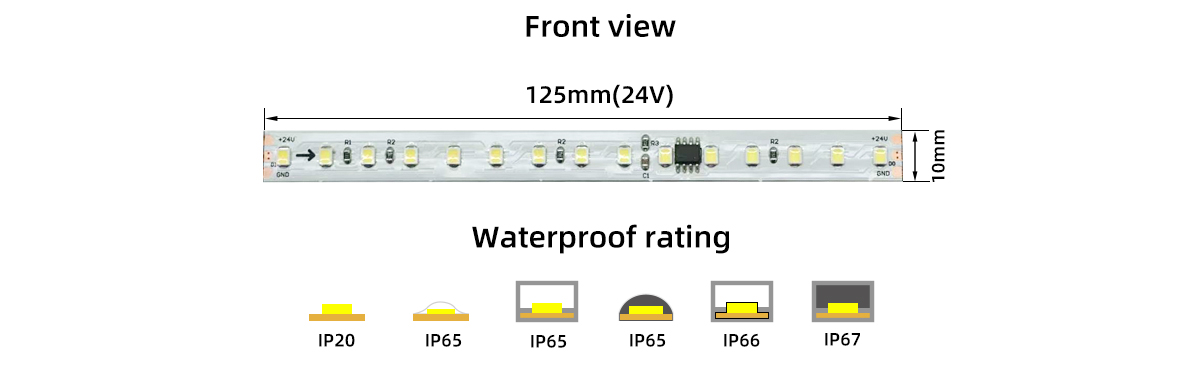

Technical Parameters

LEDs	120Chips/m	Support Dimmer	Yes
Color Temperature	Whithe(80/90Ra)R/G/B 2700K-10000K	Lifespan	>50000h
Compatible IC	WS2811	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/14W/M	Packing	5/10/20/50Roll

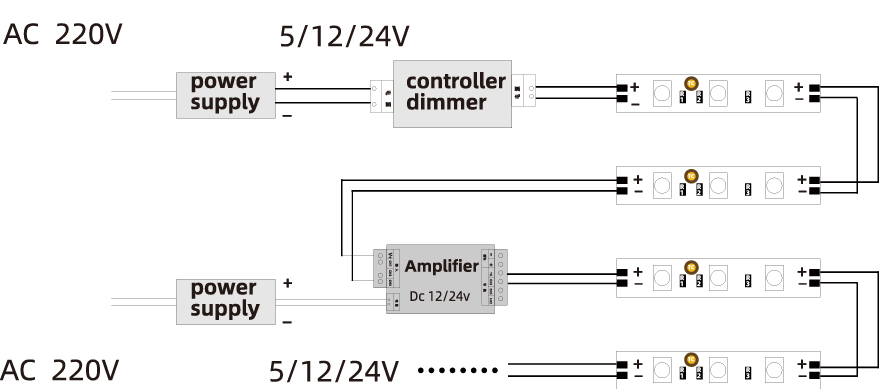

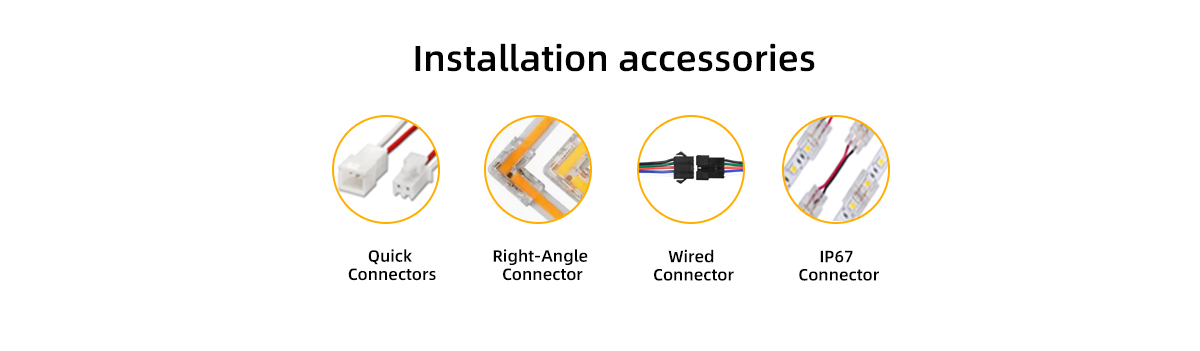

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

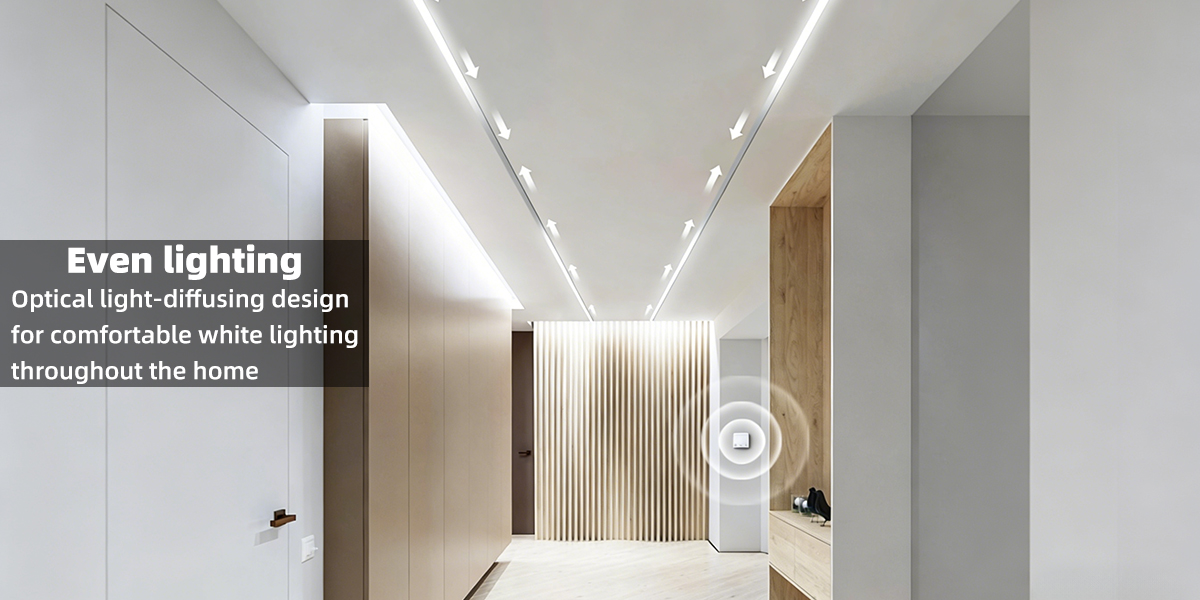

Even lighting

The light strip features a density of 120 LEDs per meter, paired with high-quality 2835 LED chips, delivering ample and stable brightness. The light is soft and delicate, with no dark spots or interruptions; the linear light emission is seamless and smooth, producing a uniform, cohesive lighting effect whether in steady-on or flowing dynamic modes; Low-voltage power supply eliminates voltage drop issues over long distances, ensuring consistent brightness from end to end. The white light is pure with no color deviation; it is bright yet non-glaring, balancing practical illumination with visual comfort, and is fully adaptable for use in a wide range of settings. 产品优势1

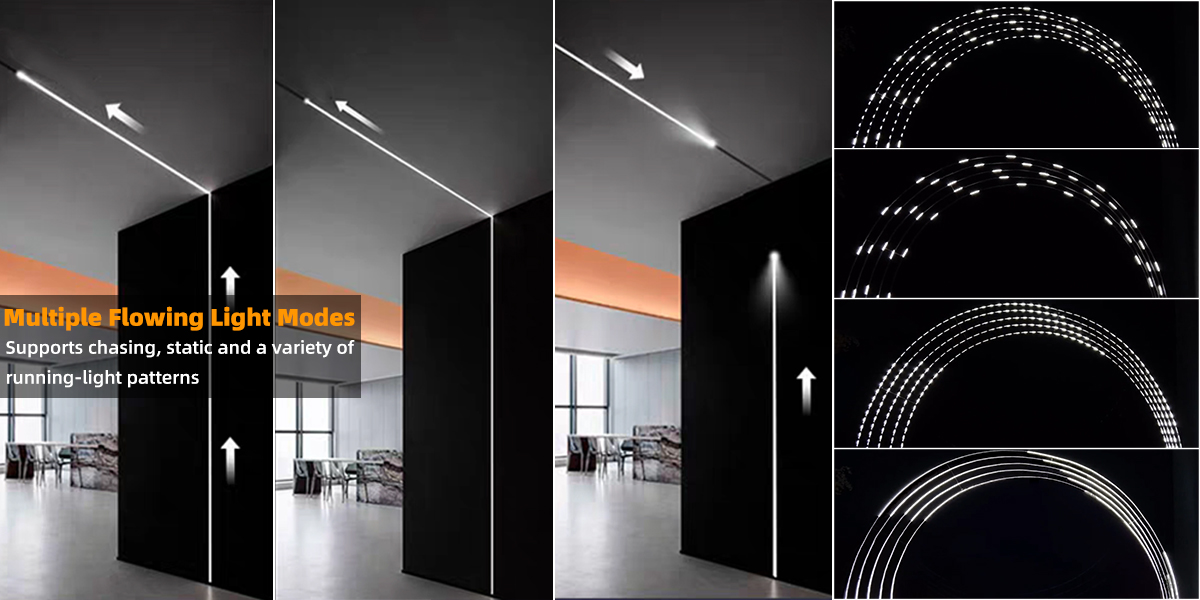

Rich effects

Equipped with an external IC driver chip, it delivers stable performance and precise light control, offering a rich variety of lighting effects. It supports multiple lighting modes, including flowing, chasing, running, and static, and allows for free adjustment of lighting speed and brightness. The dynamic light transitions are smooth and seamless, with subtle and sophisticated lighting layers. You can effortlessly switch between various ambiance modes to create different spatial atmospheres, significantly enhancing the overall decorative quality and ambiance. 产品优势2

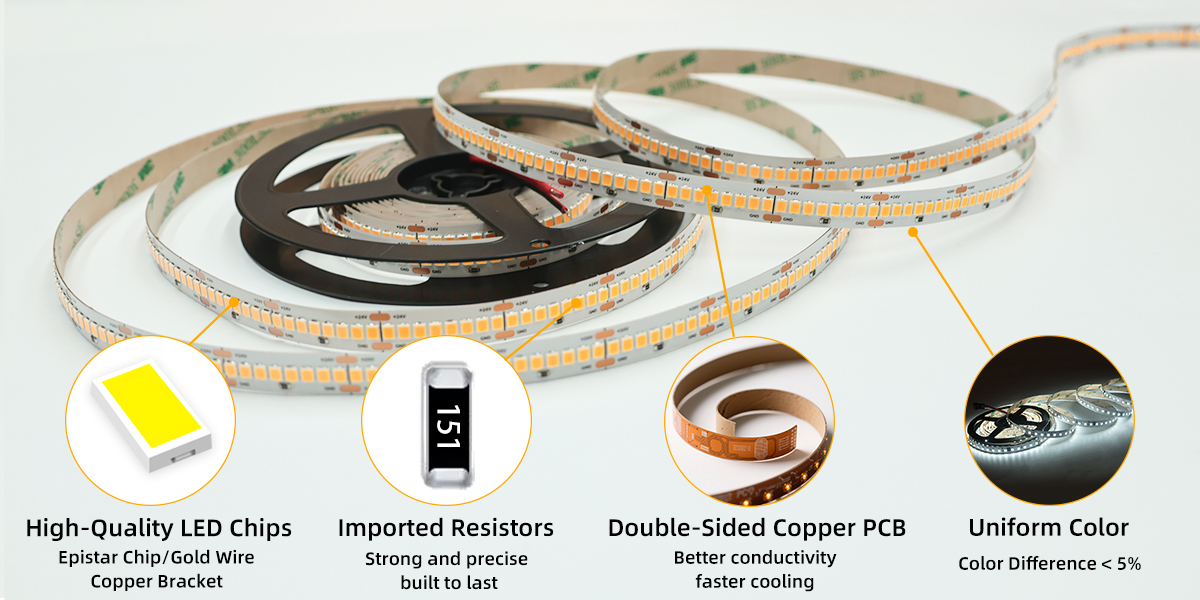

Energy saving heat dissipation

Featuring high-quality 2835 LEDs paired with a scientifically designed heat dissipation structure and a thickened copper foil FPC board, this product rapidly dissipates heat and effectively lowers the lamp body temperature. It also offers excellent anti-interference capabilities, supports a wide voltage range, and remains unaffected by power fluctuations—ensuring flicker-free operation, preventing burnout, and delivering long-term stable performance. The product exhibits extremely low overall lumen depreciation, with an annual lumen depreciation rate of less than 5%, and a service life of up to 50,000 hours, ensuring stable and durable performance. 产品优势3

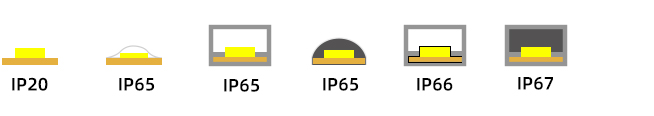

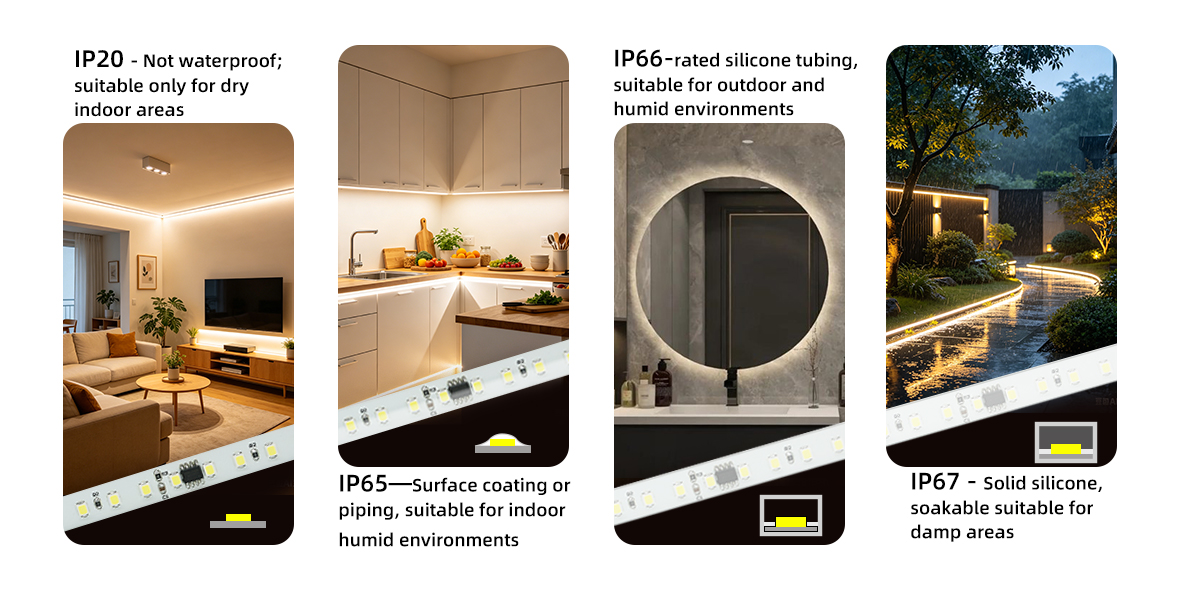

Waterproof Applications

Multiple protection ratings are available, allowing for flexible selection based on different installation scenarios and usage requirements. The range includes various specifications such as IP20 for indoor bare panels, IP65 splash-proof, IP66 dust- and moisture-proof, and IP67 short-term submersion-proof, providing comprehensive protection against dust, moisture, oil, and water spray. Effortlessly handles complex conditions such as dry indoor spaces, humid kitchen and bathroom environments, condensation on open-air balconies, rain exposure in courtyards, and outdoor architectural lighting. Suitable for both indoor and outdoor use, these strips are corrosion-resistant and age-resistant, significantly enhancing the overall durability and service life of the light strips for long-term peace of mind. 产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative(-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section or few sections failure or color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white color turn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
