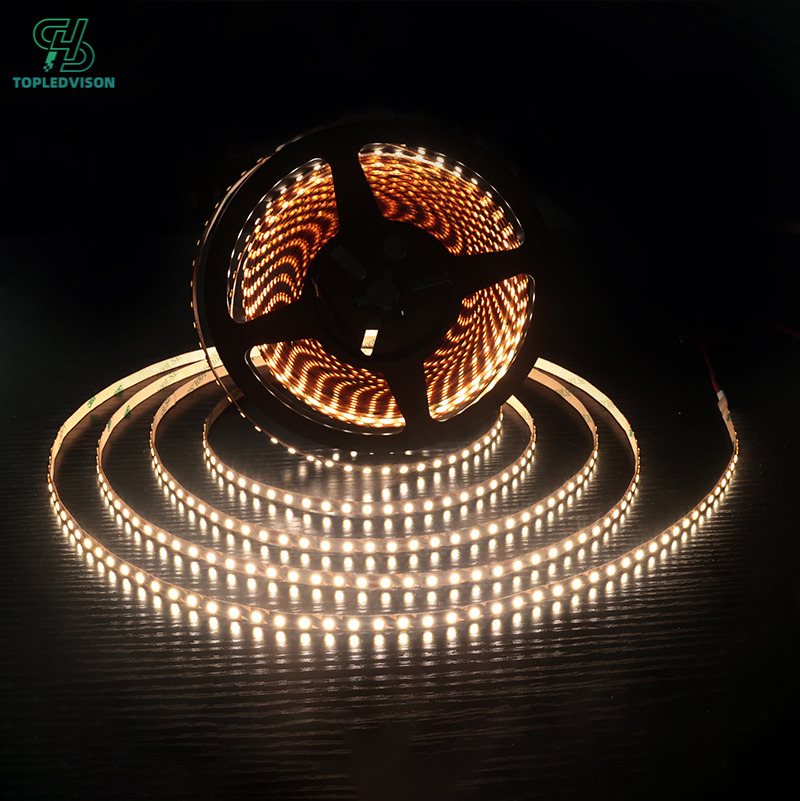

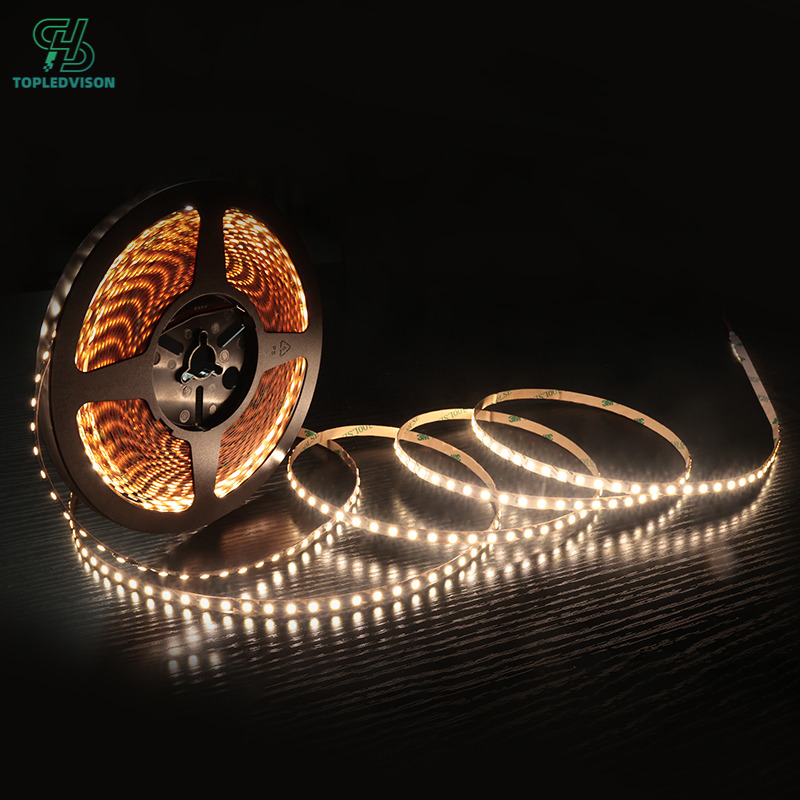

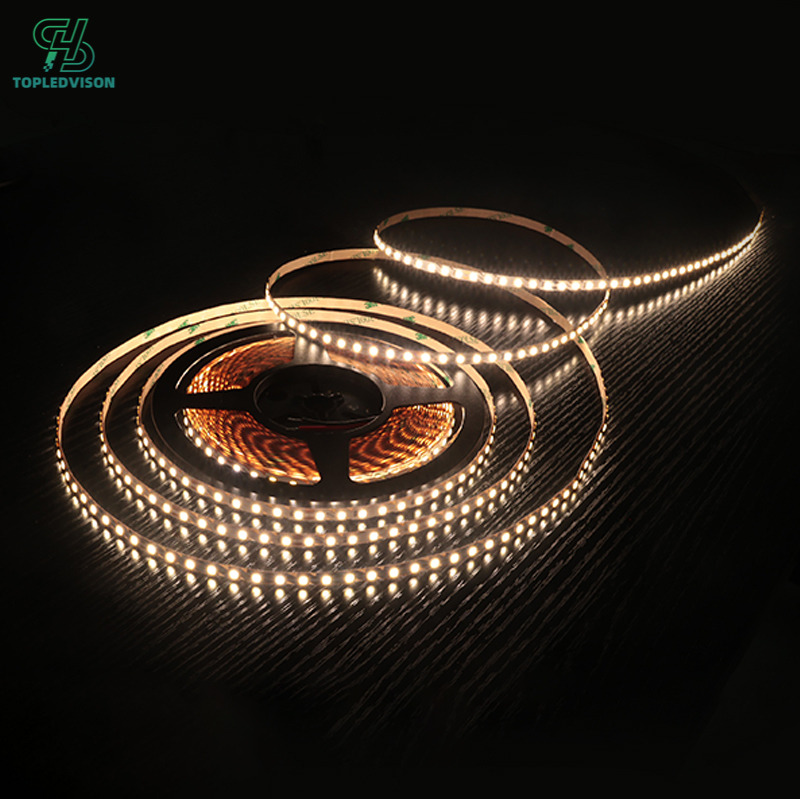

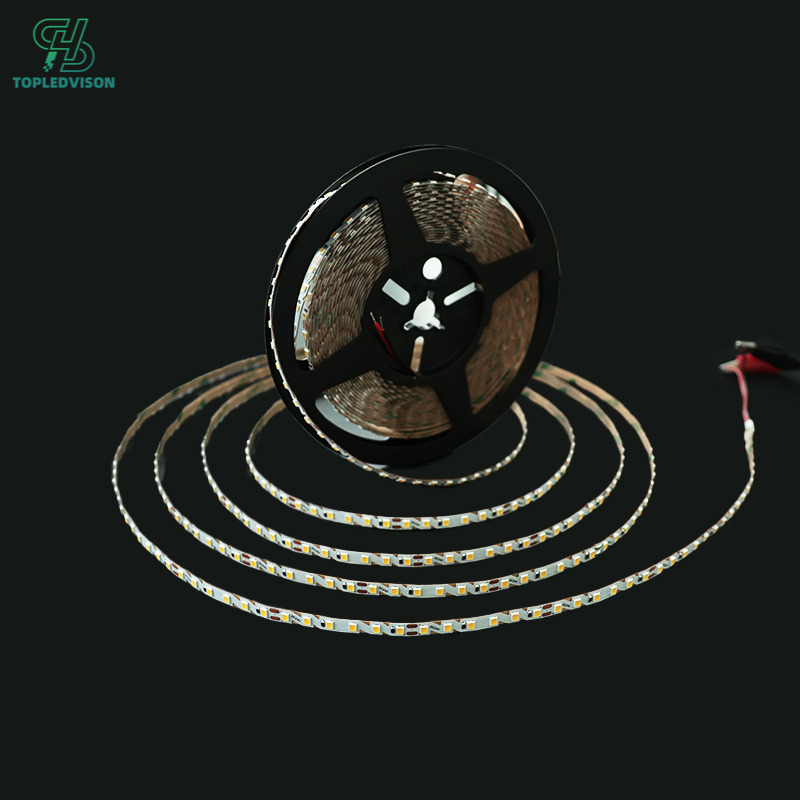

2835 S-Type 120 LED Strip Light
Product Features: With a density of 120 2835 chips per meter, this strip light delivers a soft, even light distribution without noticeable hotspots. Its unique serrated S-shaped design allows the strip to be freely bent, wrapped around corners, and conformed to curved surfaces at any angle, making it easy to create complex shapes such as circles, arcs, and lettering. Wide beam angle (120°), with color temperature options ranging from 1800K to 10000K and RGB/RGBW variants. CRI: Standard models feature Ra > 80, while premium models can reach Ra > 90/97. Features high brightness, excellent color consistency, stable quality, long service life, and is easily cut to size with simple installation.

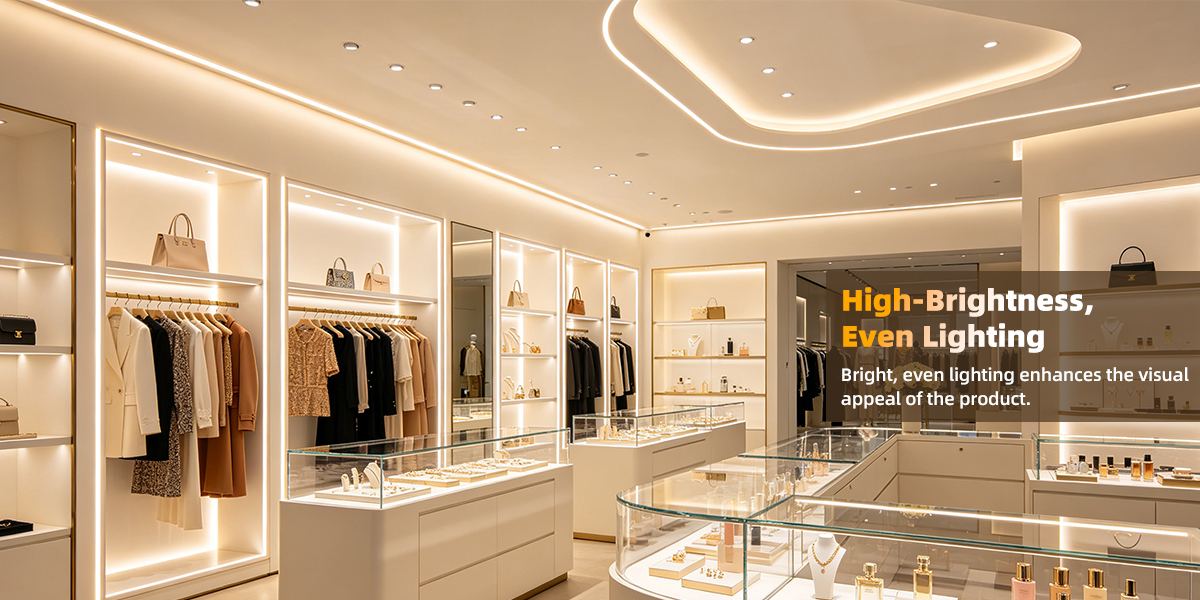

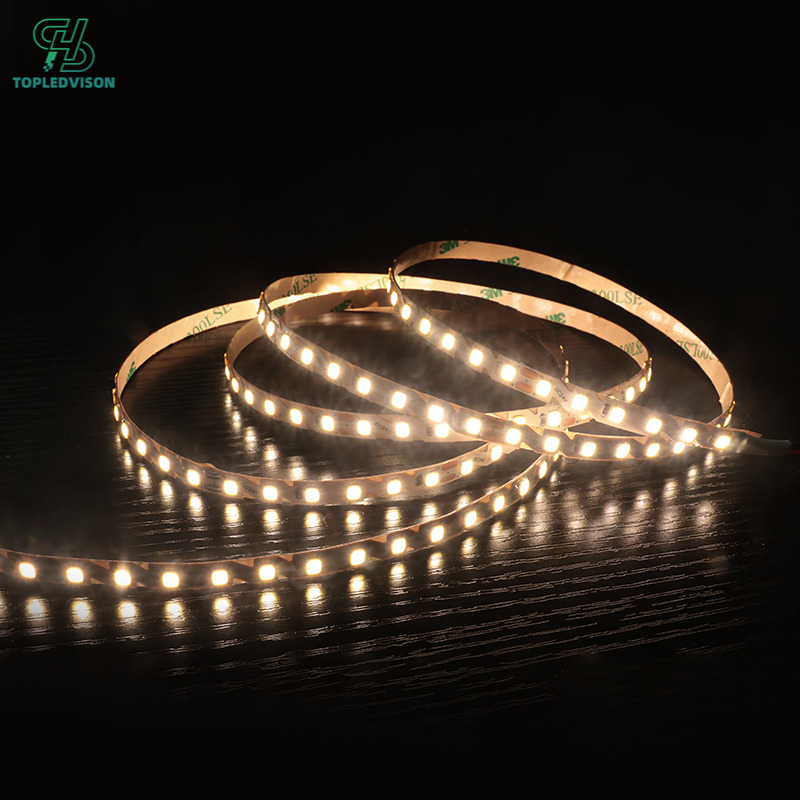

Lighting Effects: Soft, even light with continuous illumination—no dark spots or grainy light patterns. The light is gentle and non-glare, producing clean, crisp linear soft light without glare or flicker. It delivers a sophisticated, unified visual effect, making it suitable for indoor and outdoor lighting applications: wine cabinet display lights, accent lighting for feature walls, supplemental lighting for display cases, shelf accent lighting, as well as in shopping malls, hotel corridors, and entryway hallways.

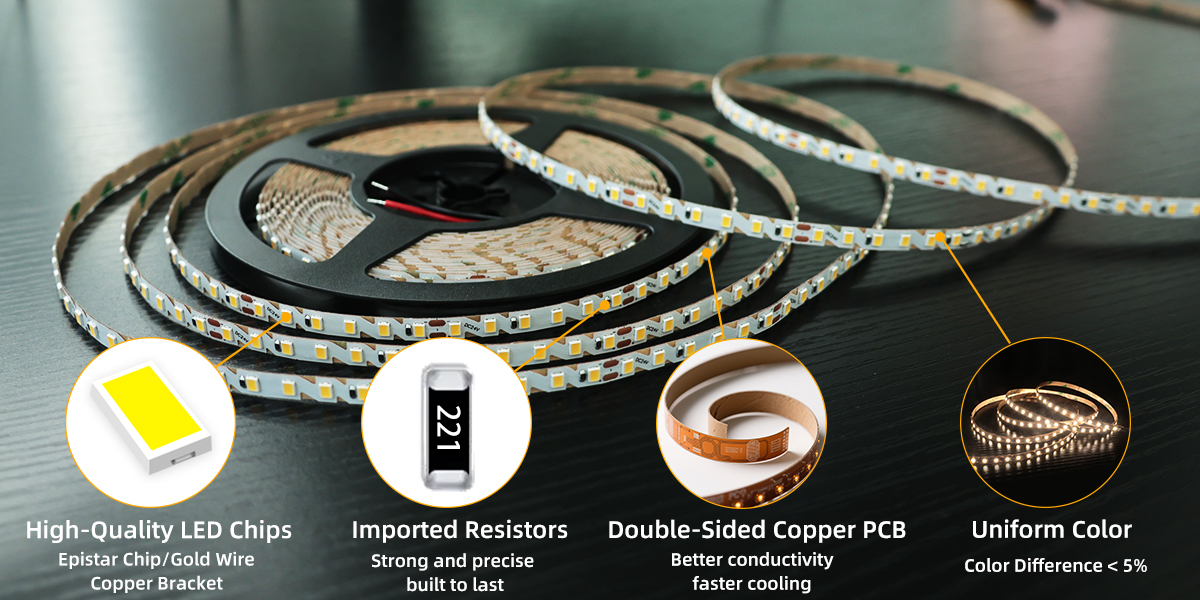

Energy-Efficient and Durable: High-quality LED chips + gold-plated/copper brackets + double-sided copper PCB. The S-shaped flexible board features optimized circuitry for low power consumption and a lifespan of up to 50,000 hours. It exhibits minimal light decay and maintains consistent brightness and color over the long term.

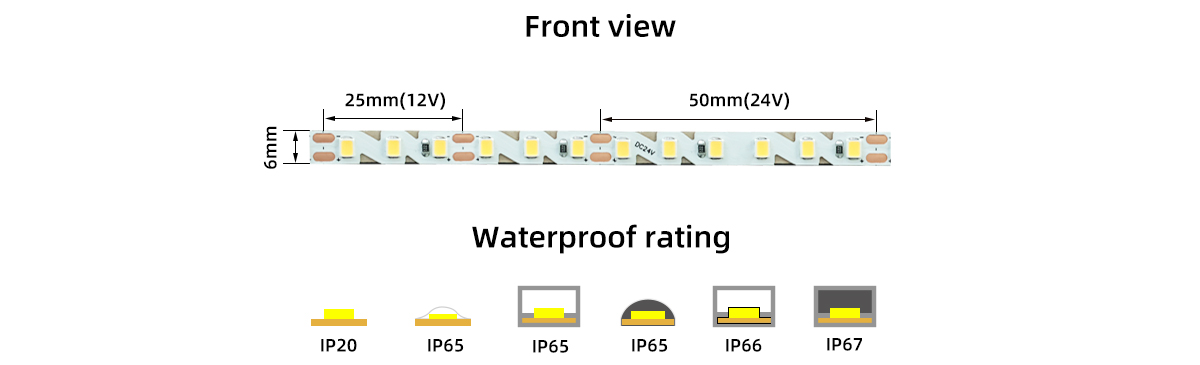

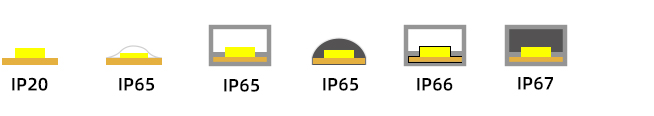

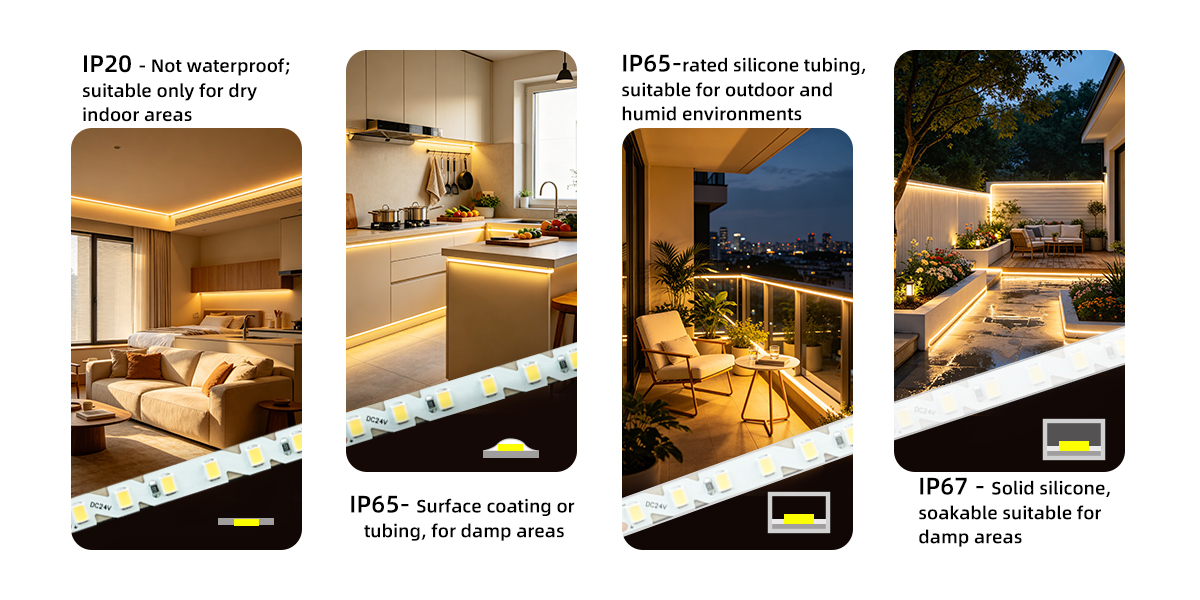

Waterproof Ratings Available: This 2835 S-type 120-LED strip offers three protection ratings: IP20, IP65, and IP67. Standard indoor model (non-waterproof): Suitable for dry environments such as cabinets and accent walls; IP65: Surface potting/sleeving; Waterproof, splash-proof, and moisture-resistant, suitable for humid environments like kitchens, bathrooms, and storefronts; IP67: Dustproof and resistant to short-term immersion, with strong anti-aging and weather resistance, suitable for outdoor, open-air, and harsh, humid environments. Choose the appropriate rating based on your installation environment.

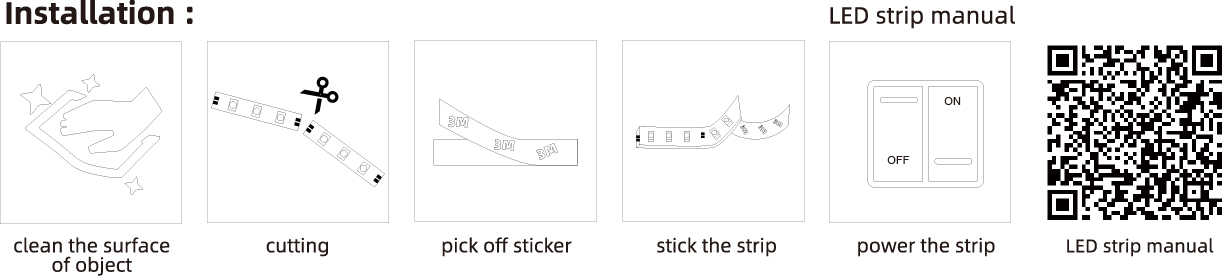

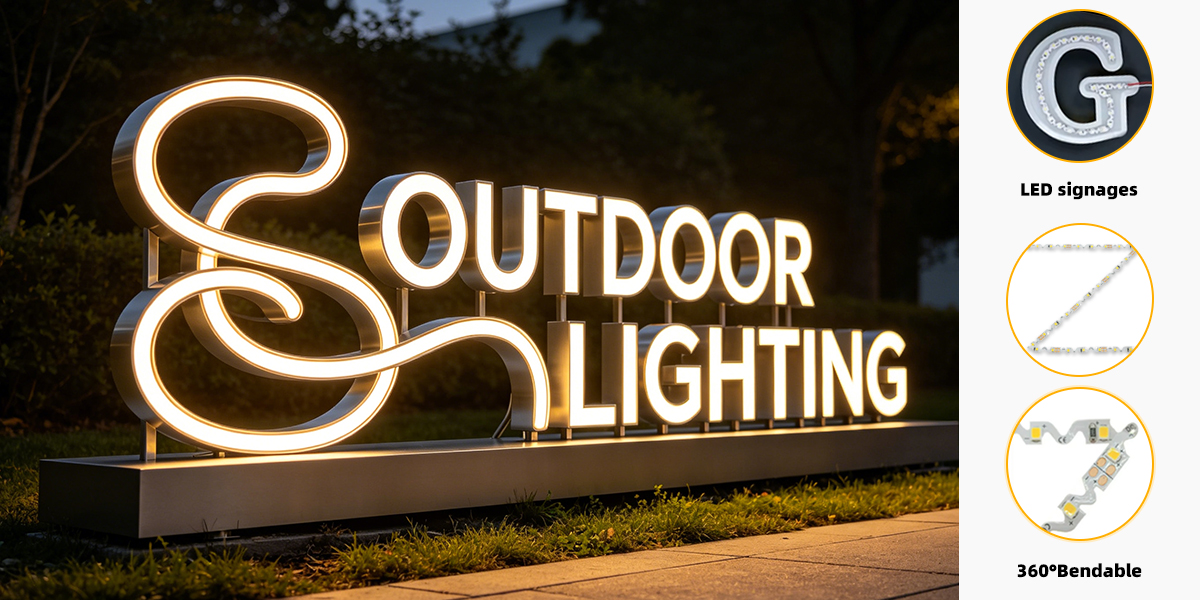

Easy installation: Comes with 3M adhesive backing, strong adhesion, no peeling, peel-and-stick design, short cutting intervals, precise length matching, and simple installation; flexible PCB board, bendable, freely bendable at any angle, wraps corners, and adheres to curved surfaces, easily achieving complex contours such as circular, arched, and letter shapes.

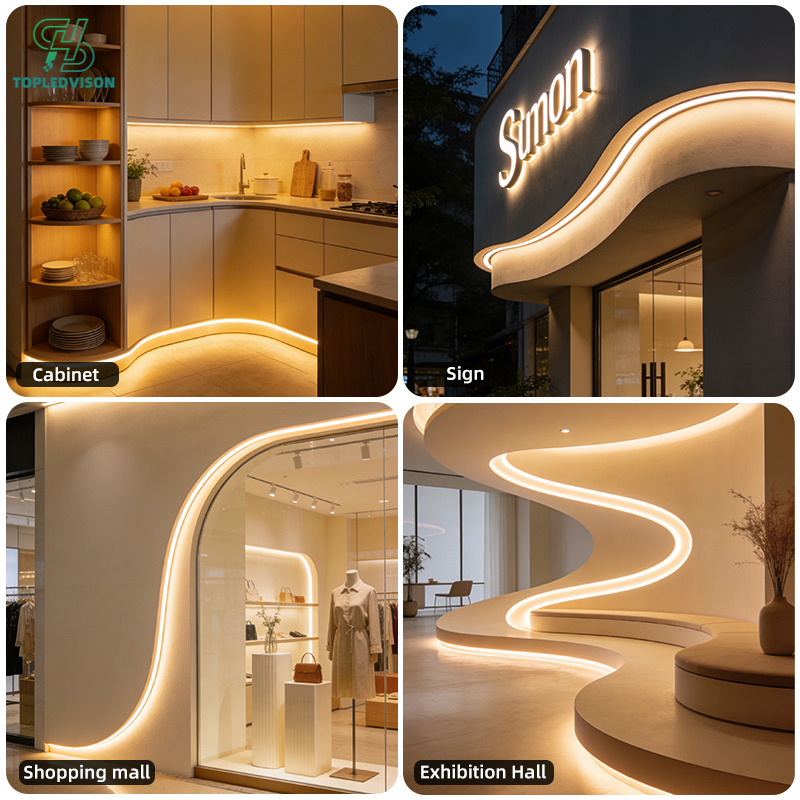

Applications of the 2835 S-Type 120 LED Strip: Cabinet under-cabinet lighting, wardrobe shelf lighting, ambient lighting for KTVs and internet cafes, circular light channels, column wrap lighting, corner contour lighting, backlighting for illuminated letters, and storefront contour lighting.
Technical Parameters
LEDs | 120Chips/m | Support Dimmer | Yes |
Color Temperature | 1800-10000K RGB, RGBW | Lifespan | >50000h |
CRI | 80/90/97Ra | Working Temperature | -20-65℃ |
Input Voltage | 12/24V | Warranty | 3Year |
Luminous Efficiency | 90-110lm/w | Certification | Emc, RoHS, CE, FCC, LVD |
Power | 8/10/12/W/M | Packing | 5/10/20/50Roll |

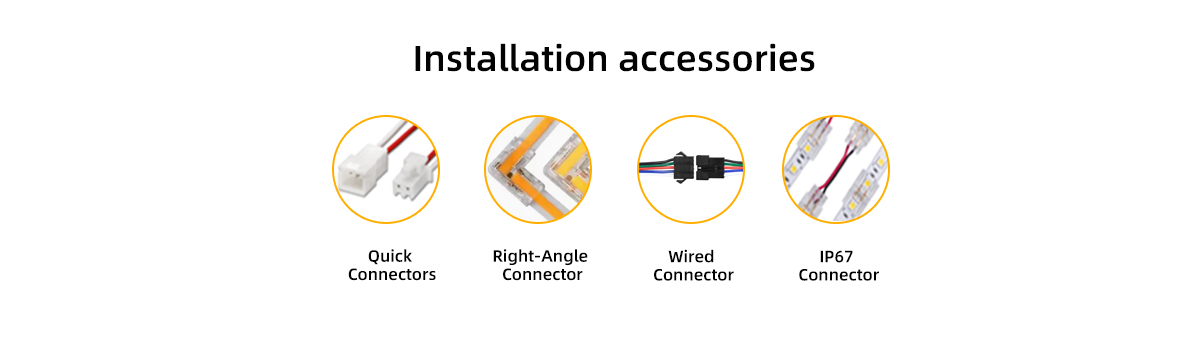

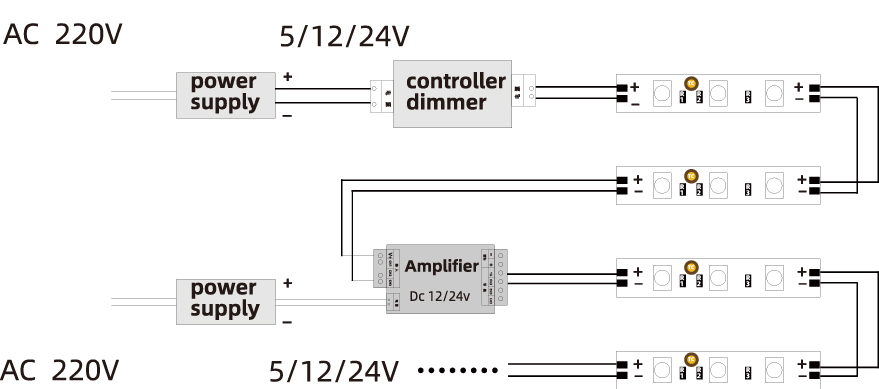

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

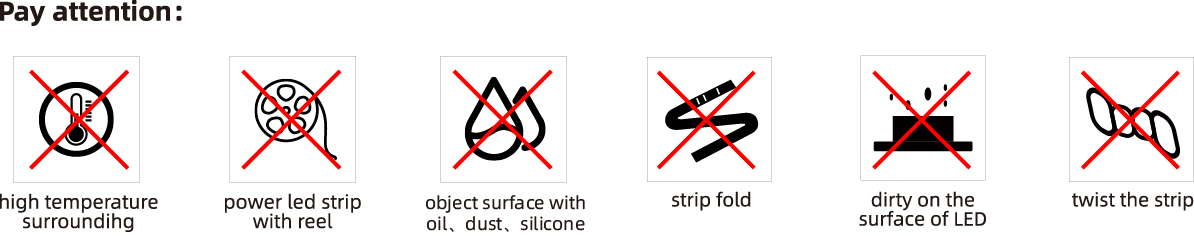

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

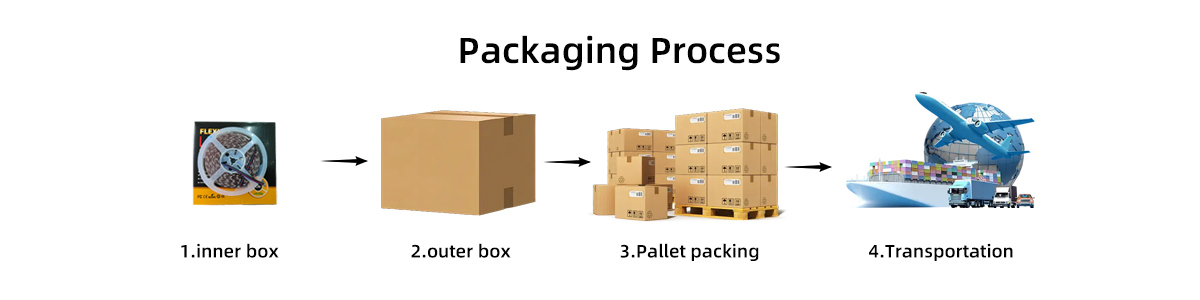

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
