2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
2835 RGB 120 LED Strip 5mm-5m (2835 RGB STRIP SERIES )
Feature / Warranty
DC
  • Exceptional color performance
  • No Dark Spots
  • Energy-saving and long-lasting
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

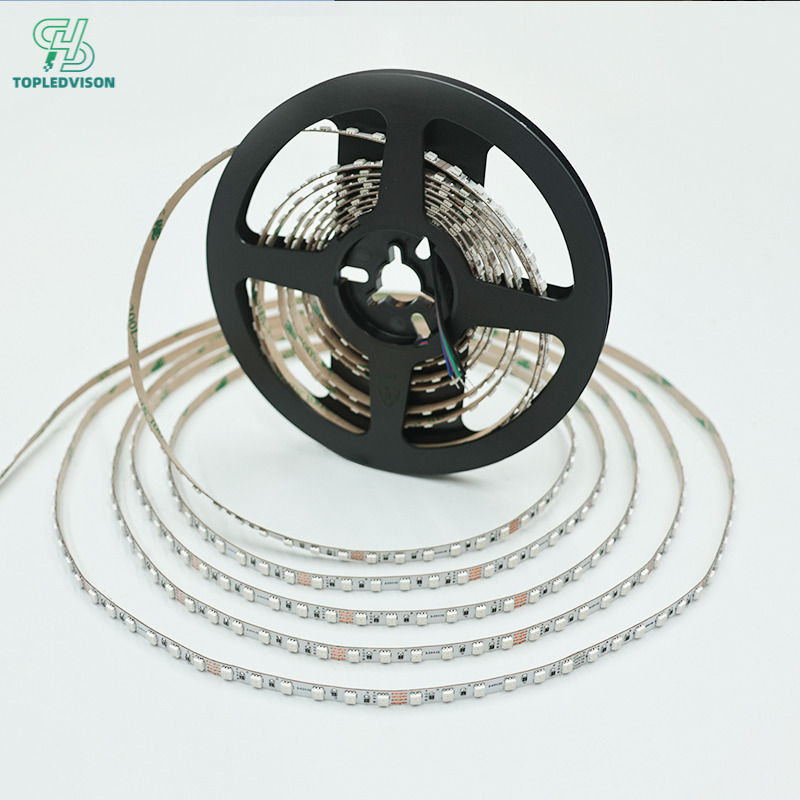

2835 RGB 120 LED Strip Light

Product Features: Features high-quality 2835 LED chips; each chip contains independent red, green, and blue chips for natural color mixing without color distortion, capable of displaying 16 million colors, and supports static solid colors, gradients, breathing, and flashing effects. DC 12V/24V low-voltage operation; high brightness; excellent color consistency; stable quality; long service life; freely customizable; easy to install.

Lighting Effects: Uniform light distribution; no light spots, no graininess, and no glare. Suitable for indoor and outdoor lighting applications: sofa backdrop ambient lighting, balconies, baseboard decorative lighting, billboards, signage, and backlighting for illuminated letters.

Energy-efficient and durable: High-quality LED chips + gold-plated/copper brackets + double-sided copper PCB for superior conductivity and heat dissipation. Low power consumption, service life up to 50,000 hours, minimal light decay, and consistent brightness and color over the long term.

Waterproof ratings available: IP20 is suitable for dry indoor environments such as cabinet interiors and accent walls; IP65 is suitable for humid environments such as kitchens, balconies, and vanities; IP67 is suitable for outdoor environments such as canopies and poolside areas; covers a wide range of application scenarios.

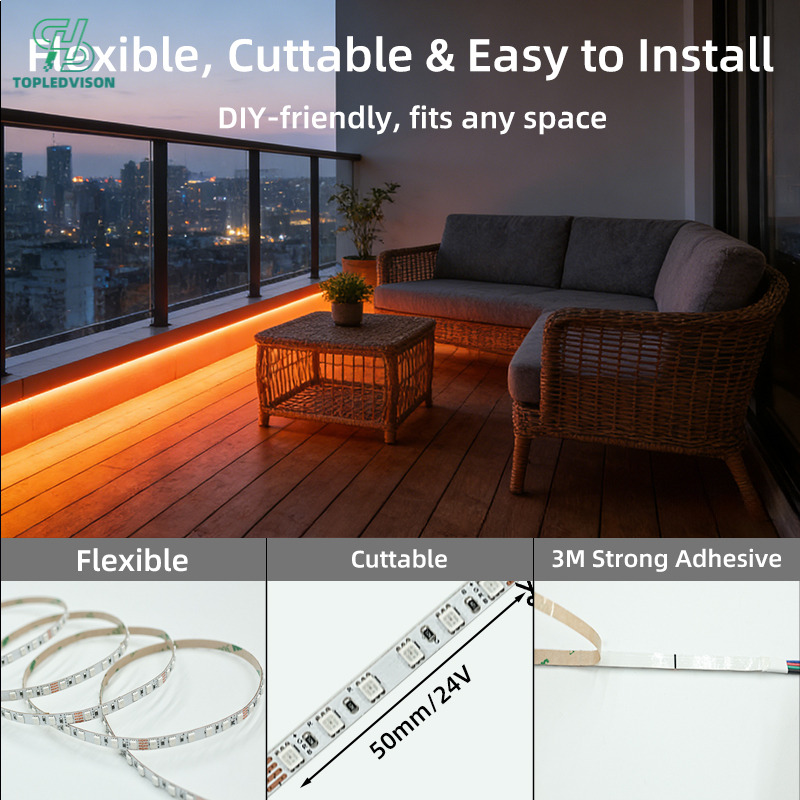

Easy installation: Comes with 3M adhesive backing; no drilling required—simply peel and stick; Flexible PCB board that can be bent and conforms to curved, angled, or uneven surfaces; also suitable for various spaces (such as cabinet shelves and cable channels).

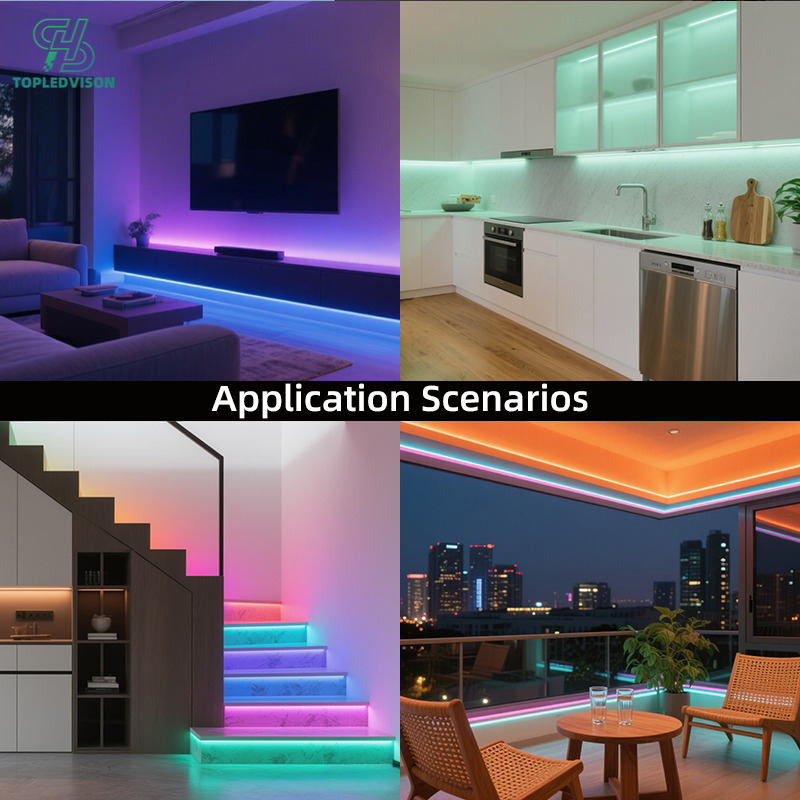

Applications of the 2835 RGB 120D LED strip: TV accent walls, sofa backdrop ambient lighting, gaming rooms, hotel guest rooms, hallways, KTV venues, courtyards, gardens, railings, and landscape decoration.

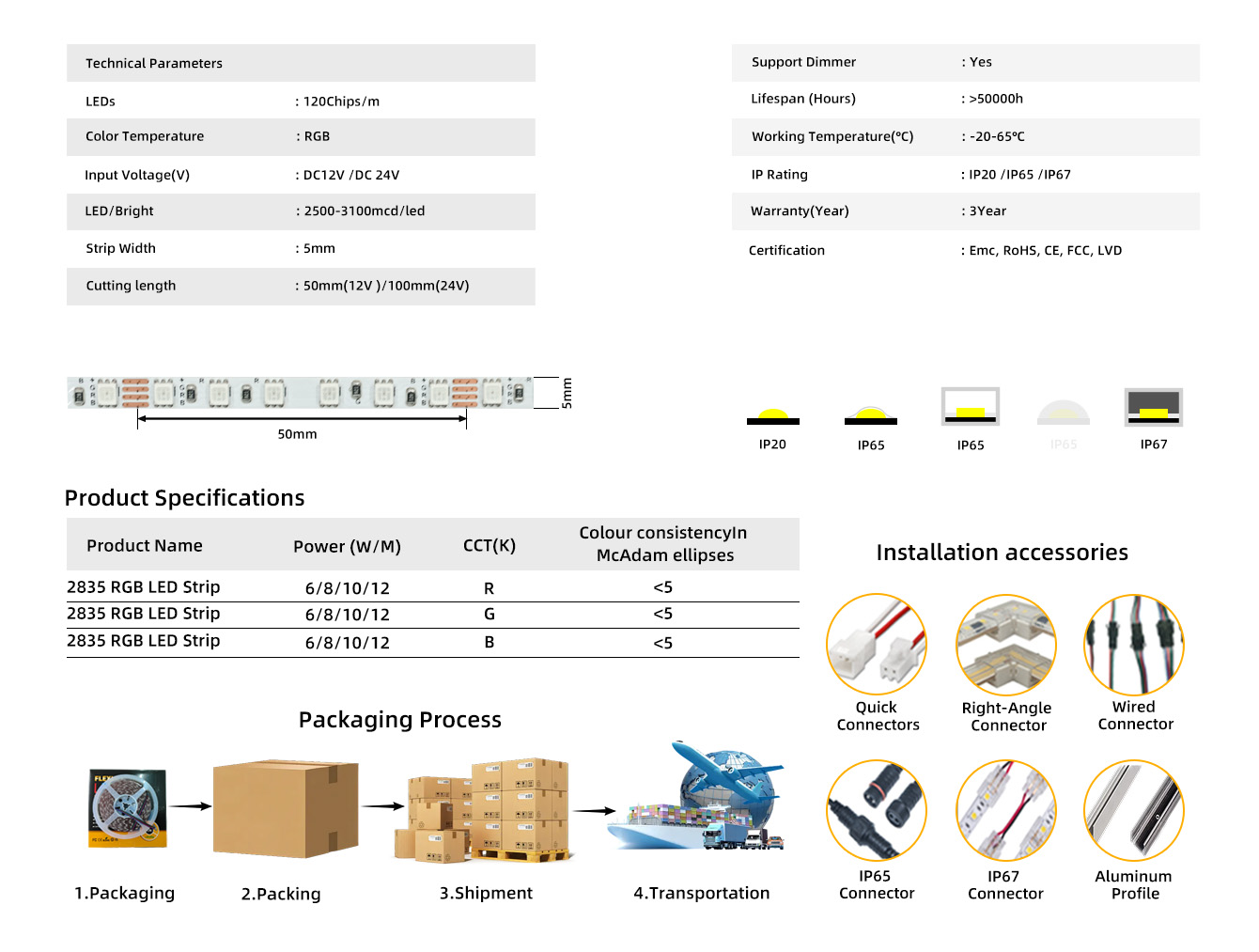

Technical Parameters

LEDs

120Chips/m

Support

Dimmer

Yes

Color

Temperature

RGB

Lifespan

>50000h

LED/Bright

2500-3100mcd/led

Working

Temperature

-20-65℃

Input Voltage

12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

4/6/8/10/12W/M

Packing

5/10/20/50/100m/Roll

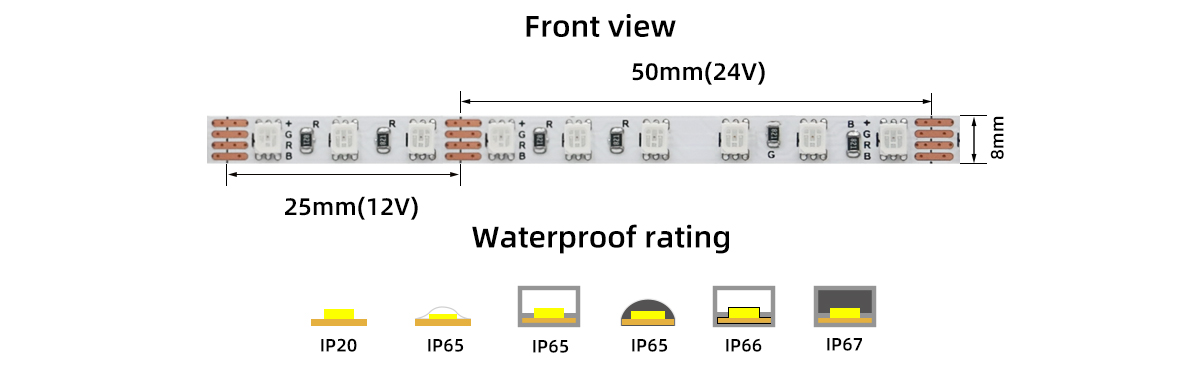

2835 RGB 120D裁剪.jpg
  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using RGB LED Strip Lights: We recommend having RGB LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the RGB LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

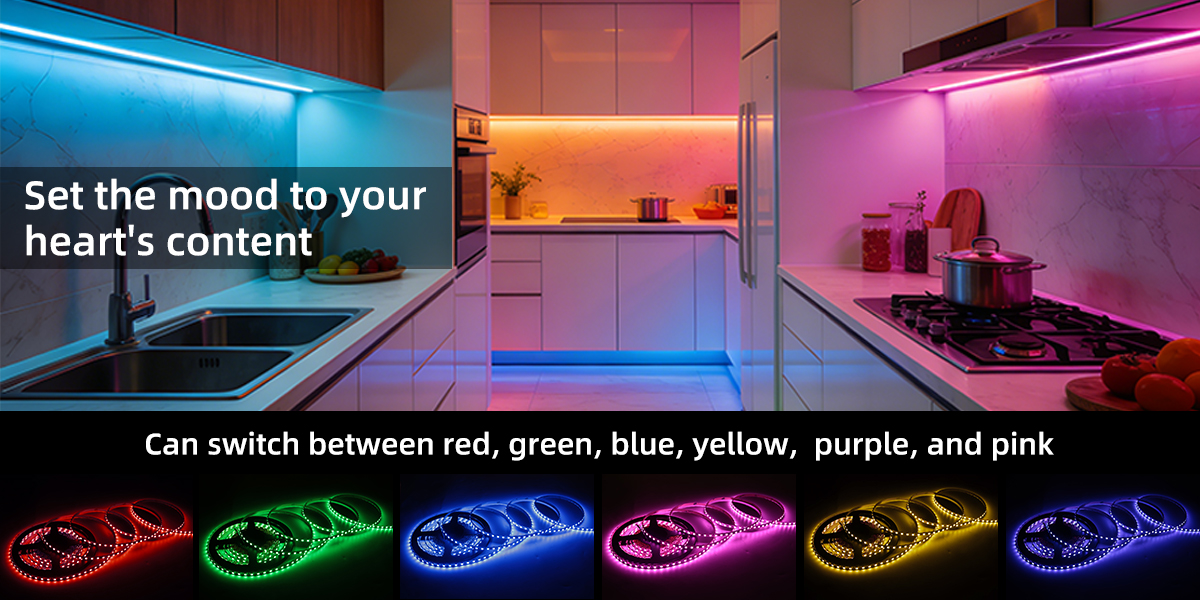

Exceptional color performance

The 2835 RGB LED strip features a professional design with high-density LED placement and a tight, close-pitch arrangement. Combined with the LEDs’ wide, soft light-emitting surface, this allows the three primary colors—red, green, and blue—to fully overlap and blend deeply, resulting in natural, seamless transitions. It accurately reproduces 16 million subtle and true-to-life colors, delivering pure, highly saturated hues whether displaying solid colors or flowing gradients. The light output is uniform and seamless, with no noticeable graininess, dark spots, or color blotches. The light quality is soft and non-glaring, making it ideal for creating atmospheric decorative lighting effects as well as meeting basic auxiliary lighting needs. It effortlessly produces sophisticated, high-end, and richly layered ambient lighting effects, making it widely applicable for home cabinetry, accent walls, and various residential and commercial spaces such as retail stores, hotels, KTV venues, exhibition halls, and dining areas.


2835-RGB-120D详情页_05

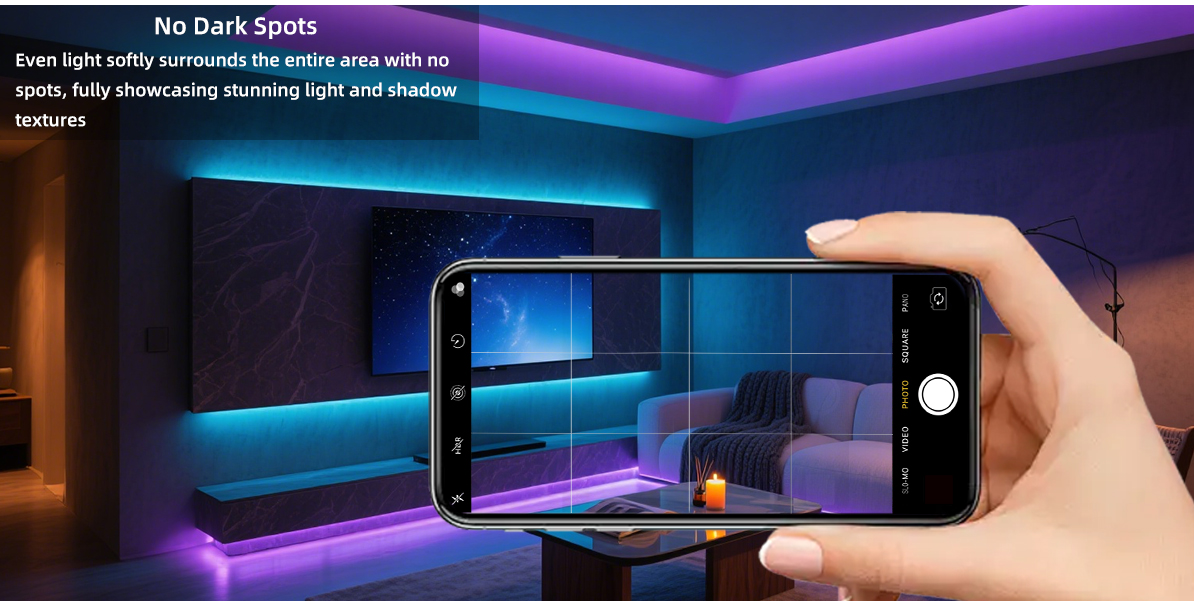

No Dark Spots

Featuring a high-density 120-LED array with compact LED chips, paired with a diffused light-emitting structure, it delivers uniform and seamless illumination—truly free of light spots, dark zones, or graininess. RGB color mixing is natural and pure, with smooth and gentle gradient transitions, producing delicate light that is never harsh on the eyes.


2835-RGB-120D详情页_11

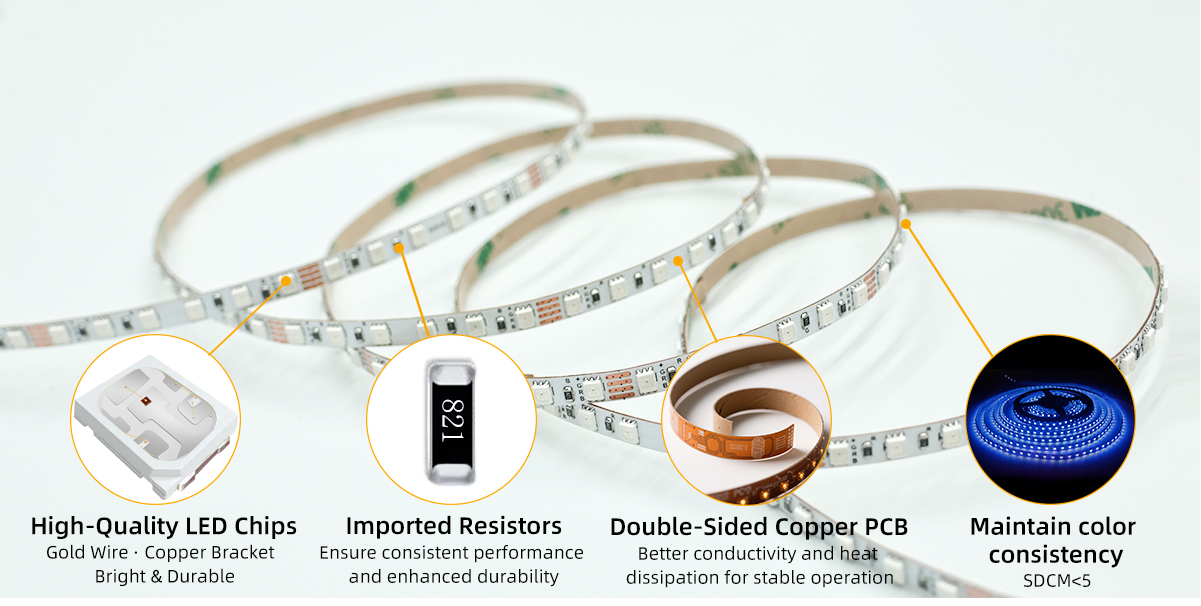

Energy-saving and long-lasting

Featuring a low-power, high-thermal-conductivity packaging design, it offers excellent heat dissipation, stable temperature, and low light decay. The LED lifespan reaches up to 50,000 hours, maintaining consistent brightness and color even after prolonged use. Highly resistant to aging, it delivers stable and durable performance for both indoor and outdoor applications.


2835-RGB-120D详情页_17

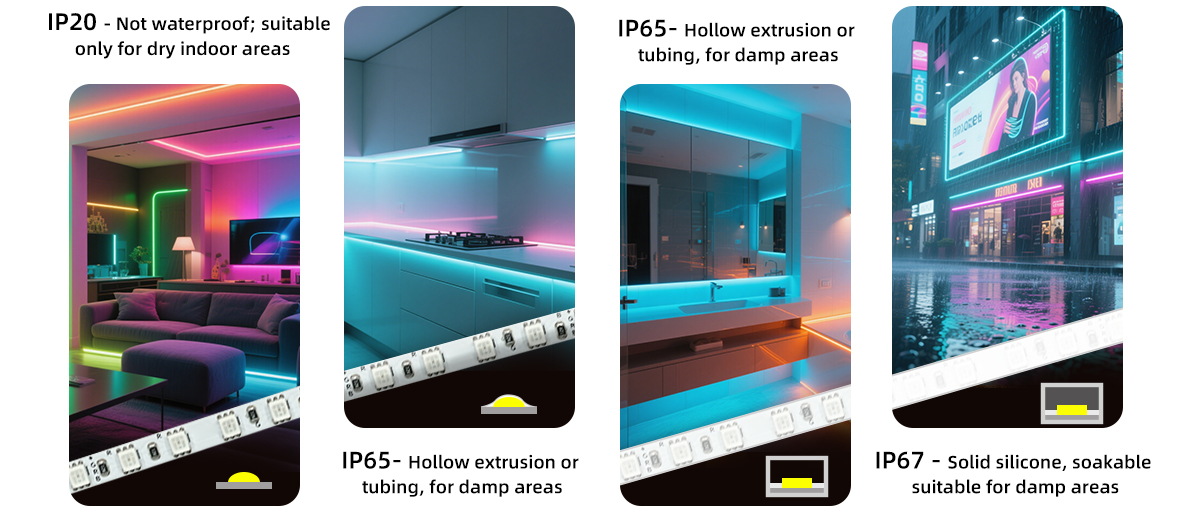

Waterproof Construction

Supports optional IP20/IP65/IP67 multi-level waterproofing: IP20 for indoor use—non-waterproof yet more flexible and easy to install;

IP65 for dust and splash resistance, suitable for humid environments; IP67 for long-term outdoor use—rainproof and submersible, weather-resistant and anti-aging. Unrestricted installation scenarios, compatible with both commercial projects and home renovations.


2835-RGB-120D详情页_23

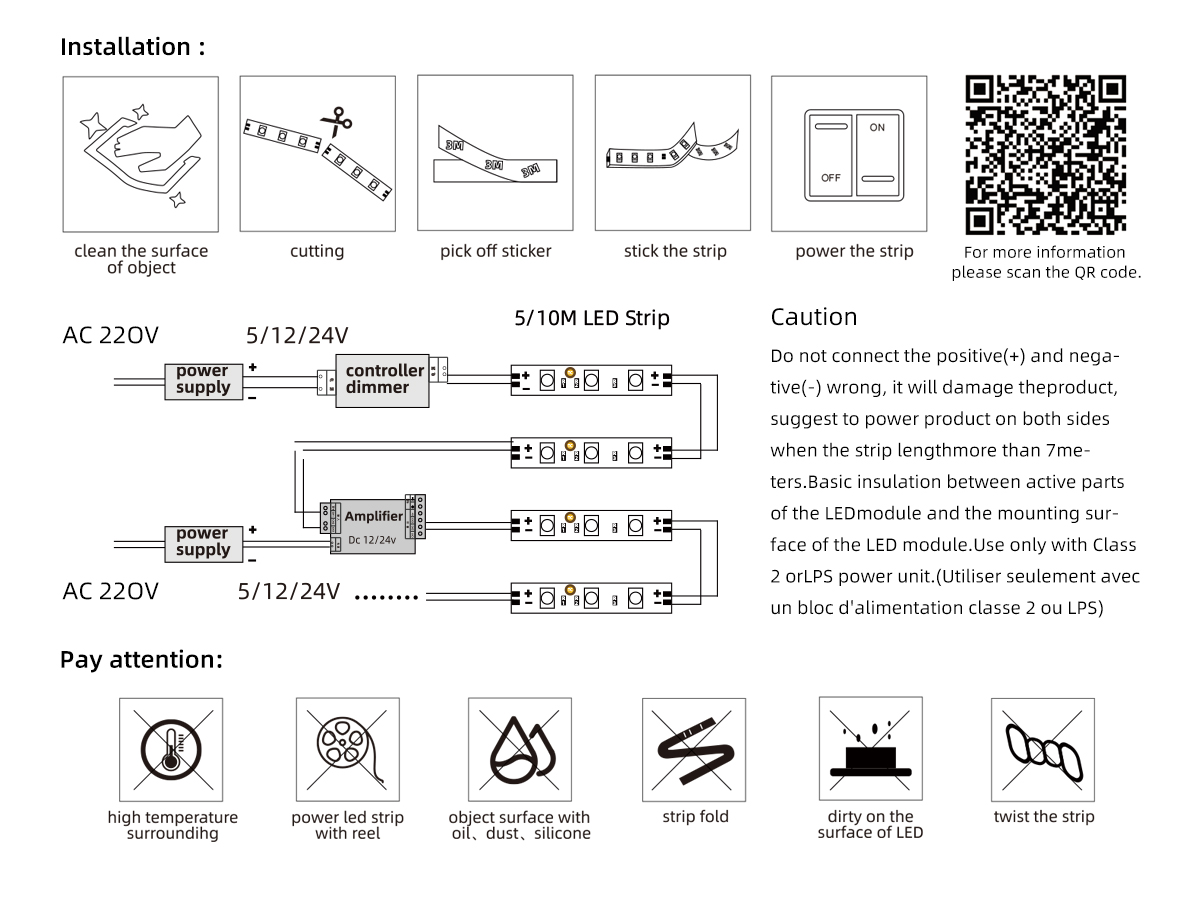

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
