2835 High Lumen 288 LED Strip Light 10mm-5m (High Lumen LED Strip )

Feature / Warranty

· High-density and uniform

· High luminous efficacy

· Flexible styling

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

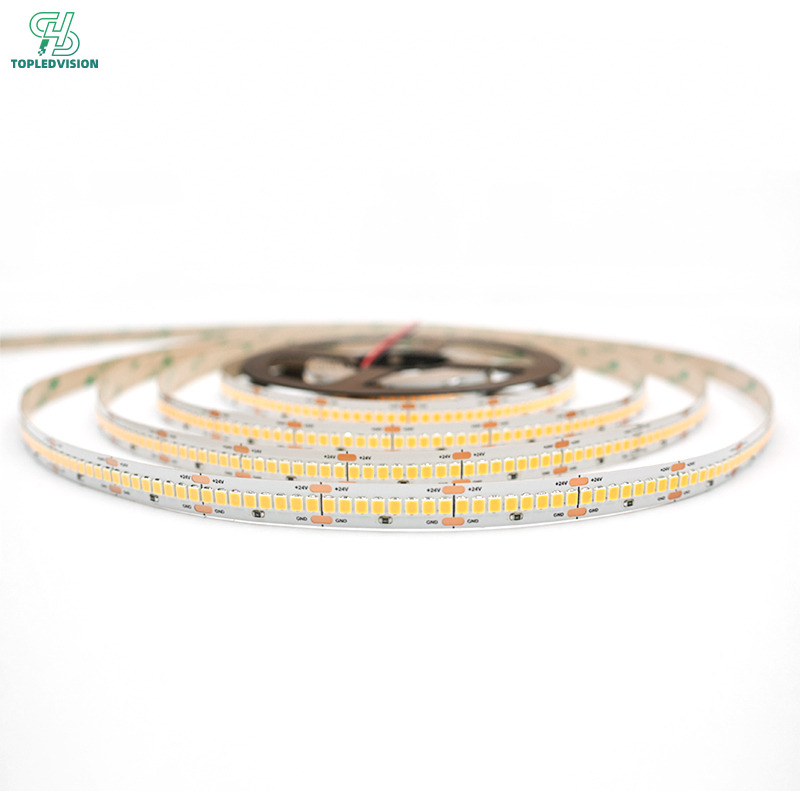

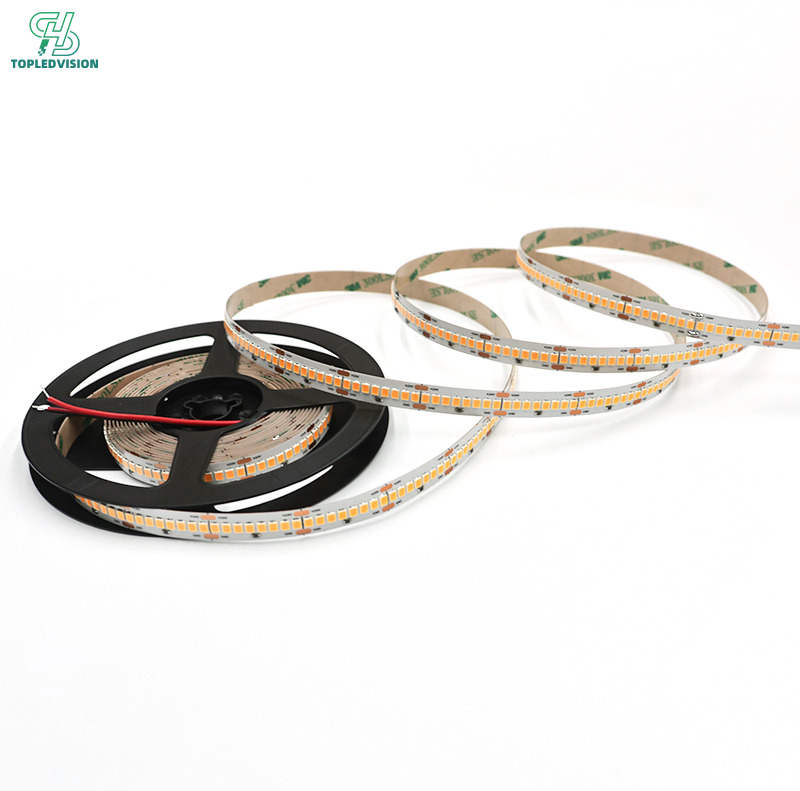

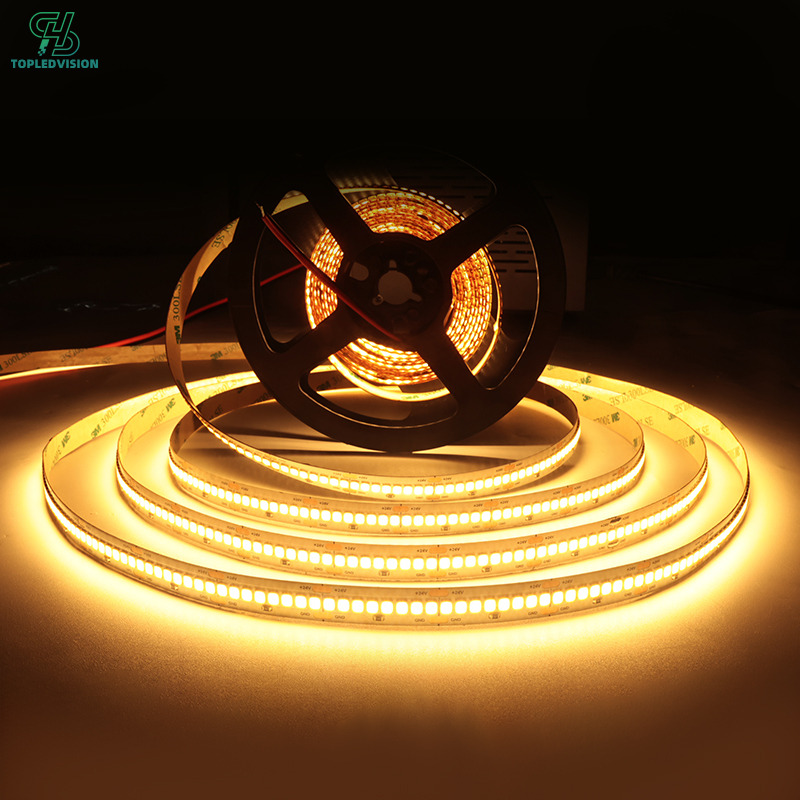

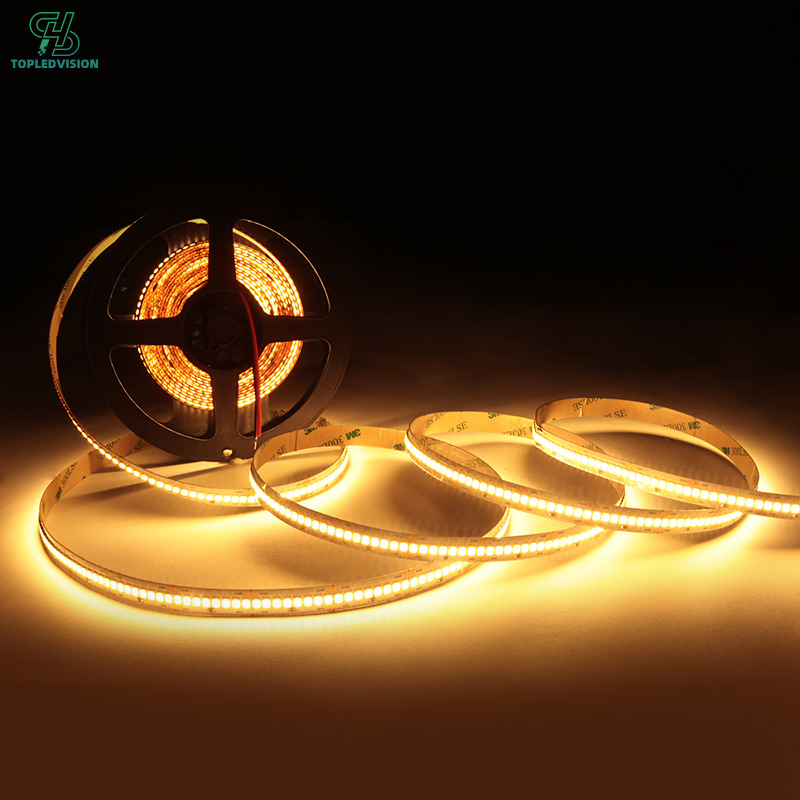

2835 High Lumen 288 LED Strip Light

Product Features

The 2835 High Lumen 288 LED Strip Light uses high-efficiency SMD2835 premium LED chips with luminous efficacy exceeding 180 lm/W per chip. With a high-density design of 288 LEDs per meter, the LED strip delivers over 3000 lm/m luminous flux, providing brightness comparable to traditional rigid LED strips and panel lighting.

Designed as a high brightness LED strip light, it can be used not only for decorative lighting but also as a primary linear lighting solution. Featuring a 120° wide beam angle, it offers multiple color temperature options from 1800K to 10000K, with RGB and RGBW LED strip options available. Standard versions provide CRI Ra>80, while high CRI models reach Ra>90/97, ensuring excellent color accuracy, brightness consistency, and long-term reliability.

Lighting Performance

The 2835 288 LED Strip Light delivers smooth, continuous, and uniform illumination without dark spots, hotspots, or visible LED dots. The high-density LED arrangement creates a seamless linear lighting effect with minimal color deviation (<5), maintaining stable color consistency throughout its lifespan.

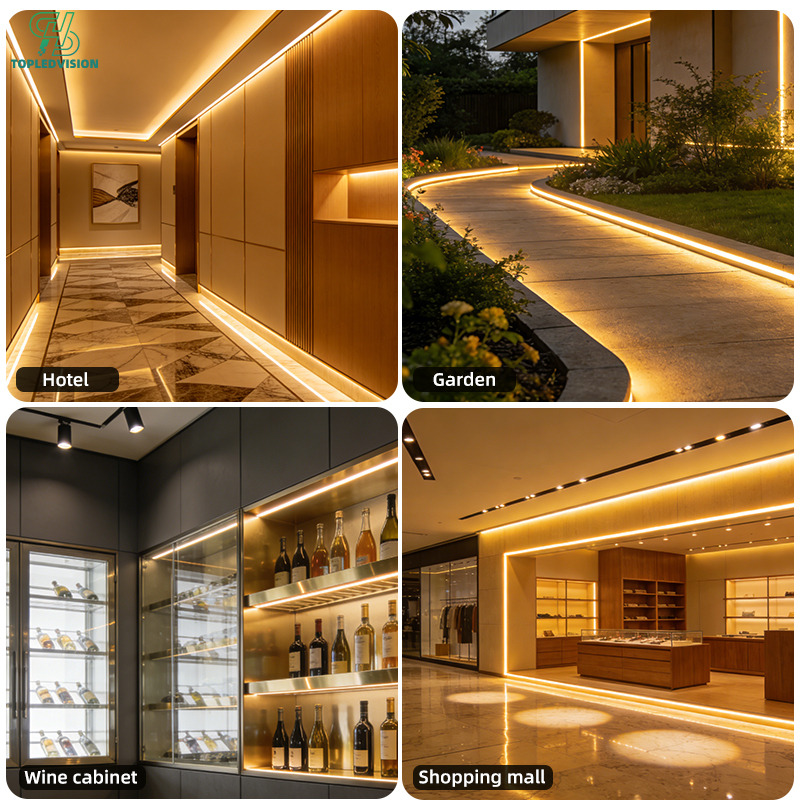

Ideal for cabinet lighting, wardrobe lighting, wine cabinet lighting, supermarket shelves, airport lighting, subway lighting, and architectural linear lighting applications, it provides soft, comfortable, and professional illumination.

Energy Efficient and Long Lifespan

Built with premium LED chips, gold-plated wires, copper brackets, and double-sided copper PCB, this high efficiency 2835 LED strip light features excellent electrical performance and thermal management.

The low junction temperature, low thermal resistance, and optimized circuit design reduce energy consumption and heat generation. With a lifespan of up to 50,000 hours, the high lumen LED strip offers minimal light decay, stable brightness, and consistent color performance for long-term operation.

Waterproof Options

The 2835 High Lumen 288 LED Strip Light is available in IP20, IP65, and IP67 waterproof versions to meet different installation environments.

IP20 LED Strip: Non-waterproof design with excellent heat dissipation and maximum brightness, suitable for dry indoor applications.
IP65 LED Strip: Silicone-coated waterproof protection, resistant to dust, splashes, moisture, and oil, ideal for kitchens, bathrooms, and other humid environments.
IP67 LED Strip: Fully protected against dust and short-term water exposure, offering excellent weather resistance for outdoor, open-air, and demanding environments.

Choose the suitable waterproof LED strip light according to your application requirements.

Easy Installation

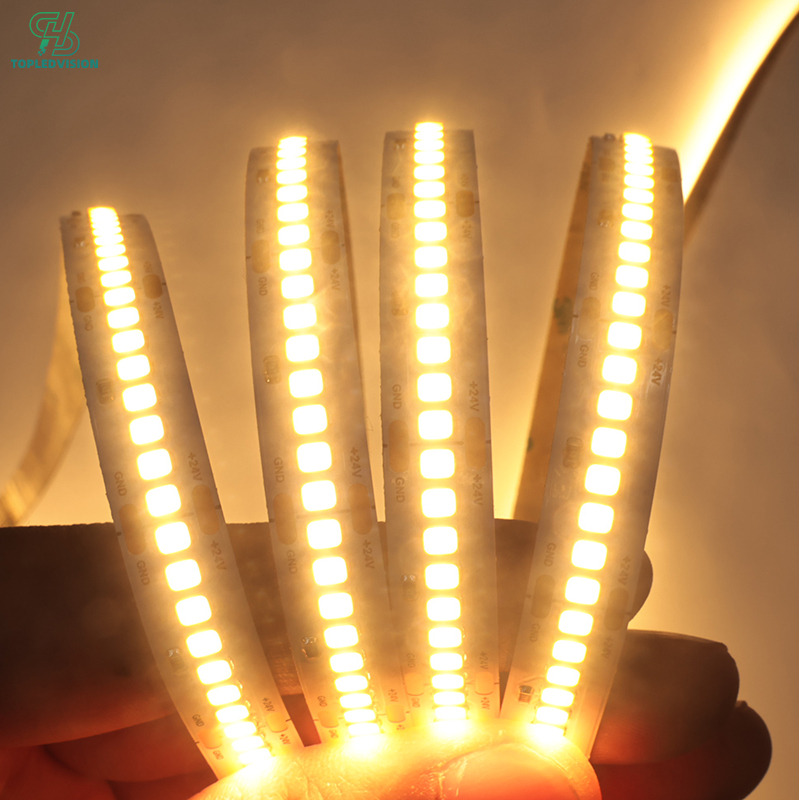

The 288 LED/m LED Strip Light features a strong 3M adhesive backing for quick and secure installation. The flexible PCB design allows easy bending for S-shaped, curved, and loop installations.

With precise cutting intervals and compatibility with aluminum profiles, cabinets, and linear lighting systems, this 2835 LED tape light provides flexible installation solutions for various projects.

Applications

The 2835 High Lumen 288 LED Strip Light is widely used for:

Storefront lighting
Hotel lighting
Office lighting
Exhibition hall lighting
Display cabinet lighting
Library lighting
Hospital lighting
Architectural linear lighting
Commercial and residential LED lighting projects

Technical Parameters

LEDs	288Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	24V	Warranty	3Year
Luminous Efficiency	180-200lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/14 6/18/20W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Ultra-High Luminous Efficacy

The 2835 High Lumen 288 LED Strip Light features high-efficiency SMD2835 LED chips and a high-density design of 288 LEDs per meter, delivering ultra-bright, energy-efficient, and uniform illumination. The high density LED strip provides seamless light output without dark spots, hotspots, or visible LED dots, creating a smooth and professional linear lighting effect.

With stable 12V/24V low-voltage operation, it minimizes voltage drop during long-distance installations, ensuring consistent brightness from end to end. The high brightness 2835 LED strip light offers clear, glare-free illumination with excellent color rendering, making it ideal for cabinet lighting, display lighting, architectural lighting, and other premium linear lighting applications.

2835 高光效288灯产品优势1

High Color Rendering Index

The 2835 High Lumen 288 LED Strip Light features premium SMD2835 LED chips with a high CRI Ra≥90, accurately reproducing natural colors with excellent color fidelity. The high CRI LED strip light eliminates color distortion, dull tones, and unnatural lighting effects, delivering soft, comfortable, and vibrant illumination.

With high brightness, uniform light output, and a dot-free design, this 2835 288 LED Strip Light enhances the texture and color depth of objects, making it ideal for cabinet lighting, retail displays, wall accents, home decoration, and architectural lighting applications. It creates a refined, high-quality lighting experience with natural and elegant visual effects.

2835 高光效288灯产品优势2

Heat Dissipation and Durability

The 2835 High Lumen 288 LED Strip Light features a reinforced FPC circuit board and optimized thermal management design. Combined with high-efficiency, low-heat SMD2835 LED chips, it delivers excellent heat dissipation even with a high-density arrangement of 288 LEDs per meter.

The advanced thermal design effectively controls operating temperature, reducing light decay and preventing premature aging during long-term operation. This high brightness 2835 LED strip provides stable performance, consistent illumination, and extended service life, making it ideal for commercial lighting, cabinet lighting, display lighting, and architectural applications.

2835 高光效288灯产品优势3

Waterproofing Applications

The 2835 High Lumen 288 LED Strip Light is available with IP20, IP65, and IP67 waterproof options, providing reliable protection for different indoor and outdoor environments. The waterproof LED strip light effectively resists moisture, splashes, dust, and weather exposure, ensuring stable performance in humid and demanding conditions.

Suitable for kitchen lighting, bathroom lighting, balcony decoration, storefront lighting, garden landscapes, and sign lighting, this 2835 LED strip offers enhanced durability, long-term reliability, and flexible installation options for both indoor and outdoor applications.

2835 高光效288灯产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
