2835 Diffusion Lens 20 LED Strip Light for Seamless Linear Illumination

Feature / Warranty

Diffusion Lens Optical Design

Excellent Color Rendering Performance

Wide Beam Angle Illumination

Versatile Lighting Applications

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

2835 Diffusion Lens 20 LED Strip Light

Light Strip Performance

The 2835 Diffusion Lens 20 LED Strip is designed with high-quality SMD 2835 LED chips and optical diffusion lens technology, providing stable performance and excellent light consistency. The integrated lens structure enhances light transmission efficiency while reducing light loss, ensuring reliable operation and long service life. Available in flexible PCB design, it supports easy customization for different lighting projects.

Lighting Effect

Featuring advanced diffusion lens technology, this LED strip delivers smooth, soft, and uniform illumination with a seamless linear lighting effect. It effectively eliminates visible LED dots and dark areas, creating a comfortable and visually appealing glow. With excellent color consistency and a wide beam angle, it is ideal for applications requiring high-quality ambient and decorative lighting.

Energy Saving & Durability

Equipped with energy-efficient 2835 LED chips, the strip provides high brightness output with low power consumption, helping reduce energy costs while maintaining excellent lighting performance. Premium components and optimized circuit design ensure low heat generation, stable brightness, and long-lasting durability for continuous use.

Protection Rating

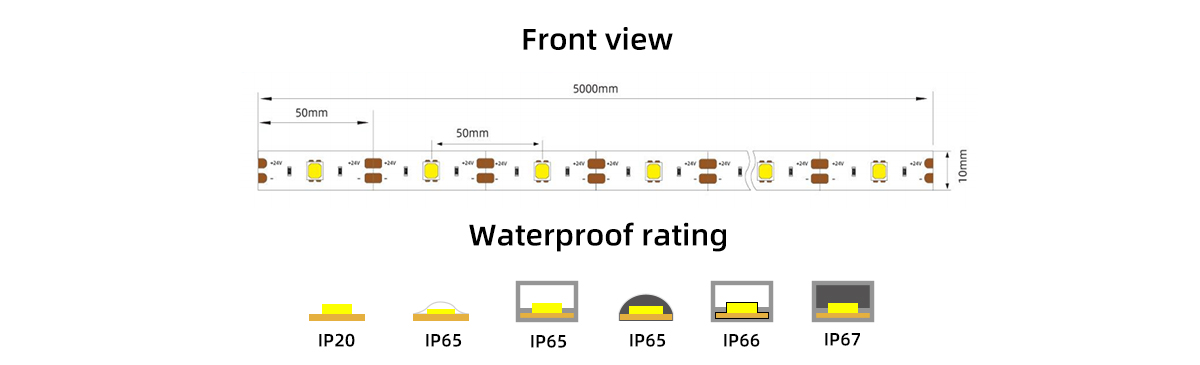

The 2835 Diffusion Lens LED Strip is available with different waterproof options, including IP20, IP65, and IP67 versions, offering reliable protection against dust, moisture, and environmental conditions. The durable design ensures stable performance in both indoor and semi-outdoor applications.

Easy Installation

Designed for convenient installation, the flexible LED strip can be easily cut at designated points and installed on various surfaces with adhesive backing or aluminum profiles. Its slim and flexible design allows easy bending around corners and integration into different lighting structures.

Application Scenarios

The 2835 Diffusion Lens 20 LED Strip is widely used for architectural lighting, cabinet lighting, furniture illumination, retail displays, hotel decoration, commercial spaces, indoor accent lighting, and linear lighting projects. It is an excellent solution for designers and installers seeking smooth, professional, and high-quality lighting effects.

Technical Parameters

LEDs	20Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K RGB, RGBW	Lifespan	>50000h
CRI	80/90/95Ra	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using lens Strip Lights: We recommend having lens strip lights installed by a professional before use. Please read the following precautions to avoid damaging the lens strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
