Home LED Strip Lights 2835 LED Strip 2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
2835 CCT 240 LED Stirp 10mm-5m (CCT LED STRIP SERIES)
Feature / Warranty
图标3
· No dark areas
· High Visibility Index
· Color Temperature Adjustment
· Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

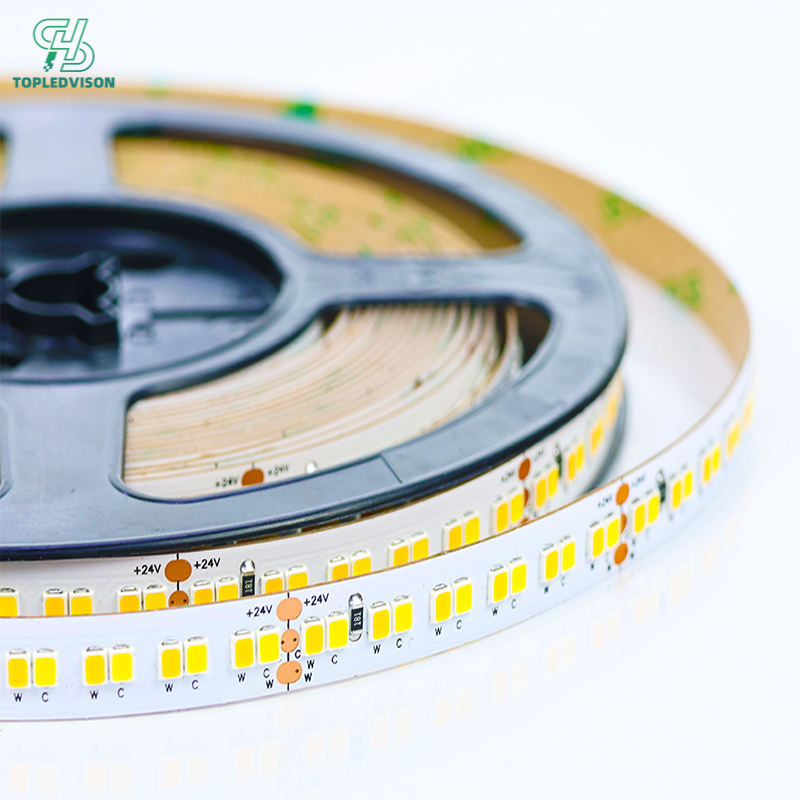

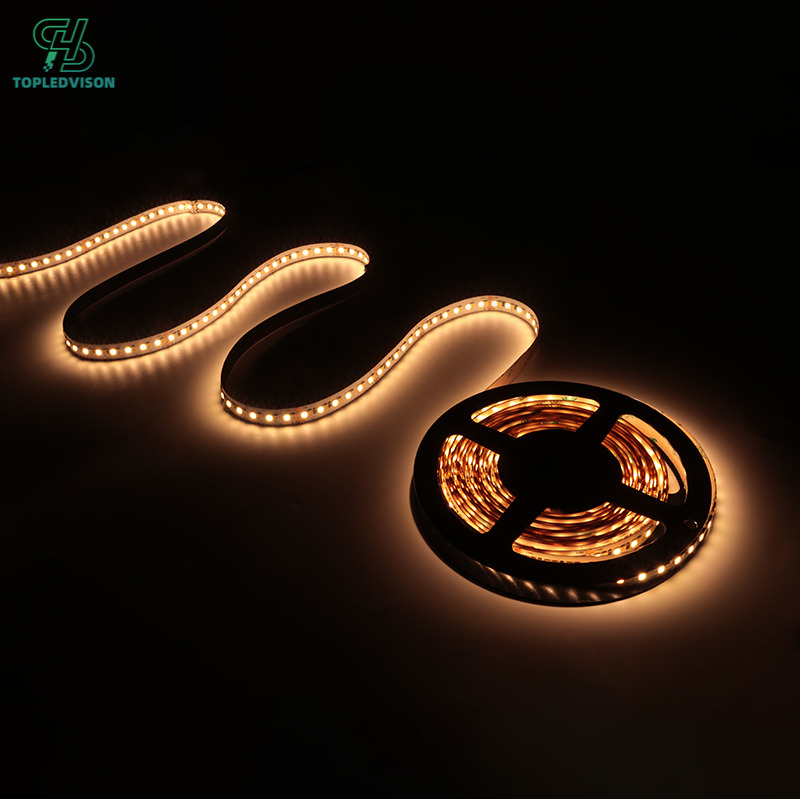

2835 CCT 240 LED Stirp Light

Product Features: Features an independent combination of warm white and cool white dual LEDs, differing from single-LED color-tuning solutions. This design ensures smooth and accurate color temperature transitions with minimal color drift over time. When paired with a dedicated controller, it allows for simultaneous adjustment of brightness and color temperature, enabling one-touch customization to meet the needs of different times of day. Wide beam angle (120°). Available in color temperatures ranging from 2700K to 6500K, with RGB/RGBW options. CRI: Standard models feature Ra > 80, while premium models reach Ra > 90/95. Features high brightness, excellent color consistency, stable quality, long service life, customizable length, and easy installation.

Lighting Performance: This 2835 dual-color-temperature LED strip features a dual-chip independent mixing design, delivering uniform and soft illumination without hotspots, dark spots, or a grainy texture. The light is warm and gentle, without glare; color temperature can be smoothly adjusted from warm white to cool white, with natural transitions that remain true to color and avoid a grayish tint. Combined with a high Color Rendering Index (CRI), it accurately reproduces the colors of objects; It also supports independent control of color temperature and brightness, allowing you to create both warm, cozy ambient lighting and bright, clear task lighting. The overall light quality is pure and stable, delivering an enhanced visual experience.

Energy-Efficient and Durable: High-quality LEDs + gold-plated wires / copper brackets + double-sided copper PCB ensure high luminous efficacy, low lumen depreciation, and low power consumption. With a lifespan of up to 50,000 hours, it maintains consistent brightness and color over the long term.

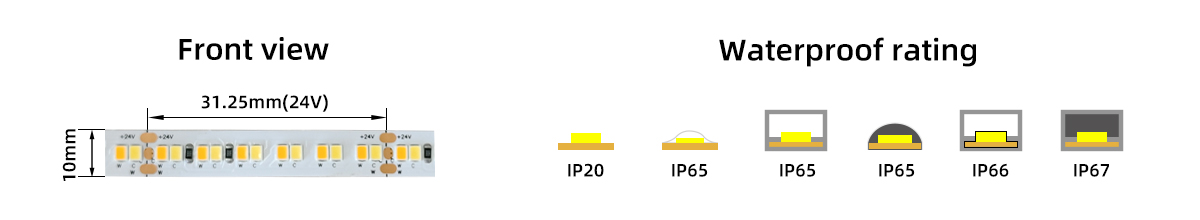

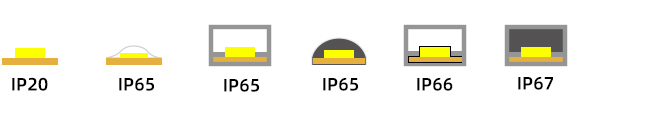

Waterproof Ratings Available: This 2835 dual-color-temperature 240-LED strip offers three protection ratings: IP20, IP65, and IP67. IP20 is not waterproof but offers excellent heat dissipation and the highest brightness, making it suitable for dry indoor environments; IP65 is dustproof, splash-proof, moisture-resistant, and oil-resistant, making it suitable for high-humidity spaces such as kitchens and bathrooms; IP67 is dustproof and resistant to brief immersion, with strong anti-aging and weather resistance, making it suitable for outdoor, open-air, and harsh, humid environments. You can flexibly choose the rating based on your installation environment.

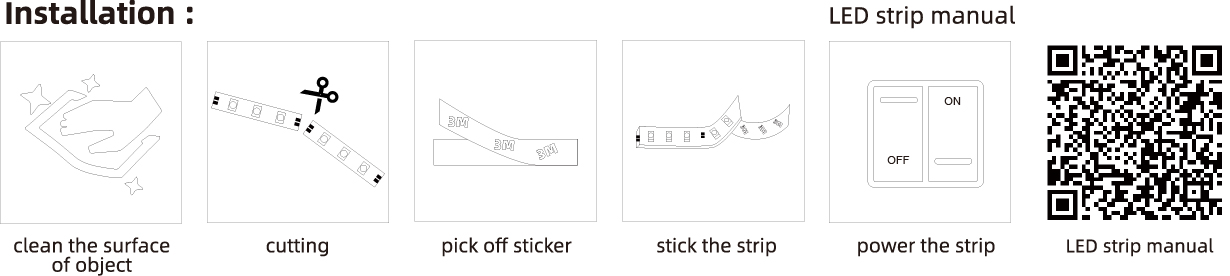

Easy Installation: Comes with 3M adhesive backing that offers strong adhesion and won’t peel off—simply peel and stick. It uses a flexible FPC substrate that is lightweight and thin, allowing for free bending to fit various curved, cornered, and irregular installation spaces; The light strip can be cut to short lengths as needed, making it suitable for a wide range of applications, including residential and commercial settings.

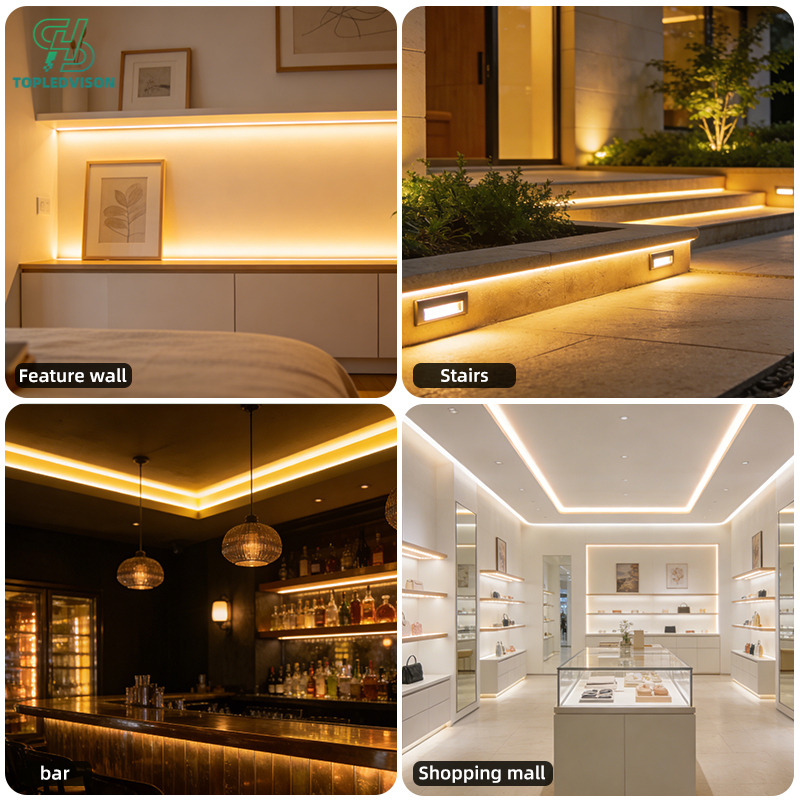

Applications of the 2835 CCT 240 LED Stirp: bedroom accent walls, wardrobes and cabinets, kitchens and bathrooms, balconies, retail display counters, hotel corridors, outdoor gardens, and architectural lighting.

Technical Parameters

LEDs

240Chips/m

Support

Dimmer

Yes

Color

Temperature

2700-6500K,

RGB, RGBW

Lifespan

>50000h

CRI

80/90/95Ra

Working

Temperature

-20-65℃

Input

Voltage

12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS,

CE,FCC, LVD

Power

8/10/12/14

16/18/20W/M

Packing

5/10/20/50Roll

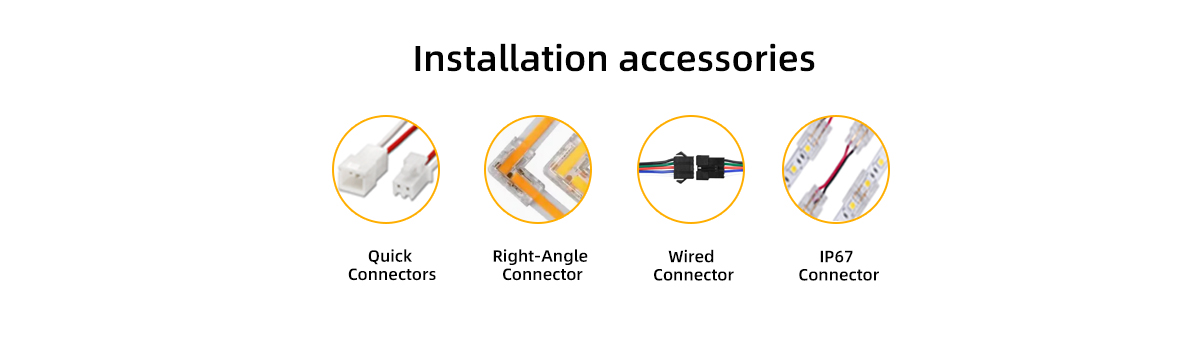

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.


Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

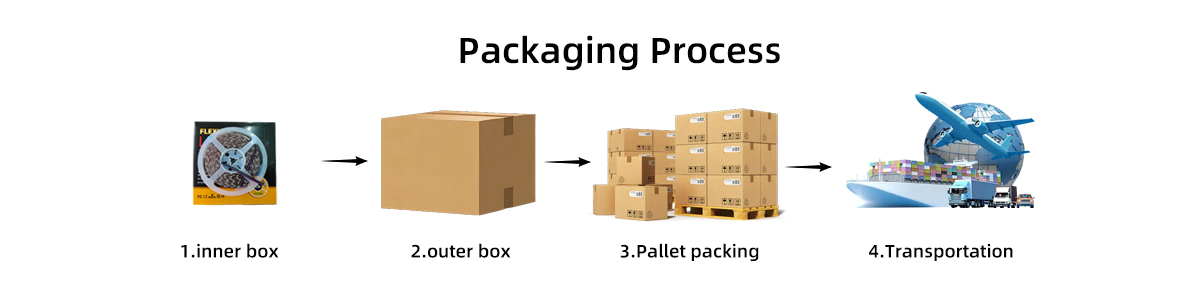

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

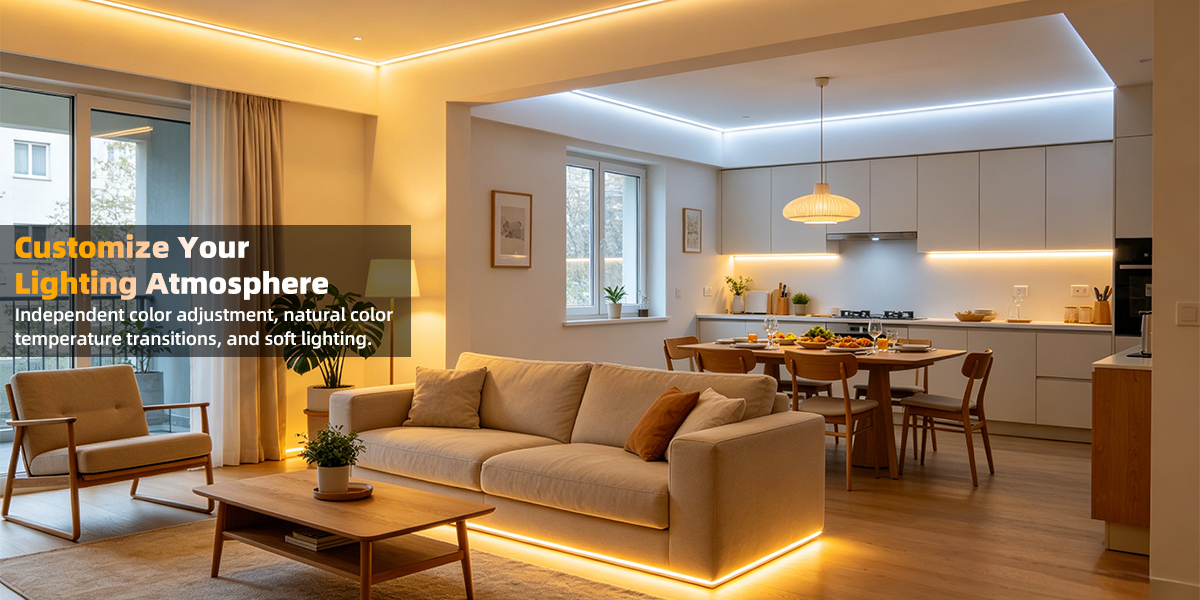

Dual-LED independent color mixing

Utilizing dual-LED independent color-mixing technology, the warm white and cool white chips are arranged separately and driven by independent dual-circuit control, enabling stepless, smooth adjustment across a wide color temperature range of 2700K–6500K. The warm light is cozy and soft, while the cool light is crisp and bright; the transition between the two is natural and seamless, with no noticeable color discrepancies or grayish tints, resulting in uniform and delicate illumination. It also supports independent and precise adjustment of both color temperature and brightness without interference, ensuring pure and stable light quality. Combined with a high Color Rendering Index (CRI), it faithfully reproduces the true colors of objects, balancing ambient lighting with practical illumination to deliver a more comfortable and refined lighting experience.


2835 双色温240灯产品优势1


High color rendering

When paired with high-color-rendering light sources with a Color Rendering Index (CRI) of 90 or higher, it faithfully reproduces the true colors and textures of objects, creating clear, natural lighting that is free from distortion or visual distortion. Whether for home furnishings, clothing displays, or interior decor, it delivers a rich and nuanced visual experience, effectively enhancing the space’s texture and visual comfort. This lighting mimics natural light, minimizing eye strain even during prolonged use.


2835 双色温240灯产品优势2

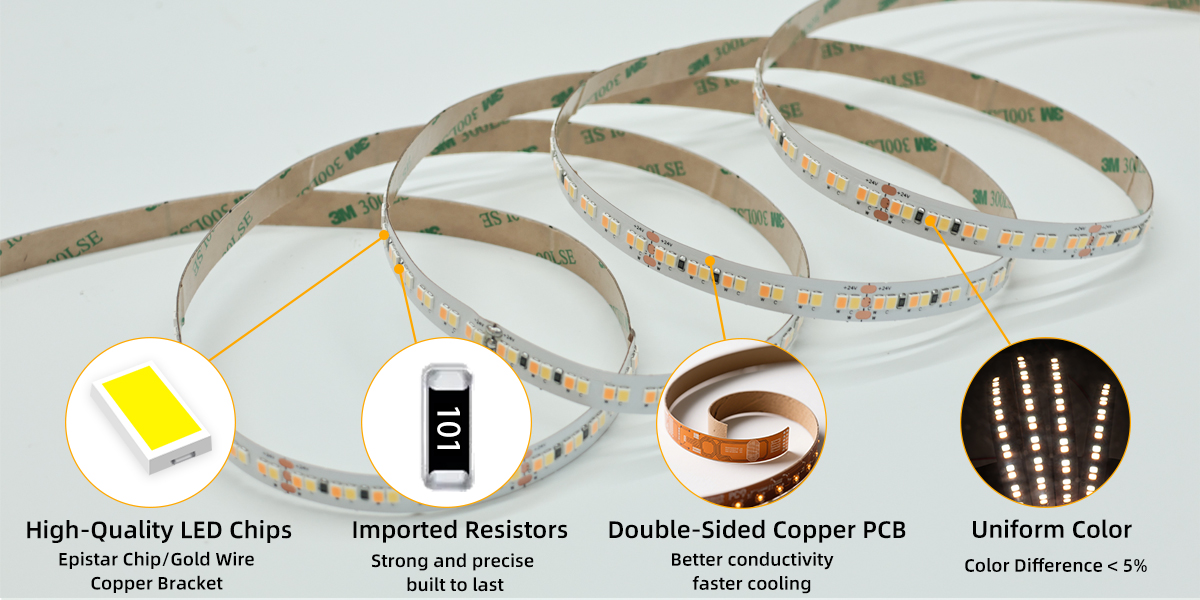

High-performance and durable

The light strip features high-quality 2835 LEDs, delivering exceptional light output and ample brightness. It produces higher lumens at the same power consumption, offering greater lighting efficiency and significant energy savings. Additionally, the use of premium substrates and a stable heat dissipation design effectively reduces operating temperature rise and slows down light decay. Even after prolonged use, the light remains uniformly bright without yellowing or dimming. With a lifespan of up to 50,000 hours, these strips significantly reduce future replacement and maintenance costs, offering the dual benefits of energy efficiency and durability.


2835 双色温240灯产品优势3

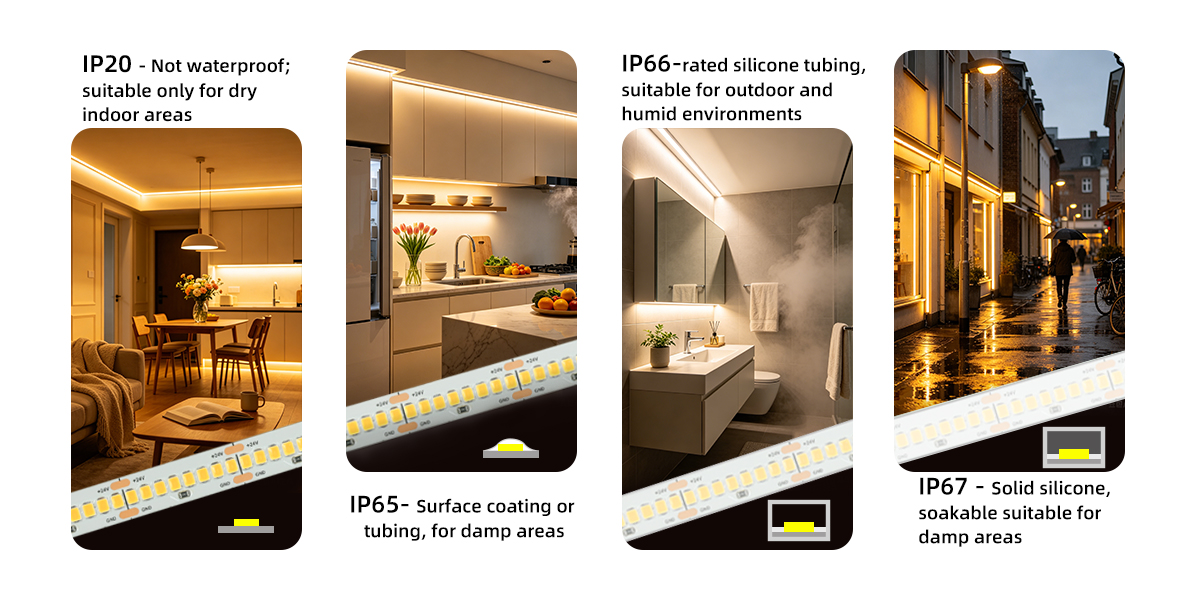

Waterproofing Applications

Can flexibly choose different protection ratings based on the usage environment: IP20 is suitable for general lighting in dry indoor spaces, IP65 is suitable for damp areas such as kitchens and bathrooms, and IP67 is suitable for damp outdoor settings such as balconies, patios, and gardens. The waterproof design effectively prevents moisture and dust from entering, ensuring the stable operation of the LED chips and circuitry. This reduces the risk of moisture-induced short circuits, significantly enhancing the light strip’s versatility and durability, making it truly suitable for a wide range of applications—from home decor and commercial settings to outdoor environments—all with a single product.


2835 高光效288灯产品优势4

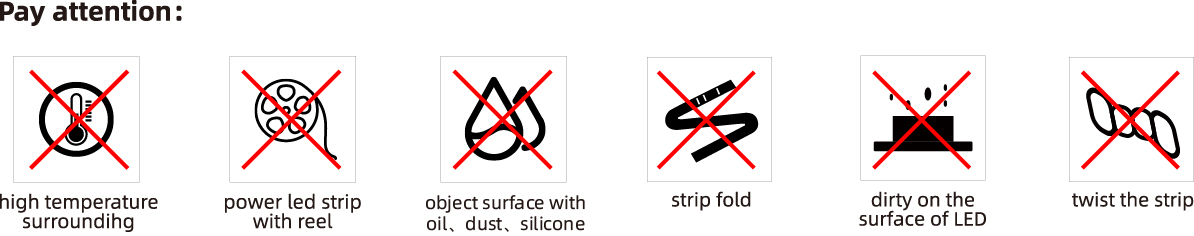

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1, positive(+) and negative (-)Connection wrong.
2, input voltage too low.
3, Power supply failure .

(1)checkthe+and-connection right between power supply and led strip.
(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.
2, leds will be failed by the power supply leakage or strip components touch the metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.
(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components
crack by the wrong fold
or people step on the led strip .
2, the chip of led burnt out.

(1)cut the failed section and replace with new section.
(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

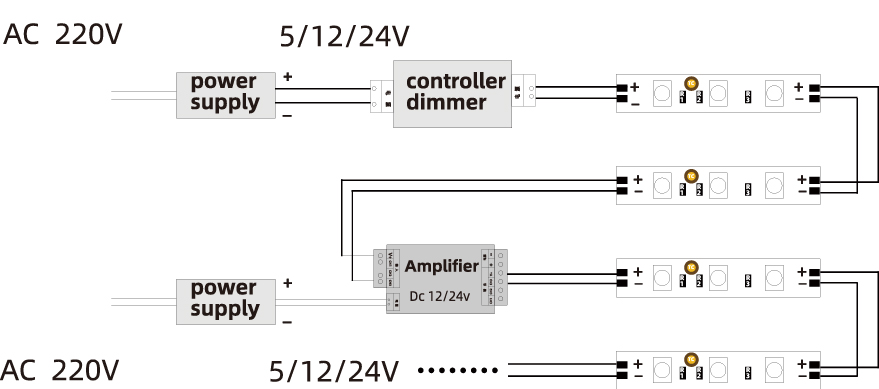

(1)suggest to power strip on both sides when constant volt strip length>7 metersand constant currentstrip length>15meters.

strip fall off from the object

1, the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,... please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
