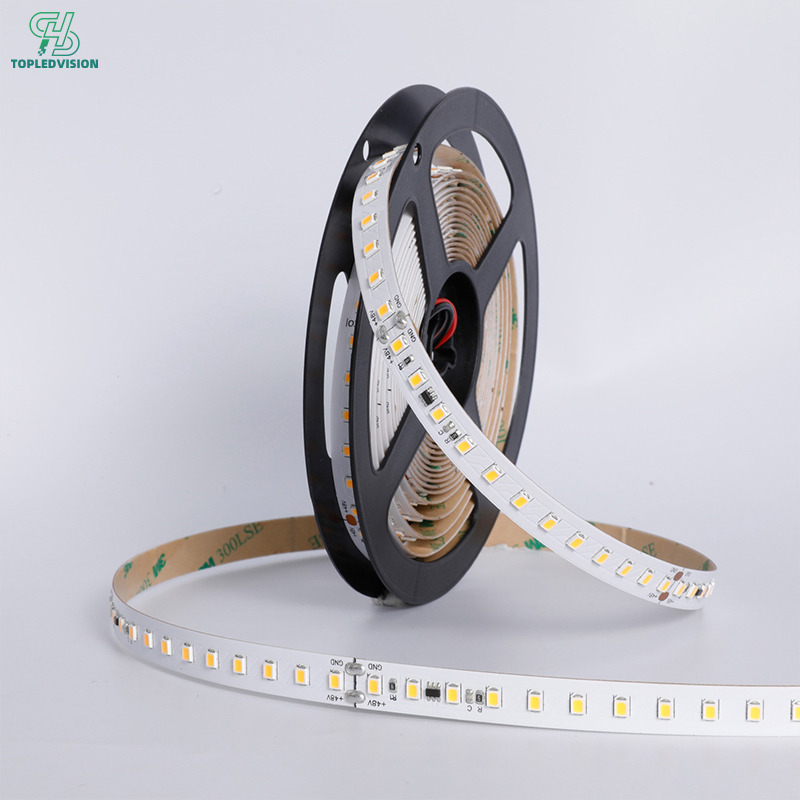

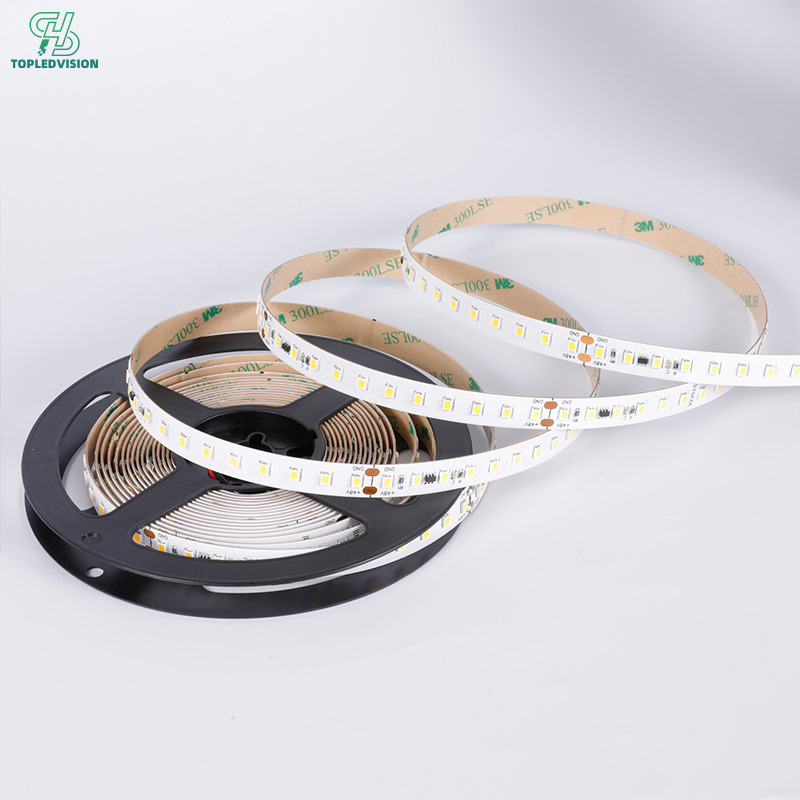

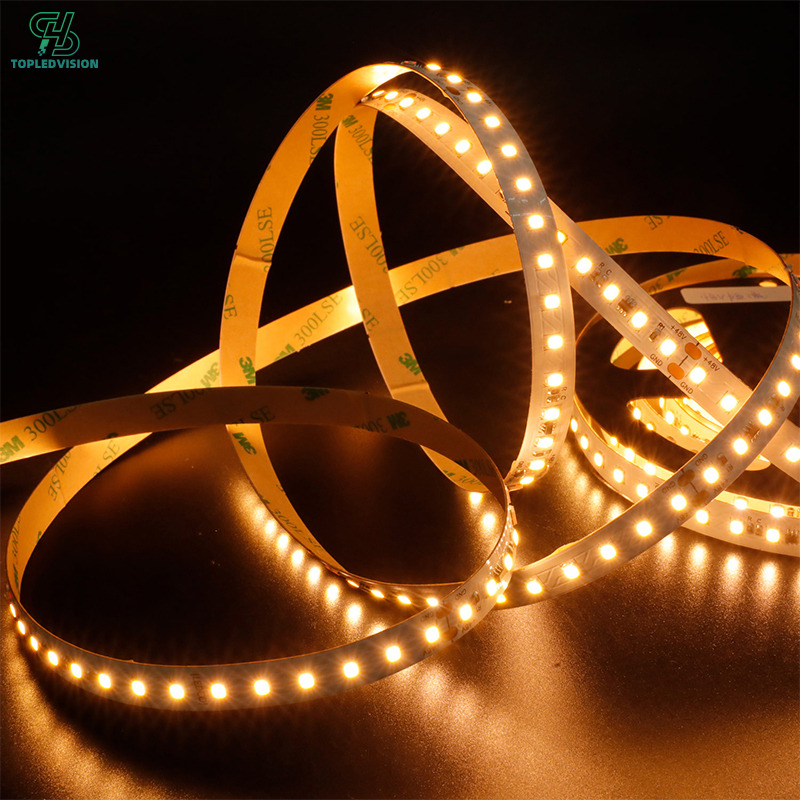

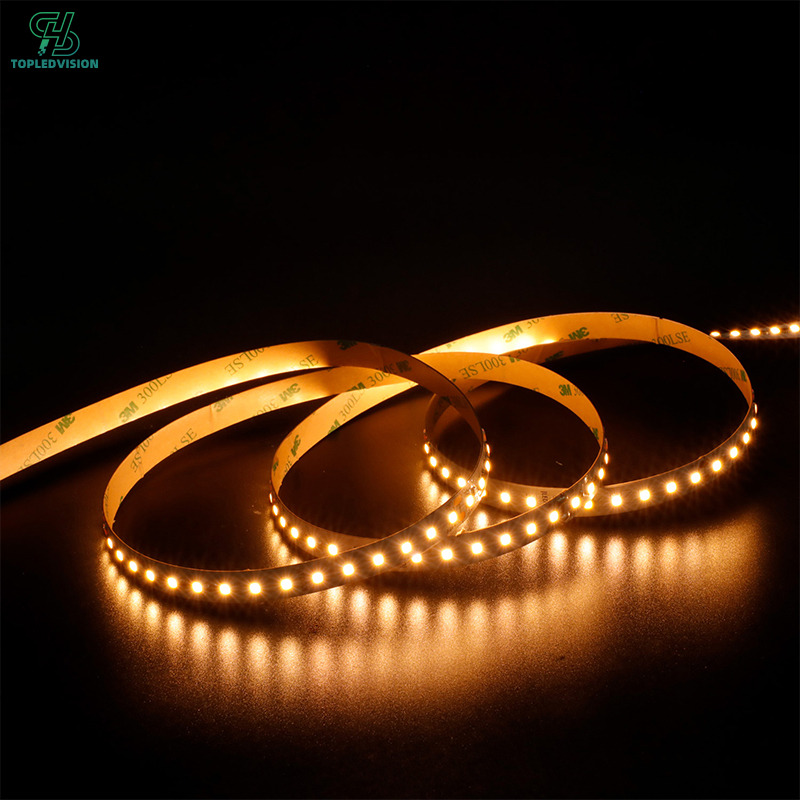

2835 48V Constant Current 120 LED Strip Light

Product Detail

Home Products Constant Current LED Strip 48V 15-40m running Strip 2835 48V Constant Current 120 LED Strip Light

Feature / Warranty

The 2835 Constant Current 48V 120 LED Strip Light combines stable constant-current technology, high-density 120 LEDs/m and 48V long-run performance to deliver bright, uniform and reliable illumination. With energy-efficient 2835 LEDs, flexible installation and multiple protection options, it is an ideal solution for commercial, architectural and linear lighting projects.

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

Product Description

Strip Performance

The 2835 Constant Current 48V 120 LED Strip Light features high-quality 2835 LEDs and an advanced constant-current circuit for stable electrical performance and consistent brightness. The 48V design helps reduce voltage drop during long-distance operation, making it suitable for continuous linear lighting projects.

Lighting Performance

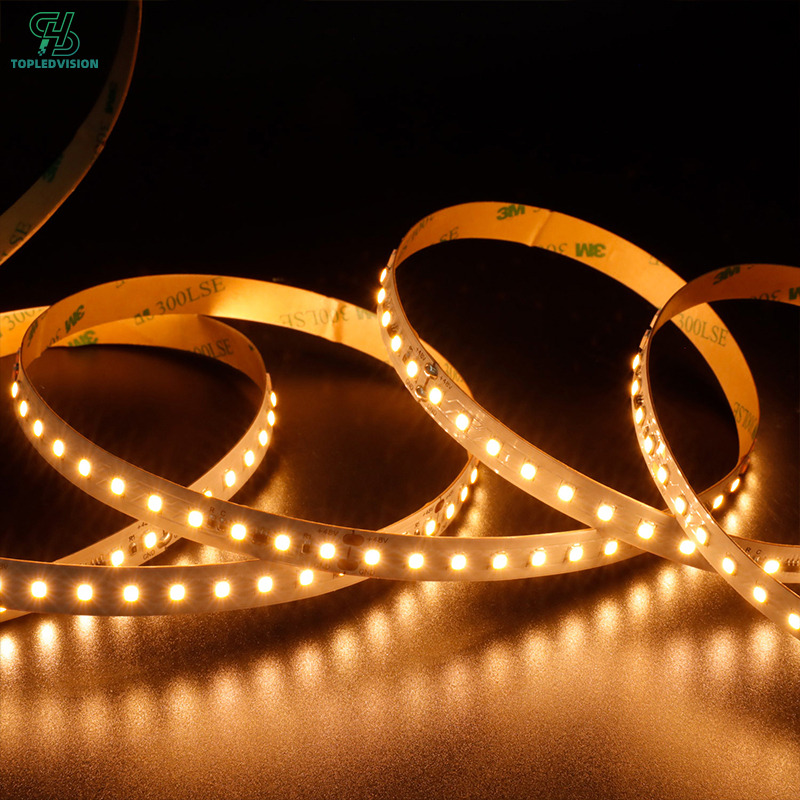

With 120 LEDs per meter, the strip provides a dense and uniform light distribution with reduced dark spots and smoother illumination. It delivers consistent brightness and excellent visual comfort, making it ideal for both direct and concealed lighting applications.

Energy Efficient & Durable

High-efficiency 2835 LEDs provide excellent illumination while helping reduce energy consumption. The optimized circuit design minimizes current fluctuations and supports reliable long-term operation, making the strip a durable solution for commercial and architectural lighting.

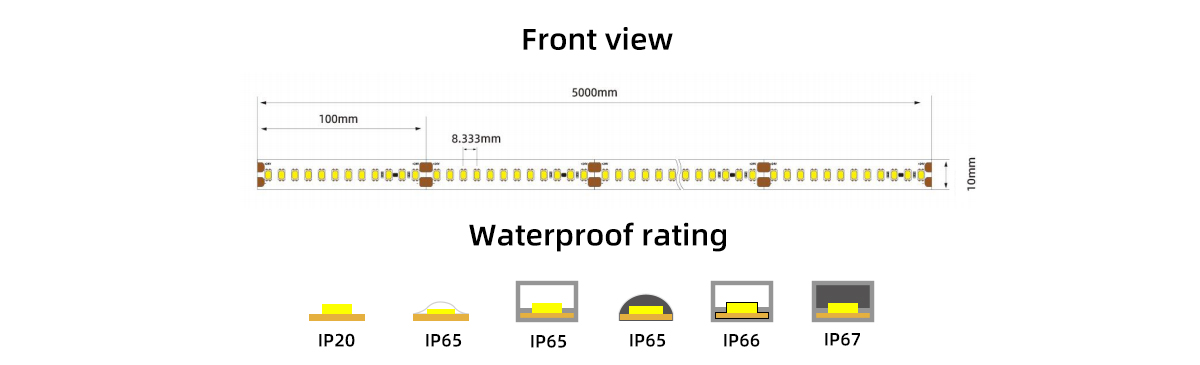

Protection Options

Available with different protection levels to meet various installation requirements. Depending on the selected version, the LED strip can be used for indoor, semi-outdoor and outdoor applications, providing reliable protection against dust, moisture and environmental conditions.

Easy Installation

The flexible LED strip is easy to cut, bend and install, allowing convenient integration into different linear structures and concealed spaces. It can be combined with suitable aluminum profiles, controllers and power supplies for customized lighting solutions.

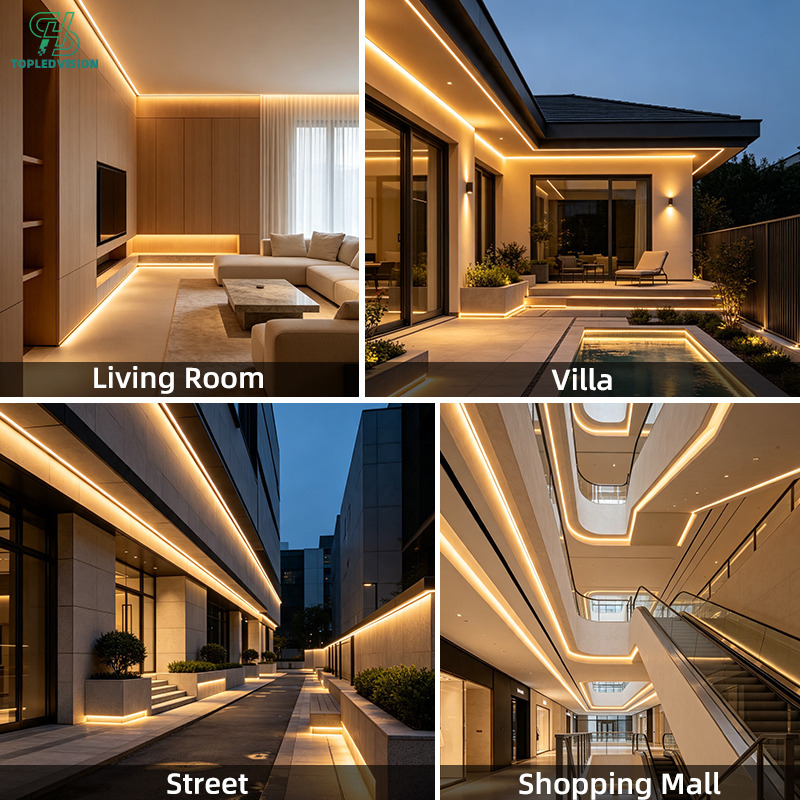

Wide Range of Applications

Designed for a variety of professional lighting applications, including architectural lighting, commercial spaces, cove lighting, linear lighting, retail displays, cabinet lighting, hospitality projects and large-scale decorative lighting.

Technical Parameters

LEDs	120Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	48V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	6/8/10/12/14W/M	Packing	5/10/20/50Roll
Load length	15-40m

Standardized, plug-and-play accessories significantly reduce commissioning time .

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
