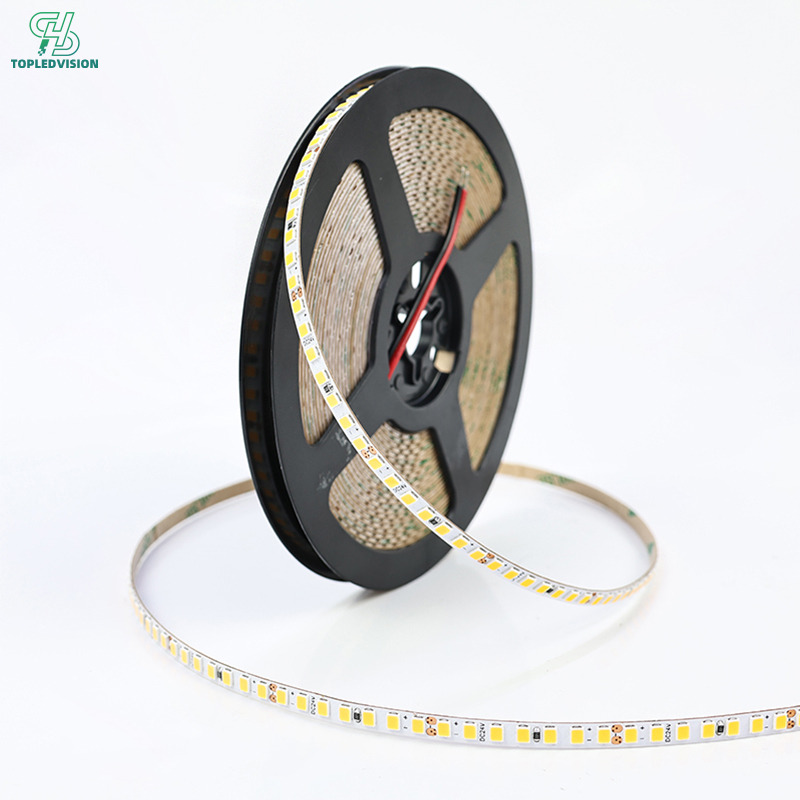

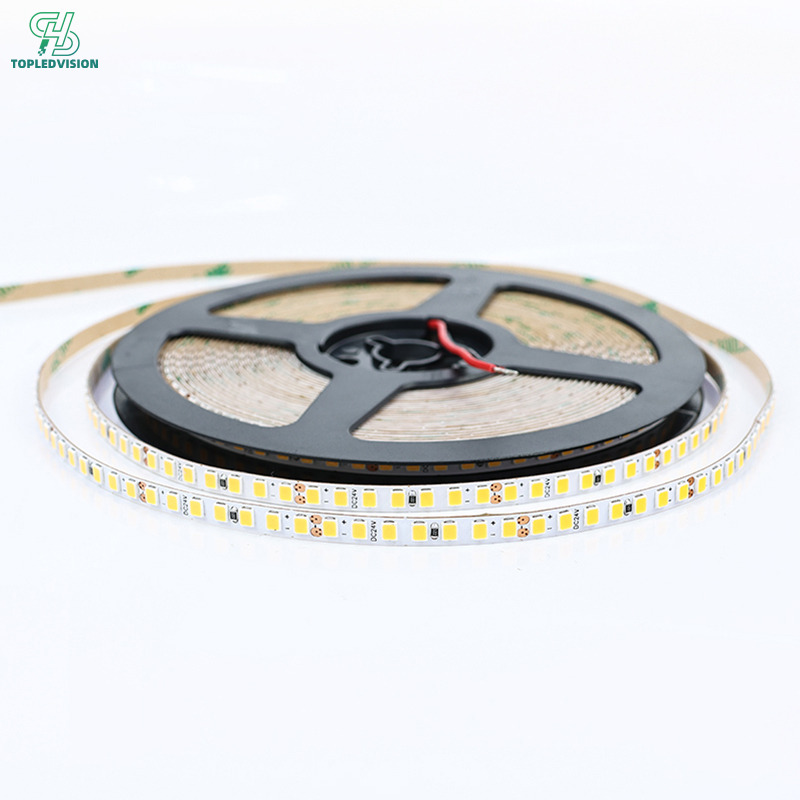

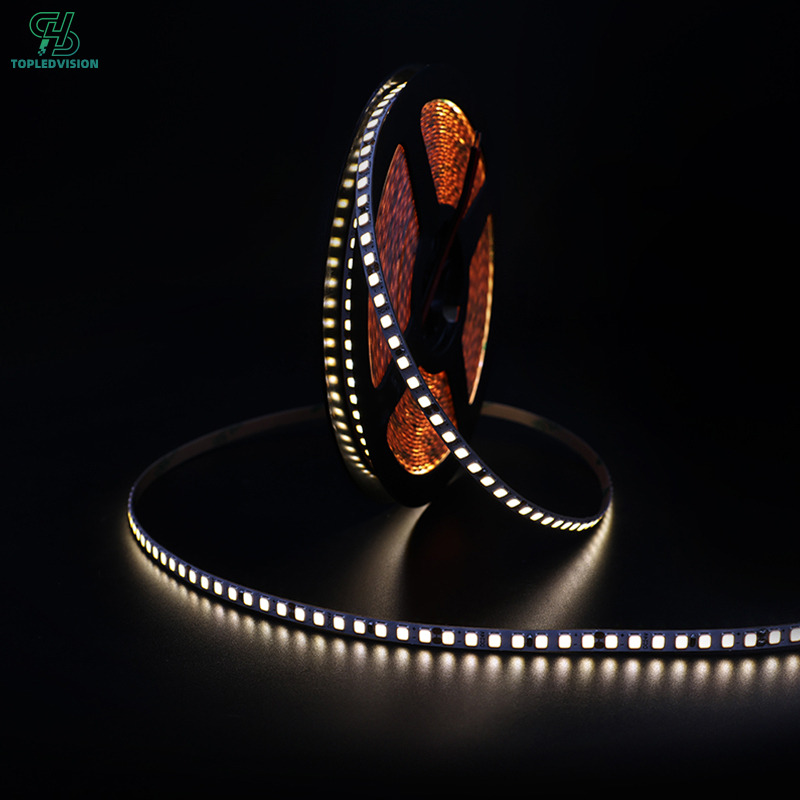

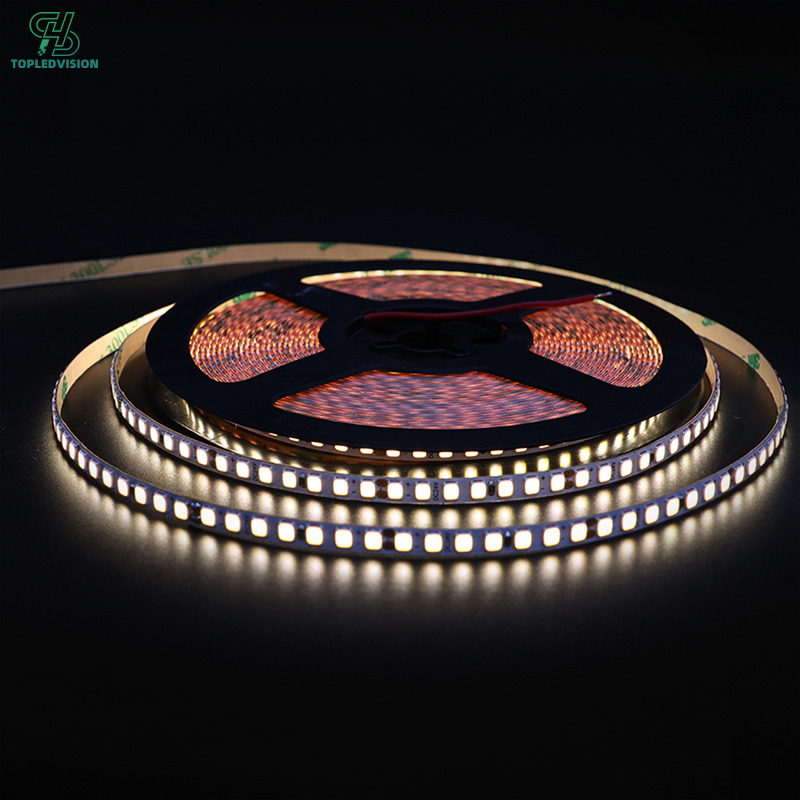

High-Density 2835 LED Strip Performance
Our 2835 196 LED Strip Light features 196 high-density SMD 2835 LEDs per meter, delivering stable performance and excellent brightness. The optimized LED layout provides high luminous efficiency while maintaining low power consumption and reduced heat generation. Available in 24V DC, the strip ensures reliable and stable operation for a wide range of residential, commercial, and architectural lighting projects.

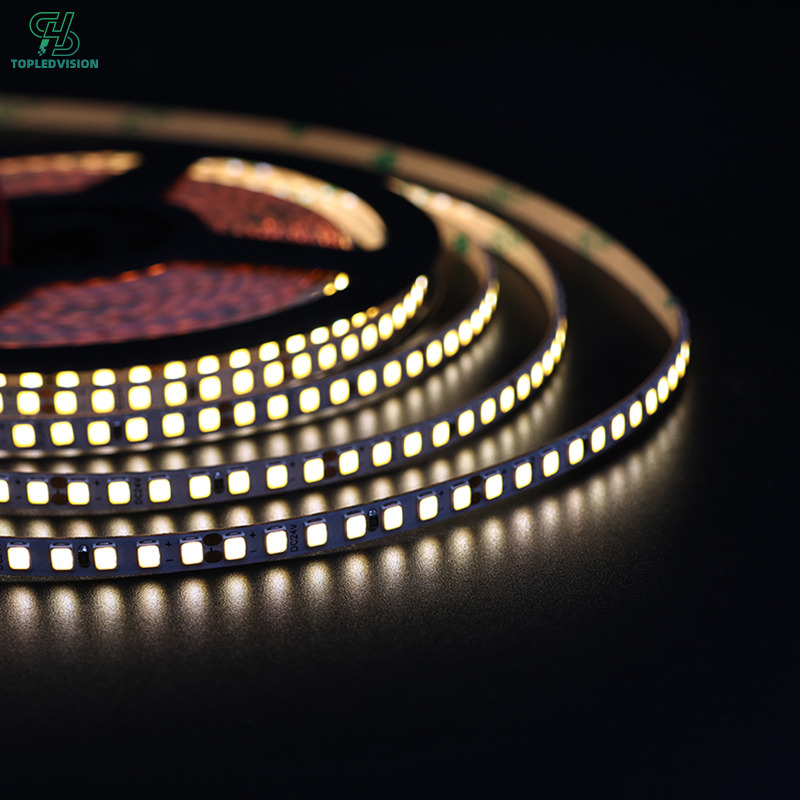

Bright and Uniform Lighting Effect
With a high LED density of 196 LEDs/m, this LED strip produces bright, smooth, and uniform illumination with reduced visible light spots. The closely spaced LEDs create a more continuous lighting effect, making it ideal for applications where consistent brightness and visual comfort are required. Multiple color temperatures and optional high CRI versions are available to meet different lighting requirements.
Energy-Efficient and Durable Design
Designed for long-term operation, the 2835 196 LED Strip Light combines high-efficiency SMD 2835 LEDs with a reliable flexible PCB structure. Its energy-efficient design helps reduce power consumption while maintaining stable brightness. Excellent heat dissipation and low lumen depreciation contribute to dependable long-term performance and an extended service life.

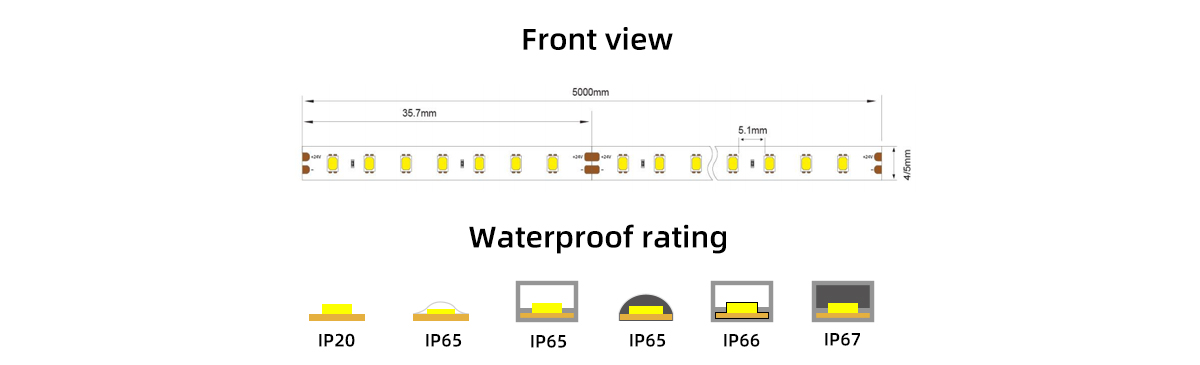

Flexible Waterproof Protection Options
Different protection levels are available to meet various installation environments. The standard IP20 version is suitable for indoor dry locations, while optional IP65 waterproof versions provide additional protection against dust and water splashes. This flexibility allows the LED strip to be used in both indoor and semi-outdoor lighting applications.
Easy Installation and Custom Cutting
The flexible PCB design allows the LED strip to be easily installed on straight, curved, and irregular surfaces. It can be cut at designated cutting points to fit specific project requirements. Optional adhesive backing makes installation faster and more convenient, while compatibility with aluminum profiles helps create a clean, professional lighting finish.

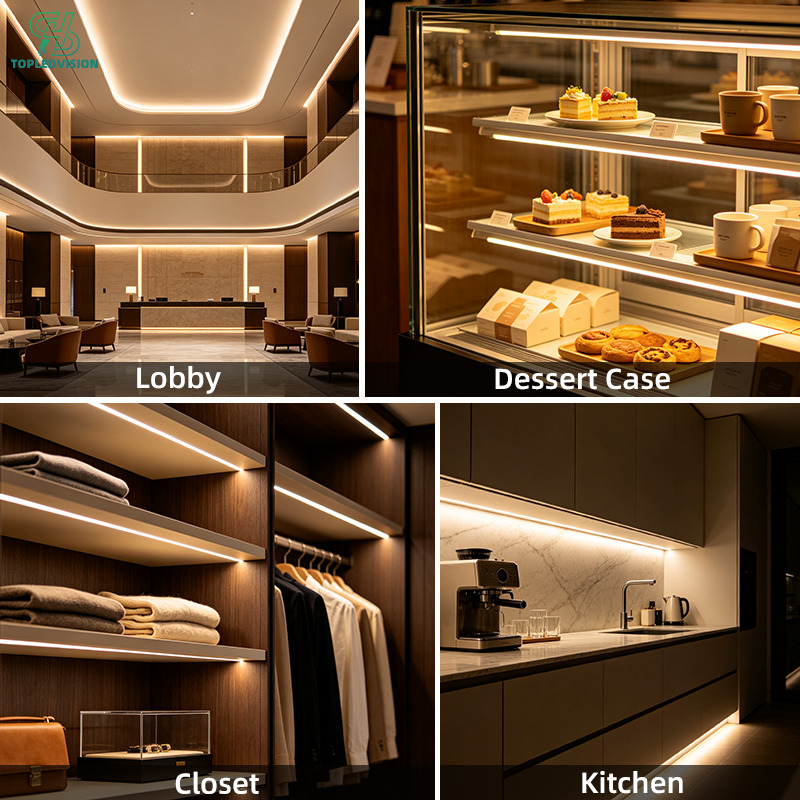

Versatile Applications
The 2835 196 LED Strip Light is suitable for a wide range of lighting applications, including cabinet lighting, shelf lighting, cove lighting, ceiling lighting, furniture lighting, retail displays, hotels, restaurants, offices, and architectural decorative lighting. Its combination of high density, uniform illumination, energy efficiency, and flexible installation makes it an excellent choice for both residential and commercial lighting projects.
Technical Parameters
LEDs | 196Chips/m | Support Dimmer | Yes |
|---|---|---|---|
Color Temperature | 1800-10000K, RGB, RGBW | Lifespan | >50000h |
CRI | 80/90/97Ra | Working Temperature | -20-65℃ |
Input Voltage | 5/12/24V | Warranty | 3Year |
Luminous Efficiency | 90-110lm/w | Certification | Emc, RoHS, CE, FCC, LVD |
Power | 6/8/10/12W/M | Packing | 5/10/20/50Roll |
Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
