2835 192LEDs/m Strip Light

High-Density & Stable Performance

The 2835 192 LED Strip Light features 192 high-density SMD 2835 LEDs per meter, delivering strong and stable illumination with consistent light output. The flexible PCB design supports reliable performance and can be customized with different voltages, lengths, color temperatures, CRI levels and IP ratings to meet diverse project requirements.

Uniform & High-Quality Illumination

With its high-density LED arrangement, this 192 LEDs/m LED Strip provides smooth and uniform illumination with reduced dark areas and visible light gaps. It delivers consistent brightness along the entire strip, making it ideal for applications requiring continuous and visually comfortable lighting. High-CRI options are available for applications where accurate and natural color reproduction is important.

Energy-Efficient & Long-Lasting

Designed for efficient LED lighting, the 2835 High Density LED Strip provides excellent brightness while helping reduce energy consumption. High-quality components and stable thermal performance contribute to a long service life, making it suitable for continuous-use commercial, architectural and residential lighting projects.

Multiple IP Protection Options

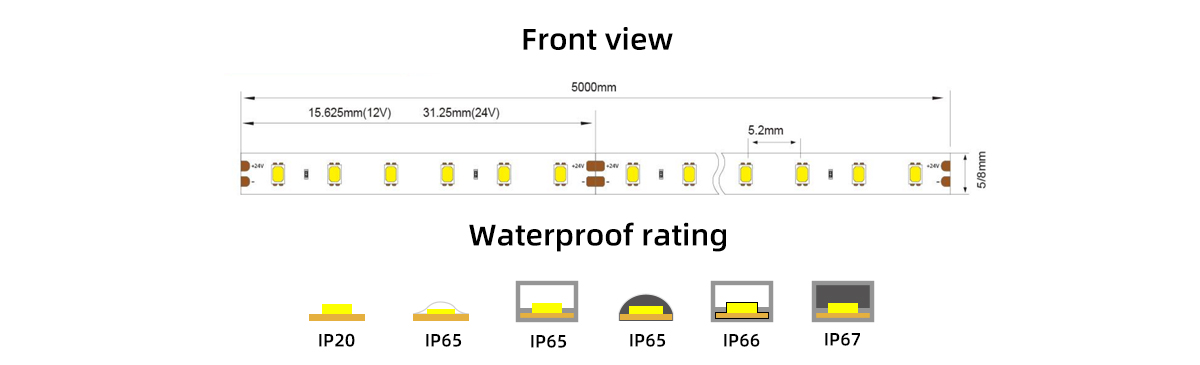

Available with different protection levels, including IP20, IP65, IP66 and IP67, the 2835 192 LED Strip Light can be configured for both indoor and outdoor environments. Waterproof versions provide enhanced resistance to moisture, dust and environmental exposure, making them suitable for demanding lighting installations.

Flexible & Easy Installation

The flexible PCB allows the LED strip to bend around curves, corners and irregular surfaces for convenient installation. It can be cut to the specified cutting pitch and installed with adhesive backing or aluminum profiles, enabling fast and precise mounting. Custom lengths, connectors and installation accessories are also available for project-specific requirements.

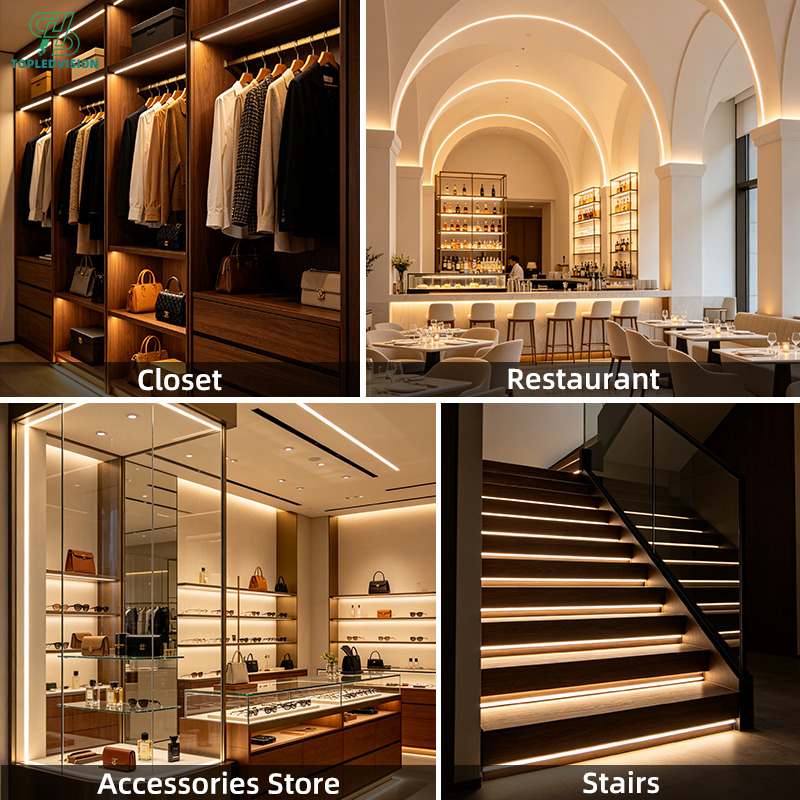

Versatile Lighting Applications

The 2835 192 LED Strip Light is suitable for a wide range of applications, including architectural lighting, cove lighting, cabinet lighting, retail displays, commercial spaces, residential interiors, hotels, restaurants, offices and decorative lighting. Its high-density and uniform illumination make it an excellent choice for both general and accent lighting projects.

Technical Parameters

LEDs	192Chips/m	Support Dimmer	Yes
Color Temperature	1800-10000K, RGB, RGBW	Lifespan	>50000h
CRI	80/90/97Ra	Working Temperature	-20-65℃
Input Voltage	12/24V	Warranty	3Year
Luminous Efficiency	90-110lm/w	Certification	Emc, RoHS, CE, FCC, LVD
Power	8/10/12/14/16W/M	Packing	5/10/20/50Roll

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Uniform Illumination

With 192 high-density SMD 2835 LEDs per meter, the 2835 192 LED Strip Light delivers smooth and consistent illumination across the entire strip. The closely spaced LEDs reduce dark areas, visible light gaps and uneven brightness, creating a continuous and seamless lighting effect. It is ideal for cove lighting, cabinets, displays, architectural details and other applications where uniform light output is essential.

High CRI Lighting for Clothing Stores

The 2835 192 LED Strip Light with high-CRI performance delivers accurate and natural color rendering, helping clothing, fabrics and accessories appear closer to their true colors. The high-density 192 LEDs/m design provides smooth, uniform illumination across displays, shelves and fitting areas, reducing shadows and uneven brightness. It is an ideal lighting solution for clothing stores, fashion boutiques, retail displays and apparel showcases, where color accuracy and visual presentation are essential.

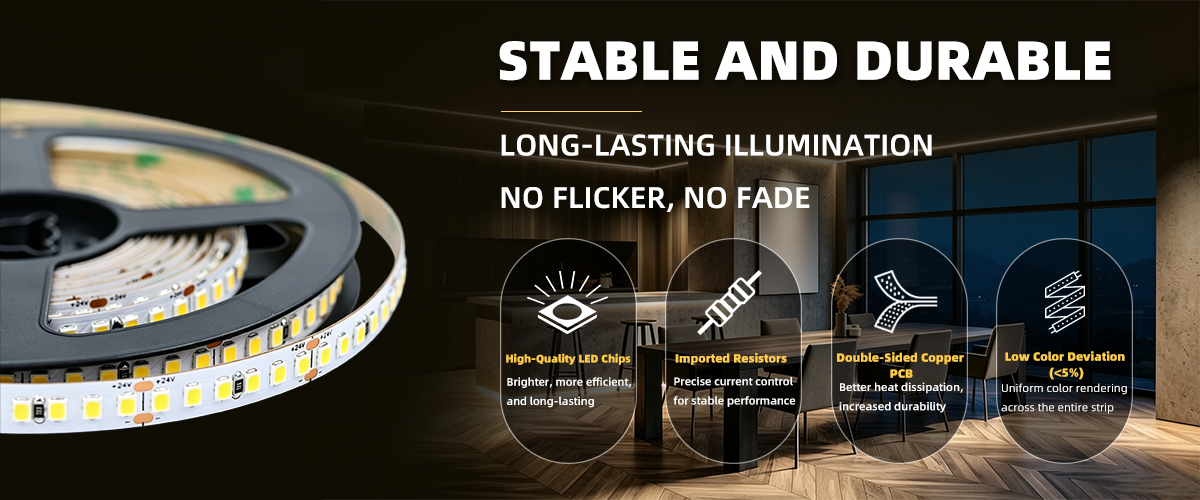

Stable Performance & Long Service Life

Built with high-quality SMD 2835 LEDs and a reliable flexible PCB, the 2835 192 LED Strip Light delivers stable and consistent light output during long-term operation. Its efficient thermal management helps maintain reliable performance and reduce light degradation over time. Durable construction and high-quality components make it suitable for continuous lighting in retail stores, commercial spaces, architectural projects and residential applications.

Flexible Customization for Different Projects

The 2835 192 LED Strip Light supports flexible customization to meet different lighting and installation requirements. Available options include custom lengths, color temperatures, voltage, CRI, PCB width, cutting pitch and IP protection ratings. Custom connectors, wiring and packaging can also be provided for specific projects, making this 192 LEDs/m LED Strip suitable for tailored commercial, retail, architectural and residential lighting solutions.

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Product Detail

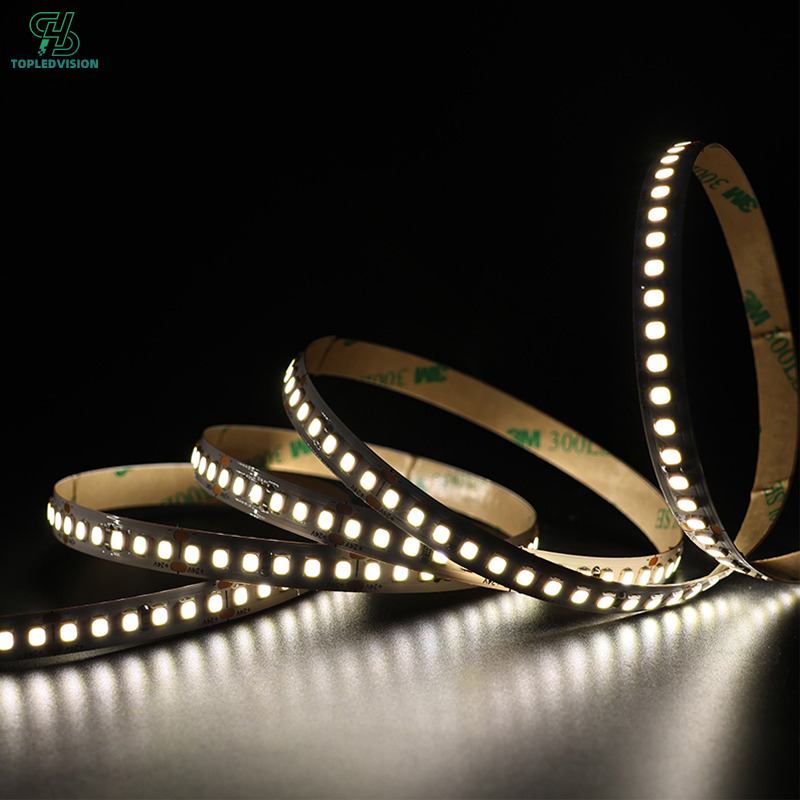

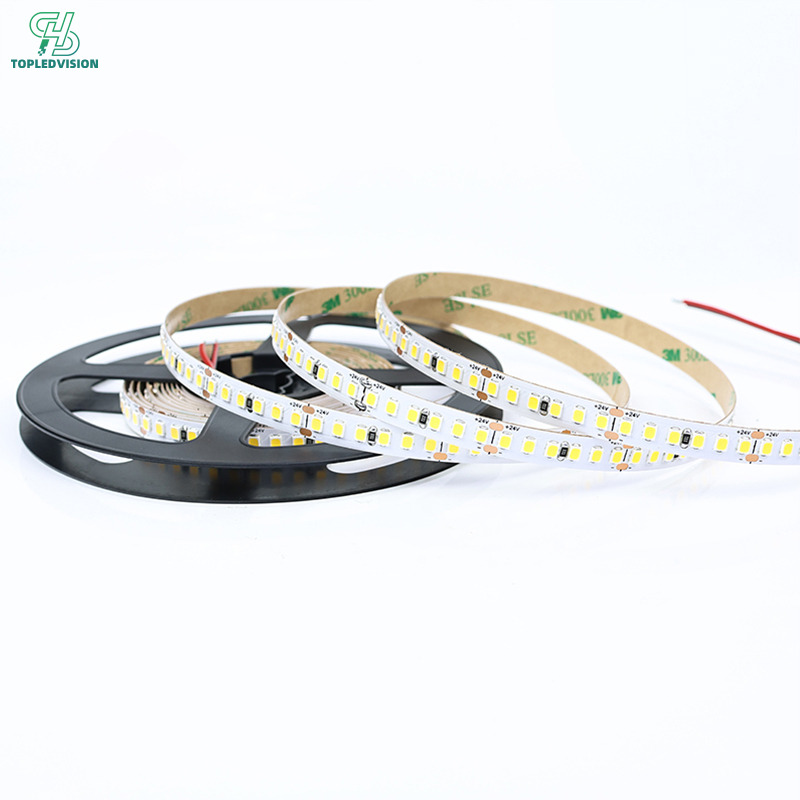

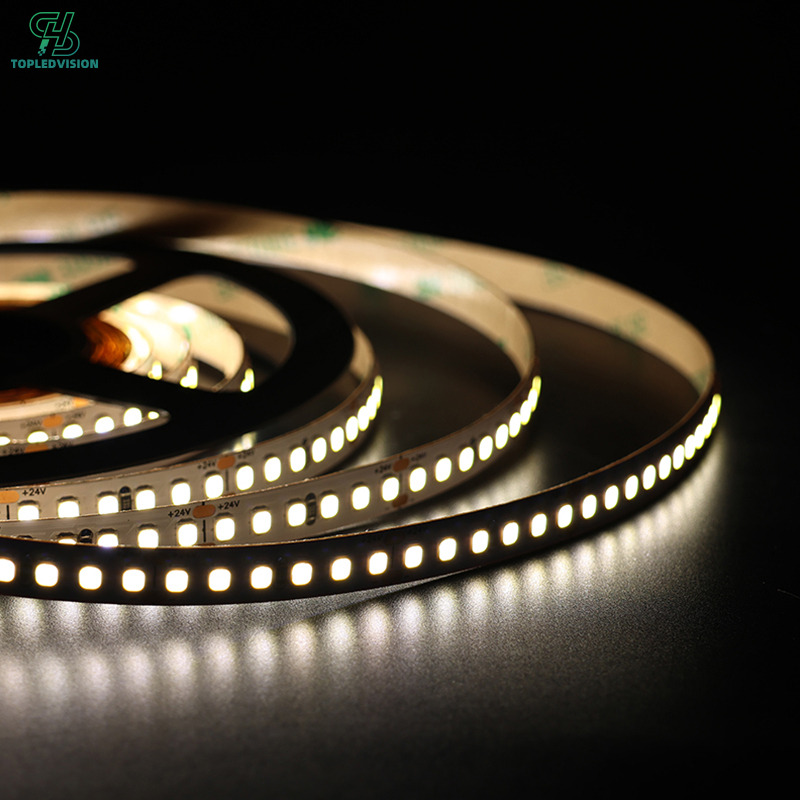

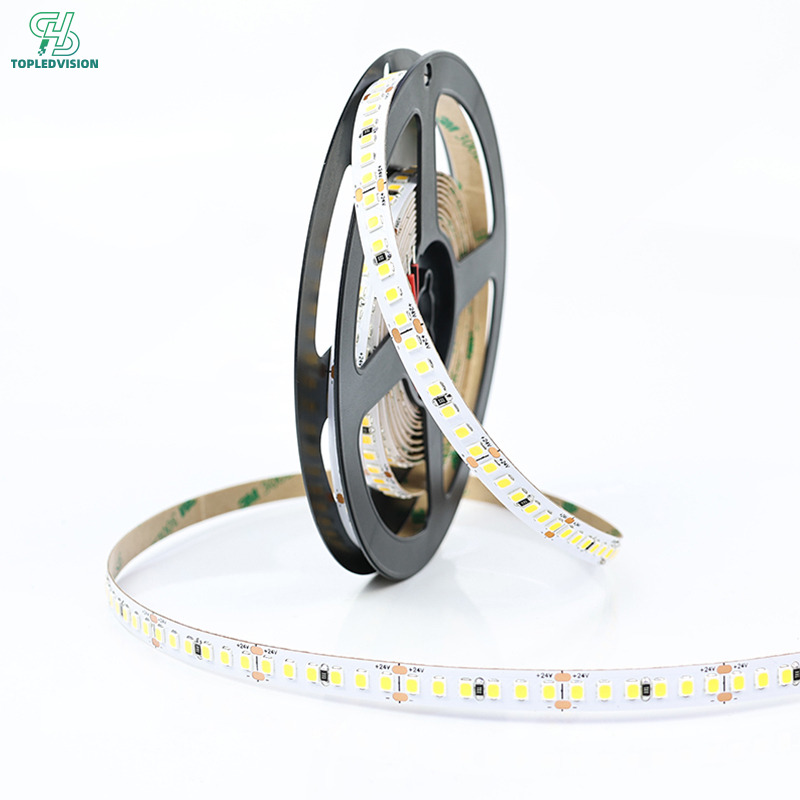

2835 192 LED Strip Light – High-Density LED Strip
