Home LED Strip Lights 2835 LED Strip 2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
2835 120 LED Stirp 10mm-5m(2835 LED STRIP SERIES )
Feature / Warranty
图标3
  • Spot-Free Lighting
  • High Visibility Index
  • Low light attenuation and durability
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
防水1
Quantity:
库存: 0
Inquire
Add to Basket

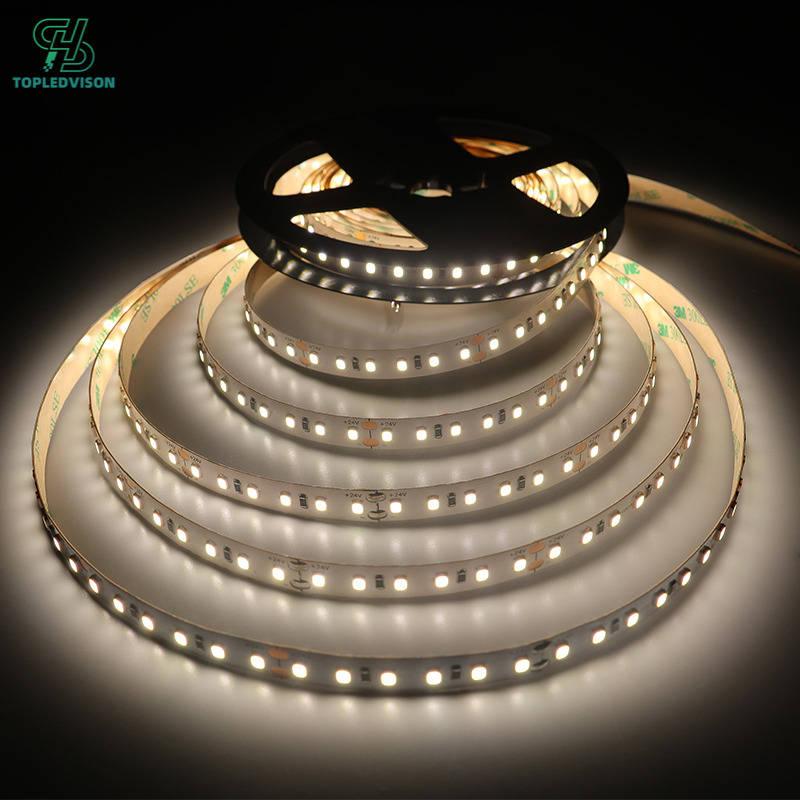

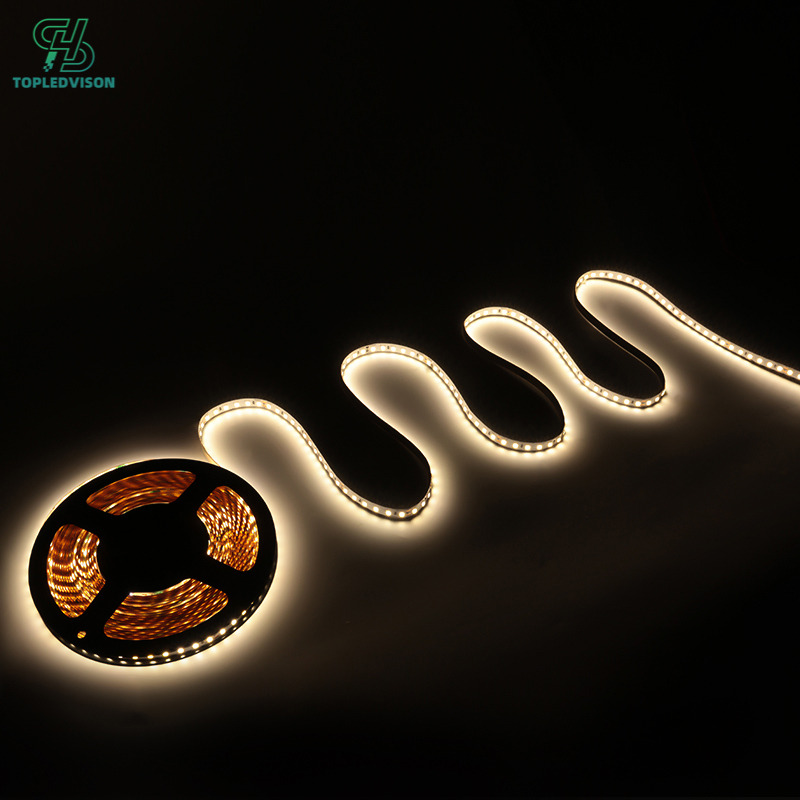

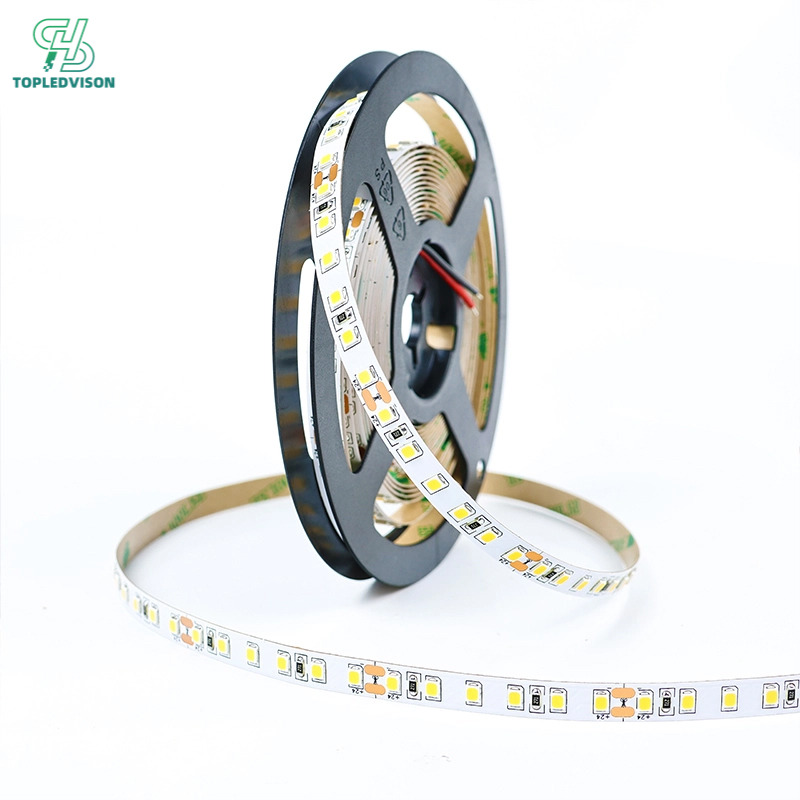

2835 120 LED Strip Light

Strip Features: High-density arrangement of 120 LEDs per meter, wide beam angle (120°), and soft light; low color deviation (<5), continuous light output without breaks, spots, or dark areas; the light surface closely resembles a linear light source, offering a premium aesthetic; CRI: Standard models Ra > 80, high-end models up to Ra > 90/97. DC 12V/24V low-voltage operation, high brightness, excellent color consistency, stable quality, long service life, freely customizable length, and easy installation.

Lighting Effects: Soft light with no hotspots or dark spots; low color deviation (<5), maintaining color accuracy over long-term use. Suitable for indoor and outdoor lighting applications such as kitchens, wardrobes, commercial display cases, balconies, and gardens.

Energy-efficient and durable: High-quality LED chips + gold-plated/copper brackets + double-sided copper PCB for superior conductivity and heat dissipation; low power consumption; service life up to 50,000 hours; minimal light decay; consistent brightness and color over long-term use.

Waterproof ratings available: IP20 is suitable for dry environments such as indoor cabinets and TV feature walls; IP65/IP66 is suitable for humid environments such as kitchens, balconies, and washbasins; IP67 is suitable for outdoor environments such as patios, canopies, and poolside areas; covering all scenarios including home decoration, commercial spaces, and landscaping

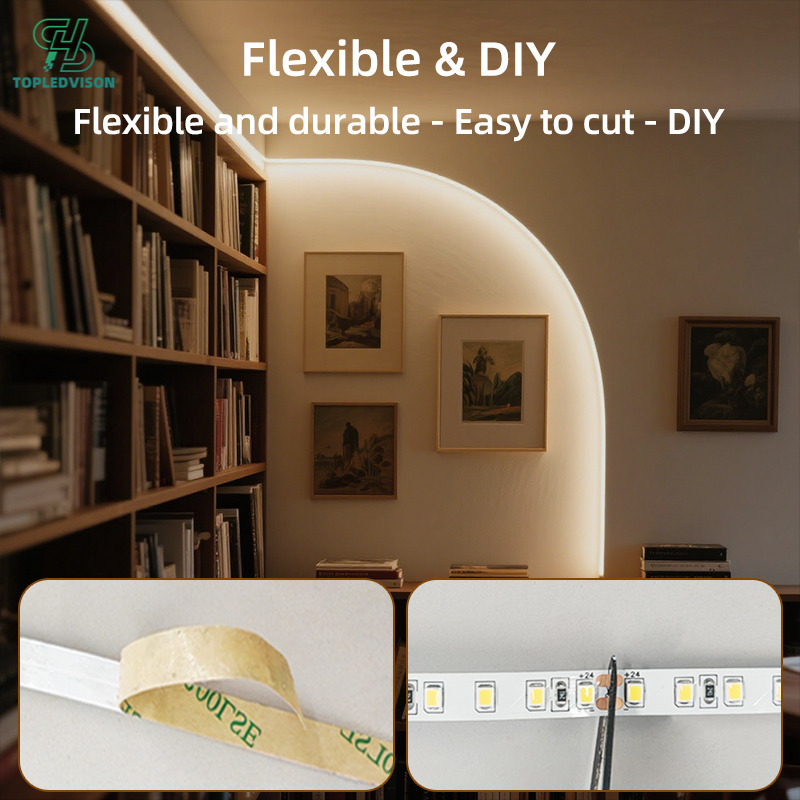

Easy installation: Comes with 3M adhesive backing—simply peel and stick. No complex tools required. The flexible PCB board can be bent to fit curved surfaces, corners, and irregular shapes, ensuring installation in every nook and cranny.

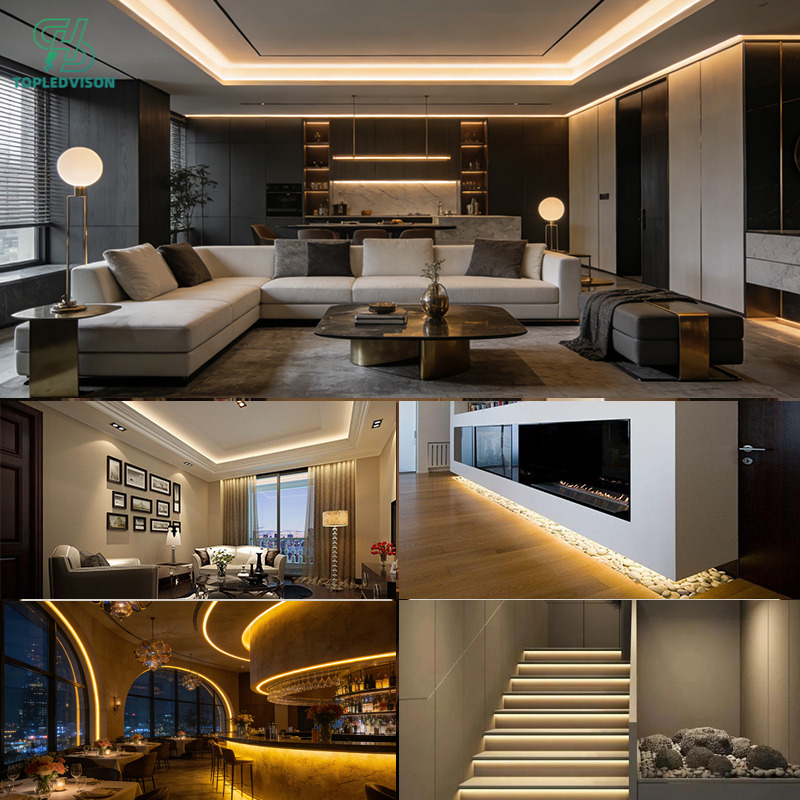

Applications of the 2835 120D LED strip: Feature walls, baseboards, bedroom ambiance lighting, mirror lights, staircase lighting, display cases, signage, gardens, and landscape lighting.

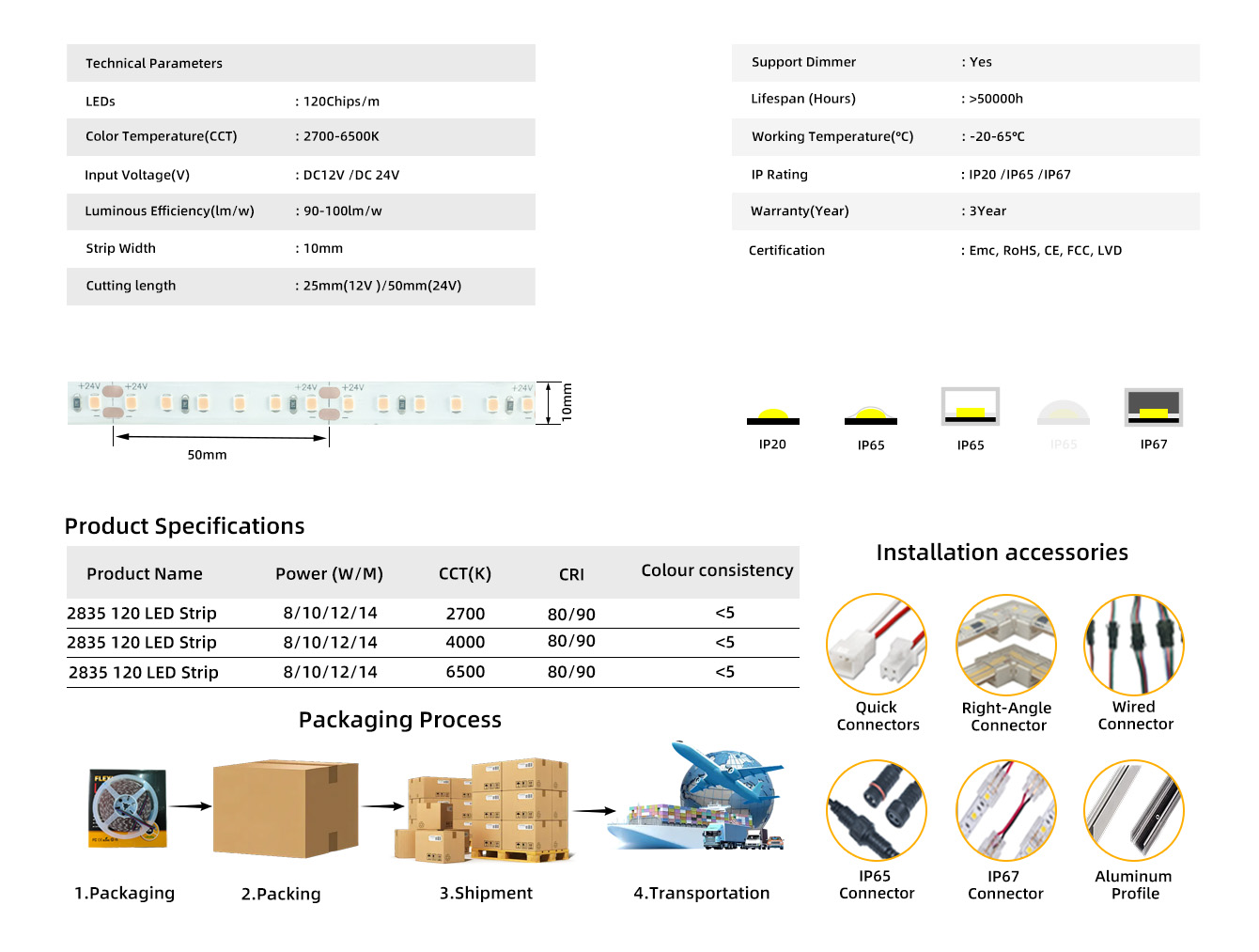

Technical Parameters

LEDs

120Chips/m

Support

Dimmer

Yes

Color

Temperature

1800-10000K,

RGB, RGBW

Lifespan

>50000h

CRI

80/90/97Ra

Working

Temperature

-20-65℃

Input Voltage

5/12/24V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

6/8/10/12 /14W/M

Packing

5/10/20/50Roll

  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using 2835 LED Strip Lights: We recommend having 2835 LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

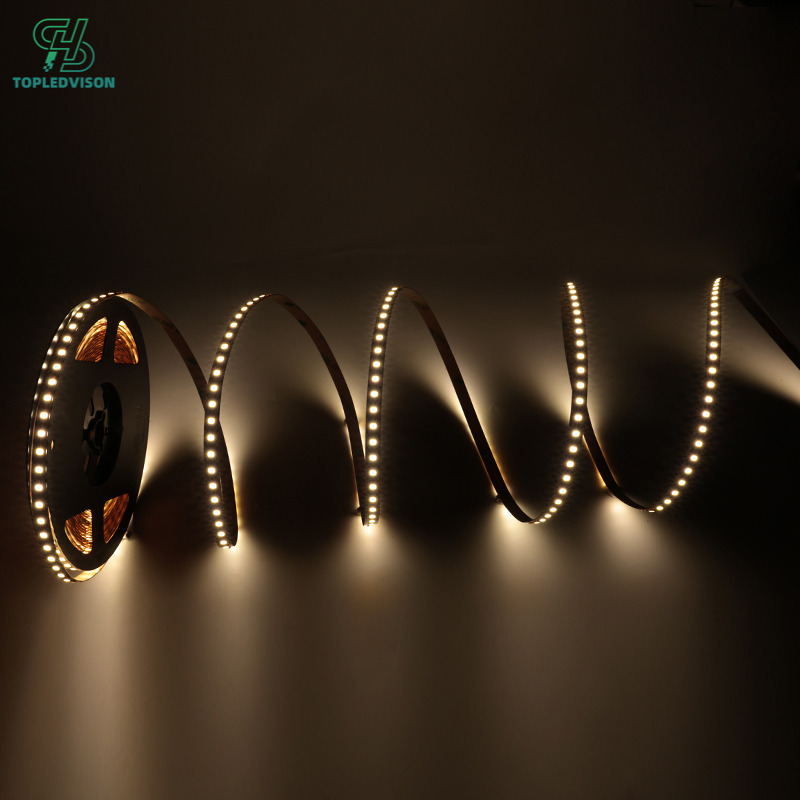

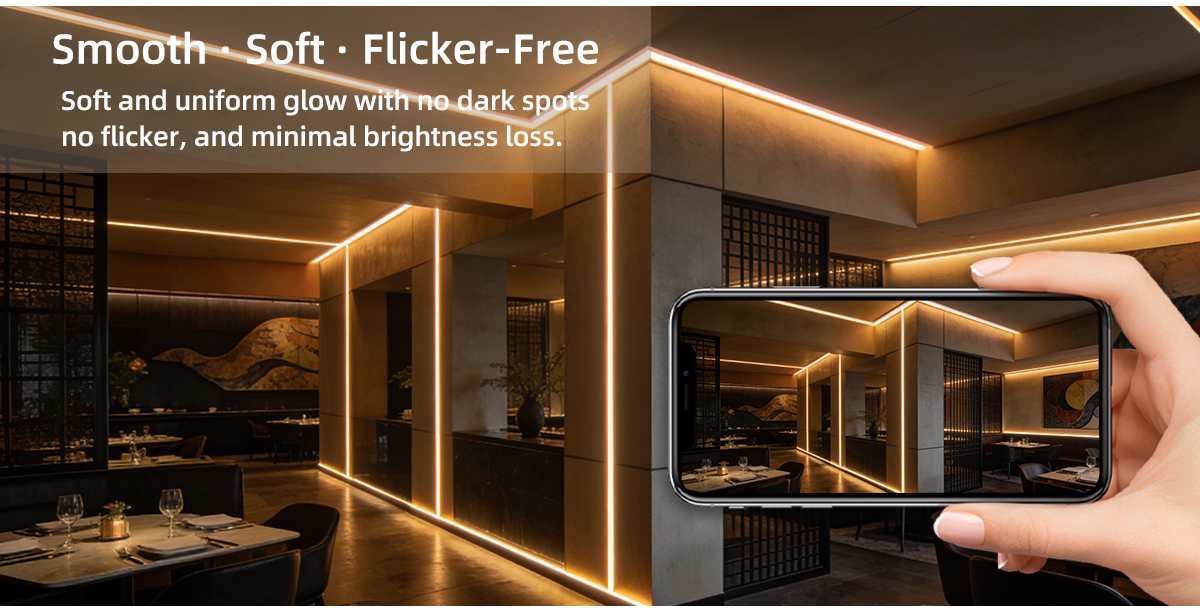

Spot-Free Lighting

Featuring a high-density LED layout design, the strip precisely arranges 120 high-brightness 2835 LEDs per meter, achieving a higher light source density within a limited space. This results in superior luminous flux output and a more refined light quality. Thanks to the tight and orderly arrangement of the LEDs, the light strip emits a continuous, seamless, and uniformly distributed light across its entire length. This effectively eliminates issues commonly found in traditional low-density light strips, such as dark spots, uneven brightness transitions, grainy light patches, and glare, presenting a pure lighting effect that closely resembles a monolithic linear light source. This creates a soft, comfortable, and naturally transitioning overall lighting atmosphere, fully meeting the stringent requirements for light quality in professional applications such as high-end linear lighting, premium home interiors, commercial display cases, and boutique hotels.


2835-120D-产品优势_05


High Visibility Index

Featuring a high-density LED array, this lighting solution delivers uniform, soft illumination with no dark spots or glare. Combined with a high-CRI light source, it easily achieves a high Color Rendering Index (Ra80/Ra90). Colors are rendered naturally and accurately, and the light resembles natural sunlight—it is gentle on the eyes and strikes a balance between practical illumination and visual quality. Ideal for home decor and commercial displays.


2835-120D-产品优势_11

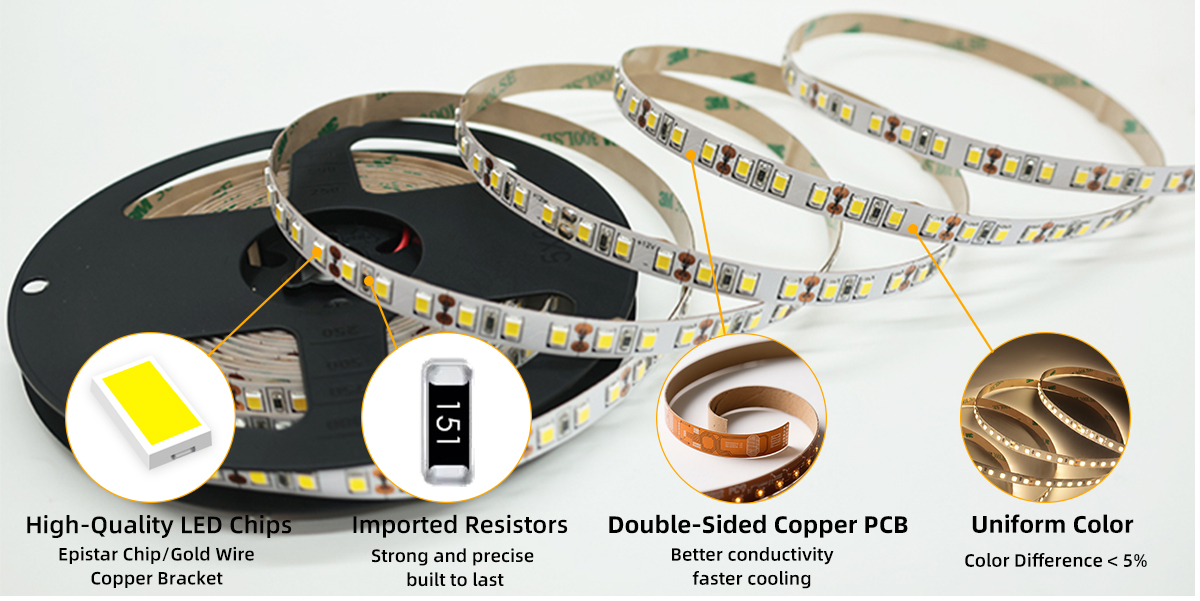

Low light attenuation and durability

Surface-mount packaging provides efficient heat dissipation on PCB boards. High-density layout effectively reduces light decay and extends LED strip lifespan to over 50,000 hours. Paired with double-sided PCB boards, it offers both oxidation resistance and bend resistance. LED chips are securely soldered and resistant to detachment.


2835-120D-产品优势_17

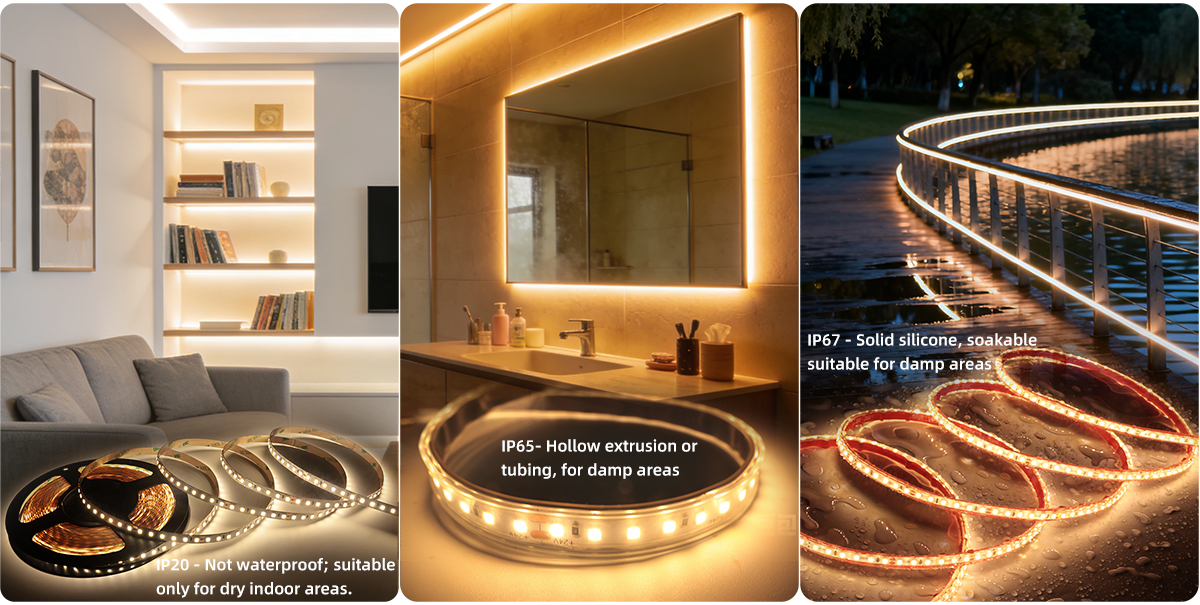

IP ratings are optional

IP20 is not waterproof and is only suitable for dry, clean indoor environments such as bedrooms, living rooms, and home offices. It effectively prevents moisture and dust from damaging the LED chips and wiring, ensuring long-term, stable operation. IP65 offers basic water and dust resistance, protecting against everyday water splashes and humid mist. It is suitable for semi-humid areas prone to moisture and cooking fumes, such as kitchens, bathrooms, balconies, washbasins, and hallways; IP67 offers a higher level of water resistance, capable of withstanding light submersion and continuously damp environments. In addition to bathrooms and balconies, it can be used in sheltered outdoor areas such as eaves, awnings, and garden borders. With flexible customization of different water resistance ratings, it adapts to everything from indoor ambient lighting to outdoor landscape illumination, meeting the installation and long-term usage needs of diverse scenarios.


2835-120D-产品优势_23

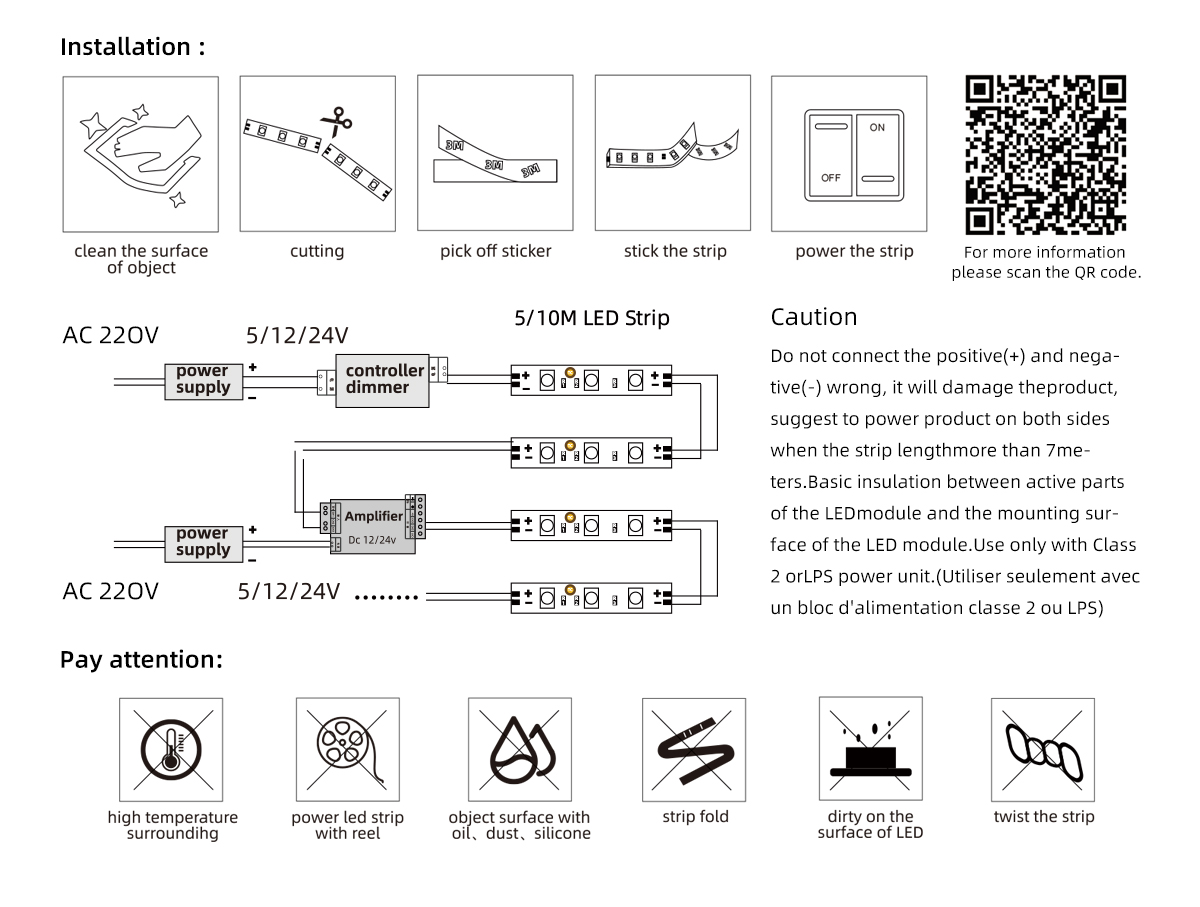

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
