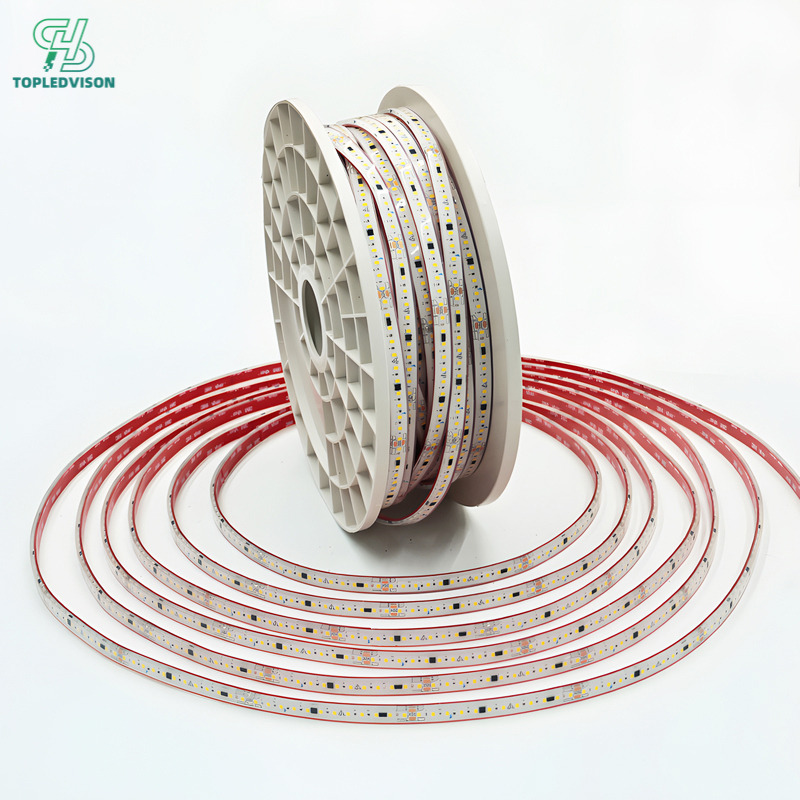

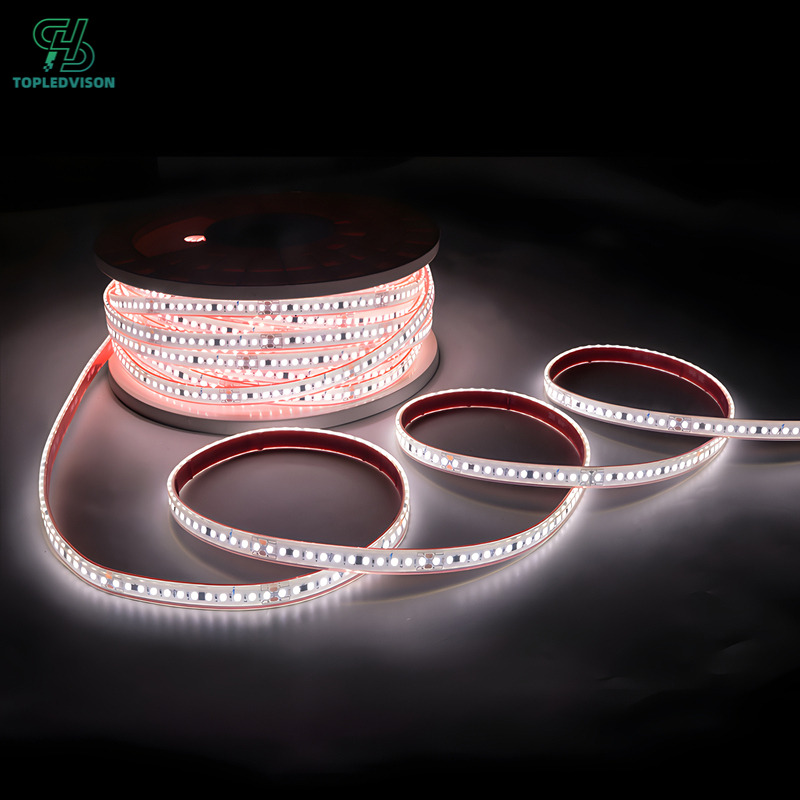

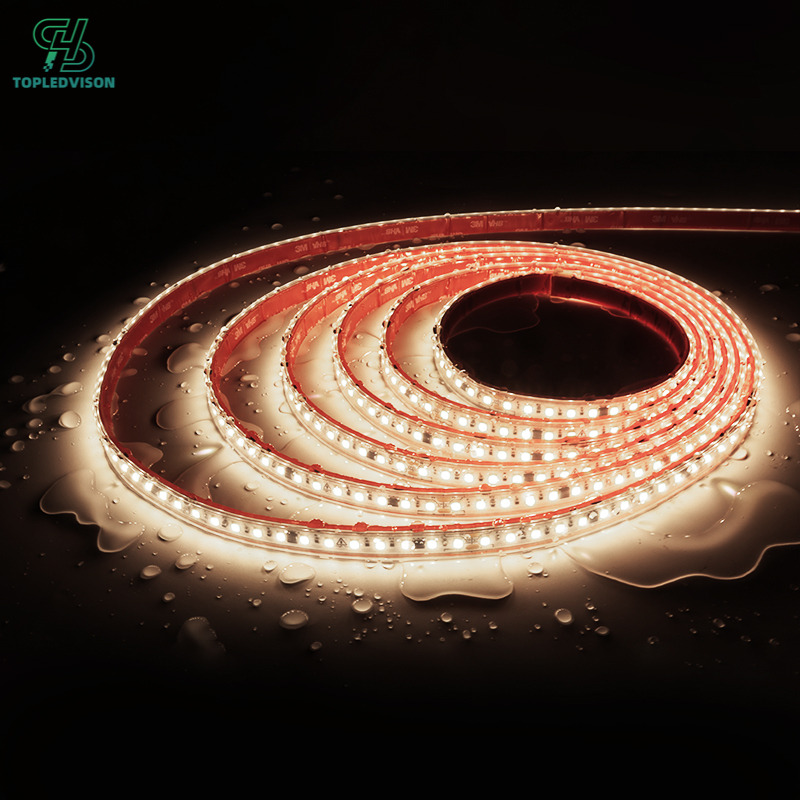

Home High Volt LED Strip 110V LED Strip 2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
2835 120 110/220V Strip 10mm-5m (AC110/220 STRIP SERIES )
Feature / Warranty
图标2
  • Spot-Free Lighting
  • Highly flexible and easy to shape
  • Safe and durable
  • Customizable
Min. Order: ≧50 meters
Price and order please inquiry
IP
Quantity:
库存: 0
Inquire
Add to Basket

2835 High-Voltage 120 LED Strip Light

Product Features: High-density arrangement of 120 LEDs per meter; AC 110/220V driver-free design; minimal voltage drop over long distances; consistent brightness from start to end; wide beam angle (120°); soft light; Low color deviation (<5), continuous light output without breaks, spots, or dark areas; CRI: Standard models Ra > 80, high-end models up to Ra > 90/95. High brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install.

Lighting Effects: Soft light with no hotspots or dark spots; low color deviation (<5), no color shift over long-term use; suitable for indoor and outdoor lighting applications such as TV backdrops, wardrobes, wine cabinets, supermarket shelves, storefront windows, and gardens.

Energy-efficient and durable: High-quality LED chips + gold-plated/copper brackets + double-sided copper PCB for superior conductivity and heat dissipation. Low power consumption, service life up to 50,000 hours, minimal light decay, and consistent brightness and color over the long term.

Waterproof ratings available: IP65/IP66 is suitable for humid environments such as kitchens, balconies, and washbasins; IP67 is suitable for outdoor environments such as canopies and poolside areas; covers all scenarios including home decoration, commercial, and landscape lighting.

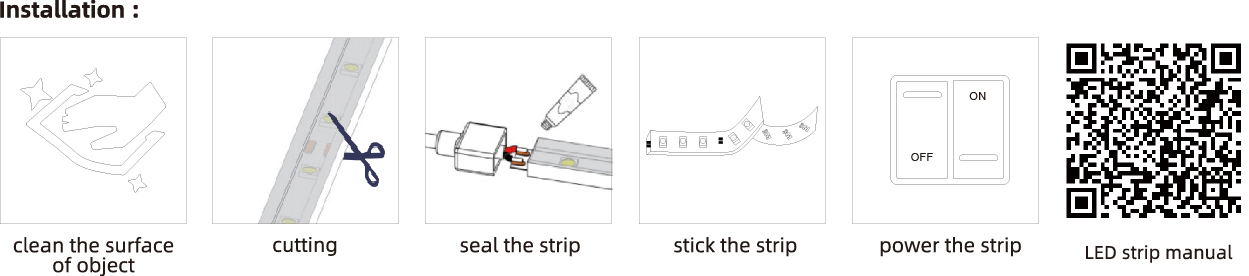

Easy installation: No transformer or wiring required; simply plug in or solder the wires to power on. Comes with 3M adhesive backing—peel and stick for simple installation. Flexible PCB board: bendable to fit curved surfaces, corners, and irregular shapes, ensuring installation with no blind spots.

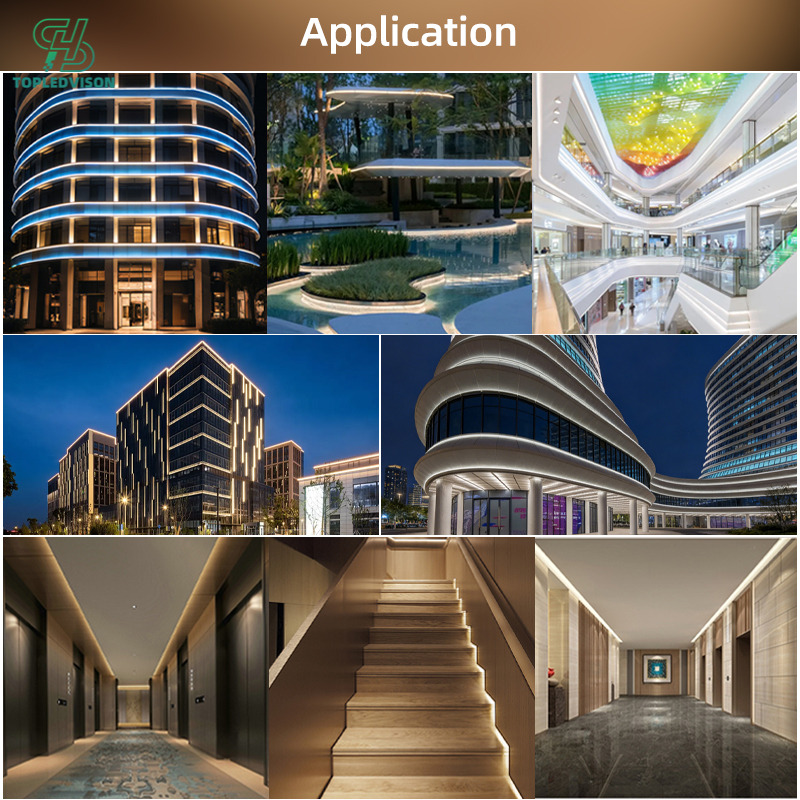

Applications of 2835 High-Voltage 120 LED Strips: shop windows, hotel corridors, light boxes, building outlines, and guardrails.

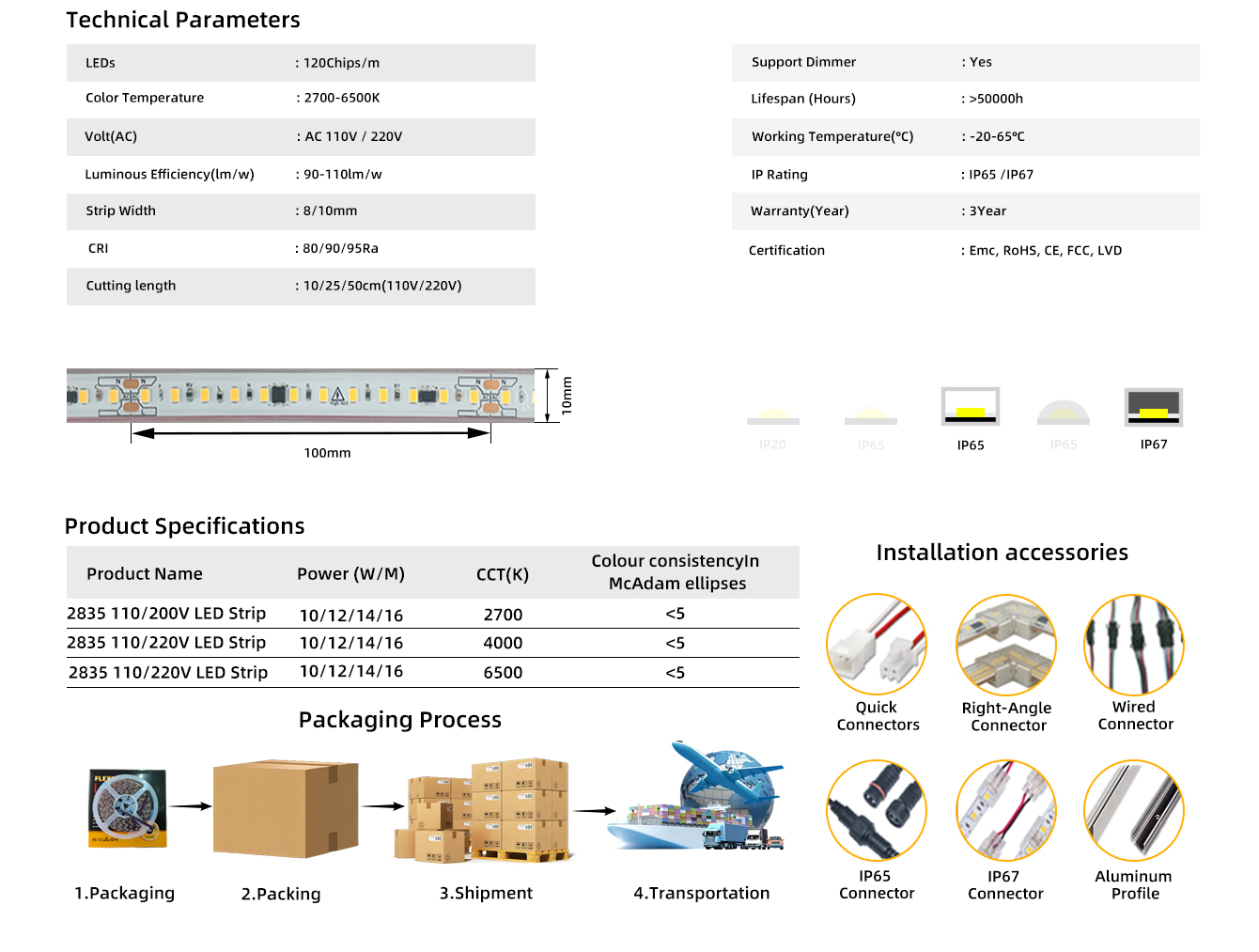

Technical Parameters

LEDs

120Chips/m

Support

Dimmer

Yes

Color

Temperature

1800-10000K,

RGB, RGBW

Lifespan

>50000h

CRI

80/90/95Ra

Working

Temperature

-20-65℃

Input Voltage

110/220V

Warranty

3Year

Luminous

Efficiency

90-110lm/w

Certification

Emc, RoHS, CE,

FCC, LVD

Power

10/12 /14/16W/M

Packing

5/10/20/50Roll

  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Important Information for Using 2835 High-Voltage LED Strip Lights: We recommend having 2835 High-Voltage LED strip lights installed by a professional before use. Please read the following precautions to avoid damaging the 2835 High-Voltage LED strip lights due to improper operation.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

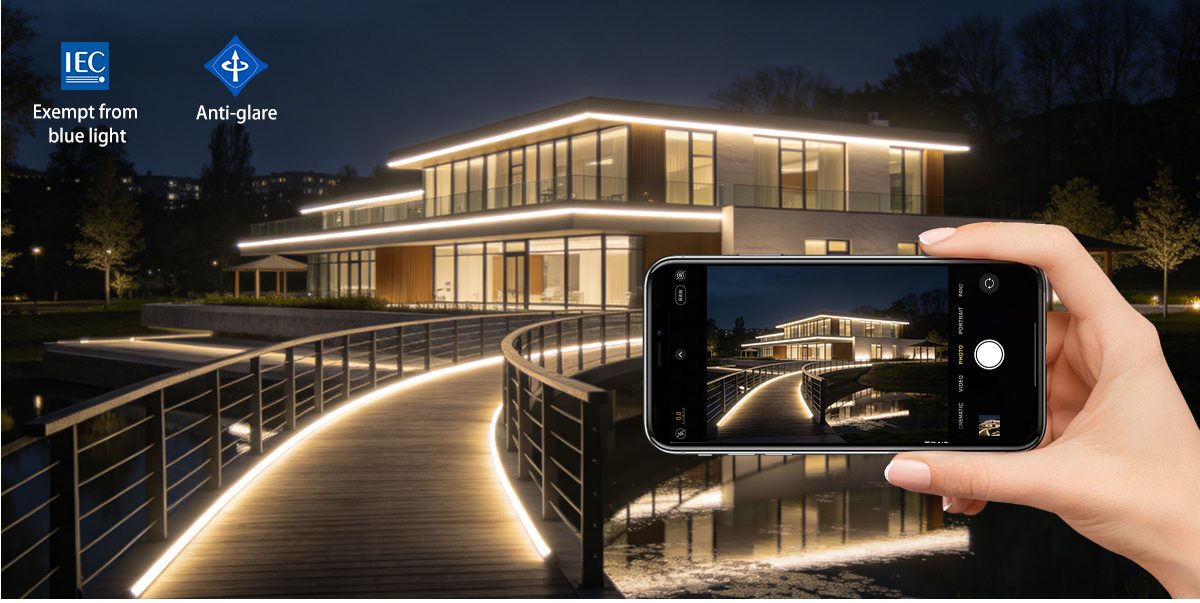

Spot-Free Lighting

Featuring high-efficiency LEDs arranged at a high density of 120 per meter, the strip delivers ample brightness and stable light output. The high-voltage constant-current design ensures consistent brightness from end to end with no light decay; With uniform spacing between the LEDs and high-quality gel-based soft-lighting treatment, the strip produces no dark spots, glare, or graininess. The light output is continuous and soft, with natural transitions, resulting in a clean and translucent light band that combines high-brightness illumination with uniform ambient lighting to create a delicate and comfortable linear lighting experience.


高压2835-120D-产品优势_05

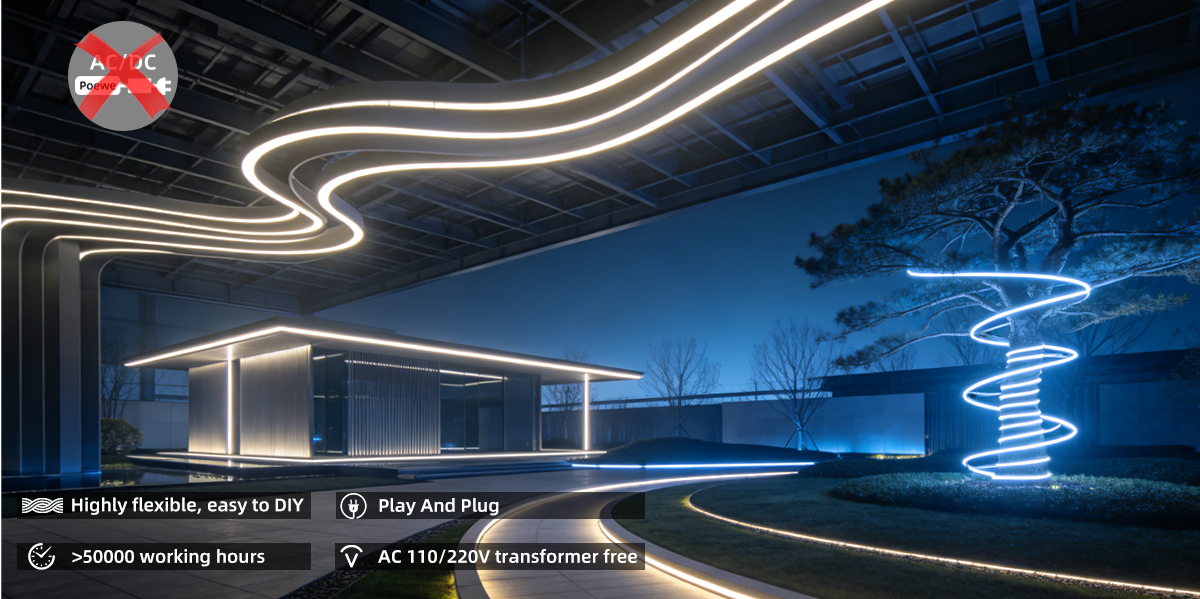

Highly flexible and easy to shape

Features flexible FPC substrates and high-tensile sleeves for easy bending and adaptation to curved, angled, and diverse shapes, offering strong DIY potential. High-voltage power supply maintains voltage stability over 30–50 meters without voltage drop, enabling free wiring and ideal for long-distance continuous lighting without intermediate power replenishment.


高压2835-120D-产品优势_11

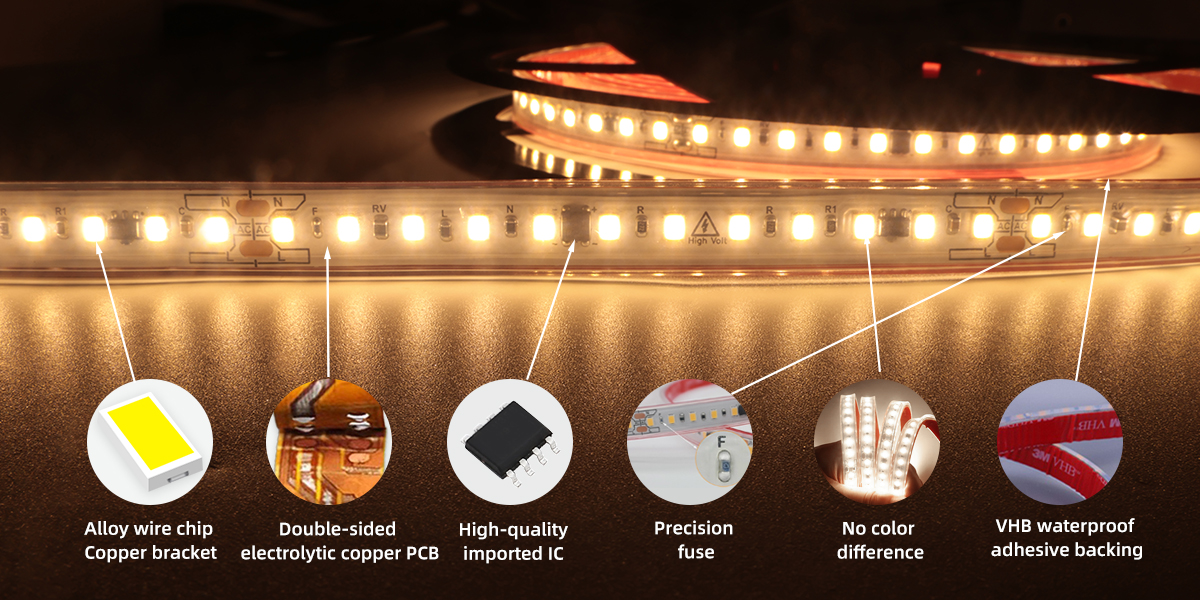

Safe and durable

Utilizing a double-sided copper-clad laminate process, combined with thickened pure copper conductors and a reinforced, high-tensile-strength flexible FPC circuit board, this design ensures more stable electrical conductivity while significantly improving overall heat dissipation efficiency. It rapidly dissipates heat generated by the LED chips, effectively suppressing light decay and maintaining consistent brightness over time. Paired with high-quality, high-brightness chips, the light source delivers reliable performance with a lifespan of up to 50,000 hours, maintaining excellent luminous efficiency even after prolonged use. Both the product housing and internal components are made from flame-retardant, eco-friendly materials that offer excellent heat resistance and anti-aging properties. Combined with insulation protection and anti-electric shock safety features, the design provides comprehensive safeguards from the circuitry to the outer casing, significantly enhancing safety and durability. This makes it suitable for a wide range of long-term lighting applications, including home decoration and commercial projects.


高压120D

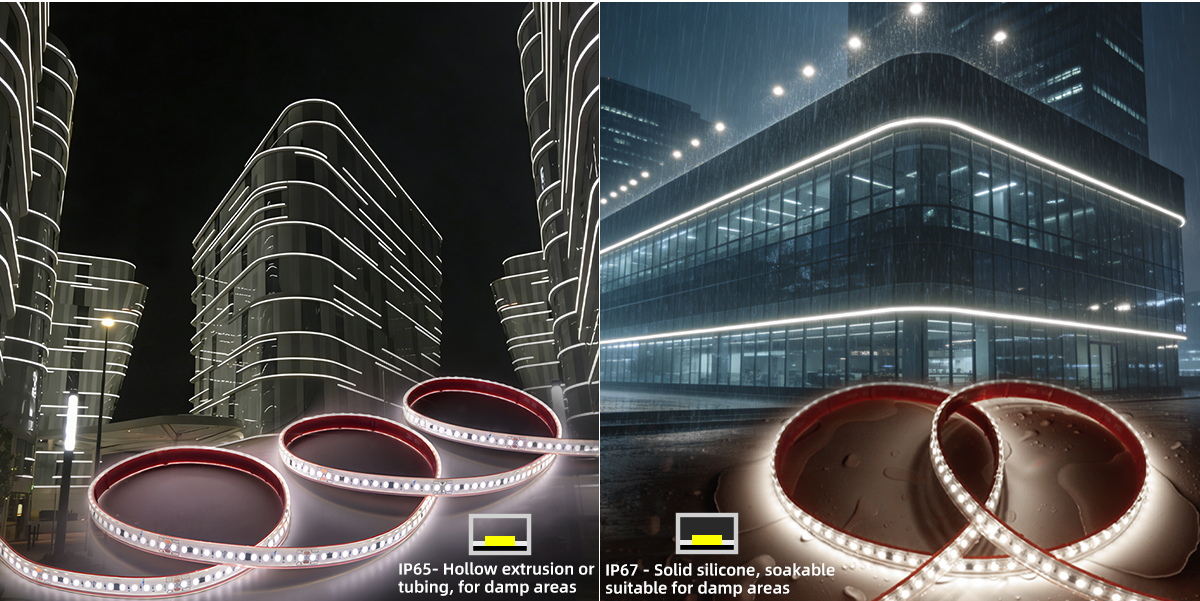

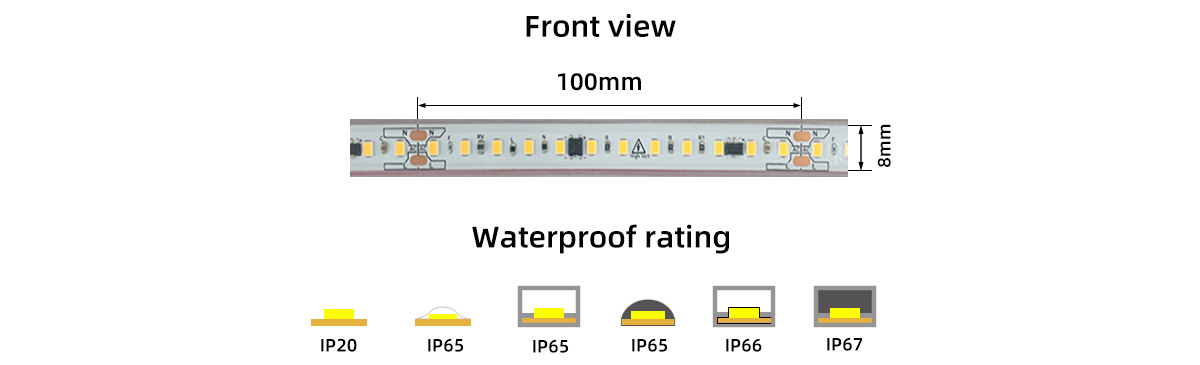

IP ratings are optional

Available with IP65/IP67-rated protection, these products effectively block the intrusion of rain, mist, and dust. They offer excellent moisture resistance, waterproofing, corrosion resistance, and UV resistance, ensuring they do not age, yellow, or crack over time. They are designed to withstand outdoor exposure to sun and rain, as well as the harsh conditions of complex environments. Whether in damp, enclosed spaces like bathrooms and kitchens, areas prone to moisture such as balconies and bay windows, or outdoor settings like open courtyards, garden landscapes, and exterior wall contours, these products operate stably and reliably. They remain unaffected by humidity, rain, and harsh weather, significantly expanding their range of applications and extending their service life.


高压2835-120D-产品优势_23

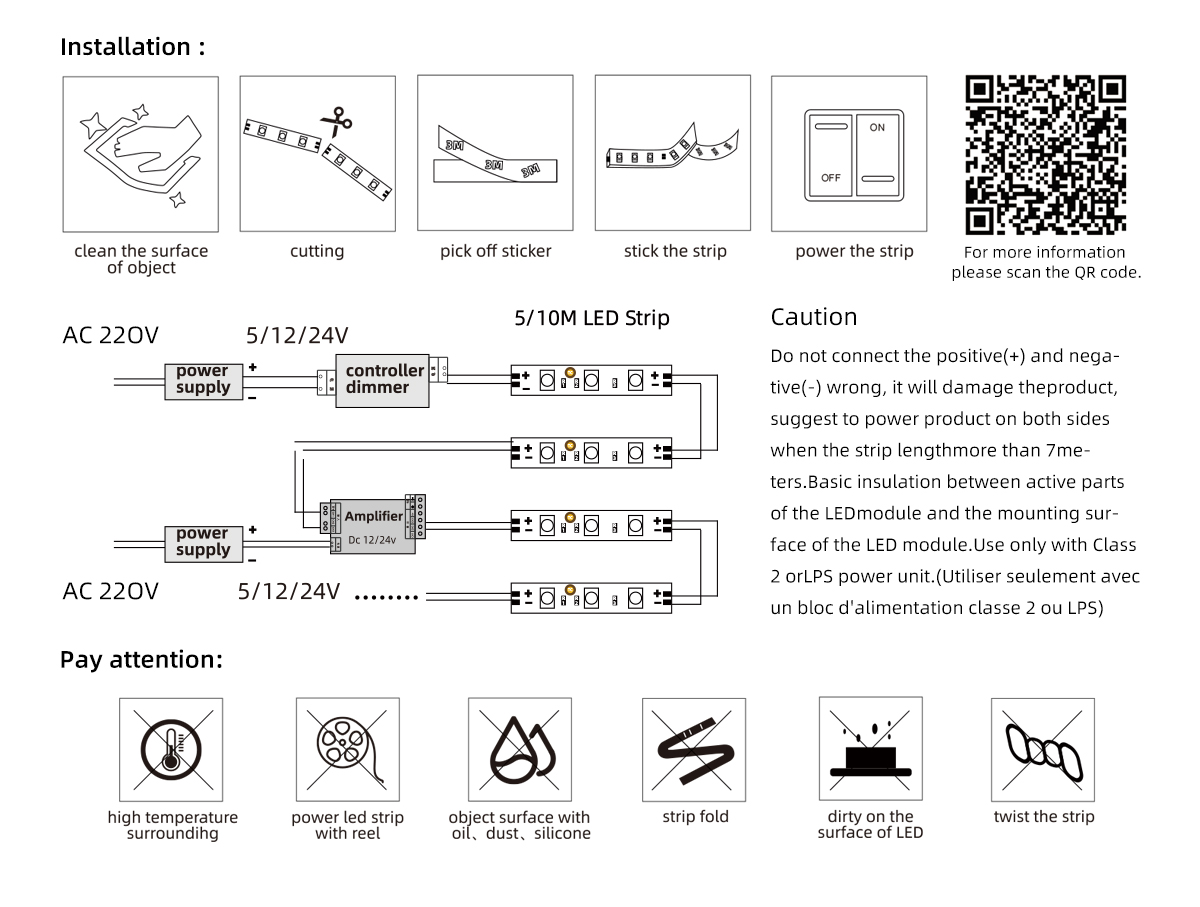

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
