Product Detail


-
20*14 Neon Strip
-
topledvision
20×14mm Silicone Tube Neon Flexible Strip Light
Product Description
20×14mm Silicone Tube Neon Flexible Strip Light is designed for professional architectural and decorative lighting applications, featuring a durable silicone housing, smooth continuous illumination, and excellent flexibility. With a large-size silicone tube structure, it provides uniform light output without visible LED dots, creating a premium neon lighting effect for both indoor and outdoor environments.
Light Strip Performance
Built with high-quality LED chips and a flexible silicone extrusion design, this neon strip light delivers stable brightness, excellent color consistency, and smooth linear illumination. The 20×14mm silicone tube structure provides enhanced light diffusion, eliminating dark spots and creating a seamless neon glow. Available in various color temperatures and RGB options to meet different lighting requirements.
Lighting Effect
Featuring a high-transmittance silicone diffuser, the strip produces soft, even, and dot-free lighting with a comfortable visual experience. The wide beam angle ensures excellent light coverage, making it ideal for creating decorative accents, contour lighting, and eye-catching visual effects in modern spaces.
Energy Saving & Long Lifespan
Using energy-efficient LED technology, this silicone neon flexible strip offers high luminous efficiency with low power consumption. Premium LED components provide excellent heat dissipation, reduced lumen depreciation, and long operational life, helping to lower maintenance costs while maintaining consistent lighting performance.
Protection Rating & Durability
The high-quality silicone tube provides excellent waterproof, dustproof, and weather-resistant protection. With optional IP65/IP67 protection ratings, it is suitable for humid, outdoor, and demanding environments. The UV-resistant and aging-resistant silicone material ensures long-term stability and reliable performance under various weather conditions.
Easy Installation
Designed with a flexible silicone body, the neon strip can be easily bent and shaped to fit different installation requirements. It supports customized lengths, cutting, and various mounting solutions, allowing quick and convenient installation on curved surfaces, edges, and complex structures.
Applications
The 20×14mm Silicone Tube Neon Flexible Strip Light is widely used for architectural facade lighting, building outlines, commercial signage, retail displays, hotel decoration, landscape lighting, indoor ambient lighting, bars, restaurants, and creative lighting projects. It is an ideal solution for designers and installers seeking a durable, flexible, and high-quality neon lighting effect.

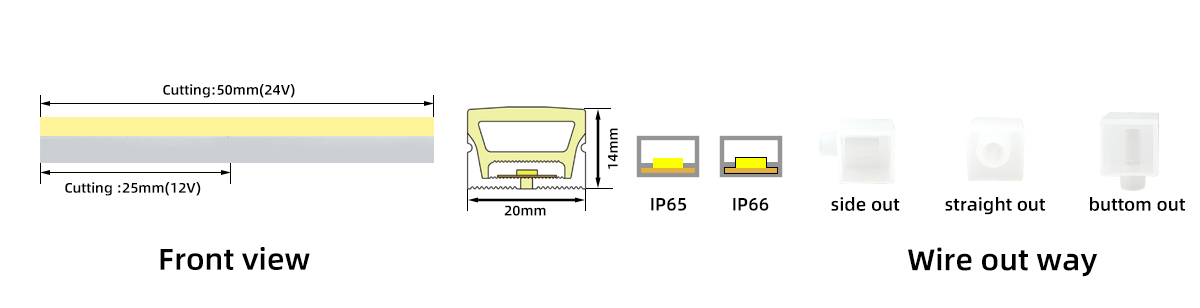

Technical Parameters
lighting Effect | Dot free | lighting way | Top lit |
Color Temperature | 1800-10000K, RGB, RGBW | Support Dimmer | Yes |

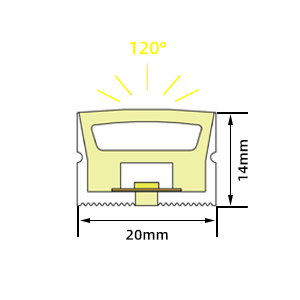

Dimension | W20*H10mm | Lifespan | >50000h |
Lamp Body Material | Meteorological silicone gel | Working Temperature | -20-65°C |
Input Voltage | 110/220V | Certification | Emc, RoHS, CE, FCC, LVD |
Luminous Efficiency | 70-80lm/w | Packing | 5/10/20/50/100m/Roll |
Power | 12/14/16W/M |


Standardized, plug-and-play accessories significantly reduce commissioning time.
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional people to do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.









Caution:
Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.
Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon | causes | solution |
whole strip not working | 1、positive(+) and negative(-)Connection wrong. 2, input voltage too low. 3, Power supply failure . | (1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt. |
whole strip with slight brightness and few sections bright | 1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around . | (1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated |
led strip Color difference | 1, something fall on the surface of LED. | (1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.) |
one section or few sections failure or color missing | 1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out. | (1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit. |
the brightess is big difference between the front and the end | 1, the strip length is too long make voltage drop. | (1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters |
strip fall off from the object | 1、the object with paint, dust and silicone will make the tape sticky weak | (1)suggest to clean the surface of object before stick the strip. |
led strip white color turn blue color | 1, the fluorescent glue of led are corroded by something. | (1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur. |
