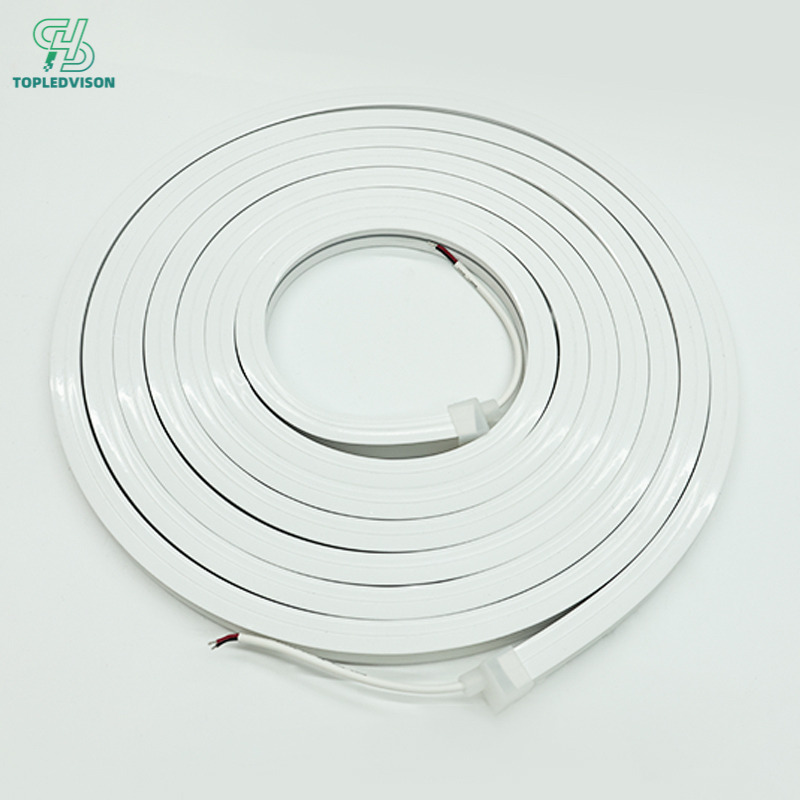

16×16 mm Flexible LED Neon Strip

Neon Strip: Features high-quality flexible 2835 LED strips; high brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install. Available color temperatures range from 1800–10000K, with a Color Rendering Index (CRI) of Ra ≥ 80. with premium versions reaching Ra90/Ra95; RGB/RGBW options are also available.

Neon Tube: The 16×16 neon tube is made of high-quality, eco-friendly silicone. Its features include high light transmittance, high luminous efficacy, resistance to yellowing, excellent tensile strength, UV resistance, and a V0 flame retardant rating, ensuring superior fire safety.

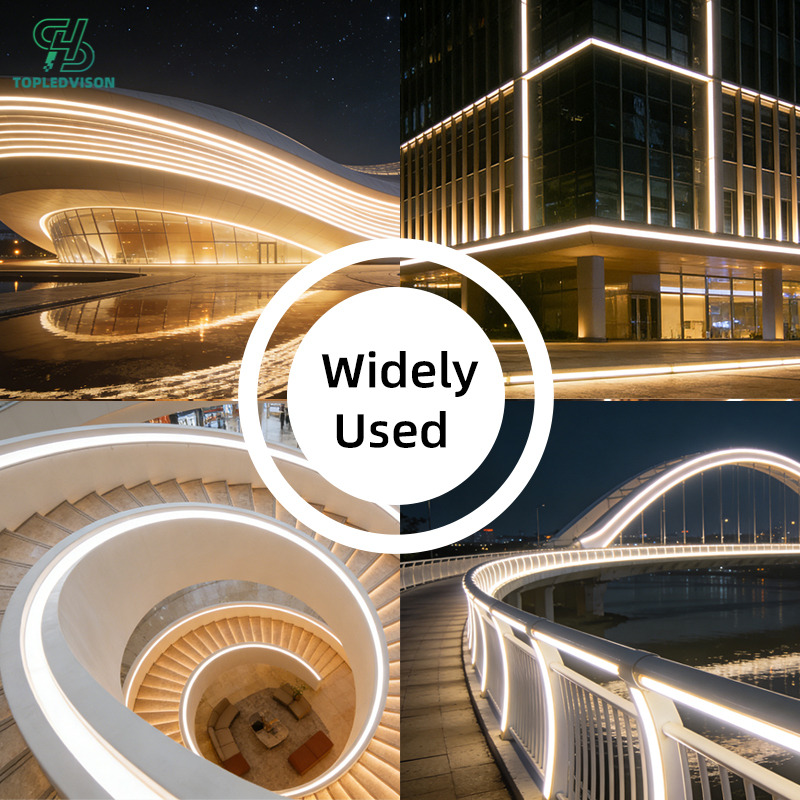

Lighting Effects: Front-lit with soft illumination; glare-free and flicker-free; highly flexible, suitable for indoor and outdoor lighting applications such as hotels, KTV venues, bars, staircases, building facade outlines, and architectural accent lighting.

Protection Rating: Integrated silicone extrusion molding; IP65/IP66 rated for use in indoor and outdoor humid environments, including outdoor exposure to rain and acid/alkali corrosion.

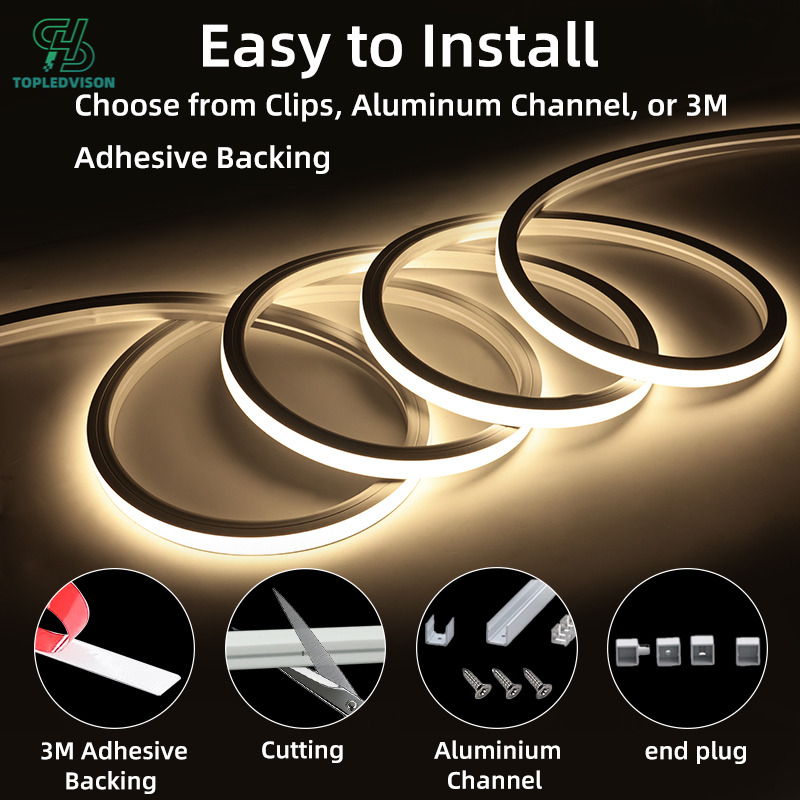

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; supports vertical and horizontal bending to accommodate curved, corner, and three-dimensional designs; connectors and end caps are fully sealed.

Applications of 16x16 Neon Lights: Indoor: Ambient lighting for restaurant and bubble tea shop walls, as well as corridor illumination; Outdoor: Landscape lighting for parks and plazas, and illumination for guardrails and bridges.

Technical Parameters

lighting Effect	Dot free	lighting way	Front-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes

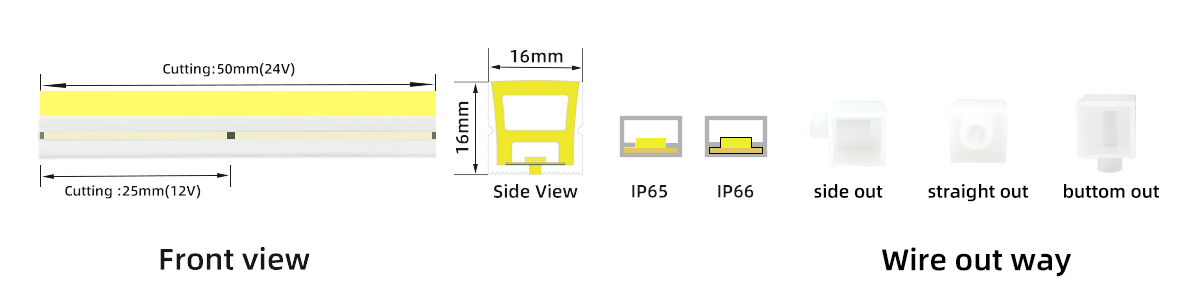

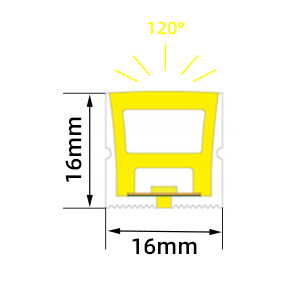

Dimension	W16*H16mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/Roll
Power	10/12 /14/16W/M

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

High Brightness and High CRI

The 16×16mm neon light strip features a high Color Rendering Index (CRI) of ≥90, accurately reproducing the true colors of objects. Its soft, natural light delivers a delicate, lifelike, and richly layered visual effect—whether for general lighting, interior decoration, or accent lighting—balancing brightness with texture to meet high-quality lighting requirements.

新版详情页_05

Highly Flexible

16×16mm neon light strip, made from flexible, eco-friendly silicone material, is soft to the touch and safe and environmentally friendly. The strip offers excellent flexibility, allowing it to be bent vertically or horizontally to easily create a variety of creative shapes—such as circles, arcs, and waves—making it highly adaptable. Whether for creating ambiance in home decor, designing commercial signage, or enhancing landscape lighting and artistic decorations, it perfectly suits the diverse styling and installation needs of various settings.

新版详情页_11

Safety and Energy Efficiency

Powered by 12V/24V DC low-voltage supply, these lights exhibit minimal lumen depreciation and maintain bright, stable illumination even after prolonged use. While ensuring exceptional lighting performance, the product features built-in multi-level safety protection, including overvoltage protection, overcurrent protection, and short-circuit protection. They are suitable for a wide range of applications, including interior design, outdoor lighting, commercial decoration, and landscape lighting.

新版详情页_17

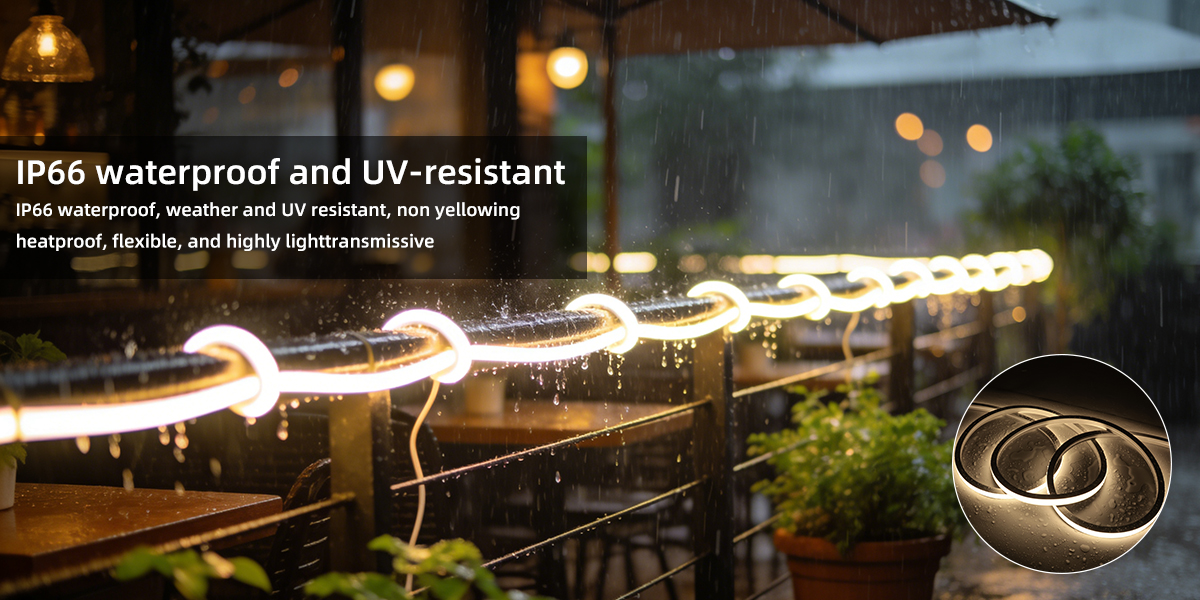

Exceptional waterproof performance

Features IP65 or IP66 waterproofing. Its waterproof design makes it suitable not only for indoor environments with high humidity, such as bathrooms, kitchens, and balconies, but also for outdoor areas prone to water exposure, such as garden lighting and landscape decoration.

1616霓虹防水

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimentation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity,and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、 the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
