1616 Colorful Neon Strip Light 16×16mm-5m (NEON STRIP SERIES )

Feature / Warranty

Spot-Free Lighting
Highly Flexible
Safety and Energy Efficiency
Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

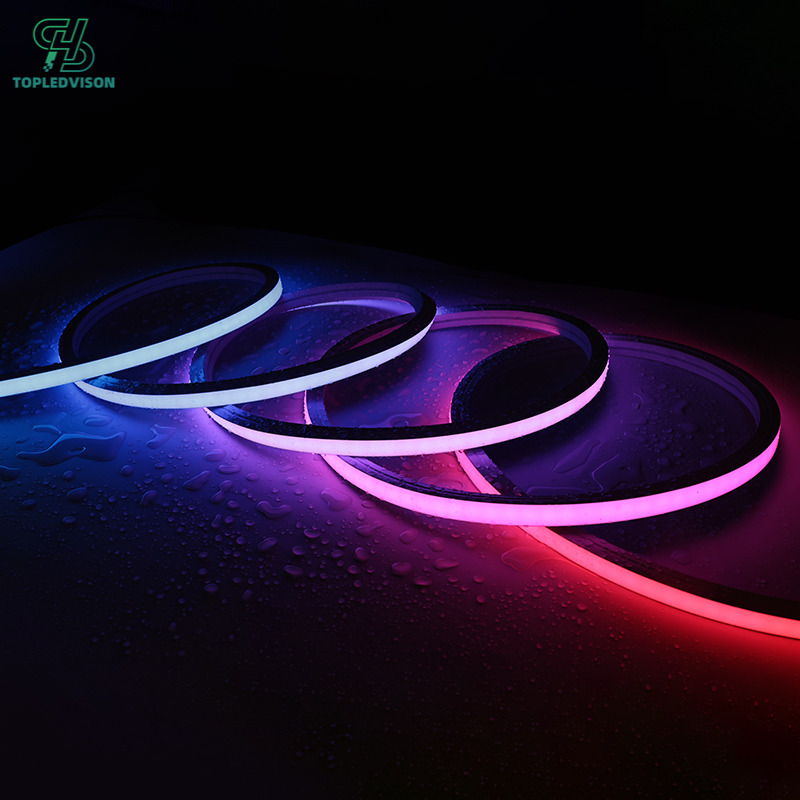

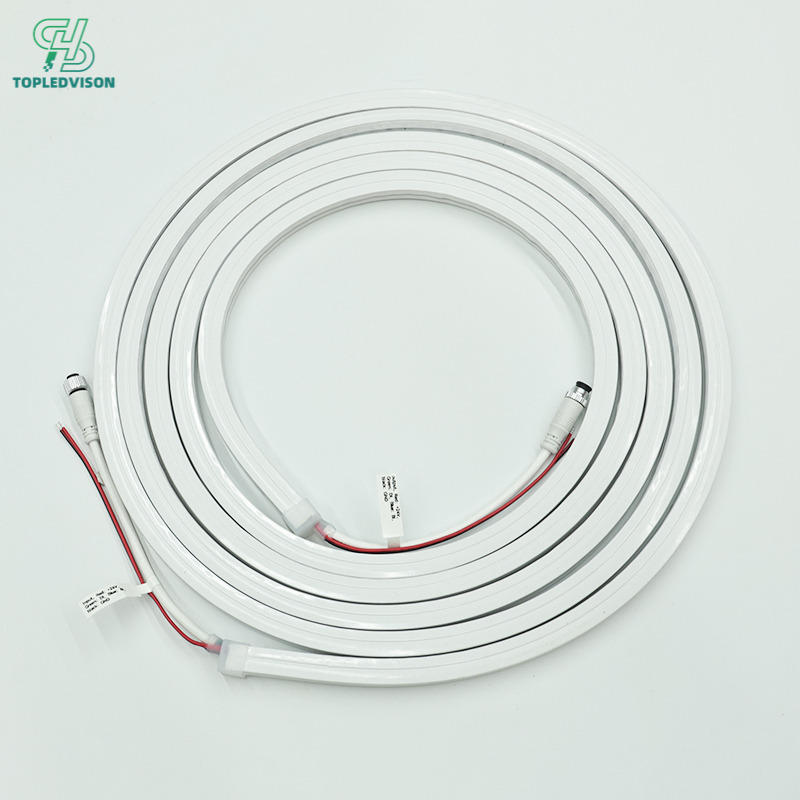

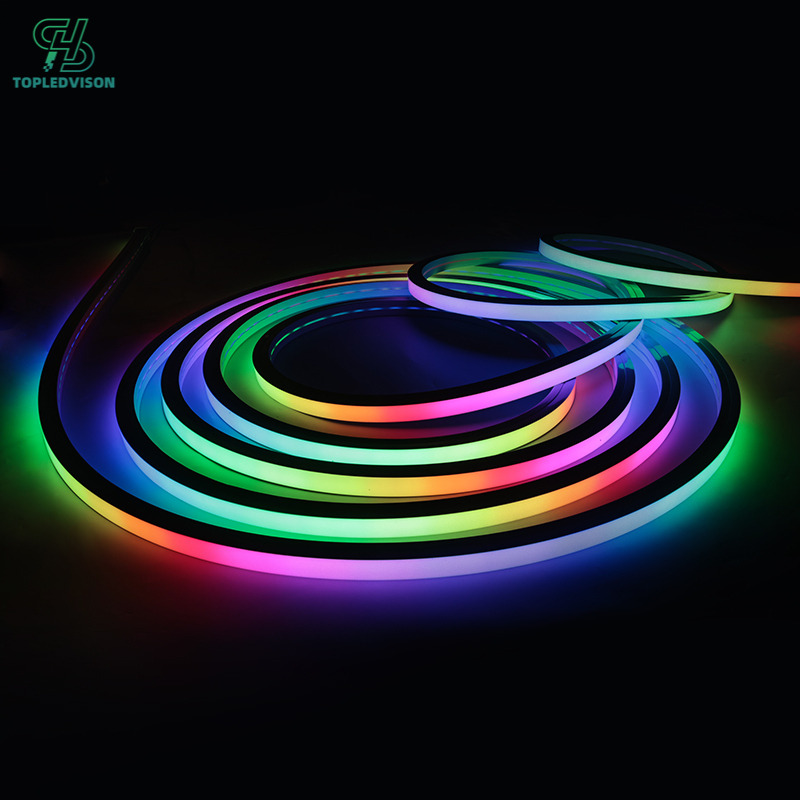

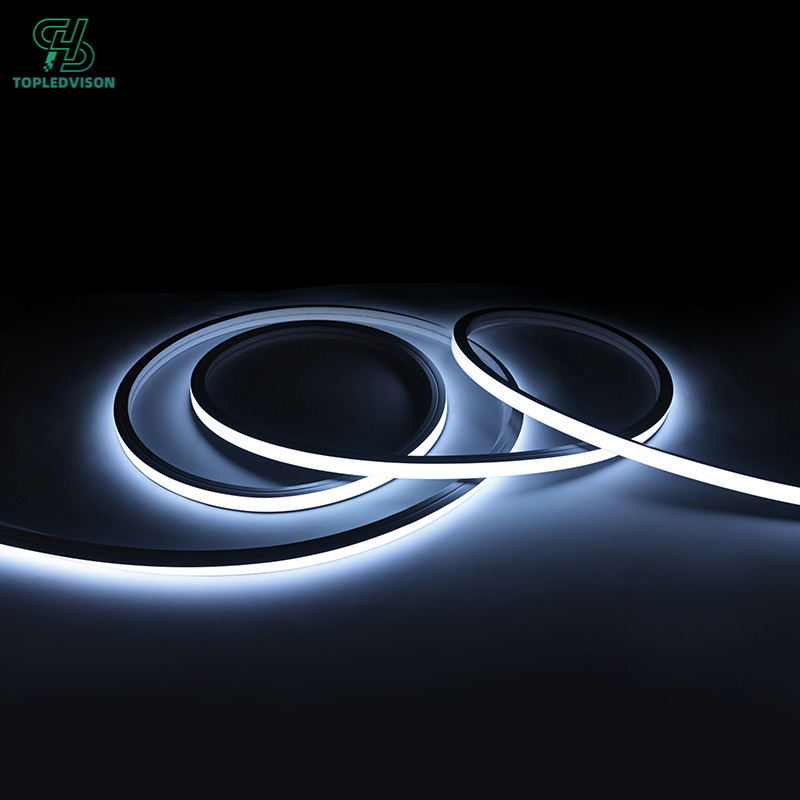

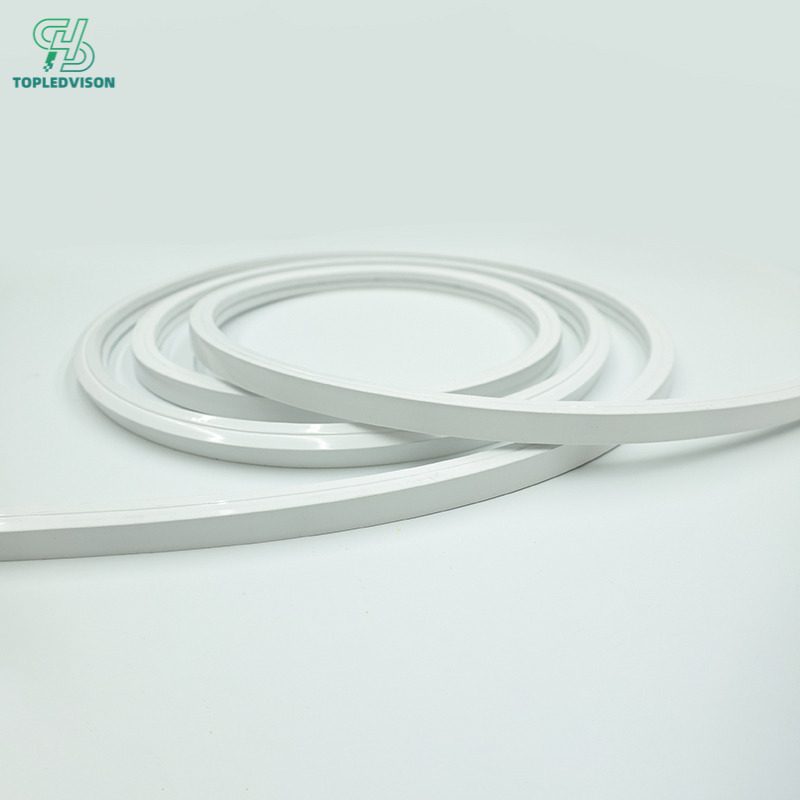

16×16 mm Flexible RGB LED Neon Strip

Product Features: Made with high-quality flexible SPI LED strips; 12V/24V DC low-voltage operation, high brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install. Supports mainstream protocols such as WS2811, WS2812B, and TM512, enabling dynamic effects including per-pixel addressing, full RGB color, color fading, running lights, chasing effects, and flashing.

Neon Tubes: The 16×16 multicolor neon tubes are made of high-quality, eco-friendly silicone. Their features include high light transmittance, high luminous efficiency, UV resistance, yellowing resistance, aging resistance, high and low temperature resistance, high flexibility, and UV protection. They also meet the V0 flame retardant rating, ensuring excellent fire-retardant performance.

Lighting Effects: Front-lit with uniform, soft illumination; no light spots or flicker; no graininess. Suitable for indoor and outdoor lighting applications such as living room/bedroom accent walls, and ambiance lighting in bars and KTV venues.

Protection Rating: IP65/IP66, suitable for indoor and outdoor humid environments, including outdoor exposure to rain and acid/alkali corrosion.

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; highly flexible; supports vertical and horizontal bending, suitable for curved, corner, and three-dimensional designs; connectors and end caps are fully sealed.

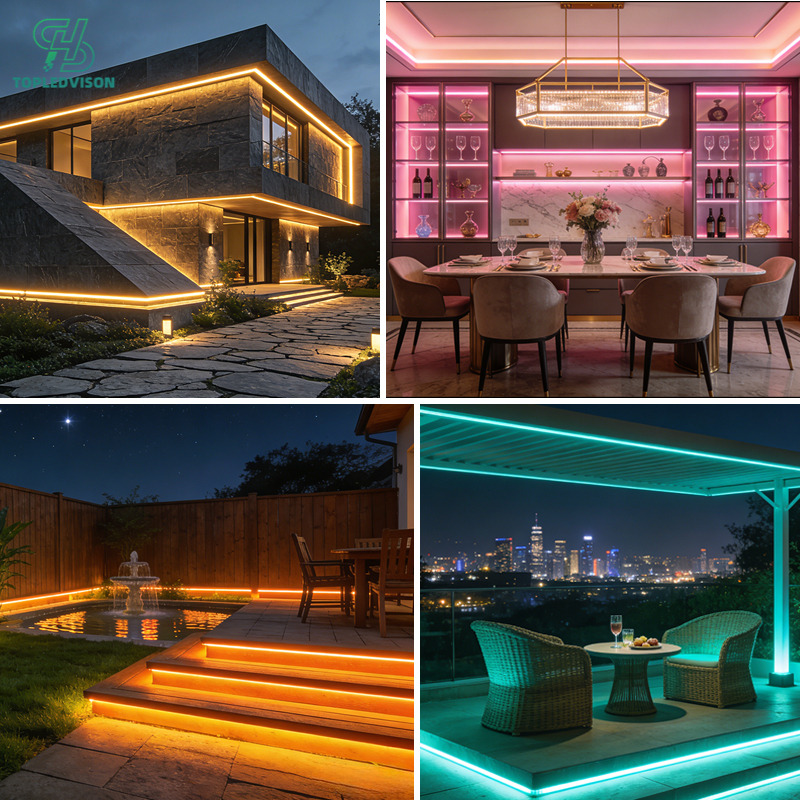

Applications of 16x16 Color-Changing Neon Lights: Parks, exhibitions, weddings, holiday art installations, bridges, and building illuminations.

lighting Effect	Dot free	lighting way	Front-lit
Colors	Whiite/RGB	Support Dimmer	Yes
Dimension	W16*H16mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
Compatible IC	WS2811/WS2812/TM512	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20Roll
Power	8/10/12 /14/16W/M

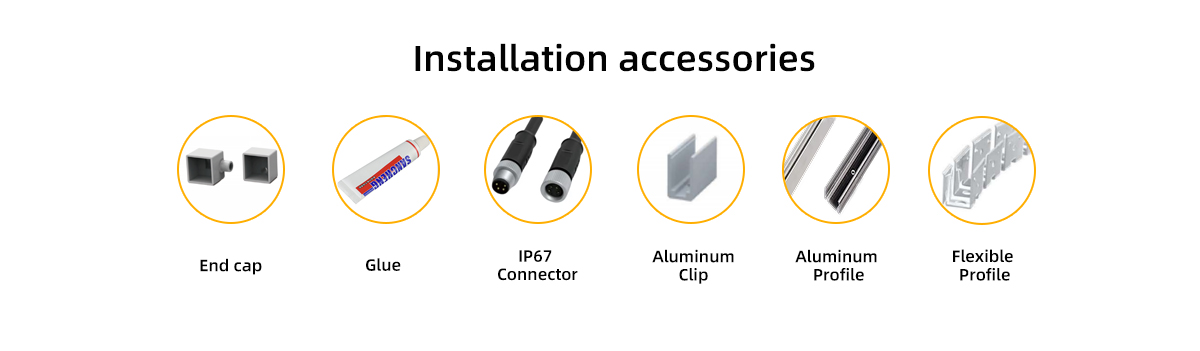

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

No light spots

Featuring high-density LED chips and a full-spectrum diffusion layer, combined with an integrated extrusion and sealing process, the light is fully diffused and blended. The result is a completely uniform light output with no visible LED dots, dark spots, or pixelation. Coupled with high-brightness light output, the light is bright yet non-glaring, offering a clear and rich illumination. Whether used for large-scale lighting, outdoor signage, or building outlines, it delivers crisp, standout results with consistent visual quality from both near and far.

1616-幻彩霓虹-新版详情页_05

Highly flexible free-form design

16×16 square neon tubes, compatible with vertical and horizontal bending, suitable for letters, curves, and irregular decorative shapes; feature a built-in anti-breakage design to reduce gasket fractures caused by stretching. Secured with standard clips, slots, or aluminum channels for a secure fit in straight, curved, and corner installations.

1616-幻彩霓虹-新版详情页_11

Rich in color - freely adjustable

Equipped with RGB/RGBW chips, it supports a full color gamut of 16 million colors, delivering natural and smooth color transitions without color shifts or discrepancies, and allowing for precise color adjustment based on specific scene requirements; Equipped with a built-in independent IC controller (enabling pixel-level dynamic programming), it offers a variety of dynamic modes including running text, flowing light, breathing, chasing, strobe, gradient, and custom patterns. It supports multi-light synchronization, delivering smooth, lag-free dynamic effects to meet diverse dynamic lighting needs for architectural lighting projects and commercial decorations.

1616-幻彩霓虹-新版详情页_14

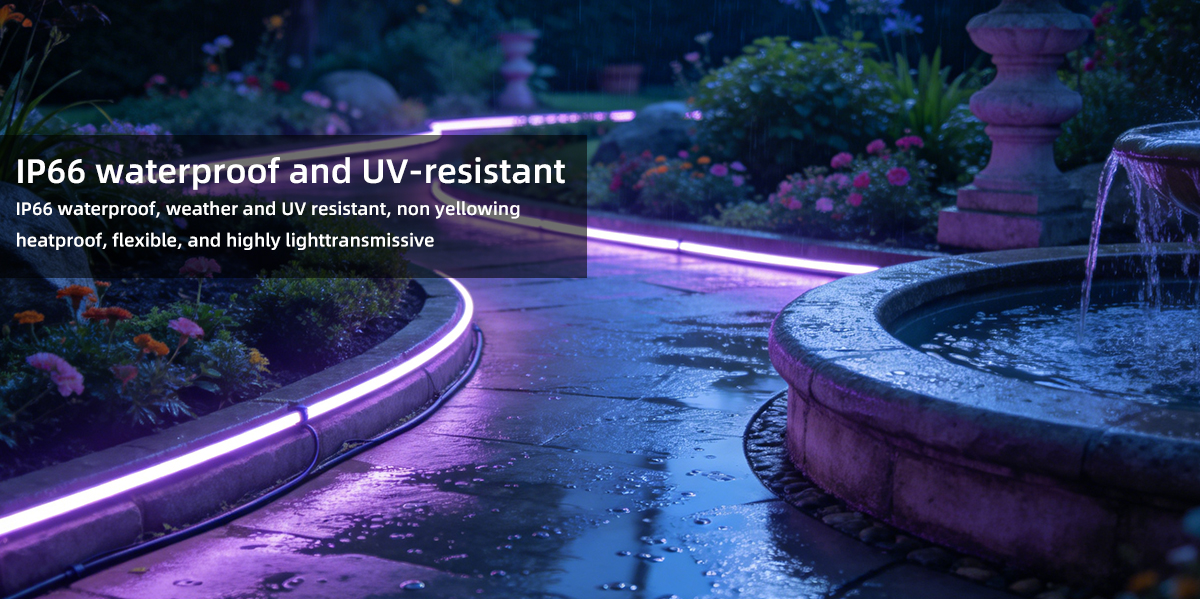

Exceptional waterproof performance

Featuring a one-piece silicone enclosure that meets IP65/IP66 water and dust resistance ratings, it can withstand outdoor conditions such as water spray and immersion. Made from high-UV-resistant silicone, it operates within a temperature range of -20°C to +60°C and offers resistance to UV radiation, yellowing, and salt fog, making it ideal for long-term use in outdoor landscape lighting and building illumination applications.

1616幻彩霓虹防水

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
