10×23mm Flexible LED Neon Strip

Product Specifications

The 10×23mm Flexible LED Neon Strip features high-quality 2835 LED chips with a large light-emitting surface, delivering smooth, uniform, and dot-free illumination without dark areas or hotspots. The side-emitting design recreates the classic neon tube appearance, providing seamless lighting even through bends, curves, and complex shapes.

Powered by DC12V/24V low voltage, this 1023 Flexible Neon LED Strip offers high brightness, excellent color consistency, stable performance, and long service life. Available with CRI Ra80/Ra90/Ra95, color temperatures from 1800K to 10000K, and optional RGB/RGBW versions for customized lighting effects.

Premium Silicone Neon Tube Design

The 10×23mm LED Neon Flex Strip uses high-quality eco-friendly silicone extrusion with excellent light transmission and flexibility. The silicone housing provides strong resistance against yellowing, UV exposure, aging, and temperature changes.

With a V0 flame-retardant rating, the Silicone Neon LED Strip delivers enhanced safety and durability for commercial, architectural, and decorative lighting projects.

Smooth Neon Lighting Effect

Featuring advanced silicone light diffusion technology and a 180° wide beam angle, this LED Neon Flex Strip produces soft, continuous, and glare-free illumination. The optimized optical design eliminates visible LED dots, light gaps, and brightness variations at corners or bends.

The high CRI light source ensures vibrant, accurate colors with rich and translucent lighting effects, perfectly recreating the premium three-dimensional appearance of traditional neon lighting. Suitable for both functional lighting and high-end ambient decoration.

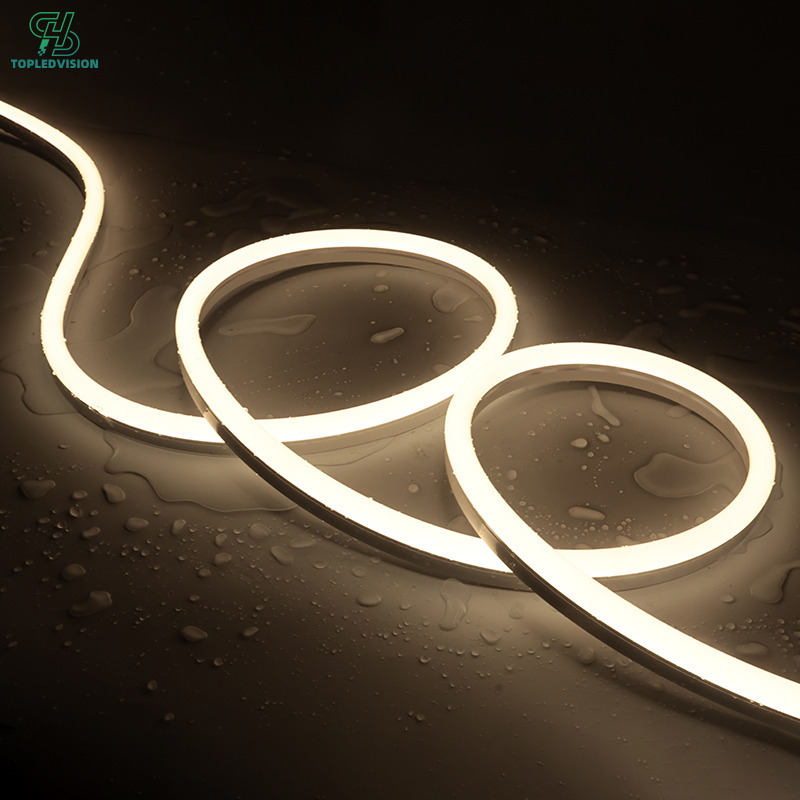

Waterproof & Outdoor Durability

The 10×23mm Silicone Neon LED Strip features a fully sealed silicone structure with IP65/IP66 waterproof protection, providing excellent resistance against water, dust, moisture, UV rays, and corrosion.

Operating reliably from -20°C to 65°C, it withstands rain, humidity, sunlight, and harsh outdoor environments without cracking, fading, or performance loss. Ideal for both indoor and outdoor applications.

Flexible & Easy Installation

Designed for easy installation, the 10×23mm LED Neon Flex Strip supports flexible bending, coiling, and custom shaping for irregular designs, curved surfaces, and creative neon outlines.

Compatible with aluminum mounting profiles, flexible clips, and adhesive backing, it allows quick installation on walls, ceilings, cabinets, facades, and decorative structures. Sealed connectors and end caps provide additional protection for long-term reliability.

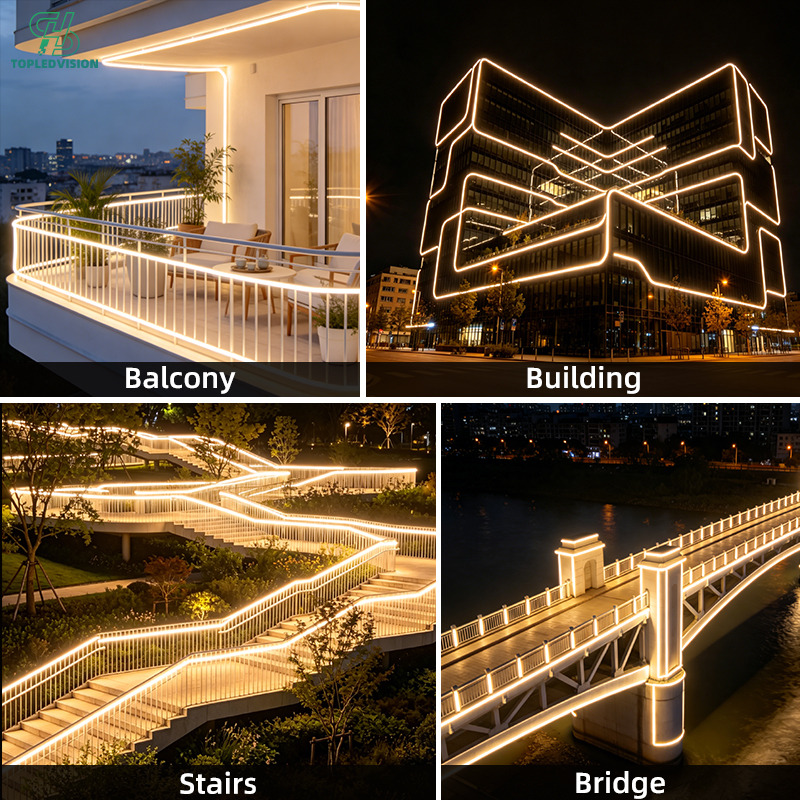

Applications

The 1023 Flexible Neon LED Strip is widely used for:

Building facade outline lighting
Bridge and architectural lighting
Landscape and garden decoration
Retail display and showcase lighting
Hotel lobby ambient lighting
KTV and entertainment venue decoration
Gaming room lighting
Bar atmosphere lighting
Staircase and balcony lighting
Custom neon signs and creative installations

Technical Parameters

lighting Effect	Dot free	lighting way	side lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W10*H23mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65°C
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50/100m/Roll
Power	8/9/10/12/14/16W/M

Standardized, plug-and-play accessories significantly reduce commissioning time.
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional people to do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

No Dark Areas & Seamless Neon Glow

The 10×23mm LED Neon Flex Strip features an integrated silicone light-diffusing design that delivers smooth, uniform, and dot-free illumination. It eliminates LED hotspots, dark areas, and uneven brightness, creating a seamless neon lighting effect with soft and natural light transitions.

With excellent light consistency for straight runs, curves, custom shapes, and long-distance installations, this 1023 Flexible Neon LED Strip provides a premium neon glow for LED signage, architectural lighting, commercial decoration, and ambient lighting applications.

1023霓虹产品优势1

High CRI & True Color Rendering

The 10×23mm LED Neon Flex Strip features high-quality LEDs with CRI ≥90, delivering natural, accurate, and vibrant color reproduction. The high color rendering performance ensures objects appear with true colors, rich details, and smooth light transitions without color distortion.

With soft warm white, clear cool white, and vivid color options, this 1023 Flexible Neon LED Strip creates premium lighting effects for outdoor signage, architectural lighting, landscape lighting, commercial decoration, and indoor ambient lighting applications.

1023霓虹产品优势2

Flexible Design & Easy Installation

The 10×23mm LED Neon Flex Strip features a highly flexible silicone body that can be easily bent, curved, and shaped for various designs, including arcs, corners, and custom patterns. The 1023 Flexible Neon LED Strip supports precise cutting and customizable lengths for efficient installation with minimal material waste.

Compatible with mounting clips and aluminum profiles, this Silicone Neon LED Strip can be quickly installed on walls, cabinets, ceilings, building facades, and other surfaces. Ideal for architectural lighting, decorative lighting, signage, and commercial lighting projects.

1023霓虹产品优势3

IP66 Waterproof & Outdoor Durable

The 10×23mm LED Neon Flex Strip features a fully sealed, one-piece silicone extrusion design with IP66 waterproof protection, effectively preventing water, dust, moisture, and outdoor elements. The durable silicone LED Neon Strip offers excellent resistance to UV rays, aging, yellowing, and temperature changes, ensuring reliable performance in harsh environments.

Designed for both indoor and outdoor applications, the 1023 Flexible Neon LED Strip maintains stable brightness and long-lasting durability in rain, humidity, coastal conditions, and extreme weather. Ideal for outdoor signage, architectural lighting, landscape lighting, building facades, and decorative lighting projects.

1023霓虹产品优势4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative(-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section or few sections failure or color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white color turn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
