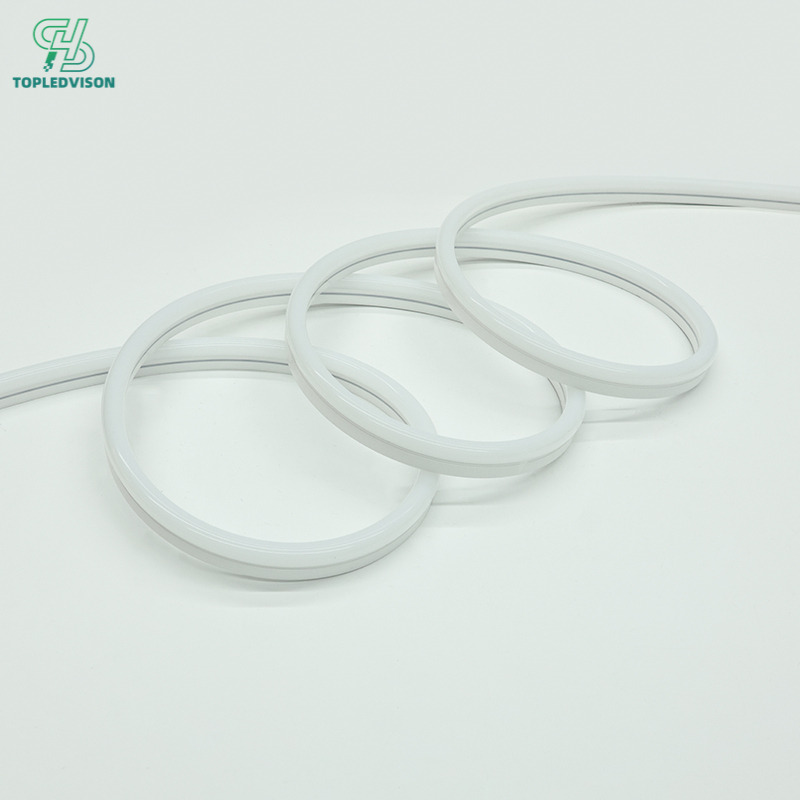

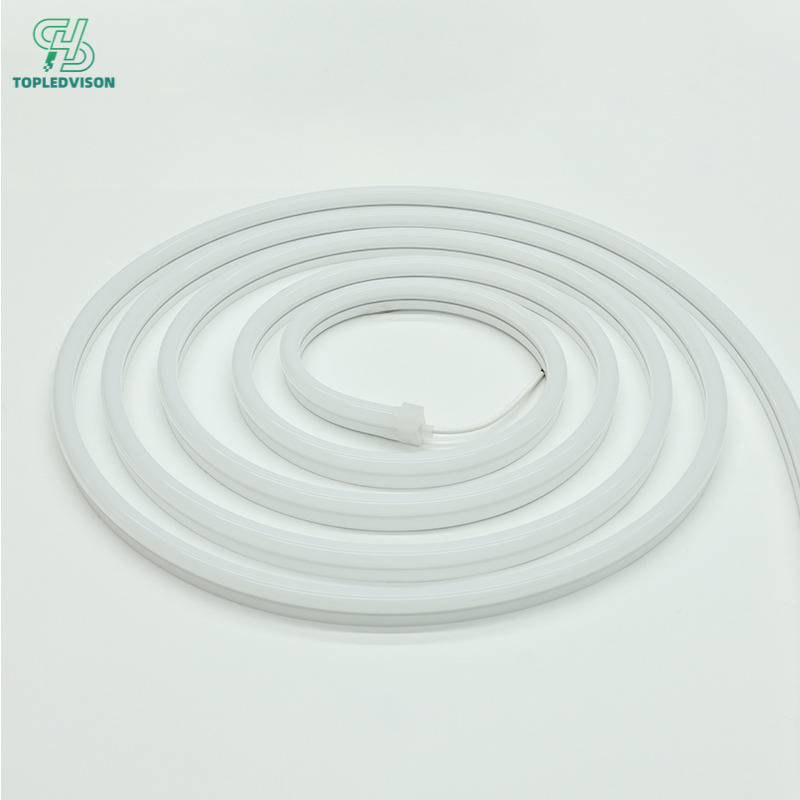

10×23mm Flexible LED Neon Strip
Neon Strip Specifications: Features high-quality flexible 2835 LED strips; the 10×23mm design provides a larger light-emitting area and more uniform light distribution, with no dark spots or hot spots. The light emits laterally, replicating the texture of traditional neon tubes. There are no light spots or interruptions when bending or turning corners, making it suitable for complex shapes and large-scale, one-piece formed characters. Supports 12V/24VDC low-voltage operation; features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install. Color Rendering Index (CRI) Ra80/90/95; color temperature range from 1800K to 10000K, available in both RGB and RGBW options.
Neon Tube: The 10×23mm flexible LED neon tube is made of high-quality, eco-friendly silicone. Its features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, and UV resistance, along with a V0 flame retardant rating, ensuring excellent fire safety performance.

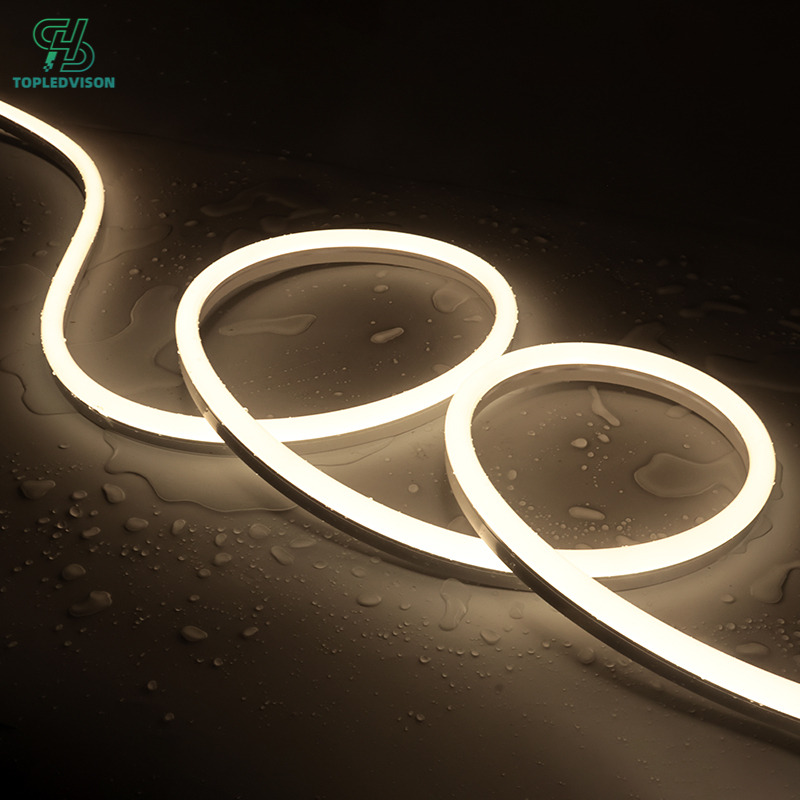

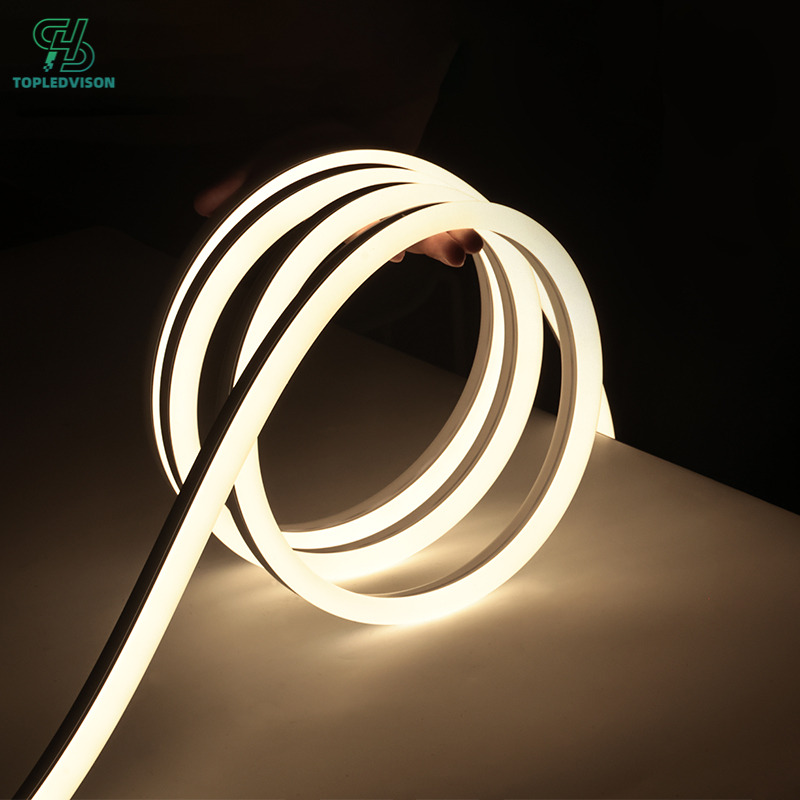

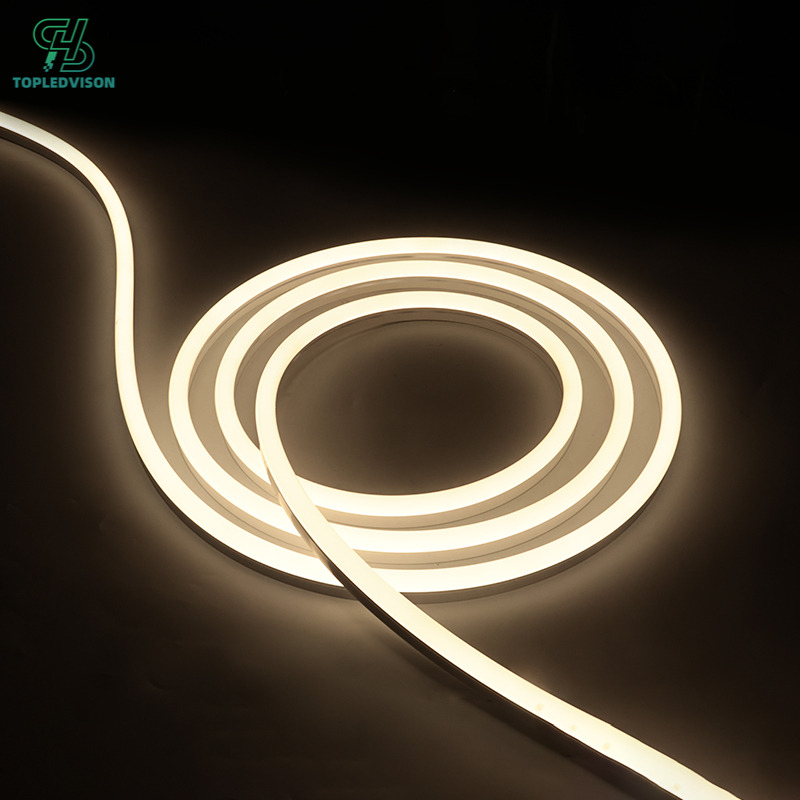

Lighting Effects: Featuring a silicone soft-light diffusion design, the light is soft and delicate, with no glare or speckled patterns. Combined with a 180° wide-angle beam, it provides uniform illumination and a wide coverage area; the high Color Rendering Index (CRI) light source delivers pure, saturated colors. There are no gaps or changes in brightness at bends or corners, ensuring stable, flicker-free lighting with low light decay. The overall lighting effect is rich and translucent, authentically recreating the three-dimensional texture of neon lights. It serves equally well as both general lighting and high-end ambient decoration.

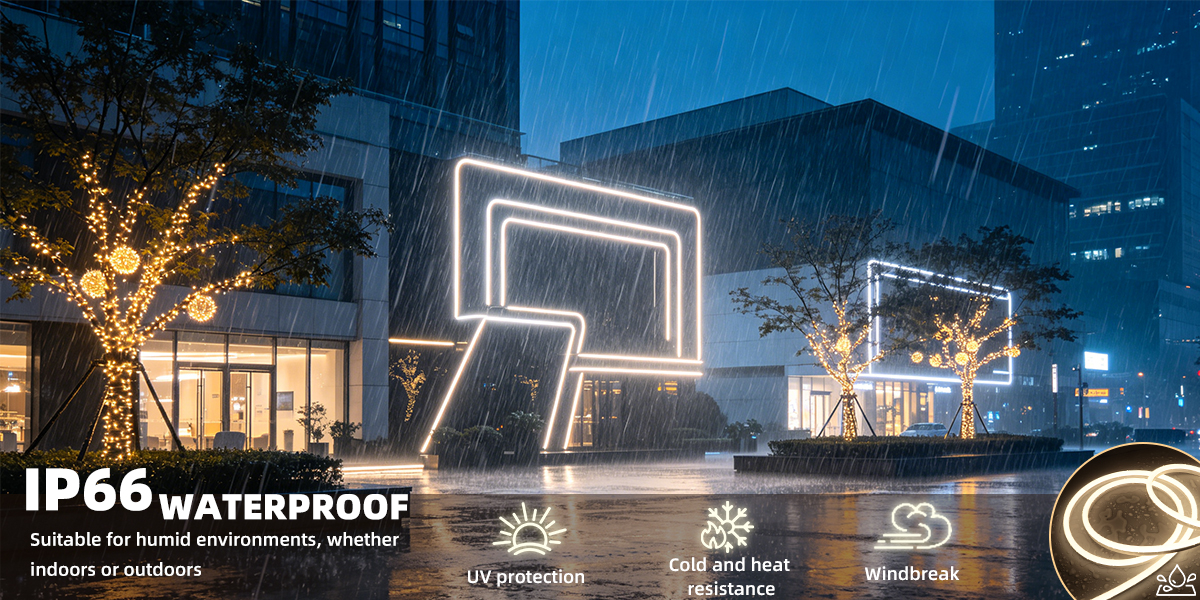

Protection Rating: IP65/IP66 fully sealed silicone construction. The silicone withstands temperatures ranging from -20°C to 65°C, is UV-resistant, and features waterproof, moisture-proof, and crack-resistant properties; suitable for indoor and outdoor humid environments, including exposure to rain and acid/alkali corrosion.
Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles/self-adhesive backing; simple wiring; the FPC flexible circuit board is bend-resistant, allowing for bending, coiling, and complex DIY shapes such as irregular forms, curved surfaces, and text outlines—crack-resistant and break-resistant; connectors and end caps feature a sealed design.

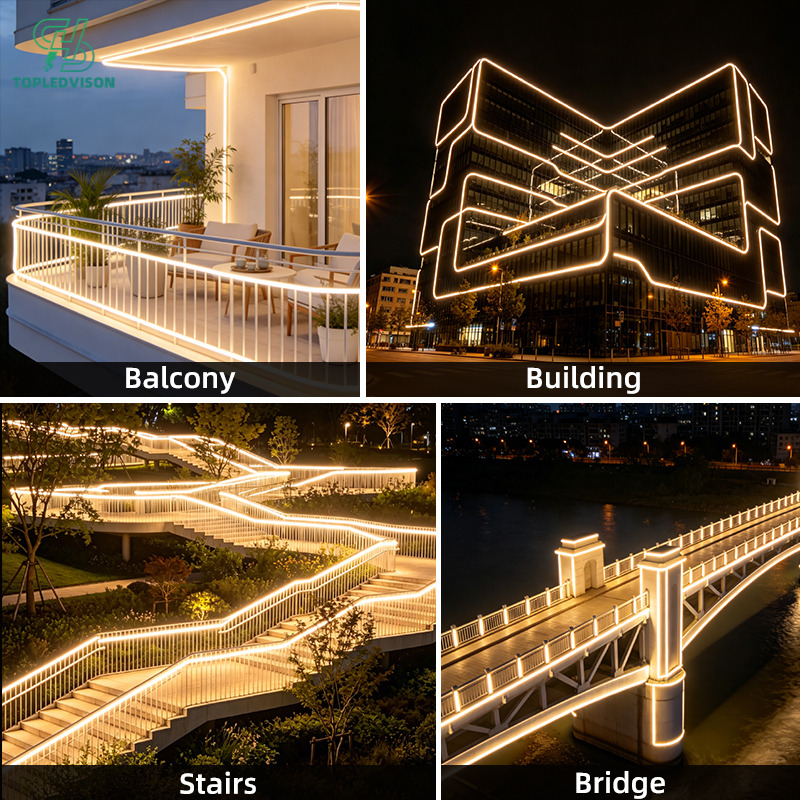

Application scenarios for the 10x23mm flexible LED neon strip: building outlines, bridges, landscape lighting, retail display cases, hotel lobbies, KTV venues, esports rooms, bar ambient lighting, staircases, and balconies.
Technical Parameters
lighting Effect | Dot free | lighting way | side lit |
Color Temperature | 1800-10000K, R0CB, RGBW | Support Dimmer | Yes |

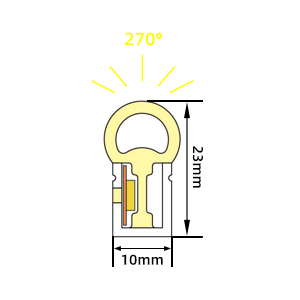

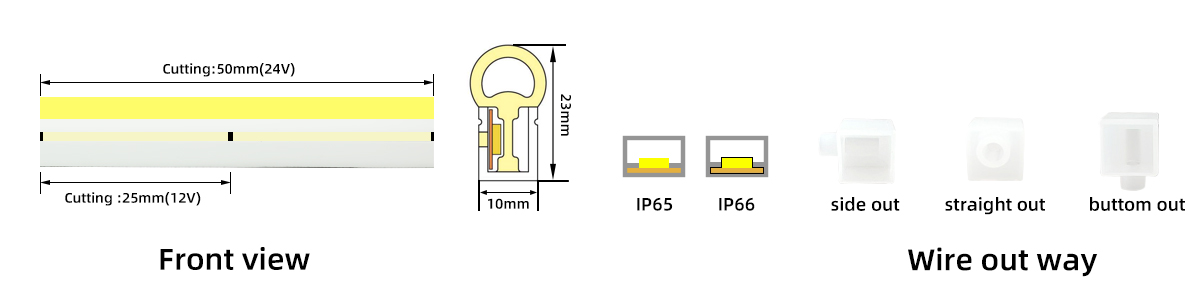

Dimension | W10*H23mm | Lifespan | >50000h |
Lamp Body Material | Meteorological silica gel | Working Temperature | -20-65°C |
Input Voltage | 5/12/24/48/110/220V | Certification | Emc, RoHS, CE, FCC, LVD |
Luminous Efficiency | 70-80lm/w | Packing | 5/10/20/50/100m/Roll |
Power | 8/9/10/12/14/16W/M |

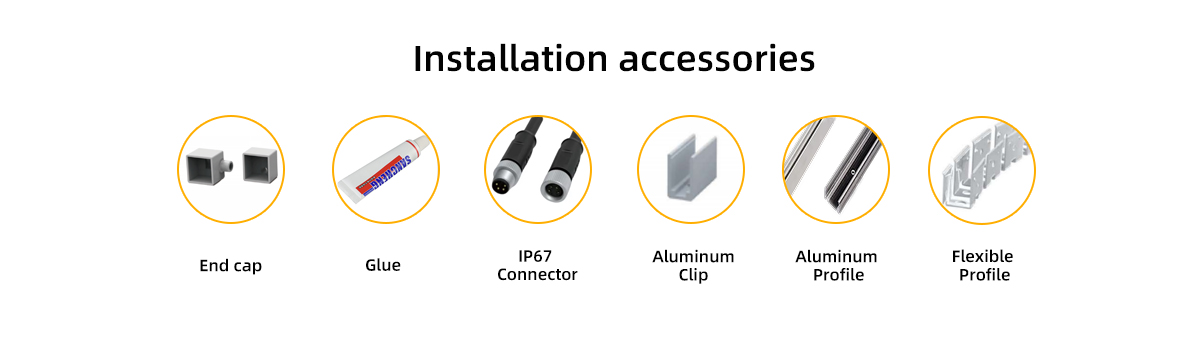

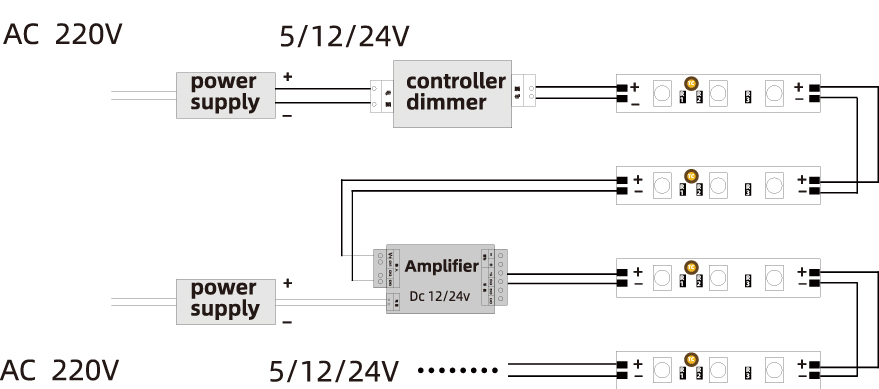

Standardized, plug-and-play accessories significantly reduce commissioning time.
The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

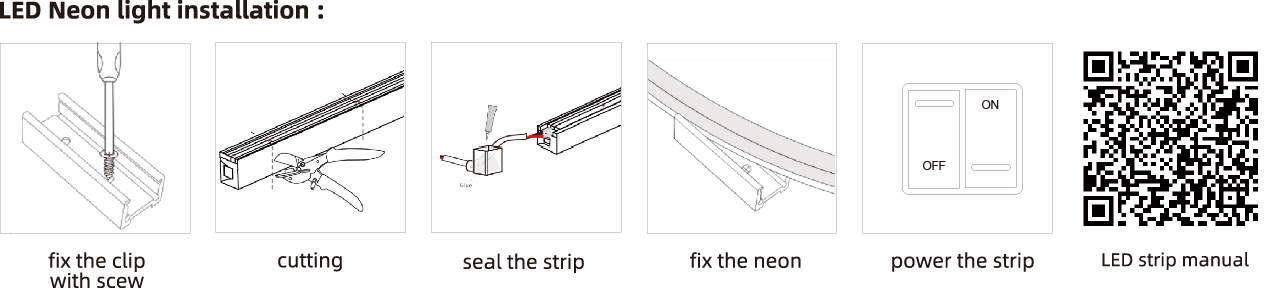

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.
Neon Strip Using Notice: we suggest the professional people to do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
