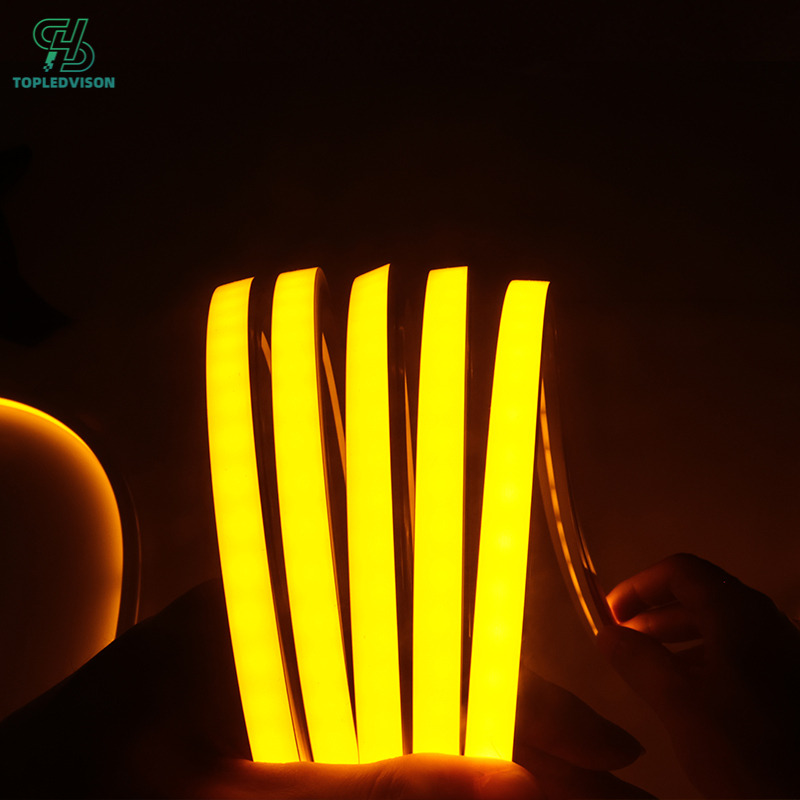

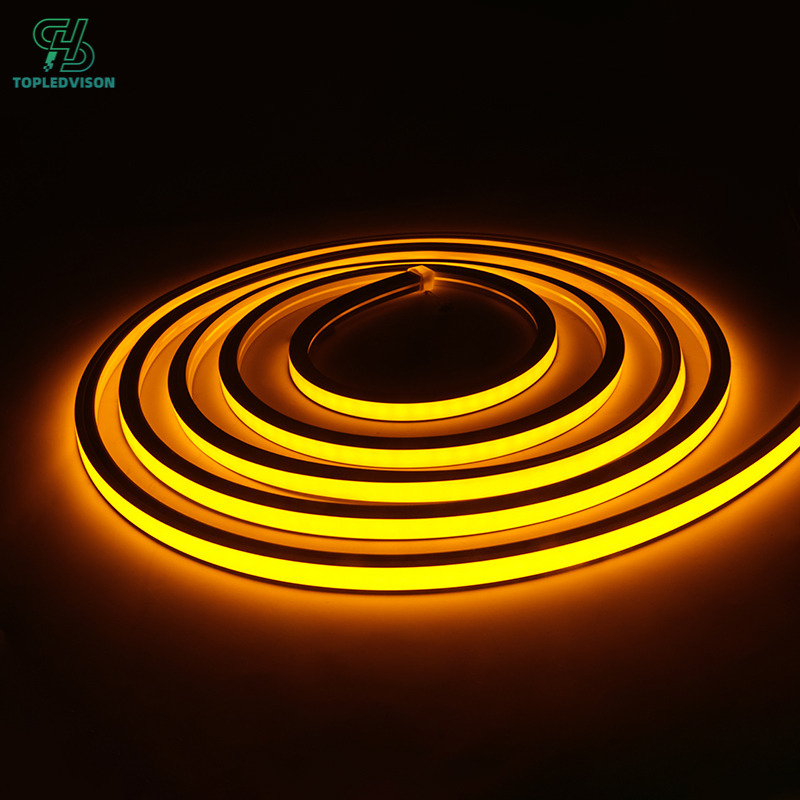

10×10 mm Flexible LED Neon Strip

Neon Strip Features: Made with high-quality flexible 2835 LED strips; 12V/24V DC low-voltage operation, high brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install. Color Rendering Index (CRI) Ra ≥ 80/90/95; available color temperatures range from 1800K to 10000K, with RGB and RGBW options also available.

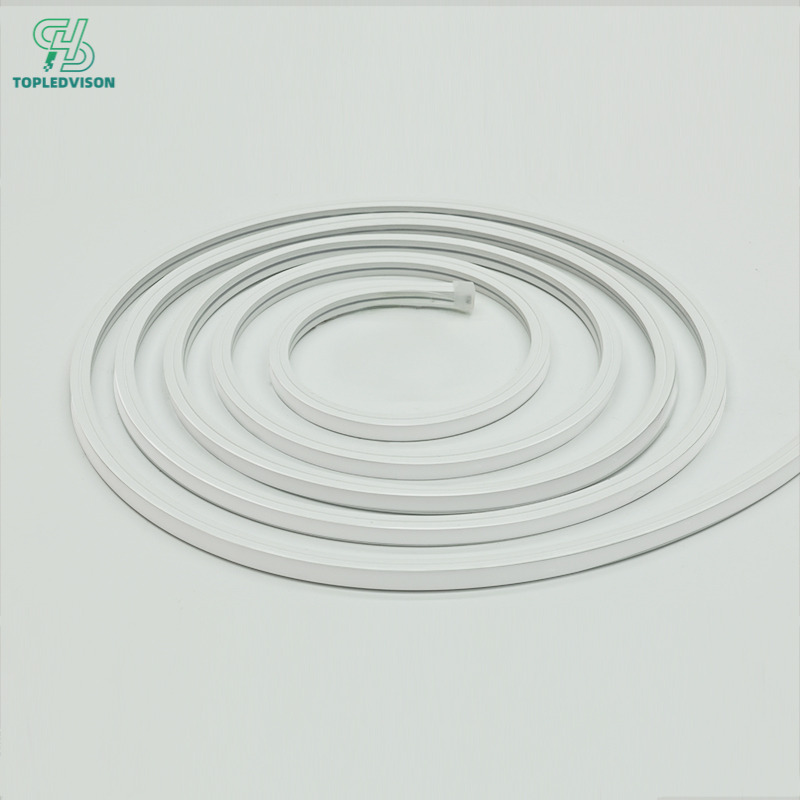

Neon Tubes: 10×10 neon tubes are made of high-quality, eco-friendly silicone. Features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame retardant rating, ensuring excellent fire resistance.

Lighting Effects: Emits light from the front with a soft glow; no light spots or flickering; highly flexible, suitable for indoor and outdoor lighting applications such as hotel/B&B corridors, room ambient lighting, building facade outlines, and architectural accent lighting.

Protection Rating: IP65/IP66, suitable for indoor and outdoor humid environments, including outdoor exposure to rain and acid/alkali corrosion.

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; supports vertical and horizontal bending to accommodate curved, corner, and three-dimensional designs; connectors and end caps are fully sealed.

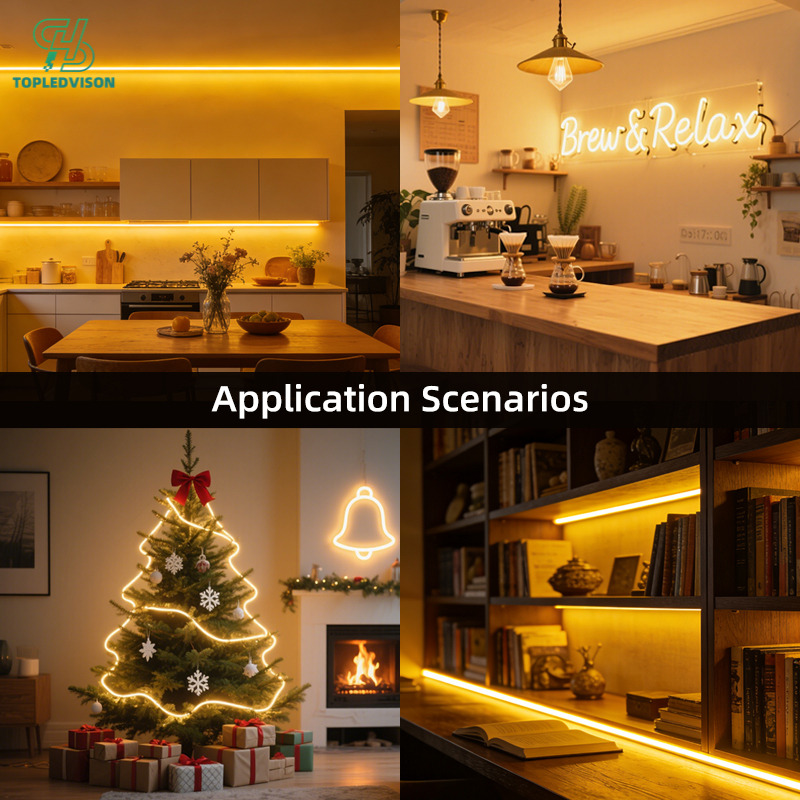

Applications of 10x10 Neon Lights: Indoor: Ambient lighting for restaurant and clothing store walls, as well as corridor illumination; Outdoor: Landscape lighting for parks, courtyards, flower beds, and walkways.

lighting Effect	Dot free	lighting way	Front-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W10*H10mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	8/10/12 /14W/M

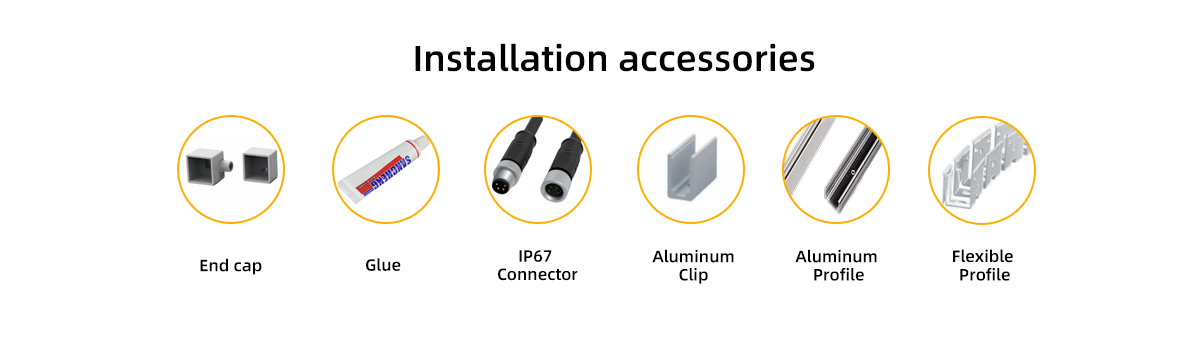

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

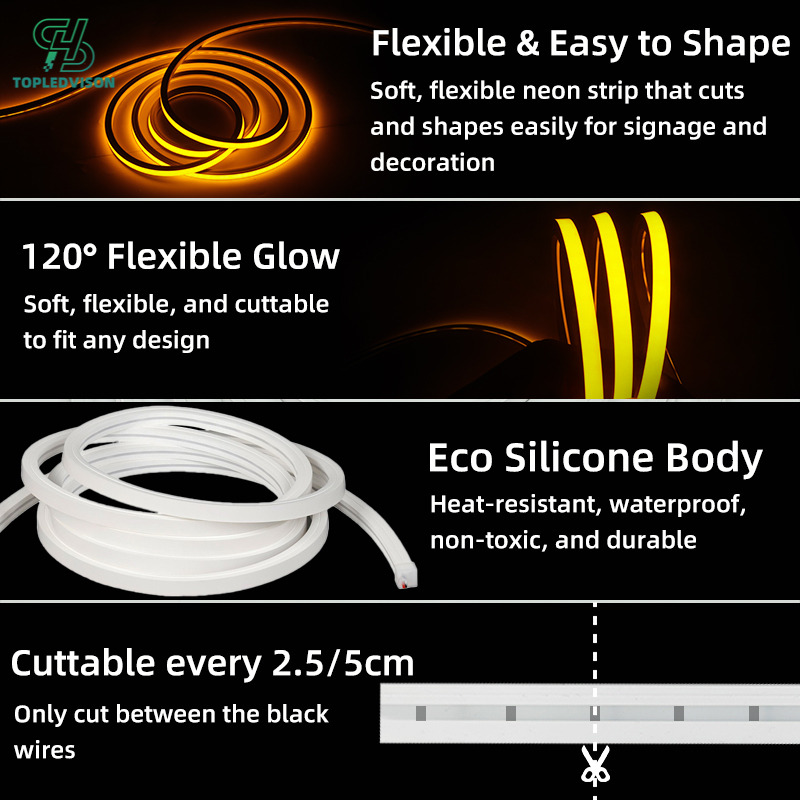

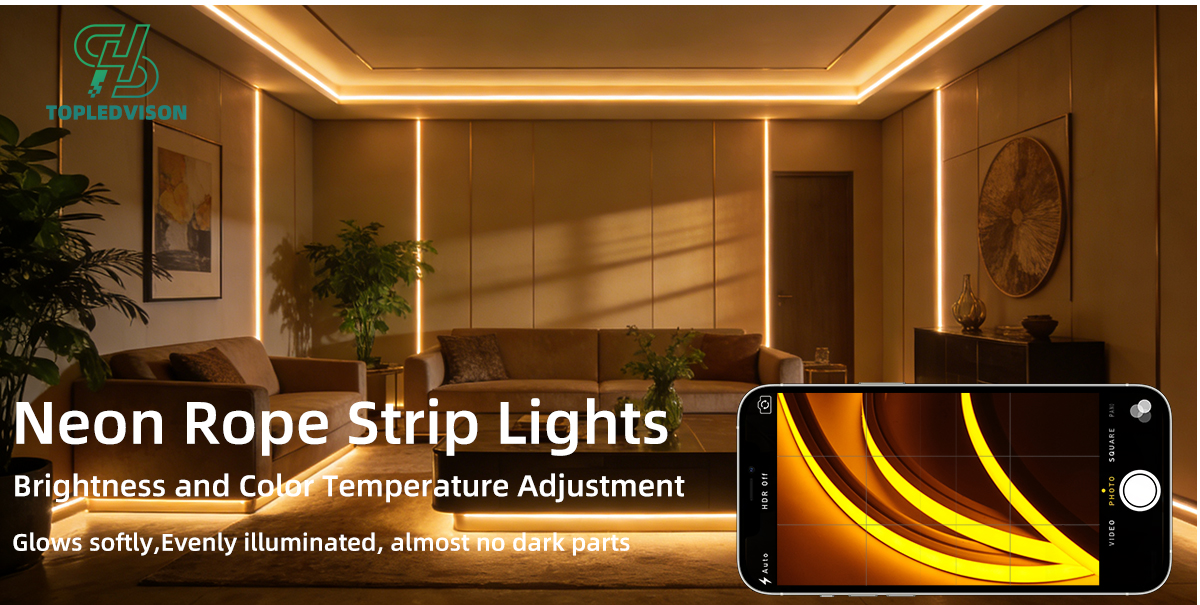

Spot-Free Lighting

The combination of optical elements and a silicone diffusion layer creates a seamless neon effect, producing uniform, soft light without dark spots or glare; supports front-facing illumination with a beam angle of up to 120°; achieves high brightness and glare-free performance through diffusion, enhancing visual comfort; color.

新版详情页_05

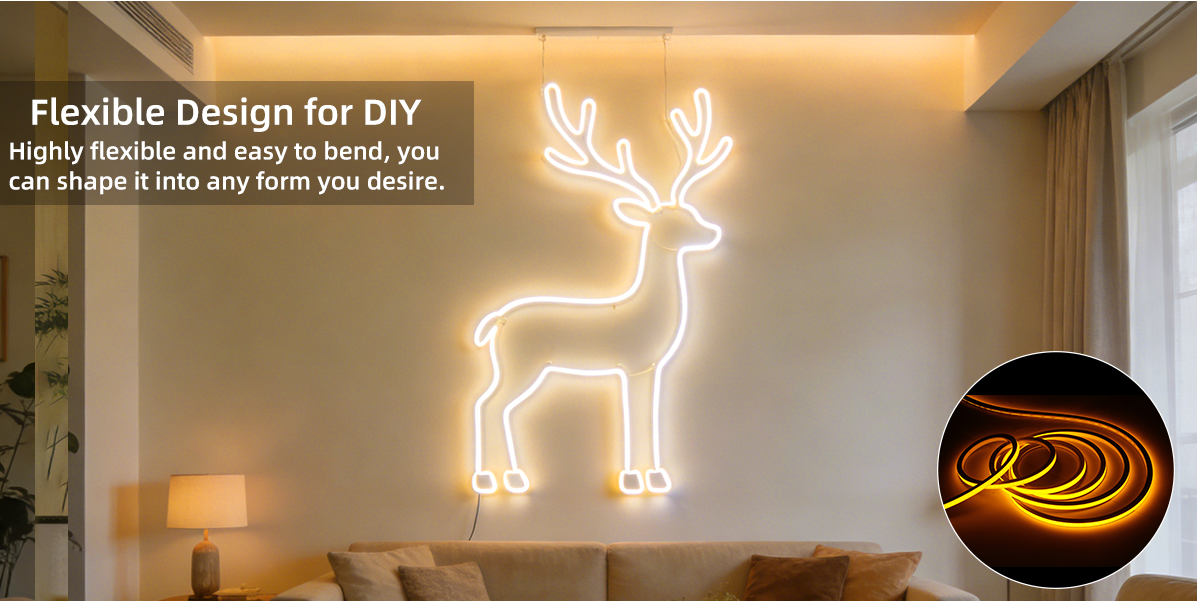

Highly Flexible

Encased in high-quality, eco-friendly silicone, it offers exceptional flexibility and can be bent both vertically and horizontally, allowing it to conform to irregular surfaces and enable creative designs; its fully enclosed, integrated design provides waterproof and dustproof protection, delivering uniform, glare-free lighting;

新版详情页_11

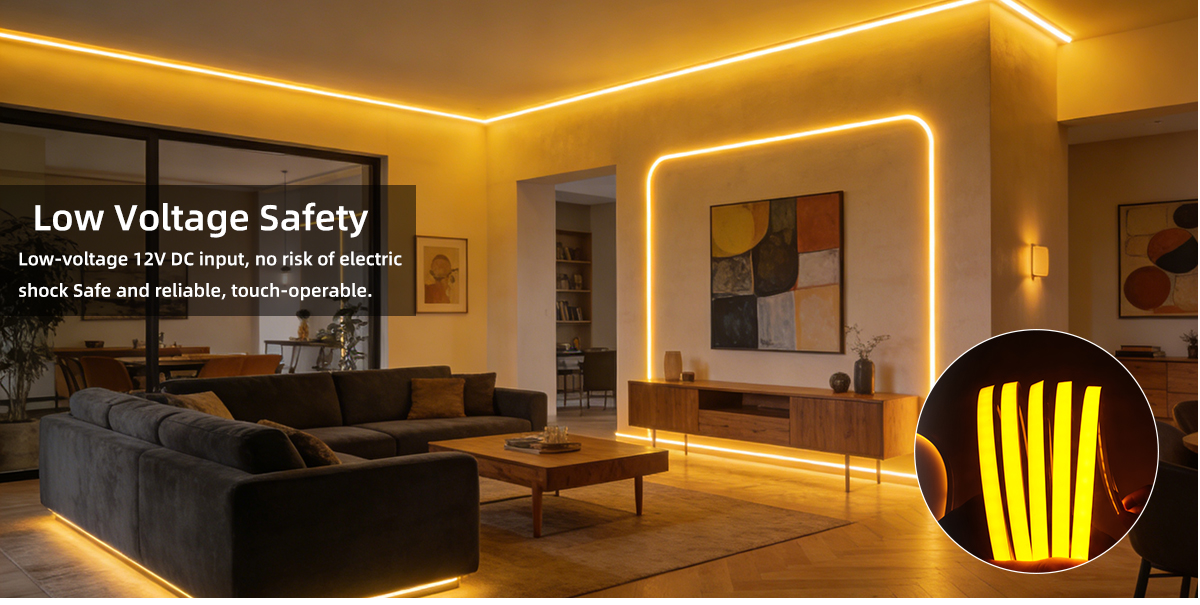

Safety and Energy Efficiency

Featuring a 12/24V low-voltage drive and low-power design, these lights are flicker-free, mercury-free, and UV-free, making them environmentally friendly, safe, eye-friendly, and energy-efficient. Combined with a thick encapsulation and high-quality heat dissipation design, they offer a lifespan of over 50,000 hours with a light decay rate of ≤5%, eliminating the need for frequent replacements; Built with high-temperature and low-temperature resistant silicone/PVC substrates, it operates stably in a wide temperature range of -20°C to 60°C, offering freeze resistance and UV protection for outdoor use without cracking or hardening.

新版详情页_17

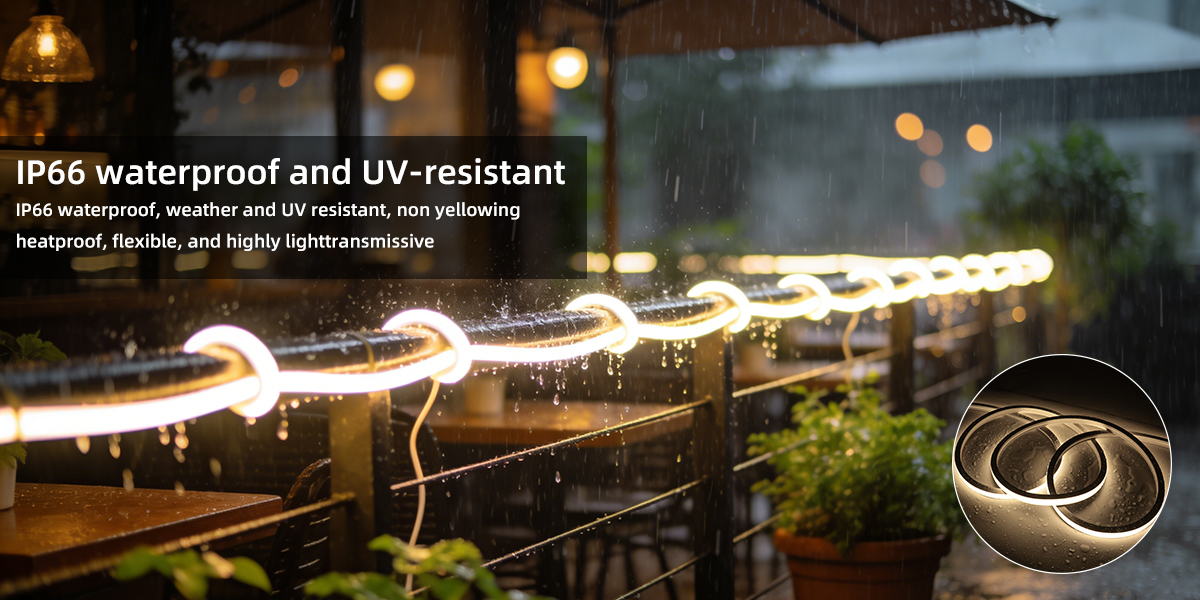

Exceptional waterproof performance

IP65/IP66high-protection dustproof design withstands brief immersion. Silicone material resists UV radiation, withstands temperatures from -20°C to +60°C, and features anti-aging properties. Resistant to acid and alkali corrosion, salt spray erosion, impact, and pressure, suitable for indoor and outdoor dry or wet environments.

1010霓虹防水

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
