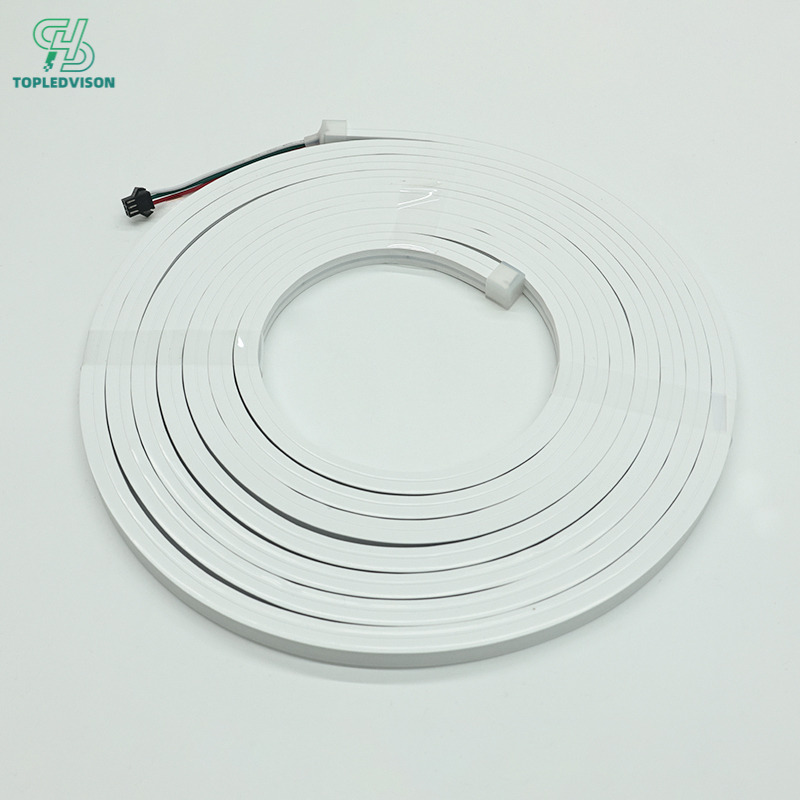

1010 Colorful Neon Strip Light 10×10mm-5m (NEON STRIP SERIES ) from China Manufacturer

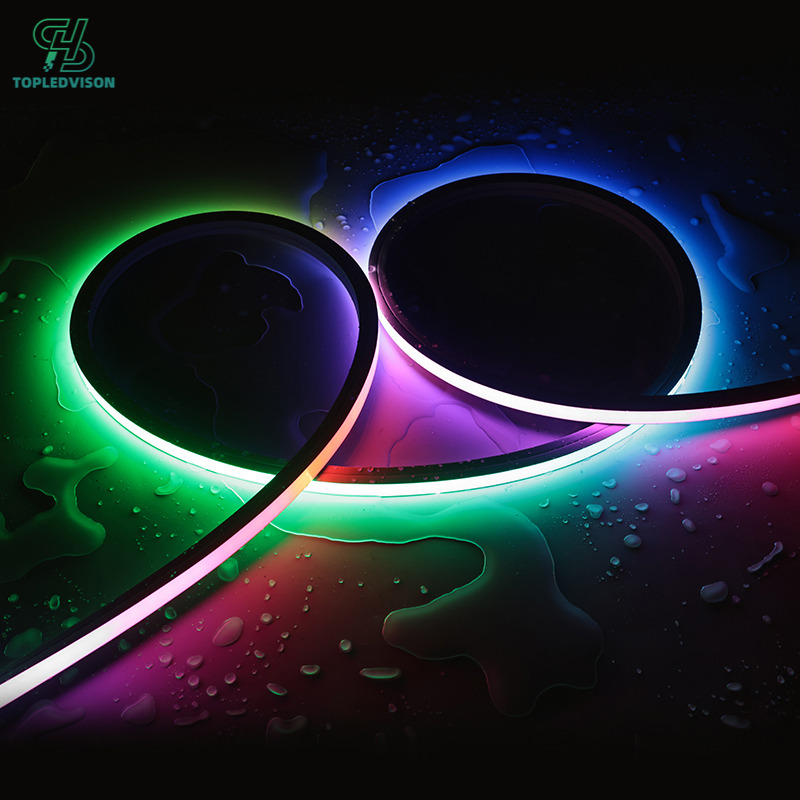

10×10 mm Colorful LED Neon Strip

Product Features: Made with high-quality flexible SPI LED strips; 12V/24V DC low-voltage operation, high brightness, excellent color consistency, stable quality, long service life, freely customizable, and easy to install. Supports mainstream protocols such as WS2811, WS2812 and TM512, enabling dynamic effects including per-pixel addressing, full RGB color, color fading, running lights, chasing effects, and flashing.

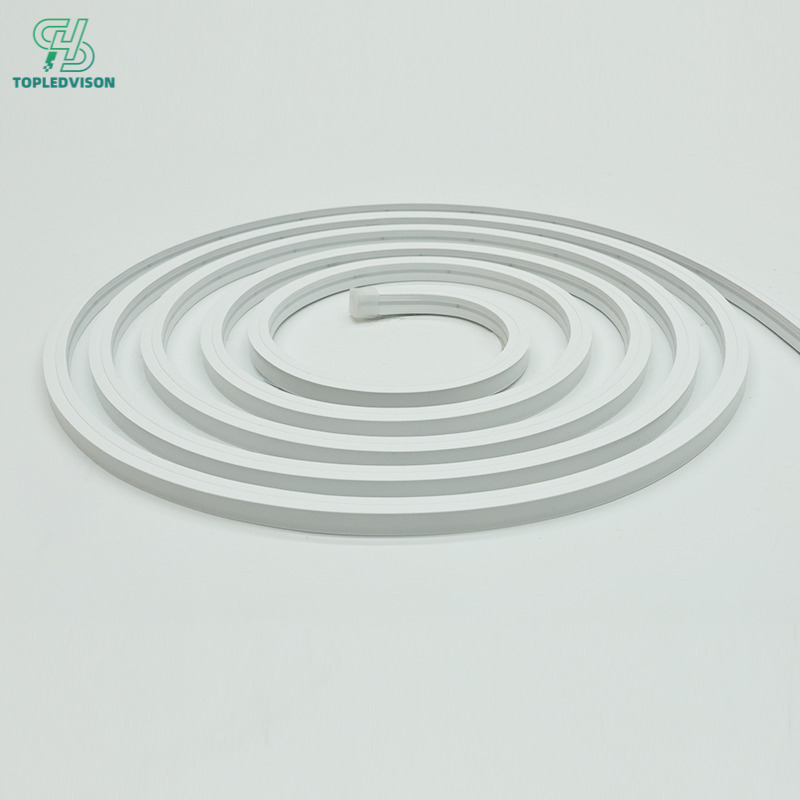

Neon Tubes: The 10×10 multicolor neon tubes are made of high-quality, eco-friendly silicone. Their features include high light transmittance, high luminous efficiency, resistance to yellowing, high flexibility, and UV resistance. They also meet the V0 flame-retardant rating, ensuring excellent fire-retardant performance.

Lighting Effects: Emits light from the front with a soft glow; no light spots or flicker; highly flexible, suitable for indoor and outdoor lighting applications such as desktop displays, wall logos, patio borders, and poolside lighting.

Protection Rating: IP65/IP66, suitable for indoor and outdoor humid environments, including outdoor exposure to rain and acid/alkali corrosion.

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; supports vertical and horizontal bending to accommodate curved, corner, and three-dimensional designs; connectors and end caps are fully sealed.

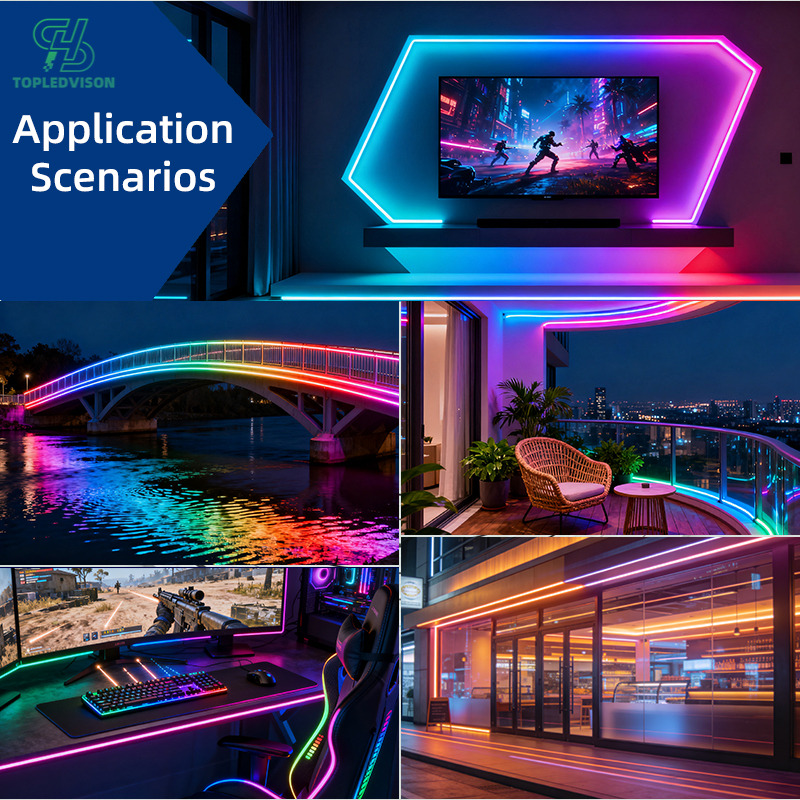

Applications of 10x10 Color-Changing Neon Lights: Shopping malls, boutiques, trendy toy store windows, dynamic holiday marquees, and garden fences.

lighting Effect	Dot free	lighting way	Front-lit
Color	Whiite/RGB,	Support Dimmer	Yes

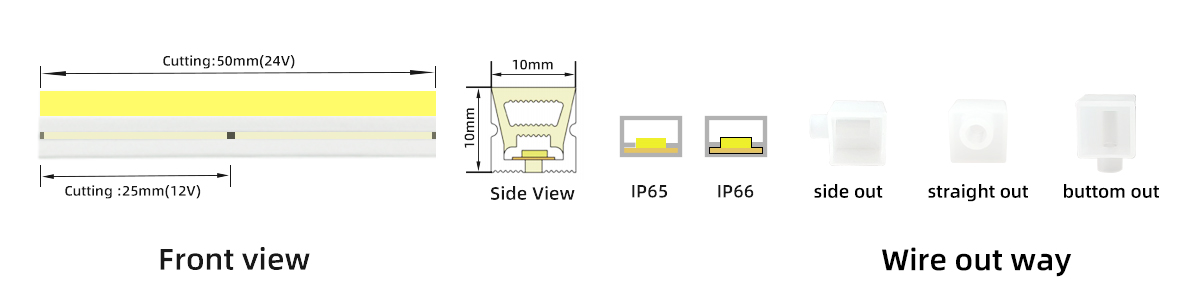

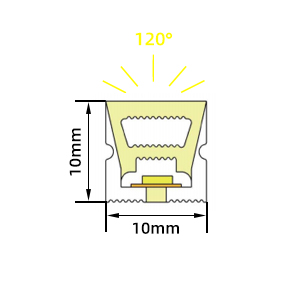

Dimension	W10*H10mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
Compatible IC	WS2811/WS2812/TM512	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	8/10/12 /14W/M

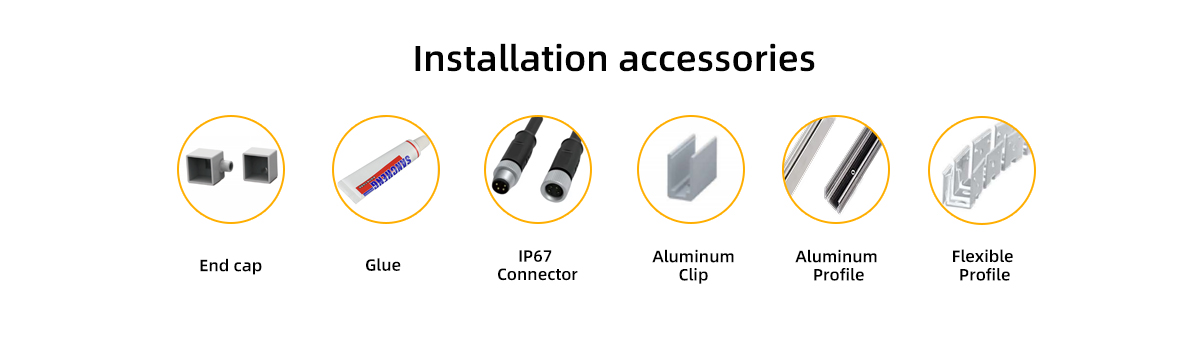

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

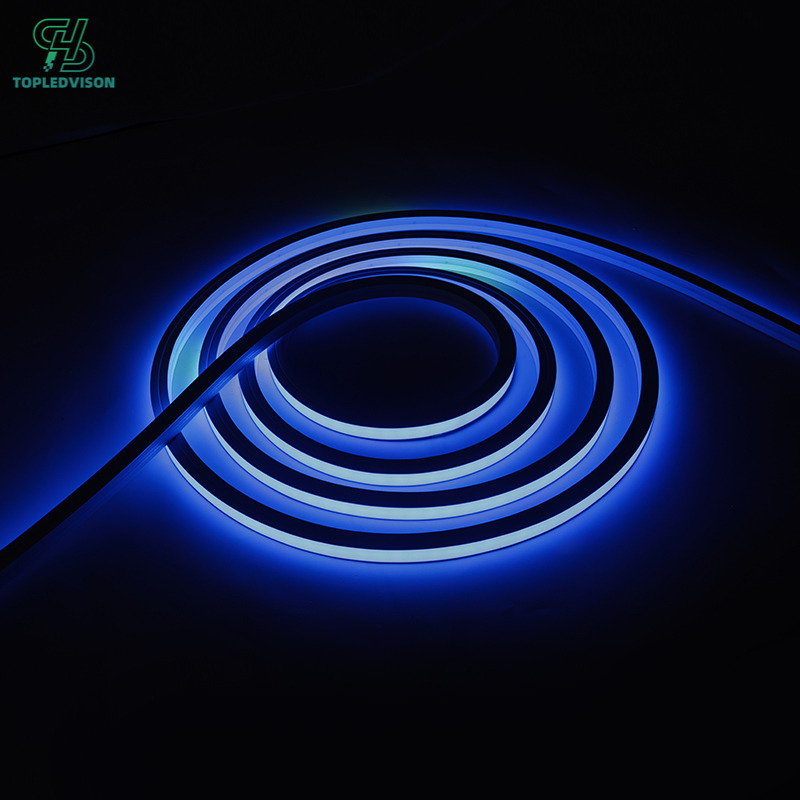

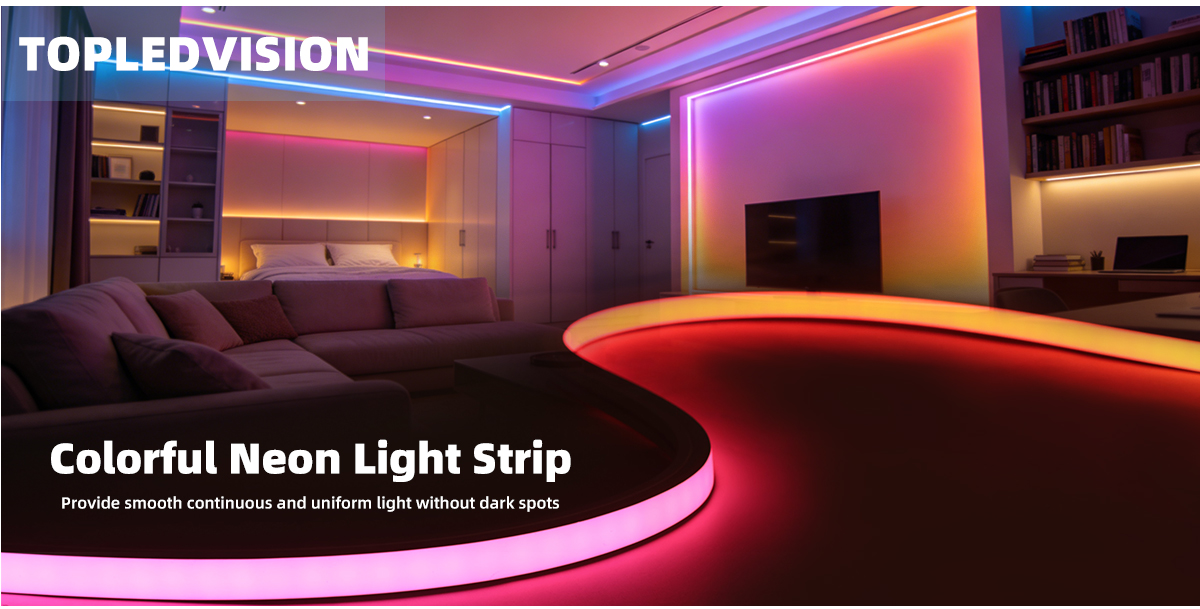

No light spots

Featuring a high-transmittance silicone sleeve and a precision optical design, this product delivers continuous, soft light without any glare or graininess. With a lifespan of up to 50,000 hours, minimal light decay, and excellent heat dissipation, it is ideal for interior decoration, outdoor advertising, signage, landscape lighting, and other applications.

1010-幻彩霓虹-新版详情页_05

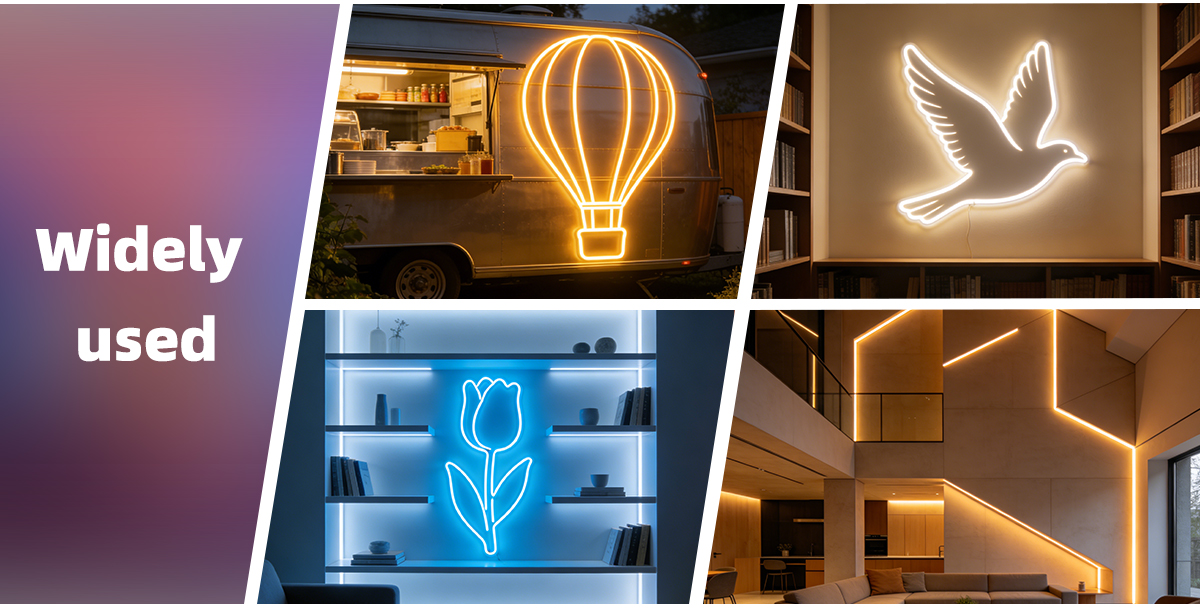

Highly flexible free-form design

The 10×10 Color-Changing Neon Strip is meticulously crafted from high-quality silicone and flexible PCB material, offering exceptional durability and resistance to damage when bent. It can be freely bent and shaped in multiple directions, including vertically and horizontally; With a minimum bending radius of just 5 cm, the product easily adapts to various irregular contours, artistic shapes, and intricate line designs, greatly unleashing creative inspiration. Whether for personalized text patterns, whimsical creative shapes, home DIY decorations, or creative store displays, it flexibly conforms to and effortlessly brings to life all kinds of personalized design projects.

1010-幻彩霓虹-新版详情页_11

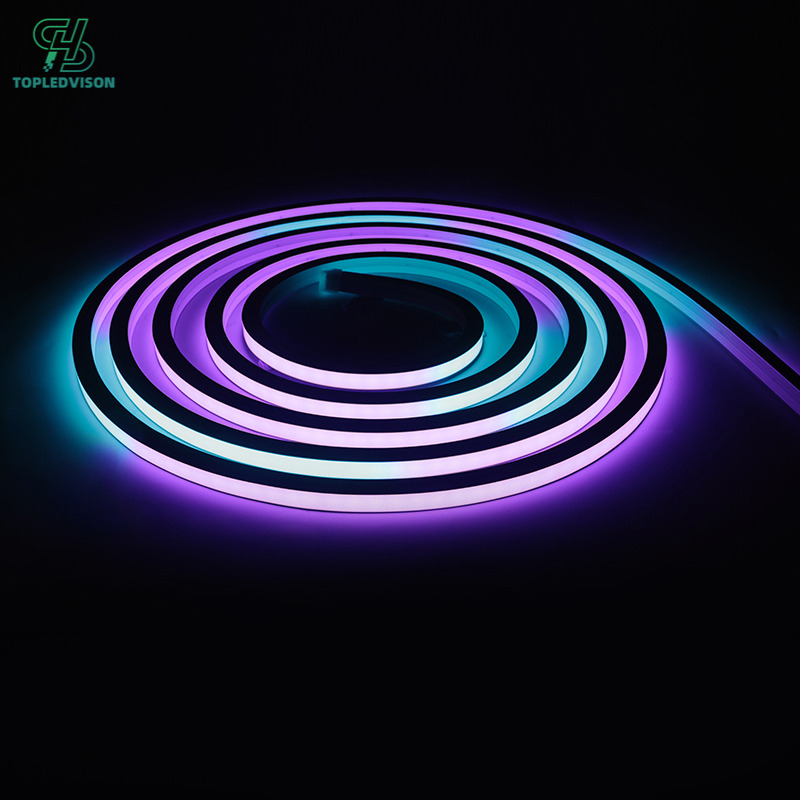

Rich in color - freely adjustable

Equipped with a built-in driver IC, it features independent control for individual LED management, allowing for separate adjustment of color and brightness for each LED, as well as a wide range of dynamic RGB full-color effects; it offers natural grayscale adjustment and true-to-life color reproduction; it supports SPI/DMX signal protocols, enabling hundreds of dynamic lighting effects such as flowing, chasing, fading, running, breathing, and music synchronization.

1010-幻彩霓虹-新版详情页_17

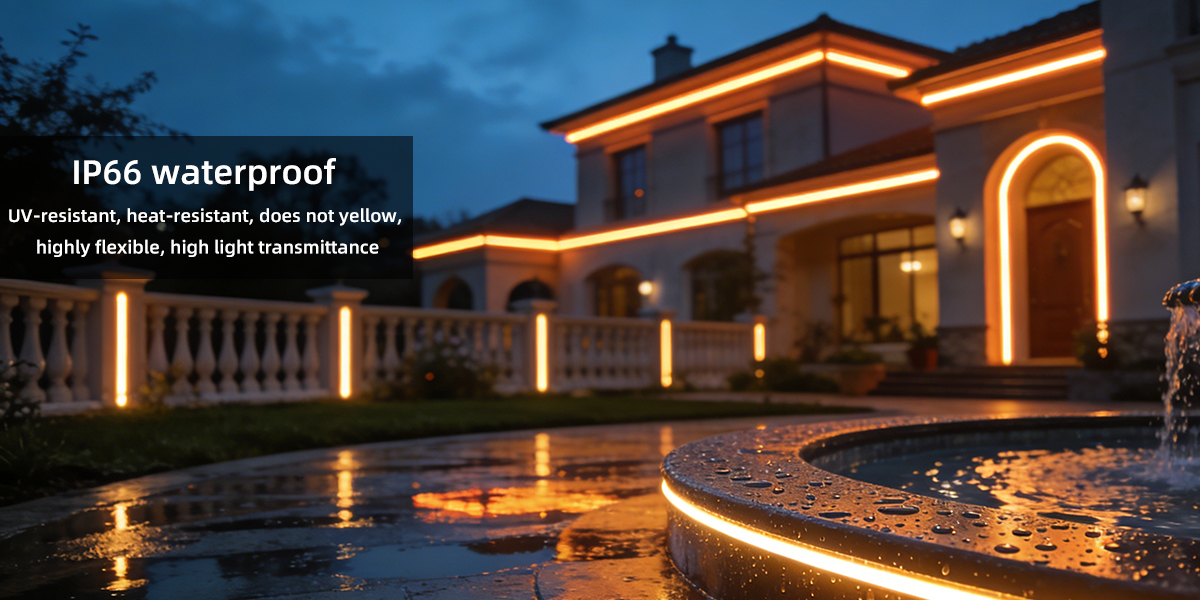

Exceptional waterproof performance

IP65/IP67-rated water and dust resistance, UV-resistant and salt-fog resistant, suitable for indoor, outdoor, and humid environments; reliable operation across a wide temperature range from -25°C to +60°C; made from eco-friendly, anti-aging silicone material; compliant with CE and RoHS standards; durable, fade-resistant, and crack-resistant.

1010幻彩霓虹防水

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of ledare corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
