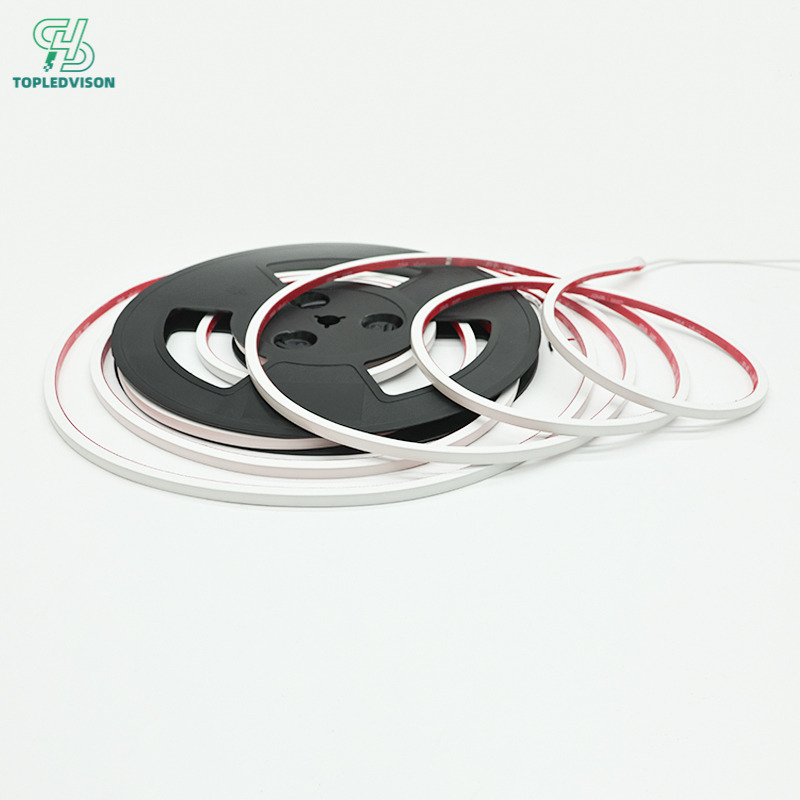

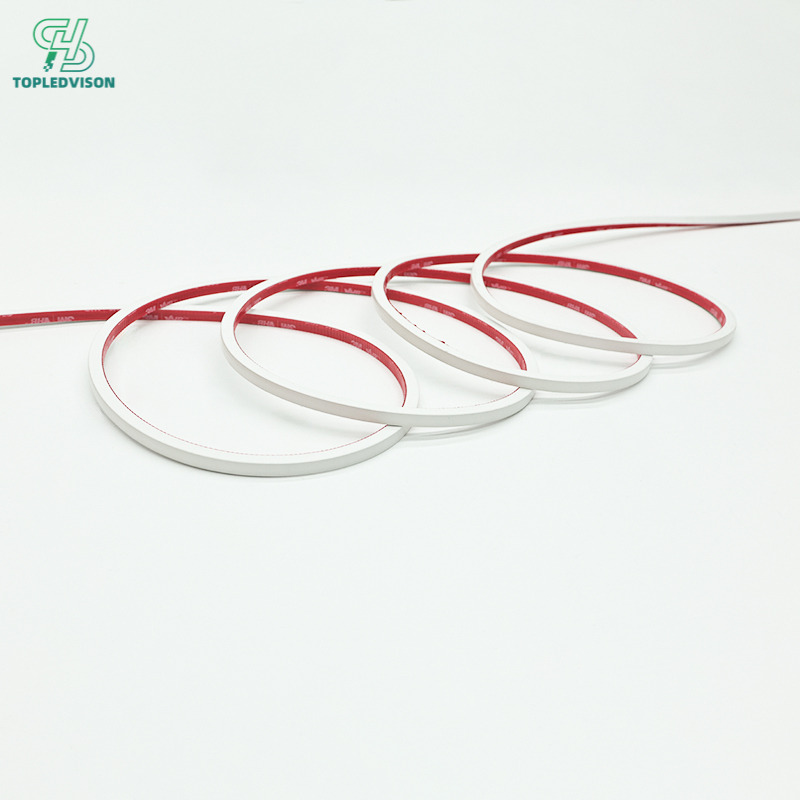

0808 Flexible Neon LED Strip8x8mm-5m(NEON STRIP SERIES

Feature / Warranty

. No dark areas

· Excellent color reproduction

· Highly flexible and easy to style

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

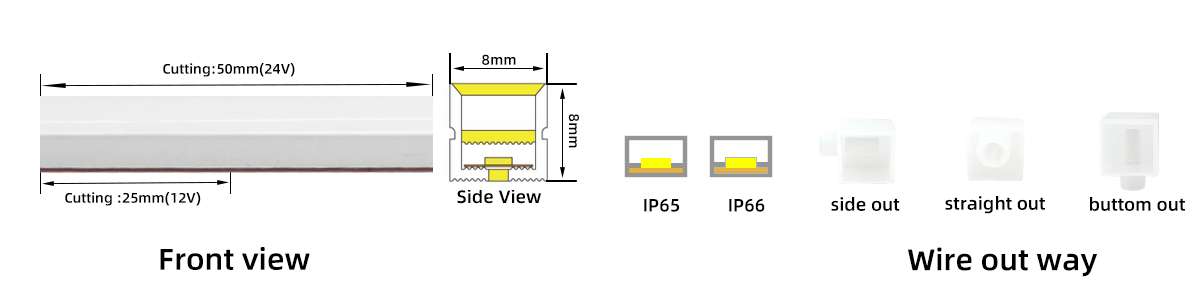

8×8 mm Flexible LED Neon Strip

Neon Strip Performance: Features: Made with high-quality flexible 2835 LED strips; featuring a compact 8x8mm design, it is slim and small, allowing for easy installation in confined spaces such as cabinet interiors, crevices, and narrow channels to achieve a concealed installation where the light is visible but the strip is hidden; supports 12V/24VDC low-voltage operation; Features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install. Color Rendering Index (CRI) Ra80/90/95; color temperature range from 1800K to 10000K, with both RGB and RGBW options available.

Neon Tubes: The 8×8mm flexible LED neon tubes are made of high-quality, eco-friendly silicone. Their features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame-retardant rating, ensuring exceptional fire safety.

Lighting Effect: Featuring high-density 2835 LEDs paired with an optimized optical structure, the light-emitting surface is completely seamless. Even when viewed up close, there is no graininess or shadowing, delivering a texture comparable to traditional neon. Suitable for indoor and outdoor lighting applications such as baseboards, wardrobes, wine cabinets, logos, display case accents, bars, and patio borders.

Protection Rating: IP65/IP66 fully sealed silicone construction. The silicone withstands temperature fluctuations from -20°C to 65°C, resists UV rays, and is waterproof, moisture-resistant, and crack-resistant; suitable for indoor and outdoor humid environments, including outdoor rain exposure and acid/alkali corrosion.

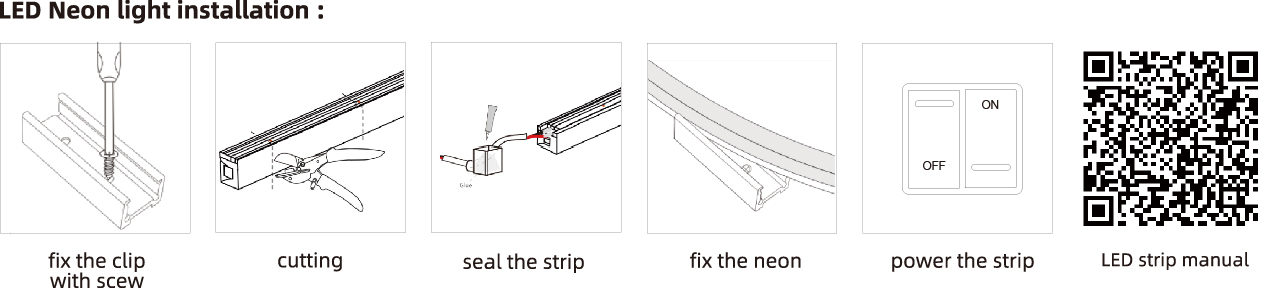

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles/adhesive backing; simple wiring; Flexible and bendable, it can be shaped into complex DIY designs such as arcs, corners, letters, and patterns without cracking or kinking; connectors and end caps are fully sealed.

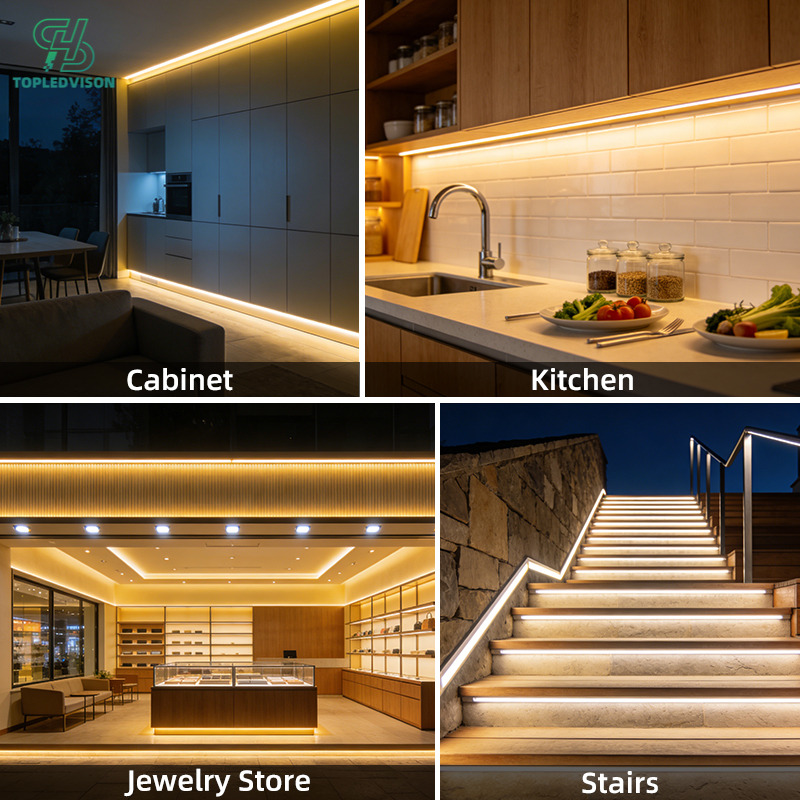

Applications of 8x8mm Flexible LED Neon Strip: Staircases, bathroom mirrors, bedside ambiance lighting, mini illuminated letters, edge-lit signage, boutique stores, storefront windows, building outlines, landscaping, and directional signage.

Technical Parameters

lighting Effect	Dot free	lighting way	Front-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W8*H8mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	12/24/48 110/220V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	6/8/10/12W/M

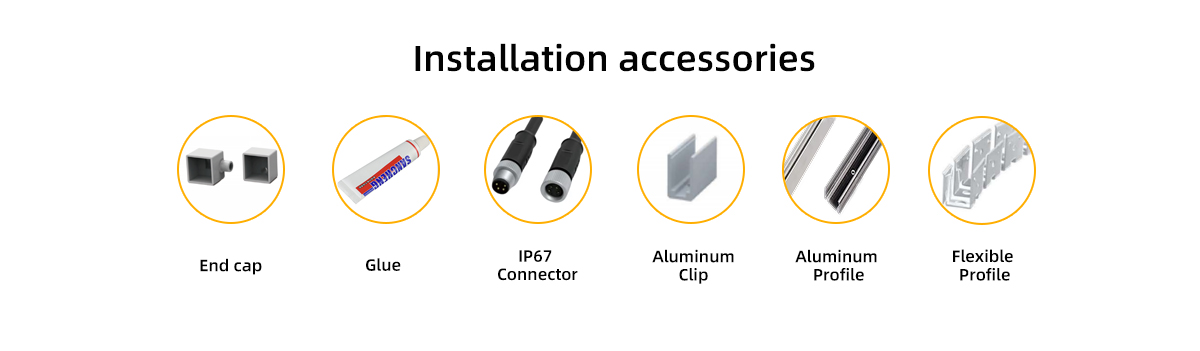

Standardized, plug-and-play accessories significantly reduce commissioning time.

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

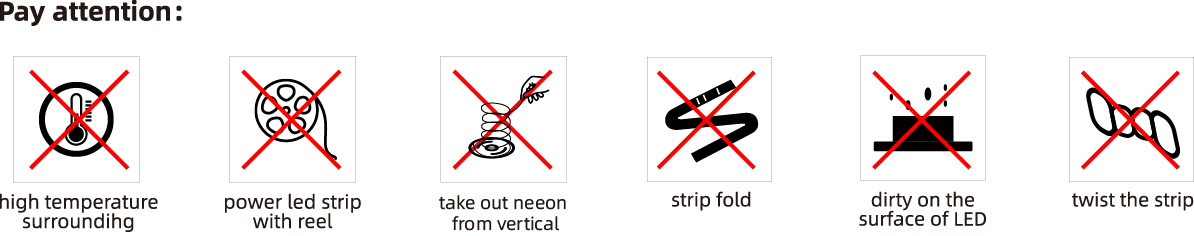

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

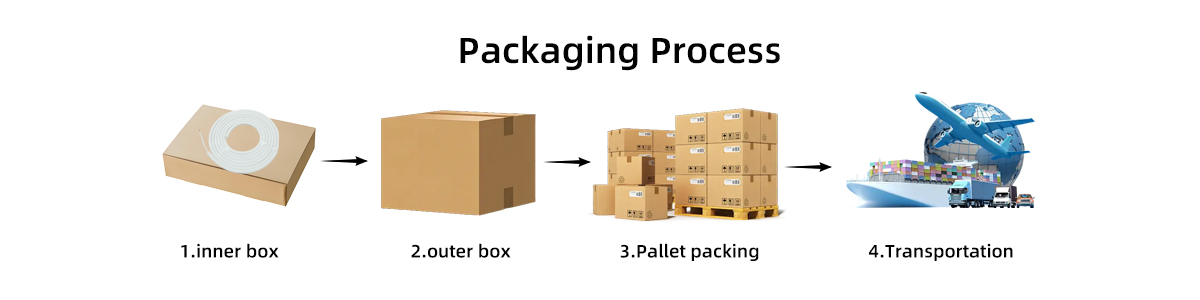

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

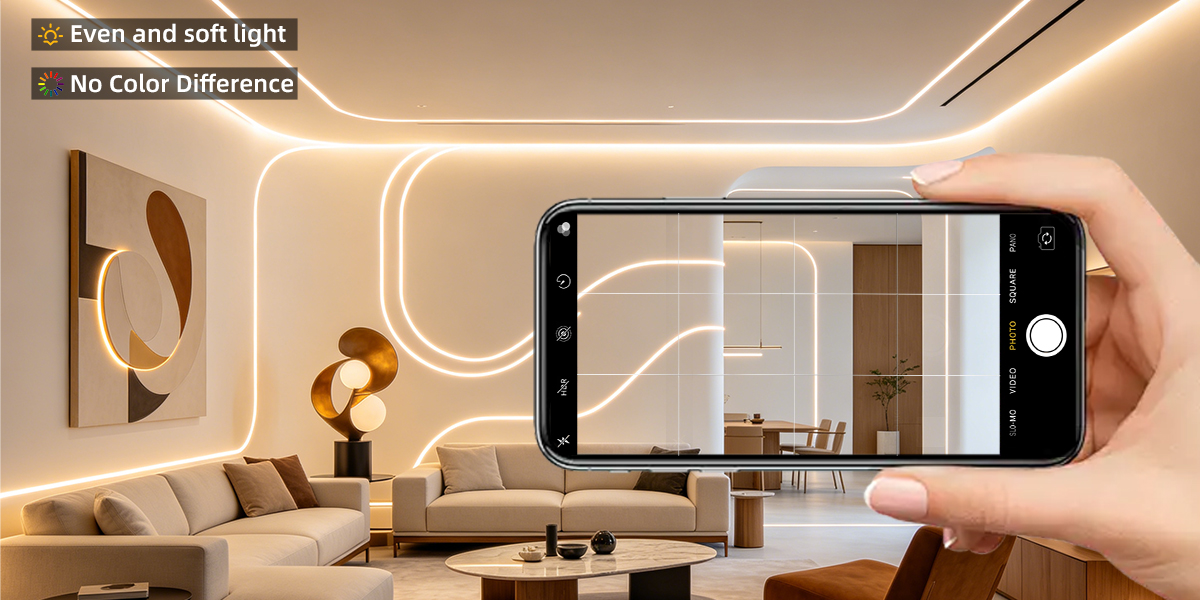

Even and compact

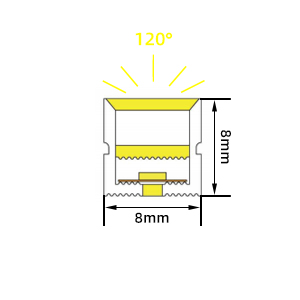

The 8×8 mm LED neon strip lights feature an ultra-compact 8mm × 8mm profile, making them slim, lightweight, and easy to install discreetly. They fit seamlessly into even the narrowest light channels and tightest gaps. With excellent flexibility, they can be bent and shaped to meet precise design requirements. Despite their small size, they deliver uniform, soft lighting and are easy to install without taking up much space

0808产品图片1

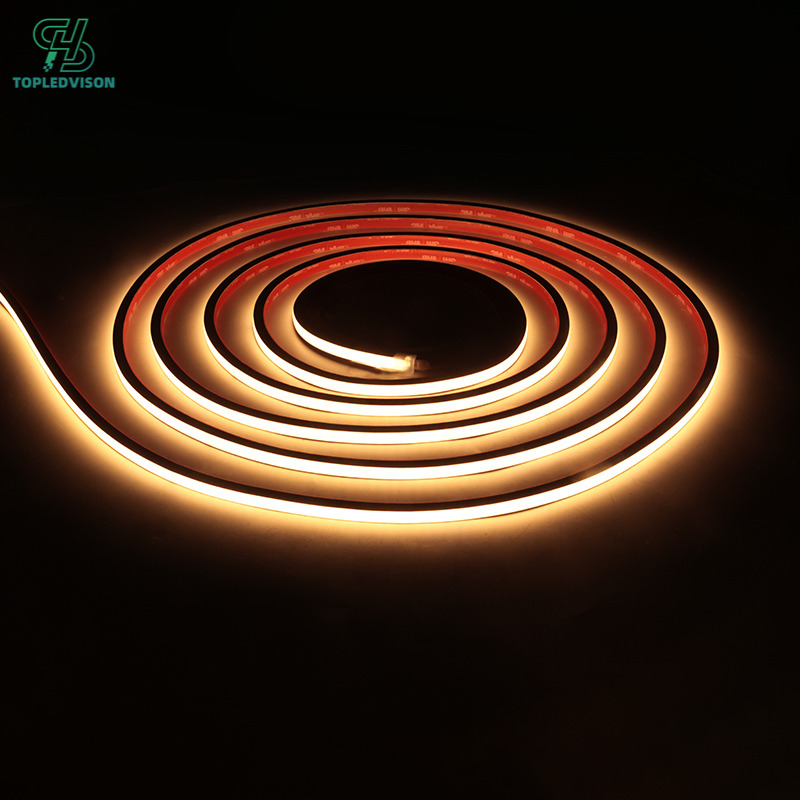

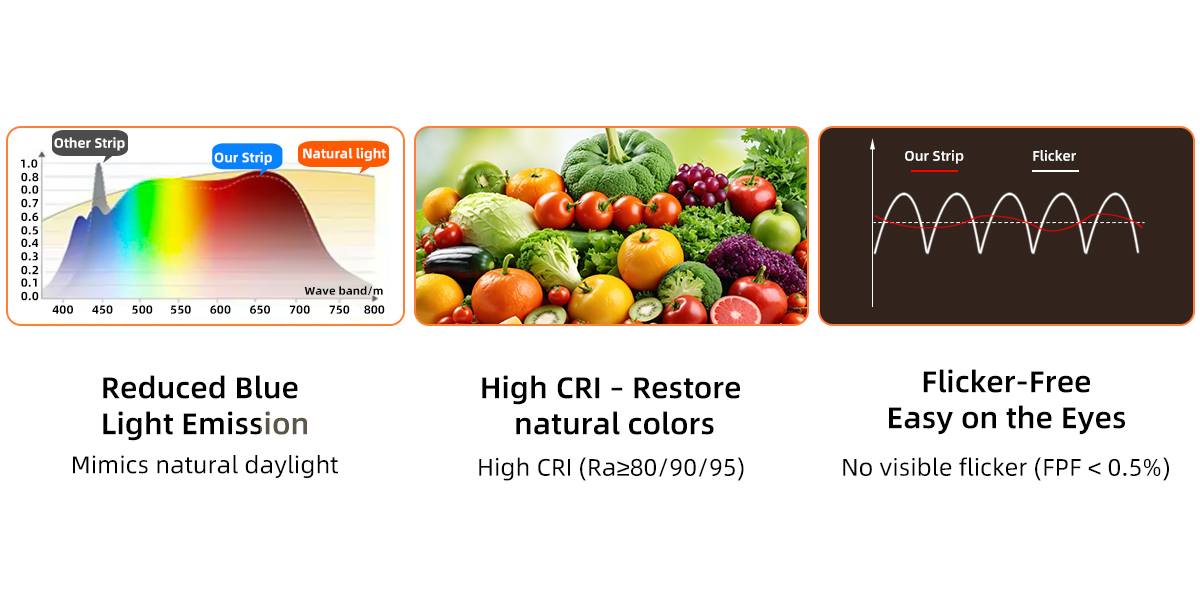

High color rendering index

The 8×8mm neon light strip features high-CRI LEDs with a Color Rendering Index (CRI) of ≥80/90/95Ra; it accurately reproduces the true colors and textures of objects, preventing color distortion, a washed-out appearance, or dullness, and ensuring that furnishings, decorations, and environmental details within the space are clearly displayed. The light is soft, even, and glare-free, with no noticeable hotspots or dark areas, offering both comfort and a sense of sophistication. Whether used to create everyday ambiance in living rooms, bedrooms, or cabinets, or for commercial displays in retail showcases, brand stores, or dining spaces, these strips significantly enhance visual depth and spatial texture, resulting in a more realistic, refined, and high-quality lighting experience.

0808产品图片2

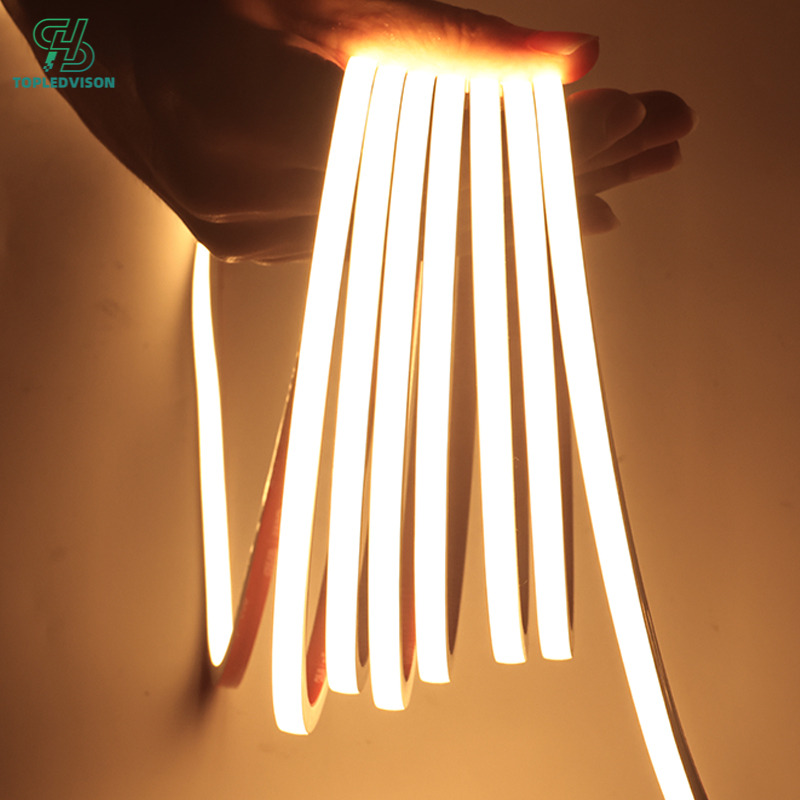

Flexible and easy to style

The 8×8mm neon light strip is made of highly flexible silicone in a single-piece molded construction. It is soft to the touch and exceptionally resilient, allowing for easy bending at multiple angles, creating curved shapes, and smooth corner transitions. With a small minimum bending radius, it can be freely shaped into complex designs such as letters, patterns, and curves. It does not break, crack, or become translucent during bending. Whether for irregular structures, curved frames, or uneven decorative surfaces, it fits perfectly during installation. Its flexible and versatile design meets the needs of all kinds of creative lighting designs.

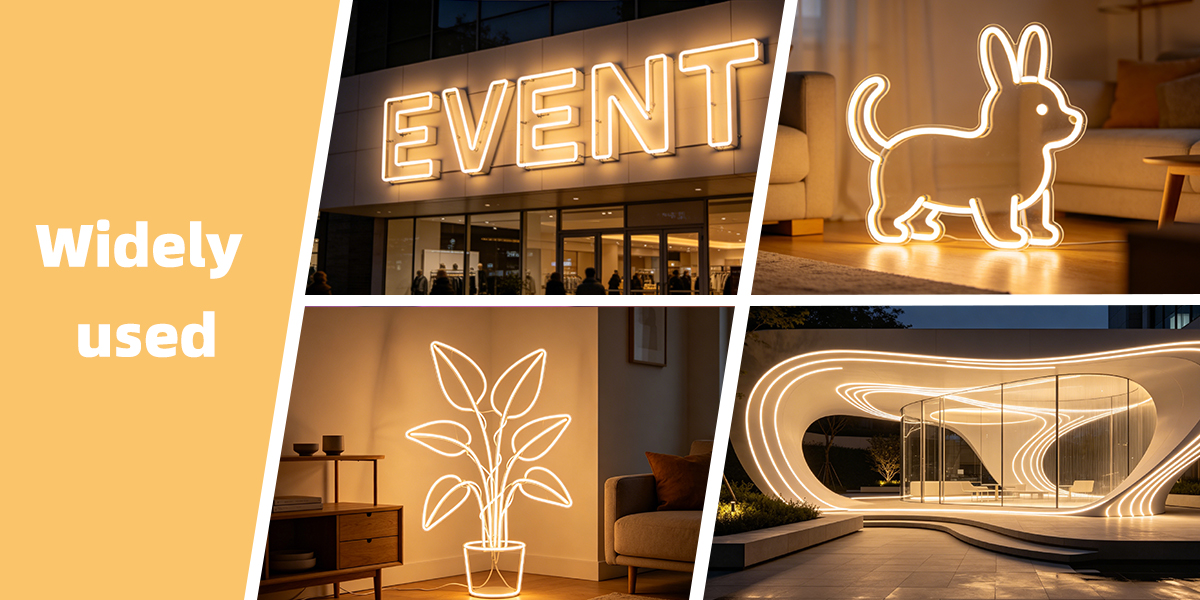

0808产品图片3

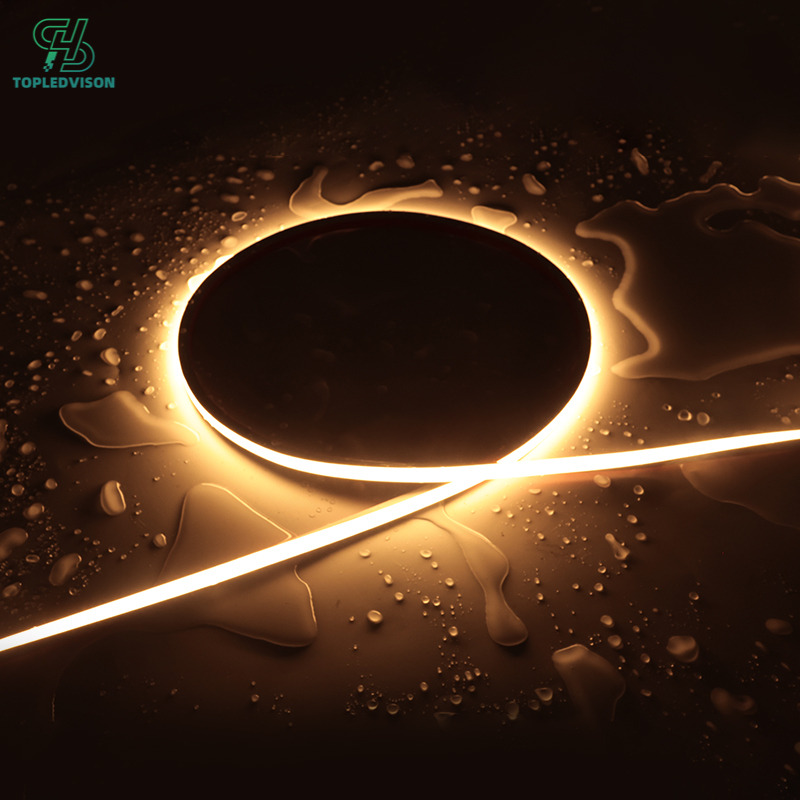

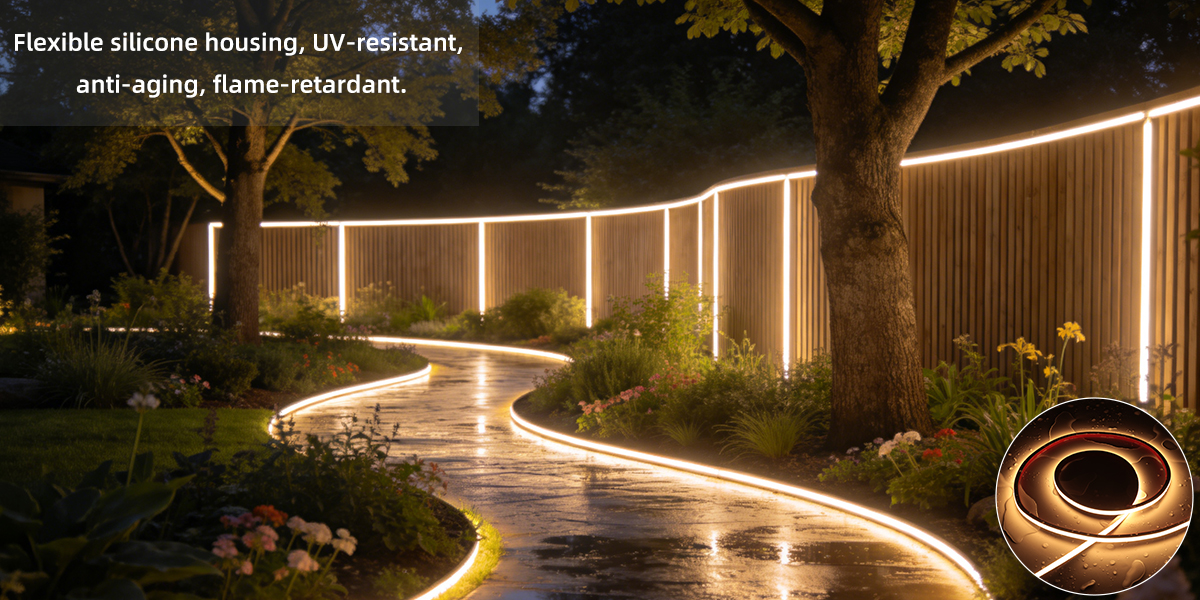

Waterproofing Applications

The 8×8mm neon light strip features excellent waterproof and moisture-resistant performance, with optional IP65 or IP66 waterproof ratings. It easily withstands humid and outdoor environments, ensuring stable operation in areas prone to water accumulation and moisture—such as kitchens, bathrooms, and balconies—as well as in outdoor settings like storefront signs, garden landscaping, and building facades. The waterproof design effectively blocks moisture, rain, and dust, ensuring weather resistance and durability without premature aging. The strips remain yellow-free and crack-free even after long-term use, balancing safety and longevity. This allows for worry-free use of linear lighting in various indoor and outdoor settings, creating a stable and enduring ambient lighting effect.

0808产品图片4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on. (2) check the power, strip and metal object all isolated


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

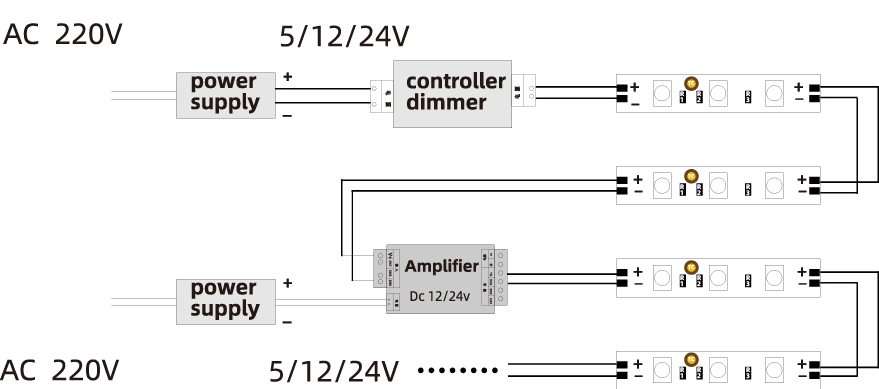

the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 meters and constant current strip length>15 meters.






strip fall off from the object	1, the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
