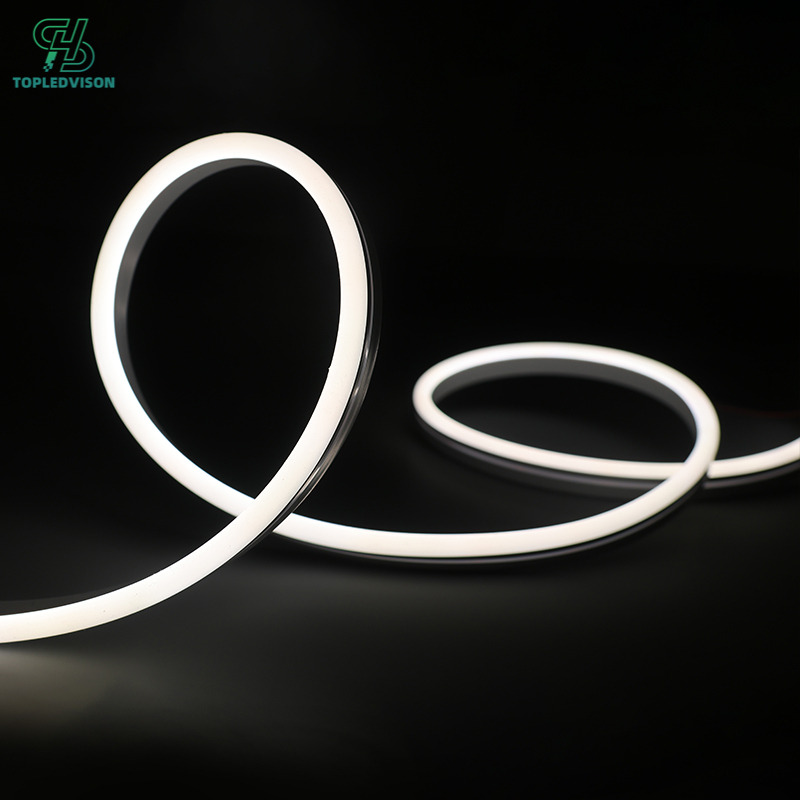

0613 Flexible Neon LED Strip 6×13mm-5m(NEON STRIP SERIES)

Feature / Warranty

No light spots·
High Color Rendering
Flexibility and Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

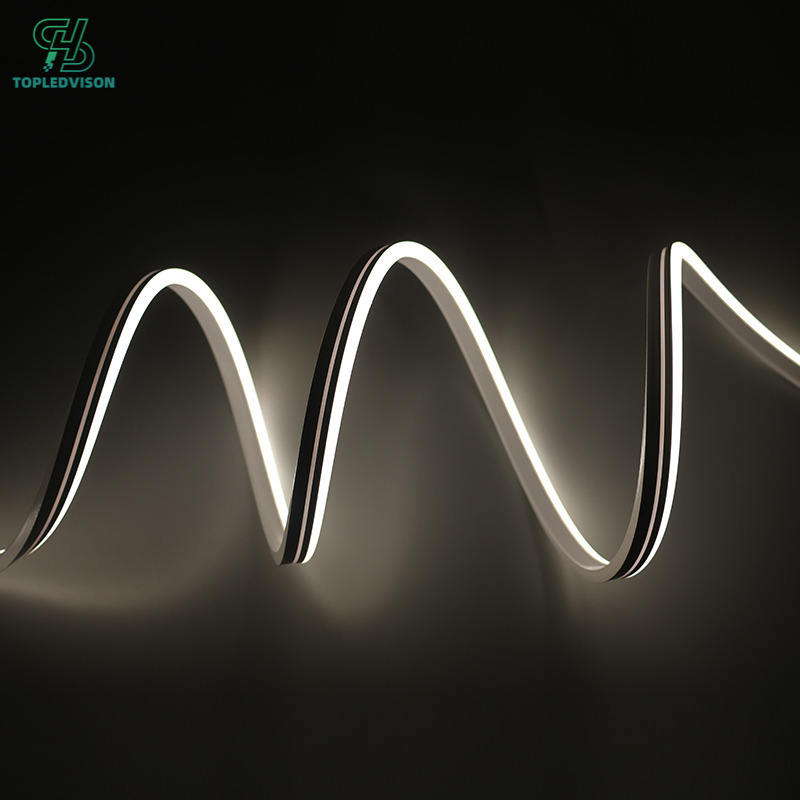

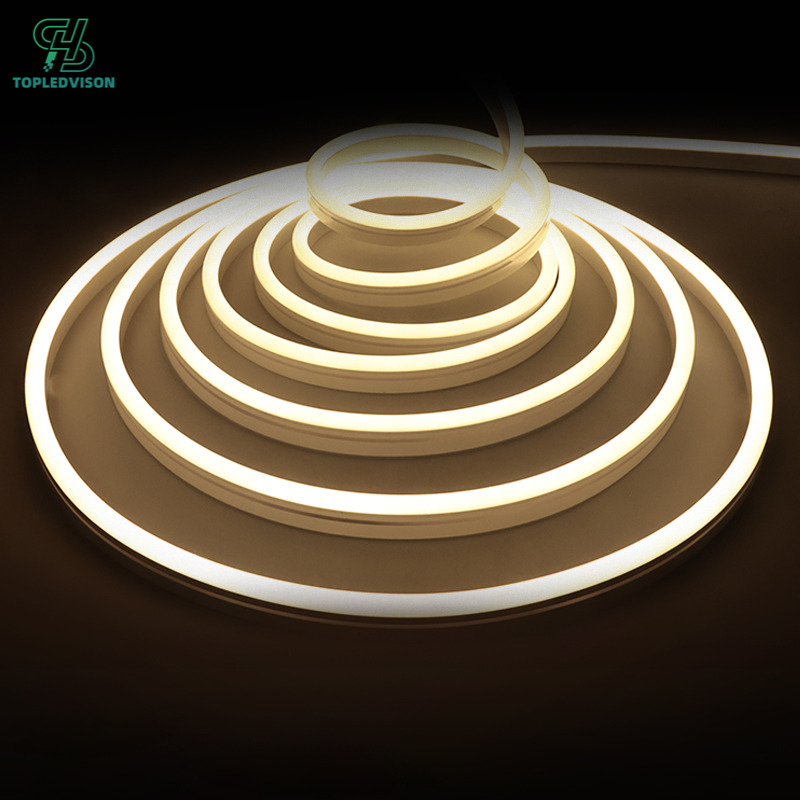

6×13 mm Flexible LED Neon Strip

Neon Lighting: Features high-quality flexible 2835 LED strips; High brightness, excellent color consistency, stable quality, long service life, flexible cutting, and easy installation. Available color temperatures include: 1800K/2000K/2700K/3000K/4000K/5000K/6500K/8000-10000K, with a Color Rendering Index (CRI) of Ra ≥ 80. with high-end versions reaching Ra90/Ra95; RGB/RGBW options are also available.

Neon Tubes: The 0613 neon tube is made from high-quality, eco-friendly silicone rubber. It features high transparency, high luminous efficiency, resistance to yellowing, excellent tensile strength, UV resistance, and a V0 flame-retardant rating, ensuring superior flame-retardant performance.

Lighting Effects: Even side-emitting light with a soft glow; glare-free and flicker-free; flexible, making it suitable for curved signage; ideal for indoor and outdoor lighting; suitable for applications such as advertising light boxes, illuminated letters, staircases, bar counters, and building outlines.

Protection rating: IP65/IP66; suitable for indoor and outdoor environments; dustproof, waterproof, and corrosion-resistant.

Easy to install: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum channels; simple wiring; supports single-ended or dual-ended power supply to minimize voltage drop; connectors and end caps are sealed.

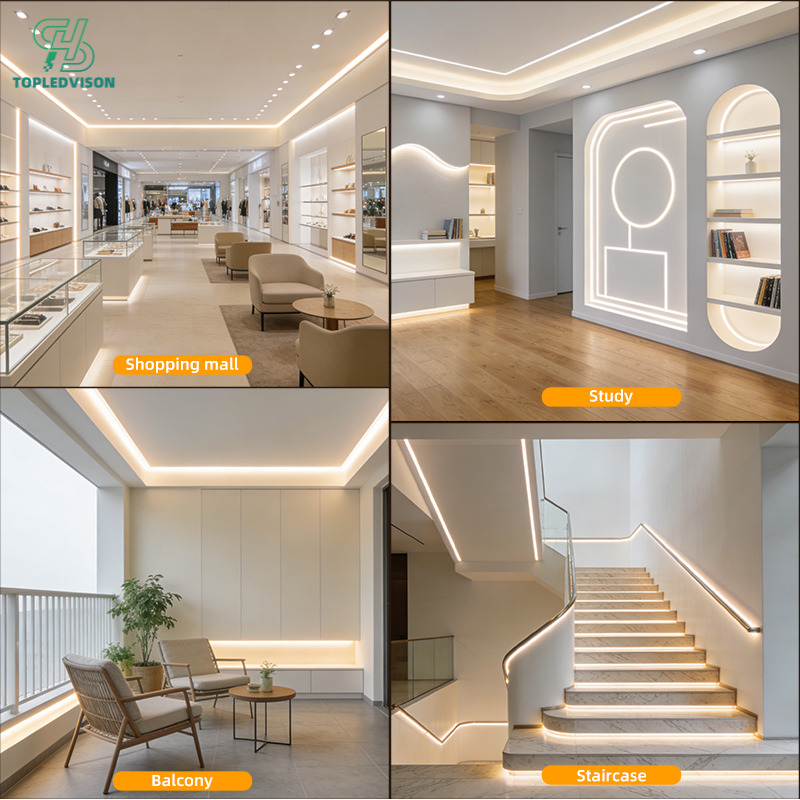

Applications of 6x13 neon tubes: Indoor: cabinet lighting, TV accent walls, staircases, display cases, and ambient lighting for KTVs and bars; Outdoor: illuminated signage, building outlines, and storefront displays.

Technical Parameters

lighting Effect	Dot free	lighting way	side lit
Color Temperature	1800-10000K, R0CB, RGBW	Support Dimmer	Yes

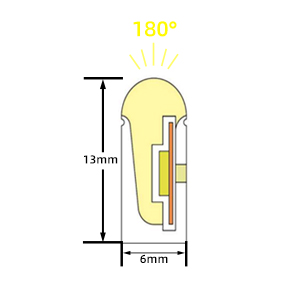

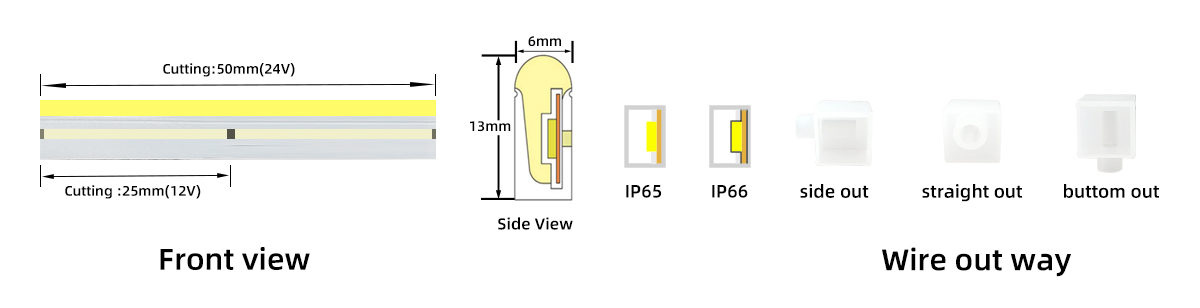

Dimension	W6*H13mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65°C
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50/100m/Roll
Power	4/6/8/9/10/12/14W/M

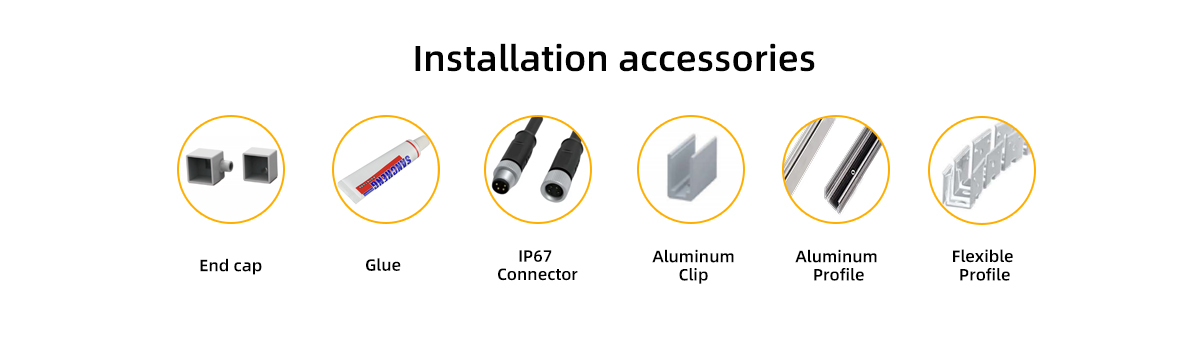

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neondamage

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

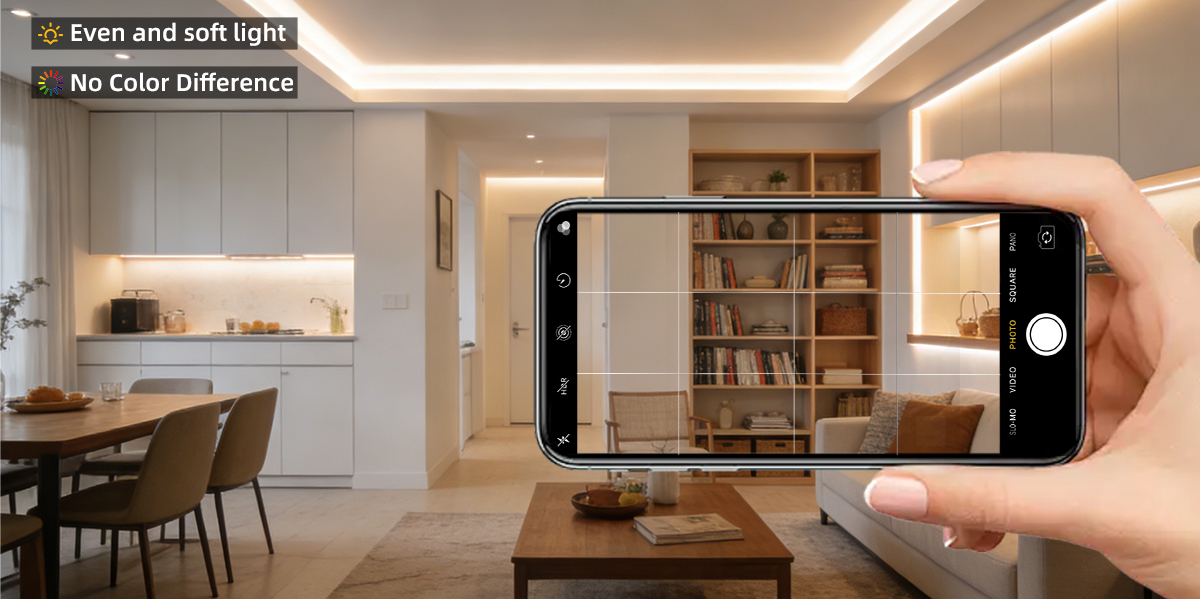

No light spots

Featuring high-brightness SMD2835 LEDs, with 120 high-density LEDs per meter, combined with a professional optical distribution structure, the light output is more uniform and soft. The light strip’s surface features no dark spots, no breaks, and no graininess. The overall light output is delicate and translucent, truly achieving a high-quality neon effect with uniform soft light and no dark patches. It offers a premium visual texture, delivering a clean, comfortable, and high-end lighting experience whether viewed up close or from a distance.

0613-霓虹详情页_05

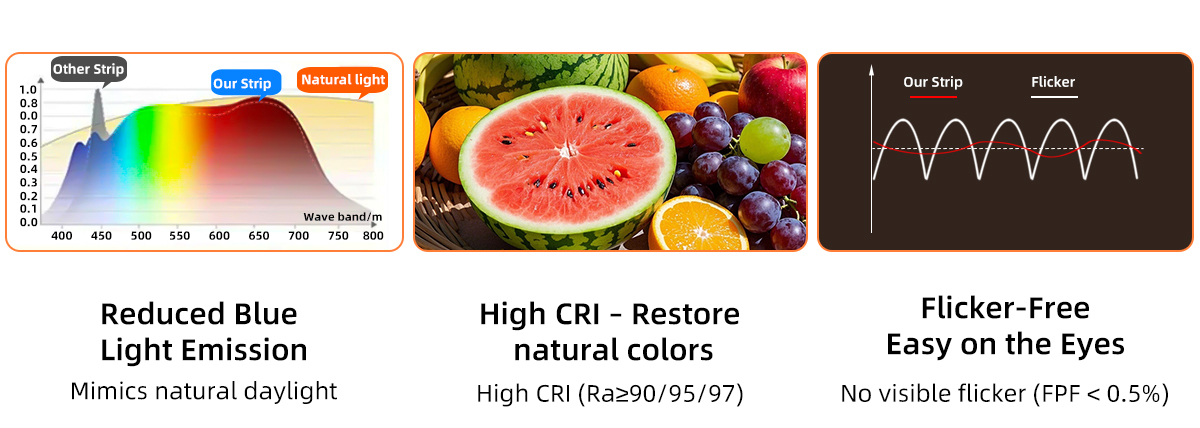

High Color Rendering

The light strips feature high-quality LEDs with a Color Rendering Index (CRI) of RA>80/90/95, accurately reproducing the true colors of objects. The light is natural and translucent, free from color distortion or glare, delivering a more refined and comfortable visual experience. We offer a variety of color options, including classic single colors such as warm white, cool white, red, green, and blue, as well as RGB full-color models. These allow you to freely switch colors and adjust brightness to meet the ambiance and decorative needs of different settings. The colors are rich and long-lasting, creating a sophisticated and layered lighting effect.

0613-霓虹详情页_11

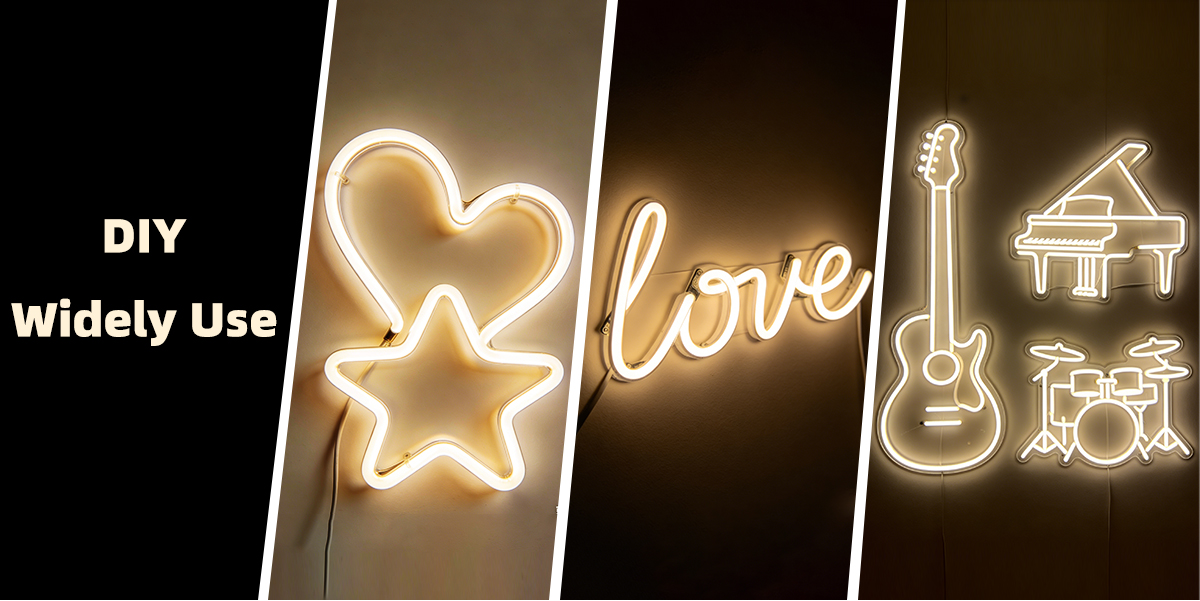

Flexibility

Featuring a high-quality flexible silicone casing, this product offers exceptional durability and resistance to deformation. The light strip is extremely flexible and can be easily molded into various shapes, curves, letters, and patterns as needed. Its low-profile design makes it ideal for discreet installation in recessed channels, curved walls, circular accents, signage, logos, and other complex lighting applications, delivering a clean, seamless, and professional lighting effect.

0613-霓虹详情页_17

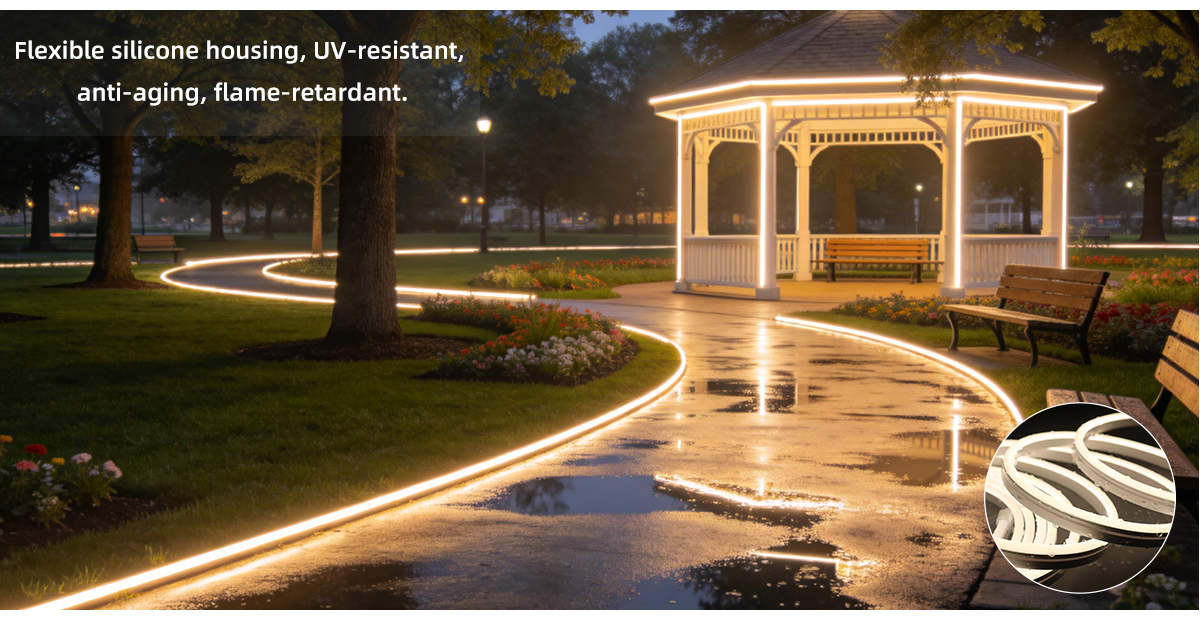

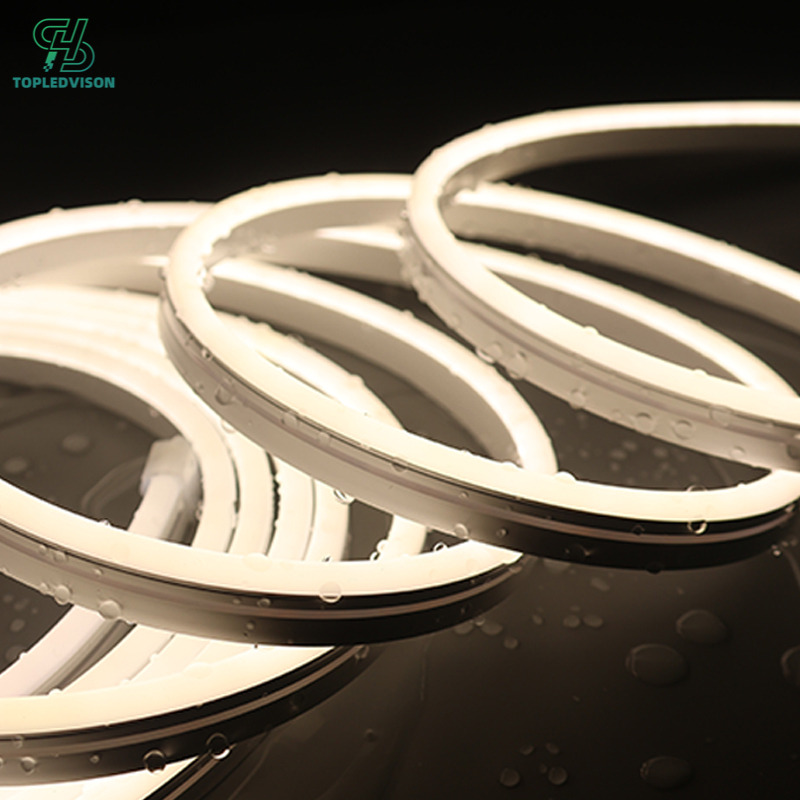

IP67 Water and Dust Resistance

Features an integrated extruded silicone seal that is UV-resistant, yellowing-resistant, acid and alkali-resistant, and flame-retardant. A double-layer insulation structure protects the LED chips and circuitry, making it impervious to rain, moisture, and dust. Suitable for both indoor and outdoor use, it ensures long-term stable operation outdoors.

0613-霓虹详情页_23

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimentation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)checkthe+and -connection right between power supply and led strip. (2) check the power supply output voltis same with strip working volt.
whole strip with slight brightness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity,and make sure strip without any short circuit before power on. (2) check the power, strip and metal object allisolated.
led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.
the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、 the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube,plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
