0612 Flexible LED Neon Strip 6×12mm-5m(NEON STRIP SERIES)

Feature / Warranty

light soft and equal
High Color Rendering Index
Flexibility and Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

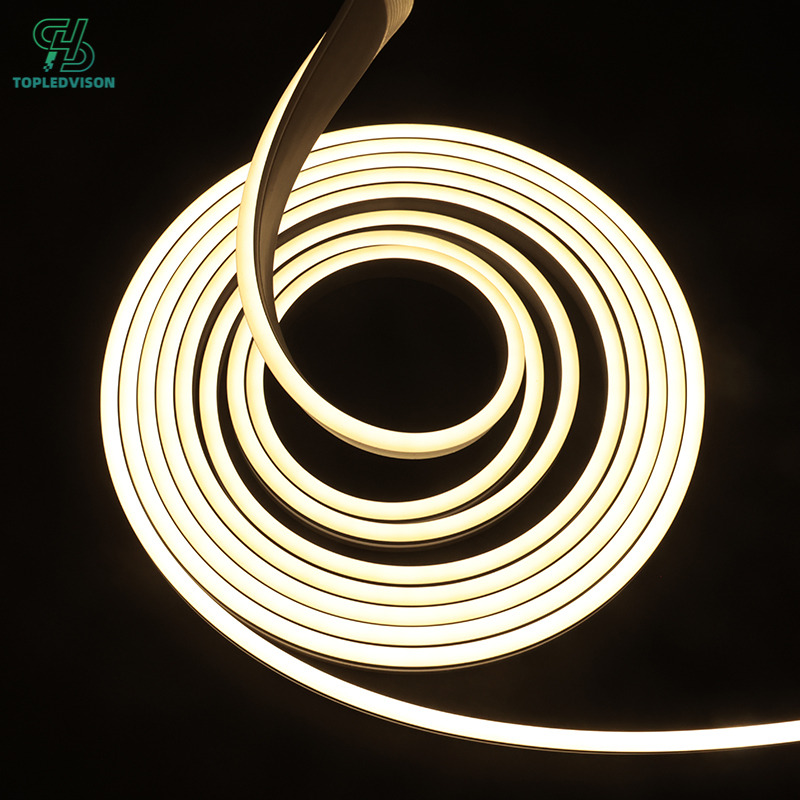

6×12 mm Flexible LED Neon Strip

Neon Lighting: Features high-quality flexible 2835 LED strips; High brightness, excellent color consistency, stable quality, long service life, flexible cutting, and easy installation. Available color temperatures include: 1800K/2000K/2700K/3000K/4000K/5000K/6500K/8000-10000K, with a Color Rendering Index (CRI) of Ra ≥ 80. with high-end versions reaching Ra90/Ra95; RGB/RGBW options are also available.
Neon Tubes: The 0612 neon tube is made from high-quality, eco-friendly silicone rubber. It features high transparency, high luminous efficiency, resistance to yellowing, excellent tensile strength, UV resistance, and a V0 flame-retardant rating, ensuring superior flame-retardant performance.
Lighting Effects: Even side-emitting light with a soft glow; glare-free and flicker-free; flexible, making it suitable for curved signage; ideal for indoor and outdoor lighting; suitable for applications such as advertising light boxes, illuminated letters, staircases, bar counters, and building outlines.
Protection rating: IP65/IP66; suitable for indoor and outdoor environments; dustproof, waterproof, and corrosion-resistant.

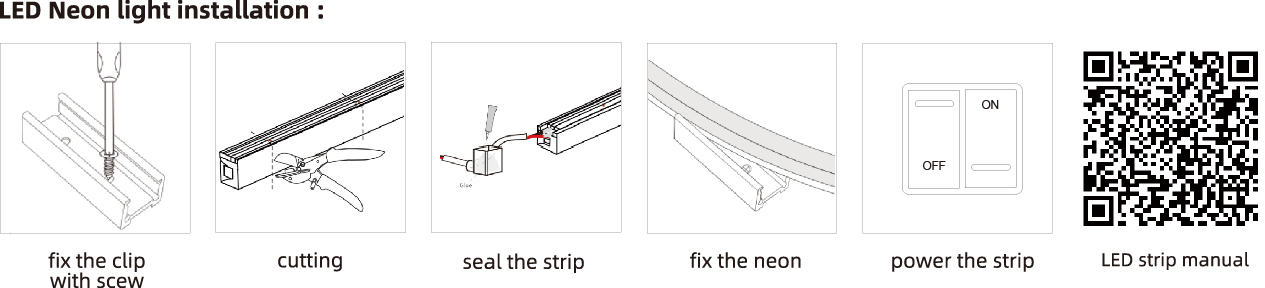

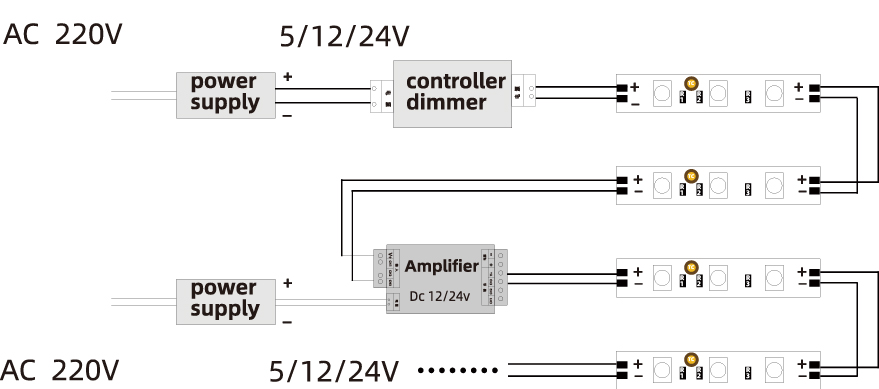

Easy to install: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum channels; simple wiring; supports single-ended or dual-ended power supply to minimize voltage drop; connectors and end caps are sealed.

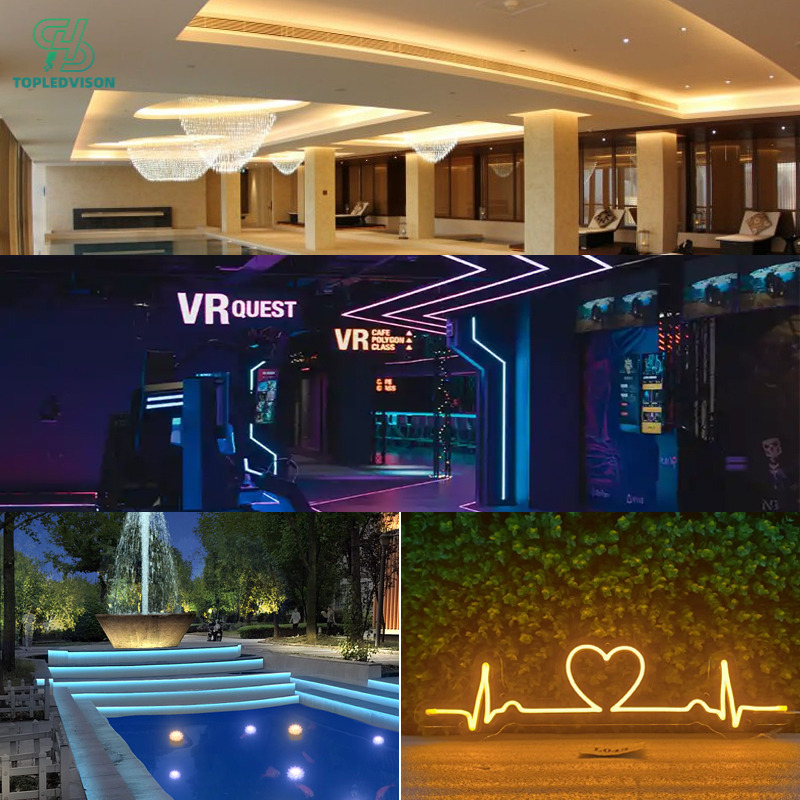

Applications of 6x13 Neon Tubes：Indoors: Cabinet lighting, accent walls, staircases, display cases, KTV/bar ambiance; Outdoors: Advertising light boxes, building outlines, storefront windows, landscape lighting.

Technical Parameters

lighting Effect	Dot free	lighting way	side lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes

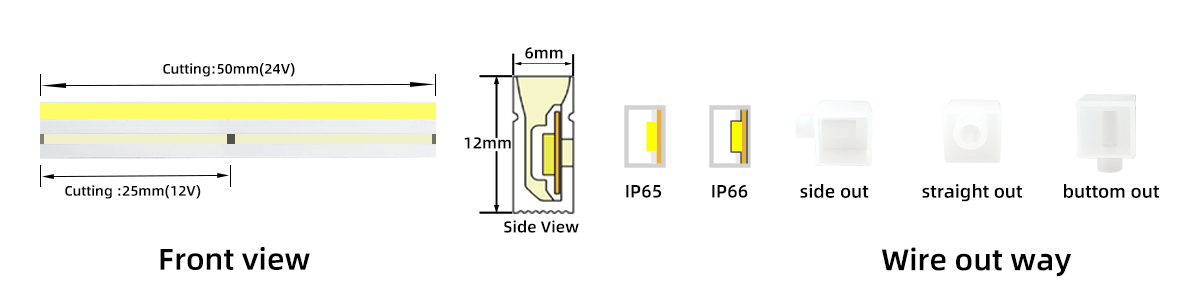

Dimension	W6*H12mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/48/110/220V	Certification	Emc, RoHS, CE, FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50/100m/Roll
Power	6/9/10W/M

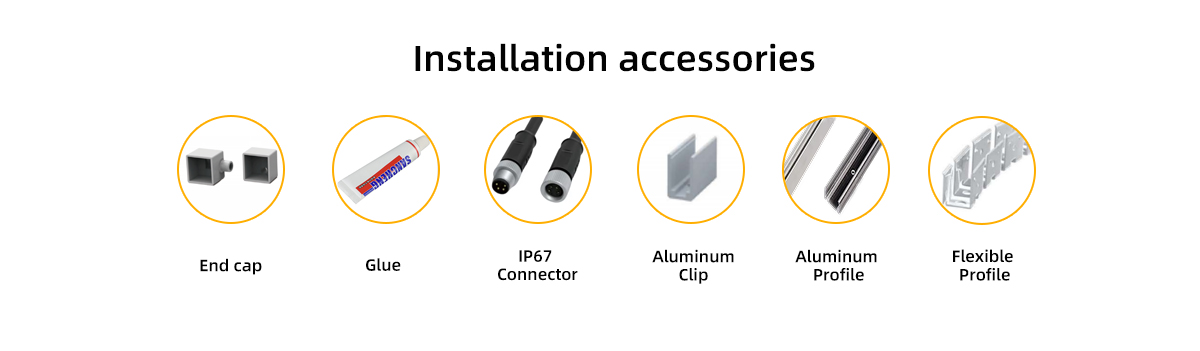

Standardized, plug-and-play accessories significantly reduce commissioning time .
The waterproof connectors meet IP65 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.
Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

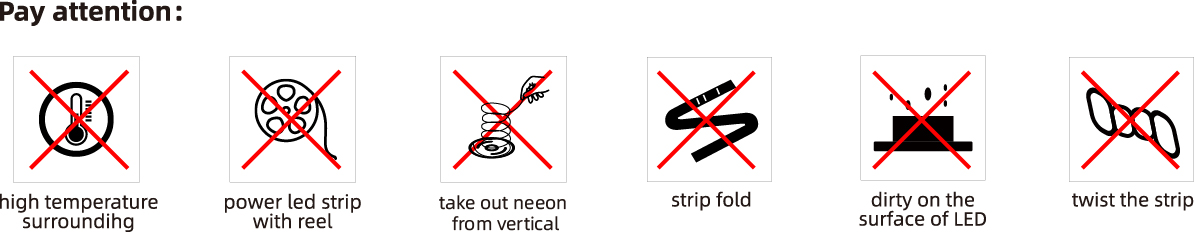

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neondamage

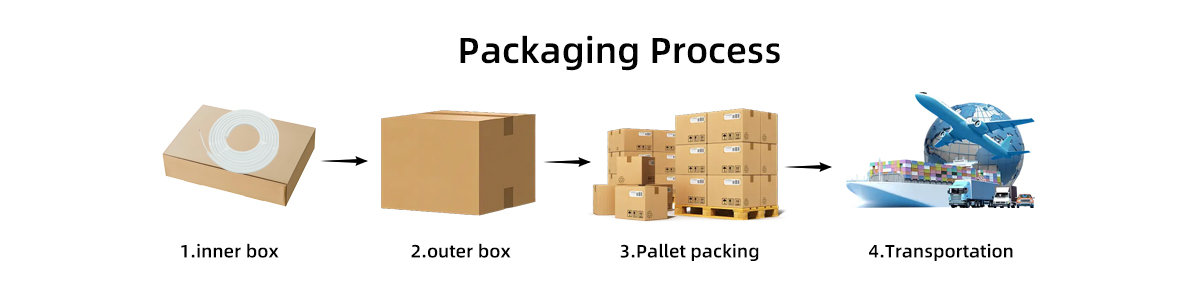

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Soft and even

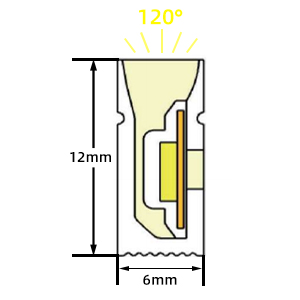

This 0612 flexible neon light strip features an ultra-slim profile measuring just 6mm × 12mm, allowing it to be easily installed in tight gaps,narrow frames, and grooves—areas where conventional light strips are difficult to install. Its 6mm light-emitting surface creates a delicate,refined line, making it ideal for contouring, signage, and detailed accents; Equipped with 120 high-brightness SMD2835 LEDs per meterand paired with high-transparency silicone, it emits uniform, soft light without dark spots or a grainy appearance, delivering a seamlessand delicate neon lighting effect.

0612-霓虹详情页_05

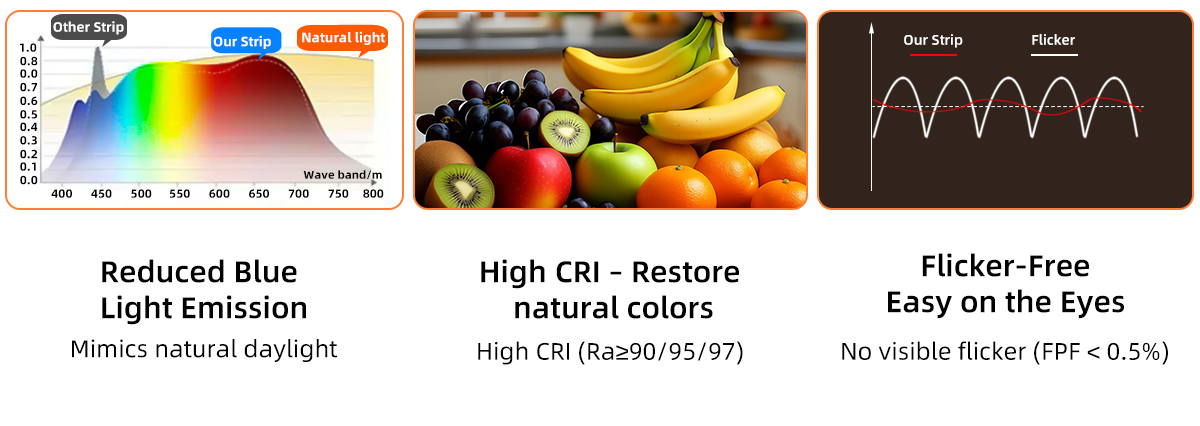

High Color Rendering Index

The 0612 flexible neon light strip features a design with an exceptional Color Rendering Index (CRI), ensuring that the colors it emits are vivid, true-to-life, and dynamic, faithfully reproducing natural tones with remarkable precision. The warm and visually comfortable light accurately renders the true colors, textures, and subtle details of objects, surfaces, and the surrounding environment. This exceptional color accuracy significantly enhances the overall aesthetic and functional quality of various applications, spanning indoor and outdoor decorative lighting, commercial signage, architectural accent lighting, retail display lighting, and creative art installations.

0612-霓虹详情页_11

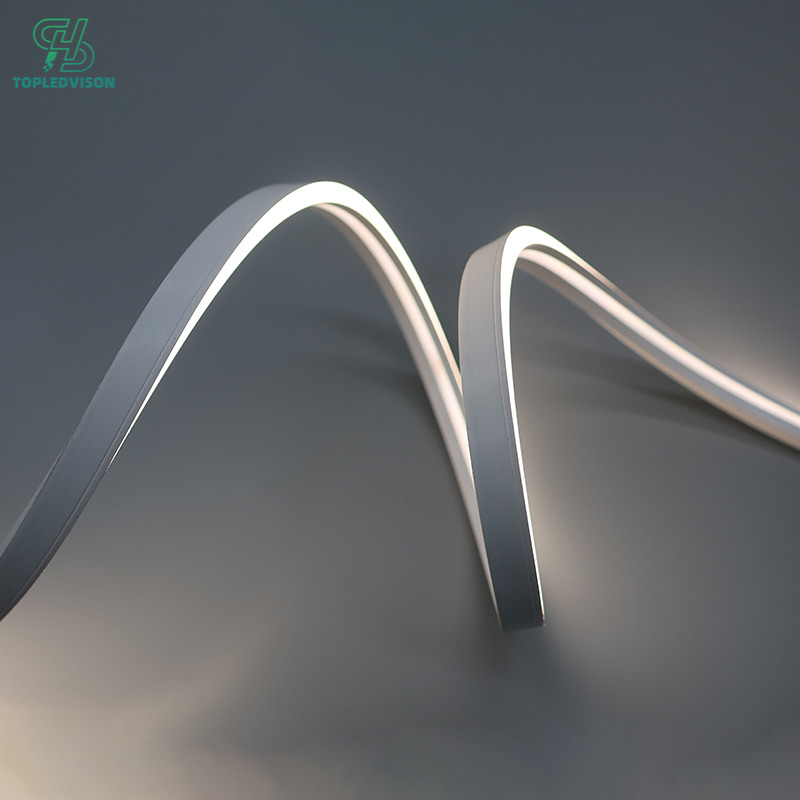

Flexibility and Tailoring

This LED strip offers exceptional flexibility and modeling capabilities, with a minimum horizontal bending radius of just 3–5 centimeters. It bends naturally and smoothly in both directions, allowing users to easily create three-dimensional letters, brand logos, flowing curves, and various irregular creative shapes without the need for complex tools, thereby meeting diverse customization needs. Crafted with a high-quality dual-layer silicone structure, the product features a tightly bonded outer protective layer and inner light-emitting layer, combining flexibility with durability. It can withstand long-term repeated bending without cracking, breaking, or light decay, offering outstanding structural stability. Whether for personal DIY creative lighting projects or complex engineering applications such as commercial signage, landscape decoration, and architectural lighting.

0612-霓虹详情页_17

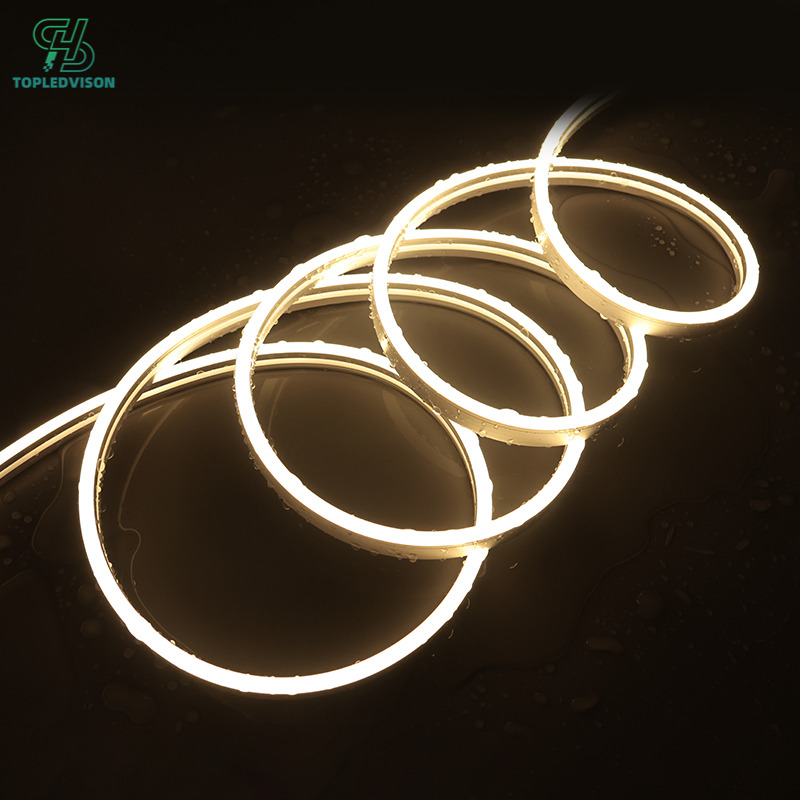

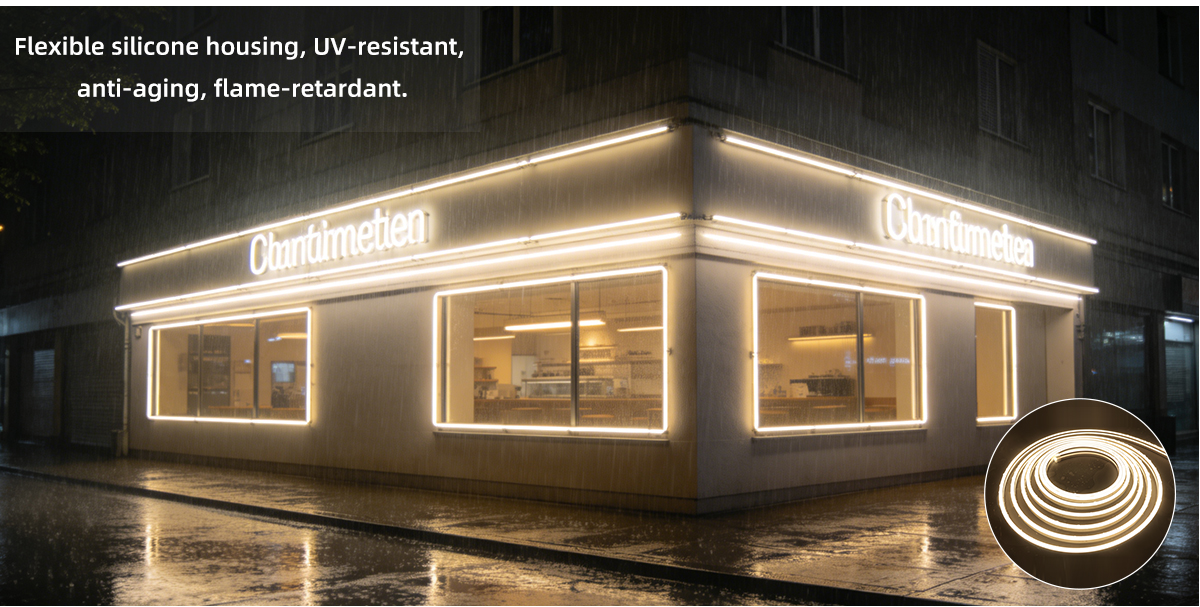

Durability and Protection

The light strip features an IP67-rated, fully sealed, one-piece molded silicone construction that is waterproof and moisture-resistant,ensuring long-term, stable performance in outdoor environments exposed to rain, as well as in bathrooms and similar settings.It is also resistant to UV rays, salt fog, and acid and alkali corrosion, and is resistant to yellowing and aging, making it suitable for harshenvironments such as coastal areas, outdoor structures, and ships.

0612-霓虹详情页_23

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters.Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimentation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1、positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure.	(1)check the +and -connection right between power supply and led strip. (2) check the power supply output volt issame with strip working volt.
whole strip with slight bright ness and few sections bright	1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burntby surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around.	(1)please do not connect the wire with electricity,and make sure strip without any short circuit before power on. (2) check the power, stripand metal object all isolated.
led strip Color difference	1, something fall on thesurface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of component scrack by the wrong fold or people step on the led strip . 2、 the chip of led burnt out.	(1)cutthe failed section and replace with new section. (2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal causethe short circuit.
the brightess is big difference between the front and the end	1、the strip length is too long make voltage drop.	(1)suggest to power strip onboth sides when constant volt strip length>7meters and constant current strip length>15meters.
strip fall off from the object	1、 the object with paint, dustand silicone will make the tapesticky weak.	(1)suggest to clean the surface of object before stick the strip.
led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube,plastic to fix the strip,...please use the netural type,do not use acid type or something with sulfur.
