0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
0606 Flexible Neon LED Strip 6×6mm-5m(NEON STRIP SERIES)
Feature / Warranty
霓虹图标.jpg2
· Soft and even
· High Color Rendering Index
· High flexibility and Tailoring
· Customizable
Min. Order: ≧50 meters
Price and order please inquiry

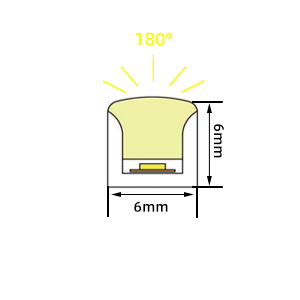

0606霓虹灯带结构
Quantity:
库存: 0
Inquire
Add to Basket

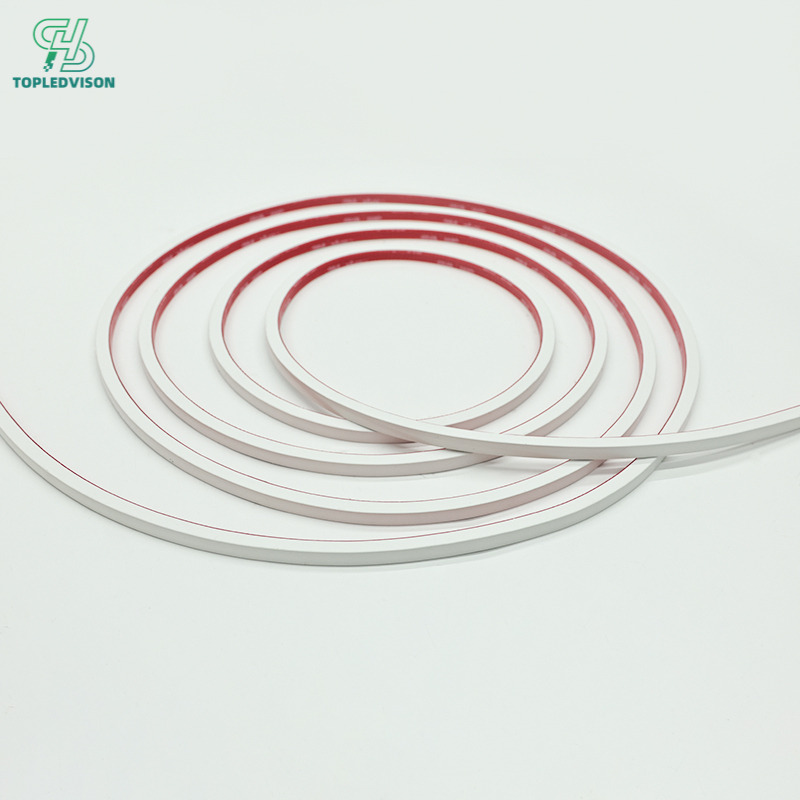

6×6 mm Flexible LED Neon Strip

Features: Made from high-quality flexible 2835 LED strips; features an ultra-compact 6×6 mm design with a slim, sleek profile, enabling discreet installation where the light is visible but the strip remains hidden; Supports 12V/24V DC low-voltage operation; features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install. Color Rendering Index (CRI) Ra ≥ 80/90/95; color temperature range from 1800K to 10000K; RGB and RGBW options also available.

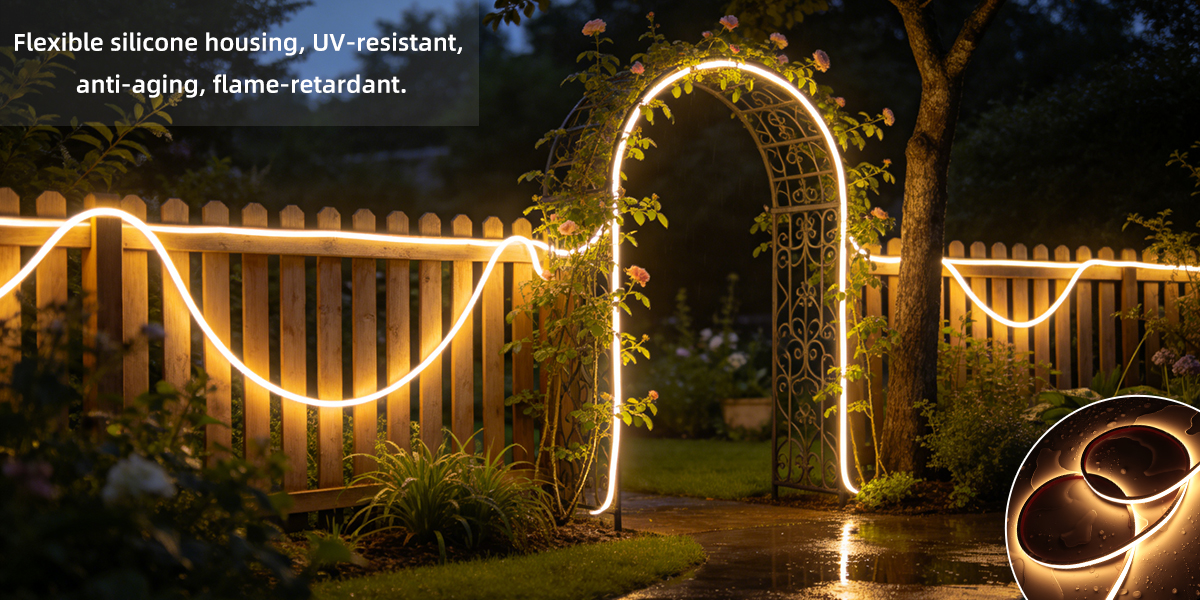

Neon Tubes: The 6×6 neon tubes are made of high-quality, eco-friendly silicone. Features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame retardant rating, ensuring excellent fire safety.

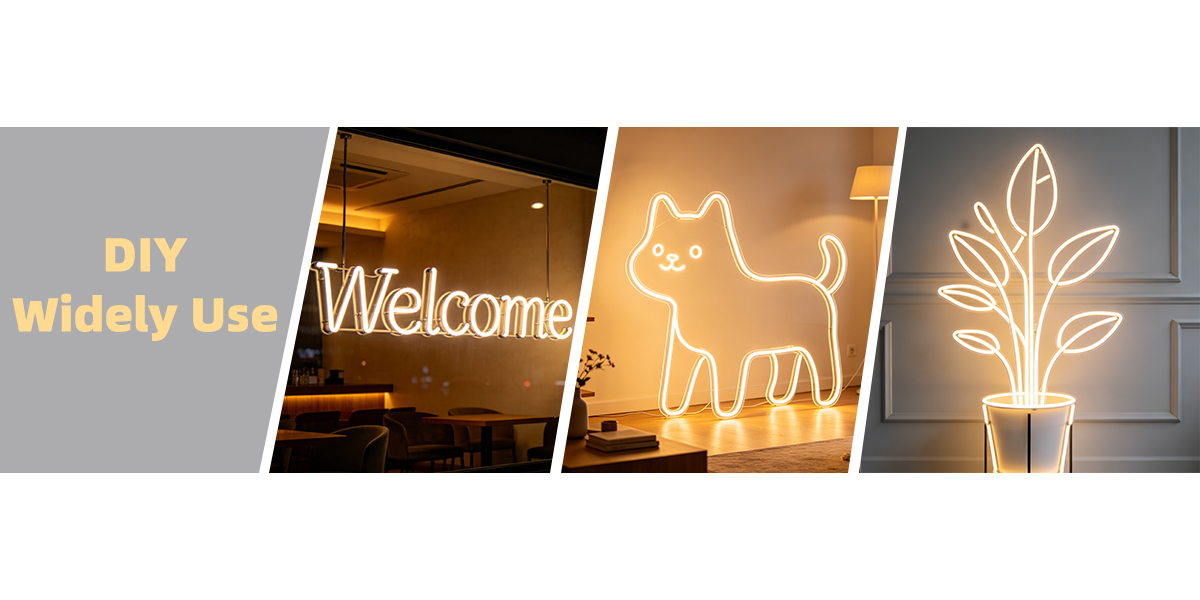

Lighting Effects: Light emits softly from the front; no light spots or flickering; excellent flexibility, suitable for indoor and outdoor lighting applications such as mini illuminated letters, logo outlines, store signs, and architectural decorative lighting.

Protection Rating: IP65/IP66, suitable for indoor and outdoor humid environments, including outdoor exposure to rain and environments with acid or alkali corrosion.

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles; simple wiring; supports vertical and horizontal bending, accommodating curved, S-shaped, letter, and pattern designs; connectors and end caps are fully sealed.

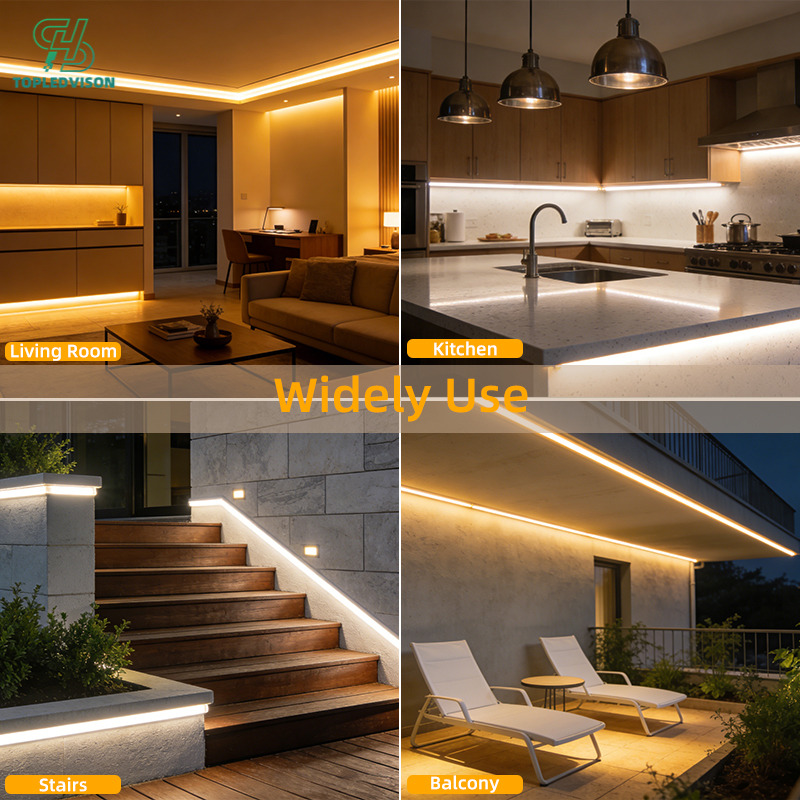

Applications of 6x6 Neon Lights: Indoor; Background wall ambient lighting, cabinets/wine racks, decorative picture frames; Outdoor: Building outlines, landscape bridge railings, gardens, signage and directional indicators.

Technical Parameters

lighting Effect

Dot free

lighting way

Front-lit

Color

Temperature

1800-10000K,

RGB, RGBW

Support

Dimmer

Yes

Dimension

W6*H6mm

Lifespan

>50000h

Lamp Body

Material

Meteorological

silica gel

Working

Temperature

-20-65℃

CRI

80/90/95Ra

Warranty

3Year

Input Voltage

5/12/24/48/110/220V

Certification

Emc, RoHS, CE,

FCC, LVD

Luminous

Efficiency

70-80lm/w

Packing

5/10/20/50Roll

Power

6/8/10/12W/M

  • Standardized, plug-and-play accessories significantly reduce commissioning time .

  • The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

  • Specialized clips and profiles ensure that the light strips are installed straight and flat, without any  warping or bulging.

  • Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

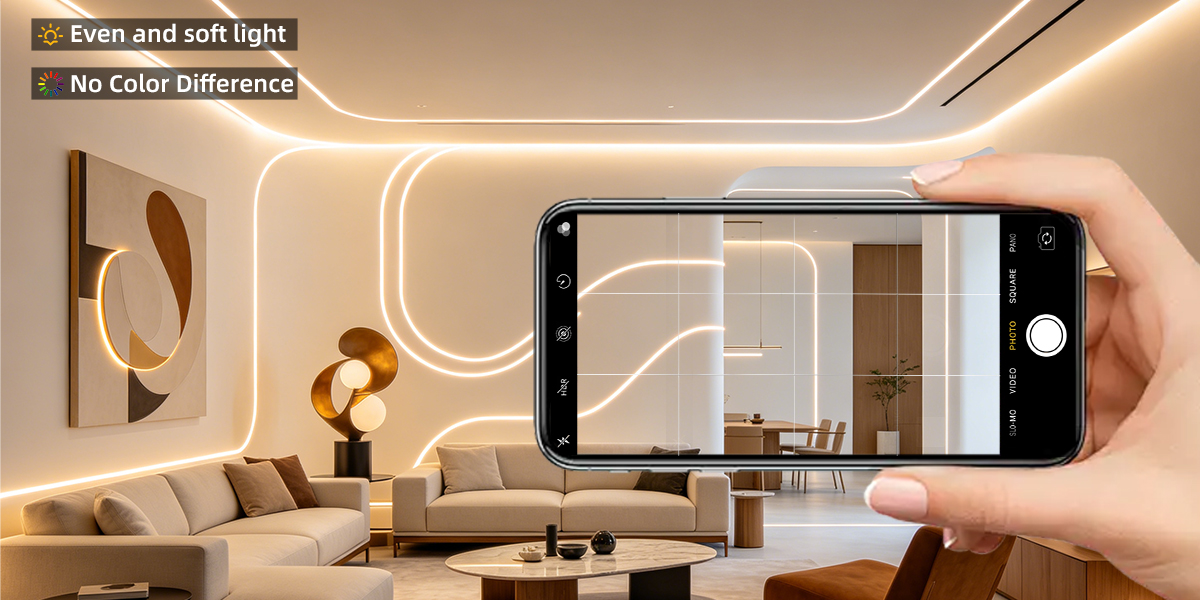

Soft and even

The high-density LED chip layout, combined with a professional diffusing optical design, produces a more uniform and soft light output. The light along the entire strip is seamless and smooth, with no dark spots, glare, or noticeable graininess, resulting in a delicate and warm lighting effect that offers exceptional visual comfort. The soft, even light enhances the ambiance of a space without causing glare or discomfort, making it ideal for sophisticated interior applications such as display cases, furniture inlays, bar atmospheres, and wedding settings. At the same time, thanks to its stable, high-quality optical performance and reliable protective features, it can be safely used for outdoor contour lighting and landscape illumination, balancing both aesthetics and practicality.

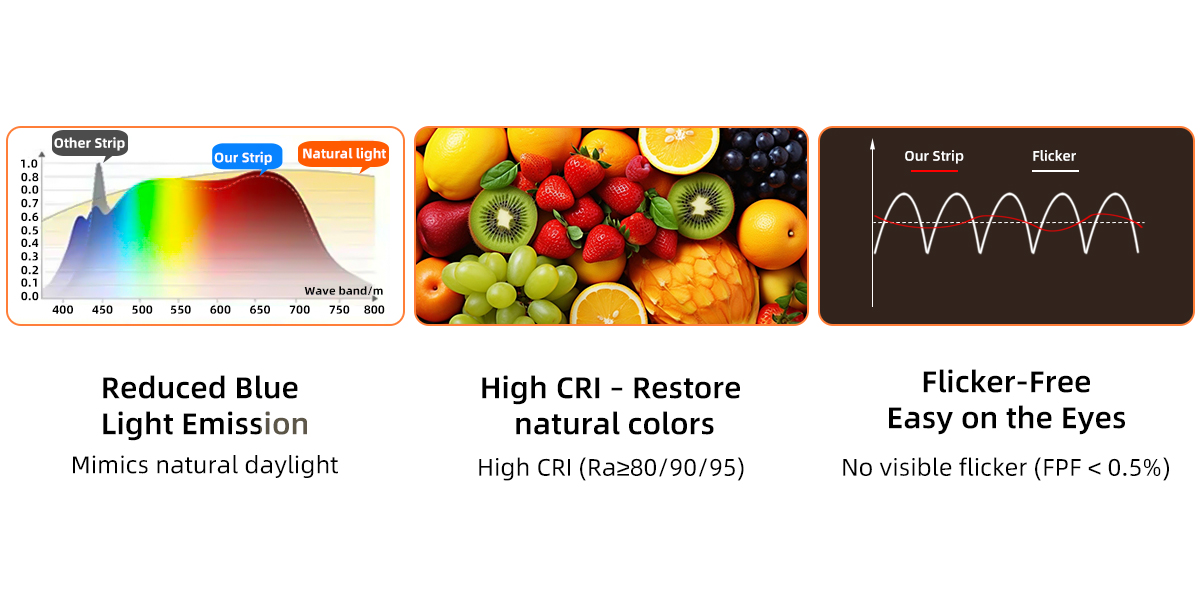

High Color Rendering Index

Equipped with high-color-rendering LED light sources (CRI ≥ 80/90/95Ra), it faithfully reproduces the true colors and textures of objects, delivering natural, clear light without color distortion. Whether illuminating merchandise in display cases, highlighting details in furniture and soft furnishings, or setting the mood in venues such as weddings and bars, these lights enhance color vibrancy and depth, preventing the dullness and color distortion caused by poor color rendering. They elevate the overall quality and visual sophistication of the space, seamlessly blending decorative appeal with practical functionality.


Flexibility and Tailoring

The 06×06 neon light strip features an ultra-compact 6×6mm design. Its slim and compact profile allows it to be easily embedded into cabinets, crevices, narrow channels, and other confined spaces, achieving a concealed installation where the light is visible but the strip remains hidden. It also offers greater flexibility for bending, enabling smoother, more rounded shapes when creating intricate lines, text, patterns, or animal figures. Additionally, since it does not require thick, heavy materials, installation is simpler and more material-efficient. The overall lighting effect is exquisite and delicate, making it the perfect fit for a wide range of indoor and outdoor lighting applications that demand both space efficiency and aesthetic appeal.


Durability and Protection

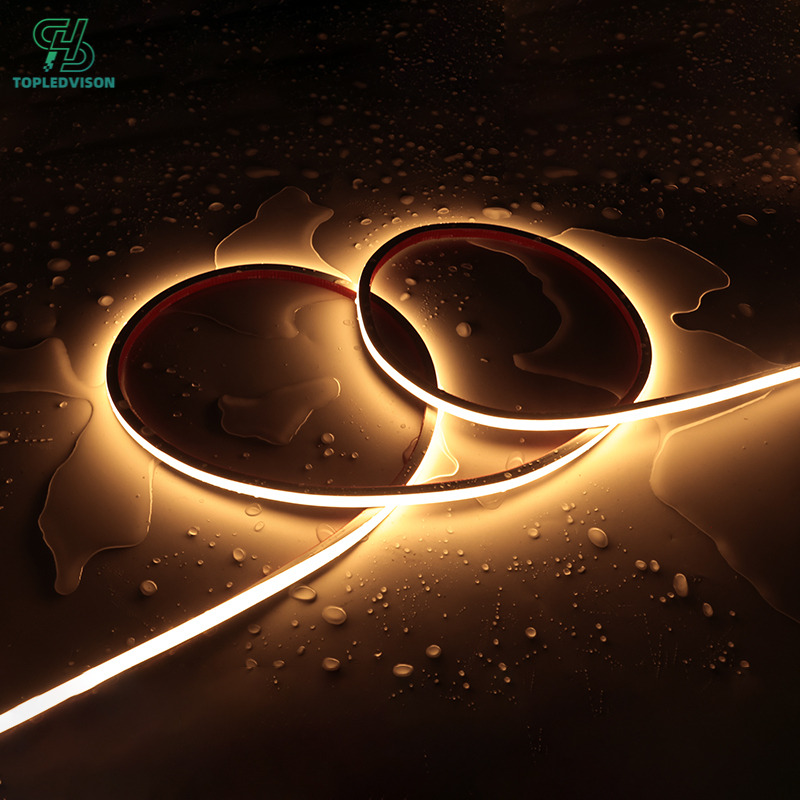

IP65/IP66-rated water and dust resistance; fully silicone-encapsulated; UV-resistant, yellowing-resistant, and salt-fog-resistant; suitable for indoor and outdoor environments, as well as humid conditions (such as bathrooms, poolside, and rainy outdoor conditions).



Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)


Phenomenon

causes

solution

whole strip not working

1、positive(+) and negative (-)Connection wrong.

2, input voltage too low.

3, Power supply failure .

(1)checkthe+and -connection right between power supply and led strip.

(2) check the power supply output voltis same with strip working volt.

whole strip with slight brightness and few sections bright

1、positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge.

2, leds will be failed by the power supply leakage or strip components touch the   metal object around .

(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.

(2) check the power, strip and metal object allisolated

led strip Color difference

1, something fall on the surface of LED.

(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest toinstall the led strip when decoration done.)

one section orfew sections failureor color missing

1, the pad of components crack by the wrong fold or people step on the led strip .

2, the chip of led burnt out.

(1)cut the failed section and replace with new section.

(2)the led burnt out by ESD orthe strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.

the brightess is big difference between the front and the end

1, the strip length is too long make voltage drop.

(1)suggest to power strip on both sides when constant volt strip length>7meters and constant current strip length>15meters.

strip fall off from

the object

1、the object with paint, dust and silicone will make the tape sticky weak

(1)suggest to clean the surface of object before stick the strip.

led strip white colorturn blue color

1, the fluorescent glue of ledare corroded by something.

(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.

Equipped with automated production lines and advanced testing equipment, every roll undergoes stringent quality control to ensure consistent and reliable product performance.
