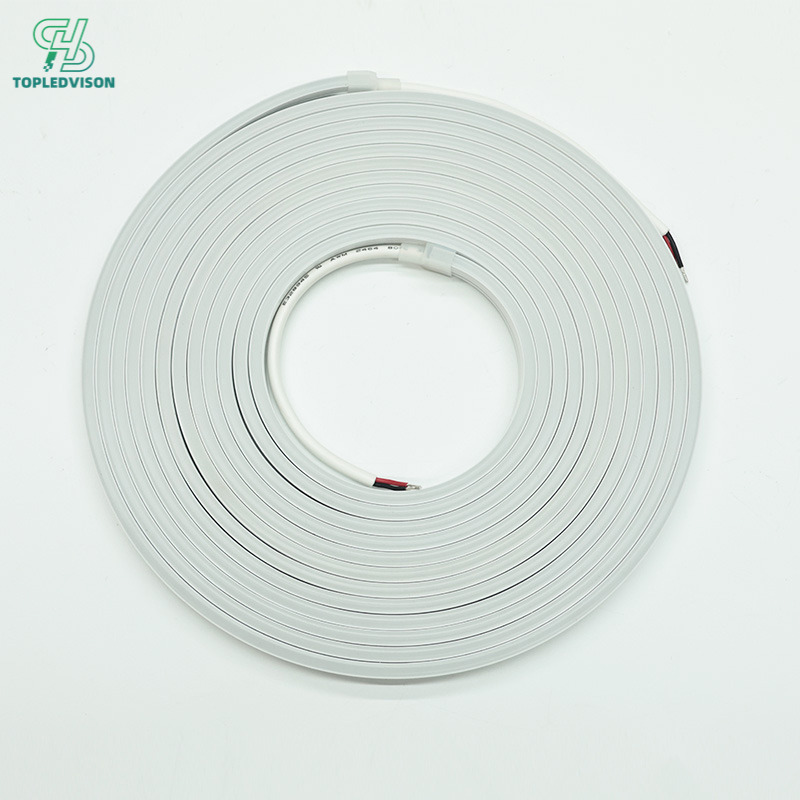

0410 Flexible Neon LED Strip4x10mm-5m(NEON STRIP SERIES)

Feature / Warranty

· Ultra-slim design

· No light spots

· Highly flexible and easy to style

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

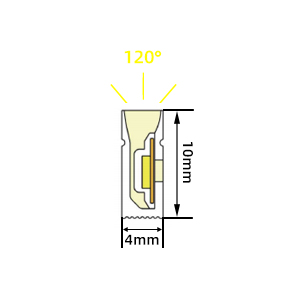

4×10 mm Flexible LED Neon Strip

Neon Strip Performance: Features: Utilizes high-quality flexible 2835 LED strips; with a compact 4×10 mm design, it is slim and petite, allowing installation in extremely narrow light channels, narrow gaps, frames, and logo outlines—spaces where traditional LED strips cannot be installed—resulting in a nearly invisible appearance after installation; Supports 12V/24VDC low-voltage operation; features high brightness, excellent color consistency, stable quality, and a long service life; fully customizable and easy to install. Color Rendering Index (CRI) Ra80/90/95; color temperature range from 1800K to 10000K, with both RGB and RGBW options available.

Neon Tubes: The 4×10mm flexible LED neon tubes are made of high-quality, eco-friendly silicone. Their features include high light transmittance, high luminous efficacy, resistance to yellowing, high flexibility, UV resistance, and a V0 flame retardant rating, ensuring excellent fire safety.

Lighting Effect: Side-emitting / micro-lens optical design + high-density LEDs achieve a continuous, uniform light output with absolutely no light spots, dark areas, or graininess. The light is soft and non-glare, making it suitable for indoor and outdoor lighting applications such as TV cabinets, TV backdrops, stair tread edges, display cases, jewelry cabinets, boutique shelves, wedding venues, and event spaces.

Protection Rating: IP65/IP66 fully sealed silicone construction. The silicone withstands temperature fluctuations from -20°C to 65°C, resists UV rays, and is waterproof, moisture-resistant, and crack-resistant; suitable for indoor and outdoor humid environments, including outdoor rain exposure and acid/alkali corrosion.

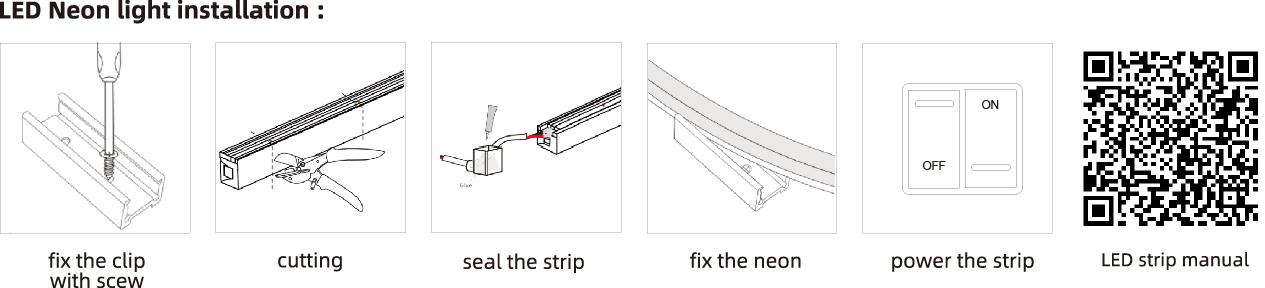

Easy Installation: Can be securely mounted using standard aluminum snap-on flexible clamps or aluminum profiles/adhesive backing; simple wiring; flexible and bendable, capable of forming arcs, circles, S-shapes, text, and patterns; adapts to complex curved surfaces and DIY designs; resistant to kinking and permanent bends; connectors and end caps are fully sealed.

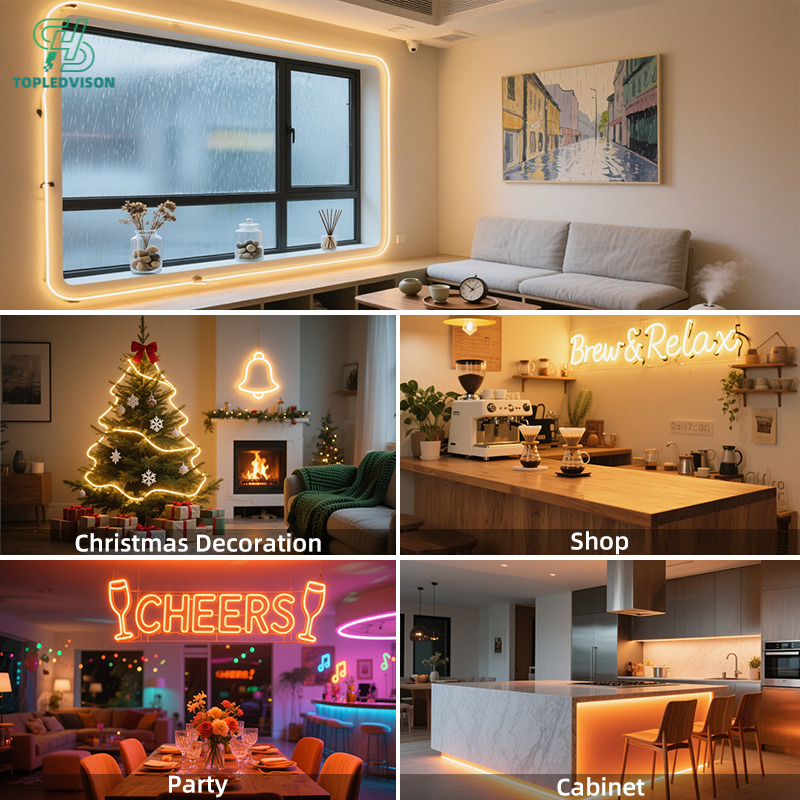

Applications of 4x10mm Flexible LED Neon Strips: Staircases, bathroom mirrors, wardrobes/cabinets/wine racks, mini illuminated letters, balconies, short English phrases, decorative patterns, garden fences, railings, and directional signage.

Technical Parameters

lighting Effect	Dot free	lighting way	Side-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W4*H10mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/ 48/110/220V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	6/8/10/12W/M

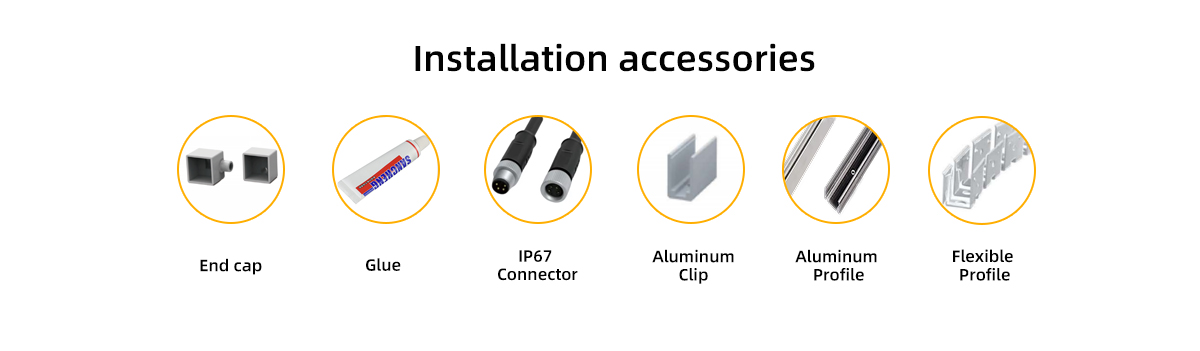

Standardized, plug-and-play accessories significantly reduce commissioning time.

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

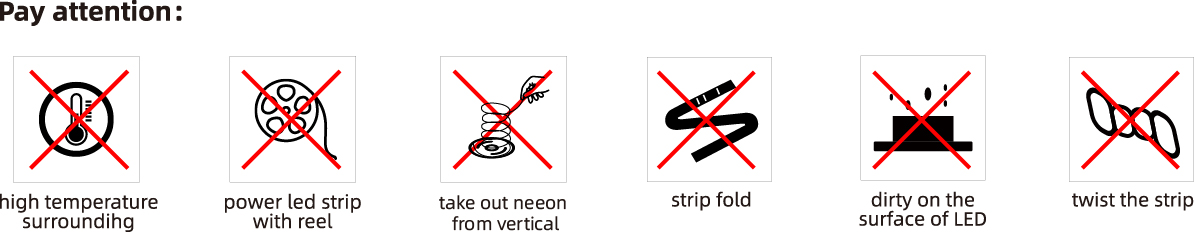

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

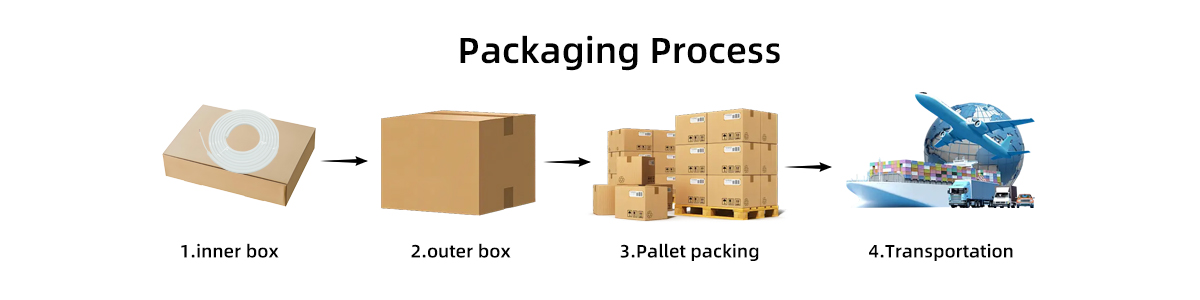

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

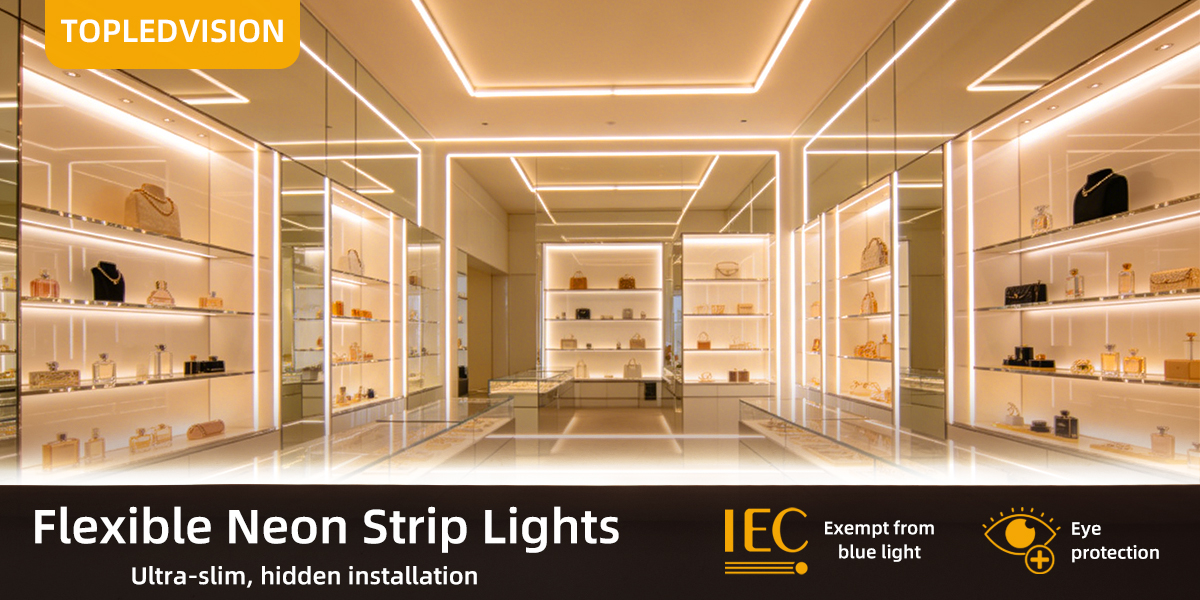

Ultra-compact

The product features an ultra-slim core structure, measuring 4 mm (width) × 10 mm (height), It ranks among the slimmest LED strips available on the market and can be seamlessly concealed within ultra-narrow light channels (≤5mm), furniture crevices, signage contours, and acrylic laminates, achieving an effect where the light source is invisible and only the light and shadow are visible. This design maximizes space efficiency and is ideal for high-end kitchen cabinets, display cases, boutique stores, and luxury storefronts—environments that demand the strictest standards of minimalist design.

0410霓虹图1

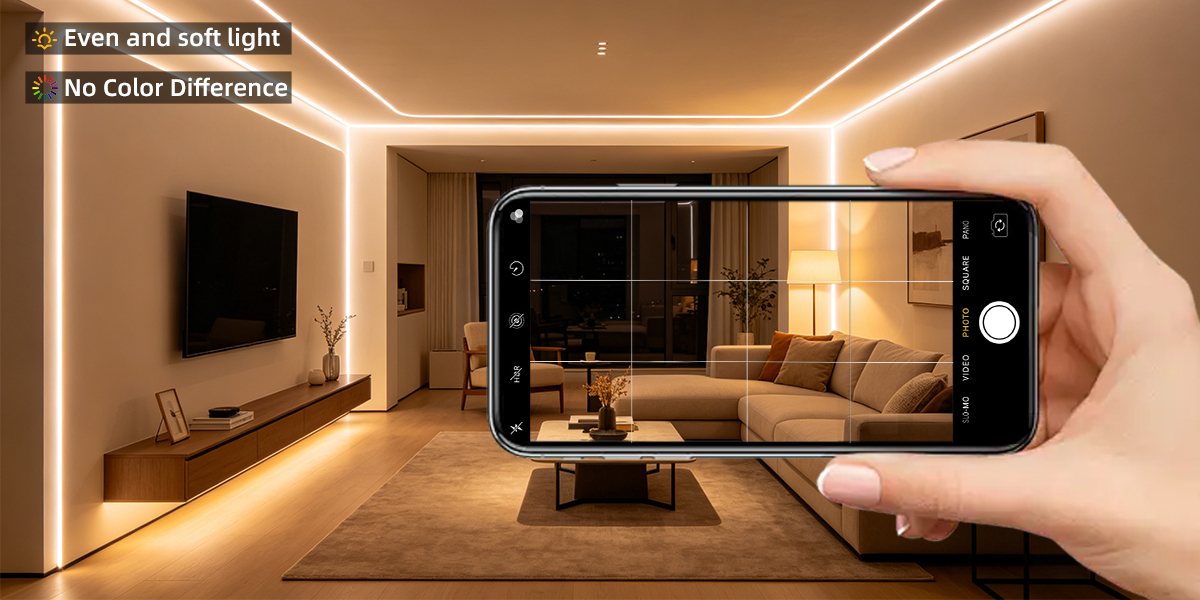

No dark areas

This neon strip features high-density SMD2835 LEDs paired with a professional optical silicone sleeve, delivering continuous and uniform light output with no dark spots, no light spots, and no graininess. With a Color Rendering Index (CRI) of ≥80/90/95Ra, it provides true-to-life and natural color reproduction, meeting the demands of commercial displays and premium lighting applications. The product features 4mm narrow-face side-emitting design, delivering concentrated light ideal for contour, linear, and edge lighting. The 120° beam angle ensures a soft, glare-free illumination.

0410霓虹图2

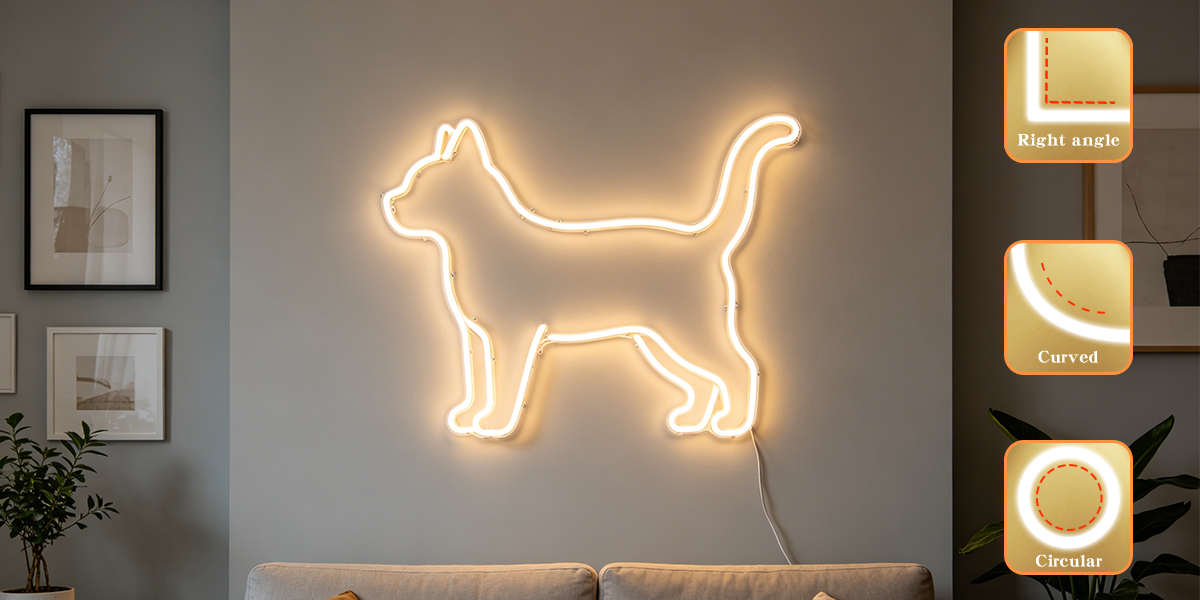

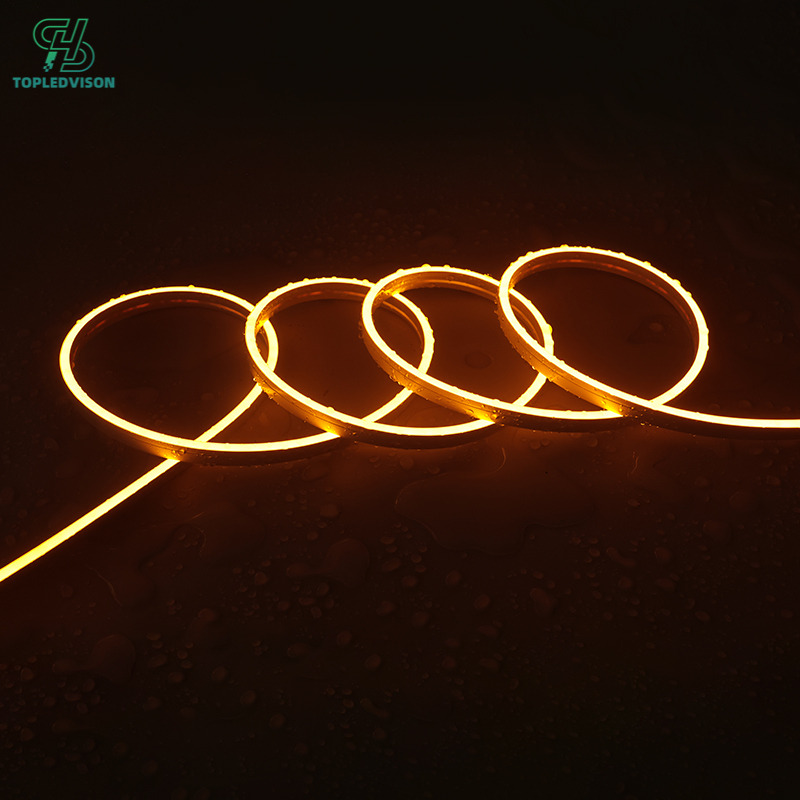

High flexibility

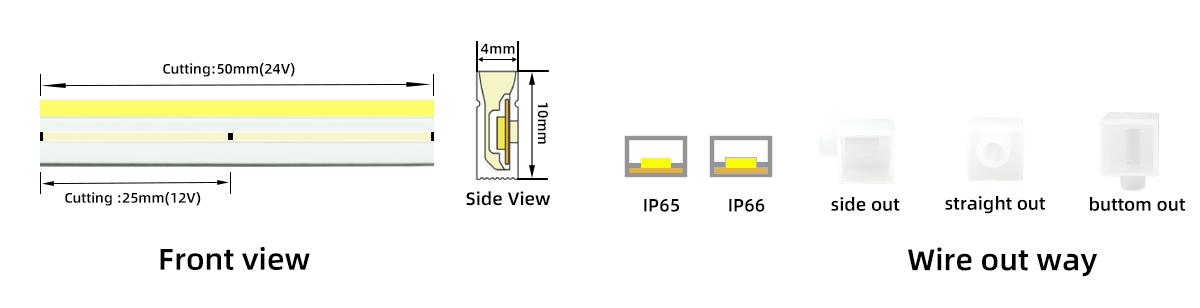

The product features exceptional flexibility, allowing for vertical and lateral bending with a minimum bending radius of R≥30mm. It can be easily bent vertically and laterally to create letters, logos, waves, circles, and various irregular shapes; Made from high-tensile silicone and double-sided copper foil FPC material, it withstands repeated bending without fraying or cracking, making it ideal for DIY projects, art installations, and dynamic displays. It can be cut in 25mm or 50mm lengths, allowing for custom cutting and zero waste.

0410霓虹图3

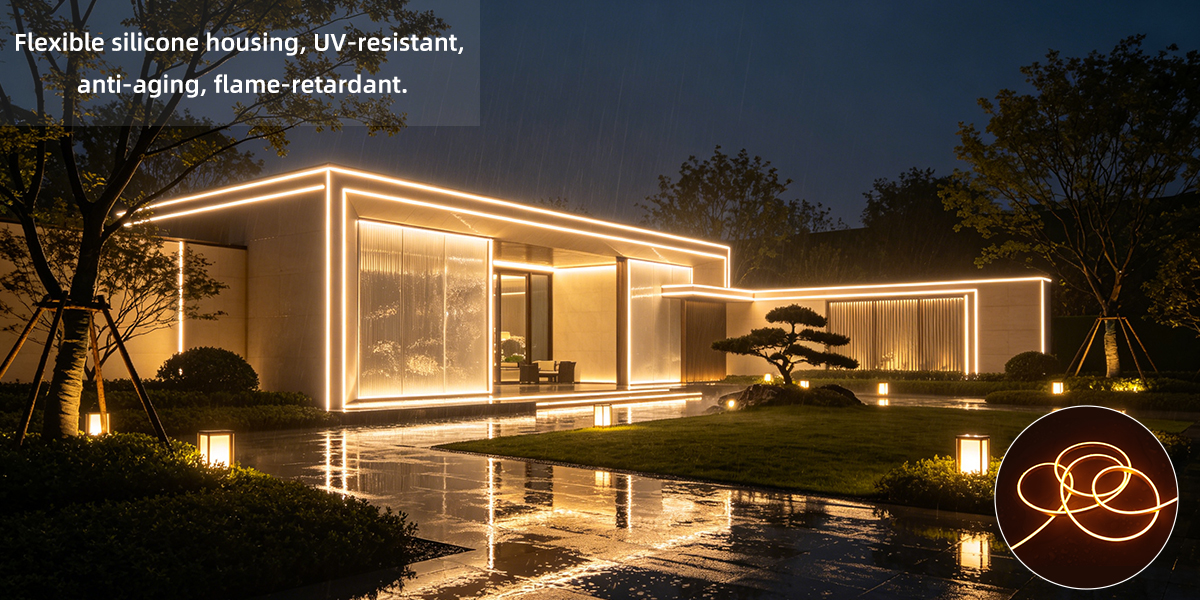

Protective Applications

This neon light strip features a one-piece extruded silicone construction and is available with IP65 or IP66 protection ratings. It offers excellent water and dust resistance, as well as UV resistance, anti-yellowing properties, and corrosion resistance, making it ideal for use in outdoor, humid, and rainy environments. It operates reliably in a wide range of settings, from outdoor signage, building outlines, and landscape lighting to indoor damp areas such as kitchens, bathrooms, and balconies. It withstands rain, fog, and everyday splashes, ensuring no water ingress or short circuits even with long-term use, making it ideal for all-weather lighting needs in both indoor and outdoor settings.

0410霓虹图4

Caution:

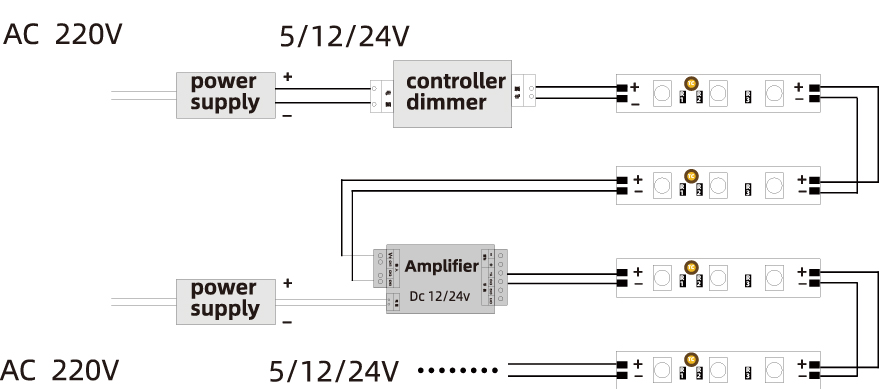

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 meters and constant current strip length>15 meters.






strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
