0410 Flexible Neon LED Strip – Ultra Slim 4x10mm Silicone Neon Flex Lighting (NEON STRIP SERIES)

Feature / Warranty

· Ultra-slim design

· No light spots

· Highly flexible and easy to style

· Customizable

Min. Order: ≧50 meters

Price and order please inquiry

Quantity:

库存： 0

Inquire

Add to Basket

4x10mm Flexible LED Neon Flex Strip

Ultra Slim 0410 Mini LED Neon Flex Strip

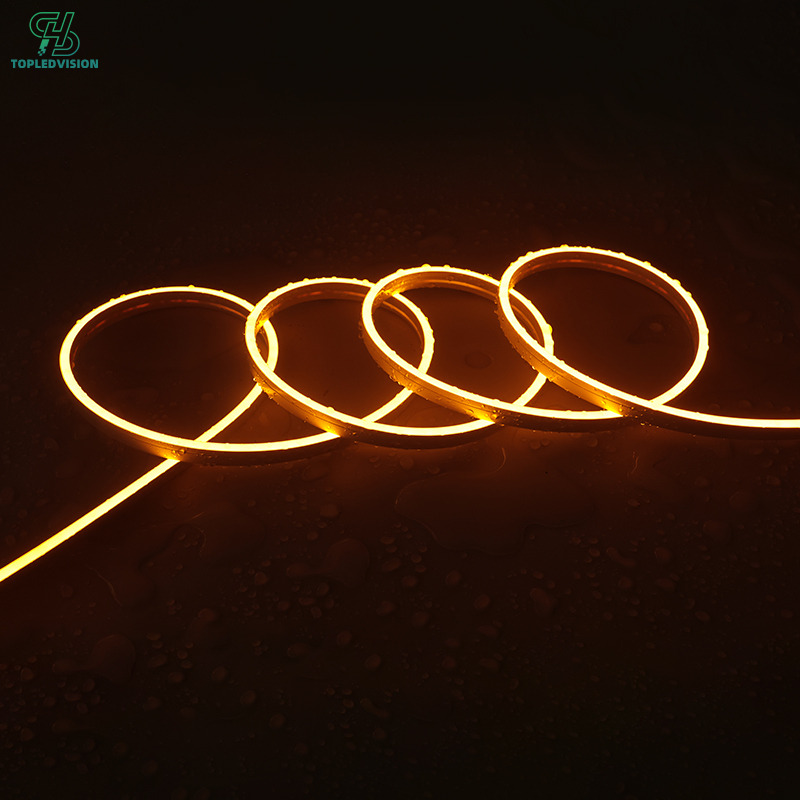

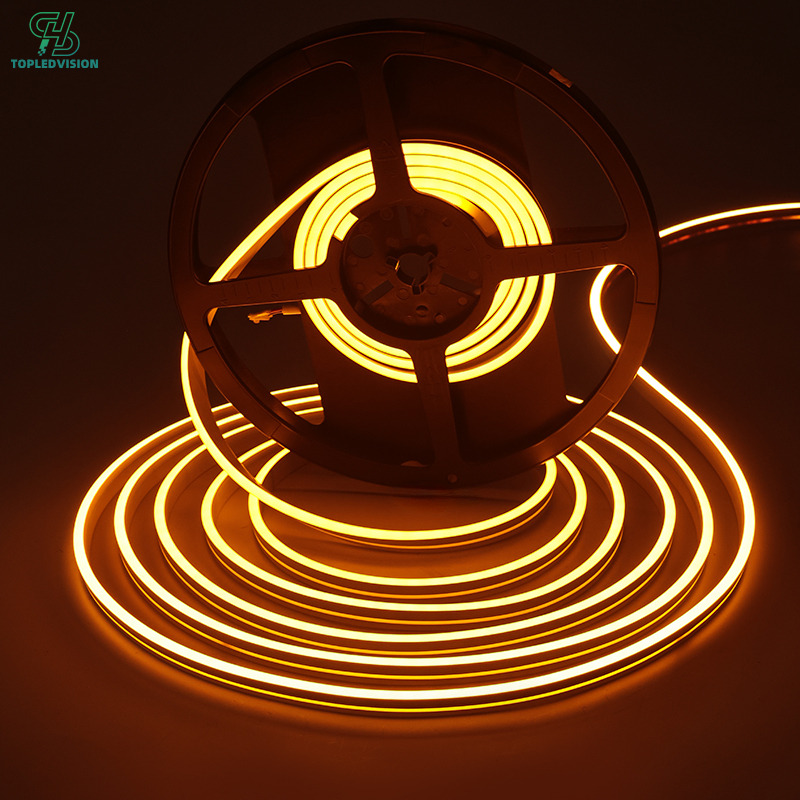

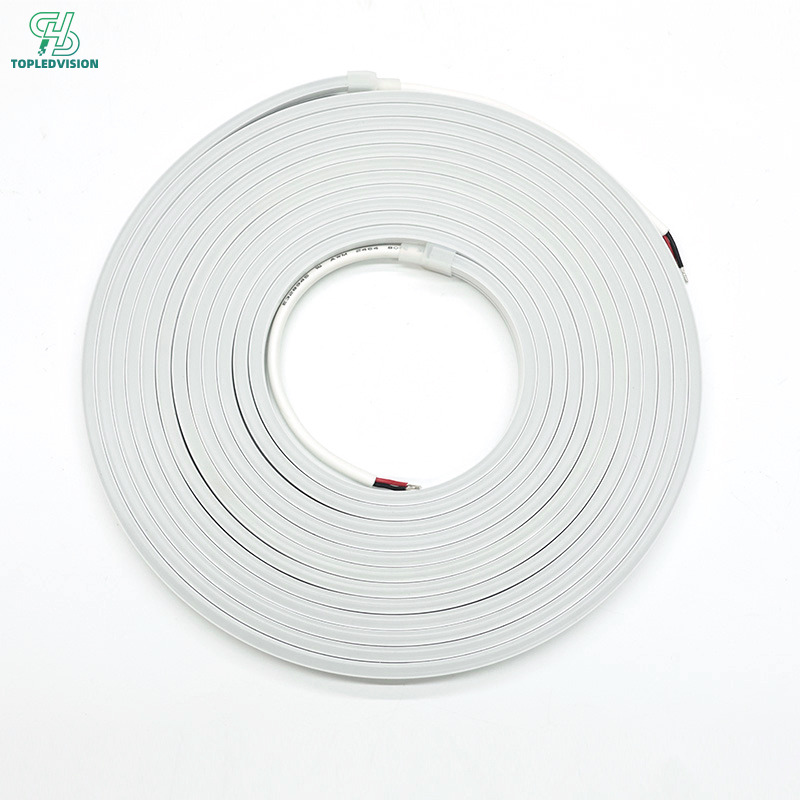

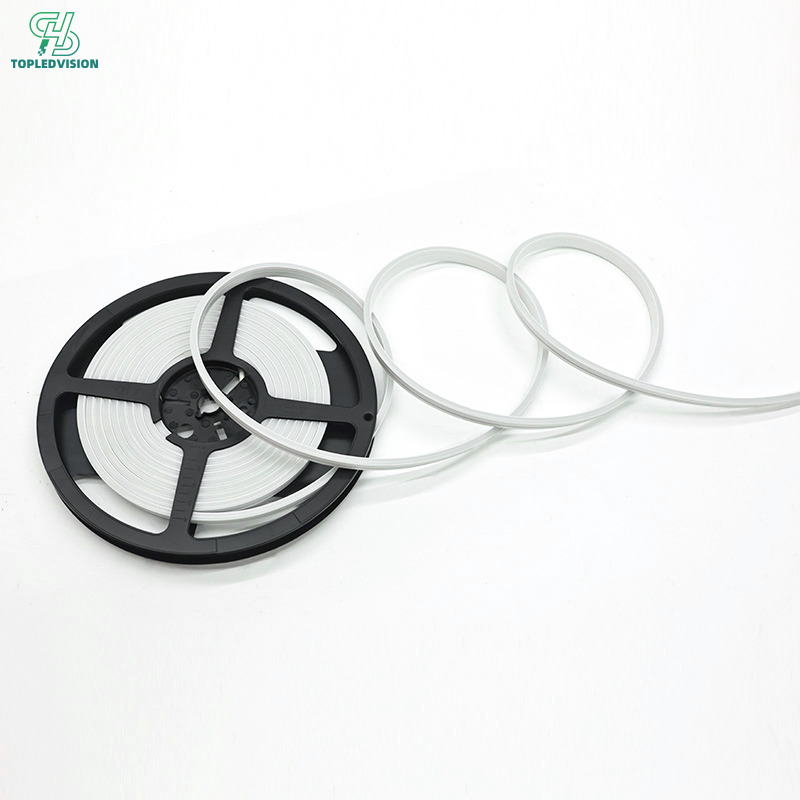

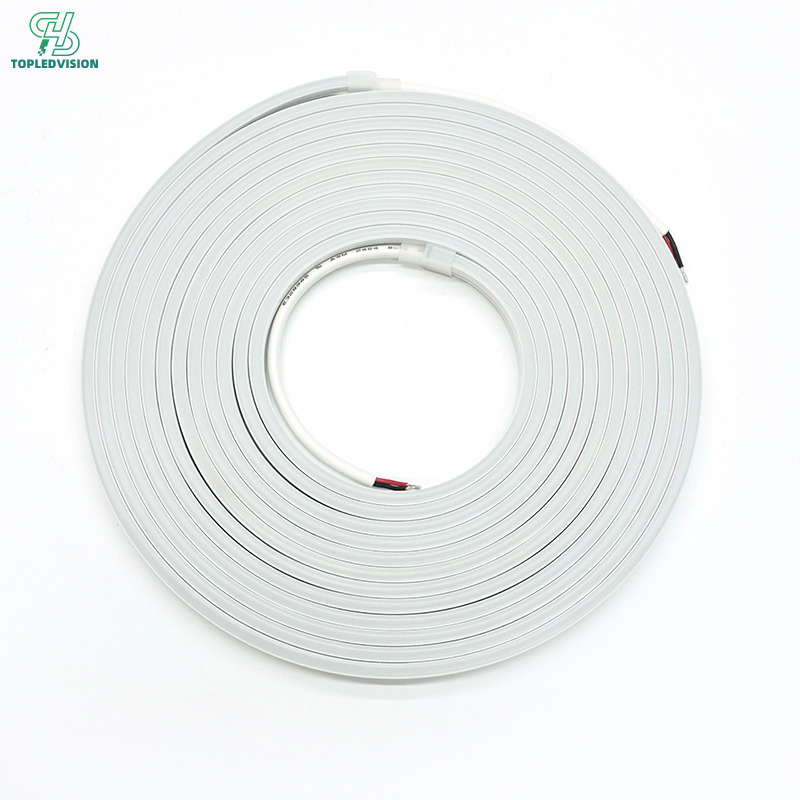

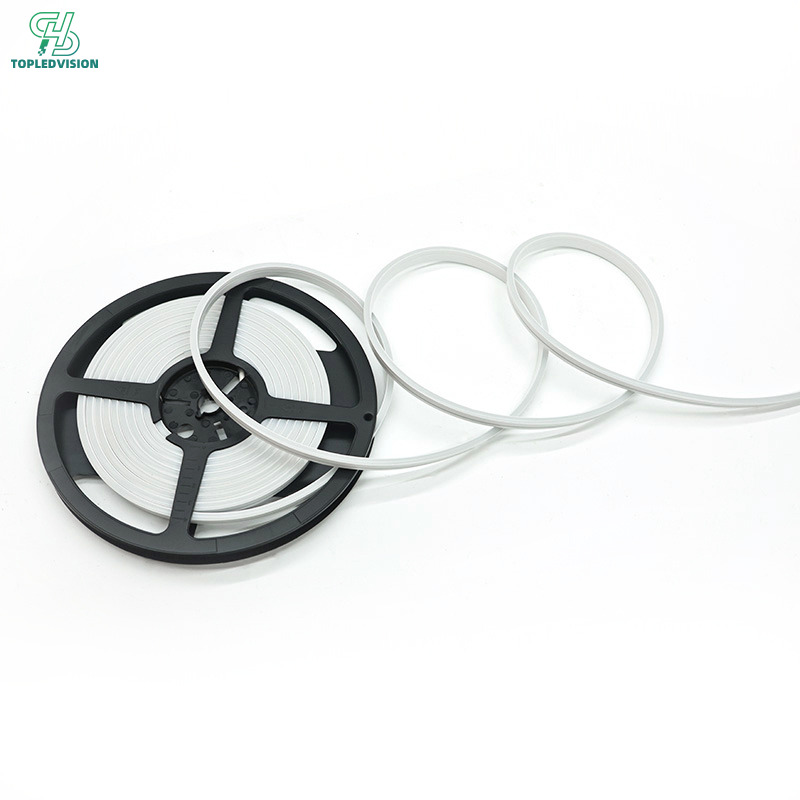

The 0410 LED Neon Flex Strip (4x10mm Flexible LED Neon Strip) features a compact ultra-slim design, making it one of the most versatile mini neon LED strips for narrow installation spaces. With a 4mm × 10mm silicone housing, it fits perfectly into tight light channels, furniture gaps, signage outlines, display frames, and decorative structures where conventional LED strips cannot be installed.

Powered by high-quality 2835 LED chips, this silicone neon flex strip supports 12V/24V DC low-voltage operation, delivering high brightness, excellent color consistency, stable performance, and long service life. Available in CRI Ra80/Ra90/Ra95, color temperatures from 1800K-10000K, and optional RGB/RGBW versions, it provides flexible lighting solutions for architectural and decorative applications.

High-Quality Silicone Neon Housing

The 4x10mm LED Neon Flex Strip uses premium eco-friendly silicone extrusion technology, featuring high light transmittance, excellent heat resistance, UV resistance, anti-yellowing performance, and high flexibility. The V0 flame-retardant silicone material improves safety and durability, ensuring reliable operation in demanding indoor and outdoor environments.

Dot-Free Uniform Lighting Effect

Equipped with high-density SMD2835 LEDs and an advanced side-emitting micro-lens optical design, the mini neon flex LED strip creates smooth, continuous illumination without dark areas, hotspots, or visible LED dots. The soft, glare-free 120° beam angle provides comfortable linear lighting effects, making it ideal for architectural lighting, cabinet lighting, display lighting, signage lighting, and decorative LED applications.

IP65/IP66 Waterproof Protection

Designed with a fully sealed silicone structure, the waterproof 0410 LED Neon Flex Strip provides IP65/IP66 protection, offering excellent resistance against water, moisture, UV exposure, temperature changes, and corrosion. It operates reliably from -20°C to 65°C, making it suitable for outdoor signage, landscape lighting, balconies, bathrooms, and other humid environments.

Flexible Bending & Easy Installation

The 4x10mm flexible neon LED strip supports smooth vertical and lateral bending, allowing customized shapes including curves, circles, S-shapes, letters, logos, and decorative patterns. It can be installed easily with aluminum mounting clips, flexible profiles, or adhesive backing. Fully sealed connectors and end caps ensure safe and stable installation.

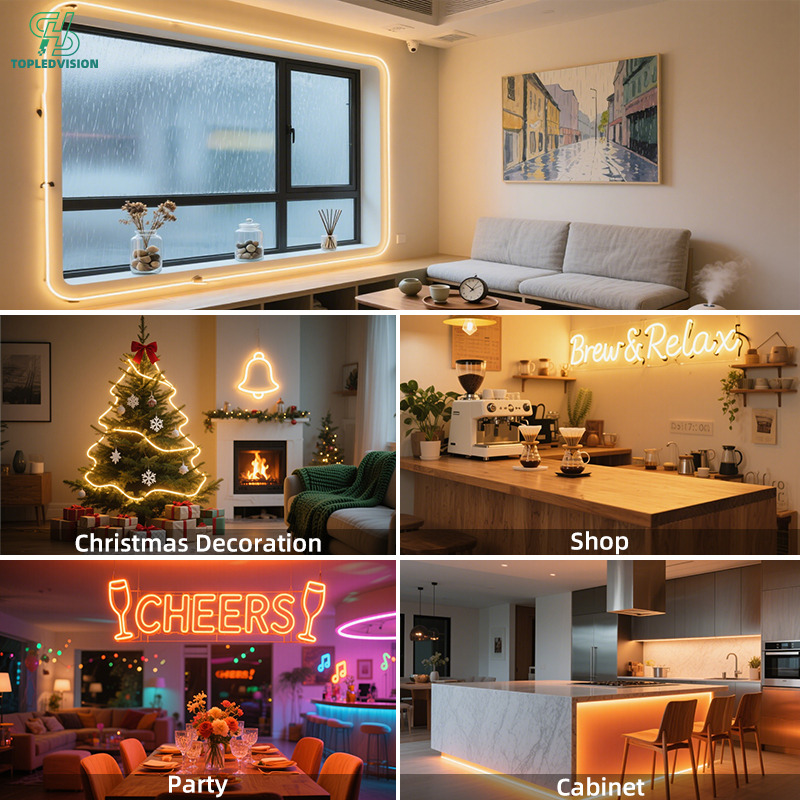

Applications of 4x10mm LED Neon Flex Strip

The 0410 mini neon LED strip is widely used for:

Stair tread and handrail lighting
TV background and wall accent lighting
Cabinet and wardrobe lighting
Wine rack and display case illumination
Jewelry cabinet lighting
Boutique store lighting
Wedding and event decoration
Mini illuminated letters and logos
Balcony and garden lighting
Fence and railing outline lighting
Directional signage lighting
Architectural contour lighting

Technical Parameters

lighting Effect	Dot free	lighting way	Side-lit
Color Temperature	1800-10000K, RGB, RGBW	Support Dimmer	Yes
Dimension	W4*H10mm	Lifespan	>50000h
Lamp Body Material	Meteorological silica gel	Working Temperature	-20-65℃
CRI	80/90/95Ra	Warranty	3Year
Input Voltage	5/12/24/ 48/110/220V	Certification	Emc, RoHS, CE,FCC, LVD
Luminous Efficiency	70-80lm/w	Packing	5/10/20/50Roll
Power	6/8/10/12W/M

Standardized, plug-and-play accessories significantly reduce commissioning time.

The waterproof connectors meet IP67 protection standards, ensuring safety outdoors by preventing electrical leakage and short circuits. and are ideal for large-scale projects.

Specialized clips and profiles ensure that the light strips are installed straight and flat, without any warping or bulging.

Neon Strip Using Notice: we suggest the professional peopleto do the installation, before using neon product, please read below note to avoid the improper operation to cause the neon damage.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Ultra-Compact 4x10mm Mini LED Neon Flex Strip

Featuring an ultra-slim 4x10mm LED Neon Flex Strip design, this mini neon LED strip fits seamlessly into narrow light channels, furniture gaps, signage edges, and acrylic panels. Its compact silicone neon flex structure creates a hidden light source effect with only smooth, continuous illumination visible. Ideal for architectural lighting, cabinet lighting, display cases, boutique stores, and luxury retail spaces where slim, minimalist, and high-end lighting solutions are required.

0410霓虹图1

Dot-Free 0410 LED Neon Flex Strip with Uniform Illumination

Built with high-density SMD2835 LEDs and a professional optical silicone housing, the 0410 LED Neon Flex Strip delivers smooth, continuous, and dot-free lighting without dark areas, hotspots, or visible LED points. With CRI ≥80/90/95Ra, it ensures natural color rendering for premium architectural lighting, display lighting, and commercial applications. The 4x10mm mini neon flex strip features a narrow side-emitting design, 120° wide beam angle, and soft glare-free illumination, making it ideal for contour lighting, linear lighting, signage, and edge lighting.

0410霓虹图2

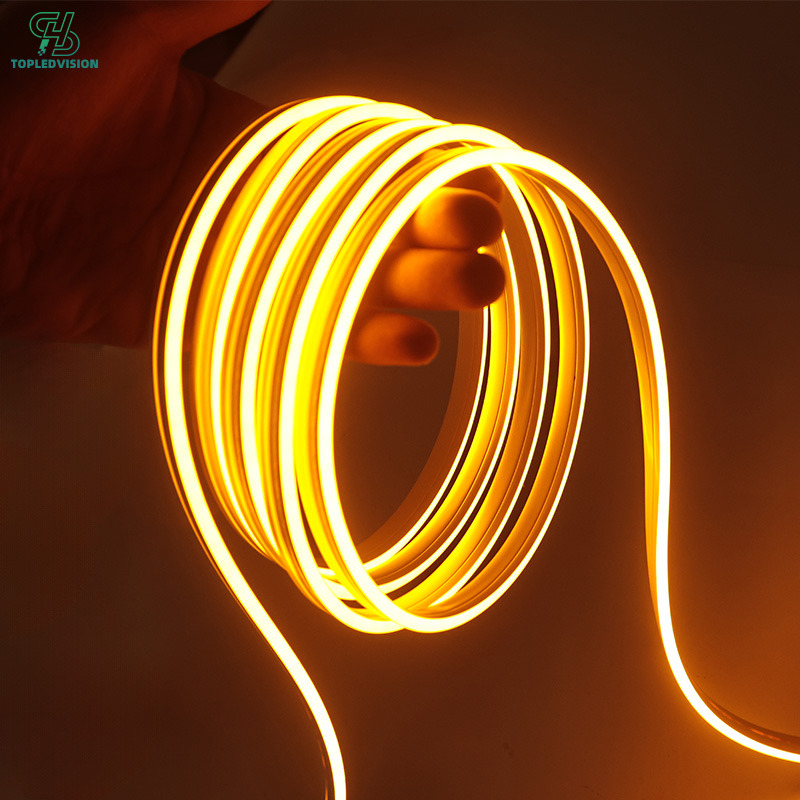

High Flexibility 0410 LED Neon Flex Strip

The 0410 LED Neon Flex Strip features a highly flexible silicone housing and double-layer copper FPC design, supporting both vertical and lateral bending with a minimum bending radius of R≥30mm. This mini neon flex strip can easily create letters, logos, curves, circles, and custom shapes for signage lighting, DIY projects, art installations, and dynamic displays. With precise 25mm/50mm cuttable sections, it allows flexible customization, easy installation, and zero material waste.

0410霓虹图3

Waterproof IP65/IP66 0410 LED Neon Flex Strip

The 0410 LED Neon Flex Strip features a one-piece extruded silicone design with IP65/IP66 waterproof protection, providing excellent resistance against water, dust, UV, yellowing, and corrosion. This silicone neon flex strip delivers reliable performance in outdoor and humid environments, including signage lighting, building outlines, landscape lighting, kitchens, bathrooms, and balconies. Designed for all-weather applications, it ensures stable illumination without water ingress or short circuits for long-term indoor and outdoor use.

0410霓虹图4

Caution:

Do not connect the positive(+) and negative(-) wrong, it will damage the product, suggest to power product on both sides when the strip length more than 7meters. Basic insulation between active parts of the LED module and the mounting surface of the LED module.

Use only with Class 2 or LPS power unit. (Utiliser seulement avec un bloc d'alimen tation classe 2 ou LPS)

Phenomenon	causes	solution
whole strip not working	1, positive(+) and negative (-)Connection wrong. 2, input voltage too low. 3, Power supply failure .	(1)check the+and -connection right between power supply and led strip. (2) check the power supply output volt is same with strip working volt.





whole strip with slight brightness and few sections bright	1, positive(+) and negative (-)short circuit of input wire, the resistor and chip led be burnt by surge. 2, leds will be failed by the power supply leakage or strip components touch the metal object around .	(1)please do not connect the wire with electricity, and make sure strip without any short circuit before power on.


led strip Color difference	1, something fall on the surface of LED.	(1)check the LED surface if anything fall on, like oil, dust,putty powder, then clean it.(this issue always happen in the project, suggest to install the led strip when decoration done.)
one section orfew sections failureor color missing	1, the pad of components crack by the wrong fold or people step on the led strip . 2, the chip of led burnt out.	(1)cut the failed section and replace with new section. (2)the led burnt out by ESD or the strip surface-to-surface touch each other or strip surface touch metal cause the short circuit.




the brightess is big difference between the front and the end	1, the strip length is too long make voltage drop.	(1)suggest to power strip on both sides when constant volt strip length>7 meters and constant current strip length>15 meters.






strip fall off from the object	1、the object with paint, dust and silicone will make the tape sticky weak	(1)suggest to clean the surface of object before stick the strip.



led strip white colorturn blue color	1, the fluorescent glue of led are corroded by something.	(1)if you need to use something like glue, tube, plastic to fix the strip,...please use the netural type, do not use acid type or something with sulfur.
